Lexus IS300h 2013 Owner's Manual

4877-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)

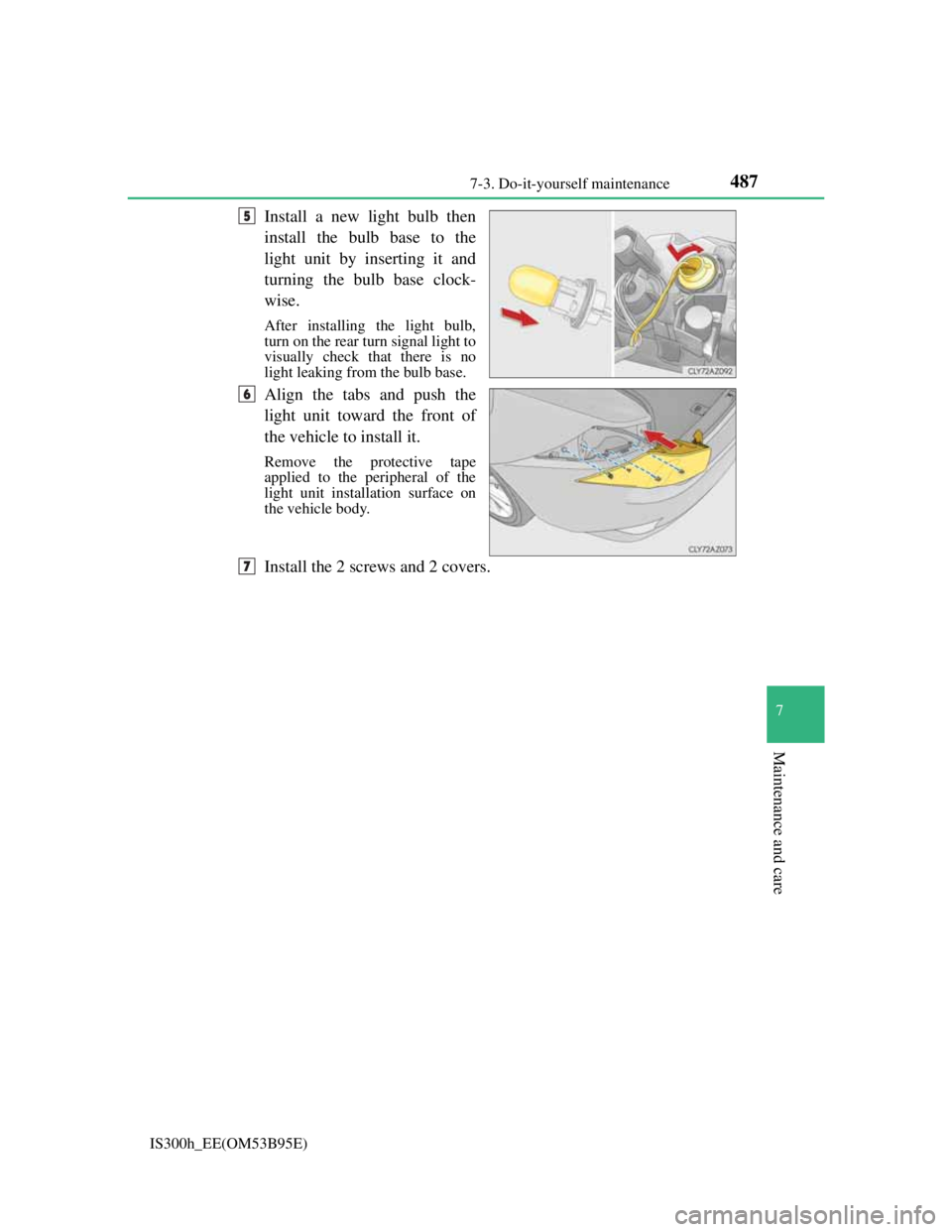

Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.
After installing the light bulb,
turn on the rear turn signal light to
visually check that there is no
light leaking from the bulb base.
Align the tabs and push the
light unit toward the front of
the vehicle to install it.
Remove the protective tape
applied to the peripheral of the
light unit installation surface on
the vehicle body.
Install the 2 screws and 2 covers.
5
6
7

4887-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)

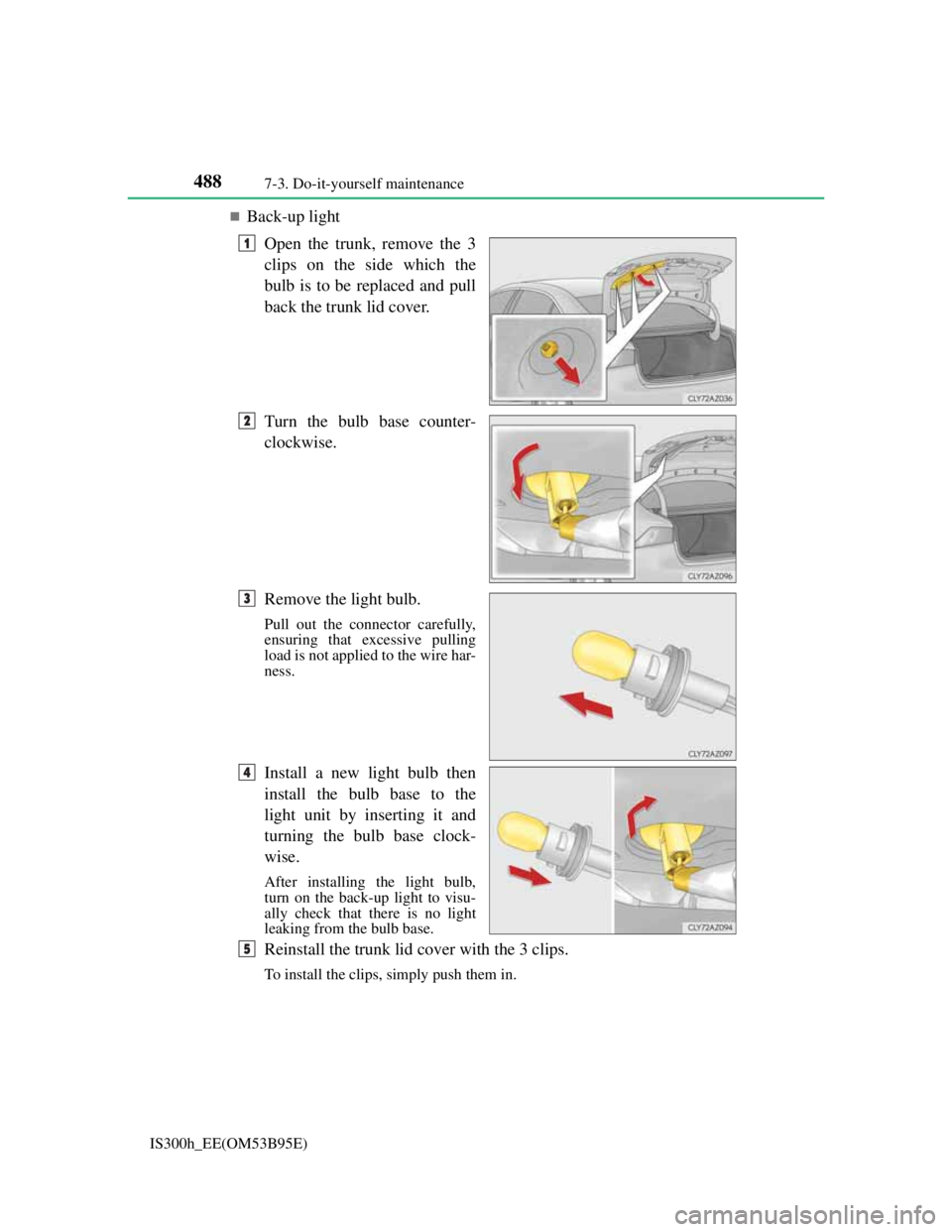

Back-up light
Open the trunk, remove the 3
clips on the side which the
bulb is to be replaced and pull
back the trunk lid cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
Pull out the connector carefully,
ensuring that excessive pulling
load is not applied to the wire har-
ness.
Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.
After installing the light bulb,
turn on the back-up light to visu-
ally check that there is no light
leaking from the bulb base.
Reinstall the trunk lid cover with the 3 clips.
To install the clips, simply push them in.
1
2
3
4
5

4897-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)

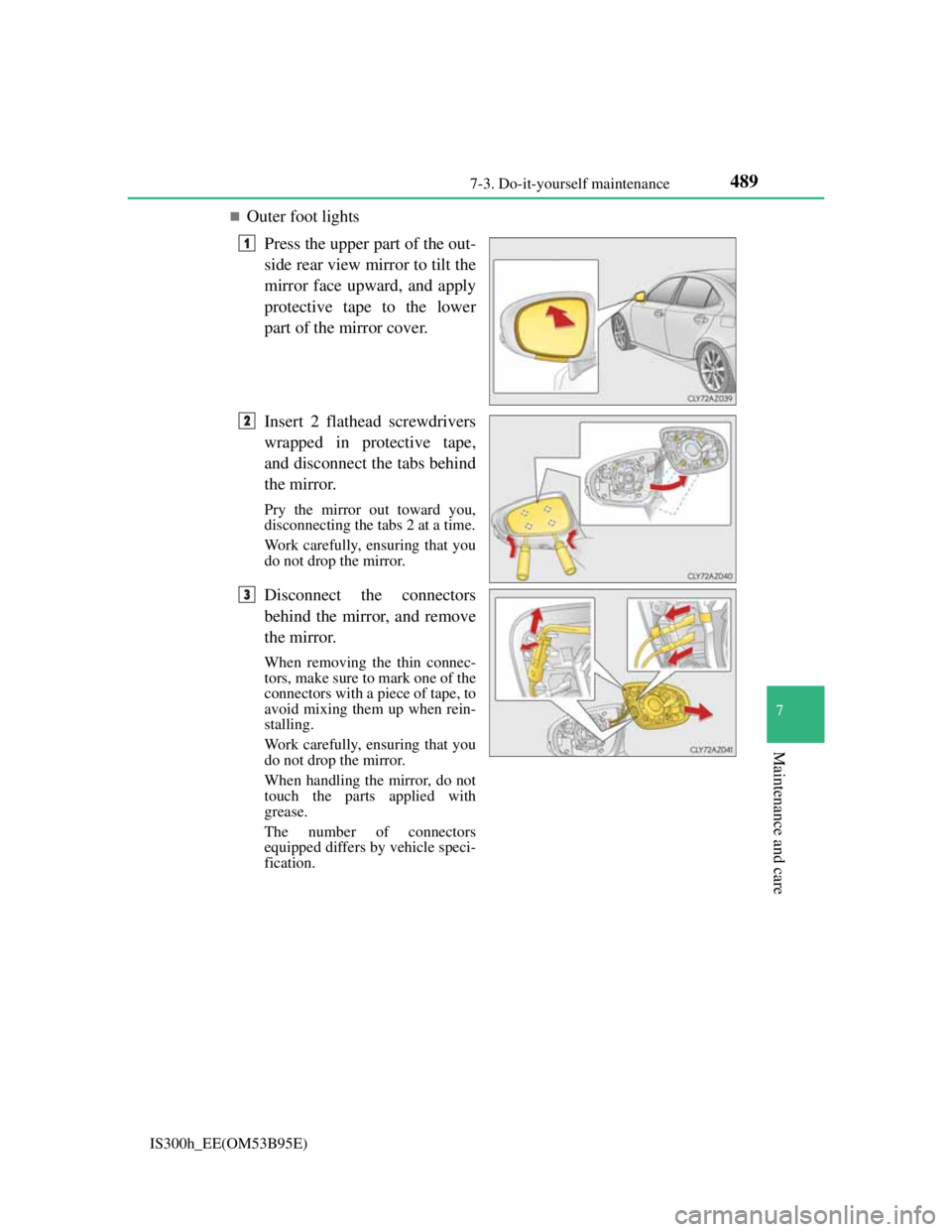

Outer foot lights
Press the upper part of the out-
side rear view mirror to tilt the
mirror face upward, and apply
protective tape to the lower
part of the mirror cover.
Insert 2 flathead screwdrivers
wrapped in protective tape,
and disconnect the tabs behind
the mirror.
Pry the mirror out toward you,
disconnecting the tabs 2 at a time.
Work carefully, ensuring that you
do not drop the mirror.
Disconnect the connectors
behind the mirror, and remove
the mirror.
When removing the thin connec-
tors, make sure to mark one of the
connectors with a piece of tape, to
avoid mixing them up when rein-
stalling.
Work carefully, ensuring that you
do not drop the mirror.
When handling the mirror, do not
touch the parts applied with
grease.
The number of connectors
equipped differs by vehicle speci-
fication.
1
2
3

4907-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)

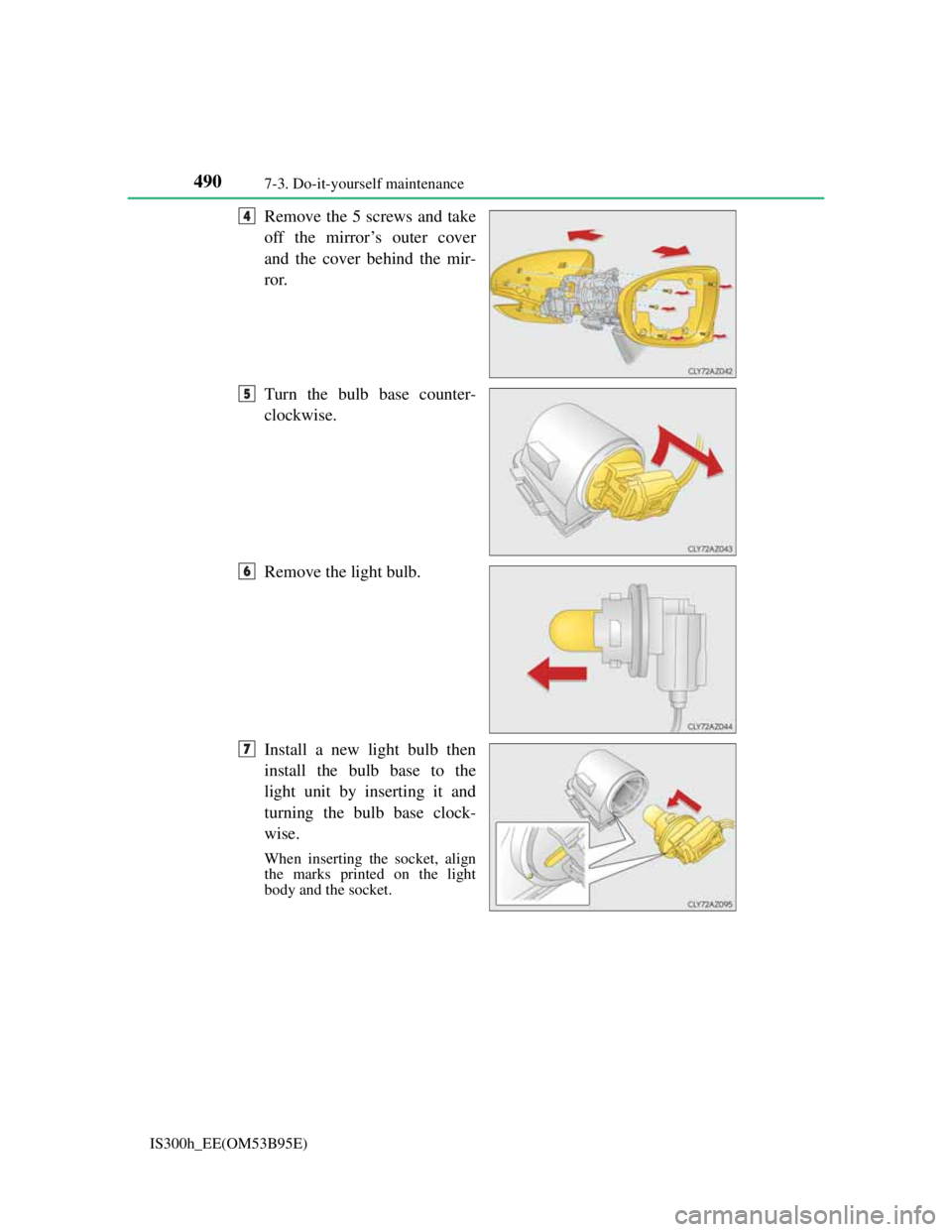

Remove the 5 screws and take
off the mirror’s outer cover
and the cover behind the mir-
ror.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.
When inserting the socket, align
the marks printed on the light
body and the socket.
4
5
6
7

4917-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)

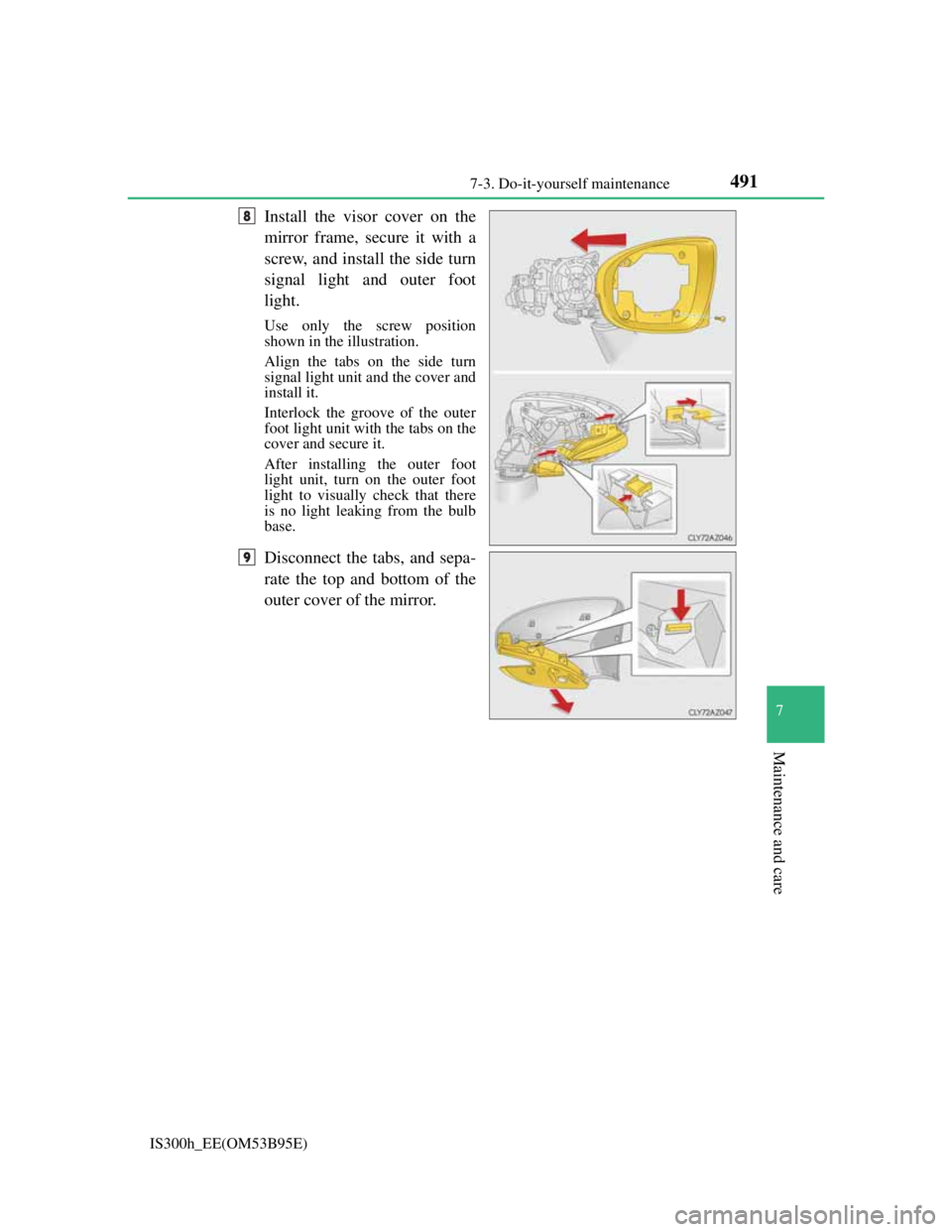

Install the visor cover on the
mirror frame, secure it with a
screw, and install the side turn
signal light and outer foot
light.
Use only the screw position
shown in the illustration.
Align the tabs on the side turn
signal light unit and the cover and
install it.
Interlock the groove of the outer
foot light unit with the tabs on the
cover and secure it.
After installing the outer foot
light unit, turn on the outer foot
light to visually check that there
is no light leaking from the bulb
base.
Disconnect the tabs, and sepa-
rate the top and bottom of the
outer cover of the mirror.
8
9

4927-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)

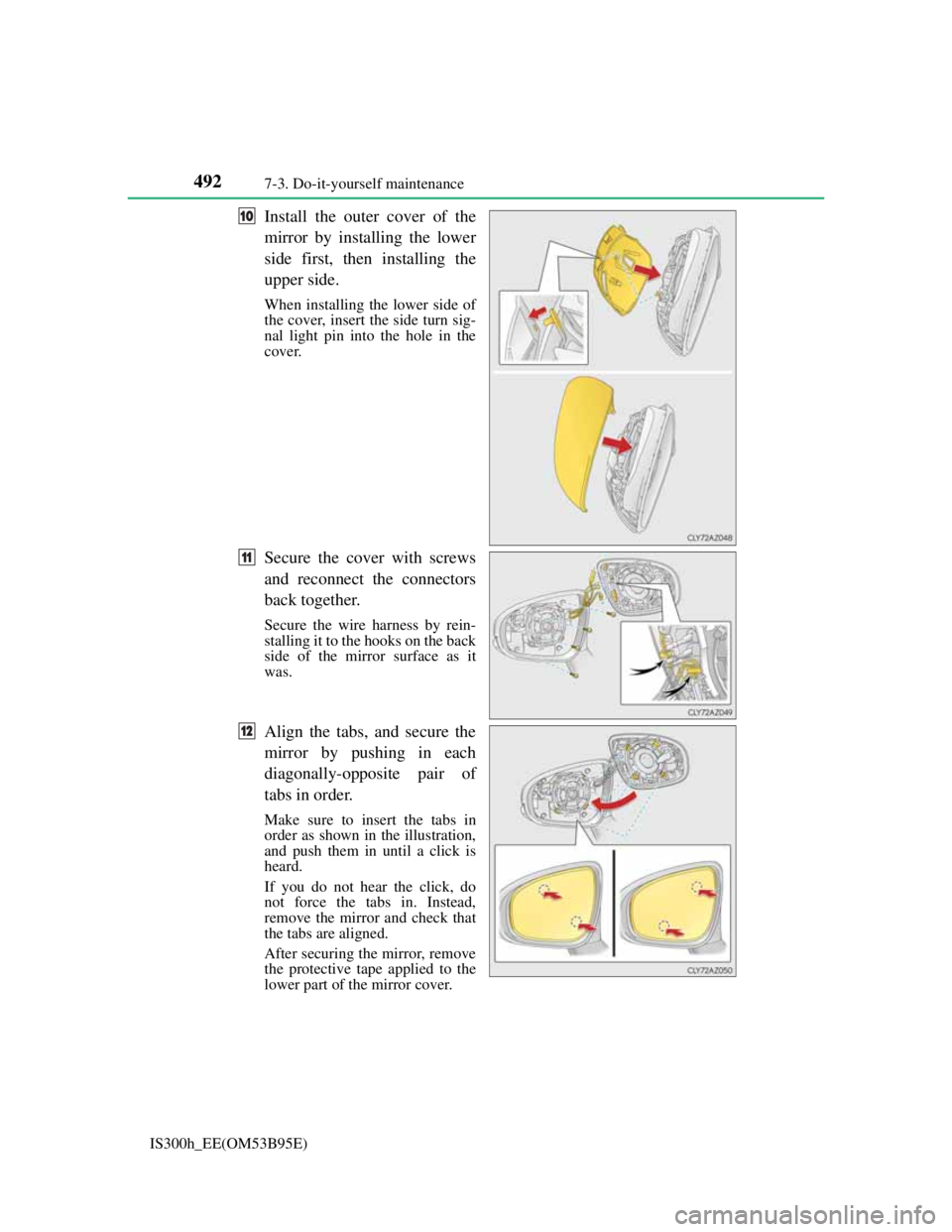

Install the outer cover of the
mirror by installing the lower
side first, then installing the
upper side.
When installing the lower side of
the cover, insert the side turn sig-
nal light pin into the hole in the
cover.
Secure the cover with screws
and reconnect the connectors
back together.
Secure the wire harness by rein-
stalling it to the hooks on the back
side of the mirror surface as it
was.
Align the tabs, and secure the
mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustration,
and push them in until a click is
heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check that
the tabs are aligned.
After securing the mirror, remove
the protective tape applied to the
lower part of the mirror cover.
10
11
12

4937-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Headlights
Front position lights and daytime running lights
LED front fog lights (if equipped)
Side turn signal lights
Stop/tail lights
Tail lights
Rear fog light
High mounted stoplight
License plate lights
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or
may go out temporarily. The discharge bulbs will come on when normal power is
restored.
LED Lights
The lights other than the discharge headlights (if equipped), halogen front fog
lights (if equipped), front turn signal lights, rear turn signal lights, back-up light
and outer foot lights each consist of a number of LEDs. If any of the LEDs burn
out, take your vehicle to any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional for more information in the fol-
lowing situations:
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing the front turn signal lights (vehicles with LED headlights)
When the washer fluid filler opening is removed with a large amount of washer
fluid contained in the washer tank, washer fluid may spill onto the vehicle and
cleaning may be required.
When replacing light bulbs
P. 478

4947-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)

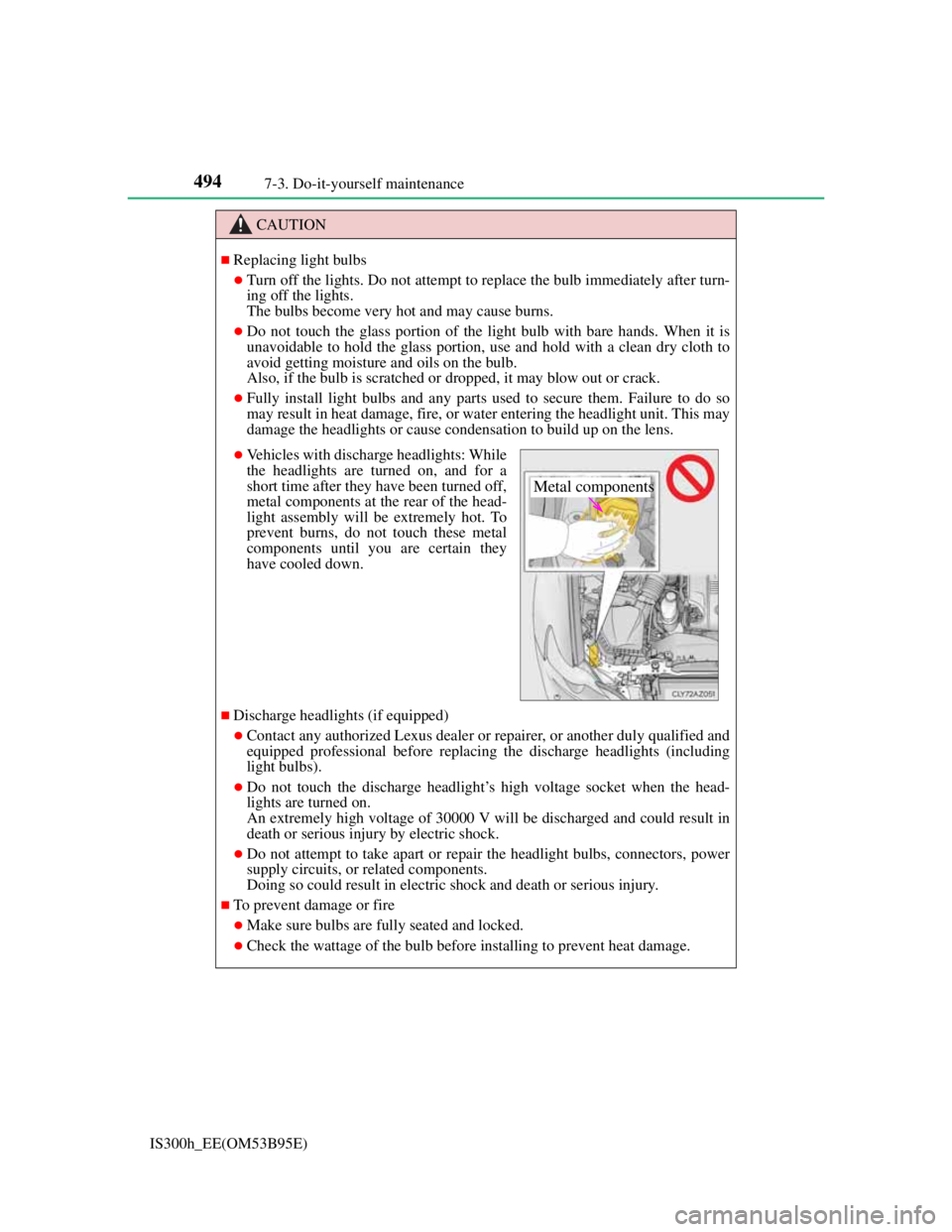

CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after turn-
ing off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth to
avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This may
damage the headlights or cause condensation to build up on the lens.
Discharge headlights (if equipped)
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional before replacing the discharge headlights (including
light bulbs).
Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result in
death or serious injury by electric shock.
Do not attempt to take apart or repair the headlight bulbs, connectors, power
supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
Check the wattage of the bulb before installing to prevent heat damage.
Vehicles with discharge headlights: While
the headlights are turned on, and for a
short time after they have been turned off,
metal components at the rear of the head-
light assembly will be extremely hot. To
prevent burns, do not touch these metal
components until you are certain they
have cooled down.
Metal components

4957-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)
NOTICE
When replacing the outer foot lights
If the front window is stopping you from conducting the replace operation
properly, open the window on the side you are working on to allow you enough
space to work. Continuing the operation without giving yourself enough space
to work could lead you to scratch the vehicle.
