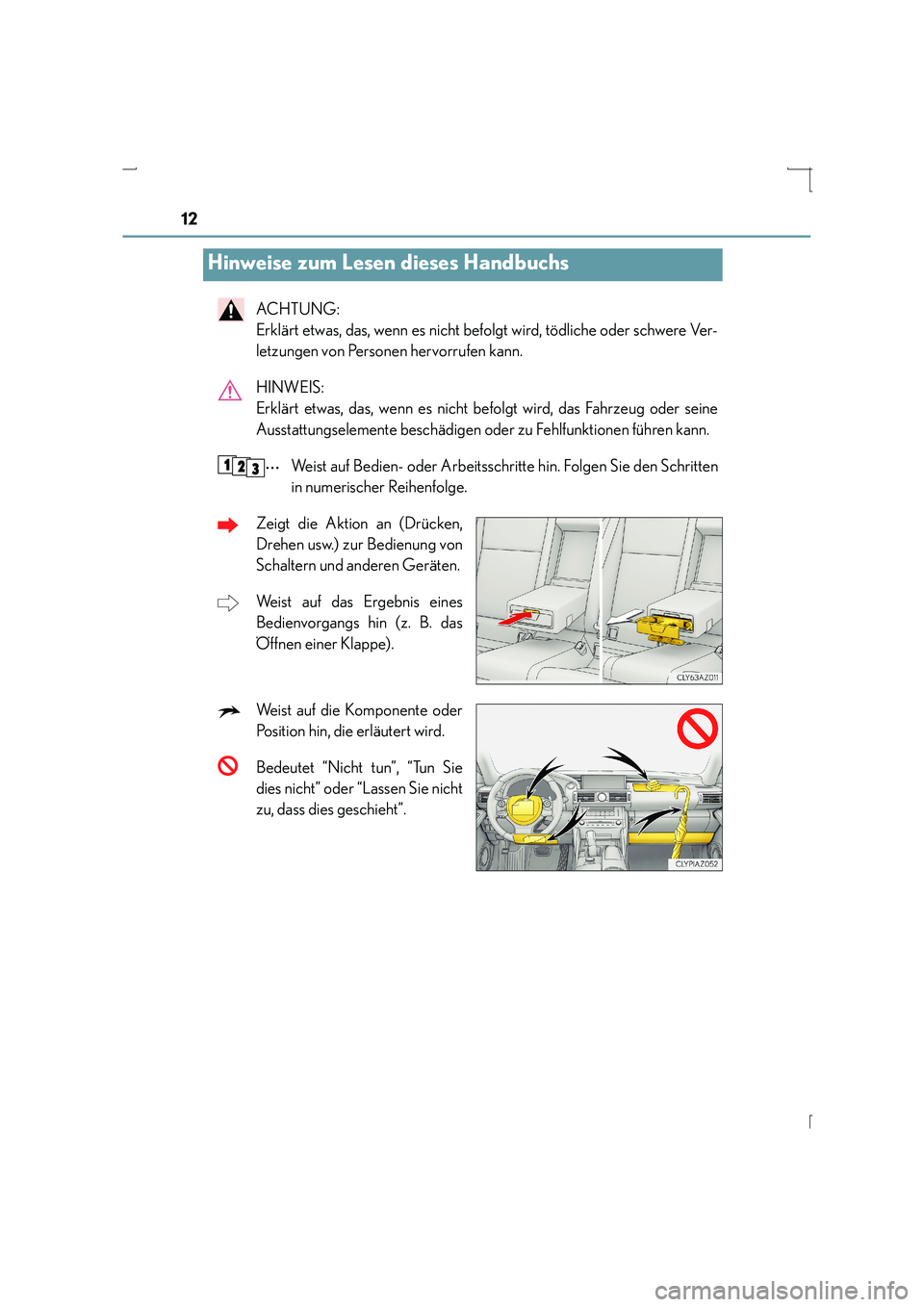

ACHTUNG:
Erklärt etwas, das, wenn es nicht befolgt wird, tödliche oder schwere Ver-
letzungen von Personen hervorrufen kann.
HINWEIS:
Erklärt etwas, das, wenn es nicht befolgt wird, das Fahrzeug oder seine
Ausstattungselemente beschädigen oder zu Fehlfunktionen führen kann.Weist auf Bedien- oder Arbeitsschritte hin. Folgen Sie den Schritten
in numerischer Reihenfolge.
Zeigt die Aktion an (Drücken,
Drehen usw.) zur Bedienung von
Schaltern und anderen Geräten.
Weist auf das Ergebnis eines
Bedienvorgangs hin (z. B. das
Öffnen einer Klappe).
Weist auf die Komponente oder
Position hin, die erläutert wird.
Bedeutet “Nicht tun”, “Tun Sie
dies nicht” oder “Lassen Sie nicht
zu, dass dies geschieht”.
Hinweise zum Lesen dieses Handbuchs
Page 13 of 648
13
IS300h_EM(OM53D58M)■
Name als Suchkriterium
• Alphabetischer Index ..........S. 628
■Installationsposition als Suchkrite-
rium• Illustrierter Index........................ S. 14
■Symptom oder Geräusch als Such-
kriterium• Was tun, wenn...
(Fehlersuche) .......................... S. 624
■Titel als Suchkriterium• Inhaltsverzeichnis ........................ S. 2
Hinweise zur Suche
Page 14 of 648

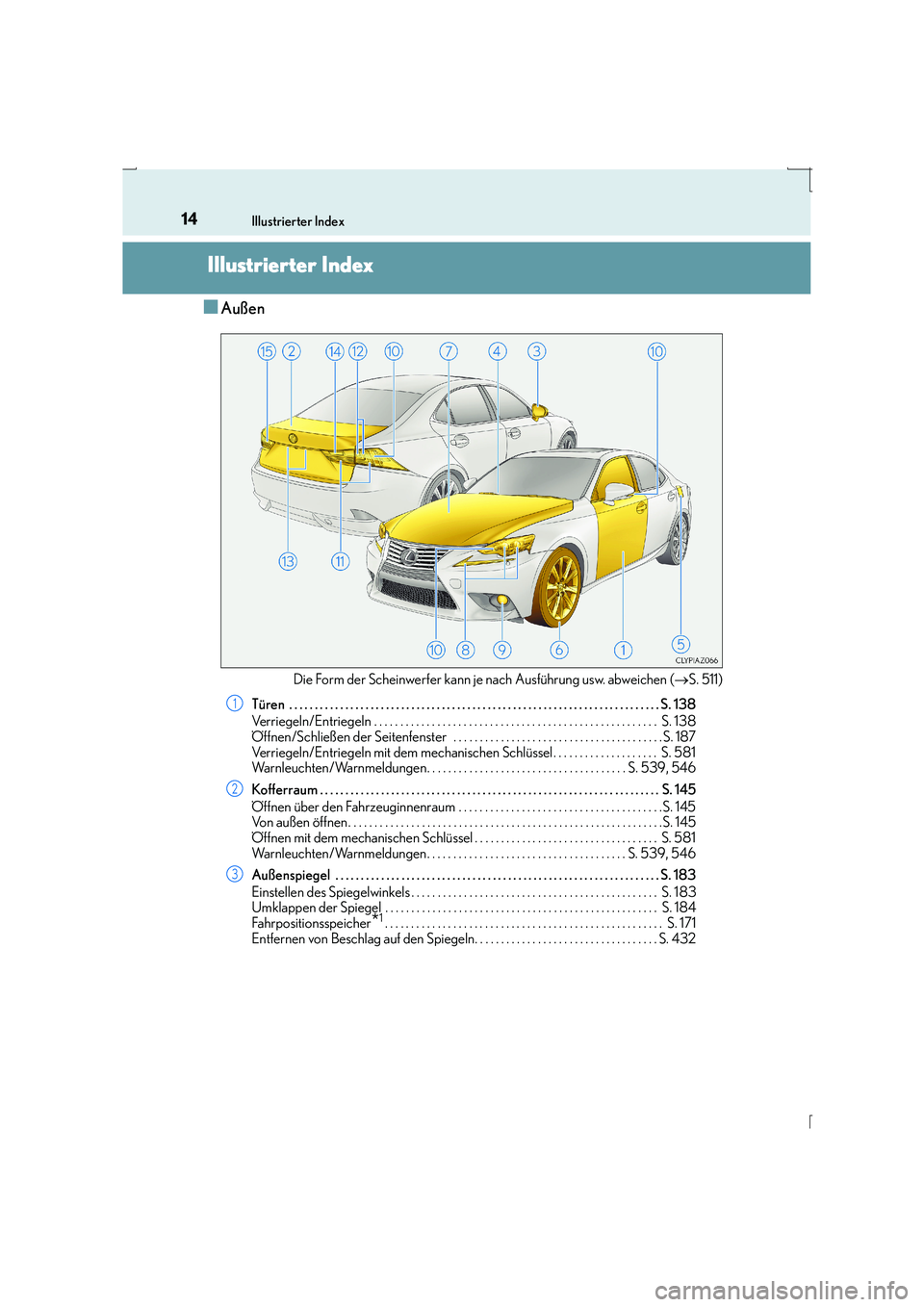

14
IS300h_EM(OM53D58M)
Illustrierter Index
Illustrierter Index
■Außen
Die Form der Scheinwerfer kann je nach Ausführung usw. abweichen (→S. 511)
Türen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 138
Verriegeln/Entriegeln . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 138
Öffnen/Schließen der Seitenfenster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 187
Verriegeln/Entriegeln mit dem mechanischen Schlüssel . . . . . . . . . . . . . . . . . . . . S. 581
Warnleuchten/Warnmeldungen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 539, 546
Kofferraum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 145
Öffnen über den Fahrzeuginnenraum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 145
Von außen öffnen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 145
Öffnen mit dem mechanischen Schlüssel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 581
Warnleuchten/Warnmeldungen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 539, 546
Außenspiegel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 183
Einstellen des Spiegelwinkels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 1 83
Umklappen der Spiegel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S . 184
Fahrpositionsspeicher
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 171
Entfernen von Beschlag auf den Spiegeln. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 432
1
2
3
Page 15 of 648

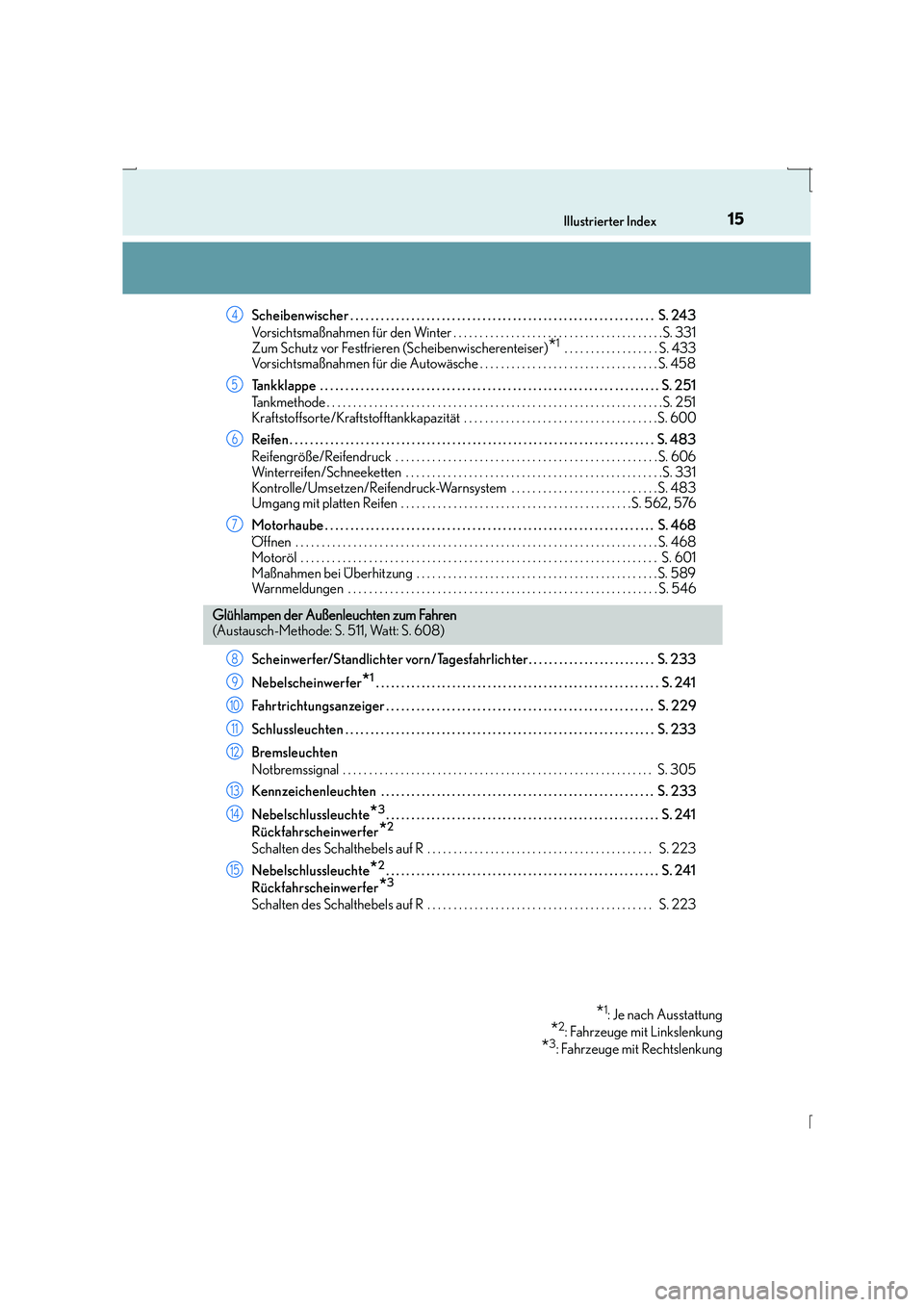

15Illustrierter Index
IS300h_EM(OM53D58M)Scheibenwischer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . S. 243
Vorsichtsmaßnahmen für den Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 331
Zum Schutz vor Festfrieren (Scheibenwischerenteiser)
*1 . . . . . . . . . . . . . . . . . . S. 433
Vorsichtsmaßnahmen für die Autowäsche . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 458
Tankklappe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 251
Tankmethode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 251
Kraftstoffsorte/Kraftstofftankkapazität . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 600
Reifen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 483
Reifengröße/Reifendruck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 6 06
Winterreifen/Schneeketten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 3 31
Kontrolle/Umsetzen/Reifendruck-Warnsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 483
Umgang mit platten Reifen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 562, 576
Motorhaube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 468
Öffnen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 468
Motoröl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 601
Maßnahmen bei Überhitzung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 589
Warnmeldungen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 546
Scheinwerfer/Standlichter vorn/Tagesfahrlichter. . . . . . . . . . . . . . . . . . . . . . . . . S. 233
Nebelscheinwerfer
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 241
Fahrtrichtungsanzeiger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 229
Schlussleuchten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 233
Bremsleuchten
Notbremssignal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 305
Kennzeichenleuchten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 233
Nebelschlussleuchte
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 241
Rückfahrscheinwerfer
*2
Schalten des Schalthebels auf R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 223
Nebelschlussleuchte
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 241
Rückfahrscheinwerfer
*3
Schalten des Schalthebels auf R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 223
4
5
6
7
Glühlampen der Außenleuchten zum Fahren
(Austausch-Methode: S. 511, Watt: S. 608)
*1: Je nach Ausstattung
*2: Fahrzeuge mit Linkslenkung
*3: Fahrzeuge mit Rechtslenkung
8
9
10
11
12
13
14
15
Page 16 of 648

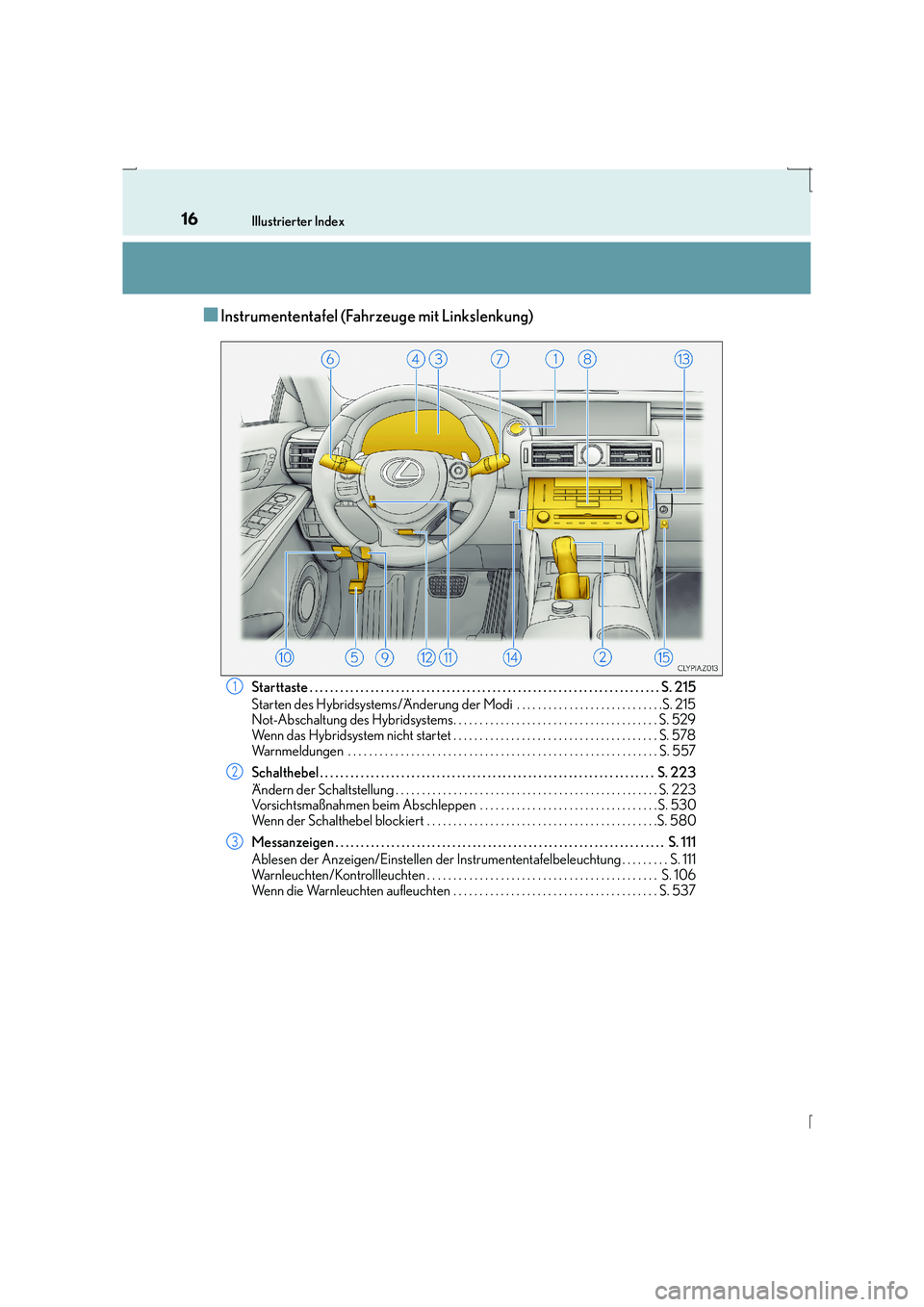

16Illustrierter Index
IS300h_EM(OM53D58M)
■Instrumententafel (Fahrzeuge mit Linkslenkung)
Starttaste . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 215
Starten des Hybridsystems/Änderung der Modi . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 215
Not-Abschaltung des Hybridsystems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 529
Wenn das Hybridsystem nicht startet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 578
Warnmeldungen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 557
Schalthebel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 223
Ändern der Schaltstellung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 223
Vorsichtsmaßnahmen beim Abschleppen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 530
Wenn der Schalthebel blockiert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 580
Messanzeigen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 111
Ablesen der Anzeigen/Einstellen der Instrume ntentafelbeleuchtung . . . . . . . . . S. 111
Warnleuchten/Kontrollleuchten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 106
Wenn die Warnleuchten aufleuchten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 5371
2
3
Page 17 of 648

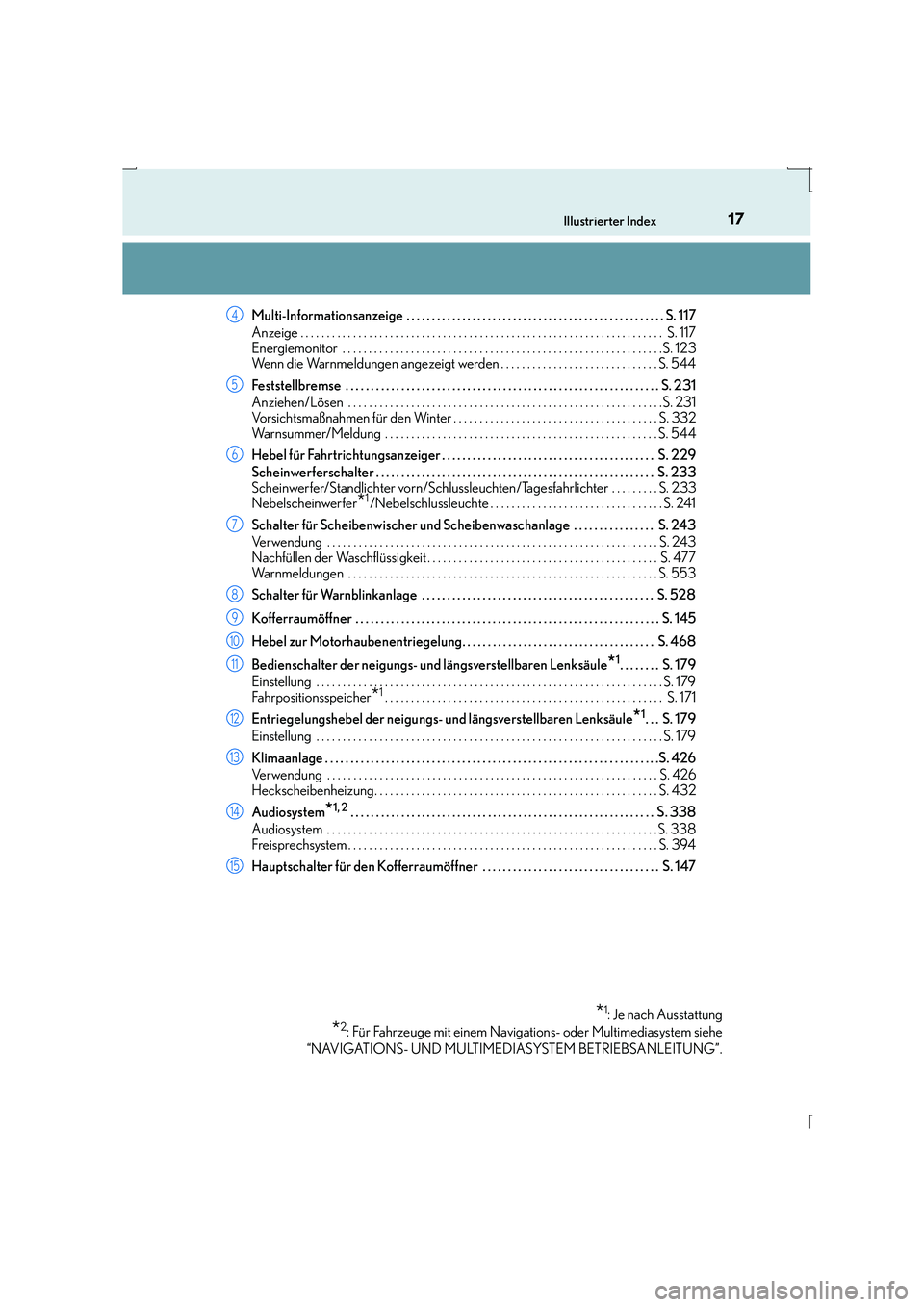

17Illustrierter Index
IS300h_EM(OM53D58M)Multi-Informationsanzeige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S. 117
Anzeige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 117
Energiemonitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 123
Wenn die Warnmeldungen angezeigt werden . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 544
Feststellbremse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 231
Anziehen/Lösen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 231
Vorsichtsmaßnahmen für den Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 332
Warnsummer/Meldung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 54 4
Hebel für Fahrtrichtungsanzeiger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 229
Scheinwerferschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 233
Scheinwerfer/Standlichter vorn/Schlussleuchten/Tagesfahrlichter . . . . . . . . . S. 233
Nebelscheinwerfer
*1/Nebelschlussleuchte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 241
Schalter für Scheibenwischer und Scheibenwaschanlage . . . . . . . . . . . . . . . . S. 243
Verwendung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 243
Nachfüllen der Waschflüssigkeit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 477
Warnmeldungen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 553
Schalter für Warnblinkanlage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 528
Kofferraumöffner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 145
Hebel zur Motorhaubenentriegelung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 468
Bedienschalter der neigungs- und längsverstellbaren Lenksäule
*1. . . . . . . . S. 179
Einstellung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 179
Fahrpositionsspeicher
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 171
Entriegelungshebel der neigungs- und längsverstellbaren Lenksäule
*1. . . S. 179
Einstellung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 179
Klimaanlage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 426
Verwendung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 426
Heckscheibenheizung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S . 432
Audiosystem
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 338
Audiosystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 338
Freisprechsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 394
Hauptschalter für den Kofferraumöffner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 147
*1: Je nach Ausstattung
*2: Für Fahrzeuge mit einem Navigations- oder Multimediasystem siehe
“NAVIGATIONS- UND MULTIMEDIASYSTEM BETRIEBSANLEITUNG”.
4
5
6
7
8
9
10
11
12
13
14
15
Page 18 of 648
18Illustrierter Index
IS300h_EM(OM53D58M)
■Schalter (Fahrzeuge mit Linkslenkung)
Schalter für automatisches Fernlicht*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 236
Schalter für Scheibenwischerenteiser
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 433
ASC-Schalter (Regler für Beschleunigungsgeräusch)
*1. . . . . . . . . . . . . . . . . . S. 232
Gesamtkilometerzähler/Tageskilomete rzähler und Rückstelltaste für
Tageskilometerzähler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 113
Helligkeitsregler für die Instrumententafelbeleuchtung . . . . . . . . . . . . . . . . . . . . S. 114
Schalter für hinteren Sonnenschutz
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 451
Schalter für Lexus-Einparkhilfe
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 281
BSM-Hauptschalter (Toter-Winkel-Monitor)
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 318
1
2
3
4
5
6
7
8
Page 19 of 648
19Illustrierter Index

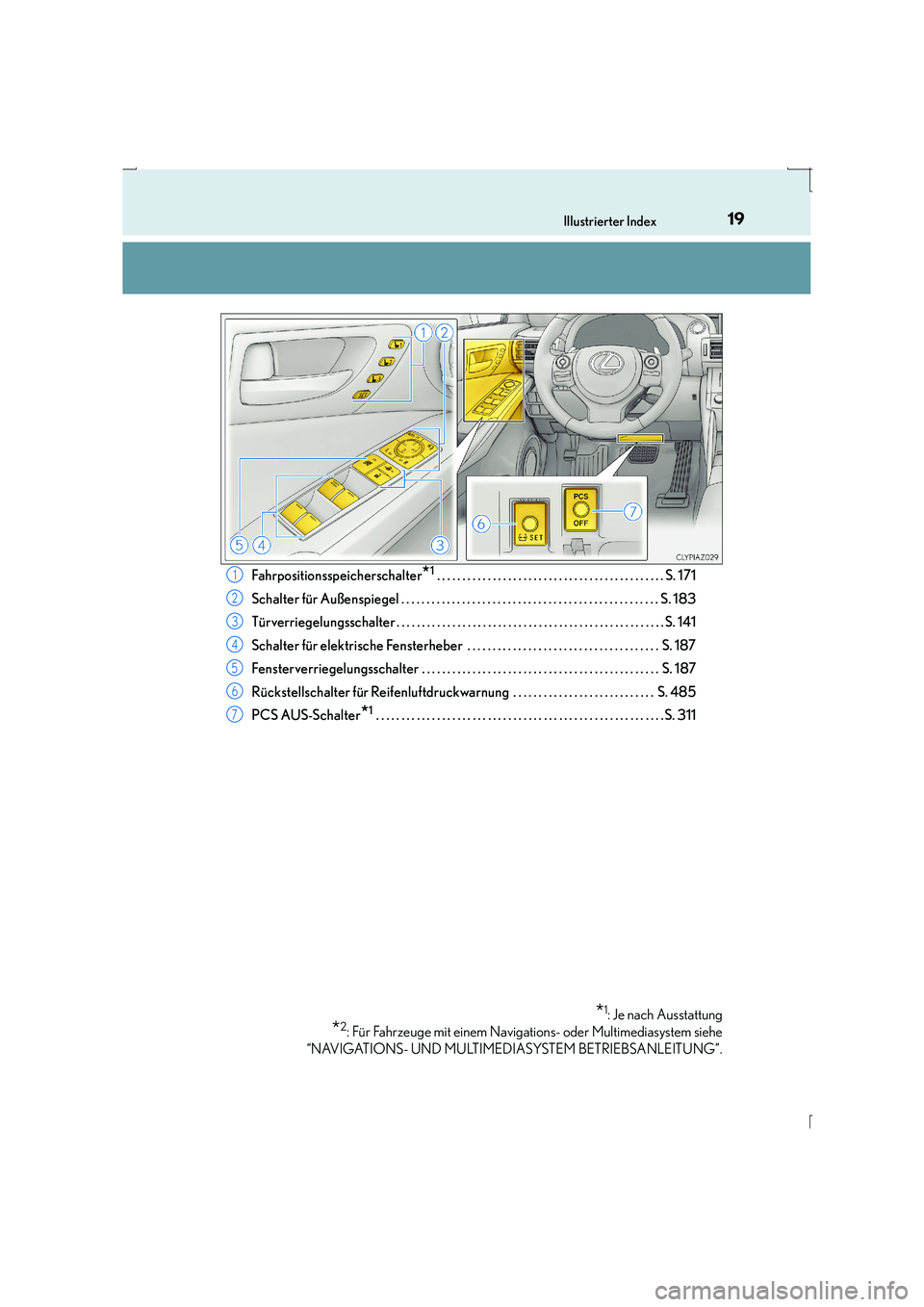

IS300h_EM(OM53D58M)Fahrpositionsspeicherschalter
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 171
Schalter für Außenspiegel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 183
Türverriegelungsschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 141
Schalter für elektrische Fensterheber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 187
Fensterverriegelungsschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 1 87
Rückstellschalter für Reifenluftdruckwarnung . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 485
PCS AUS-Schalter
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 311
*1: Je nach Ausstattung
*2: Für Fahrzeuge mit einem Navigations- oder Multimediasystem siehe
“NAVIGATIONS- UND MULTIMEDIASYSTEM BETRIEBSANLEITUNG”.
1
2
3
4
5
6
7
Page 20 of 648

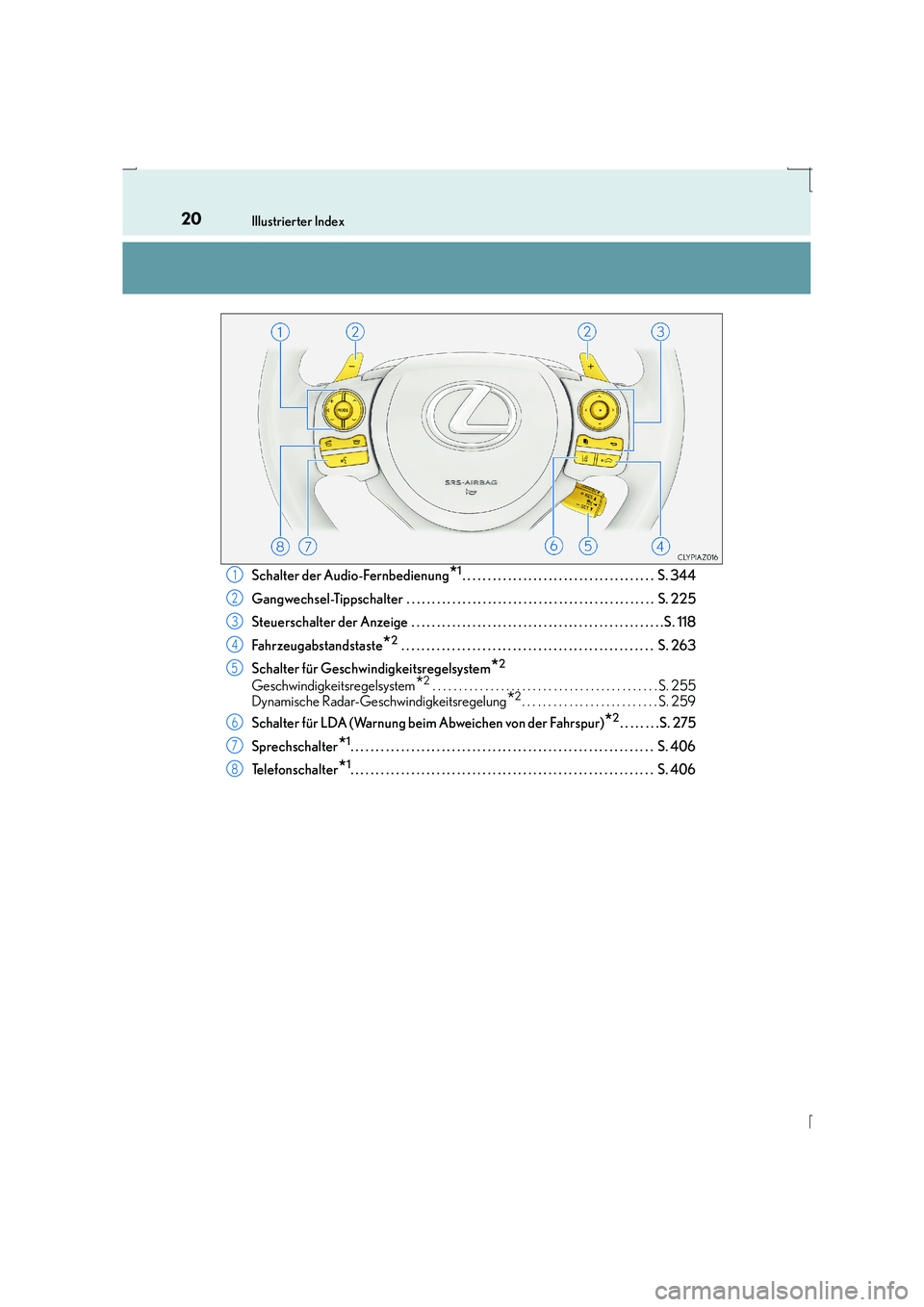

20Illustrierter Index
IS300h_EM(OM53D58M)Schalter der Audio-Fernbedienung
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 344
Gangwechsel-Tippschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 2 25
Steuerschalter der Anzeige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S . 118
Fahrzeugabstandstaste
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 263
Schalter für Geschwindigkeitsregelsystem
*2
Geschwindigkeitsregelsystem*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 255
Dynamische Radar-Geschwindigkeitsregelung*2. . . . . . . . . . . . . . . . . . . . . . . . . . S. 259
Schalter für LDA (Warnung beim Abweichen von der Fahrspur)
*2. . . . . . . . S. 275
Sprechschalter
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 406
Te l e f o n s c h a l t e r
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 406
1
2
3
4
5
6
7
8
