Lexus IS300h 2017 Owner's Manual

3614-6. Driving tips
4
Driving
IS300h_EE(OM53D89E)
●Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine/power cont rol unit coolant
•Washer fluid
●Have a service technician inspect the condition of the 12-volt battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire chains for
the rear tires.*
Ensure that all tires are the specified size and brand, and that chains match the size
of the tires.
*: Tire chains cannot be mounted on the 18-inch tires.
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen. Pour
warm water over the frozen area to me lt the ice. Wipe away the water imme-
diately to prevent it from freezing.
●To ensure proper operation of the c limate control system fan, remove any
snow that has accumulated on the air inlet vents in front of the windshield.
●Check for and remove any excess ice or snow that may have accumulated on
the exterior lights, vehicle’s roof, chassi s, around the tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes before getting in the
vehicle.
Accelerate the vehicle slowly, keep a sa fe distance between you and the vehicle
ahead, and drive at a reduced spee d suitable to road conditions.
Winter driving tips
Carry out the necessary preparations and inspections before driving the vehi-
cle in winter. Always drive the vehicle in a manner appropriate to the prevail-
ing weather conditions.
Preparation for winter
Before driving the vehicle
When driving the vehicle

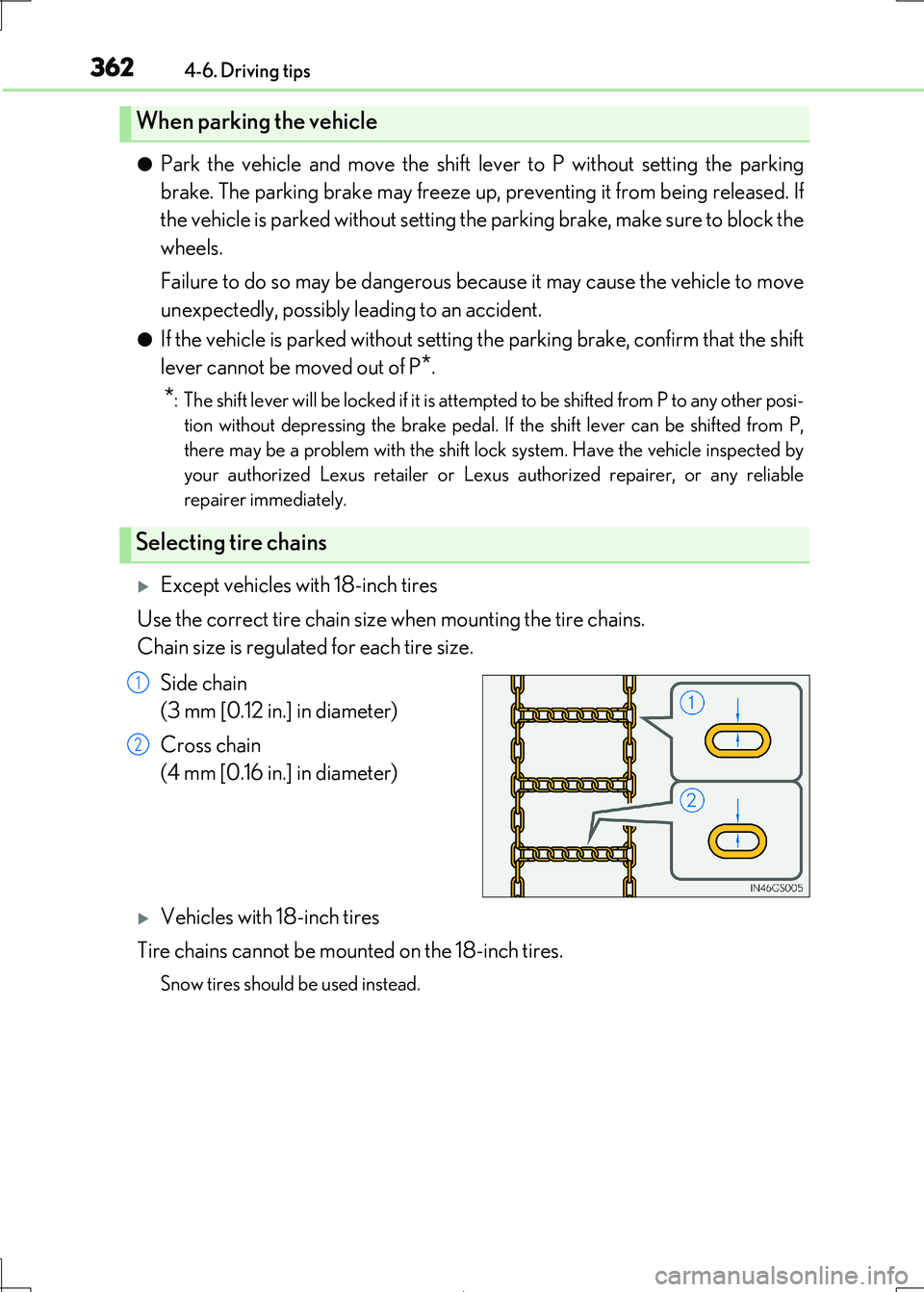

3624-6. Driving tips
IS300h_EE(OM53D89E)
●Park the vehicle and move the shift lever to P without setting the parking
brake. The parking brake may freeze up, preventing it from being released. If
the vehicle is parked without setting the parking brake, make sure to block the
wheels.
Failure to do so may be dangerous because it may cause the vehicle to move
unexpectedly, possibly leading to an accident.
●If the vehicle is parked without setting the parking brake, confirm that the shift
lever cannot be moved out of P*.
*: The shift lever will be locked if it is atte mpted to be shifted from P to any other posi-
tion without depressing the brake pedal. If the shift lever can be shifted from P,
there may be a problem with the shift lock system. Have the vehicle inspected by
your authorized Lexus reta iler or Lexus authorized repairer, or any reliable
repairer immediately.
Except vehicles with 18-inch tires
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
(3 mm [0.12 in.] in diameter)
Cross chain
(4 mm [0.16 in.] in diameter)
Vehicles with 18-inch tires
Tire chains cannot be mounted on the 18-inch tires.
Snow tires should be used instead.
When parking the vehicle
Selecting tire chains
1
2

3634-6. Driving tips
4
Driving
IS300h_EE(OM53D89E)
Regulations regarding the use of tire chains vary depending on location and type
of road. Always check local regulations before installing chains.
■Tire chain installation
Observe the following precautions wh en installing and removing chains:
●Install and remove tire chains in a safe location.
●Install tire chains on the rear tires. Do not install tire chains on the front tires.
●Install tire chains on rear tires as tightly as possible. Retighten chains after driving 0.5
 1.0 km (1/4  1/2 mile).
●Install tire chains following the instructions provided with the tire chains.
Regulations on the use of tire chains
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehi cle control and cause death or serious injury.
●Use tires of the specified size.
●Maintain the recommended level of air pressure.
●Do not drive at speeds in excess of the speed limit or the speed limit specified for the snow tires being used.
●Use snow tires on all, not just some wheels.
●Do not use LKA (Lane Keeping Assist) system.
■Driving with tire chains (excep t vehicles with 18-inch tires)
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely, and may cause death or serious injury.
●Do not drive in excess of th e speed limit specified for the tire chains being used, or 50
km/h (30 mph), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
●Slow down sufficiently before entering a cu rve to ensure that vehicle control is main-
tained.

3644-6. Driving tips
IS300h_EE(OM53D89E)

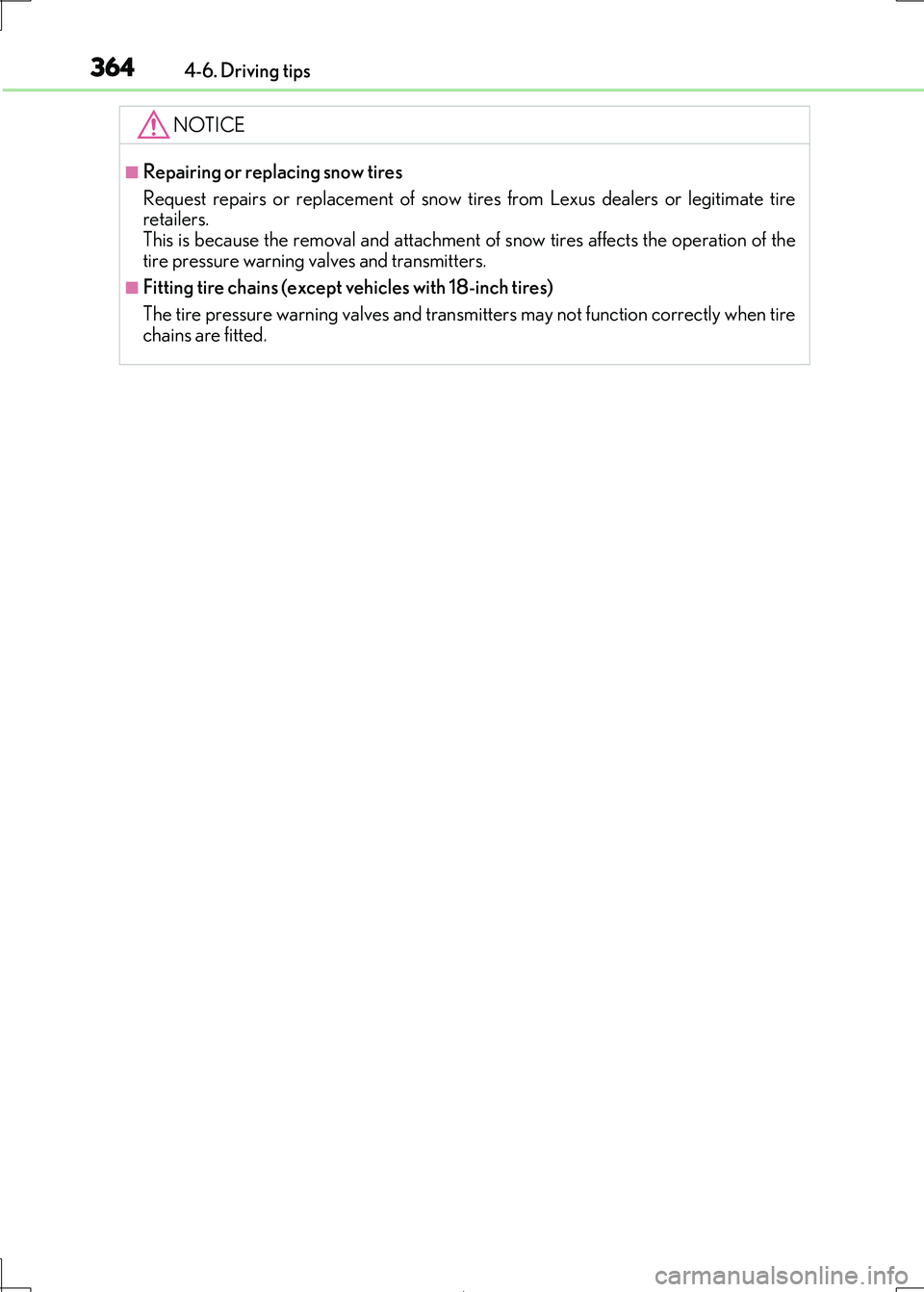

NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow ti res from Lexus dealers or legitimate tire
retailers.
This is because the removal an d attachment of snow tires affects the operation of the tire pressure warning va lves and transmitters.
■Fitting tire chains (except vehicles with 18-inch tires)
The tire pressure warning valves and transm itters may not function correctly when tire chains are fitted.

3654-6. Driving tips
4
Driving
IS300h_EE(OM53D89E)

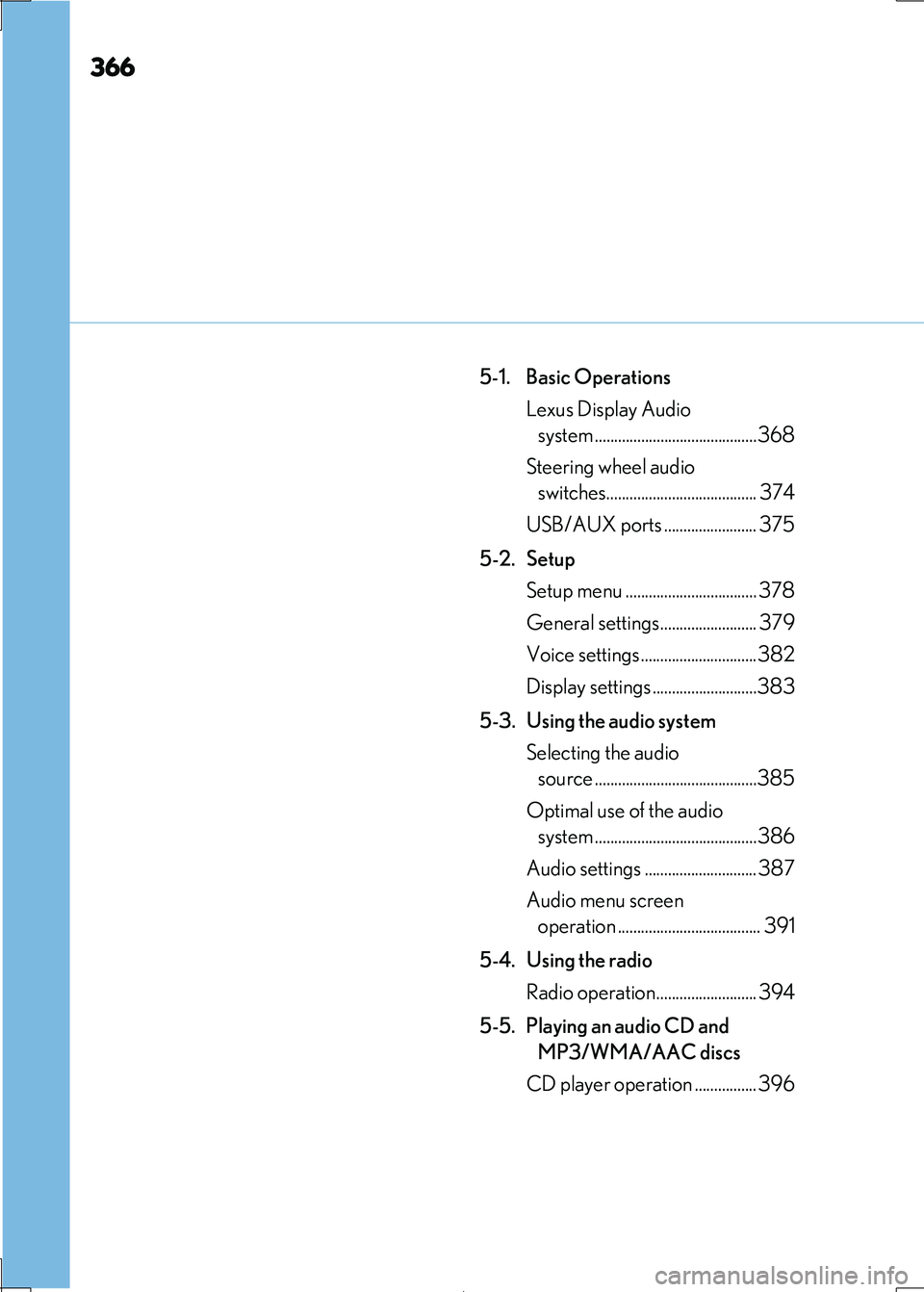

366
IS300h_EE(OM53D89E)
5-1. Basic Operations
Lexus Display Audio
system ..........................................368
Steering wheel audio
switches....................................... 374
USB/AUX ports ........................ 375
5-2. Setup
Setup menu .................................. 378
General settings......................... 379
Voice settings .............................. 382
Display settings ...........................383
5-3. Using the audio system
Selecting the audio
source ..........................................385
Optimal use of the audio
system ..........................................386
Audio settings ............................. 387
Audio menu screen
operation ..................................... 391
5-4. Using the radio
Radio operation.......................... 394
5-5. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation ................ 396

367
5
Lexus Display
Audio system
IS300h_EE(OM53D89E)
5-6. Using an external device
Listening to an iPod ...................402
Using USB memory
device...........................................406
Using the AUX port .................... 411
5-7. Connecting Bluetooth®
Steps for usin g Bluetooth®
devices.......................................... 412
Registering a Bluetooth®
device............................................ 414
Selecting a Bluetooth®
device............................................ 415
Connecting a Bluetooth®
audio player ................................ 416
Connecting a Bluetooth®
phone .............................................417
Displaying a Bluetooth®
device details ............................. 418
Detailed Bluetooth®
settings.......................................... 419
5-8. Bluetooth® Audio
Listening to Bluetooth®
Audio............................................420
5-9. Bluetooth® Phone
Using a Bluetooth®
Phone.............................................421
Making a call................................ 423
Receiving a call ........................... 426
Speaking on the phone ........... 427
Using a Bluetooth® phone
messages.................................... 429
Using the steering wheel
switches....................................... 432
Bluetooth® phone
settings ........................................ 433
5-10. Phonebook
Contact settings ......................... 435
Messaging setting .....................438
5-11. Bluetooth®
What to do if...
(Troubleshooting)................... 439
Bluetooth®................................... 442
5-12. Other function
“Information” screen.................450
MirrorLink™ ................................. 451
USB photo .................................... 455
Speech command system ...... 457
Some of the functions cannot be operated while driving.

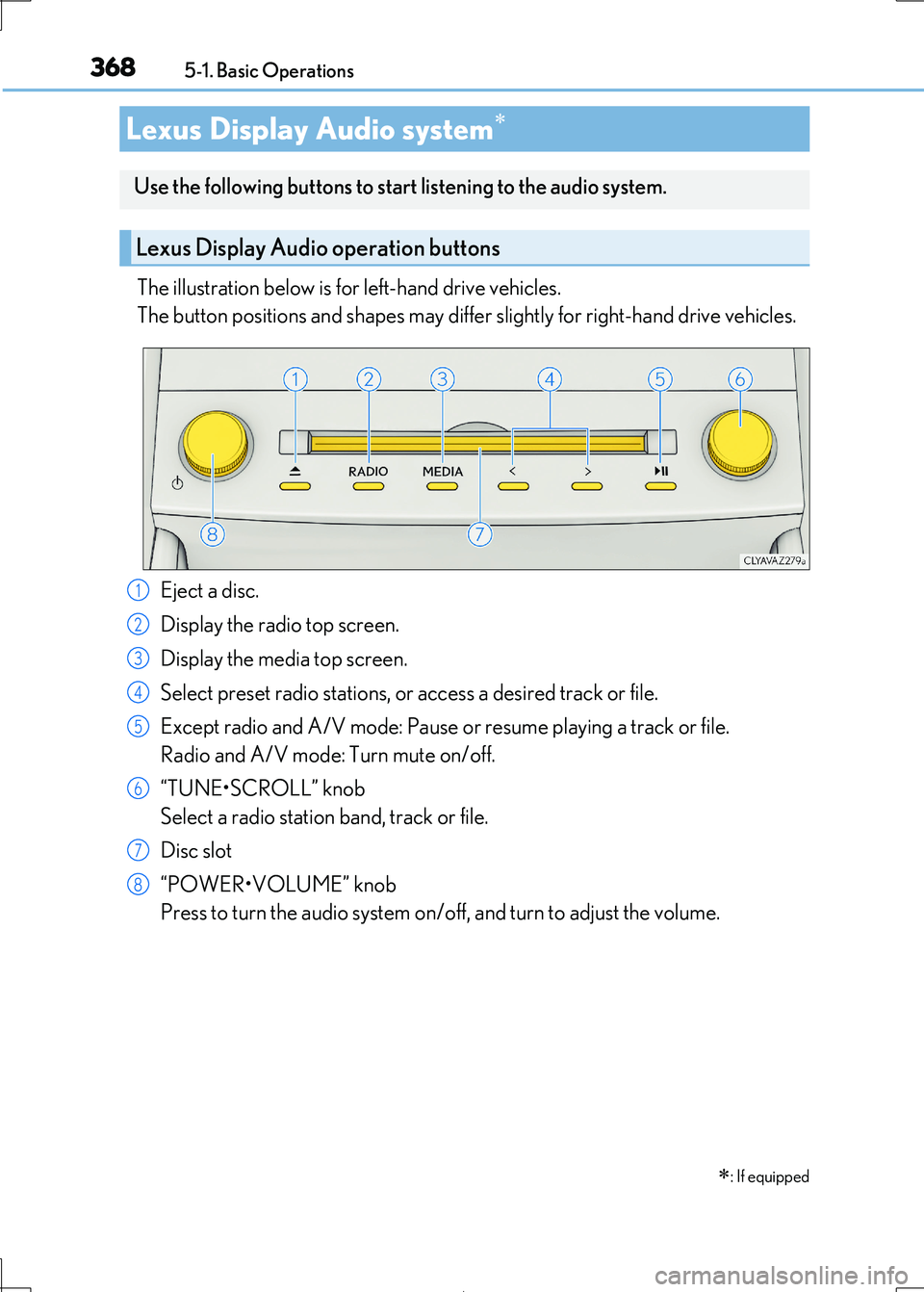

368
IS300h_EE(OM53D89E)
5-1. Basic Operations
The illustration below is for left-hand drive vehicles.
The button positions and shapes may differ slightly for right-hand drive vehicles.
Eject a disc.
Display the radio top screen.
Display the media top screen.
Select preset radio stations, or access a desired track or file.
Except radio and A/V mode: Pause or resume playing a track or file.
Radio and A/V mode: Turn mute on/off.
“TUNE•SCROLL” knob
Select a radio station band, track or file.
Disc slot
“POWER•VOLUME” knob
Press to turn the audio system on/o ff, and turn to adjust the volume.
Lexus Display Audio system
: If equipped
Use the following buttons to star t listening to the audio system.
Lexus Display Audio operation buttons
1
2
3
4
5
6
7
8

3695-1. Basic Operations
5
Lexus Display Audio system
IS300h_EE(OM53D89E)

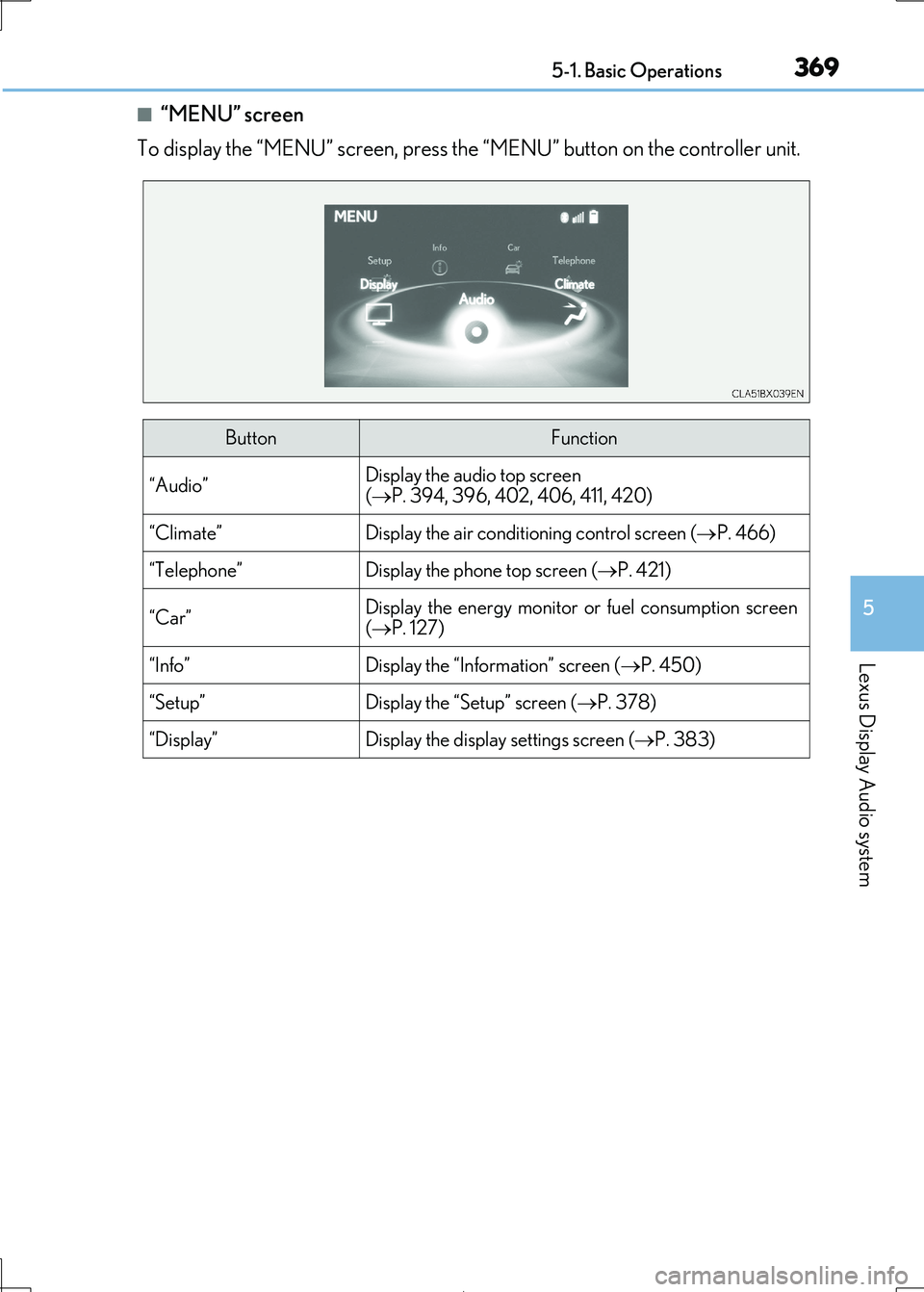

■“MENU” screen
To display the “MENU” screen, press the “MENU” button on the controller unit.
ButtonFunction
“Audio”Display the audio top screen
( P. 394, 396, 402, 406, 411, 420)
“Climate”Display the air conditioning control screen (P. 466)
“Telephone”Display the phone top screen (P. 421)
“Car” Display the energy monitor or fuel consumption screen
( P. 127)
“Info”Display the “Information” screen (P. 450)
“Setup”Display the “Setup” screen (P. 378)
“Display”Display the display settings screen (P. 383)

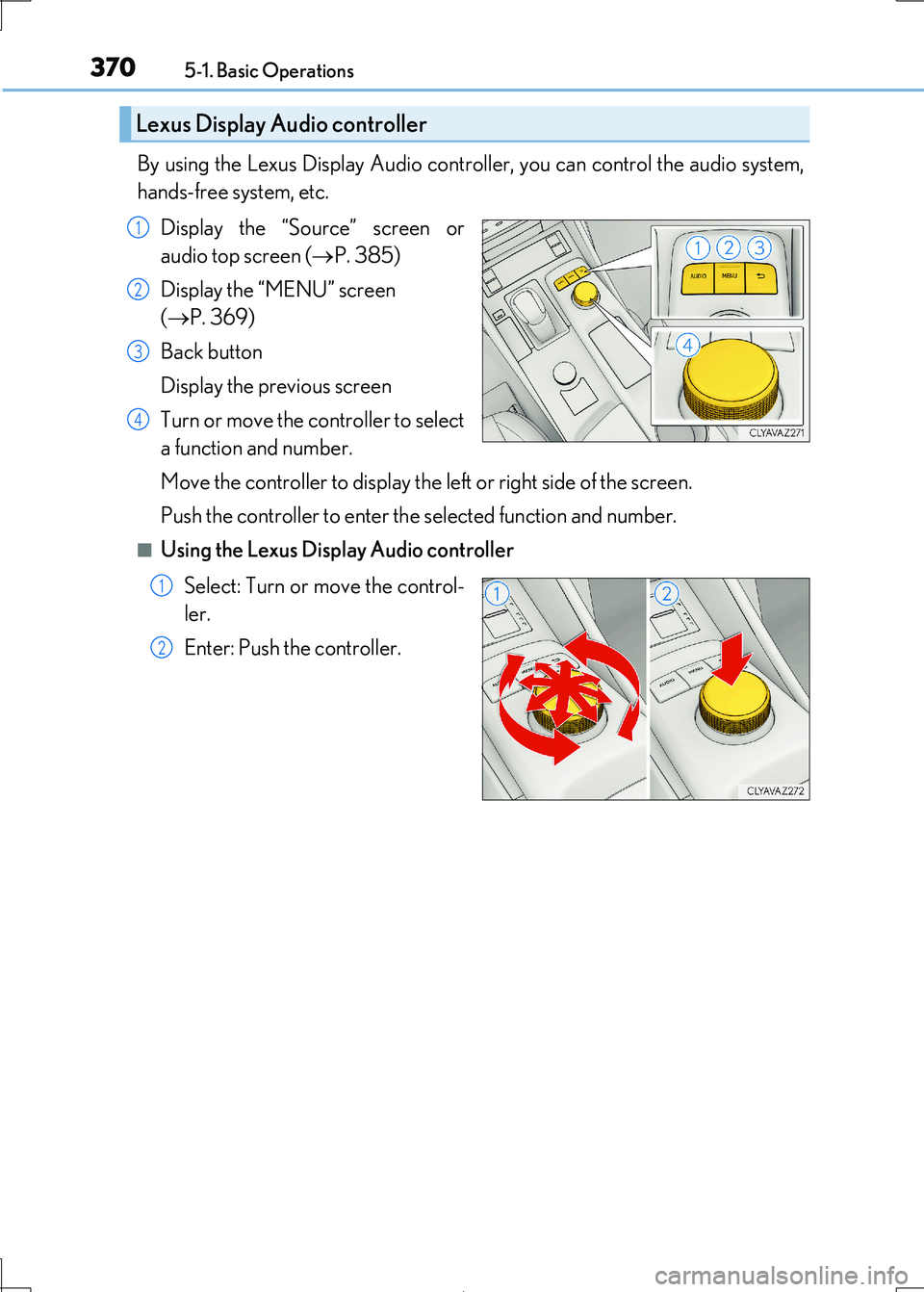

3705-1. Basic Operations
IS300h_EE(OM53D89E)
By using the Lexus Display Audio controller, you can control the audio system,
hands-free system, etc.
Display the “Source” screen or
audio top screen ( P. 385)
Display the “MENU” screen
( P. 369)
Back button
Display the previous screen
Turn or move the controller to select
a function and number.
Move the controller to display the left or right side of the screen.
Push the controller to enter the selected function and number.
■Using the Lexus Display Audio controller
Select: Turn or move the control-
ler.
Enter: Push the controller.
Lexus Display Audio controller
1
2
3
4
1
2
