lexus LC500 2018 Owners Manual

91
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
■Liquid crystal display
Small spots or light spots may appear on the
display. This phenomen on is characteristic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display. ( P.423)
The odometer and trip meter displays
can be switched. When the trip meter
is displayed, pressing and holding the
button will reset the trip meter.
The brightness of the instrument panel
lights can be adjusted.
1 Darker
2 Brighter
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted individually. However, when the
surroundings are bright (daytime, etc.), turning on the tail lights will not change the instrument panel brightness.
The display can be switched between
the center and side positions.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator of the tachom-eter enter the red zone, as it rep-
resents the engine speed range which exceeds the maximum safe engine speed.
●In the following situations, the engine
may be overheating. In this case, immediately stop the vehicle in a safe place, and check the engine after it has
cooled completely. ( P.400, 403)
• The engine coolant temperature gauge is in the red zone (H).
• LC500: The engine oil temperature gauge is in the red zone (H).
Changing between the odome-
ter and trip meter
Changing the instrument panel
light brightness
Changing the display

92
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
■Display
When the main meter is in the cen-
ter position
Displays various drive information on
the main meter.
Some of the content which are displayed
when the main meter is in the side position
cannot be displayed.
When the main meter is in the side
position
Selecting a menu icon displays a vari-
ety of vehicle data or allows vehicle
settings to be customized.
■Menu icons
Multi-information display
Display and menu icons
Drive information
Navigation system-linked dis-
play (if equipped)
Audio system-linked display
Driving assist system informa-
tion

93
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
■Opening image display
When the engine switch is in ACCESSORY mode or IGNITION ON mode , the opening image is
displayed on the multi-information display. While the opening im age is being dis- played, the meter display cannot be
changed even if the drive mode is changed. When the opening image is finished, the meter display for the currently selected
mode will be displayed.
■When disconnecting and reconnecting 12-volt battery terminals
Record of the maximum G-forces will be reset.
■Liquid crystal display
 P.91
The multi-information display is oper-
ated using the meter control switches.
/: Switch menu
/ : Change displayed con-
tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen and
move the main meter
Warning message display
Settings display
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra atten-tion to the safety of the area around the
vehicle.
●Do not look continuously at the multi- information display while driving as you may fail to see pedestrians, objects
on the road, etc. ahead of the vehicle.
■The information display at low tem- peratures
Allow the interior of the vehicle to warm up before using the liquid crystal infor-
mation display. At extremely low tem- peratures, the information display monitor may respond slowly, and display
changes may be delayed. For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine brak-
ing and possibly an accident resulting in death or injury.
Changing the meter display
A
B
C

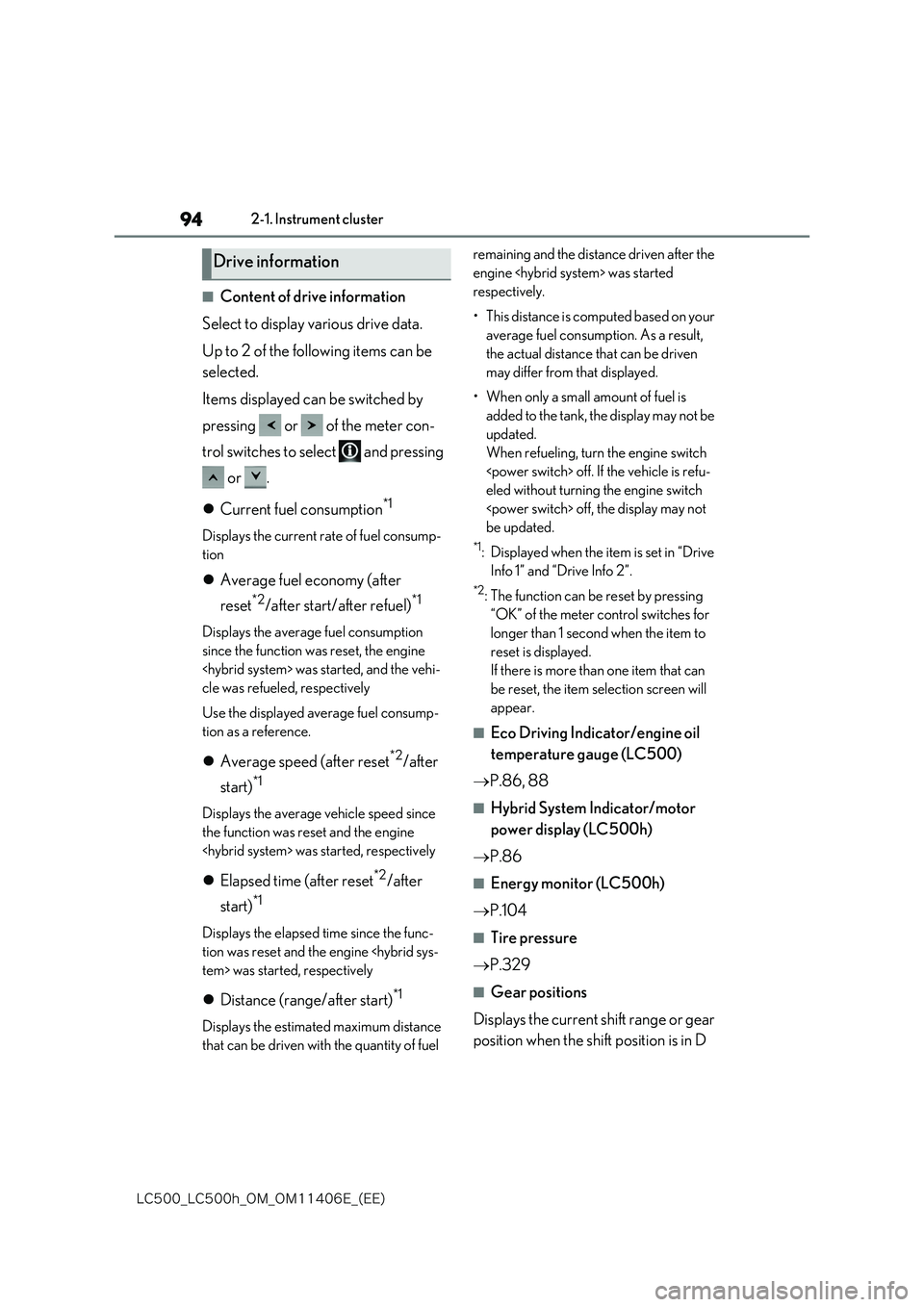

94
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
■Content of drive information
Select to display various drive data.
Up to 2 of the following items can be
selected.
Items displayed can be switched by
pressing or of the meter con-
trol switches to select and pressing
or .
 Current fuel consumption*1
Displays the current rate of fuel consump-
tion
 Average fuel economy (after
reset*2/after start/after refuel)*1
Displays the average fuel consumption
since the function was reset, the engine
was started, and the vehi-
cle was refueled, respectively
Use the displayed average fuel consump-
tion as a reference.
 Average speed (after reset*2/after
start)*1
Displays the average vehicle speed since
the function was reset and the engine
was started, respectively
 Elapsed time (after reset*2/after
start)*1
Displays the elapsed time since the func-
tion was reset and the engine tem> was started, respectively
 Distance (range/after start)*1
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining and the distance driven after the
engine was started
respectively.
• This distance is computed based on your
average fuel consumption. As a result,
the actual distance that can be driven
may differ from that displayed.
• When only a small amount of fuel is
added to the tank, the display may not be
updated.
When refueling, turn the engine switch
off. If the vehicle is refu-
eled without turning the engine switch
off, the display may not
be updated.
*1: Displayed when the item is set in “Drive
Info 1” and “Drive Info 2”.
*2: The function can be reset by pressing
“OK” of the meter control switches for
longer than 1 second when the item to
reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.
■Eco Driving Indicator/engine oil
temperature gauge (LC500)
 P.86, 88
■Hybrid System Indicator/motor
power display (LC500h)
 P.86
■Energy monitor (LC500h)
 P.104
■Tire pressure
 P.329
■Gear positions
Displays the current shift range or gear
position when the shift position is in D
Drive information

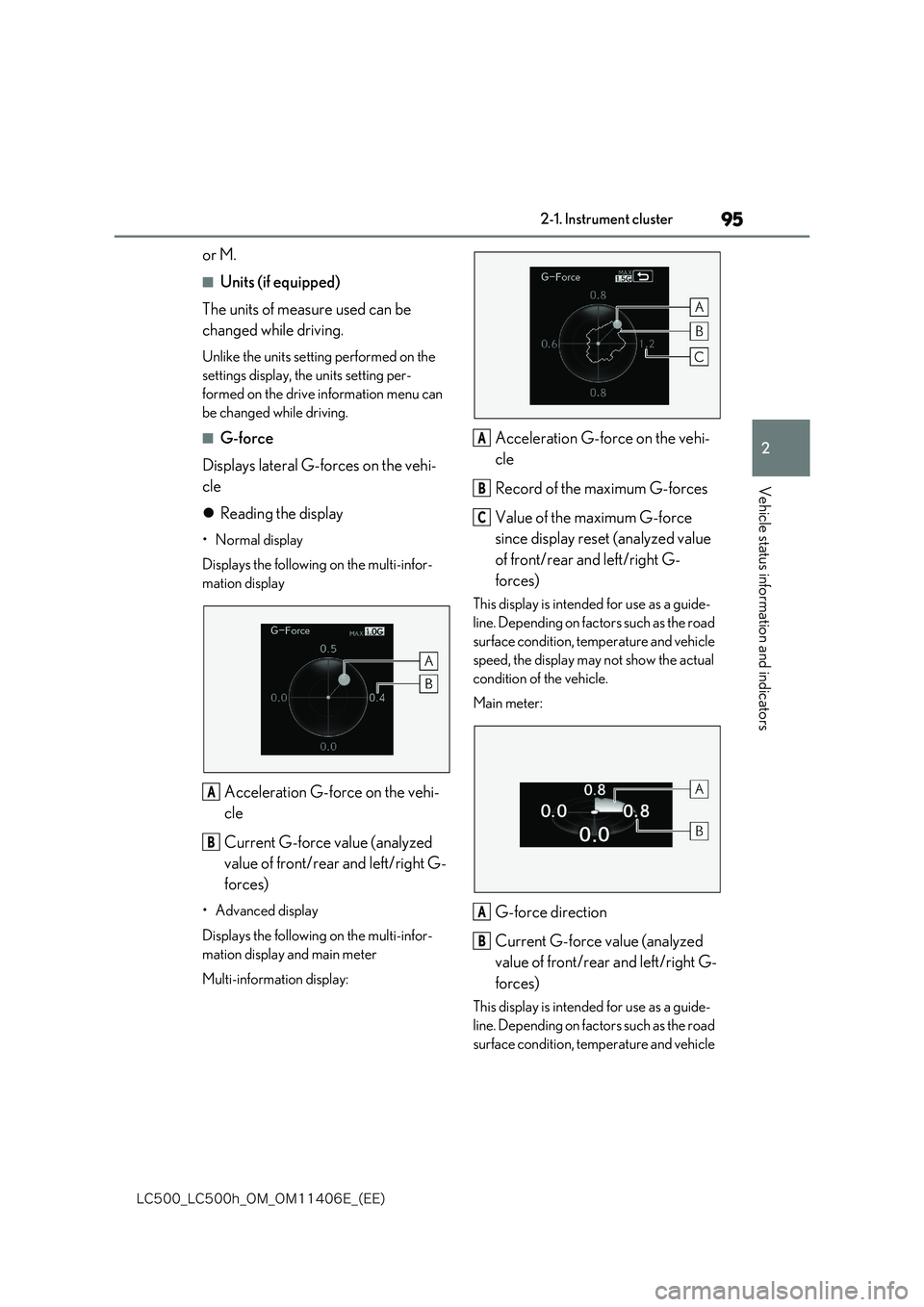

95
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
or M.
■Units (if equipped)
The units of measure used can be
changed while driving.
Unlike the units setting performed on the
settings display, th e units setting per-
formed on the drive information menu can
be changed while driving.
■G-force
Displays lateral G-forces on the vehi-
cle
 Reading the display
• Normal display
Displays the following on the multi-infor-
mation display
Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right G-
forces)
• Advanced display
Displays the following on the multi-infor-
mation display and main meter
Multi-information display:
Acceleration G-force on the vehi-
cle
Record of the maximum G-forces
Value of the maximum G-force
since display reset (analyzed value
of front/rear and left/right G-
forces)
This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.
Main meter:
G-force direction
Current G-force value (analyzed
value of front/rear and left/right G-
forces)
This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
A
B
A
B
C
A
B

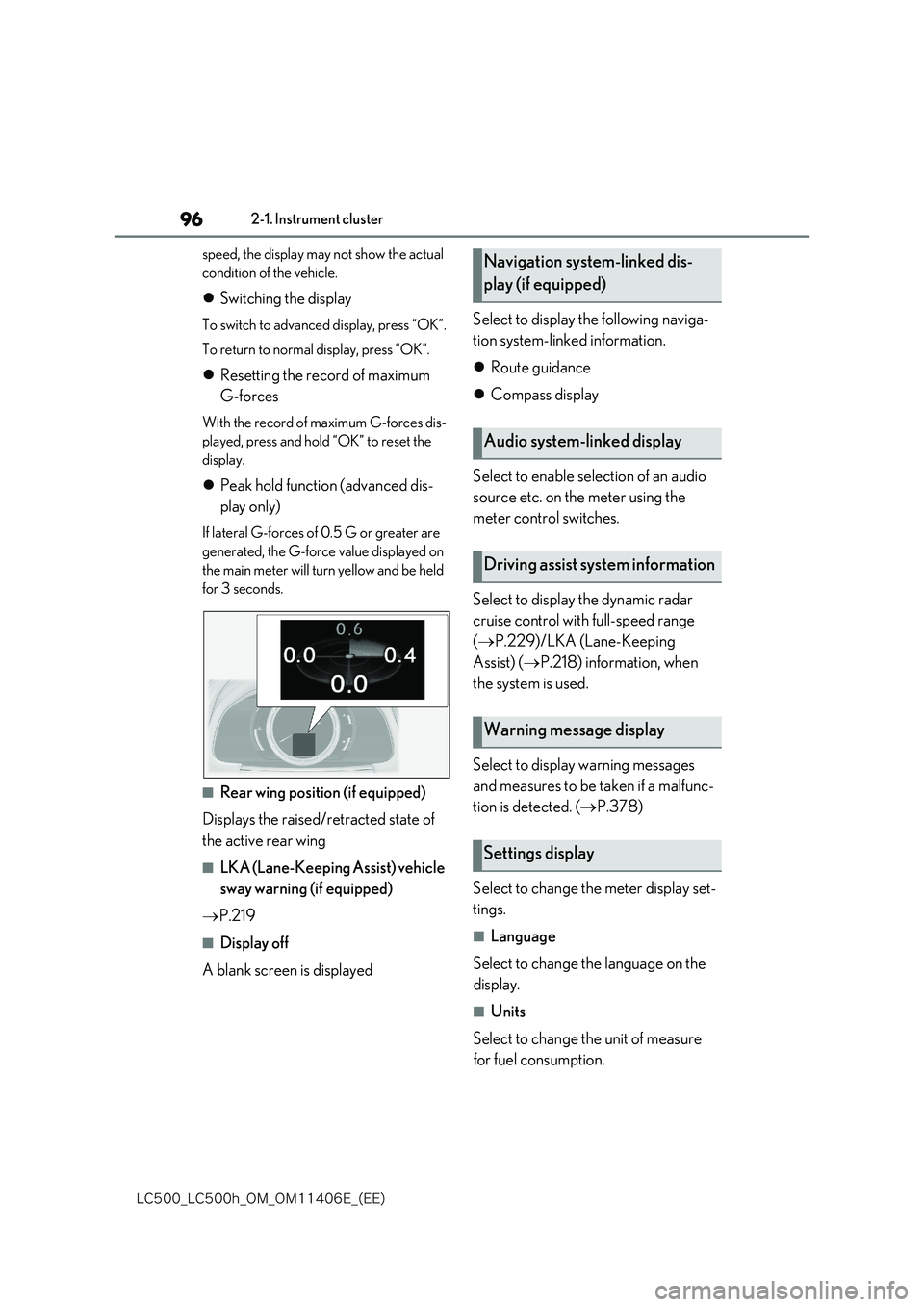

96
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
speed, the display may not show the actual
condition of the vehicle.
 Switching the display
To switch to advanced display, press “OK”.
To return to normal display, press “OK”.
 Resetting the record of maximum
G-forces
With the record of maximum G-forces dis-
played, press and hold “OK” to reset the
display.
 Peak hold function (advanced dis-
play only)
If lateral G-forces of 0.5 G or greater are
generated, the G-force value displayed on
the main meter will turn yellow and be held
for 3 seconds.
■Rear wing position (if equipped)
Displays the raised/retracted state of
the active rear wing
■LKA (Lane-Keeping Assist) vehicle
sway warning (if equipped)
 P.219
■Display off
A blank screen is displayed
Select to display the following naviga-
tion system-linked information.
 Route guidance
 Compass display
Select to enable selection of an audio
source etc. on the meter using the
meter control switches.
Select to display the dynamic radar
cruise control with full-speed range
( P.229)/LKA (Lane-Keeping
Assist) ( P.218) information, when
the system is used.
Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. ( P.378)
Select to change the meter display set-
tings.
■Language
Select to change the language on the
display.
■Units
Select to change the unit of measure
for fuel consumption.
Navigation sys tem-linked dis-
play (if equipped)
Audio system-linked display
Driving assist system information
Warning message display
Settings display

97
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
■Eco Driving Indicator Light
(LC500)
Select to activate/deactivate the Eco
Driving Indicator Light.
■EV indicator (LC500h)
Select to activate/deactivate the EV
indicator.
■Drive information 1/Drive infor-
mation 2
Select up to 2 items that will be dis-
played on the “Drive Info 1” screen and
“Drive Info 2” screen respectively.
( P.94)
■Pop-up display
Select to set the following pop-up dis-
plays, which may appear in some situa-
tions, on/off.
• Route guidance display of the navi-
gation system-linked system (if
equipped)
• Making call display of the hands-
free phone system
• Audio system operation display
• Instrument panel brightness adjust-
ment display
■Ring position memory
Select to change the meter ring posi-
tion when the engine is
started.
The position before the engine system> is stopped or the center posi-
tion can be selected.
■Accent color
Select to change the accent color on
the screen, such as the cursor color.
■Rev indicator
Select to set the rev indicator on/off.
When set to on, proceed to select the
engine speed at which the rev indicator
will be displayed.
■Rev peak
Select to set the rev peak on/off.
■Clock
Select to switch between 24-hour dis-
play and 12-hour display.
■Initialization
Select to reset the meter display set-
tings.
■Suspension of the settings display
In the following situations, operation of the
settings display will be temporarily sus- pended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Customization
The settings can be changed on of the
multi-information display.
●Settings of the driving assist systems ( P.423)
●Vehicle settings (P.100, 335, 337, 423)

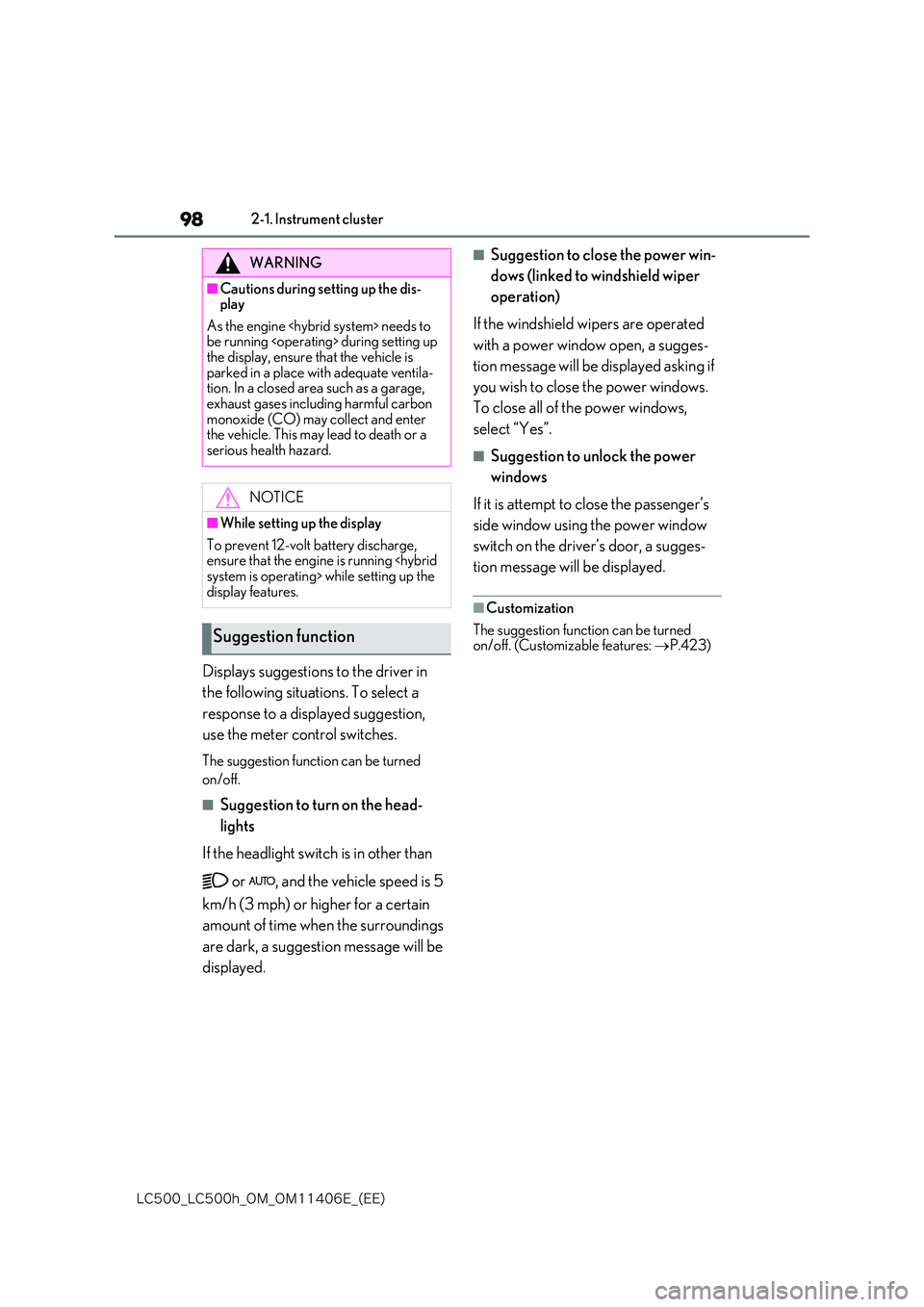

98
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.
The suggestion function can be turned
on/off.
■Suggestion to turn on the head-
lights
If the headlight switch is in other than
or , and the vehicle speed is 5
km/h (3 mph) or higher for a certain
amount of time when the surroundings
are dark, a suggestion message will be
displayed.
■Suggestion to close the power win-
dows (linked to windshield wiper
operation)
If the windshield wipers are operated
with a power window open, a sugges-
tion message will be displayed asking if
you wish to close the power windows.
To close all of the power windows,
select “Yes”.
■Suggestion to unlock the power
windows
If it is attempt to close the passenger’s
side window using the power window
switch on the driver’s door, a sugges-
tion message will be displayed.
■Customization
The suggestion function can be turned on/off. (Customizable features: P.423)
WARNING
■Cautions during setting up the dis- play
As the engine needs to be running during setting up the display, ensure that the vehicle is
parked in a place with adequate ventila- tion. In a closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■While setting up the display
To prevent 12-volt battery discharge, ensure that the engine is running system is operating> while setting up the display features.
Suggestion function

99
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
*: If equipped
Navigation system-linked display
area (if equipped)
Displays the following items, which are
linked to the navigation system:
• Speed limit
•Street name
• Route guidance to destination
•Compass
Driving assist system status display
area
Displays the current shift position, and shift
range/gear position, or the operational sta-
tus of the following systems:
• Pre-collision warning (Pre-Collision Sys-
tem) ( P.210)
• Dynamic radar cruise control with full-
speed range ( P.229) (if equipped)
• LKA (Lane-Keeping Assist) ( P.210)
• Lexus parking assist-sensor ( P.243)
Displayed content is the same as that dis-
played on the multi-information display. For
details, refer to the explanations of each
system.
Vehicle speed display
Information display area ( P.101)
Displays the following items:
• Warning/message
•/ icon ( P.101)
• Audio system operation status
• Dynamic radar cruise control with full-
speed range status ( P.229) (if
equipped)
• Hands-free system status ( P.101) (if
equipped)
• Eco Driving Indicator/tachometer
( P.102) (LC500)
• Hybrid System Indicator/motor power
display/tachometer ( P.103)
(LC500h)
HUD (Head-up display) switch
■Enabling/Disabling the head-up
display
Pressing the switch turns the head-up
display on/off.
Head-up display*
The head-up display is linked to the
meters and naviga tion system and
projects a variety of information in
front of the driver, such as the cur-
rent vehicle speed and route guid-
ance to a set destination.
System components
A
B
Using the head-up display
C
D
E

100
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster

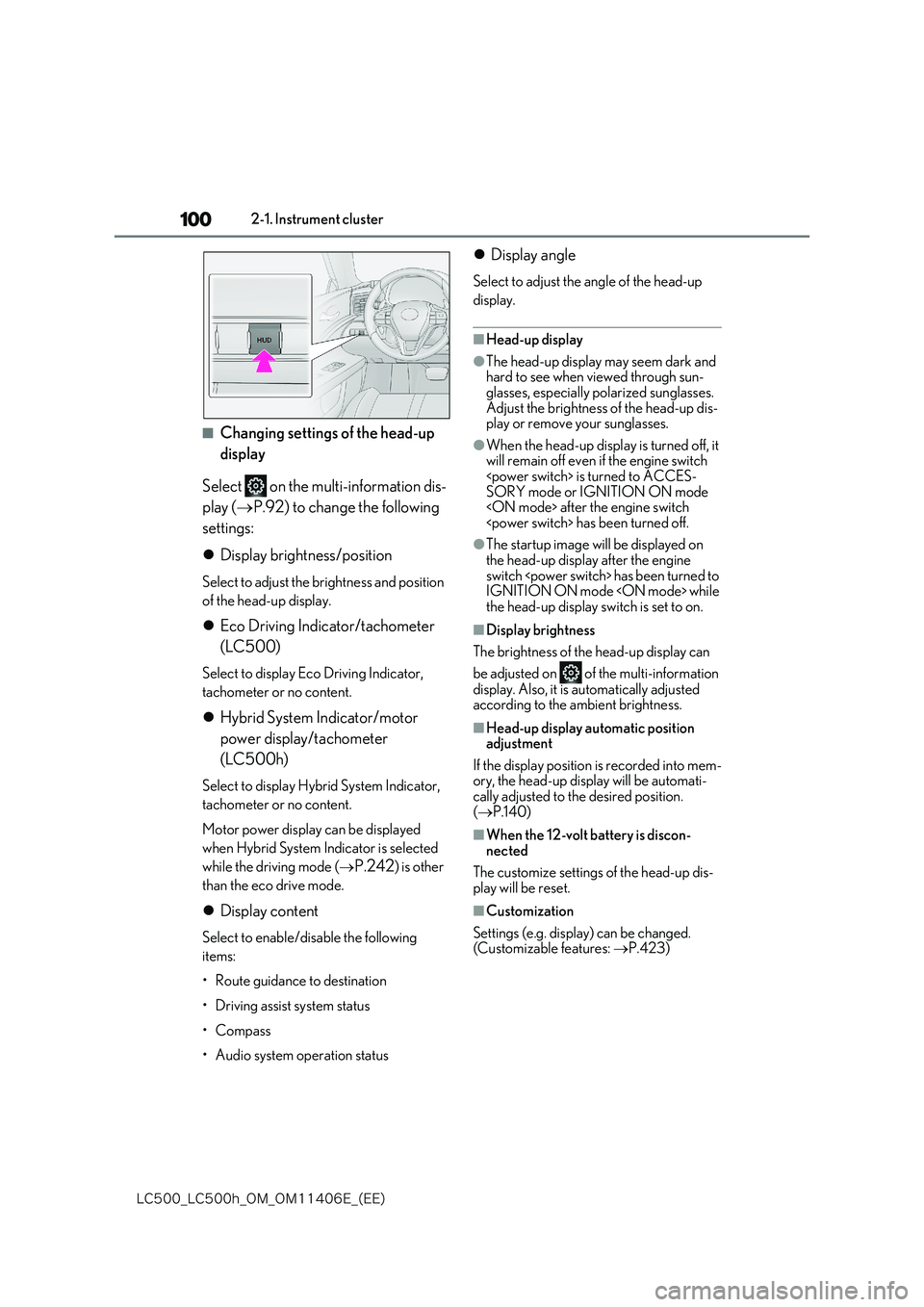

■Changing settings of the head-up
display
Select on the multi-information dis-
play ( P.92) to change the following
settings:
 Display brightness/position
Select to adjust the brightness and position
of the head-up display.
 Eco Driving Indicator/tachometer
(LC500)
Select to display Eco Driving Indicator,
tachometer or no content.
 Hybrid System Indicator/motor
power display/tachometer
(LC500h)
Select to display Hybrid System Indicator,
tachometer or no content.
Motor power display can be displayed
when Hybrid System In dicator is selected
while the driving mode ( P.242) is other
than the eco drive mode.
 Display content
Select to enable/disable the following
items:
• Route guidance to destination
• Driving assist system status
•Compass
• Audio system operation status
 Display angle
Select to adjust the angle of the head-up
display.
■Head-up display
●The head-up display may seem dark and hard to see when viewed through sun-glasses, especially polarized sunglasses.
Adjust the brightness of the head-up dis- play or remove your sunglasses.
●When the head-up display is turned off, it will remain off even if the engine switch is turned to ACCES-
SORY mode or IGNITION ON mode after the engine switch has been turned off.
●The startup image will be displayed on
the head-up display after the engine switch has been turned to IGNITION ON mode while
the head-up display switch is set to on.
■Display brightness
The brightness of the head-up display can
be adjusted on of the multi-information
display. Also, it is automatically adjusted according to the ambient brightness.
■Head-up display automatic position adjustment
If the display position is recorded into mem- ory, the head-up display will be automati-
cally adjusted to the desired position. ( P.140)
■When the 12-volt battery is discon- nected
The customize settings of the head-up dis- play will be reset.
■Customization
Settings (e.g. display) can be changed. (Customizable features: P.423)
