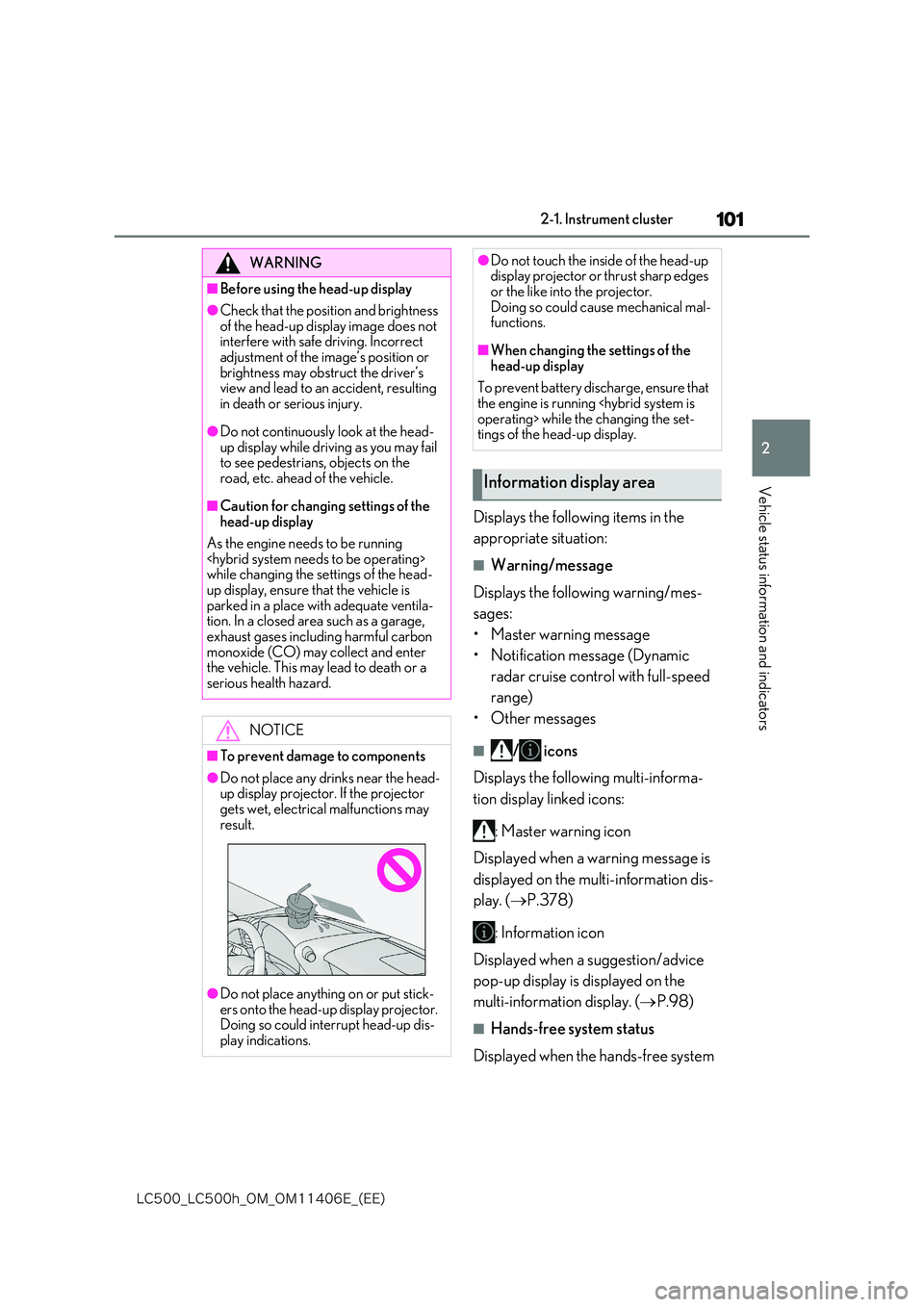

2-1. Instrument cluster
Vehicle status information and indicators
Displays the following items in the
appropriate situation:
■Warning/message
Displays the following warning/mes-
sages:
• Master warning message
• Notification message (Dynamic
radar cruise control with full-speed
range)
• Other messages
■/ icons
Displays the following multi-informa-
tion display linked icons:
: Master warning icon
Displayed when a warning message is
displayed on the multi-information dis-
play. ( P.378)
: Information icon
Displayed when a suggestion/advice
pop-up display is displayed on the
multi-information display. ( P.98)
■Hands-free system status
Displayed when the hands-free system
WARNING
■Before using the head-up display
●Check that the position and brightness
of the head-up display image does not interfere with safe driving. Incorrect adjustment of the image’s position or
brightness may obstruct the driver’s view and lead to an accident, resulting in death or serious injury.
●Do not continuously look at the head-
up display while driving as you may fail to see pedestrians, objects on the road, etc. ahead of the vehicle.
■Caution for changing settings of the
head-up display
As the engine needs to be running
while changing the settings of the head-up display, ensure that the vehicle is
parked in a place with adequate ventila- tion. In a closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■To prevent damage to components
●Do not place any drinks near the head-up display projector. If the projector
gets wet, electrical malfunctions may result.
●Do not place anything on or put stick-ers onto the head-up display projector. Doing so could interrupt head-up dis-
play indications.
●Do not touch the inside of the head-up display projector or thrust sharp edges
or the like into the projector. Doing so could cause mechanical mal-functions.
■When changing the settings of the
head-up display
To prevent battery discharge, ensure that
the engine is running while the changing the set-tings of the head-up display.
Information display area

102
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
is operated.
■Audio system operation status
Displayed when the audio system is
operated.
■Eco Driving Indicator/tachometer
(LC500)
Displays either of Eco Driving Indica-
tor or the tachometer.
■Hybrid System Indicator/motor
power display/tachometer
(LC500h)
Displays either of Hybrid System Indi-
cator or the tachometer.
Motor power display can be displayed
when Hybrid System Indicator is
selected while the driving mode
( P.242) is other than the eco drive
mode.
Displays the following items which are
linked to the navigation system:
■Speed limit
The speed limit on the current road.
■Street name
When the navigation system is per-
forming route guidance, the name of
the next street will be displayed on the
top of the display area.
■Route guidance to destination
Displayed when the navigation system
is performing route guidance. When
approaching an intersection, an arrow
will be displayed to indicate the sug-
gested direction of travel.
■Compass
Displays the direction of travel.
■Street name display
Only street names which are included in the map data will be displayed.
■Eco Driving Indicator
Eco Driving Indicator Zone Display
Eco driving ratio based on acceler-
ation
Zone of Eco driving
Displayed content is the same as that dis-
played on the multi-information display
(Eco Driving Indicator). For details, refer to
P.86.
■Tachometer
Displays the engine speed in revolu-
tions per minute.
Navigation system-linked dis-
play area (if equipped)
Eco Driving Indicator/tachome-
ter (LC500)
A
B
C

103
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
■Hybrid System Indicator
Charge area
Hybrid Eco area
Eco area
Power area
Displayed content is the same as that dis-
played on the meter (Hybrid System Indi-
cator). For details, refer to P.86.
■Motor power display
Charge area
Power area
Displayed content is the same as that dis-
played on the meter (Motor power dis-
play). For details, refer to P.87.
Motor power display can be displayed
when Hybrid System Indicator is selected
while the driving mode ( P.242) is other
than the eco drive mode.
■Tachometer
Displays the engine speed in revolu-
tions per minute.
Hybrid System Indicator/motor
power display/tachometer
(LC500h)
A
B
C
D
A
B

104
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
*: If equipped
Multi-information display
Center Display
Meter control switches
“MENU” button
Touchpad
Center Display
Press the “MENU” button on the Remote Touch, then select on the menu
screen.
If the “Trip information” or “History” screen is displayed, select “Energy”.
Multi-information display
Press or of the meter control switches and select , and then press or
to select the energy monitor display.

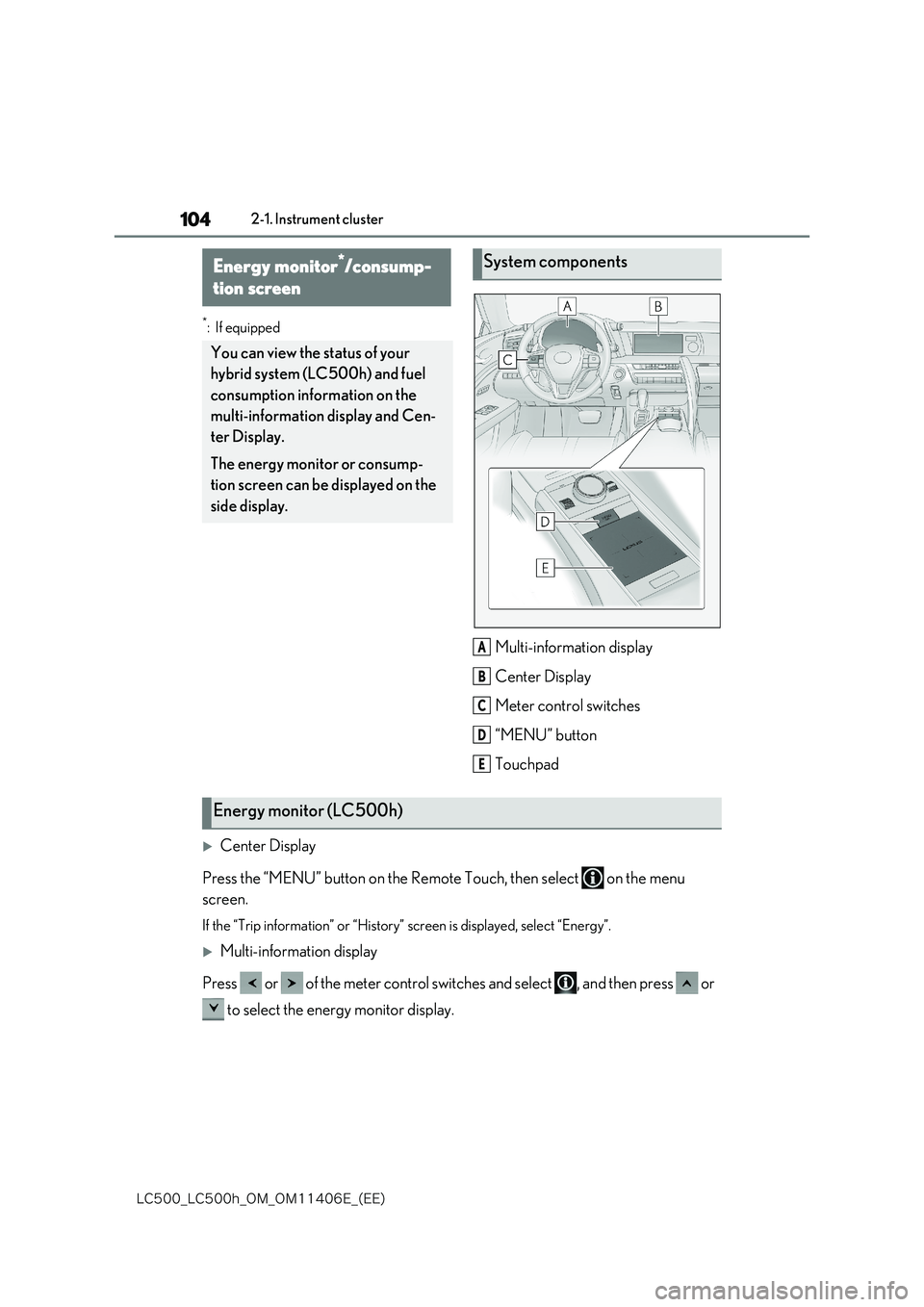

Energy monitor*/consump-
tion screen
You can view the status of your
hybrid system (LC500h) and fuel
consumption information on the
multi-information display and Cen-
ter Display.
The energy monitor or consump-
tion screen can be displayed on the
side display.
System components
A
B
C
D
E
Energy monitor (LC500h)

105
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
When the vehicle is powered by the electric motor (traction motor)
Center DisplayMulti-information display
When the vehicle is powered by both the gasoline engine and the electric motor (traction
motor)
Center DisplayMulti-information display
When the vehicle is powered by the gasoline engine
Center DisplayMulti-information display

106
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
These images are examples only, and may vary slightly from actual conditions.
■Hybrid battery (traction battery)
status
Center Display
Low

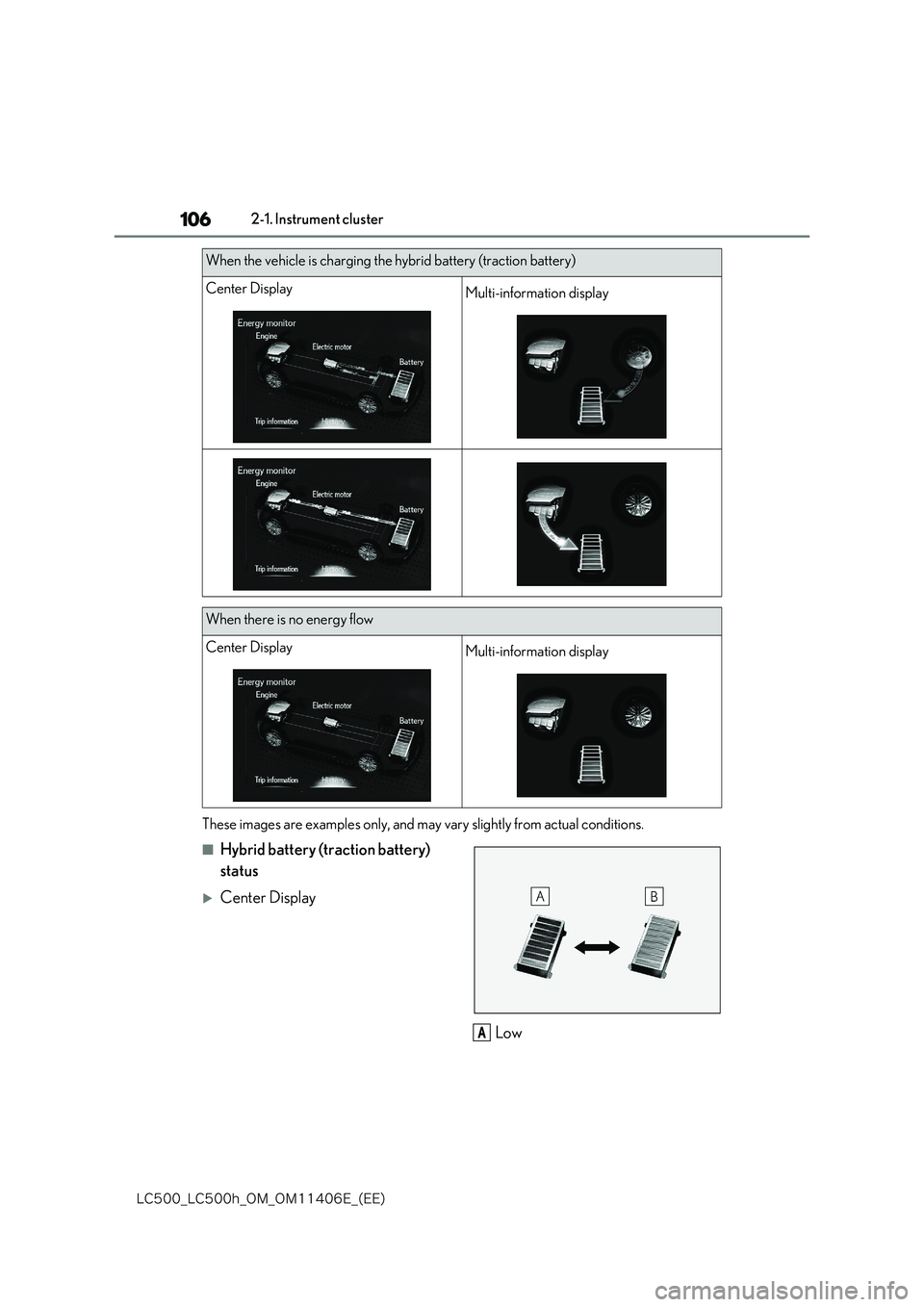

When the vehicle is charging the hybrid battery (traction battery)
Center DisplayMulti-information display
When there is no energy flow
Center DisplayMulti-information display
A

107
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
High
Multi-information display
Low
High
These images are examples only, and may
vary slightly from actual conditions.
Press the “MENU” button on the
Remote Touch, then select on the
menu screen, and then select “Trip
information” or “History”.
■Trip information
If a screen other than “Trip information”
is displayed, select “Trip information”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past 15
minutes (LC500h)
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range
Average fuel consumption for the past 15
minutes is divided by color into past aver-
ages and averages attained since the
engine switch was last
turned to IGNITION ON mode mode>. Use the displayed average fuel
consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.
■History
If a screen other than “History” is dis-
played, select “History”.
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the History data
Updating the latest fuel consump-
Consumption
B
A
B
A
B
C
D
E
F
G
A
B
C
D
E

108
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
tion data
The latest fuel consumption history is
divided by color into past averages and the
average fuel consumption since the last
updated. Use the displayed average fuel
consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.
■Updating the History data
Update the latest fuel consumption by selecting “Clip” to measure the current fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted
by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance
that can be driven with the quantity of fuel remaining.
This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ
from that displayed.
Display the vehicle information on the
side display ( P.277) and then select
or to display the desired
screen.
■Trip information (type A)
Displays the average fuel consumption
and regenerated energy for the past 10
minutes in 1 minute intervals
(LC500h), as well as the cruising
range.
The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.
■Trip information (type B)
Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine tem> was started.
The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.
■History
Displays the average fuel consumption
and highest fuel consumption.
Using the side display

109
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

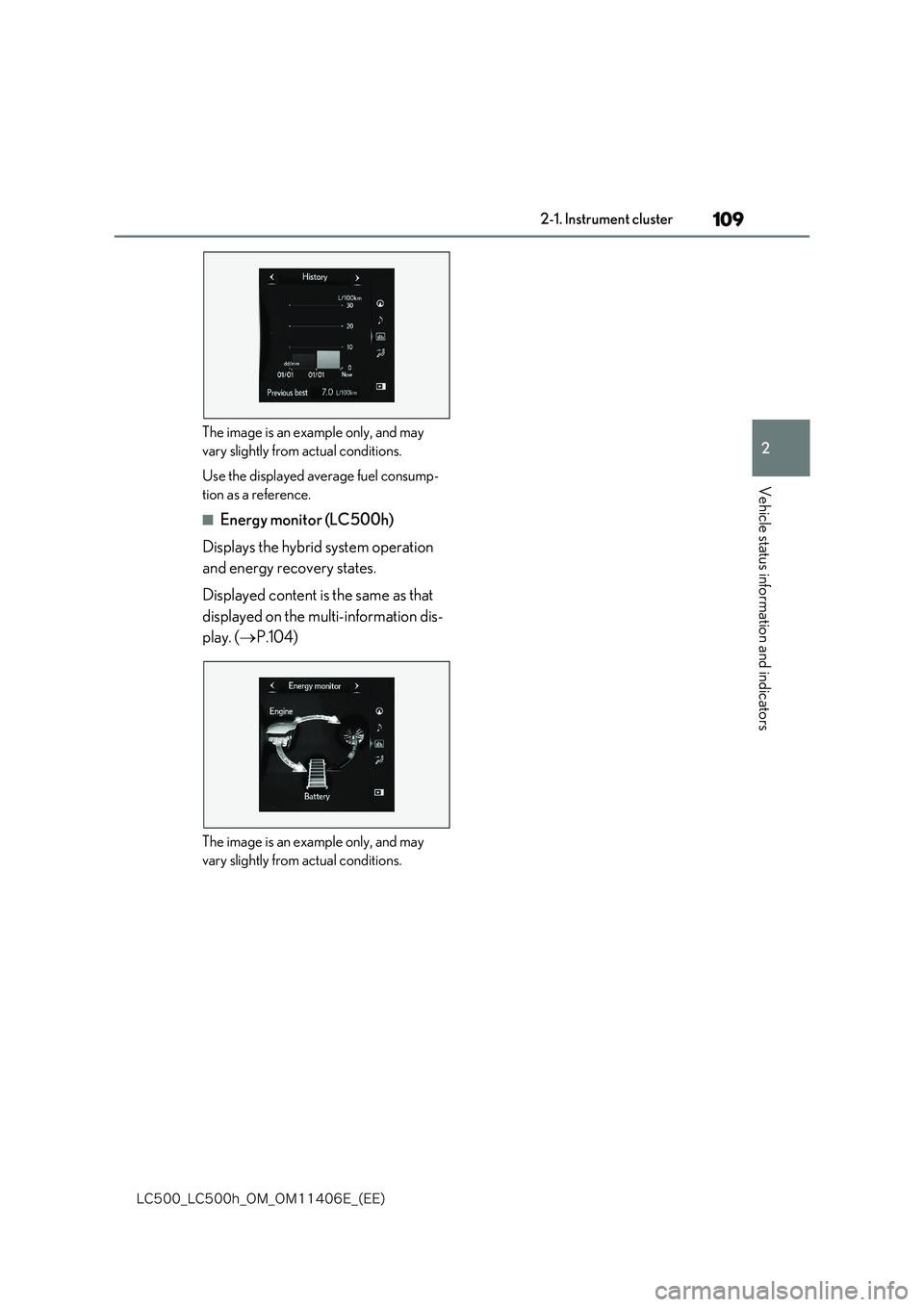

■Energy monitor (LC500h)
Displays the hybrid system operation
and energy recovery states.
Displayed content is the same as that
displayed on the multi-information dis-
play. ( P.104)
The image is an example only, and may
vary slightly from actual conditions.

110
-$@-$I@0.@0.&@ &&
