lexus LC500h 2018 / LEXUS 2018 LC500, LC500H QUICK GUIDE (OM11444U) Workshop Manual

51
LC500_LC500h_QG_OM11444U_(U)
1Press or of the meter control switches, and select .
2Press or of the meter control switches , and select “Parking Assist”, and press
“OK”.
When the intuitive parking assi st turn on, the intuitive parking assist indicator comes on
to inform the driver that the system is operational.
Intuitive Parking As sist (if equipped)
The distance from your vehicle to nearby ob stacles when parallel parking or maneuvering
into a garage is measured by the sensor s and communicated via the displays and a
buzzer. Always check the surrounding area when using this system.
Turning intuitive parking assist on/off

52
LC500_LC500h_QG_OM11444U_(U)
1Normal mode/Custom mode
Normal mode and custom mode are
selected by pressing the driving mode
select switch. Each time the switch is
pressed, the driving mode changes
between normal mode and custom
mode. When custom mode is selected,
the “Custom” indicator comes on.
Press the switch to change the driving
mode to normal mode when not in nor-
mal mode.
•Normal mode Provides an optimal balance of fuel
economy, quietness, and dynamic
performance. Suitable for city driv-
ing.
When the shift position is in D, an
appropriate gear for sporty driving
may automatically be selected
according to driver performance and
driving conditions.
• Custom mode Allows you to drive with the power train, ch assis and air conditioning system functions
set to your preferred settings.
Custom mode settings can only be change d on the drive mode customization display
of the Center Display. ( →P.59)
2Comfort mode
By controlling the suspension, riding comfort is further enhanced. Su itable for city driv-
ing.
When not in comfort mode and the driving mo de select switch is turned forward, the
“Comfort” indicator comes on.
3Eco drive mode
Helps the driver acce lerate in an eco-friendly ma nner and improve fuel economy
through moderate throttle characteristics an d by controlling the operation of the air
conditioning system (heating/cooling).
When in comfort mode, if the driving mode se lect switch is turned forward, the “Eco”
indicator comes on.
Driving Mode Select Switch
The driving modes can be select ed to suit driving condition.

53
LC500_LC500h_QG_OM11444U_(U)
4Sport mode
•SPORT S modeControls the transmission and engine to provide quick, powerful acceleration. This
mode is suitable for when agile driving resp onse is desired, such as when driving on
roads with many curves.
When not in SPORT S mode, if the driving mode select switch is turned backward,
the “Sport S” indicator comes on.
•SPORT S+ mode Provides earlier downshift timing than SP ORT S mode in order to maintain a high
engine speed and provides faster gear chan ges. This mode also changes the steering
feel, suspension control and VDIM
* control, making it suitable for powerful sporty
driving.
When in SPORT S mode, if the driving mode select switch is turned backward, the
“Sport S+” indicator comes on.
*: For details, refer to the “OWNER’S MANUAL”.

54
LC500_LC500h_QG_OM11444U_(U)
Multi-information display
Turning the BSM function/RCTA func-
tion on/off.
The RCTA function is available when
the BSM function is on.
Outside rear view mirror indicators
BSM function:
When a vehicle is detected in a blind
spot of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illu-
minate. If the turn signal lever is oper-
ated toward the detected side, the
outside rear view mirror indicator will
flash.
RCTA function:
When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, both outside rear view mirror
indicators will flash.
BSM indicator/RCTA indicator
When the BSM function/RCTA function is turned on, the indicator illuminates.
Monitor screen display (RCTA function only)
If a vehicle approaching from the right or left at the rear of the vehicle is detected, the
RCTA icon for the detected side will be di splayed on the monitor screen. This illustra-
tion shows an example of a vehicle approachin g from the left at the rear of the vehicle.
RCTA buzzer (RCTA function only)
If a vehicle approaching from the right or left at the rear of the vehicle is detected, a
buzzer will sound. The buzzer also sounds for approximately 1 second immediately
after the BSM function is operated to turn the system on.
BSM (Blind Spot Monitor) (if equipped)
The Blind Spot Monitor is a system that has 2 functions;
● The BSM (Blind Spot Monitor) function
Assists the driver in making a decision when changing lanes
● The RCTA (Rear Cross Traffic Alert) function
Assists the driver when backing up
These functions use same sensors.
A
B
C
D
E

55
LC500_LC500h_QG_OM11444U_(U)
The tire pressure detected by the tire pres-
sure warning system can be displayed on
the multi-information display.
The illustration used is intended as an exam-
ple, and may differ from the image that is
actually displayed on the multi-information
display.
Tire Pressure Warning System
Your vehicle is equipped with a tire pressure warning system that uses tire pressure warn-
ing valves and transmitters to detect low tire inflation pressure before serious problems
arise.
The tire inflation pressure display function

56
LC500_LC500h_QG_OM11444U_(U)
1Turn the engine switch to IGNITION ON mode .
2Press or of the meter control switches and select .
3Press or of the meter control switch es and select “Vehicle Settings”, then
press “OK”.
4Press or of the meter control switch es and select “TPWS SET”, then press
“OK”.
5Press or of the meter co ntrol switches and select “Set tire pressure”. Then
press and hold “OK” until the tire pressure warning light starts blinking.
A message is displayed on the multi-infor-
mation display. Also, “--” is displayed for
inflation pressure of each tire on the multi-
information display while the tire pressure
warning system determines the position.
6Drive the vehicle at approximately 25 mph (40 km/h) or more for approximately 10 to
30 minutes.
When initialization is comple te, the inflation pressure of each tire will be displayed on
the multi-information display.
Initializing the tire pressure warning system

57
LC500_LC500h_QG_OM11444U_(U)
Multi-information display (→P.35)
Displays the status of the active rear
wing.
Active rear wing switch
Operates the active rear wing manu-
ally.
Indicator
Illuminates when the active rear wing is
raised and turns off when it is retracted.
Active Rear Wing (if equipped)
The vehicle is equipped with an active rear wing that operates automatically while the
vehicle is being driven. This active rear wi ng enhances aerodynamic performance, espe-
cially at high speeds, contribu ting to a more stable ride.
The active rear wing can be cont rolled manually using a switch.
A
B
C

58
LC500_LC500h_QG_OM11444U_(U)
“MAP” button
Press to display the current location.
“MENU” button
Press to display the menu screen.
Back button
Press to display the previous screen.
Touchpad
Slide your finger on the touchpad and move the pointer to select a function, letter and
screen button.
Press the touchpad to enter the selected function, letter or screen button. Certain fin-
ger movements on the touchpad can perform functions, such as changing map scalings
and scrolling list screens.
Sub function button
When is displayed on the screen, a function screen assigned to the screen can be
displayed.
Remote Touch
The Remote Touch can be used to operate the Center Display.
Remote Touch is the name for the device that includes the “MAP” button, “MENU” but-
ton, back button, touchpad and sub function button.
Names and operations of each part
A
B
C
D
E

59
LC500_LC500h_QG_OM11444U_(U)
Press the “MENU” button on the Remote Touch to display the menu screen.
*1: This function is not made available on some models.
*2: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
*3: Refer to the “OWNER’S MANUAL”.

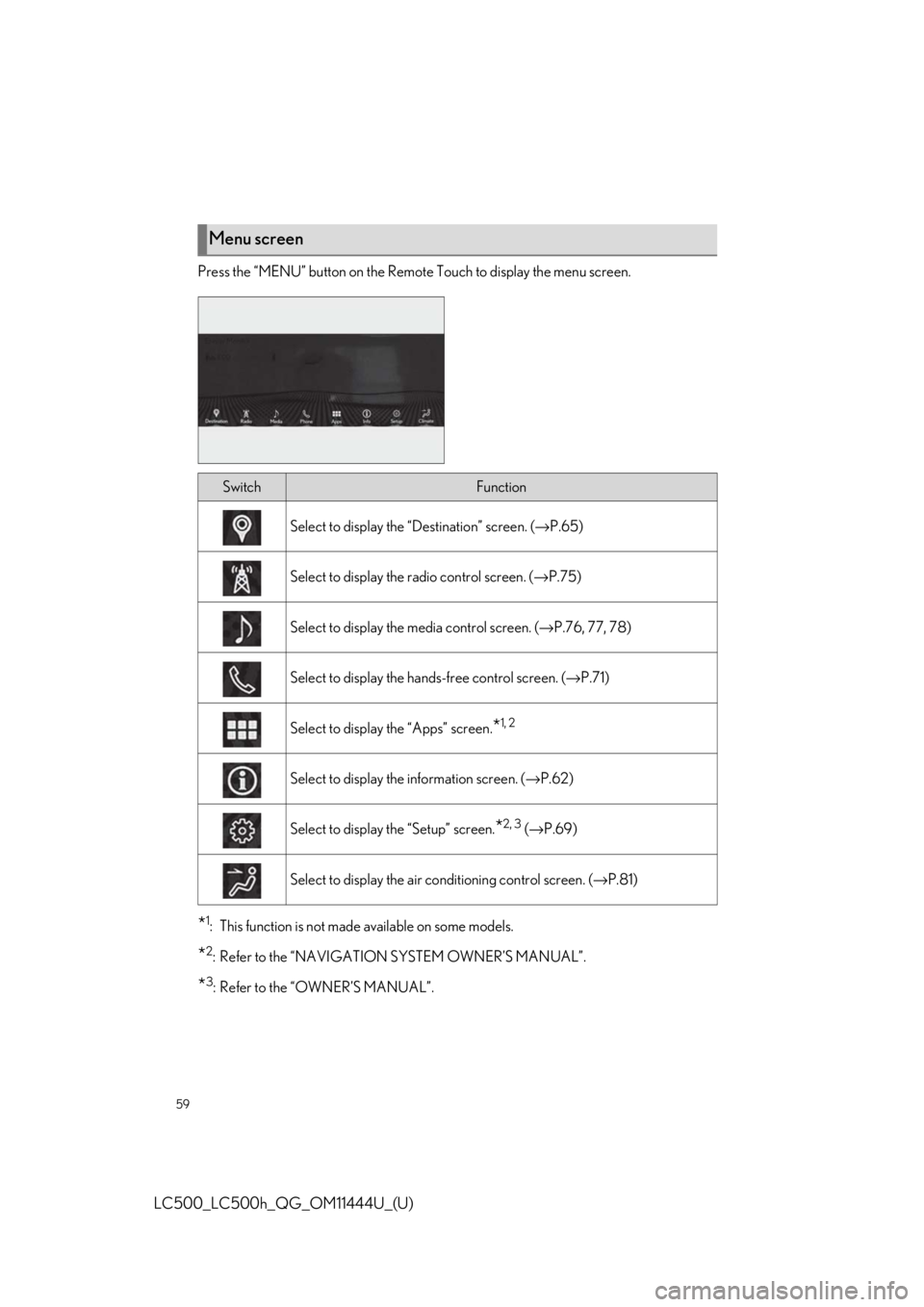

Menu screen
SwitchFunction
Select to display the “Destination” screen. (→P.65)
Select to display the radio control screen. ( →P.75)
Select to display the media control screen. ( →P.76, 77, 78)
Select to display the hand s-free control screen. (→P.71)
Select to display the “Apps” screen.*1, 2
Select to display the information screen. ( →P.62)
Select to display the “Setup” screen.*2, 3 (→ P.69)
Select to display the air co nditioning control screen. ( →P.81)

60
LC500_LC500h_QG_OM11444U_(U)
Different information can be displayed on the left and right of the screen. For example, air
conditioning system screen can be displayed and operated while the fuel consumption
information screen is being displayed. The large screen on the left of the display is called the
main display, and the small screen to the right is called the side display.
The following function s can be displayed
and operated on the side display.
Navigation system ( →P.65)
Audio ( →P.75, 76, 77, 78)
Vehicle information ( →P.64)
Air conditioning system (→ P.83)
Show/hide the side display
Split-screen display
Side display
A
B
C
D
E
