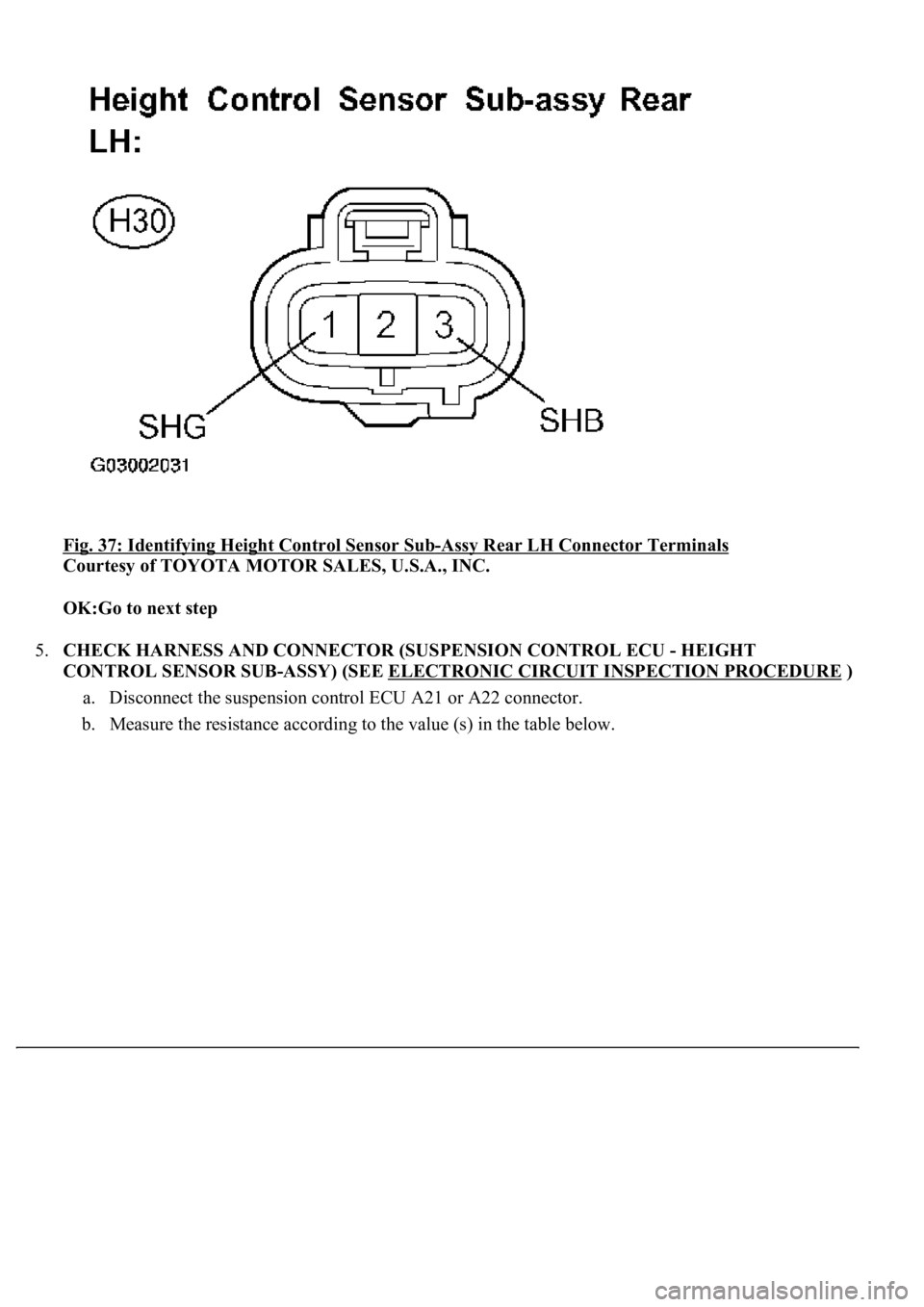

Fig. 37: Identifying Height Control Sensor Sub-Assy Rear LH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK:Go to next step
5.CHECK HARNESS AND CONNECTOR (SUSPENSION CONTROL ECU - HEIGHT
CONTROL SENSOR SUB-ASSY) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Disconnect the suspension control ECU A21 or A22 connector.
b. Measure the resistance according to the value (s) in the table below.

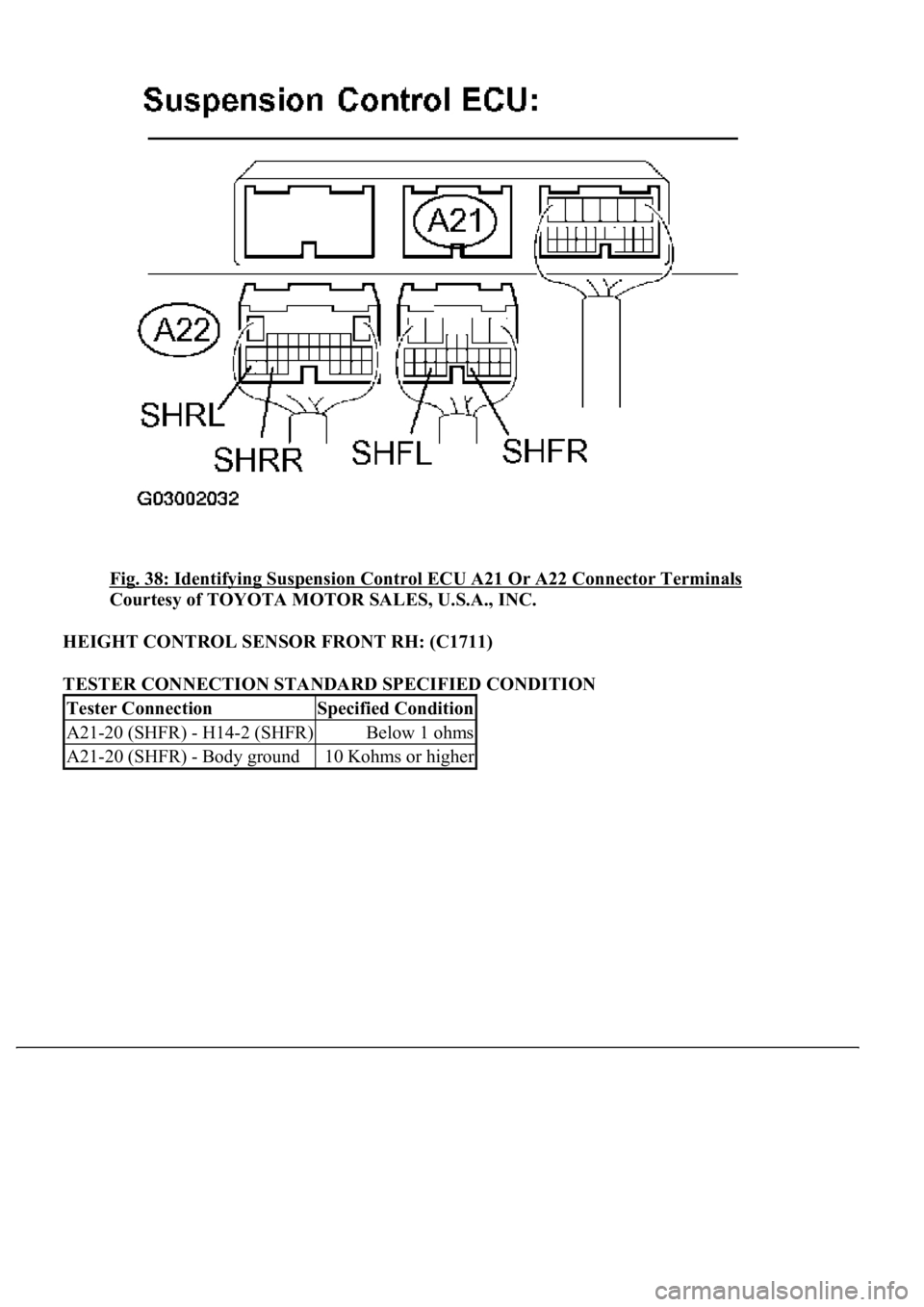

Fig. 38: Identifying Suspension Control ECU A21 Or A22 Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HEIGHT CONTROL SENSOR FRONT RH: (C1711)
TESTER CONNECTION STANDARD SPECIFIED CONDITION
Tester ConnectionSpecified Condition
A21-20 (SHFR) - H14-2 (SHFR)Below 1 ohms
A21-20 (SHFR) - Body ground10 Kohms or higher

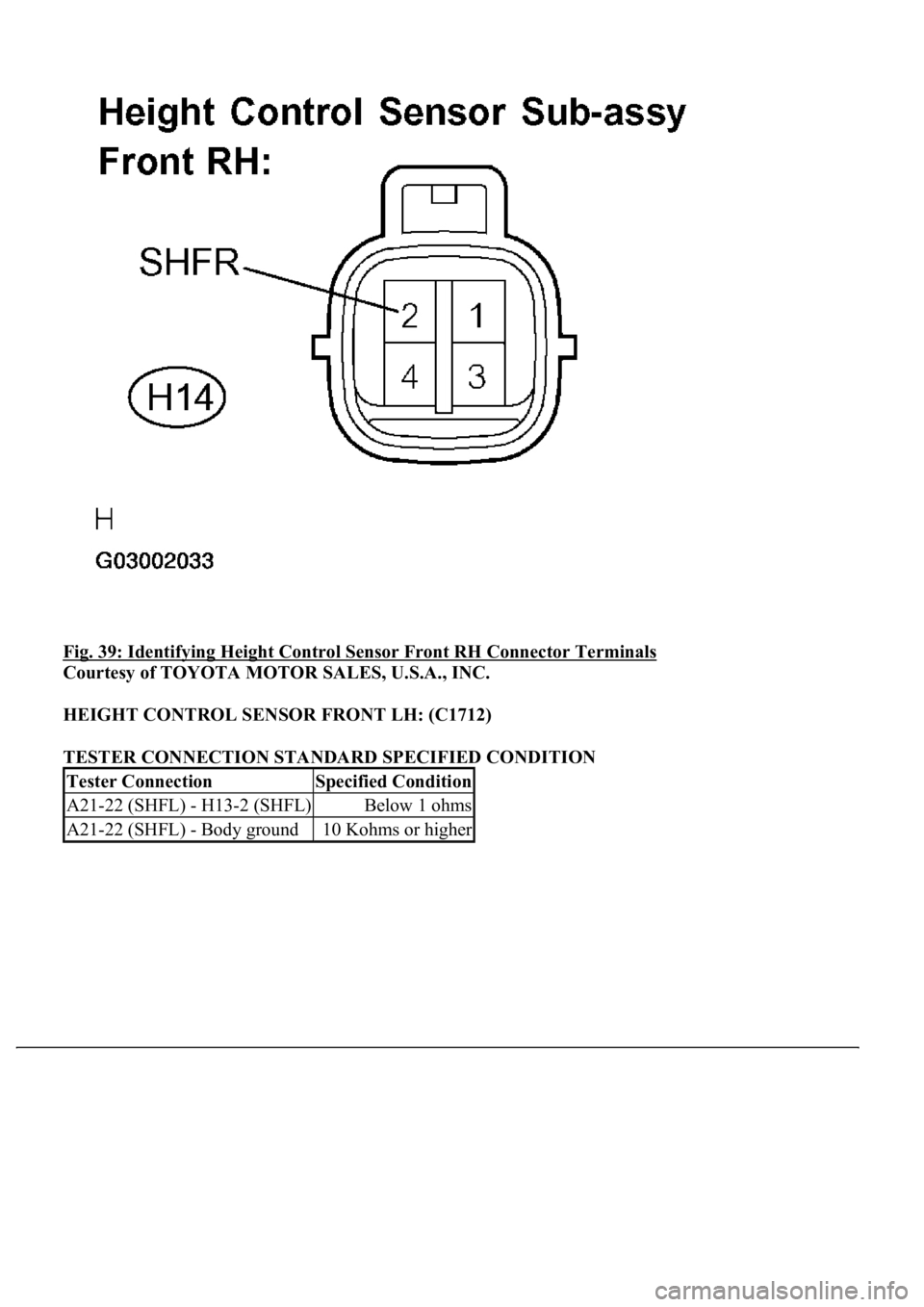

Fig. 39: Identifying Height Control Sensor Front RH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HEIGHT CONTROL SENSOR FRONT LH: (C1712)
TESTER CONNECTION STANDARD SPECIFIED CONDITION
Tester ConnectionSpecified Condition
A21-22 (SHFL) - H13-2 (SHFL)Below 1 ohms
A21-22 (SHFL) - Body ground10 Kohms or higher

Fig. 40: Identifying Height Control Sensor Front LH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HEIGHT CONTROL SENSOR REAR RH: (C1713)
TESTER CONNECTION STANDARD SPECIFIED CONDITION
Tester ConnectionSpecified Condition
A22-28 (SHRR) - H31-2 (SHRR)Below 1 ohms
A22-28 (SHRR) - Body ground10 Kohms or higher

Fig. 41: Identifying Height Control Sensor Rear RH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HEIGHT CONTROL SENSOR REAR LH: (C1714)
TESTER CONNECTION STANDARD SPECIFIED CONDITION
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Tester ConnectionSpecified Condition
A22-30 (SHRL) - H30-2 (SHRL)Below 1 ohms
A22-30 (SHRL) - Body ground10 Kohms or higher

Fig. 42: Identifying Height Control Sensor Rear LH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK:Go to next step
6.CHECK HEIGHT CONTROL SENSOR SUB-ASSY
HEIGHT CONTROL SENSOR FRONT RH: (C1711)
a. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
RESULT DESCRIPTION
Tester ConnectionSpecified Condition
1 (SHB) - 4 (SHG)3.0 to 5.6 Kohms
1 (SHB) - 2 (SHFR)0.4 to 3.9 Kohms

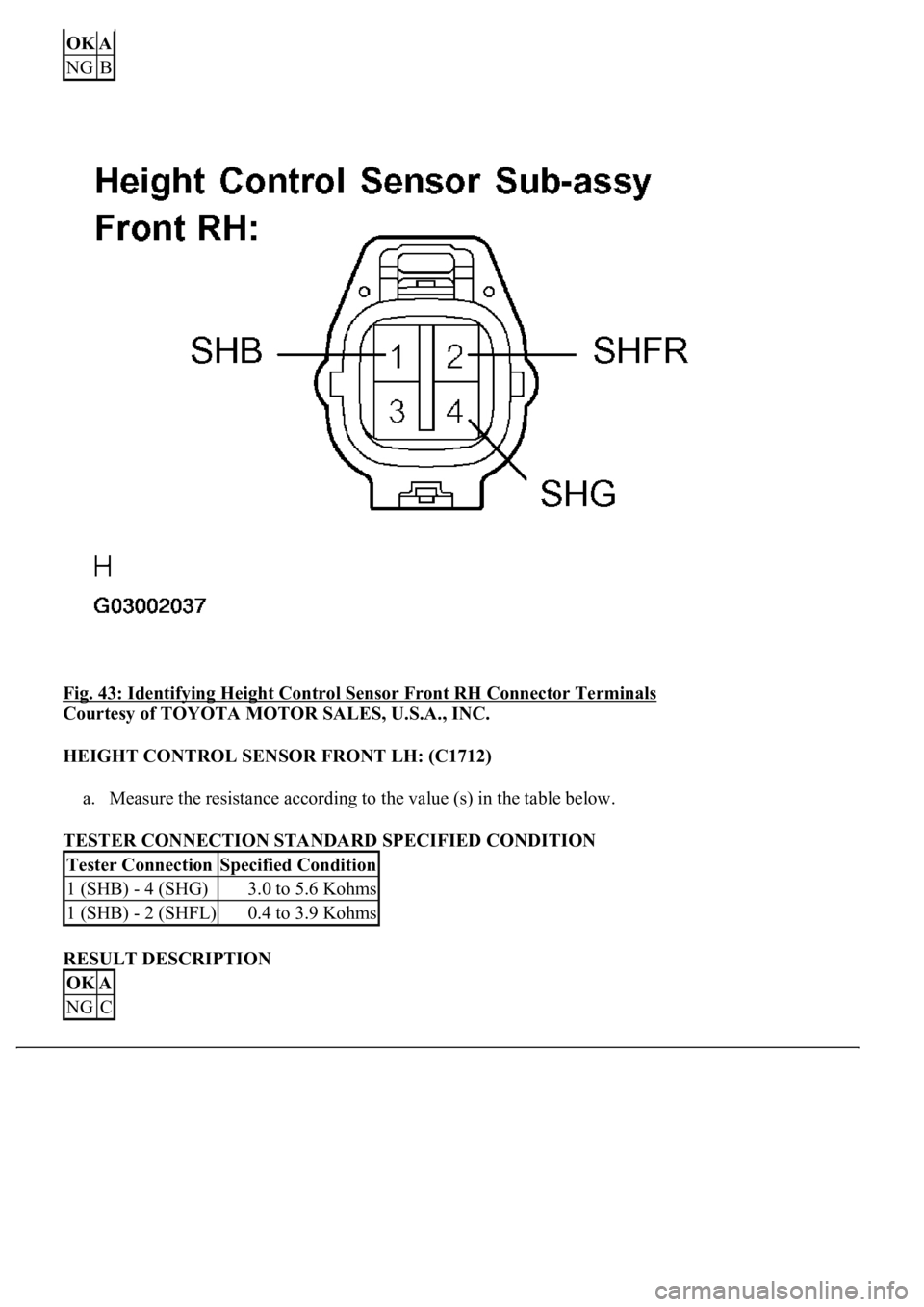

Fig. 43: Identifying Height Control Sensor Front RH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HEIGHT CONTROL SENSOR FRONT LH: (C1712)
a. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
RESULT DESCRIPTION
OKA
NGB
Tester ConnectionSpecified Condition
1 (SHB) - 4 (SHG)3.0 to 5.6 Kohms
1 (SHB) - 2 (SHFL)0.4 to 3.9 Kohms
OKA
NGC

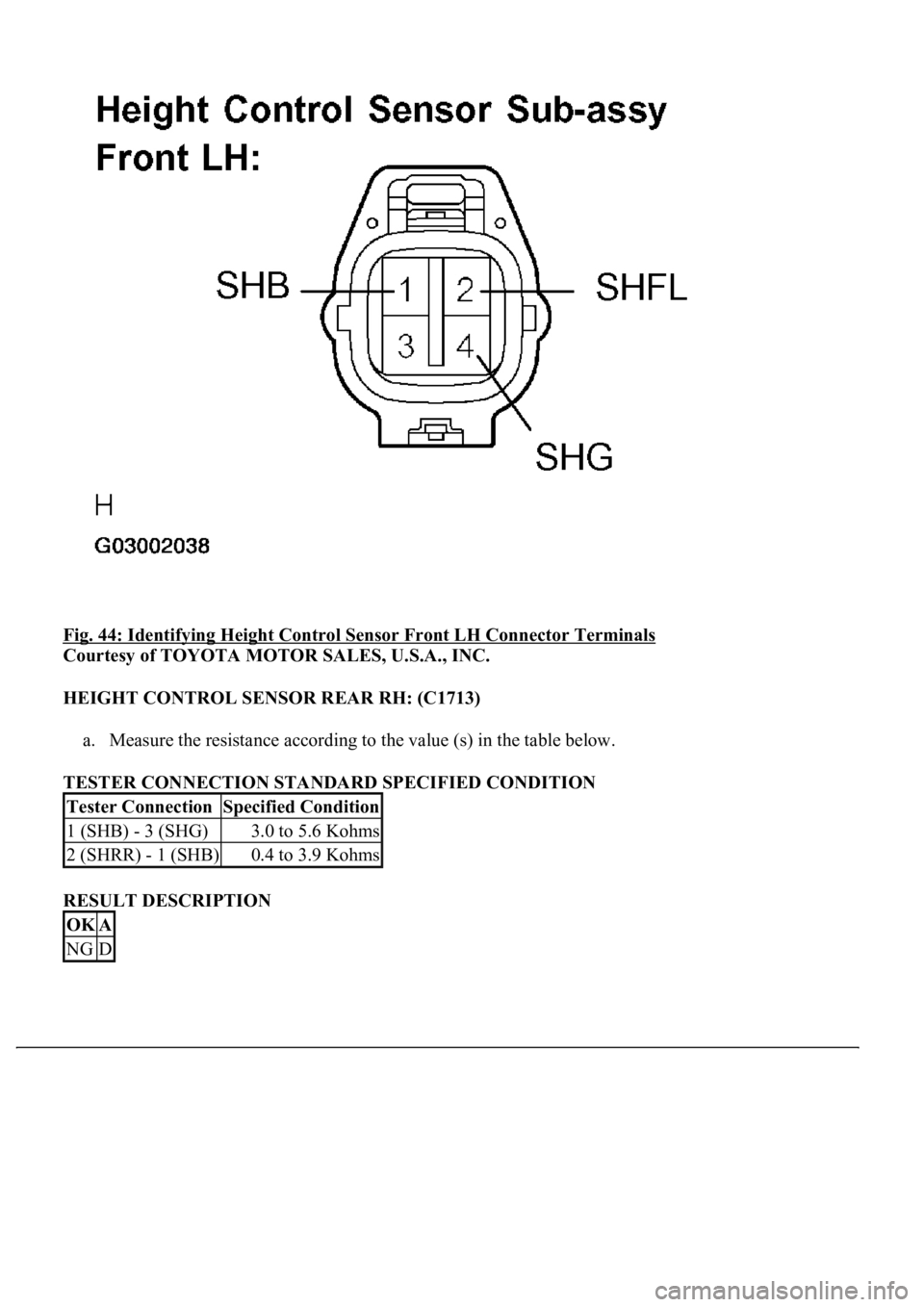

Fig. 44: Identifying Height Control Sensor Front LH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HEIGHT CONTROL SENSOR REAR RH: (C1713)
a. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
RESULT DESCRIPTION
Tester ConnectionSpecified Condition
1 (SHB) - 3 (SHG)3.0 to 5.6 Kohms
2 (SHRR) - 1 (SHB)0.4 to 3.9 Kohms
OKA
NGD

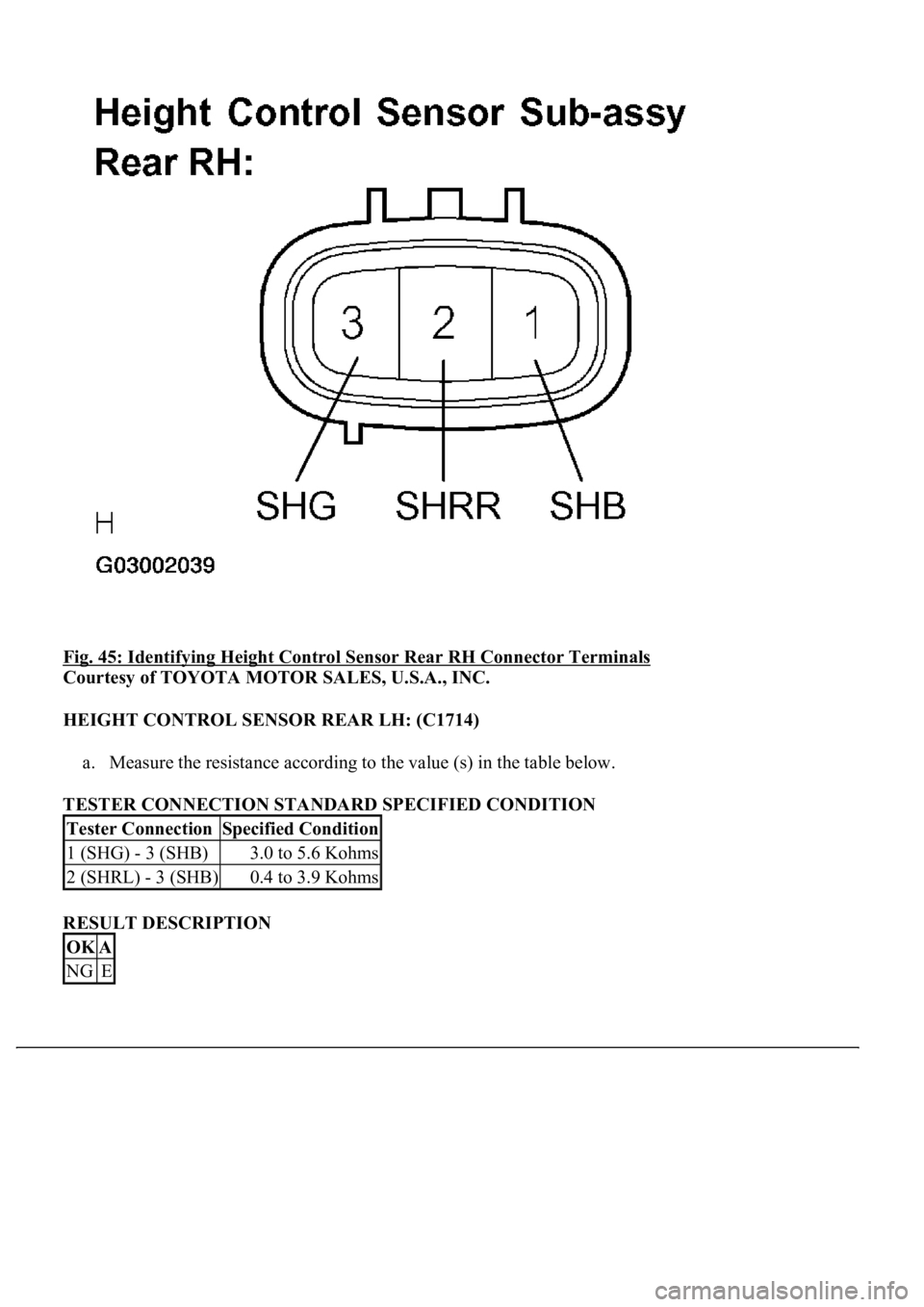

Fig. 45: Identifying Height Control Sensor Rear RH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HEIGHT CONTROL SENSOR REAR LH: (C1714)
a. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION STANDARD SPECIFIED CONDITION
RESULT DESCRIPTION
Tester ConnectionSpecified Condition
1 (SHG) - 3 (SHB)3.0 to 5.6 Kohms
2 (SHRL) - 3 (SHB)0.4 to 3.9 Kohms
OKA
NGE

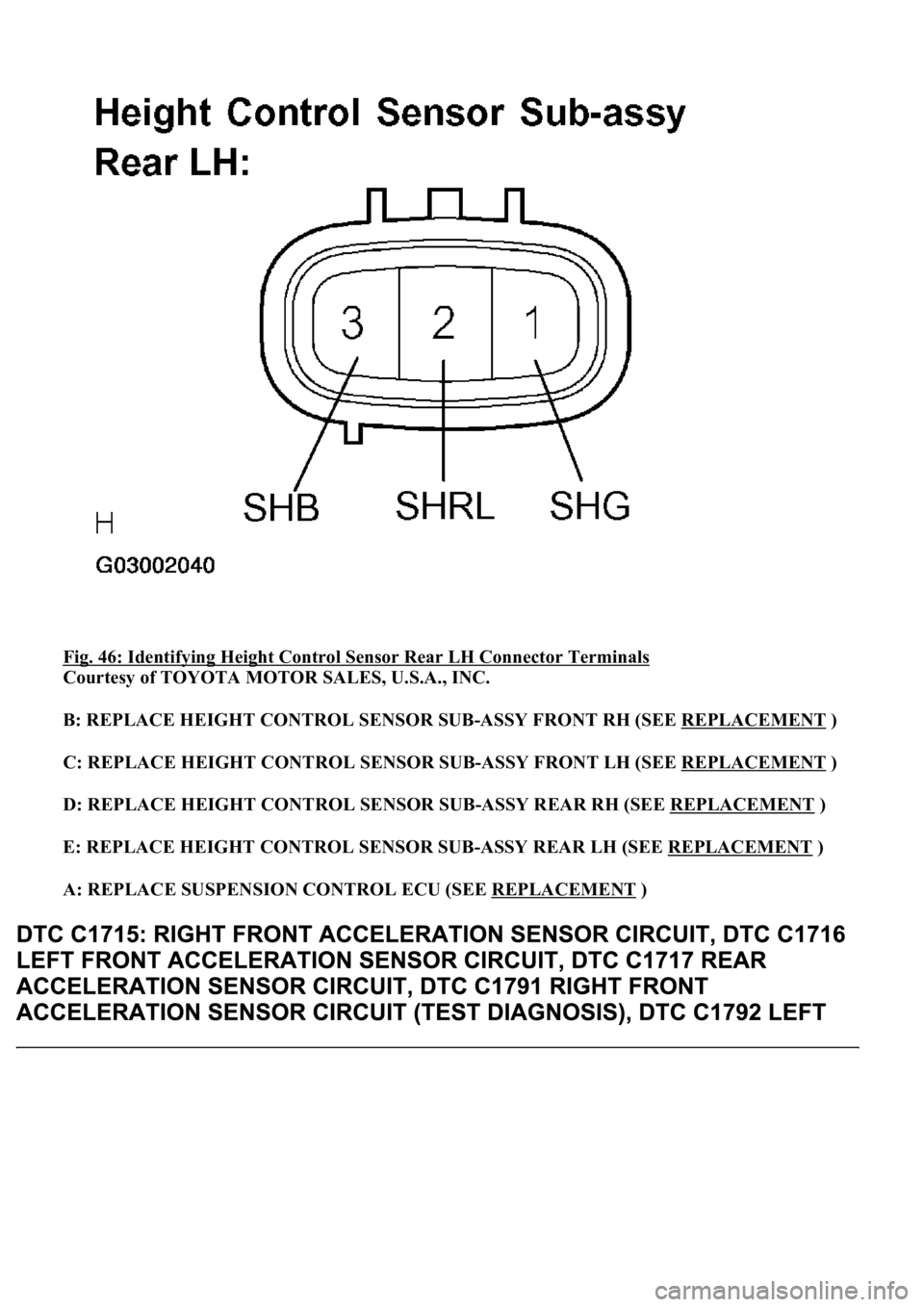

Fig. 46: Identifying Height Control Sensor Rear LH Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
B: REPLACE HEIGHT CONTROL SENSOR SUB-ASSY FRONT RH (SEE REPLACEMENT
)
C: REPLACE HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH (SEE REPLACEMENT
)
D: REPLACE HEIGHT CONTROL SENSOR SUB-ASSY REAR RH (SEE REPLACEMENT
)
E: REPLACE HEIGHT CONTROL SENSOR SUB-ASSY REAR LH (SEE REPLACEMENT
)
A: REPLACE SUSPENSION CONTROL ECU (SEE REPLACEMENT
)
