sensor LEXUS LS430 2003 Factory Repair Manual

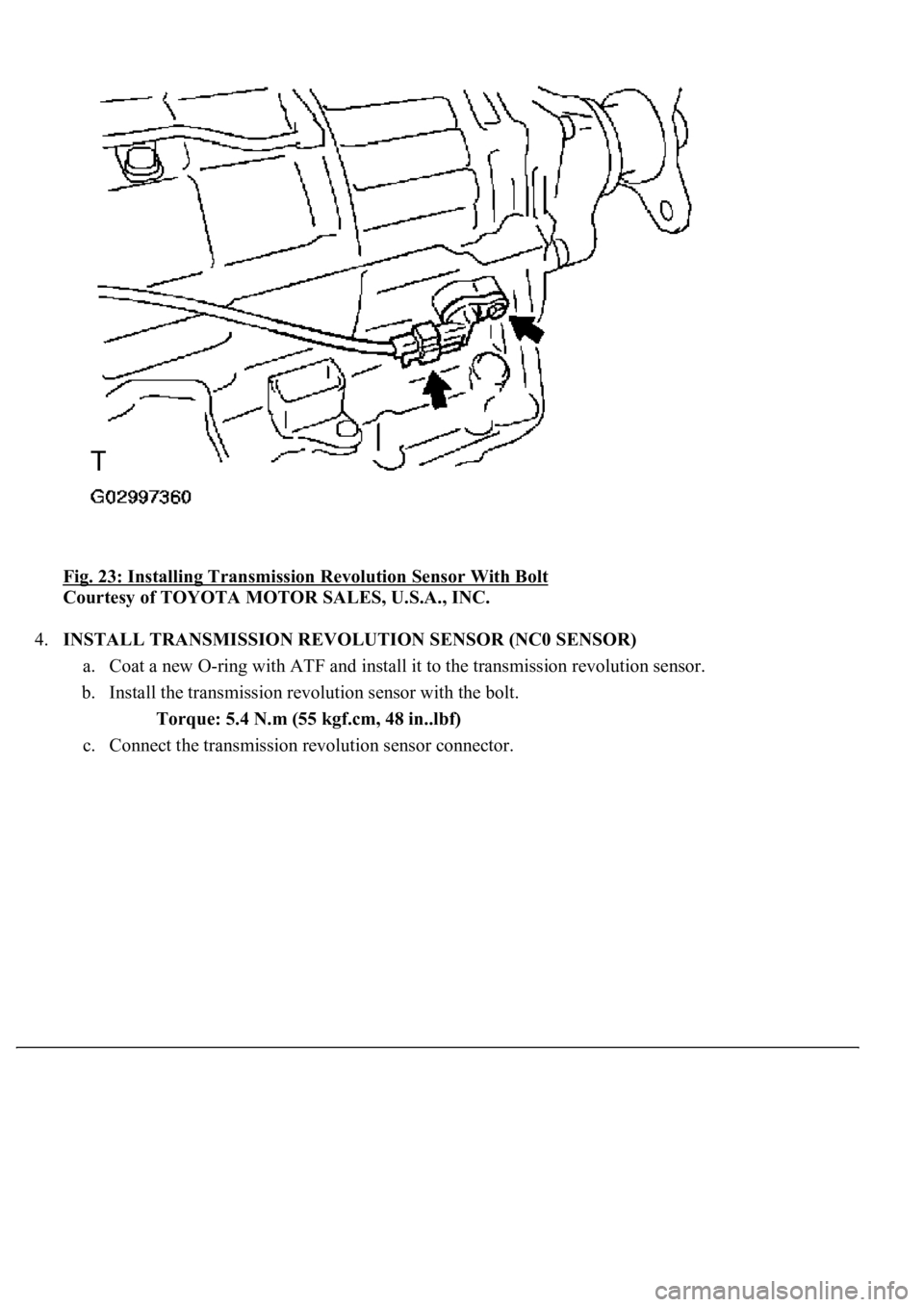

Fig. 23: Installing Transmission Revolution Sensor With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.INSTALL TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
a. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
b. Install the transmission revolution sensor with the bolt.
Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
c. Connect the transmission revolution sensor connector.

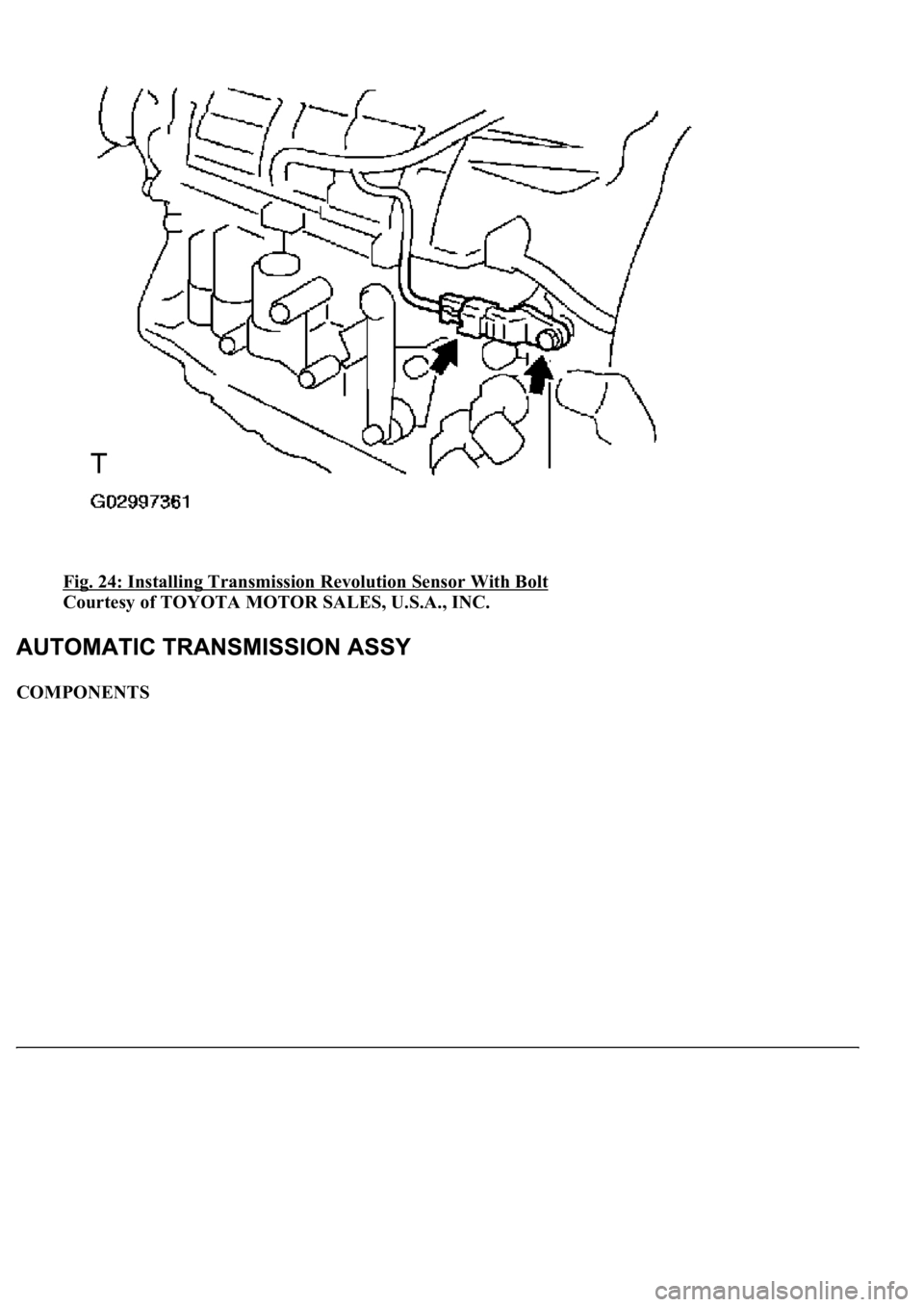

Fig. 24: Installing Transmission Revolution Sensor With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
COMPONENTS

3.REMOVE ENGINE UNDER COVER NO.2
4.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (SEE REPLACEMENT
)
5.REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE REPLACEMENT
)
6.REMOVE INSTRUMENT PANEL FINISH PANEL (SEE REPLACEMENT
)
7.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (SEE REPLACEMENT
)
8.REMOVE SWITCH BRACE HOLE COVER (SEE REPLACEMENT
)
9.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (SEE REPLACEMENT
)
10.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (SEE REPLACEMENT
)
11.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE REPLACEMENT
)
12.REMOVE CONSOLE BOX CARPET (SEE REPLACEMENT
)
13.REMOVE REAR CONSOLE ARMREST ASSY (SEE REPLACEMENT
)
14.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE REPLACEMENT
)
15.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE
REPLACEMENT
)
16.REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE REPLACEMENT
)
17.REMOVE CONSOLE BOX (SEE REPLACEMENT
)
18.SEPARATE OXYGEN SENSOR (SEE REPLACEMENT
)
a. Separate the 2 heated oxygen sensors.
19.REMOVE FRONT FLOOR BRACE CENTER (SEE REPLACEMENT
)
20.REMOVE EXHAUST PIPE ASSY (SEE REPLACEMENT
)
21.REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (SEE OVERHAUL
)
22.REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY (SEE OVERHAUL
)
SST 09922-10010
23.DRAIN AUTOMATIC TRANSMISSION FLUID
a. Remove the drain plug, gasket and drain the ATF.
b.Install a new gasket and the drain plug.
Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)
24.REMOVE EXHAUST PIPE NO.1 SUPPORT BRACKET SUB-ASSY
a. Remove the 2 bolts and exhaust pipe No.1 support bracket sub-ass
y.

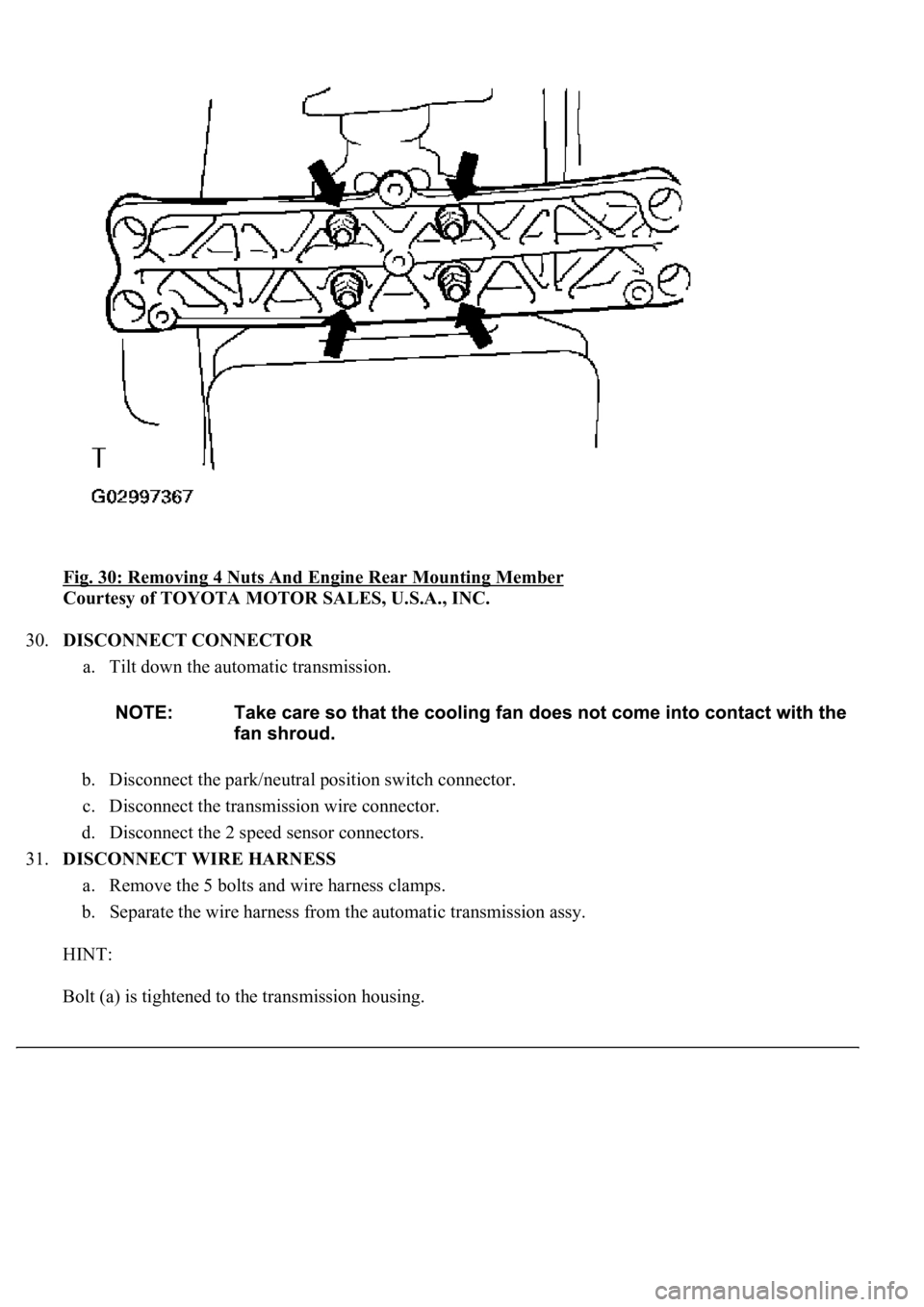

Fig. 30: Removing 4 Nuts And Engine Rear Mounting Member
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.DISCONNECT CONNECTOR
a. Tilt down the automatic transmission.
b. Disconnect the park/neutral position switch connector.
c. Disconnect the transmission wire connector.
d. Disconnect the 2 speed sensor connectors.
31.DISCONNECT WIRE HARNESS
a. Remove the 5 bolts and wire harness clamps.
b. Separate the wire harness from the automatic transmission assy.
HINT:
Bolt (a) is ti
ghtened to the transmission housing.

Fig. 64: Removing O-Ring From Oil Strainer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.DISCONNECT TRANSMISSION WIRE
a. Remove the bolt and lock plate, and separate the ATF temperature sensor.
b. Remove the 2 bolts and 2 clamps.
c. Separate the 9 connectors from the solenoid valves.

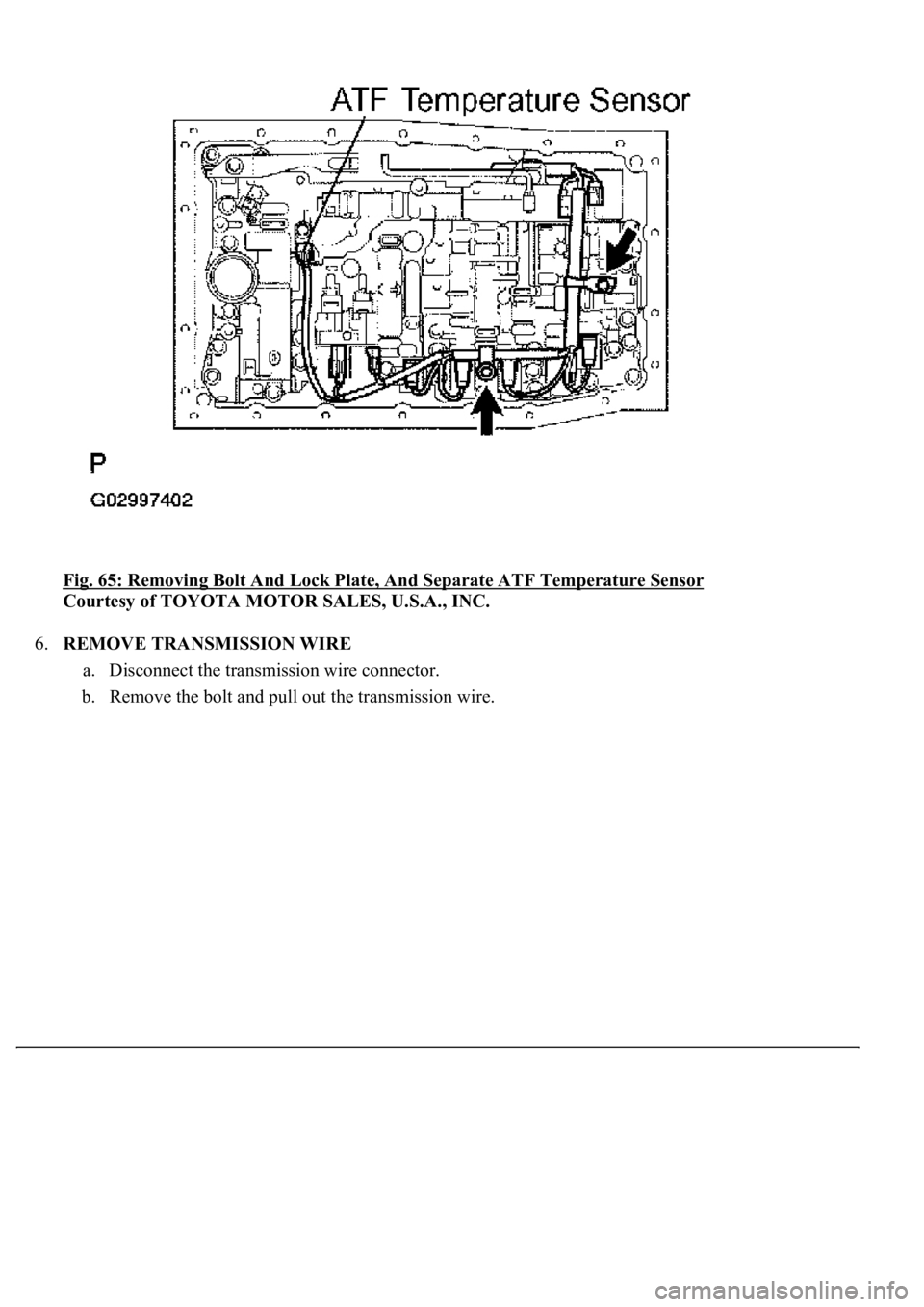

Fig. 65: Removing Bolt And Lock Plate, And Separate ATF Temperature Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE TRANSMISSION WIRE
a. Disconnect the transmission wire connector.
b. Remove the bolt and pull out the transmission wire.

Fig. 67: Installing Transmission Wire With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.CONNECT TRANSMISSION WIRE
a. Coat a new O-ring of the ATF temperature sensor with ATF.
b. Connect the 9 connectors to the solenoid valves.
c. Install the 2 clamps with the 2 bolts.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
d. Install the ATF temperature sensor and lock plate with the bolt.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

Fig. 68: Installing ATF Temperature Sensor And Lock Plate With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.INSTALL VALVE BODY OIL STRAINER ASSY
a. Coat a new O-ring with ATF.
b. Install the O-ring.

Fig. 77: Removing O-Ring From Oil Strainer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.DISCONNECT TRANSMISSION WIRE
a. Remove the bolt and lock plate, and separate the ATF temperature sensor.
b. Remove the 2 bolts and 2 clamps.
c. Separate the 9 connectors from the solenoid valves.

Fig. 78: Removing Bolt And Lock Plate, And Separating ATF Temperature Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE TRANSMISSION VALVE BODY ASSY
a. Remove the 20 bolts and valve bod
y.
