LEXUS LS430 2003 Factory Repair Manual Fig. 13: Engine Compartment Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2652 of 4500

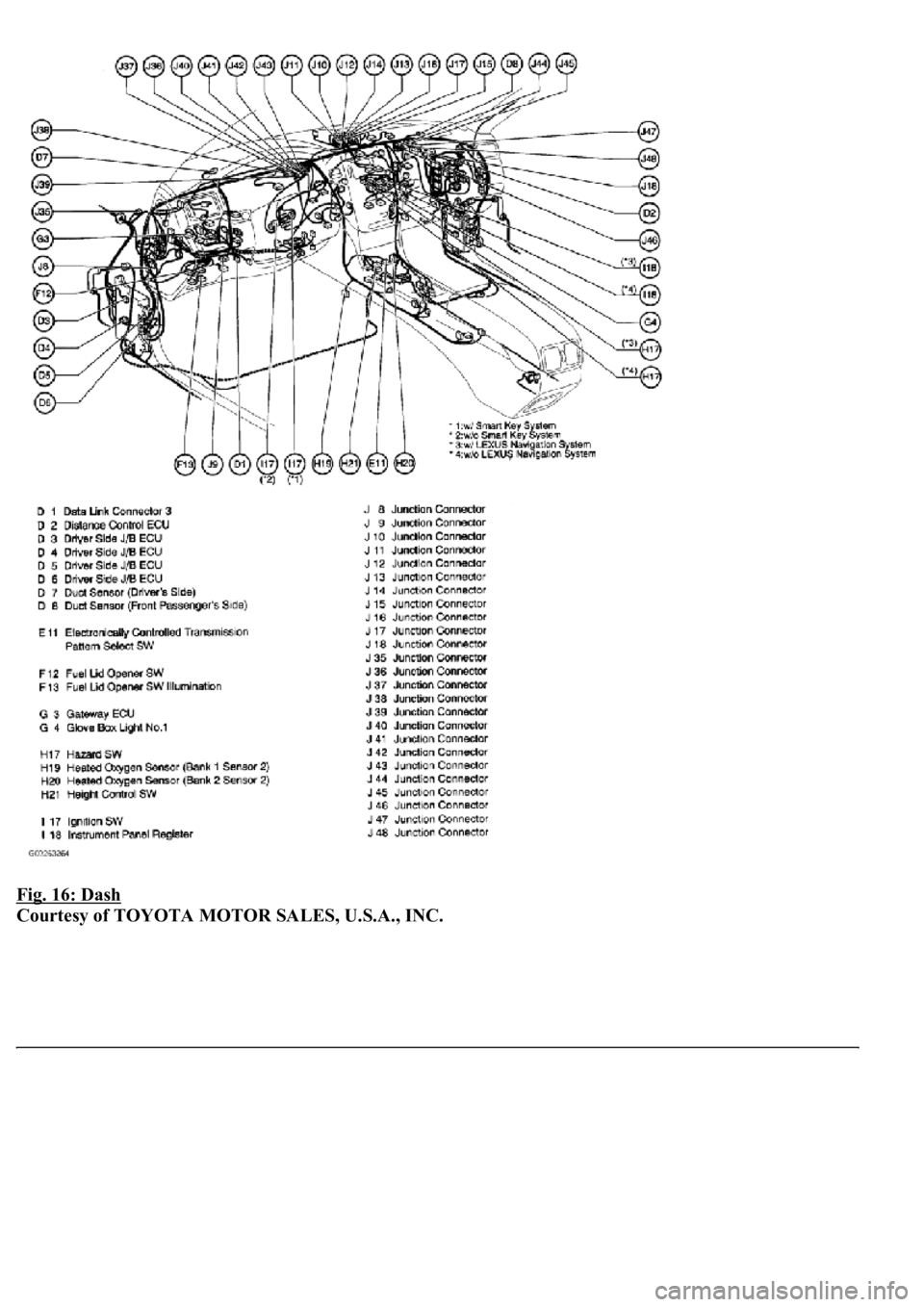

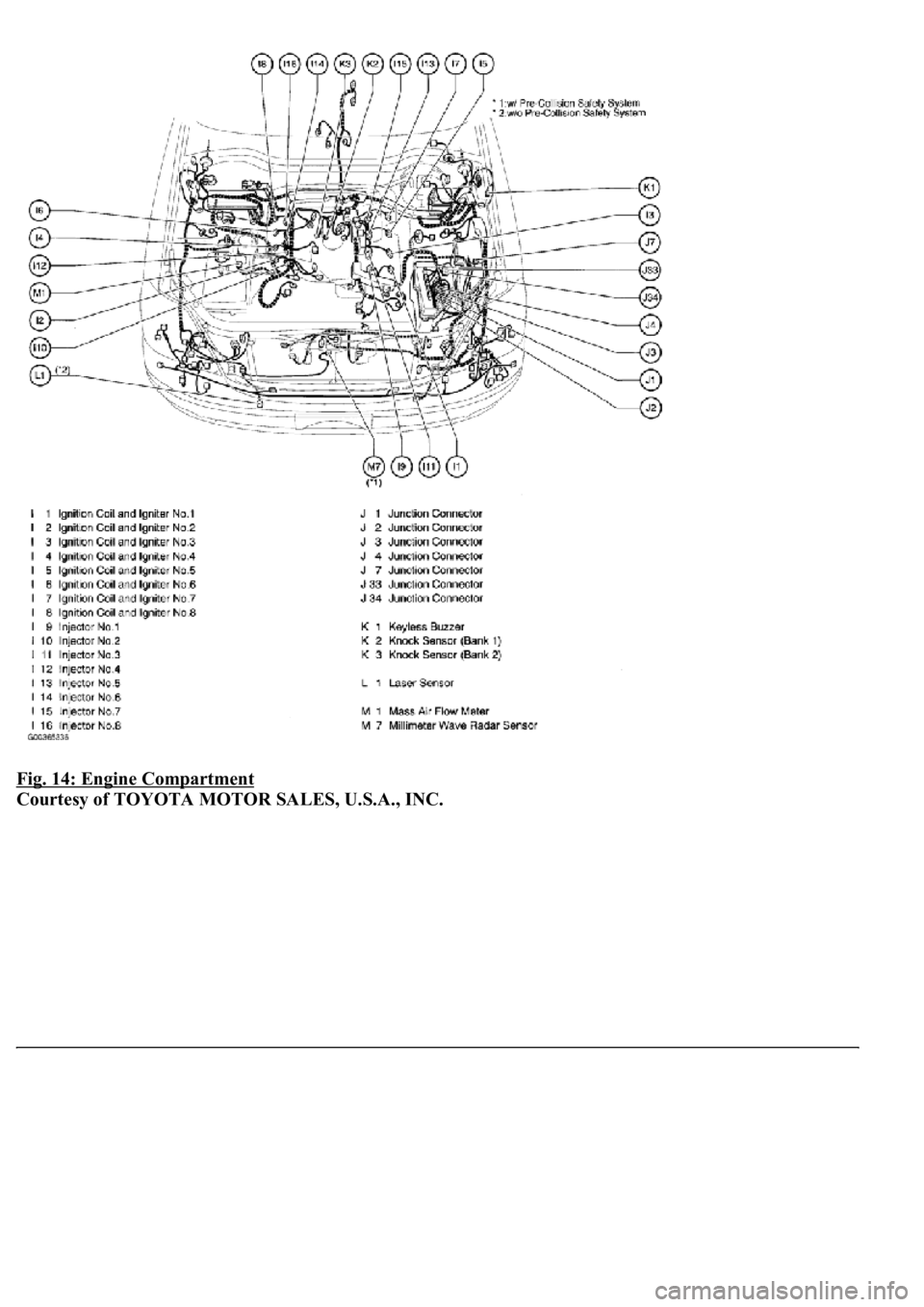

LEXUS LS430 2003 Factory Repair Manual Fig. 14: Engine Compartment Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2653 of 4500

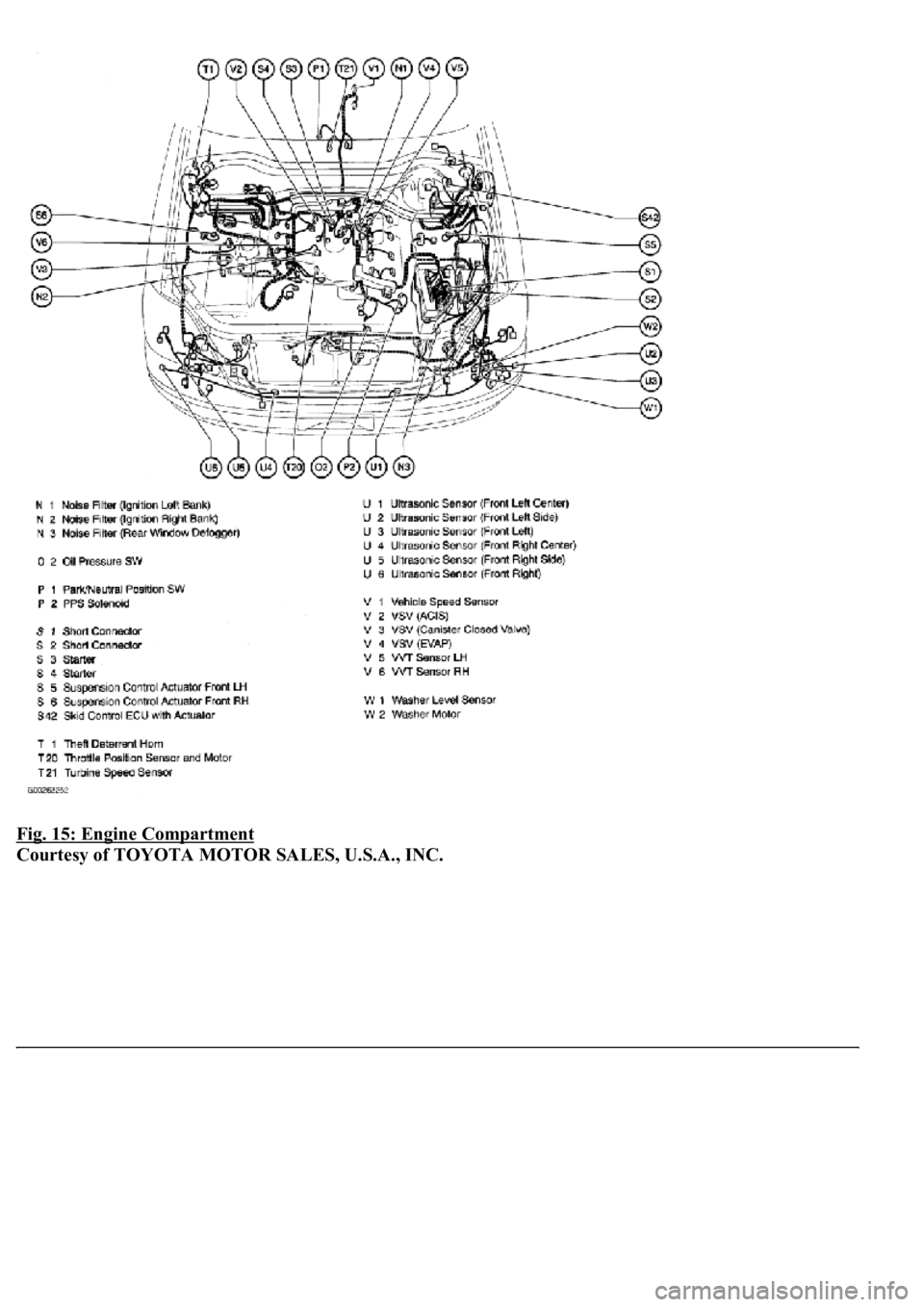

LEXUS LS430 2003 Factory Repair Manual Fig. 15: Engine Compartment Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2654 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 16: Dash Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2655 of 4500

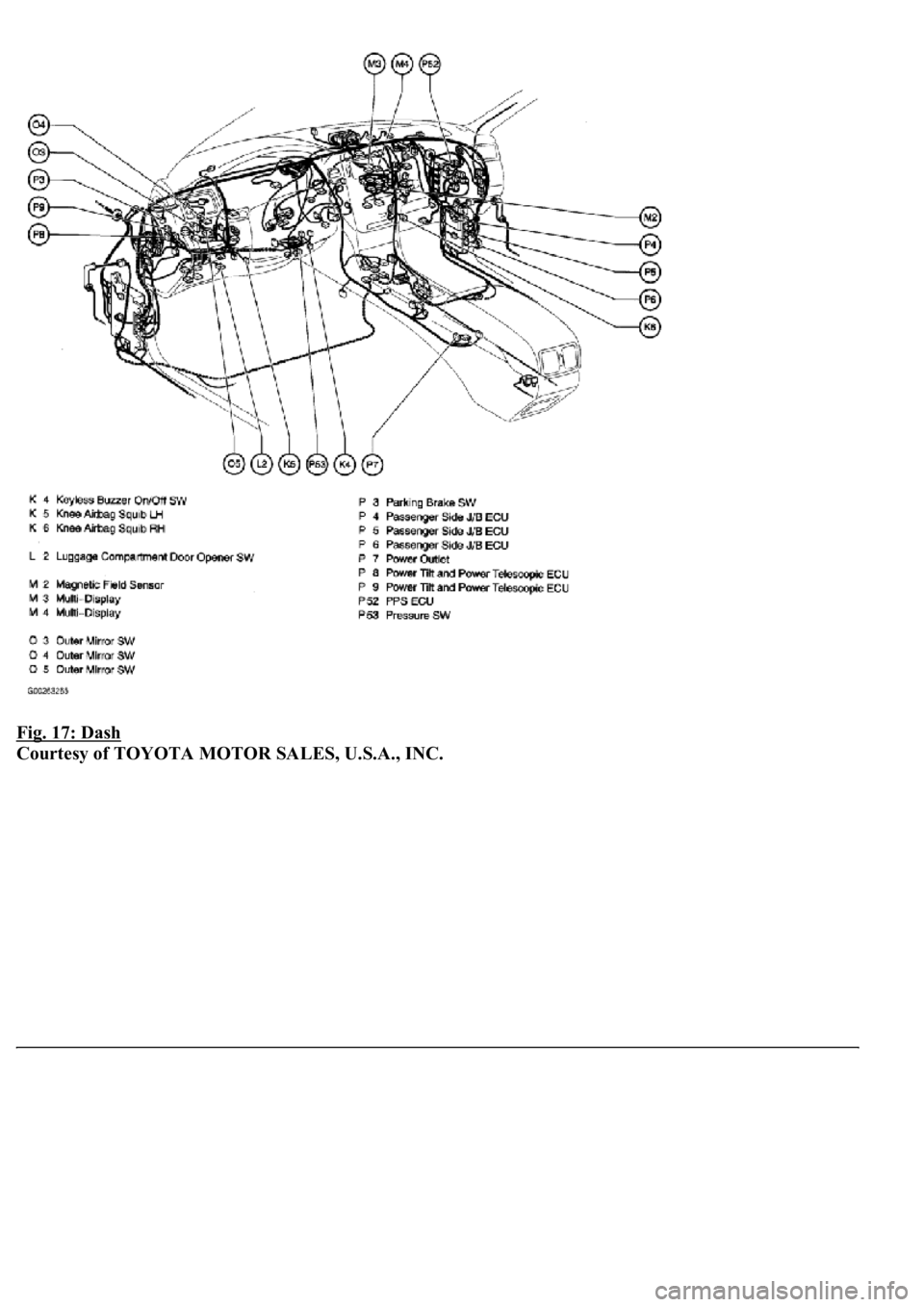

LEXUS LS430 2003 Factory Repair Manual Fig. 17: Dash Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2656 of 4500

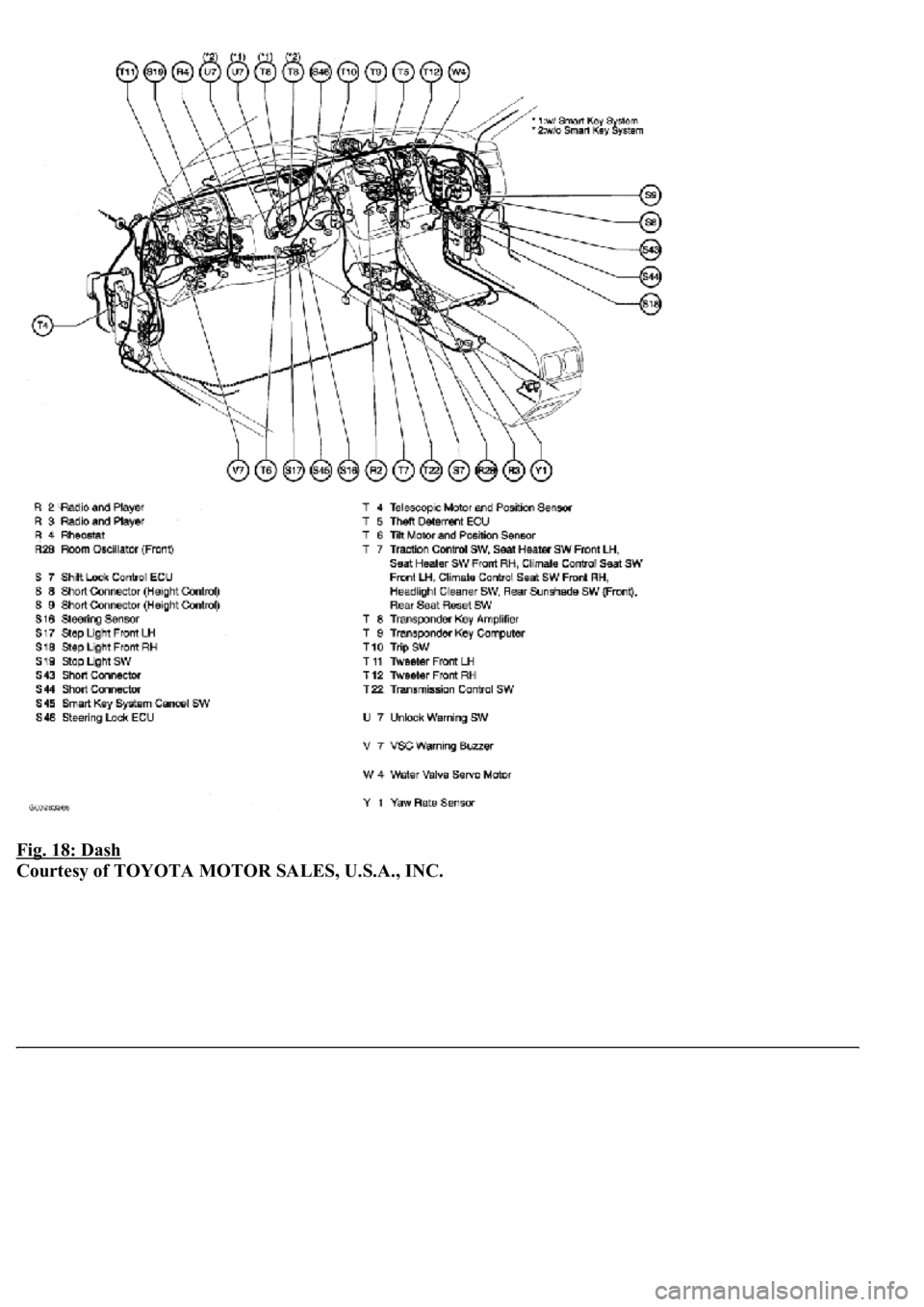

LEXUS LS430 2003 Factory Repair Manual Fig. 18: Dash Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2657 of 4500

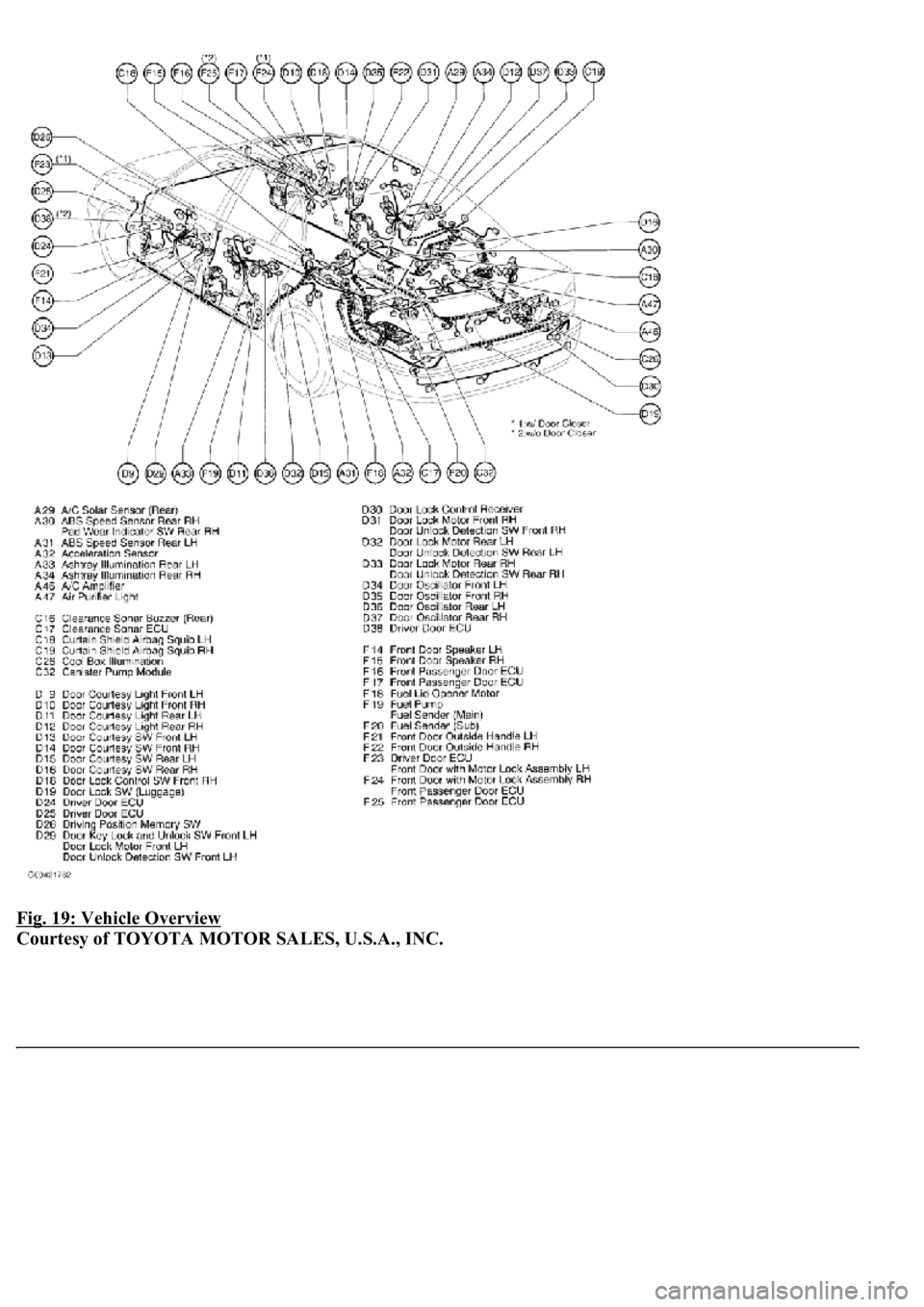

LEXUS LS430 2003 Factory Repair Manual Fig. 19: Vehicle Overview Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2658 of 4500

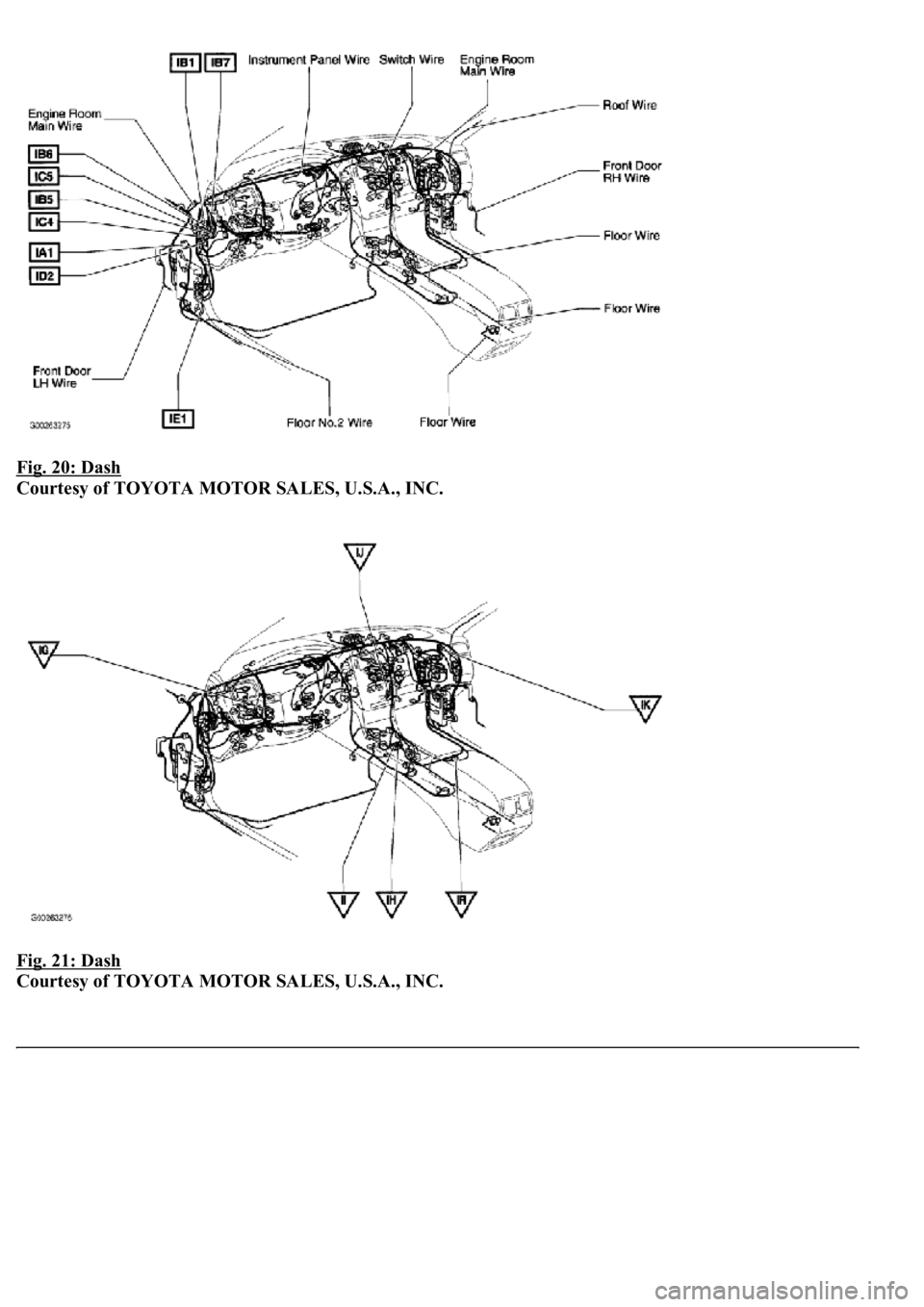

LEXUS LS430 2003 Factory Repair Manual Fig. 20: Dash Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 21: Dash Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2659 of 4500

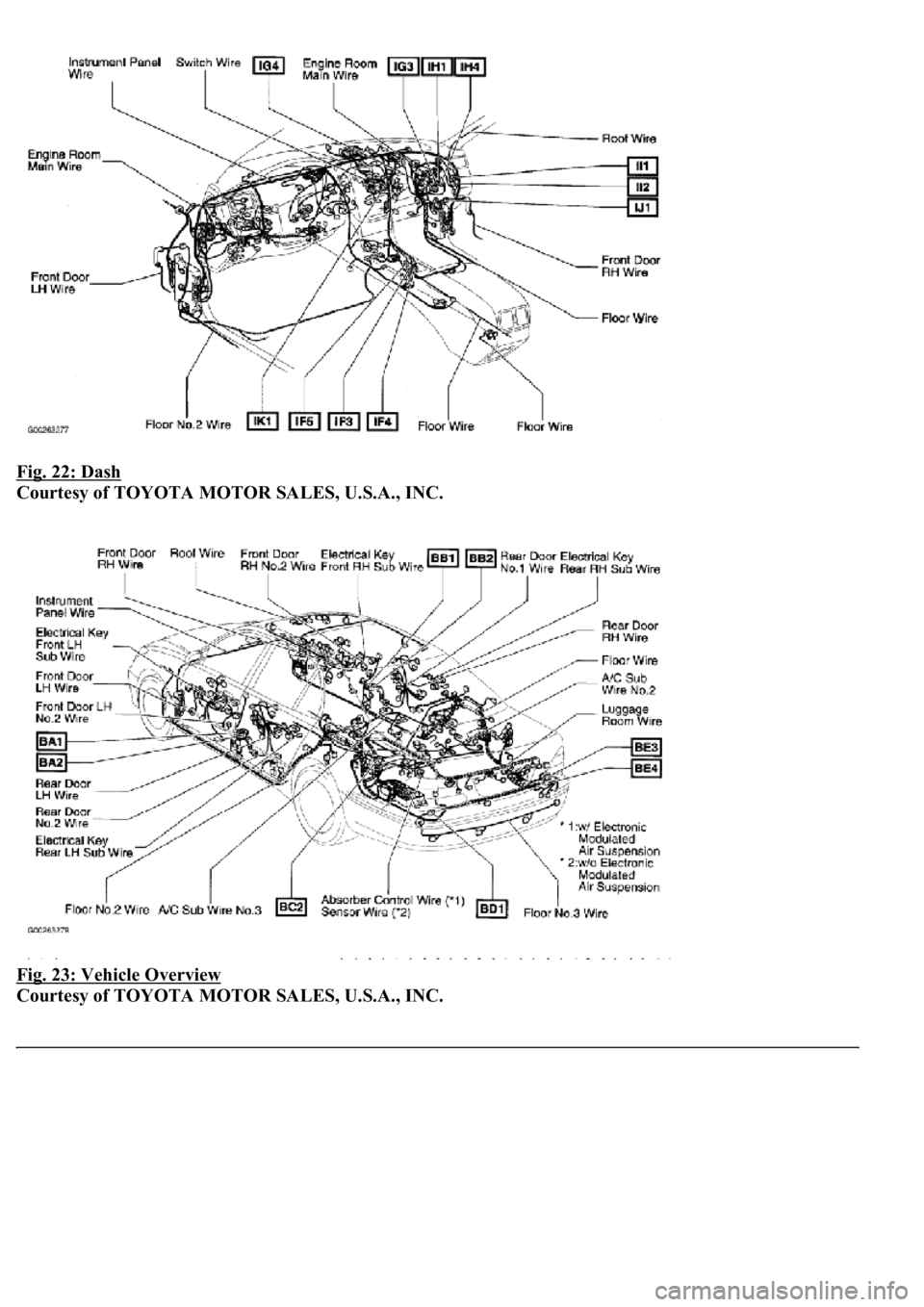

LEXUS LS430 2003 Factory Repair Manual Fig. 22: Dash Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 23: Vehicle Overview Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2660 of 4500

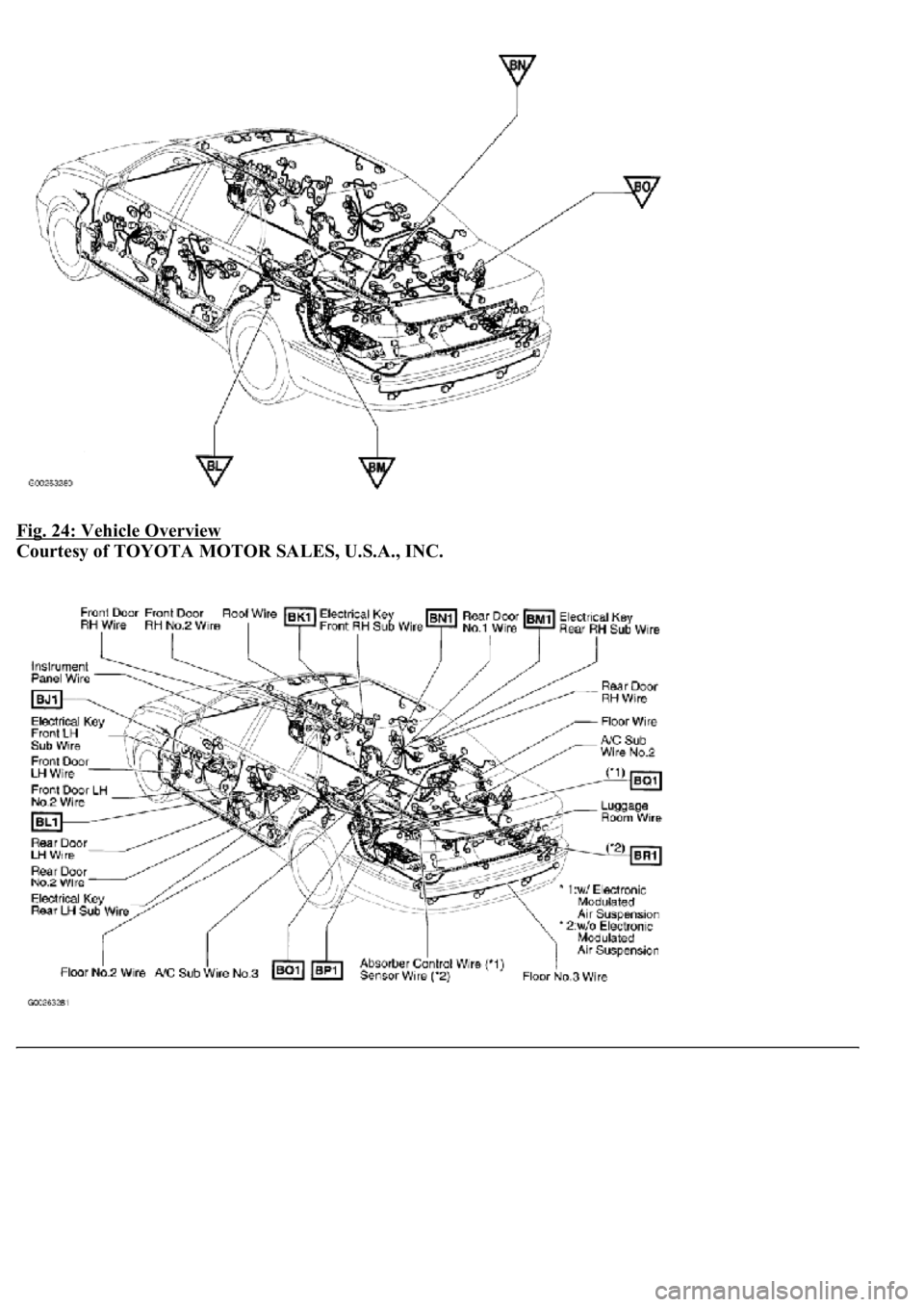

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Vehicle Overview Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
