LEXUS LS430 2003 Factory Repair Manual

Fig. 92: Checking Harness And Connector (A/C Solar Sensor -Air Conditoning Amplifier)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
This sensor detects the position of the air inlet servomotor and sends the appropriate signals to the A/C
amplifier. The position sensor is built in the air inlet servomotor.
<0029004c004a00110003001c0016001d000300370033002c00030037004800550050004c00510044004f000300390052004f00570044004a0048000300270044005000530048005500030032005300480051004c0051004a000300240051004a004f004800
03002a005500440053004b[

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 94: DTC Detection Item Trouble Area Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Fig. 95: Air Inlet Damper Position Sensor Circuit

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.READ VALUE ON HAND-HELD TESTER

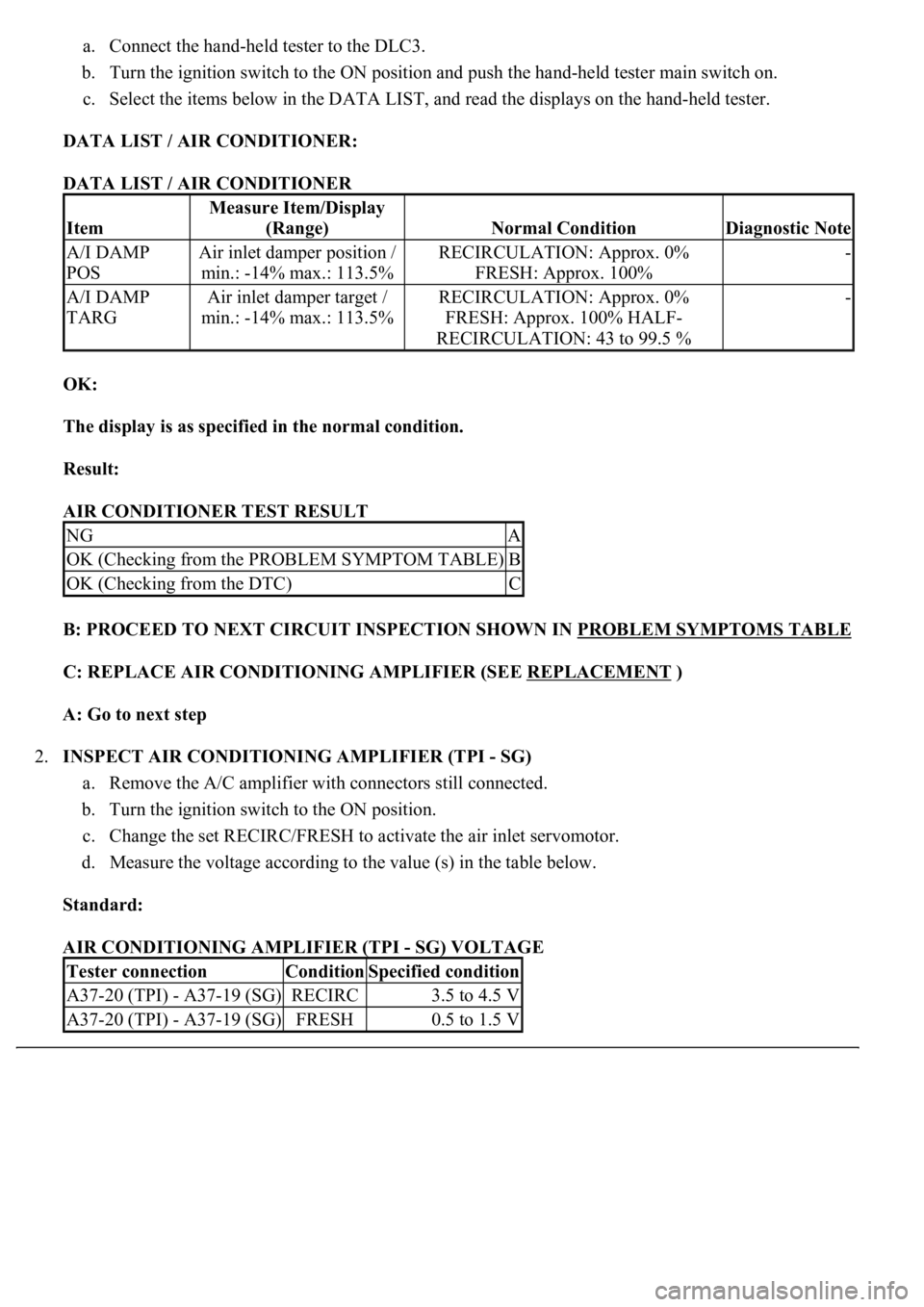

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position and push the hand-held tester main switch on.
c. Select the items below in the DATA LIST, and read the displays on the hand-held tester.
DATA LIST / AIR CONDITIONER:
DATA LIST / AIR CONDITIONER
OK:
The display is as specified in the normal condition.
Result:
AIR CONDITIONER TEST RESULT
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
A: Go to next step
2.INSPECT AIR CONDITIONING AMPLIFIER (TPI - SG)
a. Remove the A/C amplifier with connectors still connected.
b. Turn the ignition switch to the ON position.
c. Change the set RECIRC/FRESH to activate the air inlet servomotor.
d. Measure the voltage according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER (TPI - SG) VOLTAGE
Item
Measure Item/Display
(Range)
Normal ConditionDiagnostic Note
A/I DAMP
POSAir inlet damper position /
min.: -14% max.: 113.5%RECIRCULATION: Approx. 0%
FRESH: Approx. 100%-
A/I DAMP
TARGAir inlet damper target /
min.: -14% max.: 113.5%RECIRCULATION: Approx. 0%
FRESH: Approx. 100% HALF-
RECIRCULATION: 43 to 99.5 %-
NGA
OK (Checking from the PROBLEM SYMPTOM TABLE)B
OK (Checking from the DTC)C
Tester connectionConditionSpecified condition
A37-20 (TPI) - A37-19 (SG)RECIRC3.5 to 4.5 V
A37-20 (TPI) - A37-19 (SG)FRESH0.5 to 1.5 V

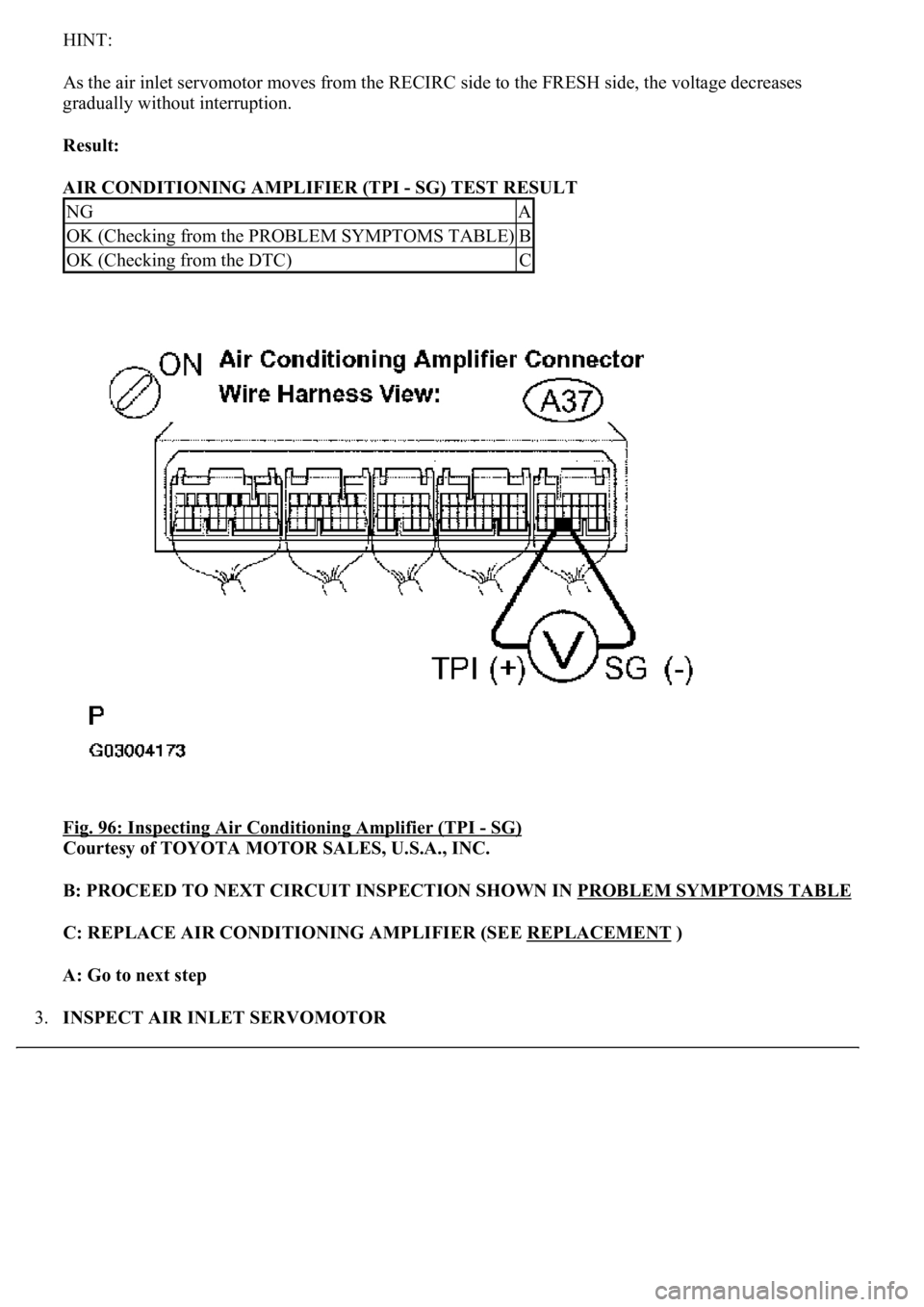

HINT:
As the air inlet servomotor moves from the RECIRC side to the FRESH side, the voltage decreases
gradually without interruption.
Result:
AIR CONDITIONING AMPLIFIER (TPI - SG) TEST RESULT
<0029004c004a00110003001c0019001d0003002c005100560053004800460057004c0051004a00030024004c005500030026005200510047004c0057004c00520051004c0051004a0003002400500053004f004c0049004c004800550003000b0037003300
2c0003[
- SG)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
A: Go to next step
3.INSPECT AIR INLET SERVOMOTOR
NGA
OK (Checking from the PROBLEM SYMPTOMS TABLE)B
OK (Checking from the DTC)C

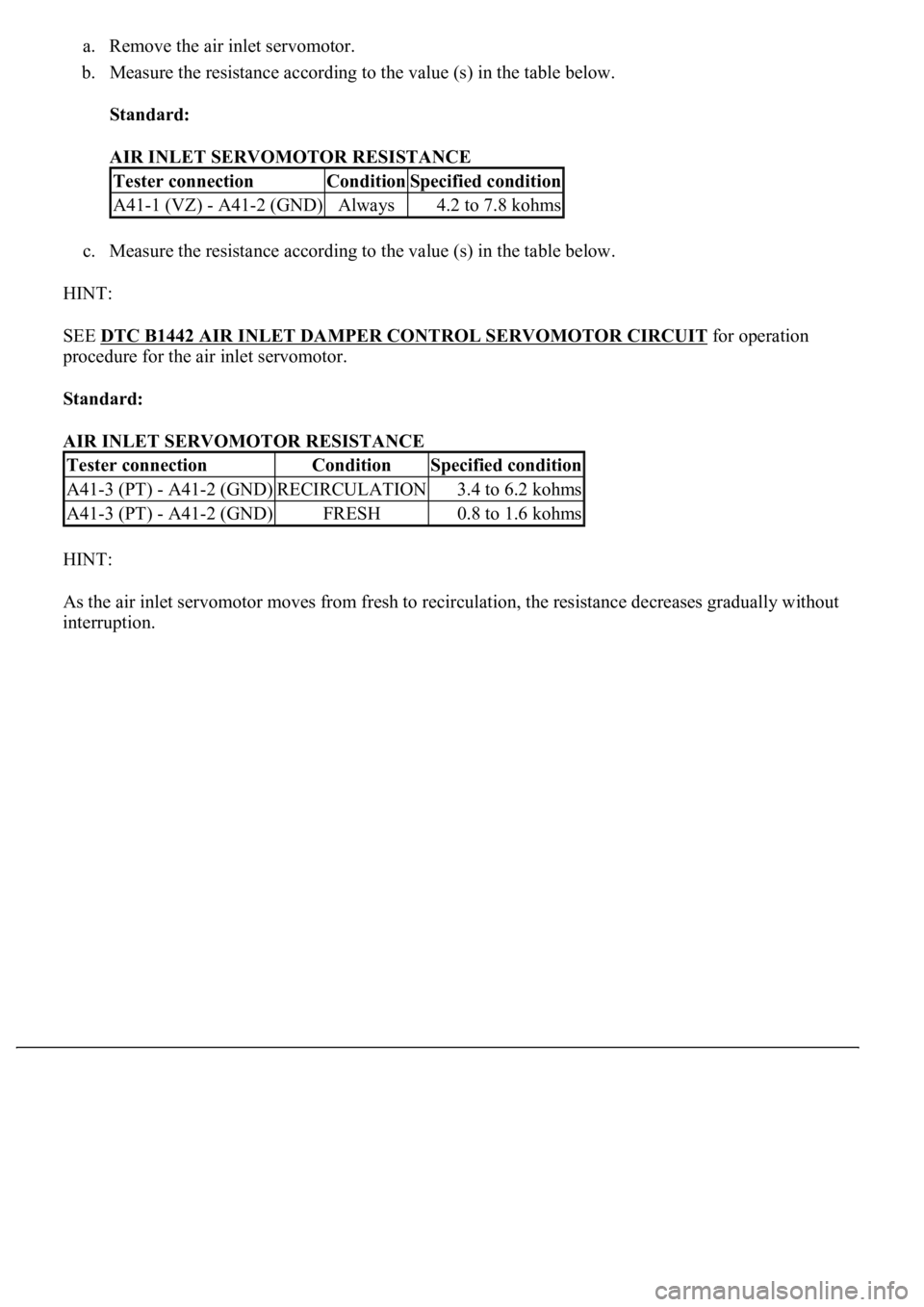

a. Remove the air inlet servomotor.
b. Measure the resistance according to the value (s) in the table below.
Standard:
AIR INLET SERVOMOTOR RESISTANCE
c. Measure the resistance according to the value (s) in the table below.
HINT:
SEE DTC B1442 AIR INLET DAMPER CONTROL SERVOMOTOR CIRCUIT
for operation
procedure for the air inlet servomotor.
Standard:
AIR INLET SERVOMOTOR RESISTANCE
HINT:
As the air inlet servomotor moves from fresh to recirculation, the resistance decreases gradually without
interruption.
Tester connectionConditionSpecified condition
A41-1 (VZ) - A41-2 (GND)Always4.2 to 7.8 kohms
Tester connectionConditionSpecified condition
A41-3 (PT) - A41-2 (GND)RECIRCULATION3.4 to 6.2 kohms
A41-3 (PT) - A41-2 (GND)FRESH0.8 to 1.6 kohms

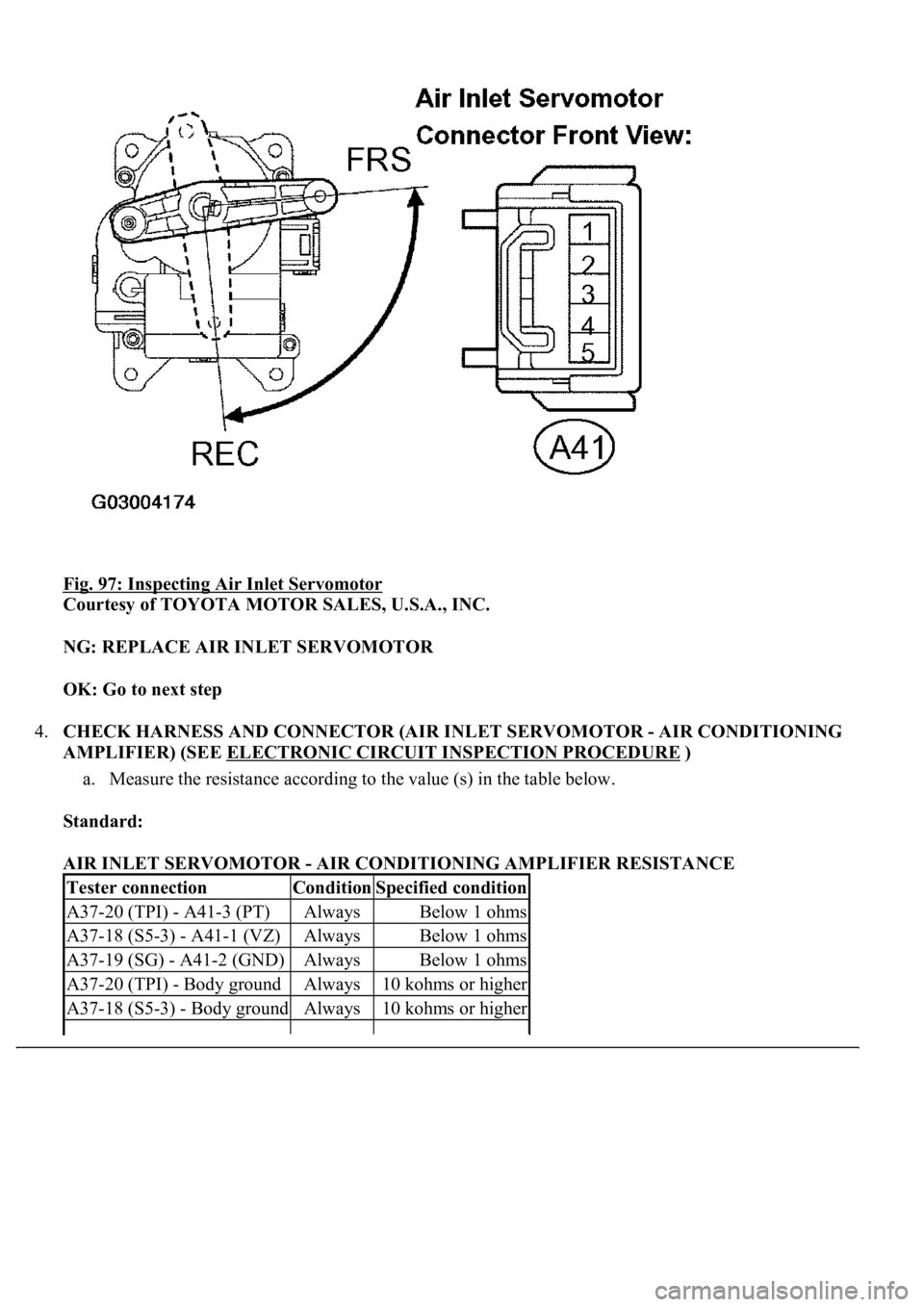

Fig. 97: Inspecting Air Inlet Servomotor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE AIR INLET SERVOMOTOR
OK: Go to next step
4.CHECK HARNESS AND CONNECTOR (AIR INLET SERVOMOTOR - AIR CONDITIONING
AMPLIFIER) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the resistance according to the value (s) in the table below.
Standard:
AIR INLET SERVOMOTOR - AIR CONDITIONING AMPLIFIER RESISTANCE
Tester connectionConditionSpecified condition
A37-20 (TPI) - A41-3 (PT)AlwaysBelow 1 ohms
A37-18 (S5-3) - A41-1 (VZ)AlwaysBelow 1 ohms
A37-19 (SG) - A41-2 (GND)AlwaysBelow 1 ohms
A37-20 (TPI) - Body groundAlways10 kohms or higher
A37-18 (S5-3) - Body groundAlways10 kohms or higher

A37-19 (SG) - Body groundAlways10 kohms or higher

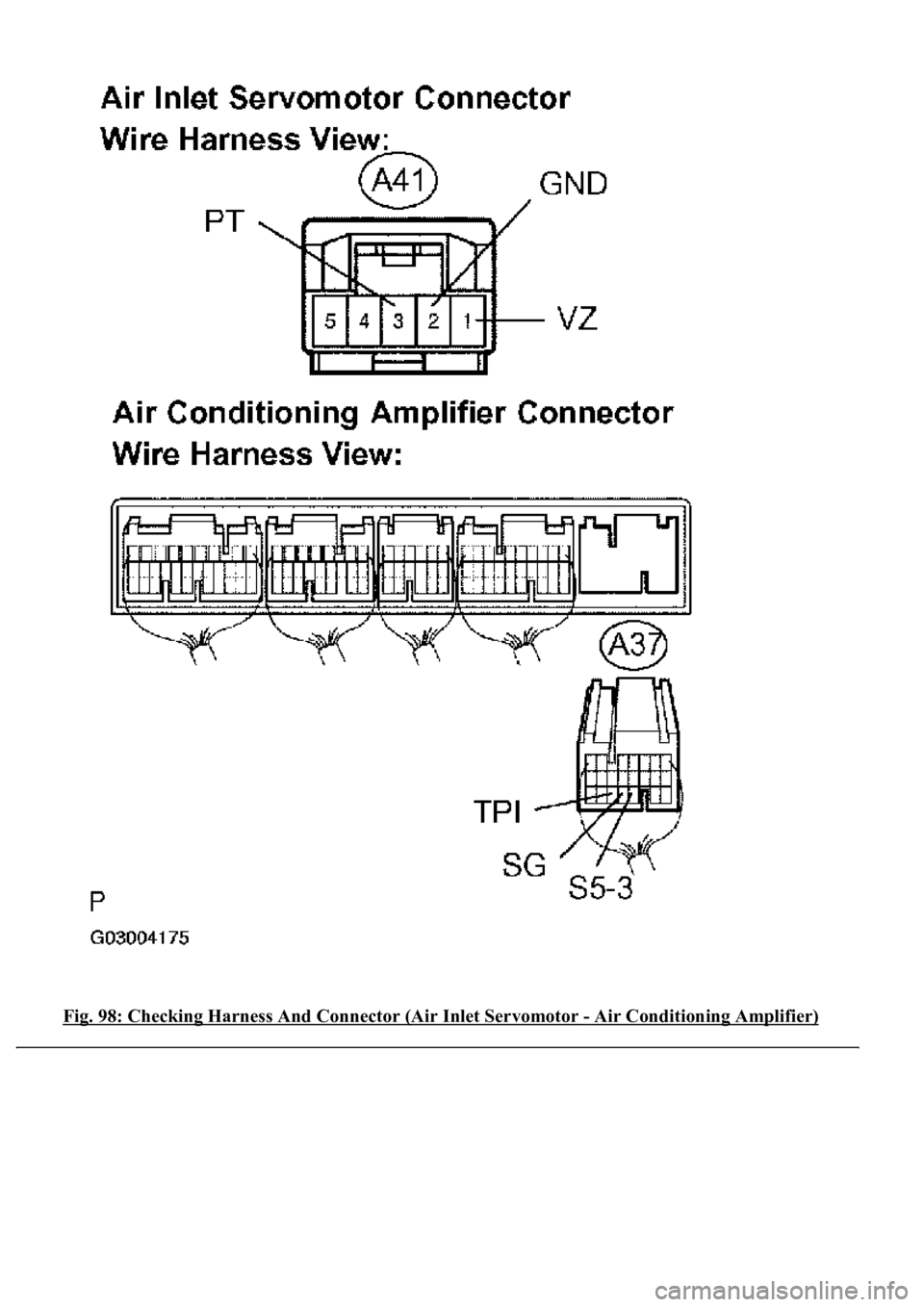

Fig. 98: Checking Harness And Connector (Air Inlet Servomotor - Air Conditioning Amplifier)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
This sensor detects the position of the cool air bypass servomotor (Max cool damper servomotor) and sends the
appropriate signals to the A/C amplifier. The position sensor is built in the cool air bypass servomotor.

Fig. 99: TPBDR Terminal Voltage/Damper Opening Angle Graph
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 100: DTC Detection Item Trouble Area Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Fig. 101: Max Cool Damper Position Sensor Circuit (Driver Side)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
