sensor LEXUS LS430 2003 Factory Owner's Guide

OK: Go to next step
3.INSPECT SPEED SENSOR AND SENSOR ROTOR SERRATIONS
INSPECTION USING OSCILLOSCOPE
a. Connect the oscilloscope to terminal FR+ - FR- or FL+ - FL- of the skid control ECU.
b. Drive the vehicle at approximately 19 mph (30 km/h), and check the signal waveform.
OK: Go to next step
A waveform as shown in a figure should be output.
HINT:
As the vehicle speed (wheel revolution speed) increases, a cycle of the waveform narrows and the
fluctuation in the output voltage becomes greater.
When noise is identified in the waveform on the oscilloscope, error signals are generated due to the
speed sensor rotor's scratches, looseness or foreign matter attached to it.
NG: Go to step 7

Fig. 47: Normal Signal Waveform
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT
)
4.INSPECT FRONT SPEED SENSOR

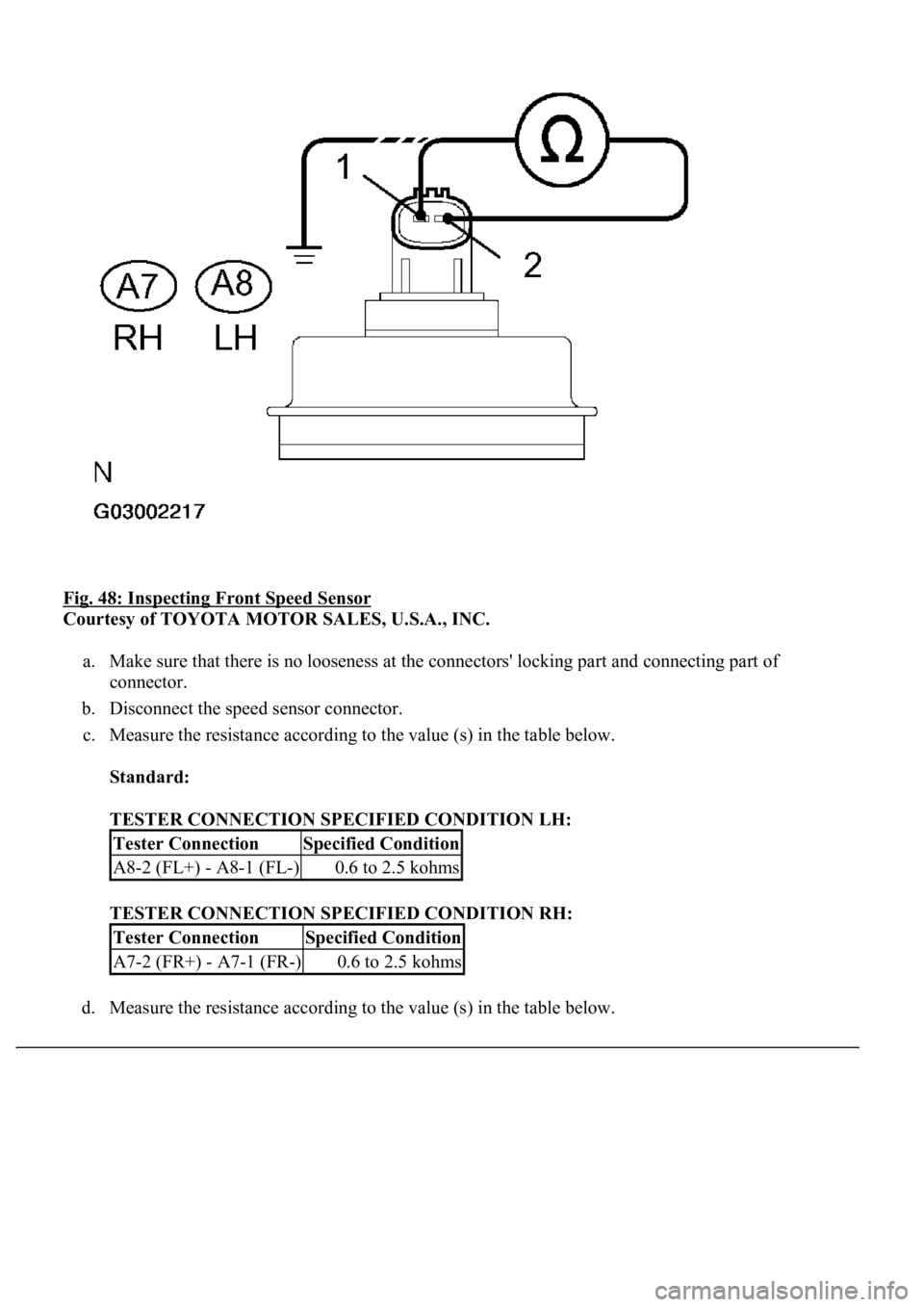

Fig. 48: Inspecting Front Speed Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Make sure that there is no looseness at the connectors' locking part and connecting part of
connector.
b. Disconnect the speed sensor connector.
c. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION LH:
TESTER CONNECTION SPECIFIED CONDITION RH:
d. Measure the resistance accordin
g to the value (s) in the table below.
Tester ConnectionSpecified Condition
A8-2 (FL+) - A8-1 (FL-)0.6 to 2.5 kohms
Tester ConnectionSpecified Condition
A7-2 (FR+) - A7-1 (FR-)0.6 to 2.5 kohms

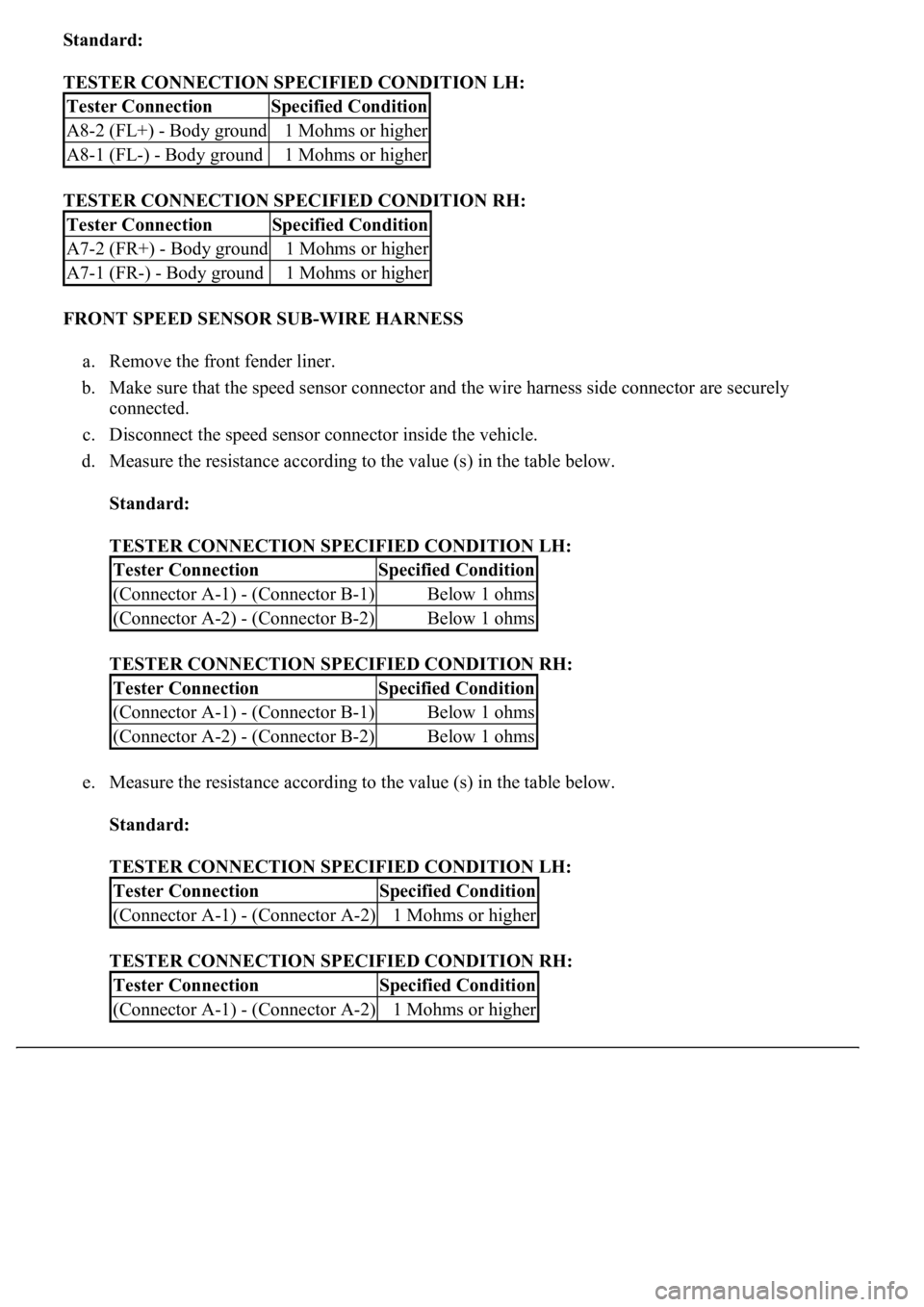

Standard:
TESTER CONNECTION SPECIFIED CONDITION LH:
TESTER CONNECTION SPECIFIED CONDITION RH:
FRONT SPEED SENSOR SUB-WIRE HARNESS
a. Remove the front fender liner.
b. Make sure that the speed sensor connector and the wire harness side connector are securely
connected.
c. Disconnect the speed sensor connector inside the vehicle.
d. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION LH:
TESTER CONNECTION SPECIFIED CONDITION RH:
e. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION LH:
TESTER CONNECTION SPECIFIED CONDITION RH:
Tester ConnectionSpecified Condition
A8-2 (FL+) - Body ground1 Mohms or higher
A8-1 (FL-) - Body ground1 Mohms or higher
Tester ConnectionSpecified Condition
A7-2 (FR+) - Body ground1 Mohms or higher
A7-1 (FR-) - Body ground1 Mohms or higher
Tester ConnectionSpecified Condition
(Connector A-1) - (Connector B-1)Below 1 ohms
(Connector A-2) - (Connector B-2)Below 1 ohms
Tester ConnectionSpecified Condition
(Connector A-1) - (Connector B-1)Below 1 ohms
(Connector A-2) - (Connector B-2)Below 1 ohms
Tester ConnectionSpecified Condition
(Connector A-1) - (Connector A-2)1 Mohms or higher
Tester ConnectionSpecified Condition
(Connector A-1) - (Connector A-2)1 Mohms or higher

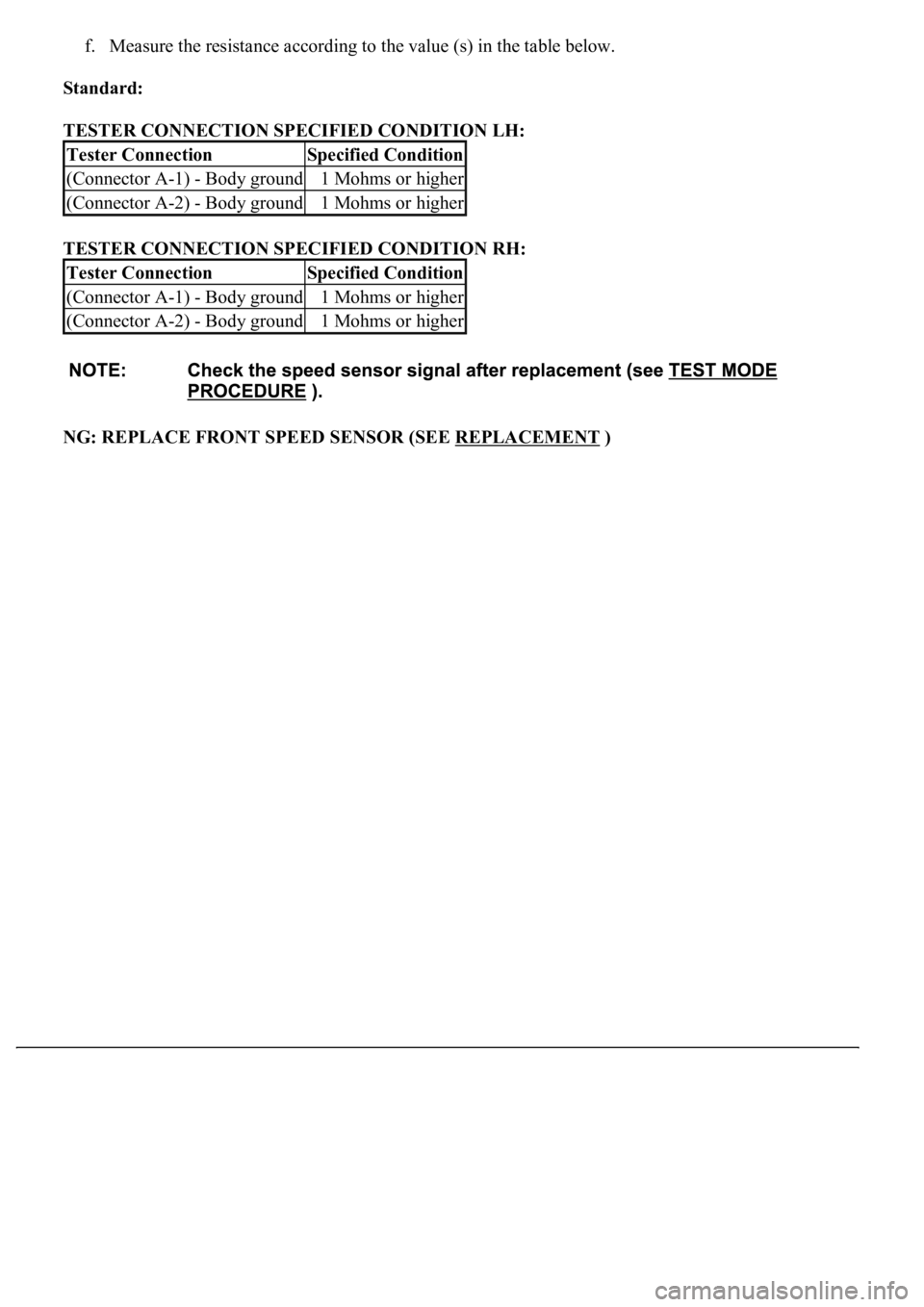

f. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION LH:
TESTER CONNECTION SPECIFIED CONDITION RH:
NG: REPLACE FRONT SPEED SENSOR (SEE REPLACEMENT
)
Tester ConnectionSpecified Condition
(Connector A-1) - Body ground1 Mohms or higher
(Connector A-2) - Body ground1 Mohms or higher
Tester ConnectionSpecified Condition
(Connector A-1) - Body ground1 Mohms or higher
(Connector A-2) - Body ground1 Mohms or higher

Fig. 49: Identifying Speed Sensor Connector And Wire Harness Side Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
5.CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR - SKID CONTROL ECU)

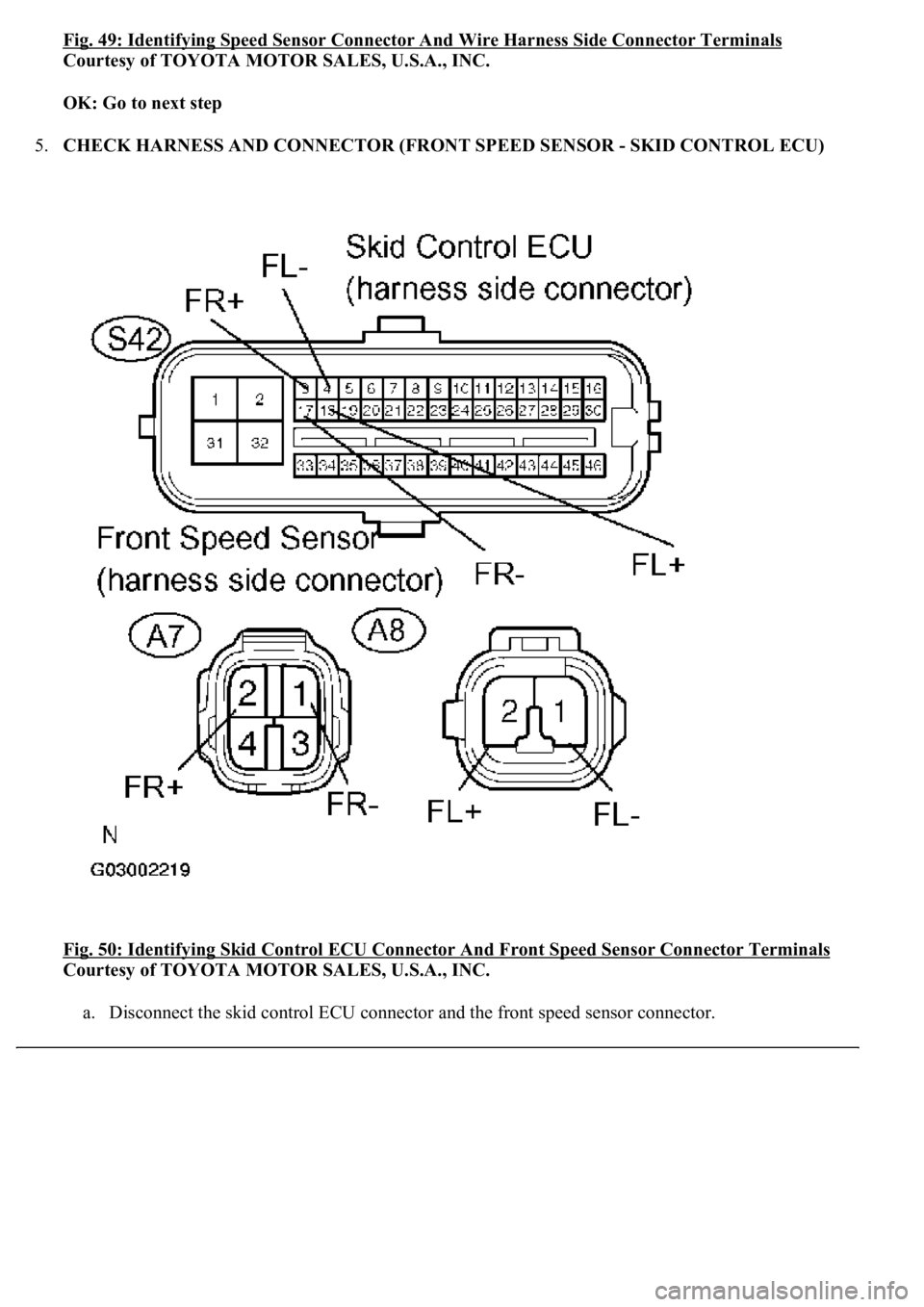

Fig. 50: Identifying Skid Control ECU Connector And Front Speed Sensor Connector Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the skid control ECU connector and the front speed sensor connector.

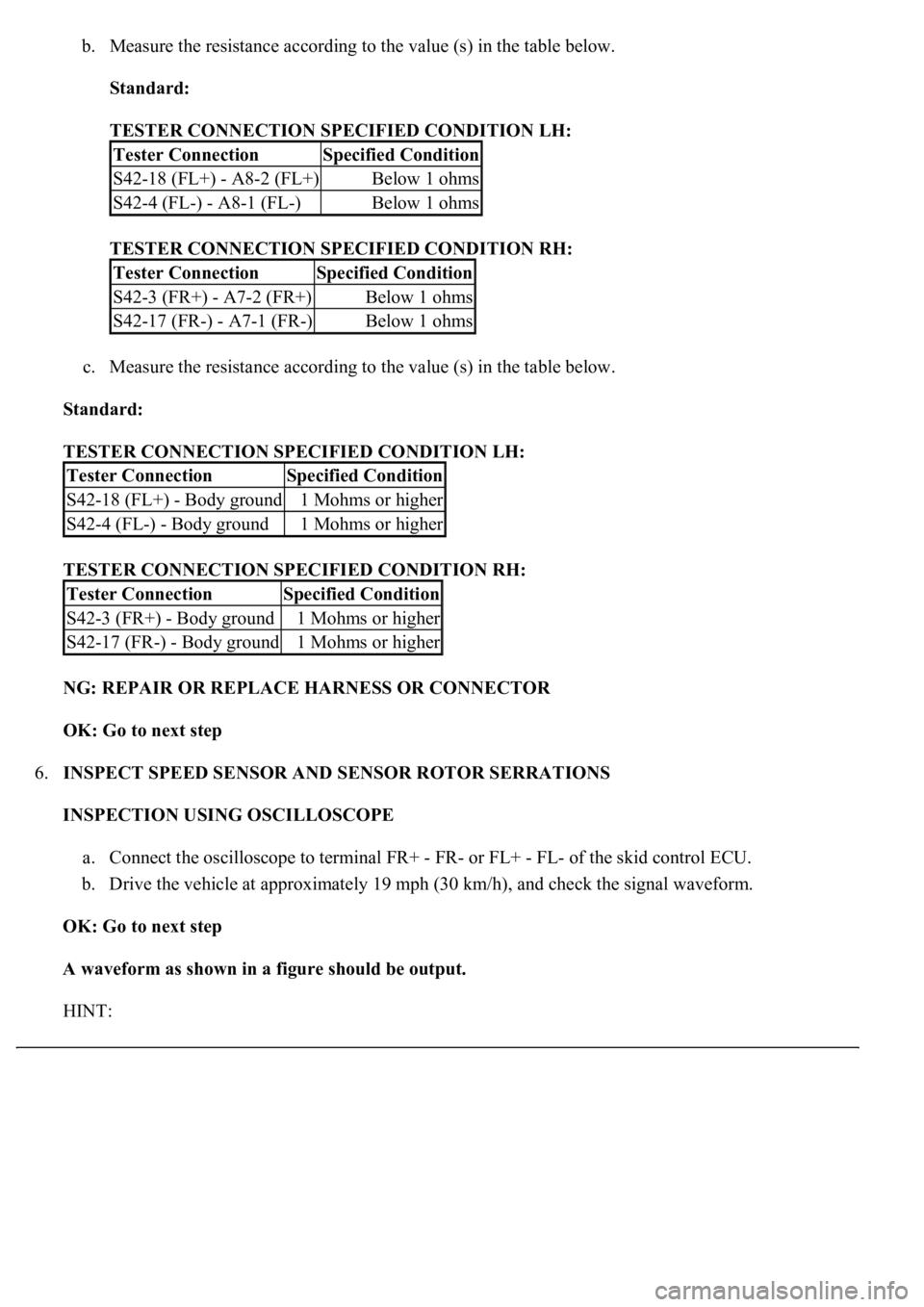

b. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION LH:
TESTER CONNECTION SPECIFIED CONDITION RH:
c. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITION LH:
TESTER CONNECTION SPECIFIED CONDITION RH:
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
6.INSPECT SPEED SENSOR AND SENSOR ROTOR SERRATIONS
INSPECTION USING OSCILLOSCOPE
a. Connect the oscilloscope to terminal FR+ - FR- or FL+ - FL- of the skid control ECU.
b. Drive the vehicle at approximately 19 mph (30 km/h), and check the signal waveform.
OK: Go to next step
A waveform as shown in a figure should be output.
HINT:
Tester ConnectionSpecified Condition
S42-18 (FL+) - A8-2 (FL+)Below 1 ohms
S42-4 (FL-) - A8-1 (FL-)Below 1 ohms
Tester ConnectionSpecified Condition
S42-3 (FR+) - A7-2 (FR+)Below 1 ohms
S42-17 (FR-) - A7-1 (FR-)Below 1 ohms
Tester ConnectionSpecified Condition
S42-18 (FL+) - Body ground1 Mohms or higher
S42-4 (FL-) - Body ground1 Mohms or higher
Tester ConnectionSpecified Condition
S42-3 (FR+) - Body ground1 Mohms or higher
S42-17 (FR-) - Body ground1 Mohms or higher

As the vehicle speed (Wheel revolution speed) increases, a cycle of the waveform narrows and the
fluctuation in the output voltage becomes greater.
When noise is identified in the waveform on the oscilloscope, error signals are generated due to the
speed sensor rotor's scratches, looseness or foreign matter attached to it.
NG: Go to step 7

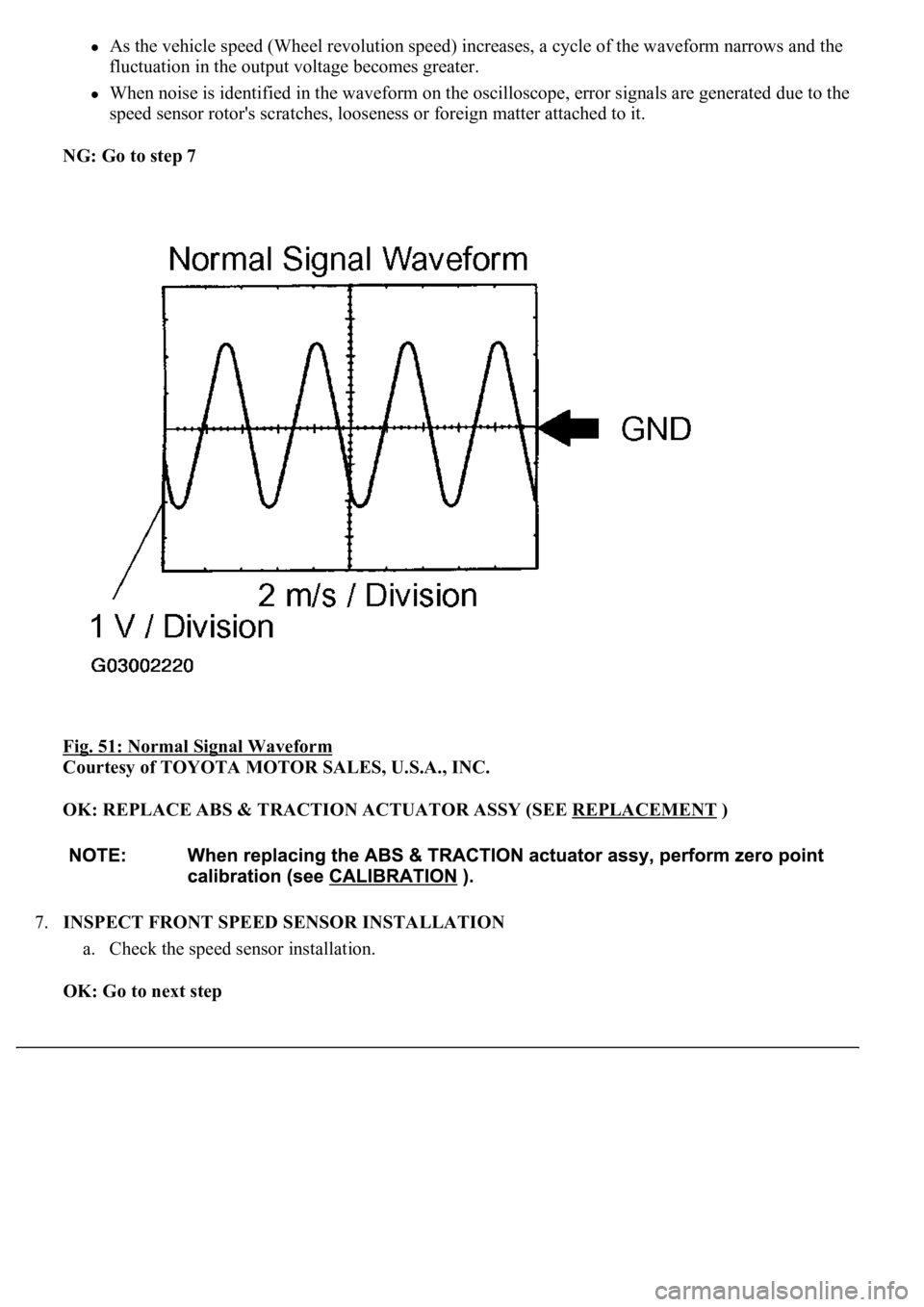

Fig. 51: Normal Signal Waveform

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT
)
7.INSPECT FRONT SPEED SENSOR INSTALLATION
a. Check the speed sensor installation.
OK: Go to next step

There is no clearance between the sensor and the front steering knuckle.
NG: REPLACE FRONT SPEED SENSOR

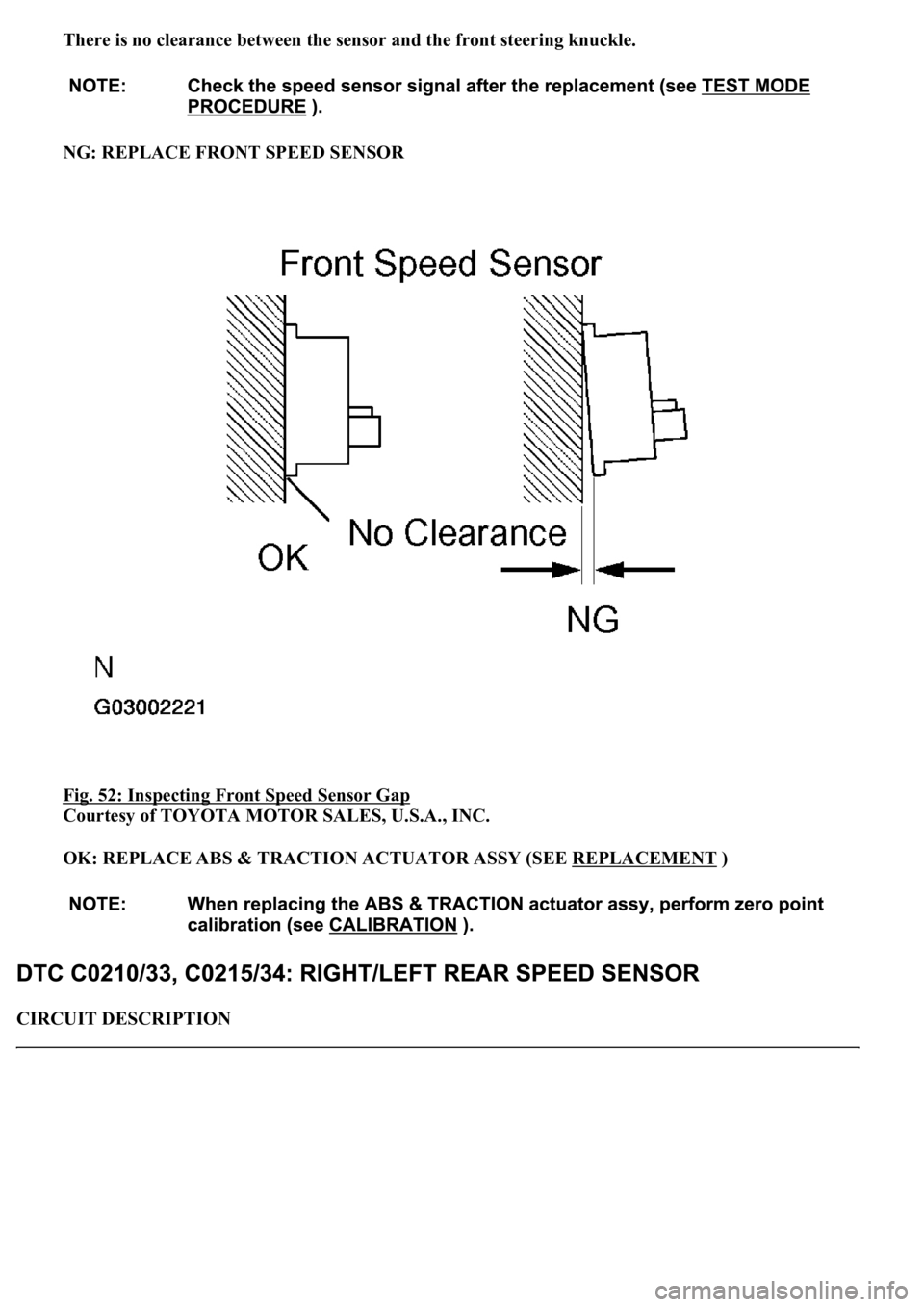

Fig. 52: Inspecting Front Speed Sensor Gap

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE ABS & TRACTION ACTUATOR ASSY (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION

Refer to DTC C0200/31 RIGHT FRONT SPEED SENSORor DTC C0205/32 LEFT FRONT SPEED
SENSOR .
Fig. 53: DTC C0210/33 And DTC C0215/34 Detecting Condition And Trouble Area

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
DTC C0210/33 is for the right rear speed sensor.
DTC C0215/34 is for the left rear speed sensor.
WIRING DIAGRAM

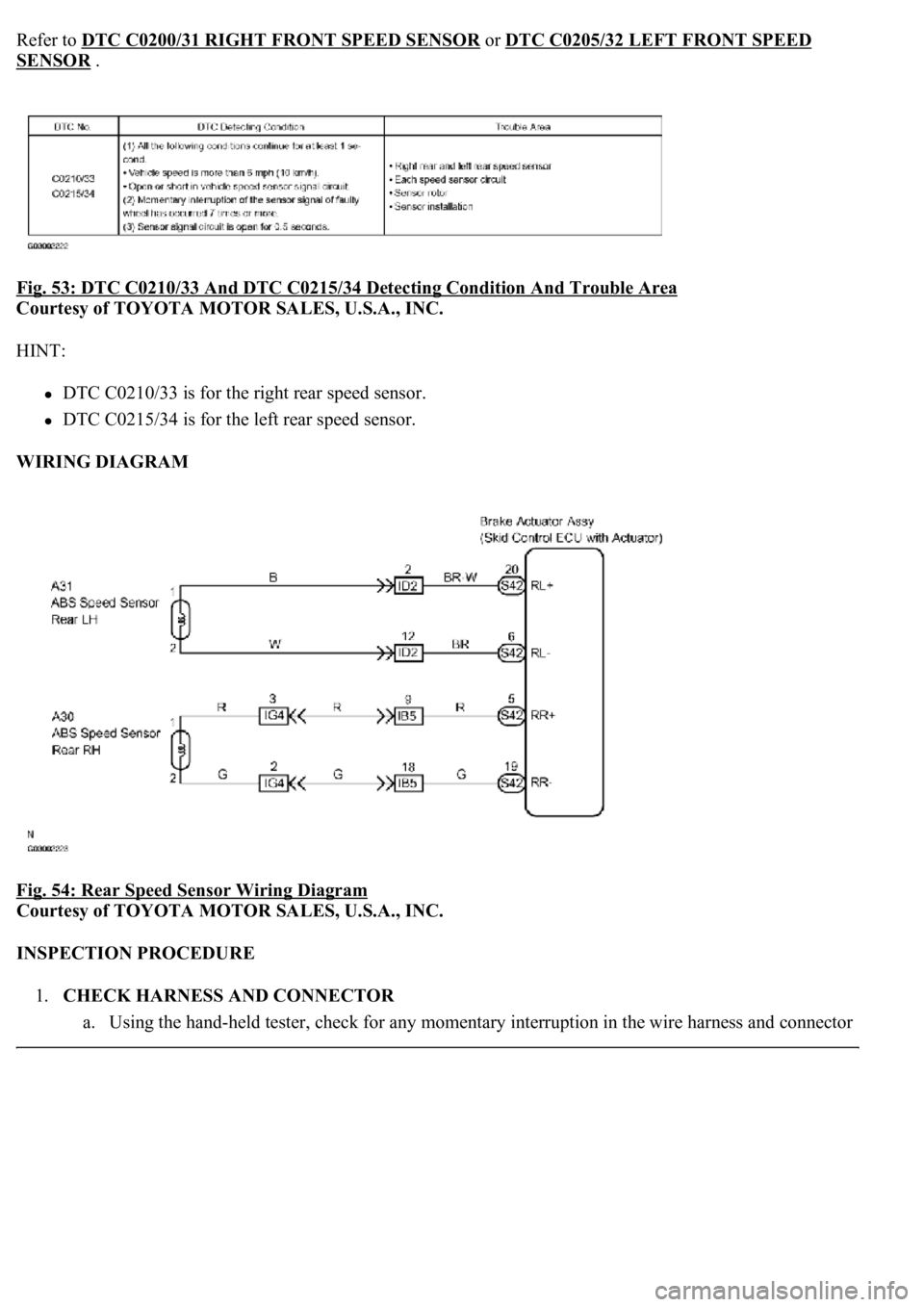

Fig. 54: Rear Speed Sensor Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK HARNESS AND CONNECTOR
a. Usin
g the hand-held tester, check for any momentary interruption in the wire harness and connector
