ANTI-LOCK BRAKE DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION

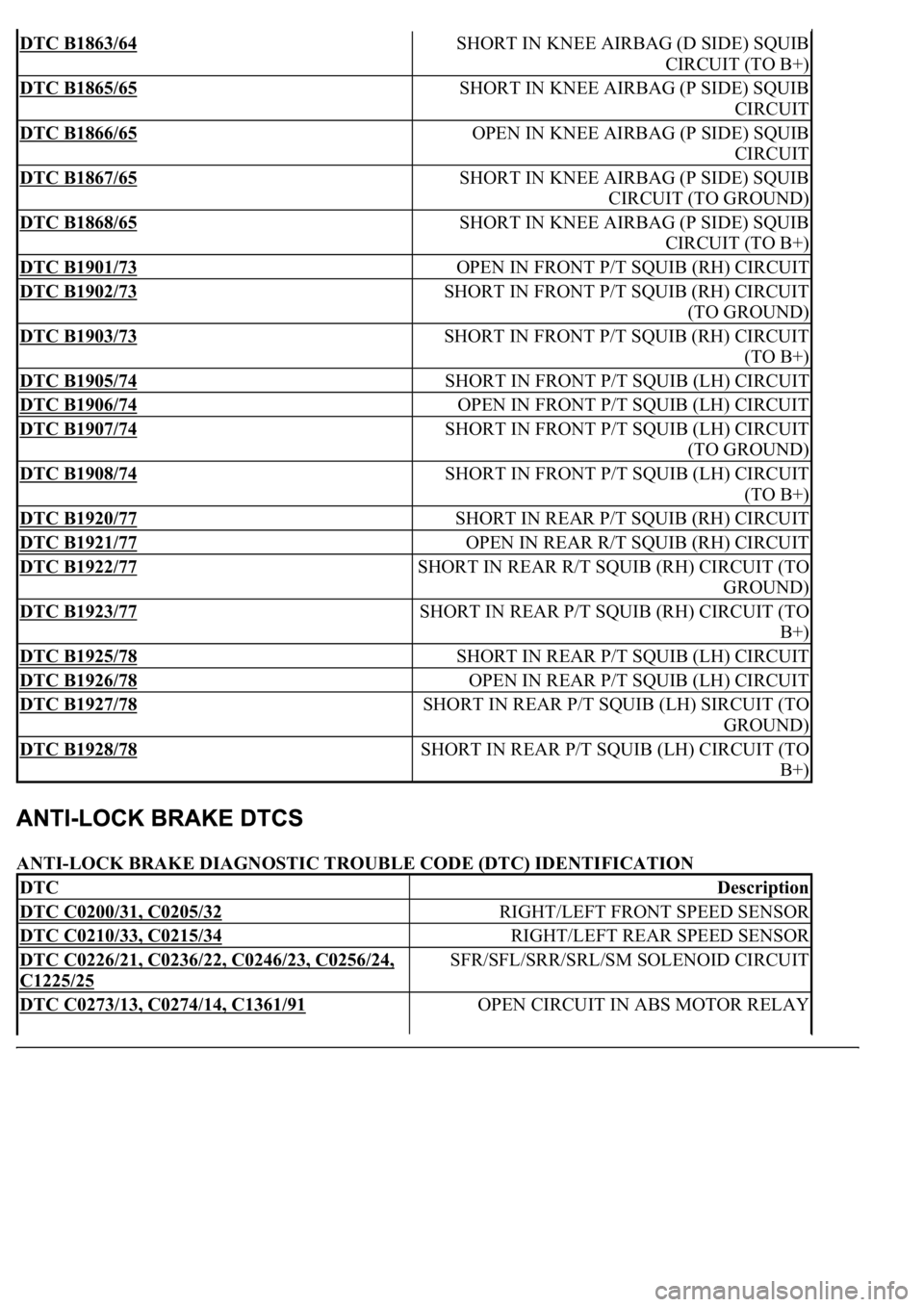

DTC B1863/64 SHORT IN KNEE AIRBAG (D SIDE) SQUIB
CIRCUIT (TO B+)
DTC B1865/65 SHORT IN KNEE AIRBAG (P SIDE) SQUIB
CIRCUIT
DTC B1866/65 OPEN IN KNEE AIRBAG (P SIDE) SQUIB
CIRCUIT
DTC B1867/65 SHORT IN KNEE AIRBAG (P SIDE) SQUIB
CIRCUIT (TO GROUND)
DTC B1868/65 SHORT IN KNEE AIRBAG (P SIDE) SQUIB
CIRCUIT (TO B+)
DTC B1901/73 OPEN IN FRONT P/T SQUIB (RH) CIRCUIT
DTC B1902/73 SHORT IN FRONT P/T SQUIB (RH) CIRCUIT
(TO GROUND)
DTC B1903/73 SHORT IN FRONT P/T SQUIB (RH) CIRCUIT
(TO B+)
DTC B1905/74 SHORT IN FRONT P/T SQUIB (LH) CIRCUIT
DTC B1906/74 OPEN IN FRONT P/T SQUIB (LH) CIRCUIT
DTC B1907/74 SHORT IN FRONT P/T SQUIB (LH) CIRCUIT
(TO GROUND)
DTC B1908/74 SHORT IN FRONT P/T SQUIB (LH) CIRCUIT
(TO B+)
DTC B1920/77 SHORT IN REAR P/T SQUIB (RH) CIRCUIT
DTC B1921/77 OPEN IN REAR R/T SQUIB (RH) CIRCUIT
DTC B1922/77 SHORT IN REAR R/T SQUIB (RH) CIRCUIT (TO
GROUND)
DTC B1923/77 SHORT IN REAR P/T SQUIB (RH) CIRCUIT (TO
B+)
DTC B1925/78 SHORT IN REAR P/T SQUIB (LH) CIRCUIT
DTC B1926/78 OPEN IN REAR P/T SQUIB (LH) CIRCUIT
DTC B1927/78 SHORT IN REAR P/T SQUIB (LH) SIRCUIT (TO
GROUND)
DTC B1928/78 SHORT IN REAR P/T SQUIB (LH) CIRCUIT (TO
B+)
DTCDescription
DTC C0200/31, C0205/32 RIGHT/LEFT FRONT SPEED SENSOR
DTC C0210/33, C0215/34 RIGHT/LEFT REAR SPEED SENSOR
DTC C0226/21, C0236/22, C0246/23, C0256/24,
C1225/25
SFR/SFL/SRR/SRL/SM SOLENOID CIRCUIT
DTC C0273/13, C0274/14, C1361/91 OPEN CIRCUIT IN ABS MOTOR RELAY

AUTOMATIC TRANSMISSION DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION

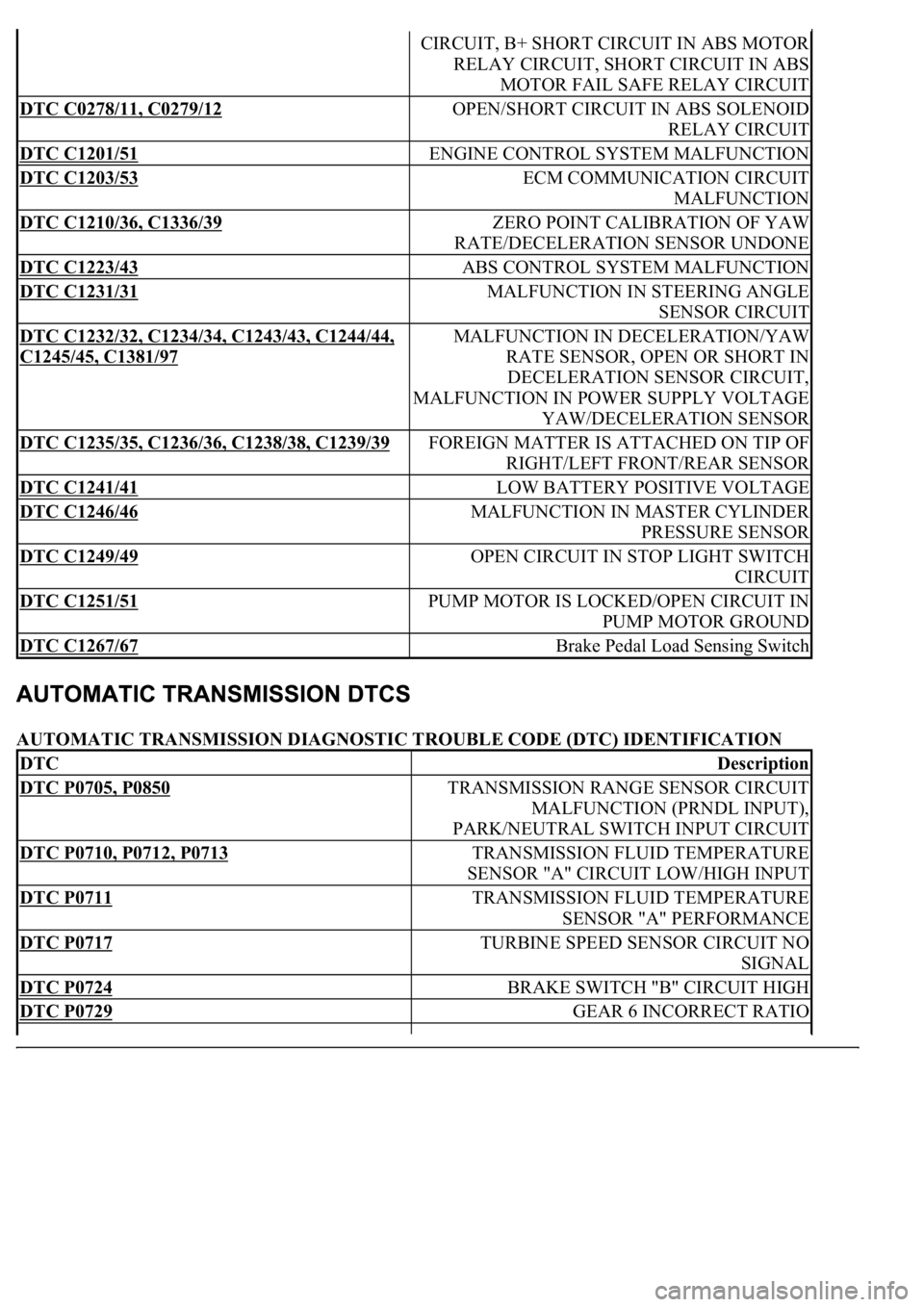

CIRCUIT, B+ SHORT CIRCUIT IN ABS MOTOR
RELAY CIRCUIT, SHORT CIRCUIT IN ABS
MOTOR FAIL SAFE RELAY CIRCUIT
DTC C0278/11, C0279/12 OPEN/SHORT CIRCUIT IN ABS SOLENOID
RELAY CIRCUIT
DTC C1201/51 ENGINE CONTROL SYSTEM MALFUNCTION
DTC C1203/53 ECM COMMUNICATION CIRCUIT
MALFUNCTION
DTC C1210/36, C1336/39 ZERO POINT CALIBRATION OF YAW
RATE/DECELERATION SENSOR UNDONE
DTC C1223/43 ABS CONTROL SYSTEM MALFUNCTION
DTC C1231/31 MALFUNCTION IN STEERING ANGLE
SENSOR CIRCUIT
DTC C1232/32, C1234/34, C1243/43, C1244/44,
C1245/45, C1381/97
MALFUNCTION IN DECELERATION/YAW
RATE SENSOR, OPEN OR SHORT IN
DECELERATION SENSOR CIRCUIT,
MALFUNCTION IN POWER SUPPLY VOLTAGE
YAW/DECELERATION SENSOR
DTC C1235/35, C1236/36, C1238/38, C1239/39 FOREIGN MATTER IS ATTACHED ON TIP OF
RIGHT/LEFT FRONT/REAR SENSOR
DTC C1241/41 LOW BATTERY POSITIVE VOLTAGE
DTC C1246/46 MALFUNCTION IN MASTER CYLINDER
PRESSURE SENSOR
DTC C1249/49 OPEN CIRCUIT IN STOP LIGHT SWITCH
CIRCUIT
DTC C1251/51 PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN
PUMP MOTOR GROUND
DTC C1267/67 Brake Pedal Load Sensing Switch
DTCDescription
DTC P0705, P0850 TRANSMISSION RANGE SENSOR CIRCUIT
MALFUNCTION (PRNDL INPUT),
PARK/NEUTRAL SWITCH INPUT CIRCUIT
DTC P0710, P0712, P0713 TRANSMISSION FLUID TEMPERATURE
SENSOR "A" CIRCUIT LOW/HIGH INPUT
DTC P0711 TRANSMISSION FLUID TEMPERATURE
SENSOR "A" PERFORMANCE
DTC P0717 TURBINE SPEED SENSOR CIRCUIT NO
SIGNAL
DTC P0724 BRAKE SWITCH "B" CIRCUIT HIGH
DTC P0729 GEAR 6 INCORRECT RATIO

CLEARANCE SONAR SYSTEM DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION

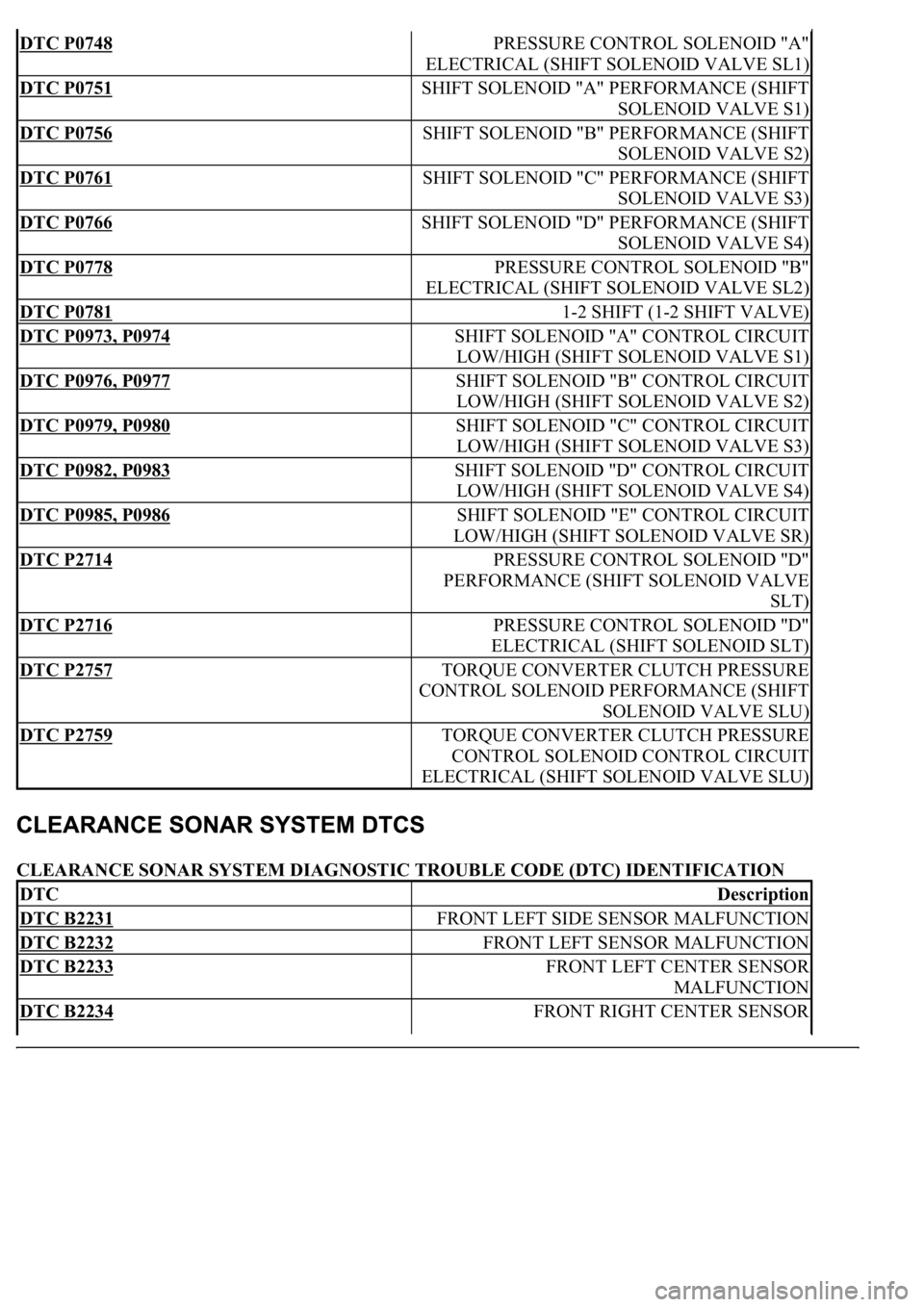

DTC P0748 PRESSURE CONTROL SOLENOID "A"
ELECTRICAL (SHIFT SOLENOID VALVE SL1)
DTC P0751 SHIFT SOLENOID "A" PERFORMANCE (SHIFT
SOLENOID VALVE S1)
DTC P0756 SHIFT SOLENOID "B" PERFORMANCE (SHIFT
SOLENOID VALVE S2)
DTC P0761 SHIFT SOLENOID "C" PERFORMANCE (SHIFT
SOLENOID VALVE S3)
DTC P0766 SHIFT SOLENOID "D" PERFORMANCE (SHIFT
SOLENOID VALVE S4)
DTC P0778 PRESSURE CONTROL SOLENOID "B"
ELECTRICAL (SHIFT SOLENOID VALVE SL2)
DTC P0781 1-2 SHIFT (1-2 SHIFT VALVE)
DTC P0973, P0974 SHIFT SOLENOID "A" CONTROL CIRCUIT
LOW/HIGH (SHIFT SOLENOID VALVE S1)
DTC P0976, P0977 SHIFT SOLENOID "B" CONTROL CIRCUIT
LOW/HIGH (SHIFT SOLENOID VALVE S2)
DTC P0979, P0980 SHIFT SOLENOID "C" CONTROL CIRCUIT
LOW/HIGH (SHIFT SOLENOID VALVE S3)
DTC P0982, P0983 SHIFT SOLENOID "D" CONTROL CIRCUIT
LOW/HIGH (SHIFT SOLENOID VALVE S4)
DTC P0985, P0986 SHIFT SOLENOID "E" CONTROL CIRCUIT
LOW/HIGH (SHIFT SOLENOID VALVE SR)
DTC P2714 PRESSURE CONTROL SOLENOID "D"
PERFORMANCE (SHIFT SOLENOID VALVE
SLT)
DTC P2716 PRESSURE CONTROL SOLENOID "D"
ELECTRICAL (SHIFT SOLENOID SLT)
DTC P2757 TORQUE CONVERTER CLUTCH PRESSURE
CONTROL SOLENOID PERFORMANCE (SHIFT
SOLENOID VALVE SLU)
DTC P2759 TORQUE CONVERTER CLUTCH PRESSURE
CONTROL SOLENOID CONTROL CIRCUIT
ELECTRICAL (SHIFT SOLENOID VALVE SLU)
DTCDescription
DTC B2231 FRONT LEFT SIDE SENSOR MALFUNCTION
DTC B2232 FRONT LEFT SENSOR MALFUNCTION
DTC B2233 FRONT LEFT CENTER SENSOR
MALFUNCTION
DTC B2234 FRONT RIGHT CENTER SENSOR

BASE CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
DYNAMIC LASER CRUISE CONTROL DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
MALFUNCTION

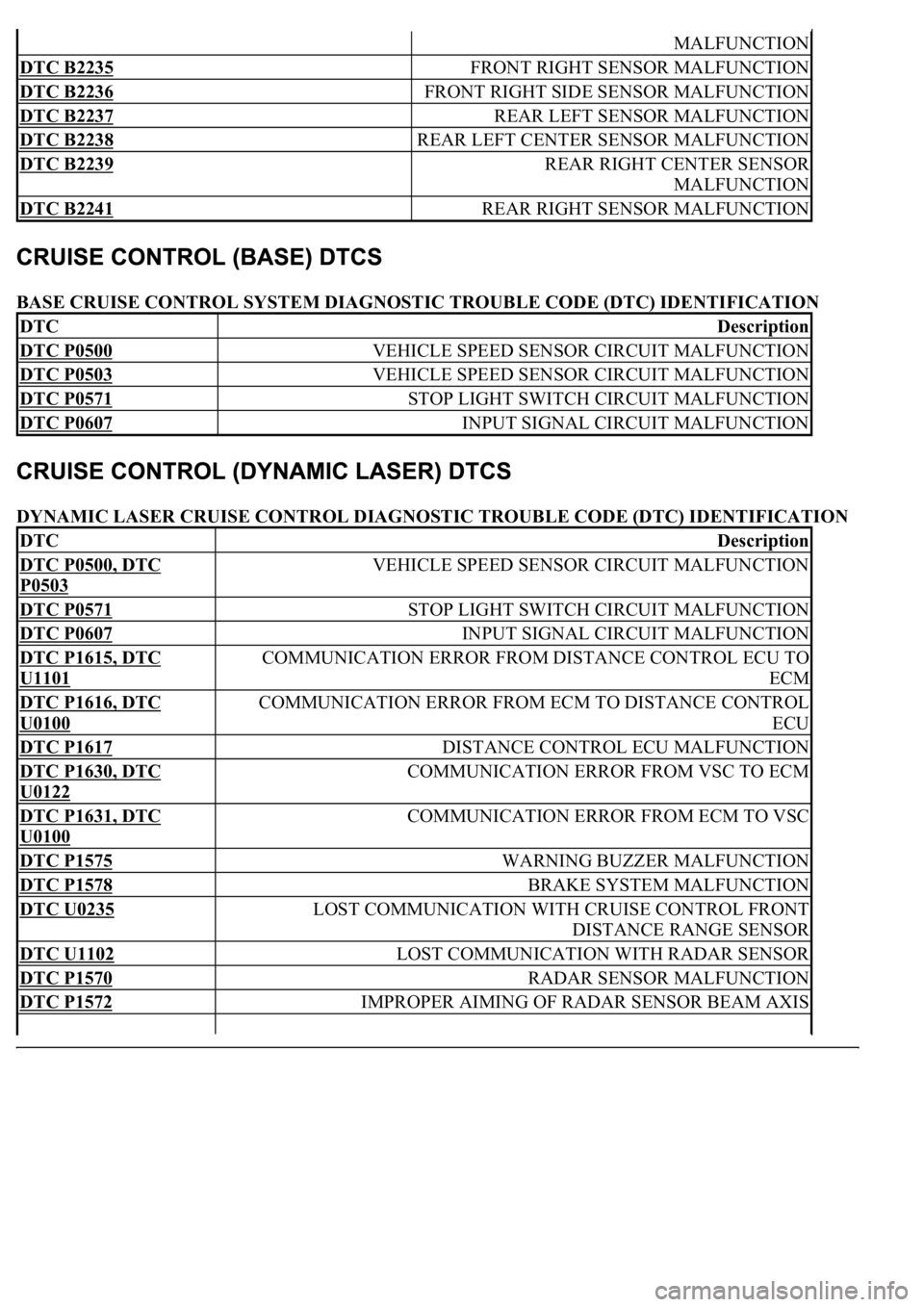

DTC B2235 FRONT RIGHT SENSOR MALFUNCTION
DTC B2236 FRONT RIGHT SIDE SENSOR MALFUNCTION
DTC B2237 REAR LEFT SENSOR MALFUNCTION
DTC B2238 REAR LEFT CENTER SENSOR MALFUNCTION
DTC B2239 REAR RIGHT CENTER SENSOR
MALFUNCTION
DTC B2241 REAR RIGHT SENSOR MALFUNCTION
DTCDescription
DTC P0500 VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION
DTC P0503 VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION
DTC P0571 STOP LIGHT SWITCH CIRCUIT MALFUNCTION
DTC P0607 INPUT SIGNAL CIRCUIT MALFUNCTION
DTCDescription
DTC P0500, DTC
P0503
VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION
DTC P0571 STOP LIGHT SWITCH CIRCUIT MALFUNCTION
DTC P0607 INPUT SIGNAL CIRCUIT MALFUNCTION
DTC P1615, DTC
U1101
COMMUNICATION ERROR FROM DISTANCE CONTROL ECU TO
ECM
DTC P1616, DTC
U0100
COMMUNICATION ERROR FROM ECM TO DISTANCE CONTROL
ECU
DTC P1617 DISTANCE CONTROL ECU MALFUNCTION
DTC P1630, DTC
U0122
COMMUNICATION ERROR FROM VSC TO ECM
DTC P1631, DTC
U0100
COMMUNICATION ERROR FROM ECM TO VSC
DTC P1575 WARNING BUZZER MALFUNCTION
DTC P1578 BRAKE SYSTEM MALFUNCTION
DTC U0235 LOST COMMUNICATION WITH CRUISE CONTROL FRONT
DISTANCE RANGE SENSOR
DTC U1102 LOST COMMUNICATION WITH RADAR SENSOR
DTC P1570 RADAR SENSOR MALFUNCTION
DTC P1572 IMPROPER AIMING OF RADAR SENSOR BEAM AXIS

DYNAMIC RADAR CRUISE CONTROL DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
DOOR CLOSER SYSTEM DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
ELECTRONIC AIR SUSPENSION DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION

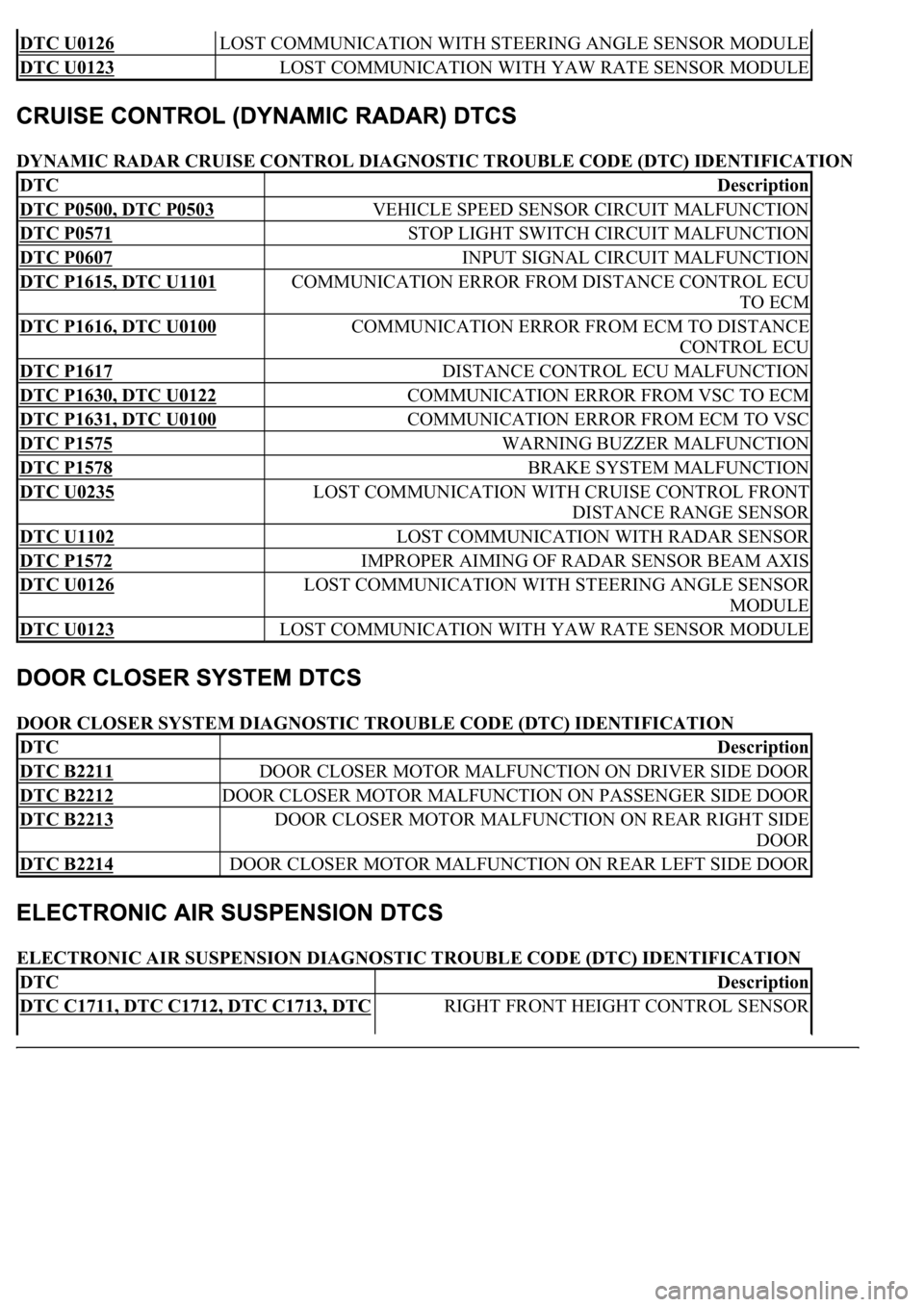

DTC U0126 LOST COMMUNICATION WITH STEERING ANGLE SENSOR MODULE
DTC U0123 LOST COMMUNICATION WITH YAW RATE SENSOR MODULE
DTCDescription
DTC P0500, DTC P0503 VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION
DTC P0571 STOP LIGHT SWITCH CIRCUIT MALFUNCTION
DTC P0607 INPUT SIGNAL CIRCUIT MALFUNCTION
DTC P1615, DTC U1101 COMMUNICATION ERROR FROM DISTANCE CONTROL ECU
TO ECM
DTC P1616, DTC U0100 COMMUNICATION ERROR FROM ECM TO DISTANCE
CONTROL ECU
DTC P1617 DISTANCE CONTROL ECU MALFUNCTION
DTC P1630, DTC U0122 COMMUNICATION ERROR FROM VSC TO ECM
DTC P1631, DTC U0100 COMMUNICATION ERROR FROM ECM TO VSC
DTC P1575 WARNING BUZZER MALFUNCTION
DTC P1578 BRAKE SYSTEM MALFUNCTION
DTC U0235 LOST COMMUNICATION WITH CRUISE CONTROL FRONT
DISTANCE RANGE SENSOR
DTC U1102 LOST COMMUNICATION WITH RADAR SENSOR
DTC P1572 IMPROPER AIMING OF RADAR SENSOR BEAM AXIS
DTC U0126 LOST COMMUNICATION WITH STEERING ANGLE SENSOR
MODULE
DTC U0123 LOST COMMUNICATION WITH YAW RATE SENSOR MODULE
DTCDescription
DTC B2211 DOOR CLOSER MOTOR MALFUNCTION ON DRIVER SIDE DOOR
DTC B2212 DOOR CLOSER MOTOR MALFUNCTION ON PASSENGER SIDE DOOR
DTC B2213 DOOR CLOSER MOTOR MALFUNCTION ON REAR RIGHT SIDE
DOOR
DTC B2214 DOOR CLOSER MOTOR MALFUNCTION ON REAR LEFT SIDE DOOR
DTCDescription
DTC C1711, DTC C1712, DTC C1713, DTC RIGHT FRONT HEIGHT CONTROL SENSOR

ENGINE IMMOBILIZER DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION (W/SMART
KEY)
ENGINE IMMOBILIZER DIAGNOSTIC TROUBLE CODES (DTC) IDENTIFICATION (W/O
SMART KEY)
C1714, DTC C1714 CIRCUIT
DTC C1715, DTC C1716, DTC C1717, DTC
C1791, DTC C1792, DTC C1793
RIGHT FRONT ACCELERATION SENSOR CIRCUIT
DTC C1725, DTC C1726, DTC C1727, DTC
C1728
RIGHT FRONT ABSORBER CONTROL ACTUATOR
CIRCUIT
DTC C1735 EXHAUST SOLENOID VALVE CIRCUIT
DTC C1737, DTC C1738, DTC C1739, DTC
C1740
RIGHT FRONT HEIGHT CONTROL SOLENOID
VALVE CIRCUIT
DTC C1741 AIR SUS RELAY CIRCUIT
DTC C1742 HEIGHT CONTROL COMPRESSOR CIRCUIT
DTC C1751, DTC C1752 CONTINUOUS ELECTRIC CURRENT TO HEIGHT
CONTROL COMPRESSOR
DTC C1761 ECU MALFUNCTION
DTC C1774 POWER SOURCE CIRCUIT
DTC C1776 SPEED SENSOR CIRCUIT
DTC C1777 STEERING ANGLE SENSOR CIRCUIT
DTC C1786 HEIGHT CONTROL SWITCH CIRCUIT (TEST
DIAGNOSIS)
DTC C1787 ABSORBER CONTROL SWITCH CIRCUIT (TEST
DIAGNOSIS)
DTCDescription
DTC B2780 PUSH SWITCH/KEY UNLOCK WARNING
SWITCH MALFUNCTION
DTC B2793 TRANSPONDER CHIP MALFUNCTION
DTC B2794 UNMATCHED ENCRYPTION CODE
DTC B2795 UNMATCHED KEY CODE
DTC B2797 COMMUNICATION MALFUNCTION NO.1
DTC B2799 ENGINE IMMOBILIZER SYSTEM
MALFUNCTION
DTCDescription
DTC B2780 PUSH SWITCH/KEY UNLOCK WARNING
SWITCH MALFUNCTION
DTC B2793 TRANSPONDER CHIP MALFUNCTION

ENGINE PERFORMANCE DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION

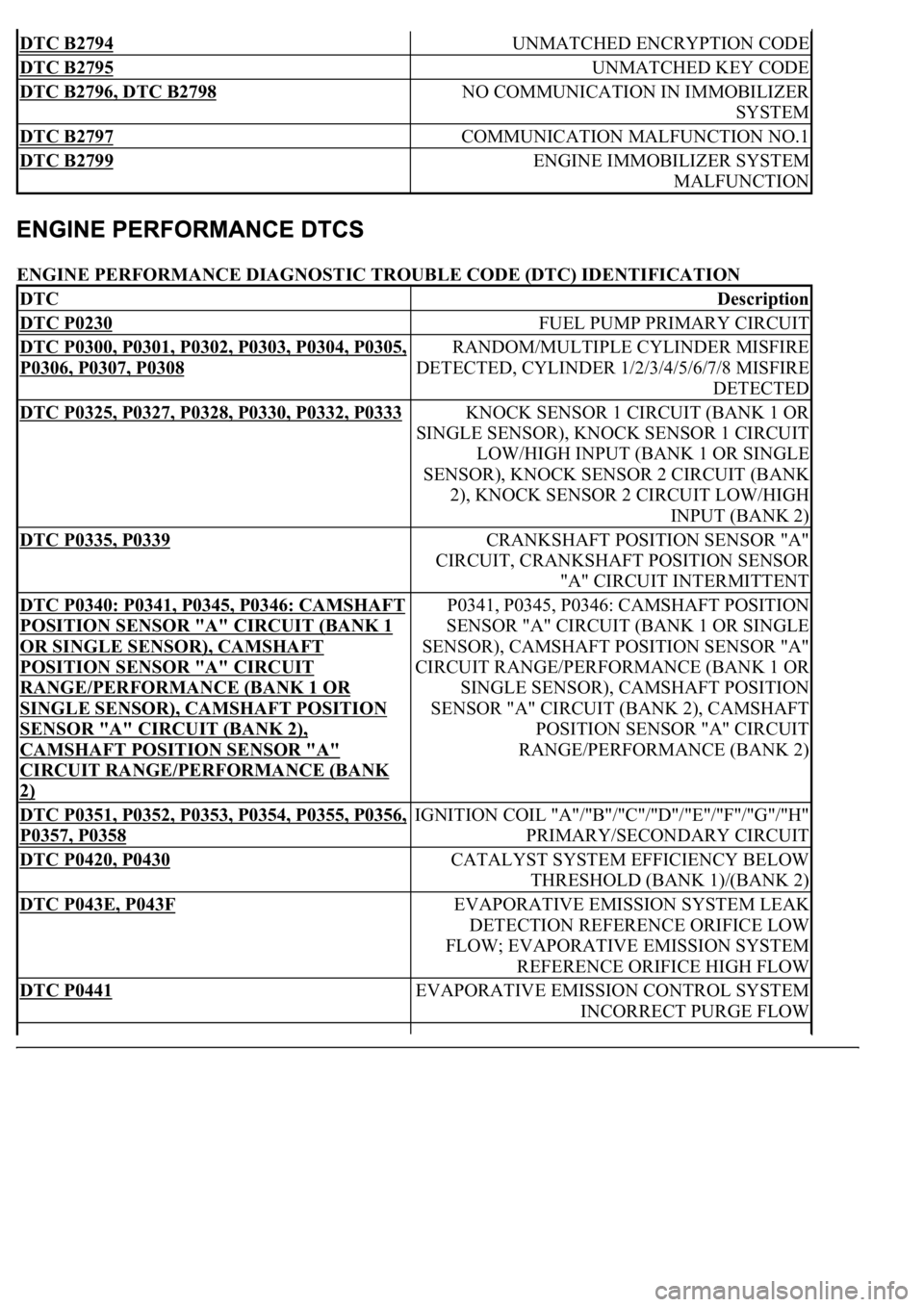

DTC B2794 UNMATCHED ENCRYPTION CODE
DTC B2795 UNMATCHED KEY CODE
DTC B2796, DTC B2798 NO COMMUNICATION IN IMMOBILIZER
SYSTEM
DTC B2797 COMMUNICATION MALFUNCTION NO.1
DTC B2799 ENGINE IMMOBILIZER SYSTEM
MALFUNCTION
DTCDescription
DTC P0230 FUEL PUMP PRIMARY CIRCUIT
DTC P0300, P0301, P0302, P0303, P0304, P0305,
P0306, P0307, P0308
RANDOM/MULTIPLE CYLINDER MISFIRE
DETECTED, CYLINDER 1/2/3/4/5/6/7/8 MISFIRE
DETECTED
DTC P0325, P0327, P0328, P0330, P0332, P0333 KNOCK SENSOR 1 CIRCUIT (BANK 1 OR
SINGLE SENSOR), KNOCK SENSOR 1 CIRCUIT
LOW/HIGH INPUT (BANK 1 OR SINGLE
SENSOR), KNOCK SENSOR 2 CIRCUIT (BANK
2), KNOCK SENSOR 2 CIRCUIT LOW/HIGH
INPUT (BANK 2)
DTC P0335, P0339 CRANKSHAFT POSITION SENSOR "A"
CIRCUIT, CRANKSHAFT POSITION SENSOR
"A" CIRCUIT INTERMITTENT
DTC P0340: P0341, P0345, P0346: CAMSHAFT
POSITION SENSOR "A" CIRCUIT (BANK 1
OR SINGLE SENSOR), CAMSHAFT
POSITION SENSOR "A" CIRCUIT
RANGE/PERFORMANCE (BANK 1 OR
SINGLE SENSOR), CAMSHAFT POSITION
SENSOR "A" CIRCUIT (BANK 2),
CAMSHAFT POSITION SENSOR "A"
CIRCUIT RANGE/PERFORMANCE (BANK
2)
P0341, P0345, P0346: CAMSHAFT POSITION
SENSOR "A" CIRCUIT (BANK 1 OR SINGLE
SENSOR), CAMSHAFT POSITION SENSOR "A"
CIRCUIT RANGE/PERFORMANCE (BANK 1 OR
SINGLE SENSOR), CAMSHAFT POSITION
SENSOR "A" CIRCUIT (BANK 2), CAMSHAFT
POSITION SENSOR "A" CIRCUIT
RANGE/PERFORMANCE (BANK 2)
DTC P0351, P0352, P0353, P0354, P0355, P0356,
P0357, P0358
IGNITION COIL "A"/"B"/"C"/"D"/"E"/"F"/"G"/"H"
PRIMARY/SECONDARY CIRCUIT
DTC P0420, P0430 CATALYST SYSTEM EFFICIENCY BELOW
THRESHOLD (BANK 1)/(BANK 2)
DTC P043E, P043F EVAPORATIVE EMISSION SYSTEM LEAK
DETECTION REFERENCE ORIFICE LOW
FLOW; EVAPORATIVE EMISSION SYSTEM
REFERENCE ORIFICE HIGH FLOW
DTC P0441 EVAPORATIVE EMISSION CONTROL SYSTEM
INCORRECT PURGE FLOW

DTC P0450, DTC P0451, DTC P0452, DTC
P0453
EVAPORATIVE EMISSION CONTROL SYSTEM
PRESSURE SENSOR MALFUNCTION;
EVAPORATIVE EMISSION CONTROL SYSTEM
PRESSURE SENSOR RANGE/PERFORMANCE;
EVAPORATIVE EMISSION CONTROL SYSTEM
PRESSURE SENSOR/SWITCH LOW INPUT;
EVAPORATIVE EMISSION CONTROL SYSTEM
PRESSURE SENSOR/SWITCH HIGH INPUT
DTC P0455, DTC P0456 EVAPORATIVE EMISSION CONTROL SYSTEM
LEAK DETECTED (GROSS LEAK);
EVAPORATIVE EMISSION CONTROL SYSTEM
LEAK DETECTED (VERY SMALL LEAK)
DTC P0500, P0503 VEHICLE SPEED SENSOR "A", VEHICLE
SPEED SENSOR "A"
INTERMITTENT/ERRATIC/HIGH
DTC P0504, P0571 BRAKE SWITCH "A"/"B" CORRELATION,
BRAKE SWITCH "A" CIRCUIT
DTC P0505 IDLE AIR CONTROL SYSTEM
DTC P0560 SYSTEM VOLTAGE
DTC P0604, P0606, P0607, P0657 INTERNAL CONTROL MODULE RANDOM
ACCESS MEMORY (RAM) ERROR, ECM/PCM
PROCESSOR, CONTROL MODULE
PERFORMANCE, ACTUATOR SUPPLY
VOLTAGE CIRCUIT/OPEN
DTC P0617 STARTER RELAY CIRCUIT HIGH
DTC P0630 VIN NOT PROGRAMMED OR MISMATCH -
ECM/PCM
DTC P1340, P1341 CAMSHAFT POSITION SENSOR "A" (BANK 1
SENSOR 2)
DTC P2102, P2103 THROTTLE ACTUATOR CONTROL MOTOR
CIRCUIT LOW/HIGH
DTC P2111, P2112 THROTTLE ACTUATOR CONTROL SYSTEM -
STUCK OPEN/CLOSED
DTC P2118 THROTTLE ACTUATOR CONTROL MOTOR
CURRENT RANGE/PERFORMANCE
DTC P2119 THROTTLE ACTUATOR CONTROL THROTTLE
BODY RANGE/PERFORMANCE
DTC P2120, P2122, P2123, P2125, P2127, P2128,
P2138
THROTTLE/PEDAL POSITION
SENSOR/SWITCH "D" CIRCUIT,
THROTTLE/PEDAL POSITION
SENSOR/SWITCH "D" CIRCUIT LOW/HIGH
INPUT, THROTTLE/PEDAL POSITION
SENSOR/SWITCH "E" CIRCUIT, DTC
THROTTLE/PEDAL POSITION
SENSOR/SWITCH "E" CIRCUIT LOW/HIGH
INPUT, THROTTLE/PEDAL POSITION

HVAC DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
LIGHTING SYSTEM DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
SENSOR/SWITCH "D"/"E" VOLTAGE
CORRELATION
DTC P2121 THROTTLE/PEDAL POSITION
SENSOR/SWITCH "D" CIRCUIT
RANGE/PERFORMANCE
DTC U0001 HIGH SPEED CAN COMMUNICATION
CIRCUIT
DTCDescription
DTC B1411 ROOM TEMPERATURE SENSOR CIRCUIT
DTC B1412 AMBIENT TEMPERATURE SENSOR CIRCUIT
DTC B1413 EVAPORATOR TEMPERATURE SENSOR CIRCUIT
DTC B1415 AIR DUCT SENSOR CIRCUIT (DRIVER SIDE)
DTC B1416 AIR DUCT SENSOR CIRCUIT (PASSENGER SIDE)
DTC B1418 EMISSION GAS SENSOR CIRCUIT
DTC B1421 SOLAR SENSOR CIRCUIT (PASSENGER SIDE)
DTC B1423 PRESSURE SWITCH CIRCUIT
DTC B1424 SOLAR SENSOR CIRCUIT (DRIVER SIDE)
DTC B1428 REAR SOLAR SENSOR CIRCUIT
DTC B1432 AIR INLET DAMPER POSITION SENSOR CIRCUIT
DTC B1434 MAX COOL DAMPER POSITION SENSOR CIRCUIT (DRIVER SIDE)
DTC B1435 MAX COOL DAMPER POSITION SENSOR CIRCUIT (PASSENGER SIDE)
DTC B1442 AIR INLET DAMPER CONTROL SERVOMOTOR CIRCUIT
DTC B1451 COMPRESSOR SOLENOID CIRCUIT
DTC B1461 EMISSION GAS NOX SENSOR CIRCUIT
DTCDescription
DTC B1244 LIGHT SENSOR CIRCUIT MALFUNCTION
DTC B1268 BACK-UP COMMUNICATION BUS MALFUNCTION
DTC B2402, B2403 TRANSISTOR RELAY OVERLOAD/OVERHEAT MALFUNCTION
DTC B2412, B2413 HEADLIGHT SWIVEL MOTOR LH/RH MALFUNCTION
DTC B2414 STEERING POSITION SENSOR MALFUNCTION
DTC B2415 VEHICLE SPEED SENSOR MALFUNCTION
DTC B2416 HEIGHT CONTROL SENSOR MALFUNCTION
DTC B2417, B2418 HEADLIGHT BEAM LEVEL CONTROL MOTOR LH/RH
MALFUNCTION

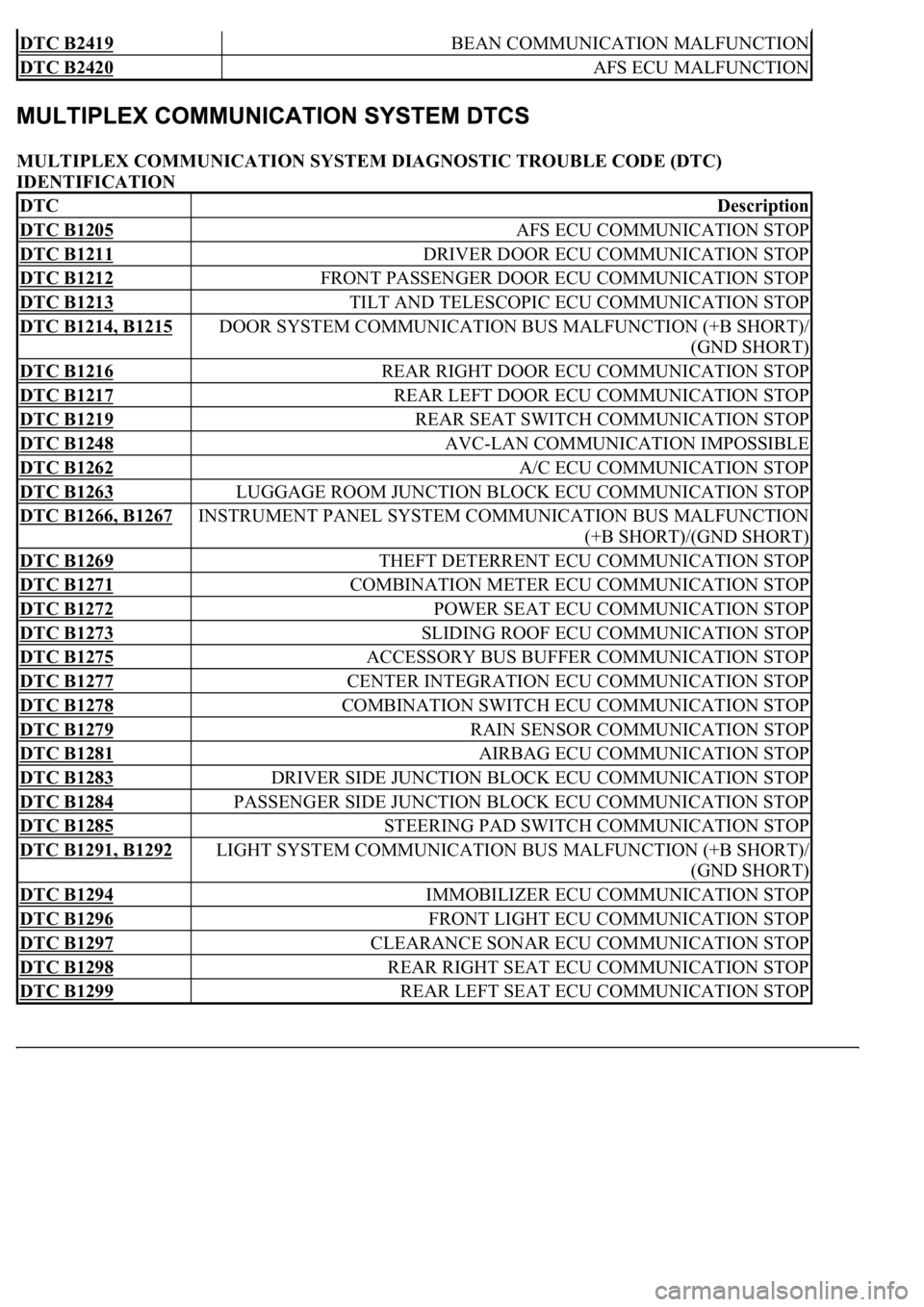

MULTIPLEX COMMUNICATION SYSTEM DIAGNOSTIC TROUBLE CODE (DTC)
IDENTIFICATION
DTC B2419 BEAN COMMUNICATION MALFUNCTION
DTC B2420 AFS ECU MALFUNCTION
DTCDescription
DTC B1205 AFS ECU COMMUNICATION STOP
DTC B1211 DRIVER DOOR ECU COMMUNICATION STOP
DTC B1212 FRONT PASSENGER DOOR ECU COMMUNICATION STOP
DTC B1213 TILT AND TELESCOPIC ECU COMMUNICATION STOP
DTC B1214, B1215 DOOR SYSTEM COMMUNICATION BUS MALFUNCTION (+B SHORT)/
(GND SHORT)
DTC B1216 REAR RIGHT DOOR ECU COMMUNICATION STOP
DTC B1217 REAR LEFT DOOR ECU COMMUNICATION STOP
DTC B1219 REAR SEAT SWITCH COMMUNICATION STOP
DTC B1248 AVC-LAN COMMUNICATION IMPOSSIBLE
DTC B1262 A/C ECU COMMUNICATION STOP
DTC B1263 LUGGAGE ROOM JUNCTION BLOCK ECU COMMUNICATION STOP
DTC B1266, B1267 INSTRUMENT PANEL SYSTEM COMMUNICATION BUS MALFUNCTION
(+B SHORT)/(GND SHORT)
DTC B1269 THEFT DETERRENT ECU COMMUNICATION STOP
DTC B1271 COMBINATION METER ECU COMMUNICATION STOP
DTC B1272 POWER SEAT ECU COMMUNICATION STOP
DTC B1273 SLIDING ROOF ECU COMMUNICATION STOP
DTC B1275 ACCESSORY BUS BUFFER COMMUNICATION STOP
DTC B1277 CENTER INTEGRATION ECU COMMUNICATION STOP
DTC B1278 COMBINATION SWITCH ECU COMMUNICATION STOP
DTC B1279 RAIN SENSOR COMMUNICATION STOP
DTC B1281 AIRBAG ECU COMMUNICATION STOP
DTC B1283 DRIVER SIDE JUNCTION BLOCK ECU COMMUNICATION STOP
DTC B1284 PASSENGER SIDE JUNCTION BLOCK ECU COMMUNICATION STOP
DTC B1285 STEERING PAD SWITCH COMMUNICATION STOP
DTC B1291, B1292 LIGHT SYSTEM COMMUNICATION BUS MALFUNCTION (+B SHORT)/
(GND SHORT)
DTC B1294 IMMOBILIZER ECU COMMUNICATION STOP
DTC B1296 FRONT LIGHT ECU COMMUNICATION STOP
DTC B1297 CLEARANCE SONAR ECU COMMUNICATION STOP
DTC B1298 REAR RIGHT SEAT ECU COMMUNICATION STOP
DTC B1299 REAR LEFT SEAT ECU COMMUNICATION STOP
