5617-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)

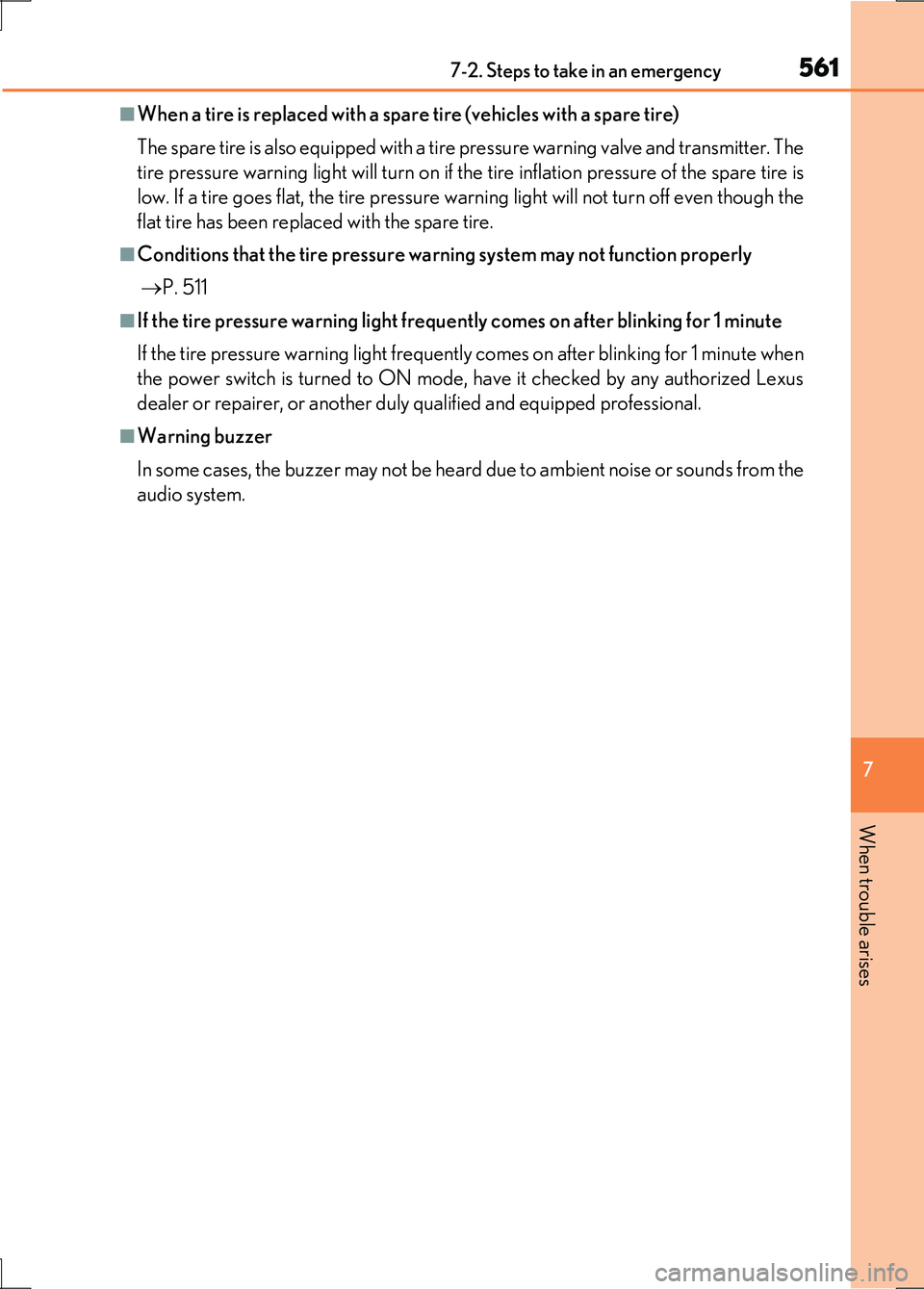

■When a tire is replaced with a spare tire (vehicles with a spare tire)
The spare tire is also equipped with a tire pressure warning valve and transmitter. The
tire pressure warning light will turn on if the tire inflation pressure of the spare tire is
low. If a tire goes flat, the tire pressure warning light will not turn off even though the
flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
P. 511
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when
the power switch is turned to ON mode, have it checked by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
■Warning buzzer
In some cases, the buzzer may not be heard due to ambient noise or sounds from the
audio system.

5627-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

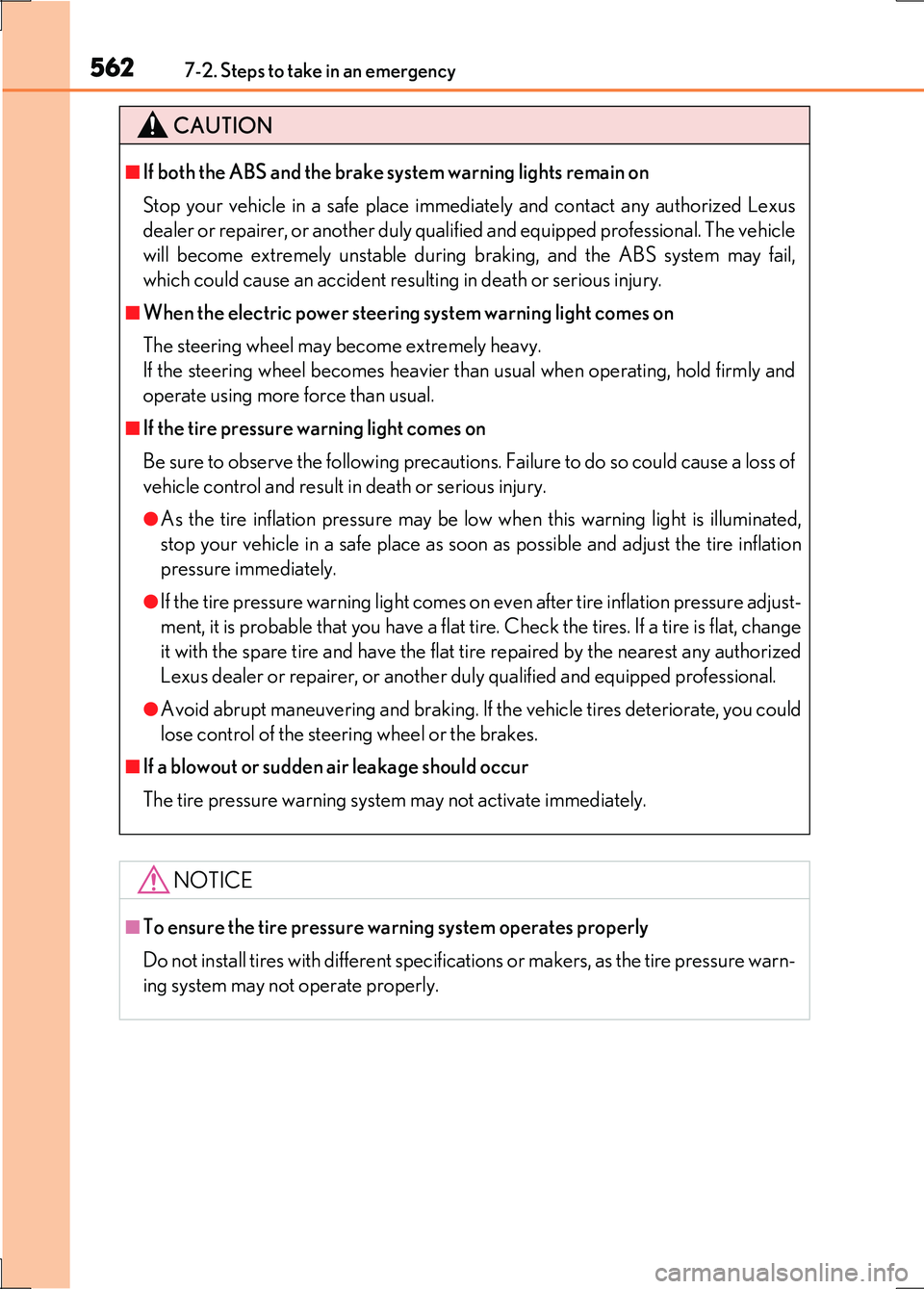

CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional. The vehicle
will become extremely unstable during braking, and the ABS system may fail,
which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●As the tire inflation pressure may be low when this warning light is illuminated,
stop your vehicle in a safe place as soon as possible and adjust the tire inflation
pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change
it with the spare tire and have the flat tire repaired by the nearest any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pressure warn-
ing system may not operate properly.

5637-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)

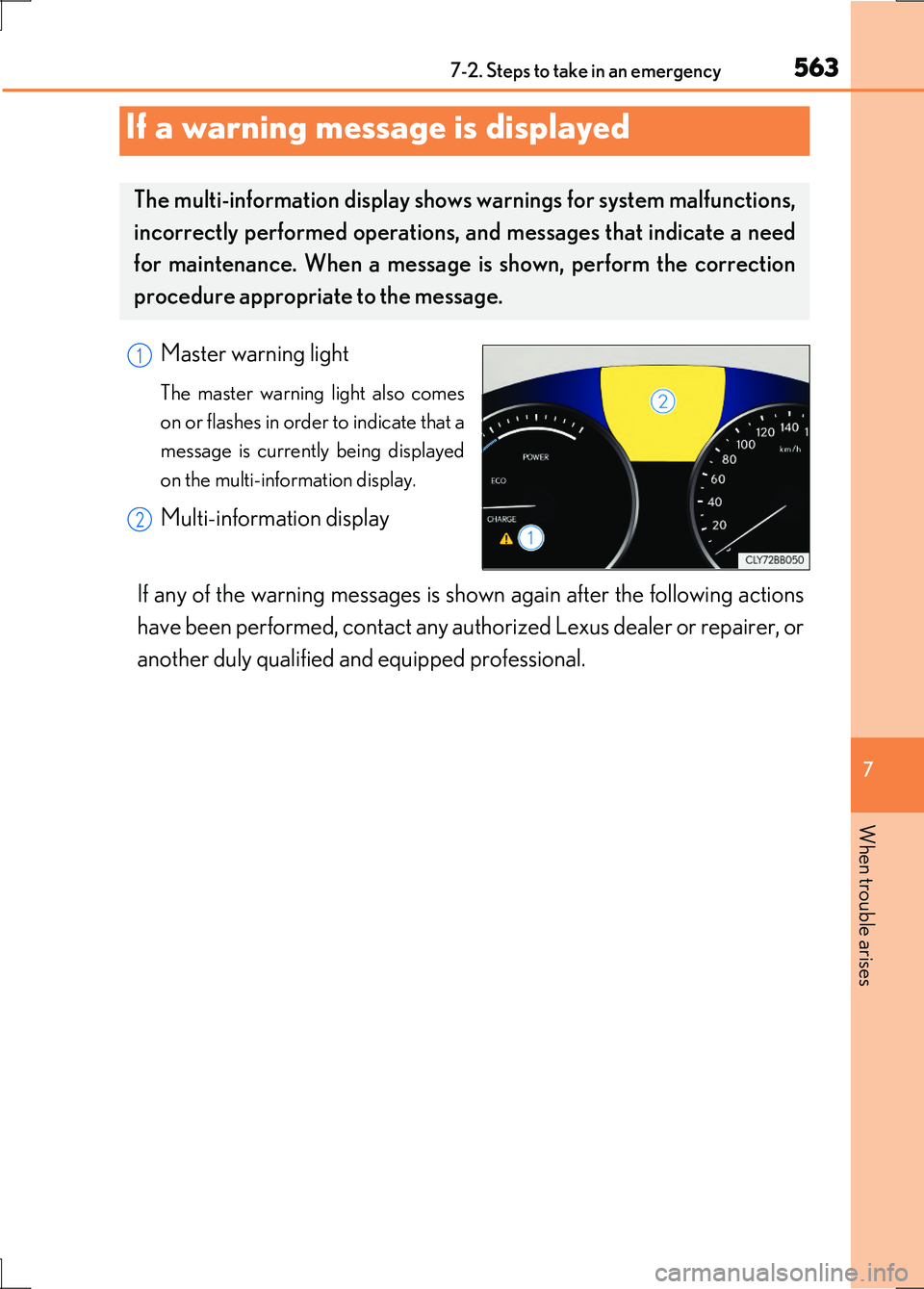

Master warning light
The master warning light also comes
on or flashes in order to indicate that a
message is currently being displayed
on the multi-information display.
Multi-information display
If any of the warning messages is shown again after the following actions
have been performed, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
If a warning message is displayed
The multi-information display shows warnings for system malfunctions,
incorrectly performed operations, and messages that indicate a need
for maintenance. When a message is shown, perform the correction
procedure appropriate to the message.
1
2

5647-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

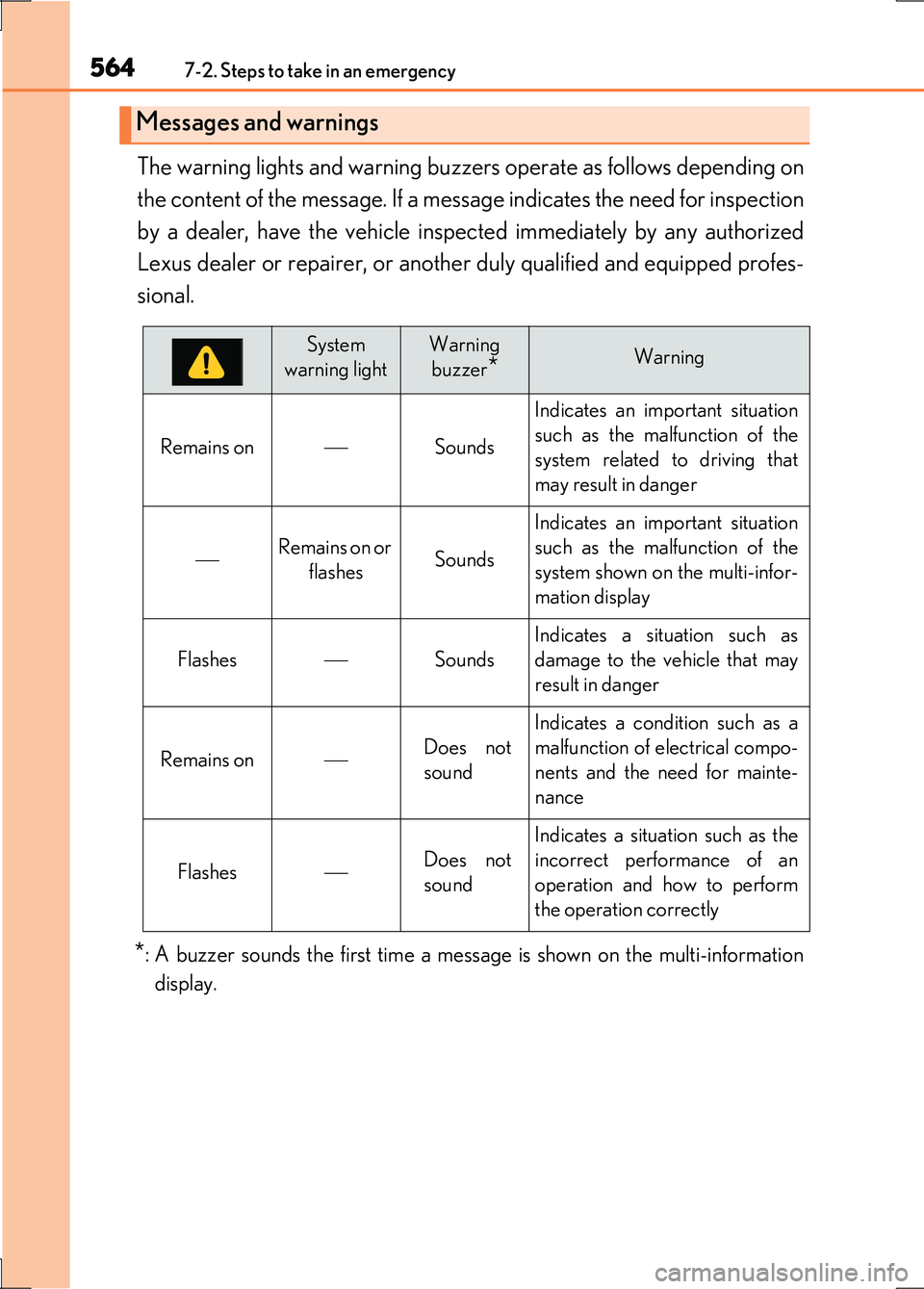

The warning lights and warning buzzers operate as follows depending on
the content of the message. If a message indicates the need for inspection
by a dealer, have the vehicle inspected immediately by any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
*: A buzzer sounds the first time a message is shown on the multi-information
display.
Messages and warnings
System
warning light
Warning
buzzer*Warning
Remains onSounds
Indicates an important situation
such as the malfunction of the
system related to driving that
may result in danger
Remains on or
flashesSounds
Indicates an important situation
such as the malfunction of the
system shown on the multi-infor-
mation display
FlashesSounds
Indicates a situation such as
damage to the vehicle that may
result in danger
Remains onDoes not
sound
Indicates a condition such as a
malfunction of electrical compo-
nents and the need for mainte-
nance
FlashesDoes not
sound
Indicates a situation such as the
incorrect performance of an
operation and how to perform
the operation correctly

5657-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
■Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LKA (Lane-Keeping Assist) lane de parture warning function (if equipped)
In the following cases, the warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LKA system
functions
●When the lane lines cannot be recognized
●When the steering wheel is turned as far as necessary to cause the vehicle to
change lanes
■System warning lights
The master warning light does not come on or flash in the following cases. Instead, a
separate system warning light will come on or flash along with the message shown
on the multi-information display.
●Malfunction of the brake system
The brake system warning light (red indicator) comes on. ( P. 555)
●Malfunction of the regenerative brake system, electronically controlled brake sys-
tem or electric parking brake
The brake system warning light (yellow indicator) comes on. ( P. 557)
●Malfunction of the ABS
The ABS warning light comes on. ( P. 556)
●Malfunction of the charging system
The charging system warning light comes on. ( P. 556)
●Indicates that a door or the trunk is not fully closed
The open door warning light comes on. ( P. 558)
●High engine coolant temperature
The needle of the engine coolant temperature gauge enters the red zone.
( P. 611)

5667-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

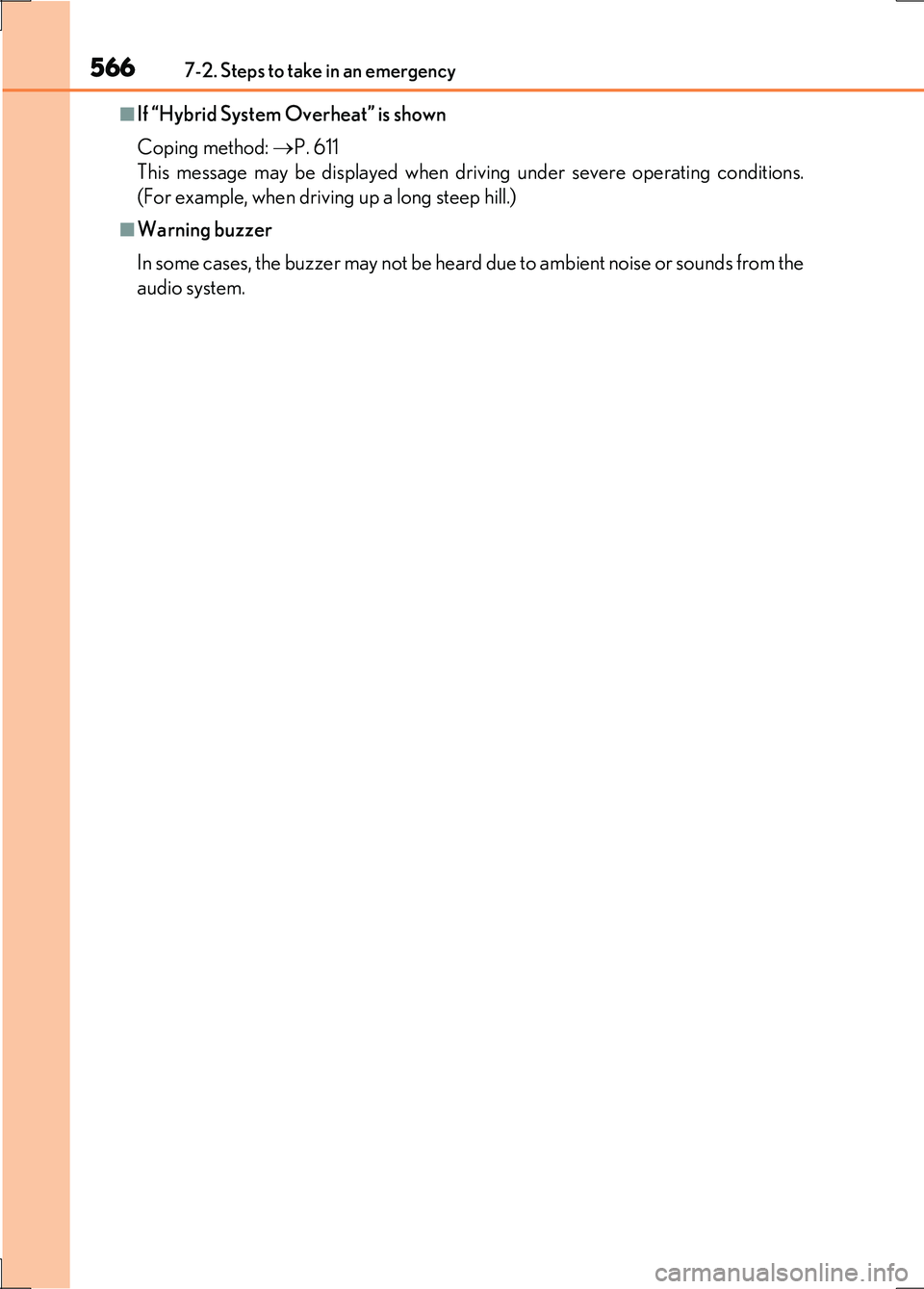

■If “Hybrid System Overheat” is shown
Coping method: P. 611
This message may be displayed when driving under severe operating conditions.
(For example, when driving up a long steep hill.)
■Warning buzzer
In some cases, the buzzer may not be heard due to ambient noise or sounds from the
audio system.

5677-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the hybrid system.
●Turn on the emergency flashers. ( P. 546)
If you have a flat tire (vehicles with a spare tire)
Your vehicle is equipped with a spare tire. The flat tire can be replaced
with the spare tire.
For details about tires: P. 506
CAUTION
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair, which could result in an accident.
Before jacking up the vehicle

5687-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

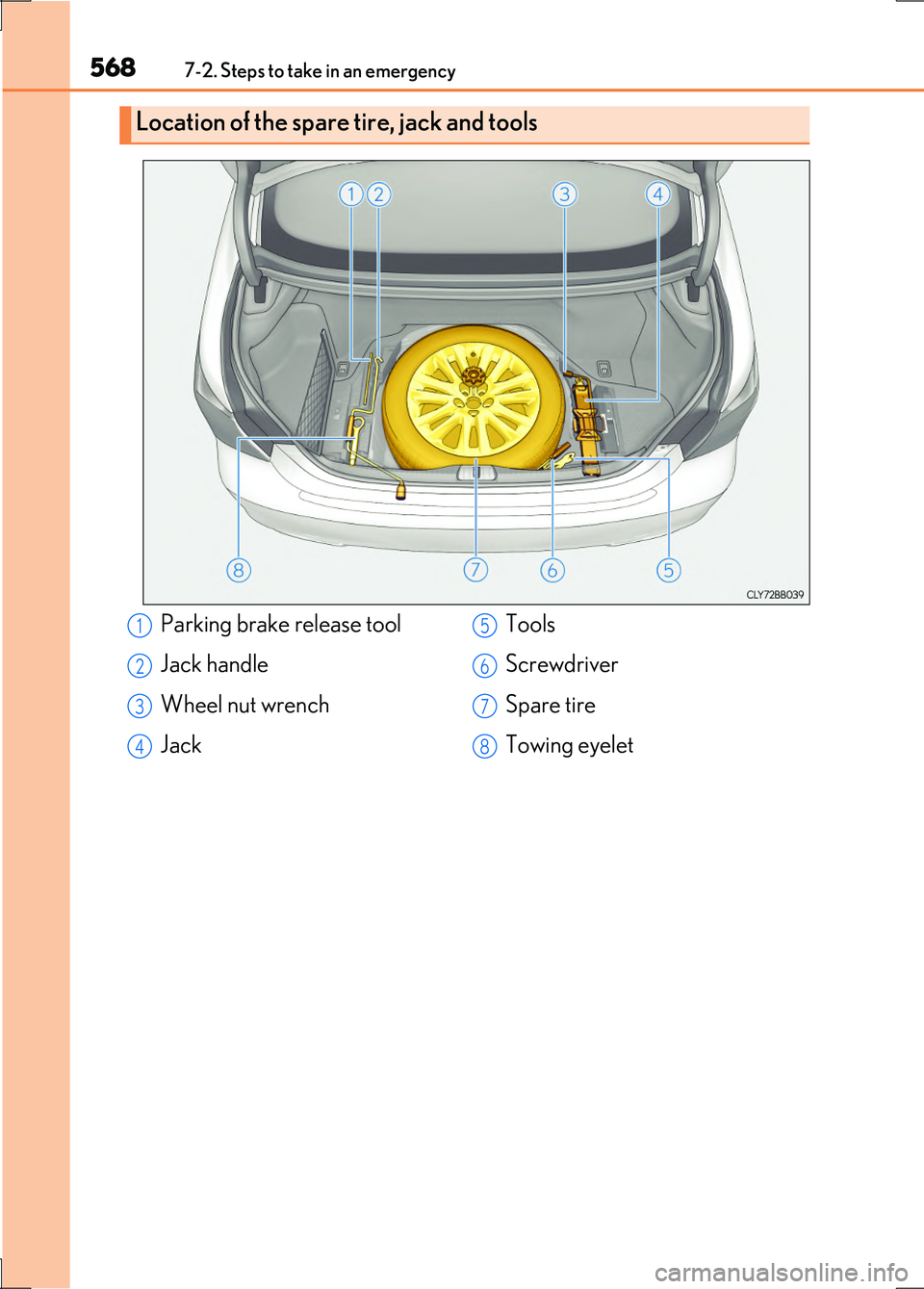

Location of the spare tire, jack and tools
Parking brake release tool
Jack handle
Wheel nut wrench
Jack
Tools
Screwdriver
Spare tire
Towing eyelet
1
2
3
4
5
6
7
8

5697-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)

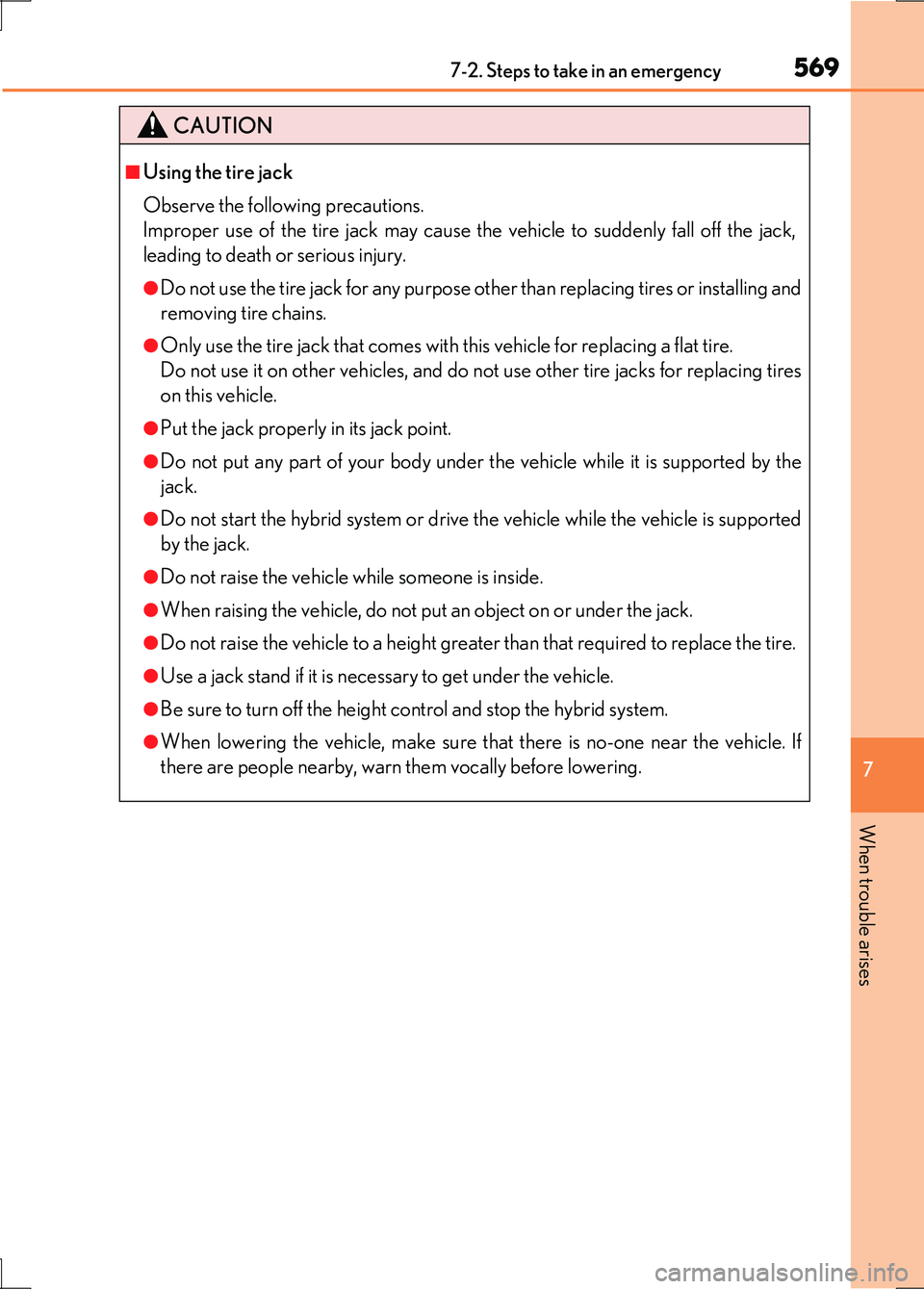

CAUTION
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the
jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is supported
by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Be sure to turn off the height control and stop the hybrid system.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If
there are people nearby, warn them vocally before lowering.

5707-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

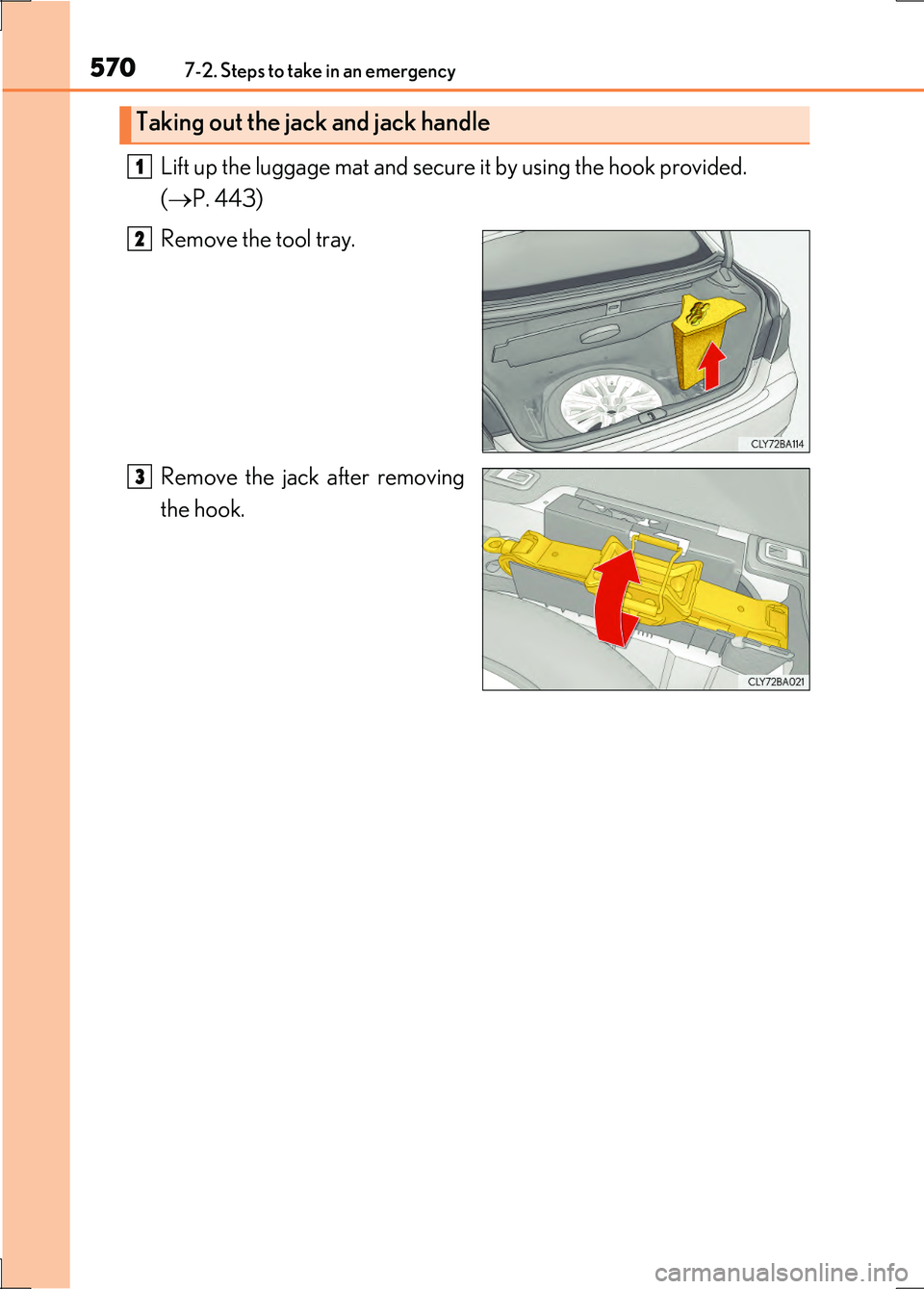

Lift up the luggage mat and secure it by using the hook provided.
( P. 443)
Remove the tool tray.
Remove the jack after removing
the hook.
Taking out the jack and jack handle
1
2
3
