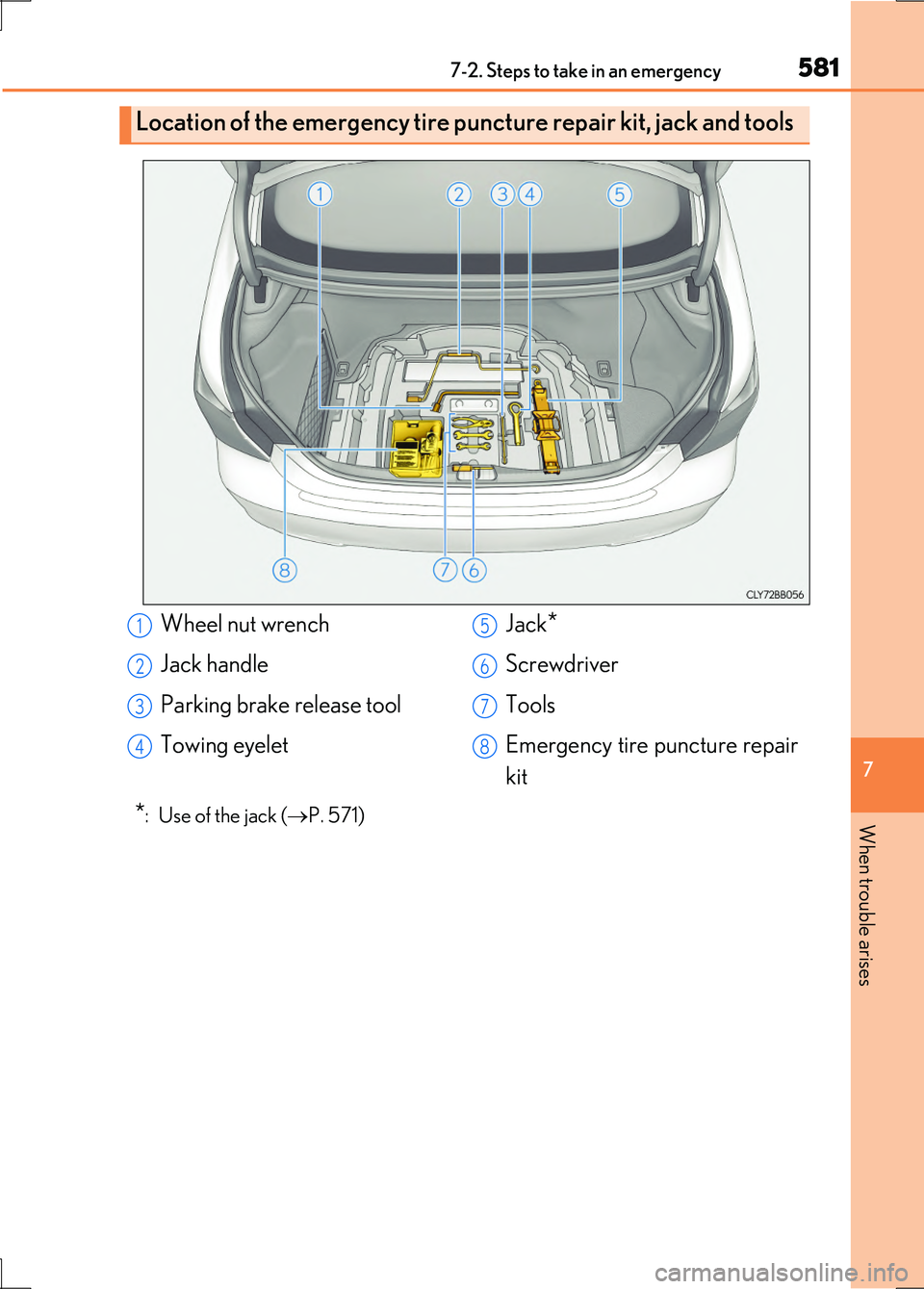

Page 581 of 676

LEXUS LS600H 2017  Owners Manual 5817-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
*:  Use of the jack (P. 571)
Location of the emergency tire puncture repair kit, jack and tools
Wheel nut wr

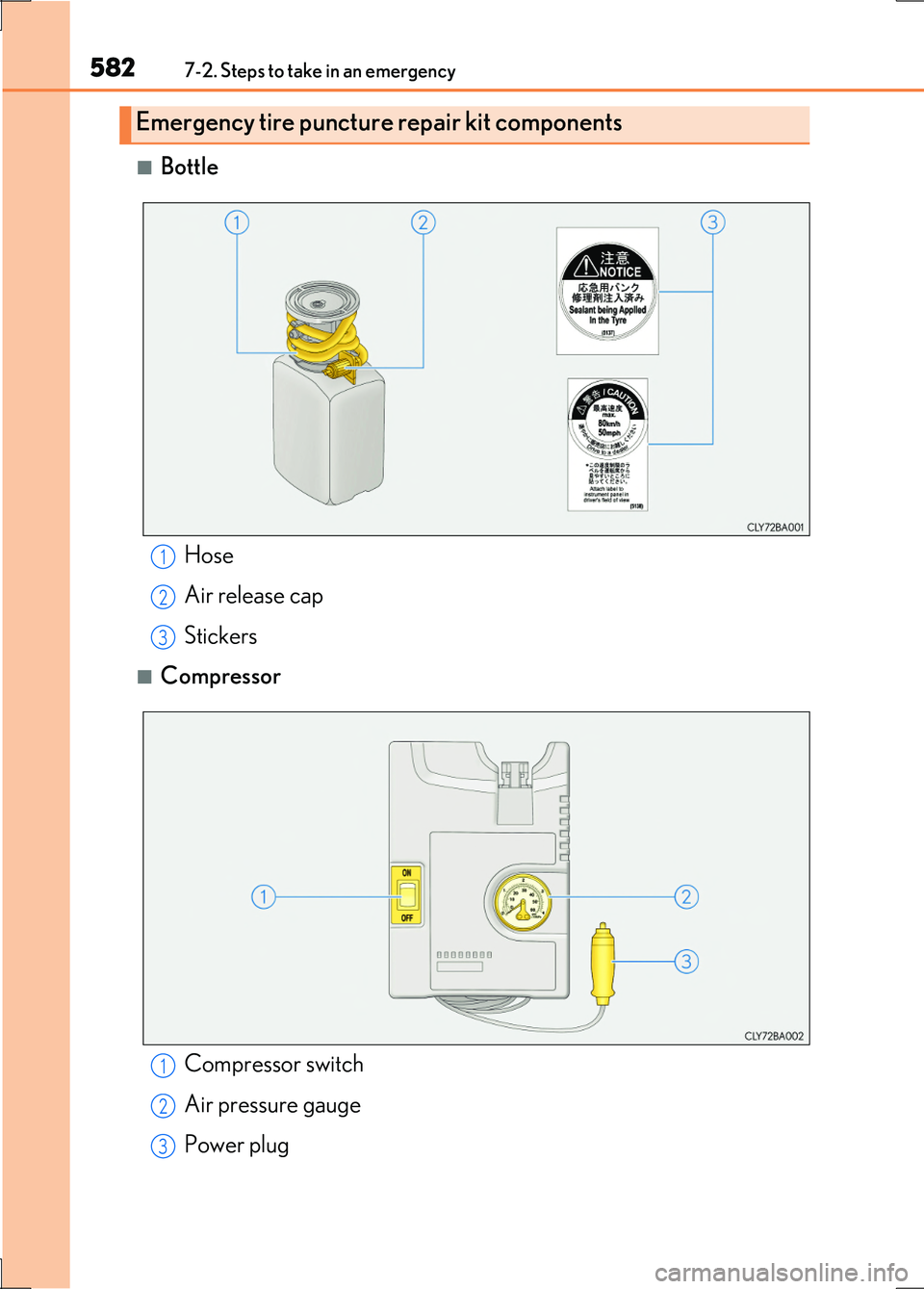

Page 582 of 676

LEXUS LS600H 2017  Owners Manual 5827-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
■Bottle
■Compressor
Emergency tire puncture repair kit components
Hose
Air release cap
Stickers
1
2
3
Compressor switch
Air pres

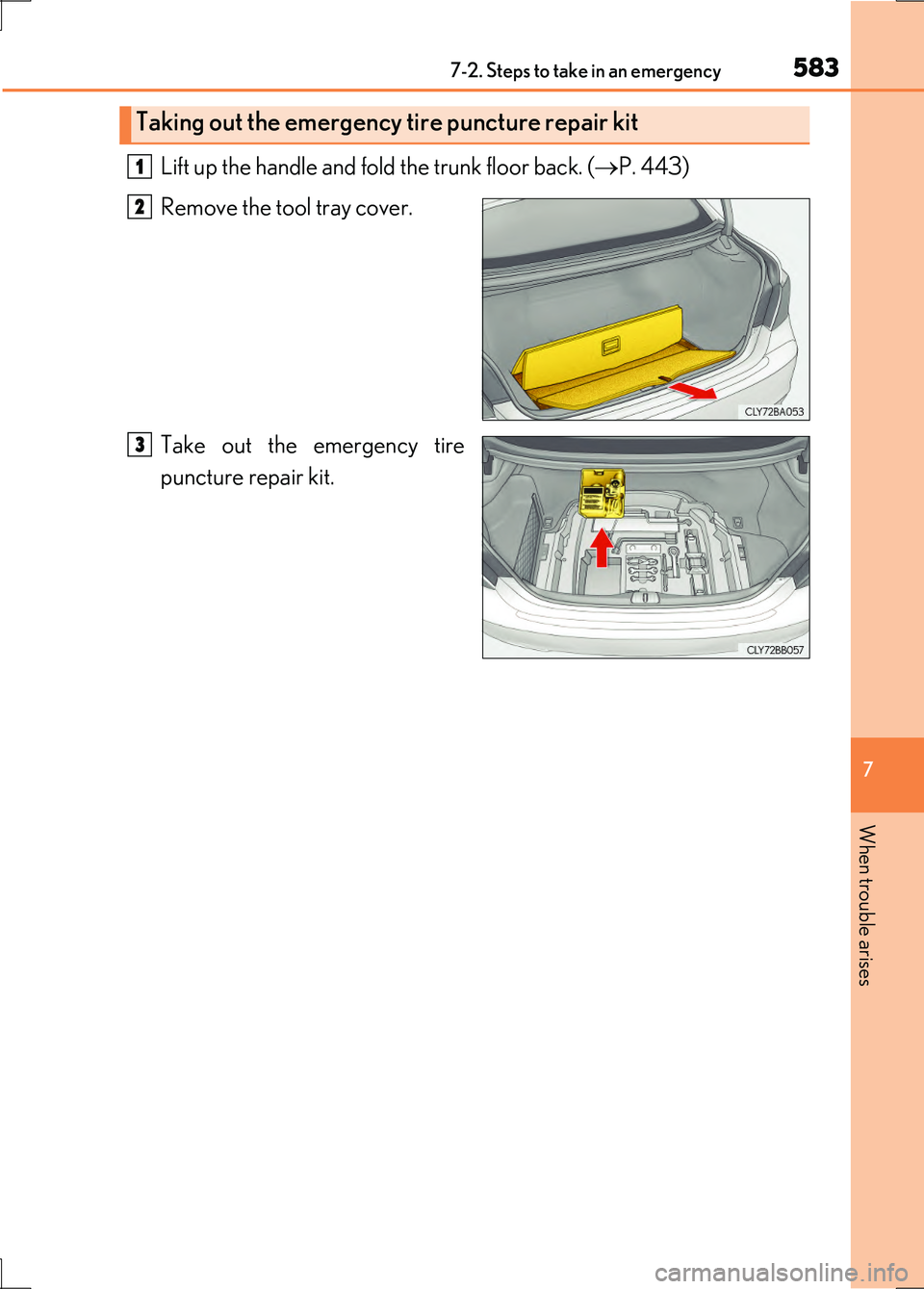

Page 583 of 676

LEXUS LS600H 2017  Owners Manual 5837-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Lift up the handle and fold the trunk floor back. (P. 443)
Remove the tool tray cover.
Take out the emergen

Page 584 of 676

LEXUS LS600H 2017  Owners Manual 5847-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)

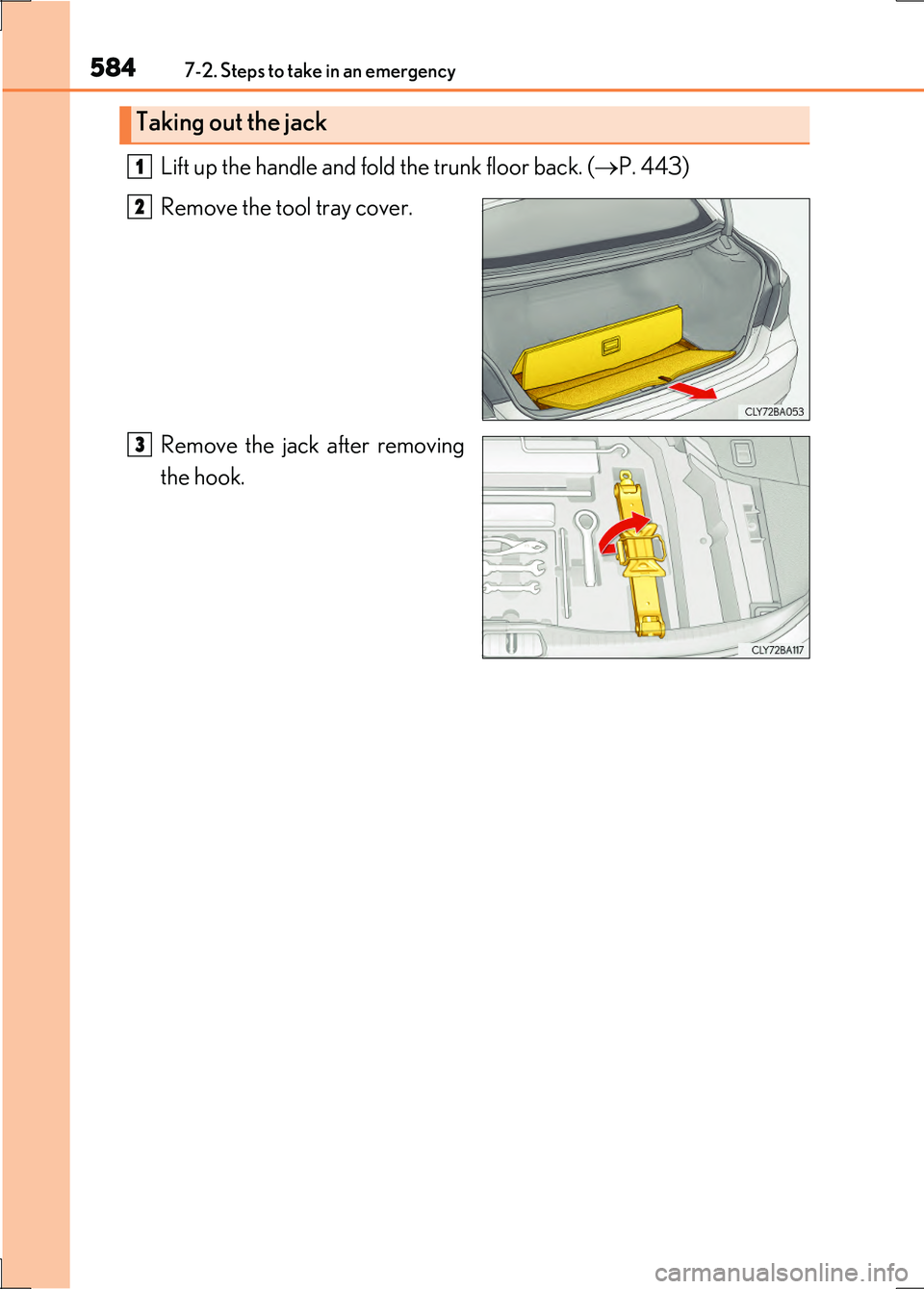

Lift up the handle and fold the trunk floor back. (P. 443)
Remove the tool tray cover.
Remove the jack after removing
the hook.

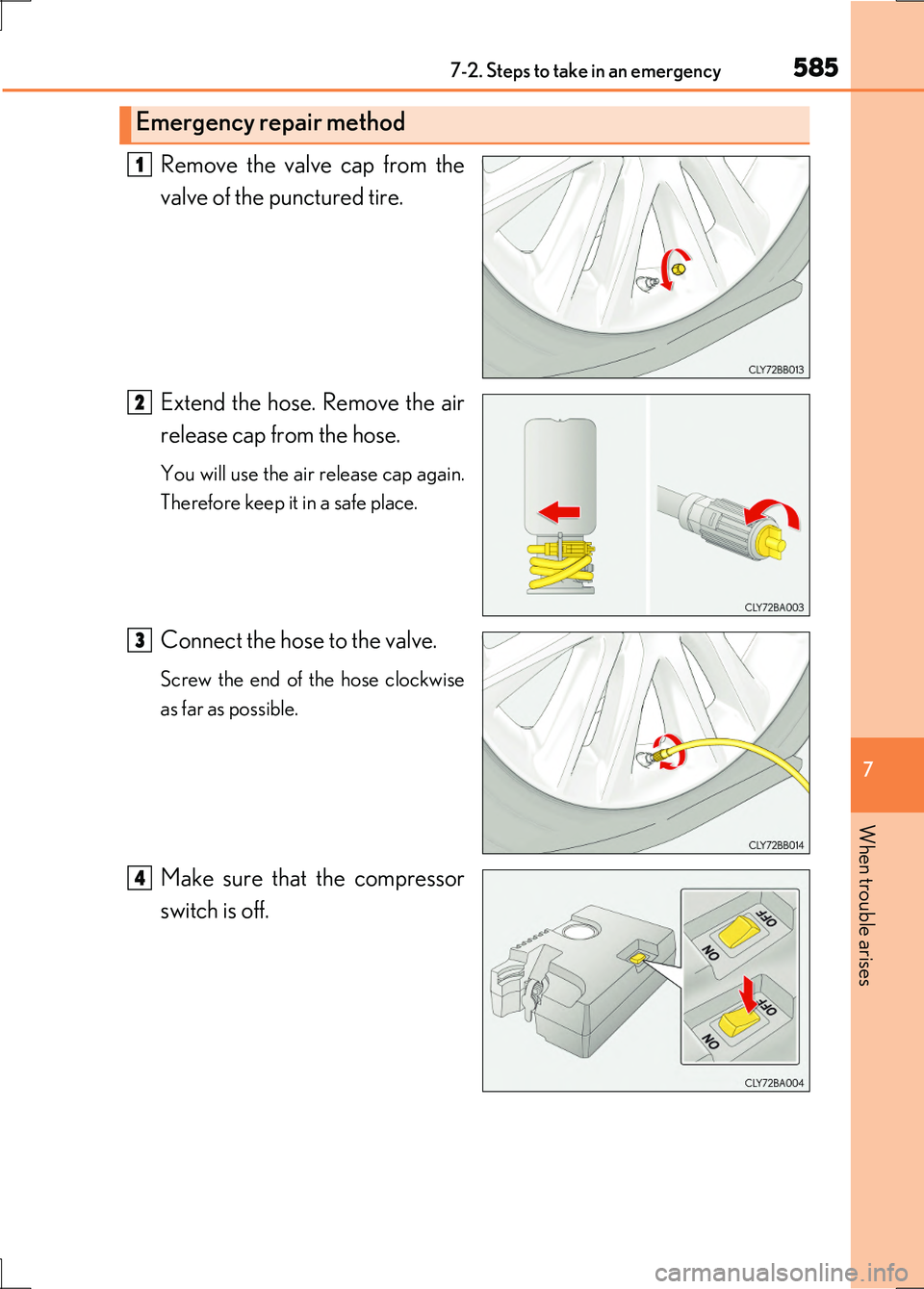

Page 585 of 676

LEXUS LS600H 2017  Owners Manual 5857-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Remove the valve cap from the
valve of the punctured tire.
Extend the hose. Remove the air
release cap from t

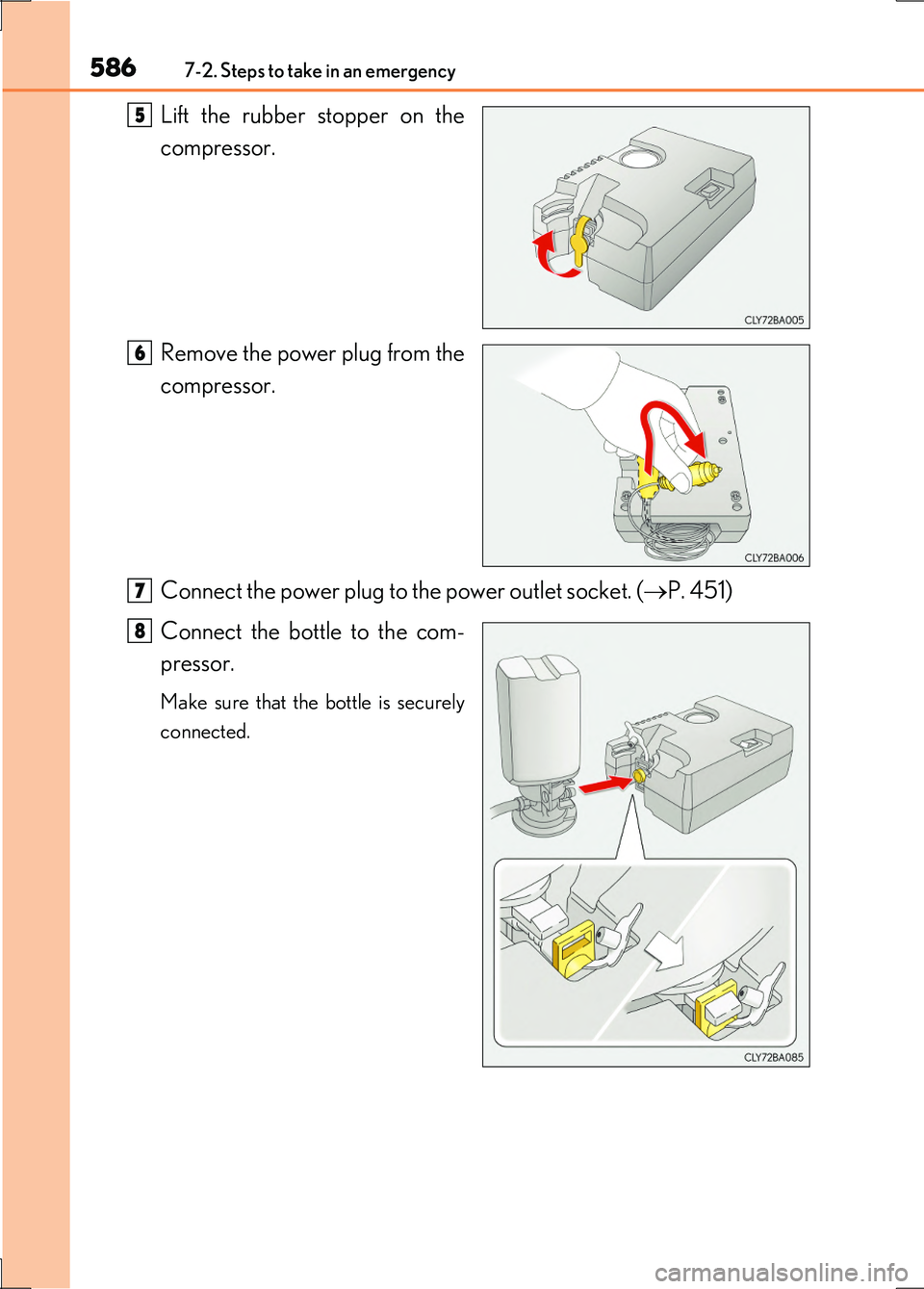

Page 586 of 676

LEXUS LS600H 2017  Owners Manual 5867-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
Lift the rubber stopper on the
compressor.
Remove the power plug from the
compressor.
Connect the power plug to the power outlet s

Page 587 of 676

LEXUS LS600H 2017  Owners Manual 5877-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)

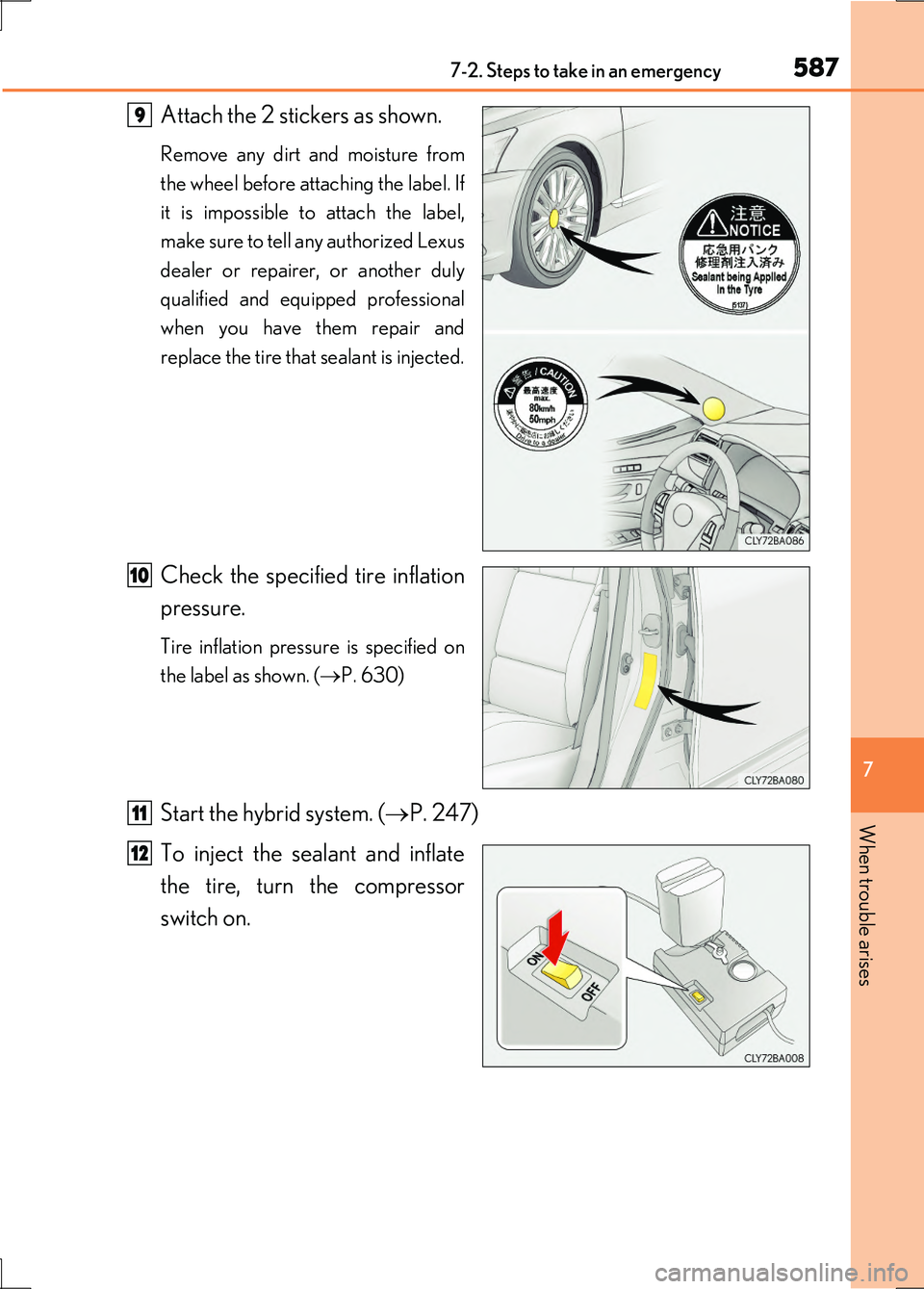

Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the label. If
it

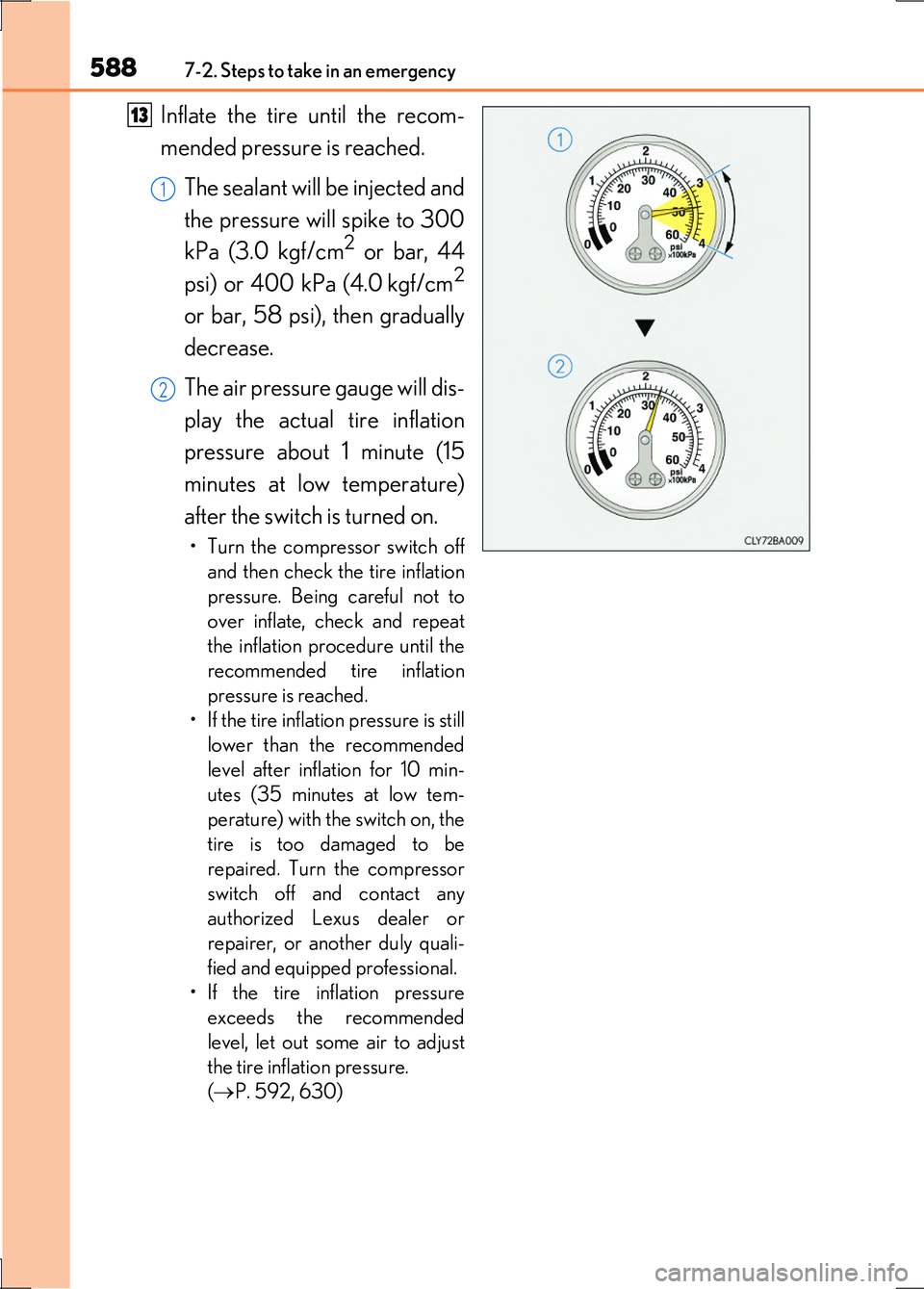

Page 588 of 676

LEXUS LS600H 2017  Owners Manual 5887-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
Inflate the tire until the recom-
mended pressure is reached.
The sealant will be injected and
the pressure will spike to 300
kPa (

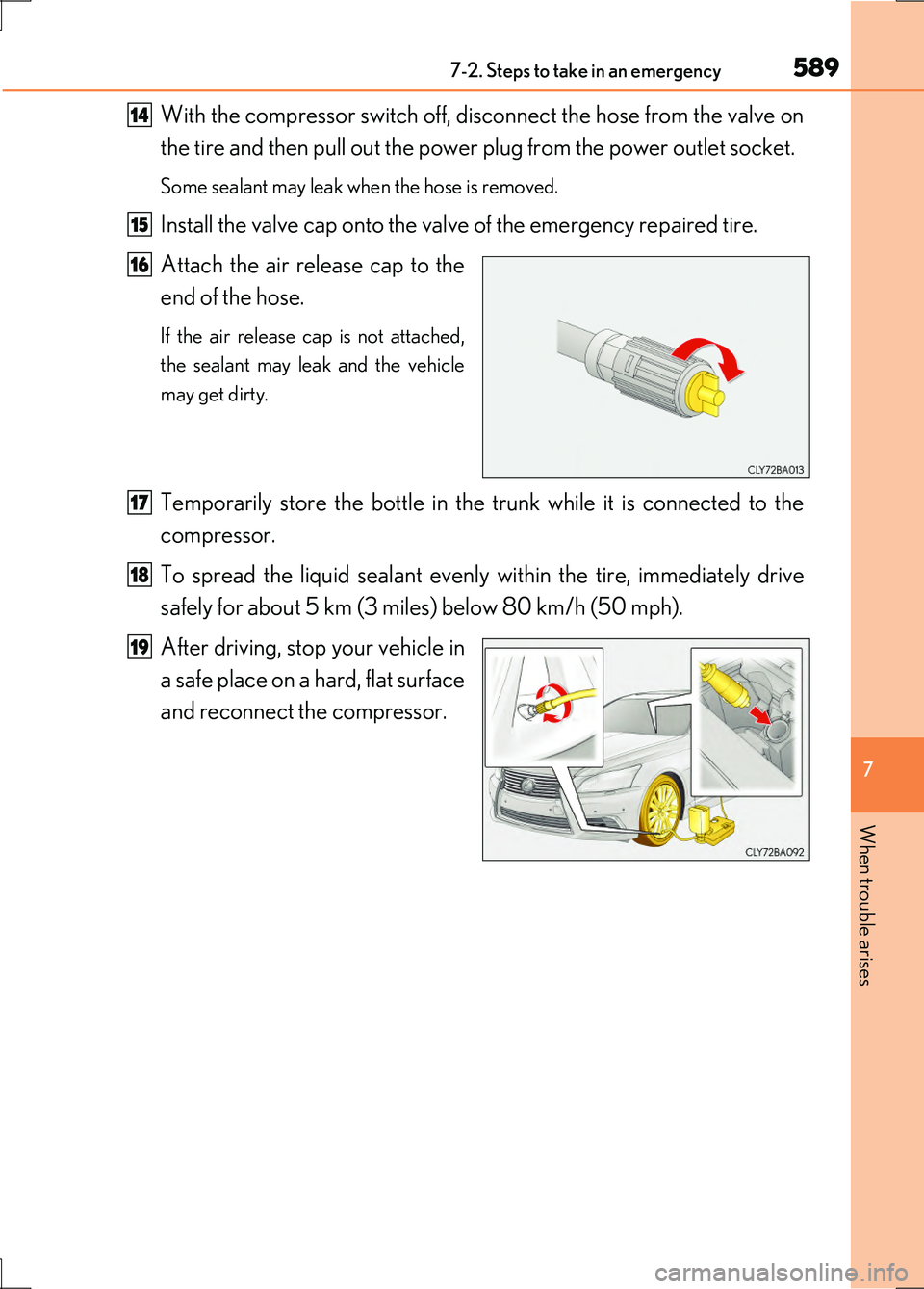

Page 589 of 676

LEXUS LS600H 2017  Owners Manual 5897-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
With the compressor switch off, disconnect the hose from the valve on
the tire and then pull out the power  plu

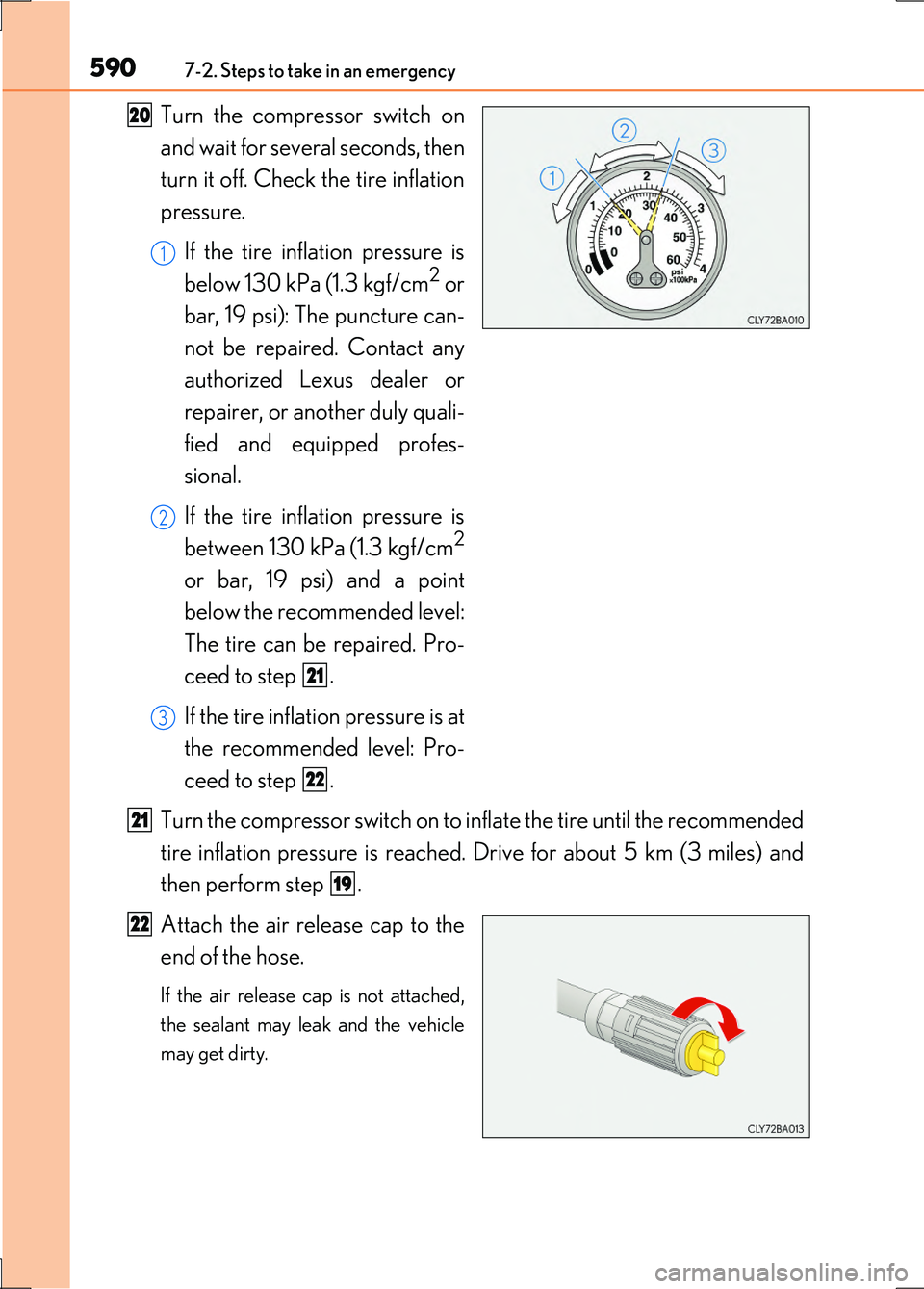

Page 590 of 676

LEXUS LS600H 2017  Owners Manual 5907-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
Turn the compressor switch on
and wait for several seconds, then
turn it off. Check the tire inflation
pressure.
If the tire inflati
