LEXUS RX350 2015 Owners Manual

4713-3. Using the Lexus Display Audio system
3
Interior features ■ Deleting the call history
Display the “Phonebook Settings” screen. (  P. 4 6 2 )
Select “Delete Call History” on the “Phonebook Settings” screen.If your phone supports PBAP service, the “Automatically Download
Contacts” setting needs to be set to “Off”. (  P. 4 6 3 )
Choose the desired history to
delete.
Choose the data to delete.
To delete all data, select “All
Delete”.
A confirmation message will be disp layed. If everything is correct,
select “Yes”.STEP 1
STEP 2
STEP 3
STEP 4
■
Deleting call history in a different way
Display the “Phone” screen. (  P. 441)
Select “Call History” on the “Phone” screen.
Select “Delete” on the “Call History” screen.
Follow the steps “Deleting the call history” from “STEP4”. (  P. 4 7 1 )STEP 5
STEP 1
STEP 2
STEP 3
STEP 4

4723-3. Using the Lexus Display Audio system

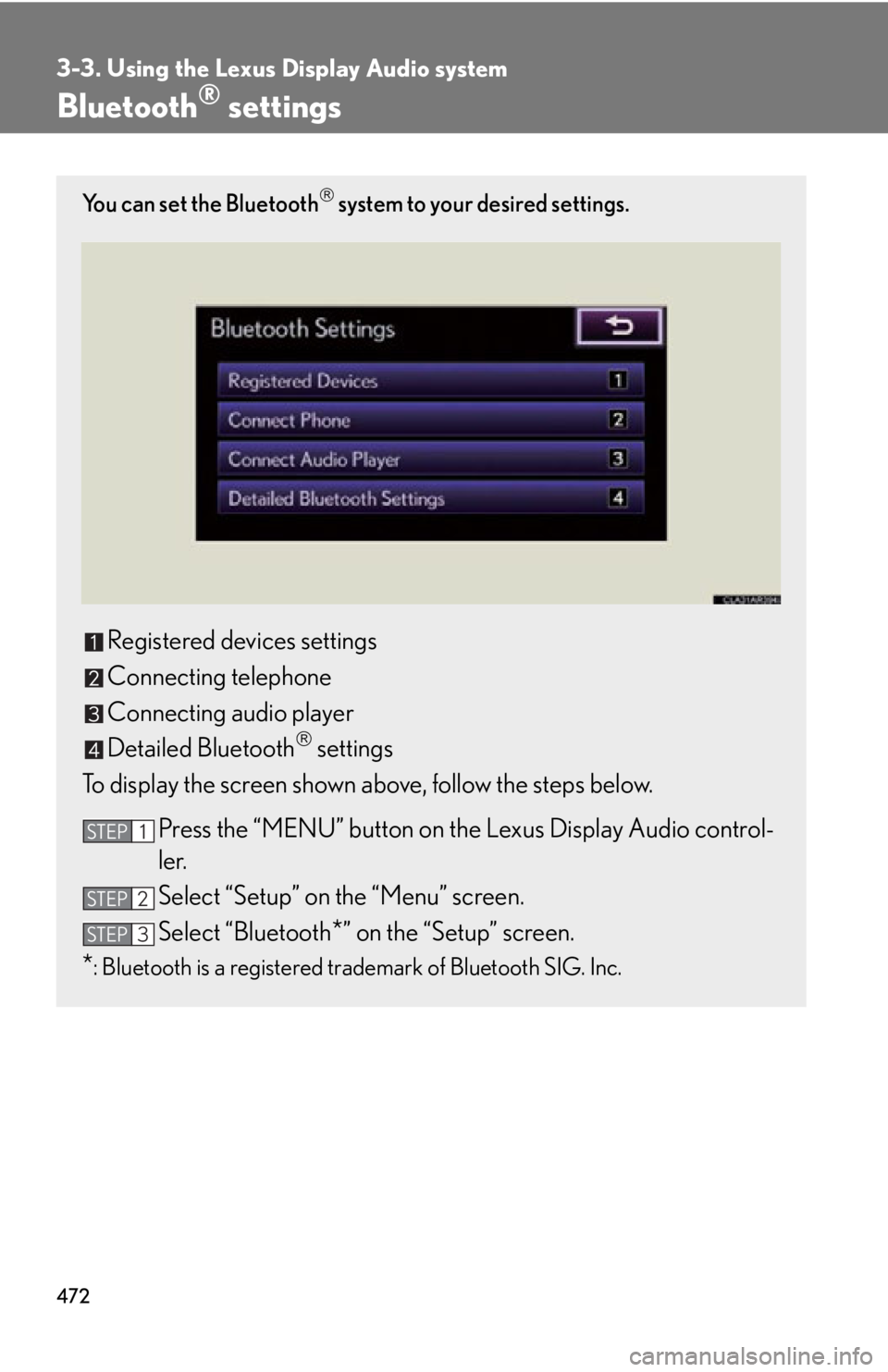

Bluetooth ®
settingsYou can set the Bluetooth 
system to your desired settings.
Registered devices settings
Connecting telephone
Connecting audio player
Detailed Bluetooth 
settings
To display the screen shown above, follow the steps below.
Press the “MENU” button on the Lexus Display Audio control-
ler.
Select “Setup” on the “Menu” screen.
Select “Bluetooth
* ” on the “Setup” screen.
* : Bluetooth is a registered trademark of Bluetooth SIG. Inc. STEP 1
STEP 2
STEP 3

4733-3. Using the Lexus Display Audio system
3
Interior features Registered devices settings
■ Registering a Bluetooth 
device
Bluetooth 
devices compatible with pho nes (HFP) and portable audio
players (AVP) can be registered simu ltaneously. You can register up to 5
Bluetooth 
devices.
Display the “Bluetooth
* Settings” screen. (  P. 4 7 2 )
Select “Registered Devices” on the “Bluetooth
* Settings” screen.
Select “Add New”.
* : Bluetooth is a registered tr ademark of Bluetooth SIG. Inc.STEP 1
STEP 2
STEP 3

4743-3. Using the Lexus Display Audio system
When this screen is displayed,
input the passcode displayed on
the screen into your Bluetooth 
device. For the operation of the
Bluetooth ®
device, see the manual
that comes with your Bluetooth ®
device.
Depending on the type of phone,
further phone operations may be
required after inputting the pass-
code (for example to confirm if
connection is to be received or
not) when registering a phone.
Passcodes are not required for SSP
(Secure Simple Pairing)
compatible Bluetooth ®
devices.
Depending on the phone, you may
need to select “Yes” to register, or
“No” to cancel on your mobile
phone.
If you want to cancel it, select
“Cancel”.
If a completion message is
displayed, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.
■ Removing a Bluetooth 
device
Display the “Bluetooth
* Settings” screen. (  P. 4 7 2 )
Select “Registered Devices” on the “Bluetooth
* Settings” screen.
* : Bluetooth is a registered tr ademark of Bluetooth SIG. Inc.STEP 4
STEP 1
STEP 2

4753-3. Using the Lexus Display Audio system
3
Interior features Select “Remove”.
Select the device to remove.
A confirmation message will be d isplayed, select “Yes” to remove
the device.
■ Displaying a Bluetooth 
device details
You can confirm and change the device details.
Display the “Bluetooth
* Settings” screen. (  P. 4 7 2 )
Select “Registered Devices” on the “Bluetooth
* Settings” screen.
Select “Details”.
* : Bluetooth is a registered tr ademark of Bluetooth SIG. Inc.STEP 3
STEP 4
STEP 5
STEP 1
STEP 2
STEP 3

4763-3. Using the Lexus Display Audio system
Select the device.
Following screen is displayed:
Display device name
Display device address
Display your telephone number
Depending on the model of the
phone, the number may not be
displayed.
Display compatibility profile of
the device
Change connection method
(  P. 4 76 )
Restore default settings
When you complete settings, select “OK”.
● Changing connection method
Select “Connection Method” on the “Device Details” screen.
Select “From Vehicle” or “From
Audio Player”.
“From Vehicle”: Connect the audio
system to the portable audio
player.
“From Audio Player”: Connect the
portable audio player to the audio
system.STEP 4
STEP 5
STEP 6
STEP 1
STEP 2

4773-3. Using the Lexus Display Audio system
3
Interior features Selecting the Bluetooth 
phone
If multiple Bluetooth 
devices are registered, follow the procedure
below to select the Bluetooth 
device to be used. You may only use one
device at a time.
Display the “Bluetooth
* Settings” screen. (  P. 4 7 2 )
Select “Connect Phone” on the “Bluetooth
* Settings” screen.
Select the device to connect. “Add New”: Registering a
Bluetooth 
device. (  P. 4 7 3 )
The selection indicator is displayed
on left side of the selected device
name.
The Bluetooth 
mark is displayed
when you connected the device.
Selecting the audio player
If multiple Bluetooth 
devices are registered, follow the procedure
below to select the Bluetooth 
device to be used. You may only use one
device at a time.
Display the “Bluetooth
* Settings” screen. (  P. 4 7 2 )
Select “Connect Audio Player” on the “Bluetooth
* Settings”
screen.
Select the device to connect.
“Add New”: Registering a
Bluetooth 
device. (  P. 4 7 3 )
The selection indicator is displayed
on left side of the selected device
name.
The Bluetooth 
mark is displayed
when you connected the device.
* : Bluetooth is a registered tr ademark of Bluetooth SIG. Inc.STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3

4783-3. Using the Lexus Display Audio system
Detailed Bluetooth 
settings
You can confirm and change the detailed Bluetooth 
settings.
Display the “Bluetooth
* Settings” screen. (  P. 4 7 2 )
Select “Detailed Bluetooth
* Settings” on the “Bluetooth
*Settings” screen.
Following screen is displayed:
Change Bluetooth 
power on/
off You can change Bluetooth 
func-
tion to “On” or “Off”
Display device name
Change passcode (  P. 4 7 9 )
Display device address
Restore default settings
Display compatibility profile of
the system
Change displaying telephone
status on/off You can set the system to show the
status confirmation display when
connecting telephone
Change displaying audio player
status on/off
You can set the system to show the
status confirmation display when
connecting audio player
When you complete settings, select “Save”.
* : Bluetooth is a registered tr ademark of Bluetooth SIG. Inc.STEP 1
STEP 2
STEP 3
STEP 4

4793-3. Using the Lexus Display Audio system
3
Interior features ■ Editing the passcode
You can change the passcode that you use to register your Bluetooth 
device in the system.
Select “Passcode” on the “Detailed Bluetooth
* Settings” screen.
Input a passcode, and select “OK”. To delete the inputted phone
number, select .
* : Bluetooth is a registered tr ademark of Bluetooth SIG. Inc.STEP 1
STEP 2

4803-4. Using the audio system

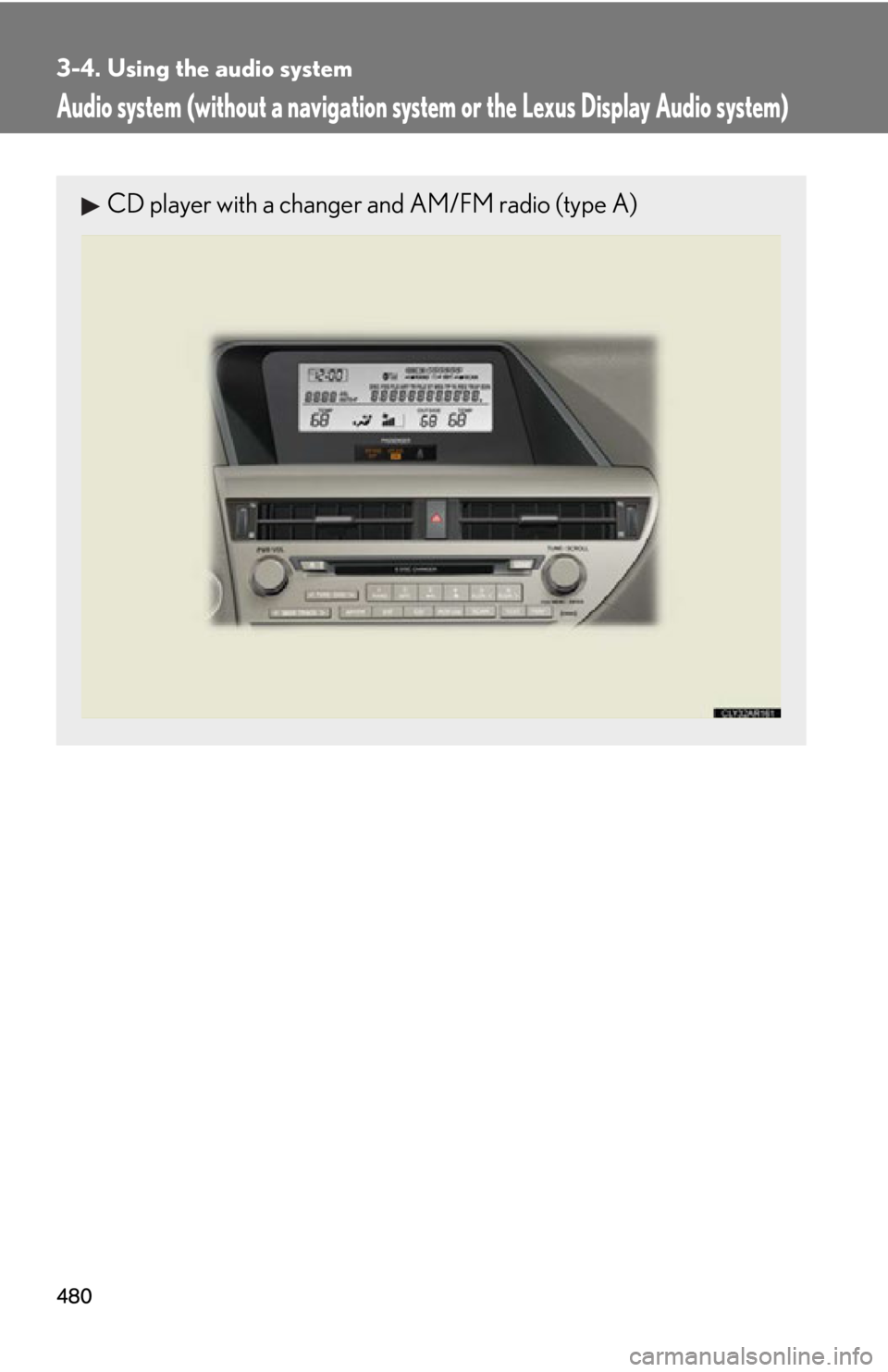

Audio system (without a navigation syst em or the Lexus Display Audio system)CD player with a changer and AM/FM radio (type A)
