LEXUS RX350 2016 Owners Manual

4815-12. Other function
5
Lexus Display Audio system
RX350_U_OM48E90U Press the talk switch. To cancel the voice command system,
press and hold the talk switch.
After a beep sounds, say the desired
command. On the list screen, you can select the
desired command.
■
Menu screen
To display the menu screen, move the controller to the left.Voice command system The voice command system enables the audio and hands-free systems to be
operated using voice commands.
Operations of the voice command system can be performed by selecting the
menu corresponding to each function on the right part of the screen. Even if
any menu is selected, commands displayed on all menus can be operated.
Using the voice command system 1
2 
“Hints” screen 
Except “Hints” screen
Offer examples of commands and operation methods
Adjust the settings for voice guidance volume and voice recognition
prompts. Select to train voice recognition. (“Hints” screen) (  P. 4 0 6 )
Start over voice recognition (except “Hints” screen)
Cancel voice recognition 1
2
3
4

482 5-12. Other function
RX350_U_OM48E90U ■
Microphone
 P. 4 5 1 ■
When using the microphone ●
It is unnecessary to speak directly into the microphone when giving a command.●
Wait for the confirmation beep before speaking a command. ●
Voice commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone. ●
In the following conditions, the system ma y not recognize the command properly and
using voice commands may not be possible:
• The command is incorrect or unclear. No te that certain words, accents or speech
patterns may be difficult for the system to recognize.
• There is excessive background noise, such as wind noise. ■
When searching for a track ●
A USB memory or iPod must be connected to enable track searching and playback.
(  P. 3 9 9 ) ●
When a USB memory or iPod is connected, recognition data is created so tracks can
be searched using voice commands. ●
Recognition data is updated un der the following conditions:
• When the USB memory or iPod data has changed.
• When the voice recognition language is changed. (  P. 4 0 3 )●
While the recognition data is being created or being updated, a track search cannot be
performed using a voice command. ■
The Gracenote ®
media database
 P. 4 2 6
Due to natural language speech recognitio n technology, this system enables rec-
ognition of a command when spoken naturally. However, the system cannot rec-
ognize every variation of each command.
In some situations, it is possible to omit the command for the procedure and
directly state the desired operation.
This function is available in English, Spanish and French.Casual speech recognition

4835-12. Other function
5
Lexus Display Audio system
RX350_U_OM48E90U ■

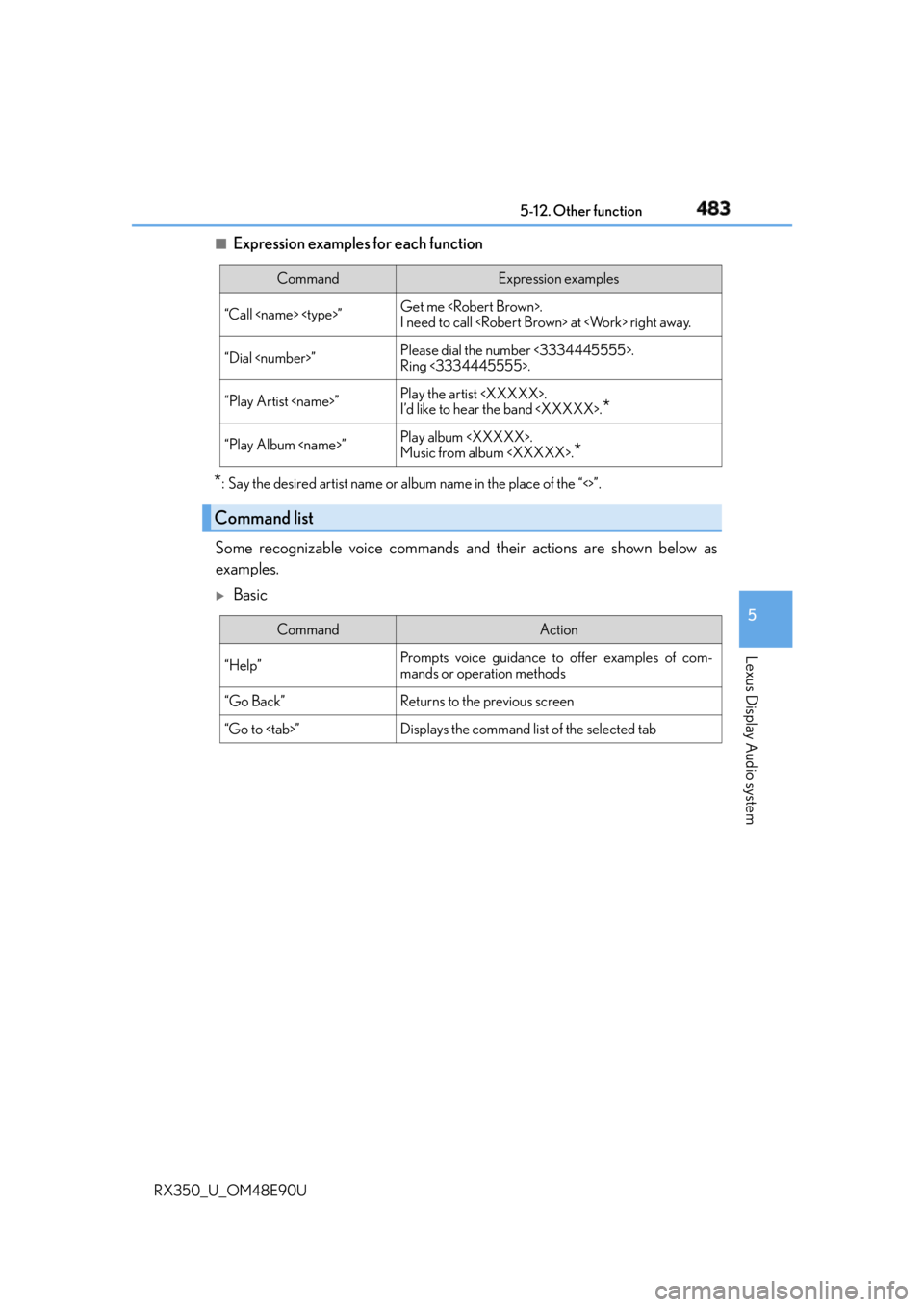

Expression examples for each function
* : Say the desired artist name or al bum name in the place of the “<>”.
Some recognizable voice commands an d their actions are shown below as
examples. 
Basic Command Expression examples
“Call ” Get me .
I need to call at right away.
“Dial ” Please dial the number <3334445555>.
Ring <3334445555>.
“Play Artist ” Play the artist .
I’d like to hear the band .
*“Play Album ” Play album .
Music from album .
*
Command list Command Action
“Help” Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back” Returns to the previous screen
“Go to ” Displays the command list of the selected tab

484 5-12. Other function
RX350_U_OM48E90U 

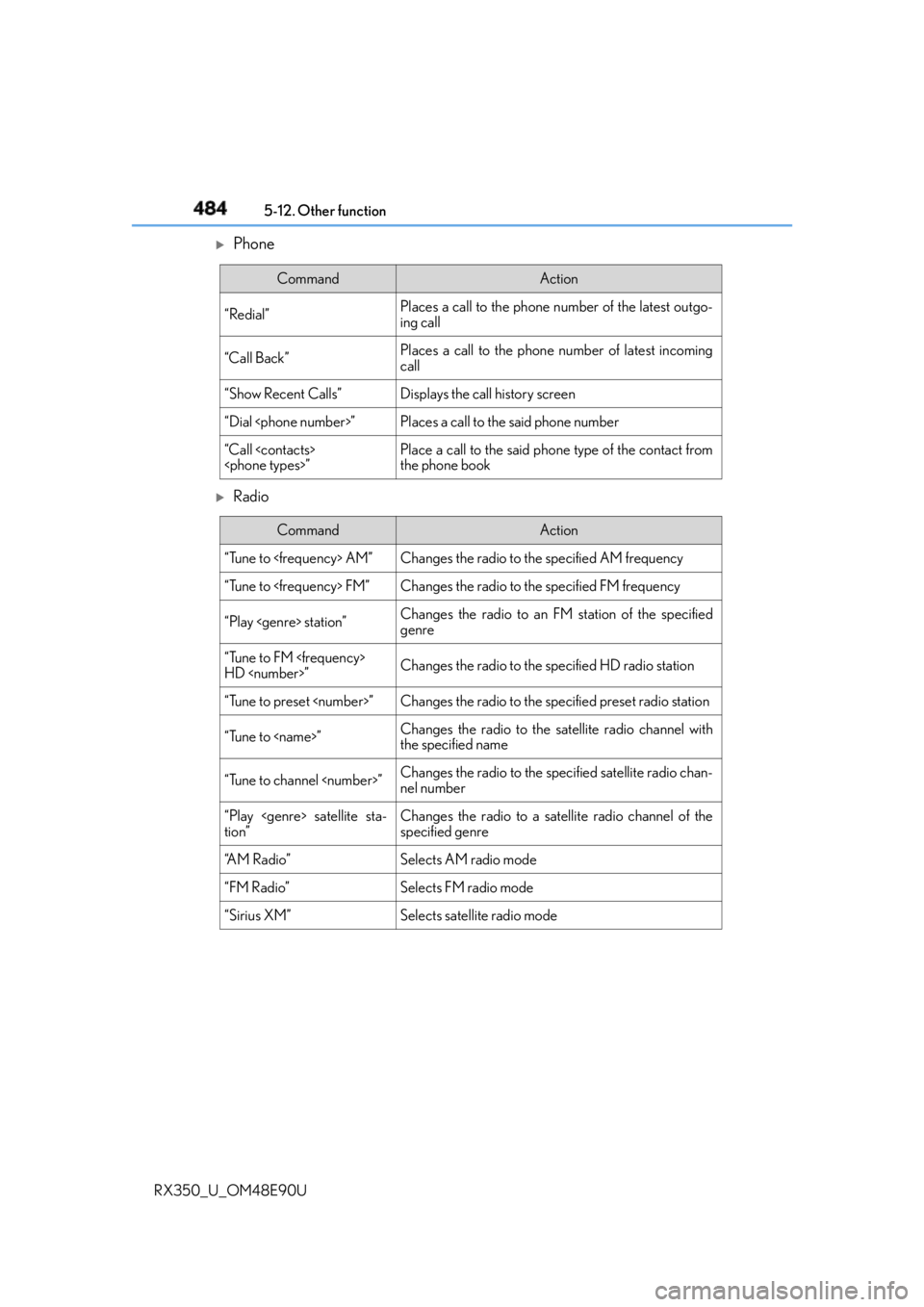

Phone 
Radio Command Action
“Redial” Places a call to the phone nu mber of the latest outgo-
ing call
“Call Back” Places a call to the phone number of latest incoming
call
“Show Recent Calls” Displays the call history screen
“Dial ” Places a call to the said phone number
“Call
” Place a call to the said phone type of the contact from
the phone book
Command Action
“Tune to AM” Changes the radio to the specified AM frequency
“Tune to FM” Changes the radio to the specified FM frequency
“Play station” Changes the radio to an FM station of the specified
genre
“Tune to FM
HD ” Changes the radio to the specified HD radio station
“Tune to preset ” Changes the radio to the specified preset radio station
“Tune to ” Changes the radio to the satellite radio channel with
the specified name
“Tune to channel ” Changes the radio to the specified satellite radio chan-
nel number
“Play satellite sta-
tion” Changes the radio to a satellite radio channel of the
specified genre
“A M R a d i o ” Selects AM radio mode
“FM Radio” Selects FM radio mode
“Sirius XM” Selects satellite radio mode

4855-12. Other function
5
Lexus Display Audio system
RX350_U_OM48E90U 

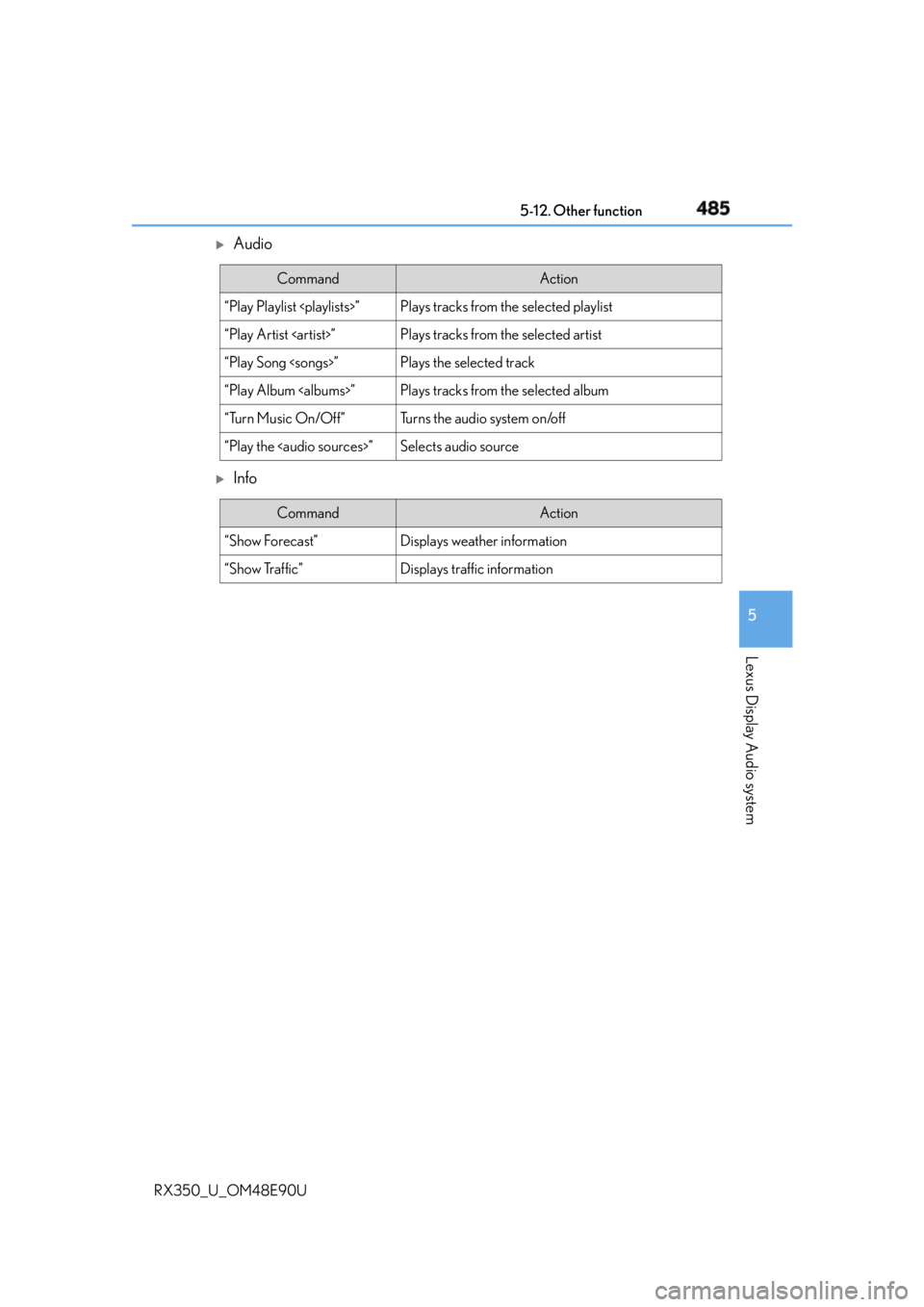

Audio 
Info Command Action
“Play Playlist ” Plays tracks from the selected playlist
“Play Artist ” Plays tracks from the selected artist
“Play Song ” Plays the selected track
“Play Album ” Plays tracks from the selected album
“Turn Music On/Off” Turns the audio system on/off
“Play the

486 5-12. Other function
RX350_U_OM48E90U

487
6Interior features
RX350_U_OM48E90U 6-1. Basic operation of the
Remote Touch screen
Remote Touch............................. 488
12.3-inch display......................... 492
6-2. Using the air conditioning
system and defogger
Lexus Climate Concierge ...... 494
Automatic air conditioning
system .......................................... 495
Heated steering wheel/
seat heaters/
seat ventilators......................... 505
6-3. Using the interior lights
Interior lights list......................... 508
• Interior lights ......................... 509
• Personal lights......................... 510
6-4. Using the storage features
List of storage features.............. 512
• Glove box................................. 513
• Console box ............................ 513
• Cup holders............................. 514
• Door pockets .......................... 515
• Bottle holders ......................... 515
• Coin box ................................... 516
• Auxiliary boxes....................... 517
Luggage compartment
features ......................................... 518 6-5. Using the other interior
features
Other interior features ............ 523
• Sun visors ................................ 523
• Vanity mirrors ........................ 523
• Clock ........................................ 524
• Wireless charger.................. 524
• Power outlets
(12 VDC) .................................. 531
• Power outlet
(120 VAC) .............................. 532
• Front passenger footwell
hooks......................................... 533
• Rear door sunshades ......... 534
• Armrest ....................................534
• Assist grips.............................. 535
• Coat hooks ............................. 535
Garage door opener................ 536
Compass ....................................... 543
LEXUS Enform Safety
Connect ...................................... 547
LEXUS Enform Remote ......... 552
LEXUS Enform Service
Connect ...................................... 554

488
RX350_U_OM48E90U 6-1. Basic operation of the Remote Touch screen 
Vehicles with 8-inch display 
Vehicles with 12.3-inch displayRemote Touch 
 : If equippedThe Remote Touch can be used to operate the Remote Touch screens.
Owners of models equipped with a navi gation system should refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.

4896-1. Basic operation of the Remote Touch screen
6
Interior features
RX350_U_OM48E90U “HOME” button Press this button to display the home screen.
“  •  ” buttonPress this button to change map scale and scroll through lists.
Back button Press to display the previous screen.
“MENU” button Press to display the “Menu” screen. (  P. 4 9 1 )
Remote Touch knob Move in the desired direction to select a function, letter and screen button.
Press the knob to enter the selected function, letter or screen button.
“ENTER” button Press to enter the selected function, letter or screen button.
“MAP” button Press this button to display the vehicle’s current position.
Select: Move the Remote Touch
knob in the desired direction.
Enter: Push the Remote Touch knob
or an “ENTER” button.Remote Touch operation 1
2
3
4
5
6
7
1
2

490 6-1. Basic operation of the Remote Touch screen
RX350_U_OM48E90U ■
Screen display during low temperatures
When the ambient temperature is extremely low, screen response may be delayed even
if the Remote Touch is operated.
WA R N I N G ■
When using the Remote Touch ●
Do not allow fingers, fingernails or hair to become caught in the Remote Touch as this
may cause an injury. ●
Be careful when selecting the Remote To uch in extreme temperatures as it may
become very hot or cold due to the temperature inside the vehicle.
NOTICE ■
To prevent damage to the Remote Touch ●
Do not allow the Remote Touch to come into contact with food, liquid, stickers or lit
cigarettes as doing so may cause it to change color, emit a strange odor or stop func-
tioning. ●
Do not subject the Remote Touch to excessive pressure or strong impact as the knob
may bend or break off. ●
Do not allow coins, contact lenses or other such items to become caught in the
Remote Touch as this may cause it to stop functioning. ●
Items of clothing may rip if they beco me caught on the Remote Touch knob.●
If your hand or any object is on the Remote Touch knob when the engine switch is in
ACCESSORY mode, the Remote Touch knob may not operate properly.
