LINCOLN MKZ 2013 Owners Manual

1. Enter the necessary information
into the highlighted text fields (in
any order). For address destination
entry, the Go! button appears once
all the necessary information has
been entered. Pressing the Go!
button makes the address location
appear on the map. If you choose
Previous Destination, the last 20
destinations you have selected
appear.
2. Select Set as Dest to make this your destination. You can also
choose to set this as a waypoint
(have the system route to this
point on the way to your current
destination) or save it as a favorite.
Any Avoid Areas selections are
also considered in route
calculation.
3. Choose from up to three different types of routes, then select Start
Route.
• Fastest: Uses the fastest moving
roads possible.
• Shortest: Uses the shortest
distance possible.
• Eco (EcoRoute): Uses the most
fuel efficient route. You can cancel the route or have the
system demo the route for you. Select
Route Prefs to set route preferences
like avoiding freeways, toll roads,
ferries and car trains as well as to use
or not use HOV lanes. (HOV lanes are
High Occupancy Vehicle Lanes also
known as carpool or diamond lanes.
These lanes are reserved for people
who ride in buses, vanpools or
carpools.)
Note:
If Start Route button is not
pressed and the vehicle is driven on a
recognized road, the system defaults
to the fastest route option and begins
guidance.
During route guidance, the talking
bubble icon that appears in the upper
right navigation corner (green bar) can
be pressed if the user wants the
system to repeat a route guidance
instruction. Instructions decrease with
each press.
Point of Interest (POI)
Categories
Your system offers a variety if POI
(Points of Interest) categories. Main Categories
Automotive
Food/Drink & Dining
Shopping
Travel & Transportation
Entertainment & Arts
Financial
408
MyLincoln Touch
™

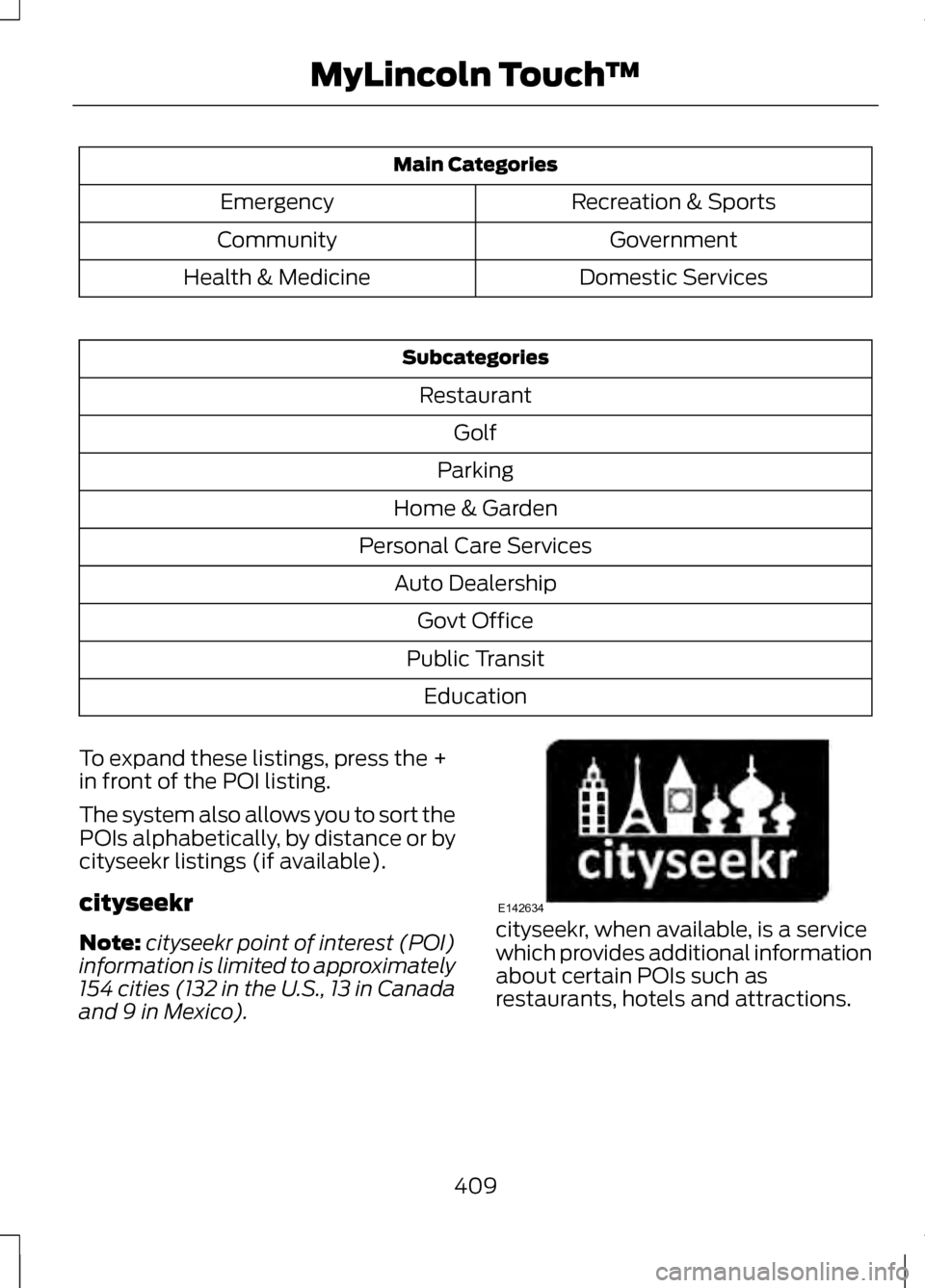

Main Categories
Recreation & Sports
Emergency
Government
Community
Domestic Services
Health & Medicine Subcategories
Restaurant Golf
Parking
Home & Garden
Personal Care Services Auto DealershipGovt Office
Public Transit Education
To expand these listings, press the +
in front of the POI listing.
The system also allows you to sort the
POIs alphabetically, by distance or by
cityseekr listings (if available).
cityseekr
Note: cityseekr point of interest (POI)
information is limited to approximately
154 cities (132 in the U.S., 13 in Canada
and 9 in Mexico). cityseekr, when available, is a service
which provides additional information
about certain POIs such as
restaurants, hotels and attractions.
409
MyLincoln Touch
™E142634

When you have selected a POI, the
location and information appear, such
as address and phone number. If the
POI is listed with cityseekr, you also
see information such as a brief
description, check-in and check-out
times, when the restaurant is open,
etc.
Press More Information for a longer
review, a list of services and facilities,
the average room or meal price as
well as the website. This screen
displays the POI icon such as:
Hotel
Coffeehouse
Food & Drink
Nightlife Attraction
This icon appears when your
selection exists in multiple
categories within the
system.
When you are viewing additional
information for hotels, cityseekr will
also tell you if the hotel has certain
services and facilities using icons.
For restaurants, cityseekr can provide
information such as star rating,
average cost, review, handicap
access, hours of operation, and
website address.
For hotels, cityseekr can provide
information such as star rating, price
category, review, check in/out times,
hotel service icons and website
address.
Setting Your Navigation
Preferences
Select settings for the system to take
into account when planning your
route. Press the Settings icon >
Settings > Navigation.
You Can
When You Select
· Turn breadcrumbs on and off.
Map Preferences
· Choose how you want to view the turn list (top-to-
bottom or bottom-to-top).
410
MyLincoln Touch
™E143884 E142636 E142637 E142638 E142639 E142640 E142607

You Can
When You Select
· Set the automatic parking POI notification. (When
parking POI notification is on, parking POI icons
display on the map when you get close to your
destination. This may not be very useful in dense
areas, and may clutter the map if other POIs are
also set for display.)
· Avoid freeways, toll roads, ferries and car trains
when planning your route.
Route Preferences
· Use HOV lanes (if available), and have the system
always select the shortest distance, fastest time or
most economical route.
· Choose prompts to be either voice or tone only.
Navigation Preferences
· Have the system automatically fill in the state and
province based on the information already entered
into the system.
Choose how you want the system to handle traffic
problems along your route.
Traffic Preferences
· Automatic: Have the system reroute you to avoid
traffic incidents that develop and impact the current
route (no notification is provided).
·
Manual: Have the system always provide a traffic
alert notification for traffic incidents along the
planned route. You have a choice to accept or ignore
the notification before the route deviation is made.
Choose areas which you want the system to avoid
when calculating a route for you. Press
Add to
select a category.
Avoid Areas
Once you make a selection, the system tries to avoid
the area(s) if possible for all routes. To delete a
selection, choose the listing on the screen; when
the screen changes to
Avoid Areas Edit, press
Delete at the bottom right of the screen.
411
MyLincoln Touch
™

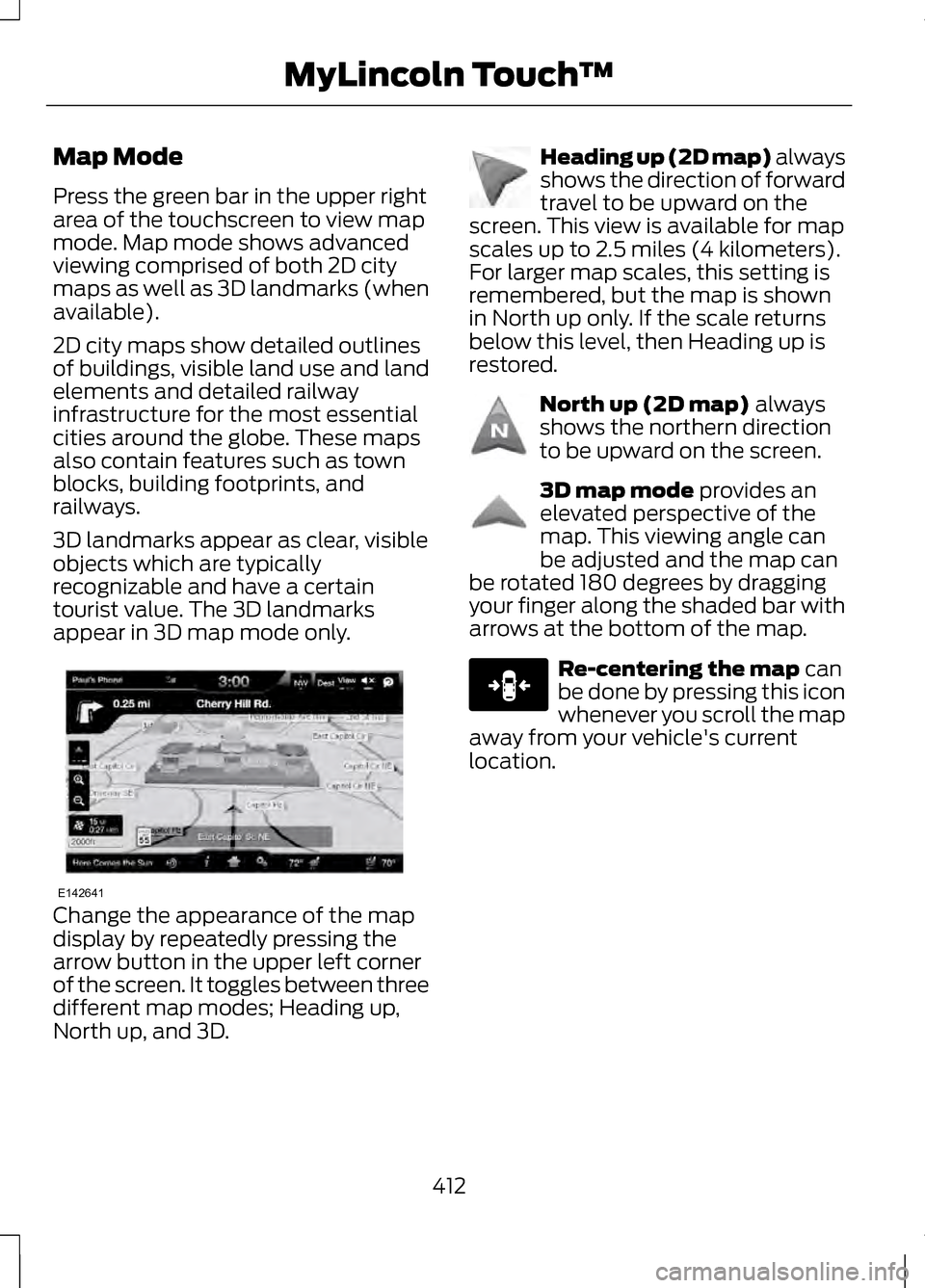

Map Mode
Press the green bar in the upper right
area of the touchscreen to view map
mode. Map mode shows advanced
viewing comprised of both 2D city
maps as well as 3D landmarks (when
available).
2D city maps show detailed outlines
of buildings, visible land use and land
elements and detailed railway
infrastructure for the most essential
cities around the globe. These maps
also contain features such as town
blocks, building footprints, and
railways.
3D landmarks appear as clear, visible
objects which are typically
recognizable and have a certain
tourist value. The 3D landmarks
appear in 3D map mode only.
Change the appearance of the map
display by repeatedly pressing the
arrow button in the upper left corner
of the screen. It toggles between three
different map modes; Heading up,
North up, and 3D. Heading up (2D map) always
shows the direction of forward
travel to be upward on the
screen. This view is available for map
scales up to 2.5 miles (4 kilometers).
For larger map scales, this setting is
remembered, but the map is shown
in North up only. If the scale returns
below this level, then Heading up is
restored. North up (2D map) always
shows the northern direction
to be upward on the screen. 3D map mode
provides an
elevated perspective of the
map. This viewing angle can
be adjusted and the map can
be rotated 180 degrees by dragging
your finger along the shaded bar with
arrows at the bottom of the map. Re-centering the map
can
be done by pressing this icon
whenever you scroll the map
away from your vehicle's current
location.
412
MyLincoln Touch
™E142641 E142642 E142643 E142644 E146188

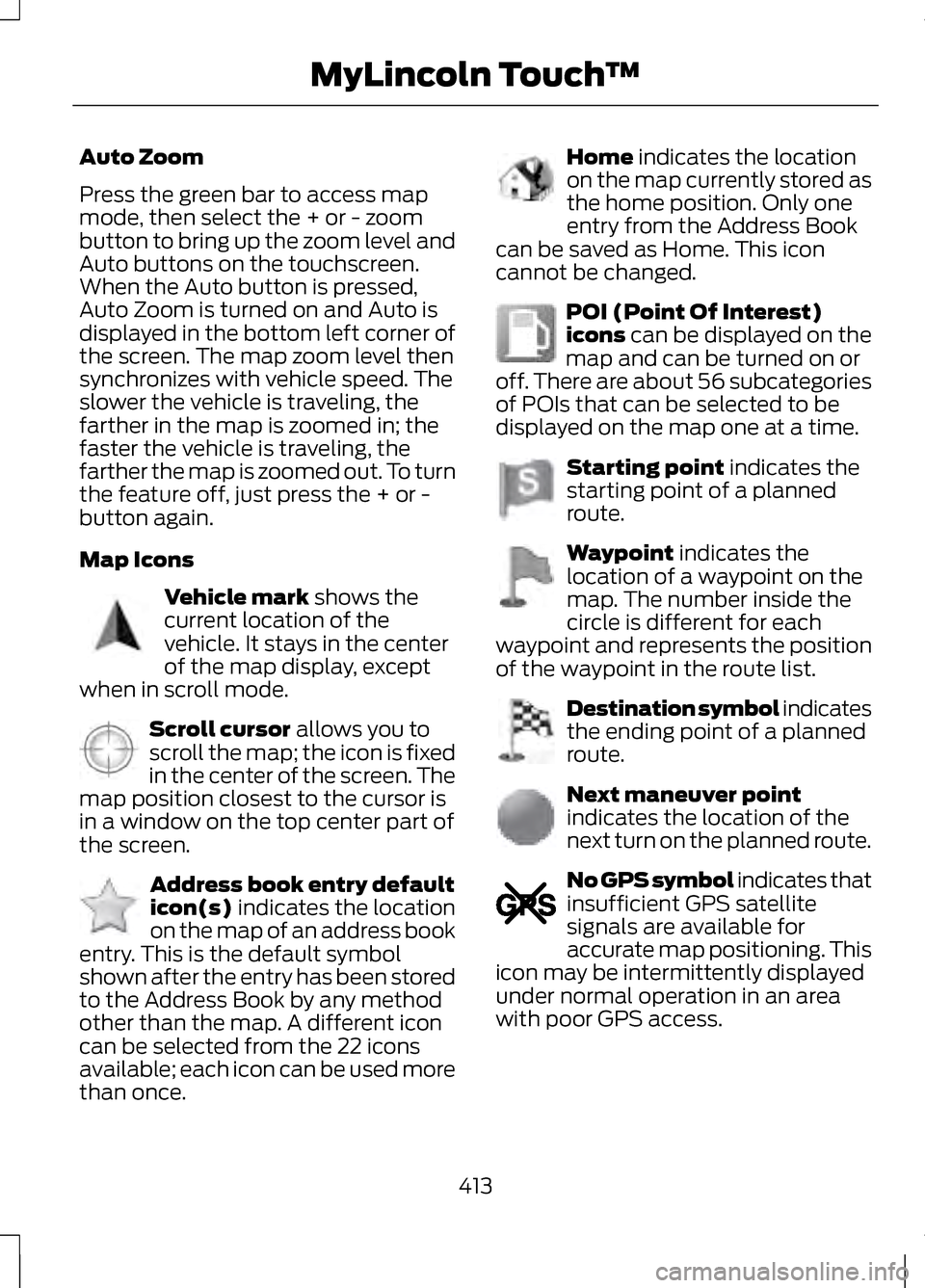

Auto Zoom
Press the green bar to access map
mode, then select the + or - zoom
button to bring up the zoom level and
Auto buttons on the touchscreen.
When the Auto button is pressed,
Auto Zoom is turned on and Auto is
displayed in the bottom left corner of
the screen. The map zoom level then
synchronizes with vehicle speed. The
slower the vehicle is traveling, the
farther in the map is zoomed in; the
faster the vehicle is traveling, the
farther the map is zoomed out. To turn
the feature off, just press the + or -
button again.
Map Icons
Vehicle mark shows the
current location of the
vehicle. It stays in the center
of the map display, except
when in scroll mode. Scroll cursor
allows you to
scroll the map; the icon is fixed
in the center of the screen. The
map position closest to the cursor is
in a window on the top center part of
the screen. Address book entry default
icon(s)
indicates the location
on the map of an address book
entry. This is the default symbol
shown after the entry has been stored
to the Address Book by any method
other than the map. A different icon
can be selected from the 22 icons
available; each icon can be used more
than once. Home
indicates the location
on the map currently stored as
the home position. Only one
entry from the Address Book
can be saved as Home. This icon
cannot be changed. POI (Point Of Interest)
icons
can be displayed on the
map and can be turned on or
off. There are about 56 subcategories
of POIs that can be selected to be
displayed on the map one at a time. Starting point
indicates the
starting point of a planned
route. Waypoint
indicates the
location of a waypoint on the
map. The number inside the
circle is different for each
waypoint and represents the position
of the waypoint in the route list. Destination symbol indicates
the ending point of a planned
route.
Next maneuver point
indicates the location of the
next turn on the planned route.
No GPS symbol indicates that
insufficient GPS satellite
signals are available for
accurate map positioning. This
icon may be intermittently displayed
under normal operation in an area
with poor GPS access.
413
MyLincoln Touch
™E142646 E142647 E142648 E142649 E142650 E142651 E142652 E142653 E142654 E142655

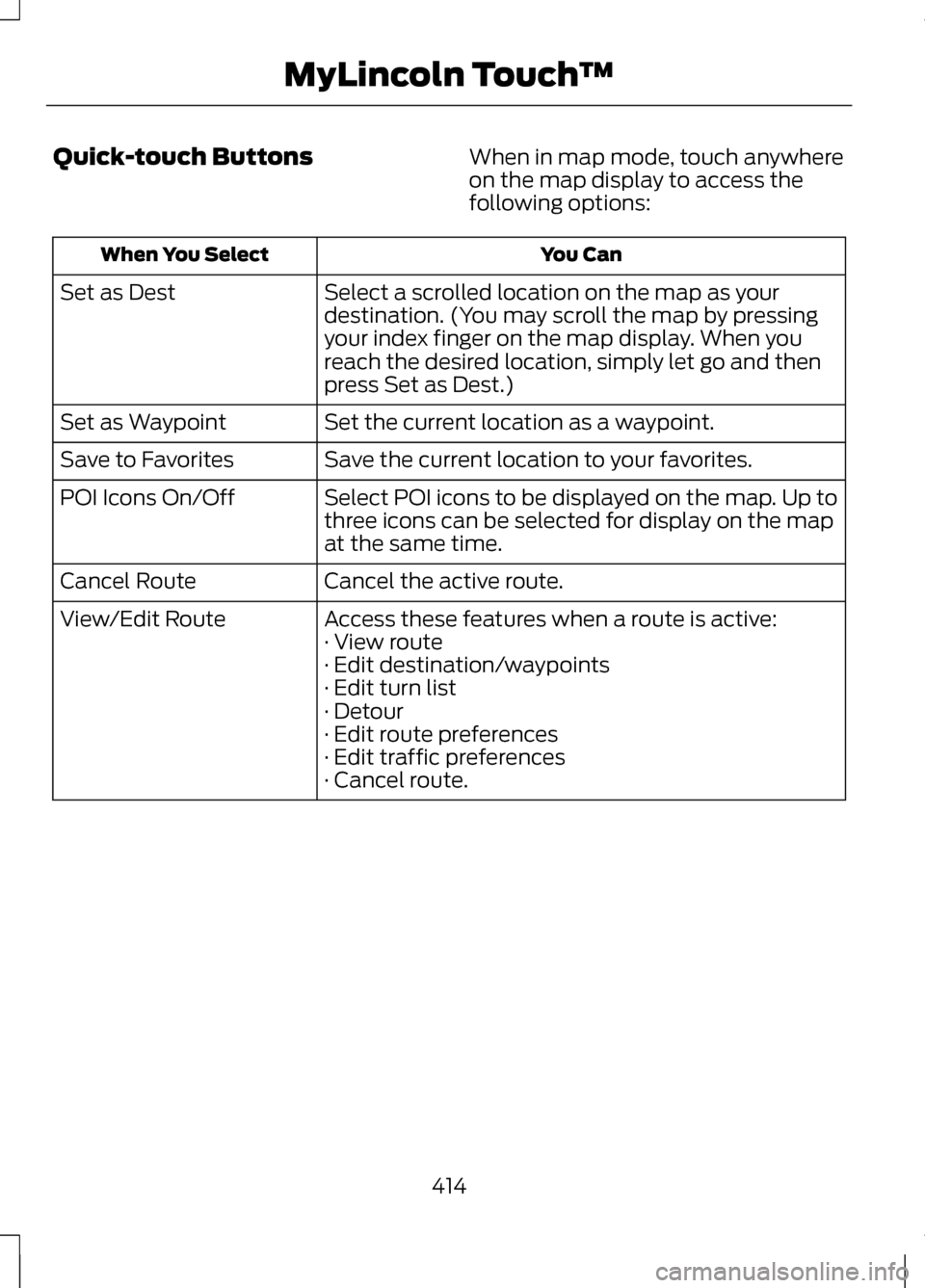

Quick-touch Buttons
When in map mode, touch anywhere
on the map display to access the
following options: You Can
When You Select
Select a scrolled location on the map as your
destination. (You may scroll the map by pressing
your index finger on the map display. When you
reach the desired location, simply let go and then
press Set as Dest.)
Set as Dest
Set the current location as a waypoint.
Set as Waypoint
Save the current location to your favorites.
Save to Favorites
Select POI icons to be displayed on the map. Up to
three icons can be selected for display on the map
at the same time.
POI Icons On/Off
Cancel the active route.
Cancel Route
Access these features when a route is active:
View/Edit Route
· View route
· Edit destination/waypoints
· Edit turn list
· Detour
· Edit route preferences
· Edit traffic preferences
· Cancel route.
414
MyLincoln Touch
™

Rotate the map view by swiping your
finger across the shaded bar with the
arrows.
Navteq is the digital map provider for
the navigation application. If you find
map data errors, you may report them
directly to Navteq by going to
http://mapreporter.navteq.com.
Navteq evaluates all reported map
errors and responds with the result of
their investigation by e-mail.
Navigation Map Updates
Annual navigation map updates are
available for purchase through your
dealership, by calling
1-800-NAVMAPS (in Mexico, call
01-800-557-5539) or going to
www.navigation.com/ford. You need
to specify the make and model of your
vehicle to determine if there is an
update available.
Navigation Voice Commands When in navigation mode,
press the voice button on the
steering wheel controls. After
the tone, say any of the following
commands: Navigation System Voice Commands
"Navigation"3
"Cancel next waypoint" 1
"Repeat instruction" 1
"Cancel route" 1
"Show 3D"
"Destination" 2
"Show heading up"
"Destination "
"Show map"
"Destination "
"Show north up"
"Destination favorites"
"Show route"1
"Destination home"
"Show turn list"1
"Destination intersection"
"Voice off"
"Destination nearest "
415
MyLincoln Touch
™E142656 E142599

Navigation System Voice Commands
"Voice on"
"Destination nearest POI"
"Voice volume decrease"
"Destination play nametags"
"Voice volume increase"
"Destination POI"
"Where am I?"
"Destination POI category"
"Zoom in"
"Destination previous destination"
"Zoom out"
"Destination street address"
"Help"
"Detour" 1
1 These commands are only available when a navigation route is active.
2 If you say "Destination", you can then say any command in the following
"Destination" chart.
3 If you say "Navigation", you can then say any command in the following
"Navigation" chart. "DESTINATION"
""
"" "Favorites""Home"
"Intersection"
"Nearest " "Nearest POI"
"Play nametags" "POI category"
416
MyLincoln Touch
™

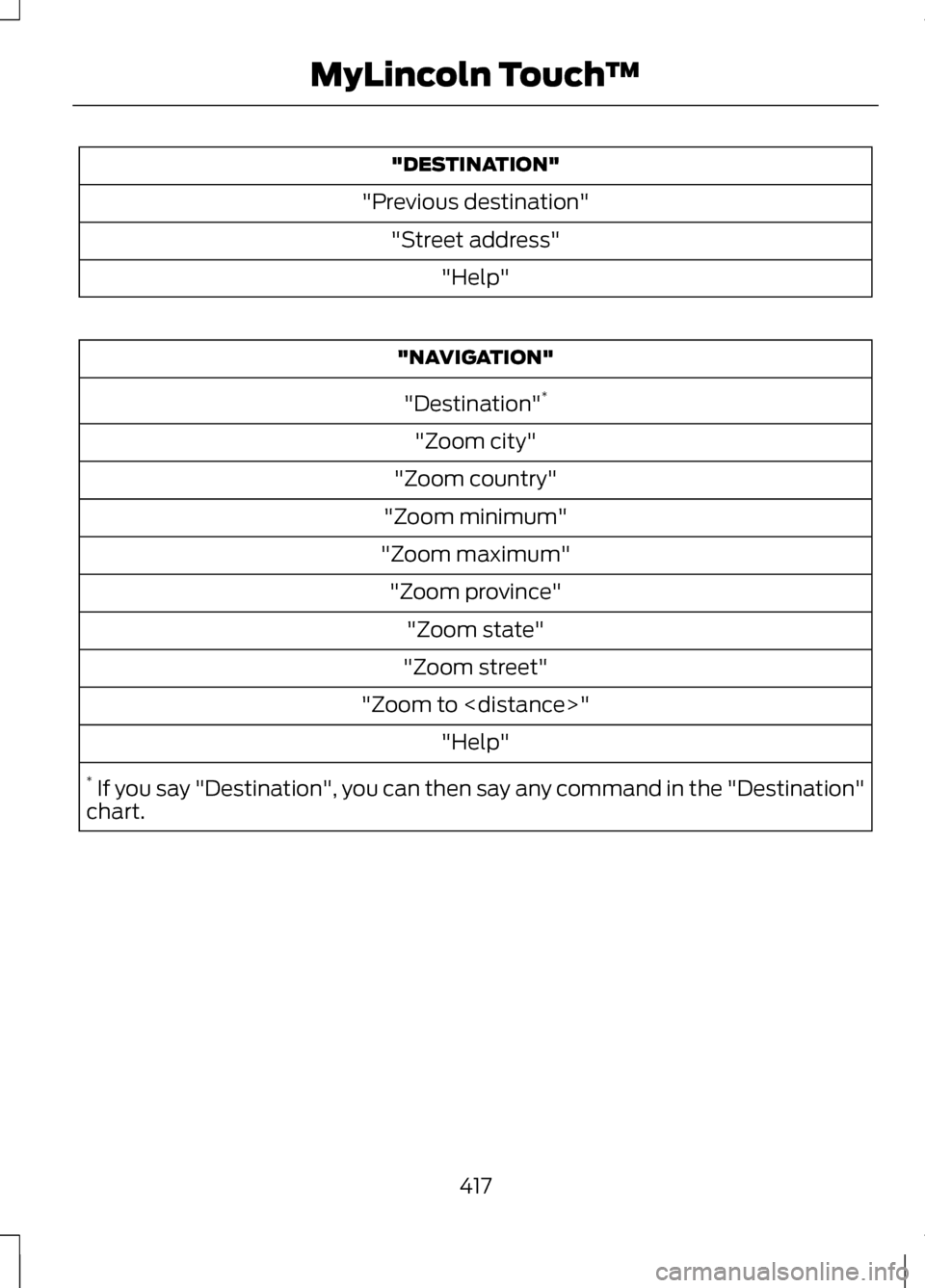

"DESTINATION"
"Previous destination" "Street address" "Help" "NAVIGATION"
"Destination" *
"Zoom city"
"Zoom country"
"Zoom minimum"
"Zoom maximum" "Zoom province" "Zoom state"
"Zoom street"
"Zoom to " "Help"
* If you say "Destination", you can then say any command in the "Destination"
chart.
417
MyLincoln Touch
™
