MAZDA CX90 2024 Owners Manual

Warnings and Cautions for Using the Rear ViewMonitor
WARNING
Always confirm the safety of the area around the vehicle visually when driving.
The rear view monitor is only designed to assist the driver while reversing. Images
displayed on the display may differ from the actual conditions. Do not rely
completely on the rear view monitor while reversing. Otherwise, the vehicle may
contact an obstruction and cause an accident.
CAUTION
Do not use the rear view monitor in the following locations/situations.
 There is a bump on a road.
 The vehicle is on a road incline.
 Icy or snow-covered slippery roads.
 Tire chains or a temporary spare tire is installed.
 The liftgate is not fully closed.
 When the center display is cold, images may leave trails or the display might be
darker than usual, making it
difficult to check the vehicle surroundings. Always
confirm the safety around the vehicle visually when driving.
Driving
Rear View Monitor
5-230
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

How to Use the Rear View Monitor
Displaying the rear view monitor
Shift the selector lever to the R position.
Images are displayed on the center display.
Viewing the screen
NOTE
The images displayed on the center display are reversed left and right.Screen brightness and contrast can be adjusted.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Ty p e A
When the parking sensor is ON
When the parking sensor is OFF
Indication Content
1 Projected vehicle path lines (yellow) Indicates the approximate projected path of the vehicle.
The projected vehicle path lines move in conjunction
with the steering wheel operation.
Driving
Rear View Monitor
5-231
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

IndicationContent
2 Vehicle width guide lines (blue) Indicates the approximate width of the vehicle.
Does not display when the steering wheel is operated in
a straight-ahead position.
3 Projected vehicle path distance
guide lines (red/yellow) These guide lines indicate the approximate distance to a
point measured from the rear of the vehicle (from the
end of the bumper).
The center point of the red line indicates the point
about 50 cm (19 in) from the rear end of the rear
bumper.
The center points of the yellow lines indicate the
points about 1 m (39 in) and 2 m (78 in) from the rear
end of the rear bumper.
4 Parking sensor status icon Indicates that the parking sensor has a problem or it is
switched off.
Ty p e B
When the parking sensor is ON
When the parking sensor is OFF
Driving
Rear View Monitor
5-232
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

IndicationContent
1 Vehicle width guide lines (yellow) Indicates the approximate width of the vehicle.
2 Projected vehicle path distance
guide lines (red/yellow) These guide lines indicate the approximate distance to a
point measured from the rear of the vehicle (from the
end of the bumper).
The red line indicates the point about 50 cm (19 in)
from the rear end of the rear bumper.
The yellow lines indicate the points about 1 m (39 in)
and 2 m (78 in) from the rear end of the rear bumper.
3 Parking sensor status icon Indicates that the parking sensor has a problem or it is
switched off.
System problem indication
In the following cases, there might be a problem with the system. Have the vehicle
inspected by an Authorized Mazda Dealer.
"No camera signal." is displayed on the center display.The display on the center display does not switch to the camera image even if the
selector lever is shifted to the R position.
A portion of the display on the center display is black.
Driving
Rear View Monitor
5-233
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

Pa r k i n g S e n s o r*
The parking sensors are a system that
assists the driver in checking safety by
detecting obstructions around the
vehicle and notifying the driver while
parking. When an obstruction is
detected, a screen display and a
warning sound notify the driver of the
distance to the obstruction.
Warnings and Cautionsfor Using the Parking Sensor
WARNING
Always confirm the safety of the area
around the vehicle visually when
driving.
The parking sensors are only auxiliary
devices when driving forward or in
reverse. In addition, the detection
range of the sensors is limited, and
driving the vehicle relying on the
system completely may cause an
accident.
Driving
Pa r k i n g S e n s o r
5-234*Some models.
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

How to Use the Parking Sensor
The parking sensors operate
When the system detects an obstruction, the driver is notified of the presence of the
obstruction by a screen display and a warning sound. The screen display and
warning sound change according to the distance from the obstruction.
In addition, if multiple obstructions are detected simultaneously, the warning sound
for the nearest obstruction is activated.
Front
*, rear
Distance between vehicle and obstruc-
tion Display
Warning sounds
Front Rear Ve h i c l e s w i t h o u t
360° View Moni-
tor Vehicles with 360°
View Monitor
About 1 m to 60
cm (39 in to 24 in) About 1 m 50 cm
to 60 cm (59 in to 24 in) Green
Green
Slow, intermittent
sound
About 60 cm to 50 cm (24 in to 20 in) About 60 cm to 50
cm (24 in to 20 in) Yellow
Yellow
Intermittent sound
Driving
Pa r k i n g S e n s o r
*Some models.5-235
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

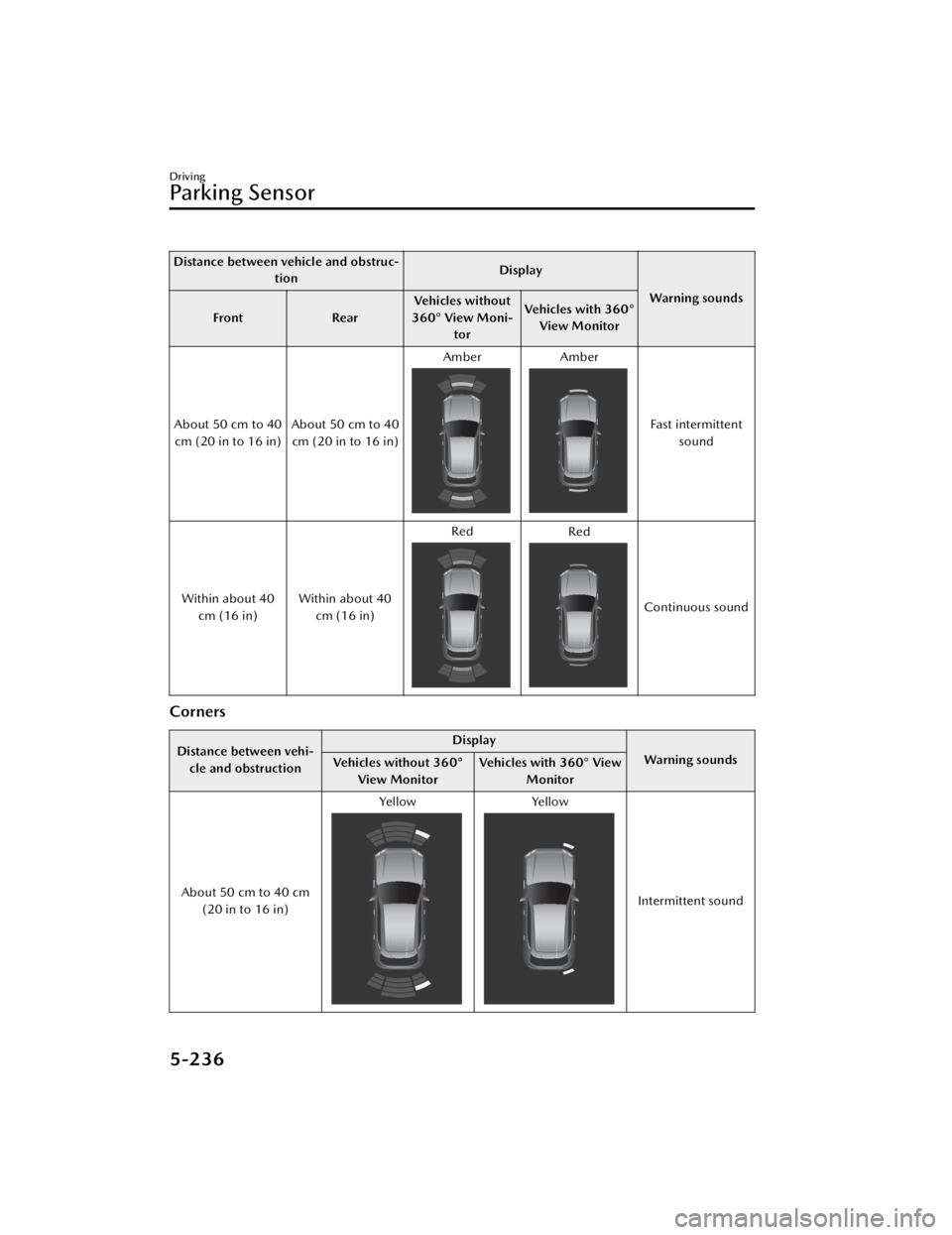

Distance between vehicle and obstruc-tion Display
Warning sounds
Front Rear Vehicles without
360° View Moni-
tor Vehicles with 360°
View Monitor
About 50 cm to 40 cm (20 in to 16 in) About 50 cm to 40
cm (20 in to 16 in) Amber
Amber
Fast intermittent
sound
Within about 40 cm (16 in) Within about 40
cm (16 in) Red
Red
Continuous sound
Corners
Distance between vehi-
cle and obstruction Display
Warning sounds
Vehicles without 360°
View Monitor Vehicles with 360° View
Monitor
About 50 cm to 40 cm (20 in to 16 in) Ye l l o w
Yellow
Intermittent sound
Driving
Pa r k i n g S e n s o r
5-236
CX-90_8KG7-EA-22L_Edition1_new
2022-11-17 16:05:04

Distance between vehi-cle and obstruction Display
Warning sounds
Vehicles without 360°
View Monitor Vehicles with 360° View
Monitor
About 40 cm to 30 cm (16 in to 12 in) Amber
Amber
Fast intermittent
sound
Within about 30 cm (12 in) Red
Red
Continuous sound
NOTE
If ultrasound sensors cannot detect an
object correctly, the system may not
operate normally.
Refer to Ultrasonic Sensors on page 5-135.
The screen display can be switched between display and non-display and the
volume of the warning sound can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
(Vehicles with 360° View Monitor)
When the screen display is set to be displayed, the display automatically switches
to the 360° View Monitor display when the sensor detects an obstruction. When
an obstruction is no longer detected, the display switches to the display before the
obstruction was detected. However, when the 360° View Monitor is displayed in
advance, it continues to be displayed no matter if an obstruction is detected or
not.
Driving
Pa r k i n g S e n s o r
5-237
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

If an obstruction in the same detection range is detected continuously for 6
seconds or longer, only the warning sound stops (excluding the closest detection
range). When the detection range changes to the close side, the warning sound
resumes.
Tu r n i n g off the parking sensors
The parking sensors turn off and the parking sensor OFF switch indicator light turns
on.
If the switch is pressed again, the pa
rking sensors become operational and the
indicator light of the switch turns off.
System problem indication
If a problem occurs, the following display notifies the driver. The system may have
a malfunction. Have the vehicle inspected by an Authorized Mazda Dealer.
(Vehicles without 360° View Monitor)
Driving
Pa r k i n g S e n s o r
5-238
CX-90_8KG7-EA-22L_Edition1_new 2022-11-17 16:05:04

(Vehicles with 360° View Monitor)
If a certain obstruction detection indication is continuously displayed, make sure
that there is no foreign matter on the sensor area corresponding to the detection
indicator. If the system does not recover, have the vehicle inspected by an
Authorized Mazda Dealer.
Driving
Pa r k i n g S e n s o r
5-239
