MAZDA MODEL 5 2006 Owners Manual

Black plate (361,1)
qEngine Number
Forward
Identification Numbers
10-3
Mazda3_8U55-EA-05G_Edition3 Page361
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (362,1)
Specifications
qEngine
Item Model
2.0-liter engine 2.3-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 83.1 mm (3.44 × 3.27 in) 87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement 1,999 ml (1,999 cc, 121.9 cu in) 2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 10.0 9.7
q Electrical System
Item Classification
Battery 12V-40AH/5HR, 12V-52AH/5HR, 12V-55AH/5HR
Alternator 12 V - 90 A
Starter 2.0-liter engine
12 V - 1.0 kW
2.3-liter engine 12 V - 1.4 kW
Spark-plug number LFG1 18 110C
*
Spark-plug gap1.25―1.35mm (0.050 ―0.053 in)
* ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page
8-18.
Manual transaxle oil Any temperature
API Service
GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F) API Service
GL-4 or GL-5
SAE 80W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda3_8U55-EA-05G_Edition3 Page362
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (363,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
Coolant With heater 7.5 L (7.9 US qt, 6.6 Imp qt)
Without heater 6.9 L (7.3 US qt, 6.1 Imp qt)
Manual transaxle oil 2.87 L (3.03 US qt, 2.53 Imp qt)
Automatic transaxle fluid 4-speed transaxle 7.2 L (7.6 US qt, 6.3 Imp qt)
5-speed transaxle 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 55 L (15 US gal, 12 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Model
4 Door 5 Door
Overall length (STD) 4,530 mm (178.3 in)
―
(SAP) 4,540 mm (178.7 in) 4,485 mm (176.6 in)
Overall width
*1,755 mm (69.1 in) 1,755 mm (69.1 in)
Overall height 1,465 mm (57.7 in)1,465 mm (57.7 in)
Front tread 1,530 mm (60.2 in)1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)2,640 mm (103.9 in)
* With side protector
q Weights
4 Door
2.0-liter engine
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,702 kg (3,752 lb),
1,708 kg (3,765 lb)
*11,721 kg (3,794 lb),
1,727 kg (3,807 lb)*1
GAWR (Gross Axle Weight Rating) Front 904 kg (1,993 lb) 924 kg (2,037 lb)
Rear
798 kg (1,759 lb),
804 kg (1,772 lb)*1797 kg (1,757 lb),
803 kg (1,770 lb)*1
*1 P-ZEV
Specifications
10-5
Mazda3_8U55-EA-05G_Edition3 Page363
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (364,1)
2.3-liter engineItem Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,732 kg (3,818 lb) 1,760 kg (3,880 lb)
GAWR (Gross Axle Weight Rating) Front 928 kg (2,046 lb) 957 kg (2,110 lb)
Rear 804 kg (1,772 lb) 803 kg (1,770 lb)
5 Door
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,743 kg (3,843 lb) 1,771 kg (3,904 lb)
GAWR (Gross Axle Weight Rating) Front 930 kg (2,050 lb) 960 kg (2,116 lb)
Rear 813 kg (1,793 lb) 811 kg (1,788 lb)
q
Air Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.55 oz)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R SAE
Headlights High beam 60 HB3
―
Low beam Halogen 55 H7
―
Xenon fusion 35 D2S ―
Front turn signal lights/Side-marker lights 27/8 ―#1157NA
Fog lights
í55 H11 ―
Side turn signal lights*15 WY5W ―
High-mount brake light 18 W16W #921
Rear turn signal lights 21 W21W #7440
Brake lights/Taillights With Non-LED bulb 21/5 W21/5W #7443
With LED bulb
*24/0.8
――
Reverse light 21 W21W #7440
License plate light 5 W5W ―
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 Bulb replacement is not possible. The rear combination component must be replaced.
10-6íSome models.
Specifications
Mazda3_8U55-EA-05G_Edition3 Page364
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G

Black plate (365,1)
Interior lightLight bulb Category
Wattage ECE R
Trunk light (4 Door)
5W5W
Luggage compartment light (5 Door) ―
Overhead light/Map lights (Front)
íW5W
Overhead light (Rear) 10 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-37.
Standard tire Tire size Inflation pressure Inflation pressure
P195/65R15 89H 230 kPa (33 psi)230 kPa (33 psi)
P205/55R16 89H 220 kPa (32 psi)220 kPa (32 psi)
P205/50R17 88V 220 kPa (32 psi)220 kPa (32 psi)
Temporary spare tire Tire size Inflation pressure
T115/70D15 420 kPa (60 psi)
T125/70D16
q Fuses
Refer to the fuse rating on page 8-52.
Specifications
10-7íSome models.
Mazda3_8U55-EA-05G_Edition3 Page365
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G

Black plate (366,1)
10-8
Mazda3_8U55-EA-05G_Edition3 Page366
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G

Black plate (367,1)
11Index
11-1
Mazda3_8U55-EA-05G_Edition3 Page367
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G

Black plate (368,1)
A
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-38
Air Filter ............................................ 8-29
Ambient Temperature Display .......... 6-46
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-6Warning light ............................... 5-7
Appearance Care ............................... 8-59
Ashtray .............................................. 6-50
Audio System ................................... 6-16 Audio control switch .................. 6-38
Audio set .................................... 6-23
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-41
Automatic Transaxle Driving tips ................................ 5-17
Fluid ........................................... 8-25
Manual shift mode ..................... 5-13
Shift-lock override ..................... 5-12
Shift-lock system ....................... 5-12
Transaxle ranges ......................... 5-11
B
BatteryEmergency starting .................... 7-14
Maintenance ............................... 8-34
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-45
Lights-on reminder ..................... 5-45
Seat belt warning beep Sounds ... 5-45
Tire inflation pressure warning
beep ............................................ 5-45
B
Before Starting the Engine .................. 4-6After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-52
Brake/Clutch Fluid ........................................... 8-23
Brakes Anti-lock brake system (ABS) ..... 5-6
Brakes assist ................................. 5-8
Foot brake .................................... 5-4
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-42
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-53
Cargo Sub-Compartment .................. 6-53
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-17
Center Console .................................. 6-53
Child Restraint Child restraint precautions ......... 2-21
Installing child-restraint
systems ....................................... 2-25
LATCH child-restraint
systems ....................................... 2-33
Child Safety Locks for Rear Doors ..... 3-9
Cigarette Lighter ............................... 6-50
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-46
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-51
11-2
Index
Mazda3_8U55-EA-05G_Edition3 Page368
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G

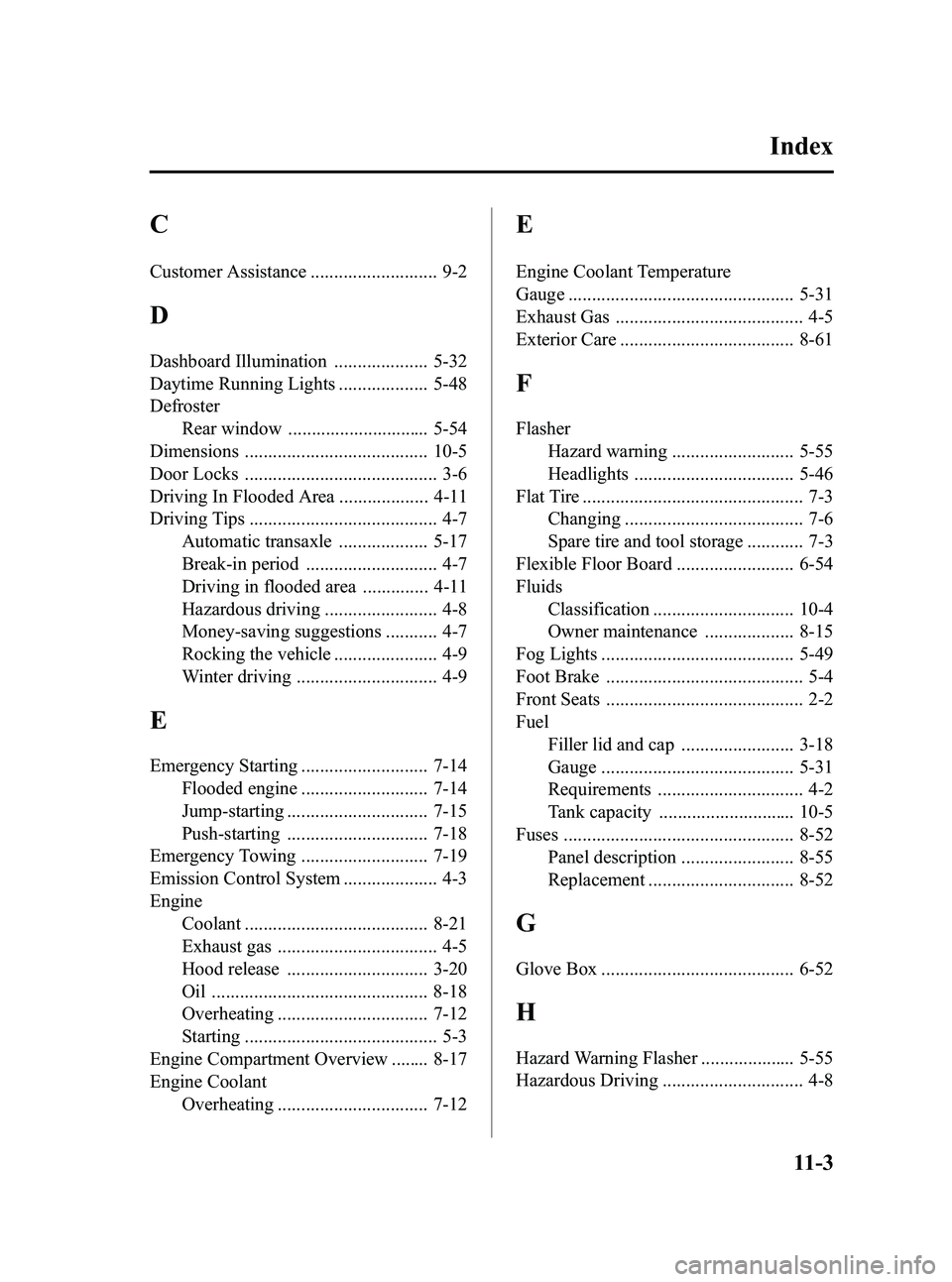

Black plate (369,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-32
Daytime Running Lights ................... 5-48
DefrosterRear window .............................. 5-54
Dimensions ....................................... 10-5
Door Locks ......................................... 3-6
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-17
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-14Flooded engine ........................... 7-14
Jump-starting .............................. 7-15
Push-starting .............................. 7-18
Emergency Towing ........................... 7-19
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-20
Oil .............................................. 8-18
Overheating ................................ 7-12
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-12
E
Engine Coolant Temperature
Gauge ................................................ 5-31
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-61
F
FlasherHazard warning .......................... 5-55
Headlights .................................. 5-46
Flat Tire ............................................... 7-3 Changing ...................................... 7-6
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-54
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49
Foot Brake .......................................... 5-4
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-18
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-52 Panel description ........................ 8-55
Replacement ............................... 8-52
G
Glove Box ......................................... 6-52
H
Hazard Warning Flasher .................... 5-55
Hazardous Driving .............................. 4-8
Index
11-3
Mazda3_8U55-EA-05G_Edition3 Page369
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G

Black plate (370,1)
H
HeadlightsControl ....................................... 5-46
Flashing ...................................... 5-48
High-low beam .......................... 5-48
Leveling ..................................... 5-48
On reminder ............................... 5-48
Hood Release .................................... 3-20
Horn .................................................. 5-55
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-42
Immobilizer System .......................... 3-23
Indicator Lights ................................. 5-33 Cruise main ................................ 5-43
Cruise set .................................... 5-43
Headlight high-beam .................. 5-42
Power steering malfunction ........ 5-43
Security ...................................... 5-42
Shift position .............................. 5-42
Turn-signal/hazard warning ....... 5-44
Information Display .......................... 6-45
Ambient temperature display ..... 6-46
Audio display ............................. 6-47
Climate control display .............. 6-47
Clock .......................................... 6-46
Information display functions .... 6-45
Trip computer ............................. 6-47
Inside Trunk Release Lever ............... 3-15
Instrument Cluster ............................. 5-28
Instrument Cluster Dimmer Select
Button ............................................... 5-32
Interior Care ...................................... 8-64
Interior Lights ................................... 6-42
J
Jump-Starting .................................... 7-15
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-49
Liftgate ................................................ 3-9 Luggage compartment ................ 3-11
Light Bulbs Replacement ............................... 8-42
Specifications ............................. 10-6
Lighter ............................................... 6-50
Lighting Control ............................... 5-46
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-44
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting ..... 5-9
Map Lights ........................................ 6-43
Mirrors
Outside mirrors .......................... 3-28
Rearview mirror ......................... 3-30
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-21
11-4
Index
Mazda3_8U55-EA-05G_Edition3 Page370
Tuesday, September 13 2005 10:46 AM
Form No.8U55-EA-05G
