Overheating
If the High engine coolant temperature
warning light illuminates, the vehicle
loses power, or you hear a loud knocking
or pinging noise, the engine is probably
too hot.
WARNING
Switch the ignition to off and
make sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the High engine coolant temperature
warning light illuminates:
1. Drive safely to the side of the road and
park off the right-of-way.2. Put a vehicle with an automatic
transaxle in park (P), a manual
transaxle in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.
7-18
If Trouble Arises
Overheating
CX-5_8CA5-EA-11L_Edition3 Page402
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (409,1)
qIf the antilock brake system
(ABS) warning light illuminates
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the
battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it
is the result of the weak battery and does not
indicate an ABS malfunction.
Recharge the battery.
qIf the brake system warning light
and the ABS warning light
illuminate simultaneously
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qIf the charging system warning
light illuminates
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-25
CX-5_8CA5-EA-11L_Edition3 Page409
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (410,1)
qIf the engine oil pressure warning
light illuminates
This warning light indicates low engine
oil pressure.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-22).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
4. Start the engine and check the warning
light.
If the light remains illuminated even after
you add oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
CAUTION
Do not run the engine if the oil
pressure is low. It could result in
extensive engine damage.
qIf the check engine light
illuminates or flashes
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
7-26
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8CA5-EA-11L_Edition3 Page410
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (412,1)
qIf the automatic transaxle
warning light illuminates
The light illuminates when the transaxle
has a problem.
CAUTION
If the automatic transaxle warning
light illuminates, the transaxle has
an electrical problem. Continuing to
drive your Mazda in this condition
could cause damage to your
transaxle. Consult an Authorized
Mazda Dealer as soon as possible.
qIf the power steering malfunction
indicator light illuminates
The power steering malfunction indicator
light illuminates if there is a malfunction
with the power steering while the engine
is running.
If the indicator light illuminates, park the
vehicle in a safe place immediately and
stop the engine.
If the indicator light does not turn off even
if the engine is restarted afterwards,
consult an Authorized Mazda Dealer.NOTE
lIf the indicator light illuminates, the power
steering will not operate normally. If this
happens, the steering wheel can still be
operated, however, the operation may feel
heavy compared to normal, and the
steering wheel could vibrate when turning.
lRepeatedly jerking the steering wheel left
and right while the vehicle is stopped or
moving extremely slowly will cause the
power steering system to go into protective
mode which will make the steering feel
heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and
wait a few seconds for the system to return
to normal.
qIf the air bag/front seat belt
pretensioner system warning light
illuminates or flashes
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
7-28
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8CA5-EA-11L_Edition3 Page412
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

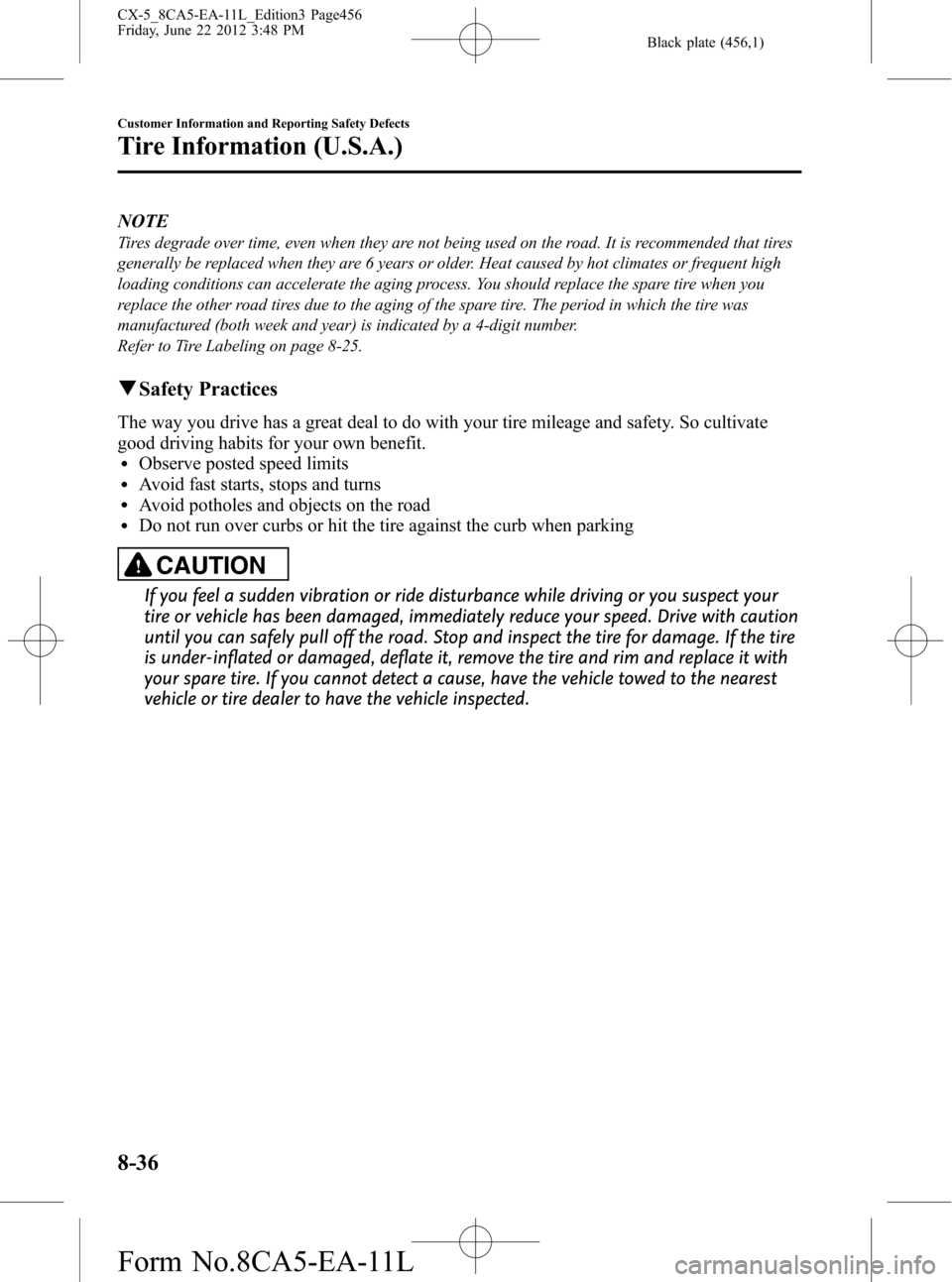

Black plate (456,1)
NOTE
Tires degrade over time, even when they are not being used on the road. It is recommended that tires
generally be replaced when they are 6 years or older. Heat caused by hot climates or frequent high
loading conditions can accelerate the aging process. You should replace the spare tire when you
replace the other road tires due to the aging of the spare tire. The period in which the tire was
manufactured (both week and year) is indicated by a 4-digit number.
Refer to Tire Labeling on page 8-25.
qSafety Practices
The way you drive has a great deal to do with your tire mileage and safety. So cultivate
good driving habits for your own benefit.
lObserve posted speed limitslAvoid fast starts, stops and turnslAvoid potholes and objects on the roadlDo not run over curbs or hit the tire against the curb when parking
CAUTION
If you feel a sudden vibration or ride disturbance while driving or you suspect your
tire or vehicle has been damaged, immediately reduce your speed. Drive with caution
until you can safely pull off the road. Stop and inspect the tire for damage. If the tire
is under-inflated or damaged, deflate it, remove the tire and rim and replace it with
your spare tire. If you cannot detect a cause, have the vehicle towed to the nearest
vehicle or tire dealer to have the vehicle inspected.
8-36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
CX-5_8CA5-EA-11L_Edition3 Page456
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (482,1)
A
Accessory Socket .............................. 5-99
Adaptive Front Lighting System
(AFS) ................................................ 4-44
Add-On Non-Genuine Parts and
Accessories ....................................... 8-20
Advanced Key
Operational range ....................... 3-10
Advanced Keyless Entry System ........ 3-9
Air Bag Systems ............................... 2-38
All-Wheel Drive
(AWD) Operation ............................. 4-65
Ambient Temperature Display .......... 4-12
Antilock Brake System (ABS) .......... 4-62
Audio Control Switch
Adjusting the Volume ................ 5-57
Mute Switch ............................... 5-57
Seek Switch ................................ 5-57
Audio System
Antenna ...................................... 5-13
Audio Control Switch ................ 5-56
Audio Set (Type A) .................... 5-25
Audio Set (Type B) .................... 5-35
AUX/USB/iPod mode ................ 5-58
Operating Tips for Audio
System ........................................ 5-13
Satellite Radio ............................ 5-44
Automatic Transaxle
Driving tips ................................ 4-39
Manual shift mode ..................... 4-36
Shift-lock override ..................... 4-35
Shift-lock system ....................... 4-35
Transaxle ranges ........................ 4-34
B
Battery ............................................... 6-31
Maintenance ............................... 6-32
Specifications ............................... 9-4
B
Battery runs out ................................. 7-14
Jump-Starting ............................. 7-14
Beep Sounds
Air bag/front seat belt pretensioner
system warning .......................... 7-32
Blind spot monitoring
(BSM) system warning .............. 7-34
Ignition not switched off
(STOP) warning ......................... 7-33
Key left-in-luggage compartment
warning ...................................... 7-33
Key left-in-vehicle warning ....... 7-34
Key removed from vehicle
warning ...................................... 7-33
Lights-on reminder ..................... 7-32
Request switch inoperable
warning ...................................... 7-33
Seat belt warning ........................ 7-32
Tire inflation pressure warning ... 7-34
Blind Spot Monitoring
(BSM) System .................................. 4-75
BSM OFF switch ....................... 4-78
BSM warning light ..................... 4-77
Care of radar sensors .................. 4-78
Bluetooth® ....................................... 5-77
Bluetooth® Audio ...................... 5-88
Bluetooth® Hands-Free ............. 5-83
Troubleshooting ......................... 5-91
Body Lubrication .............................. 6-27
Bottle Holder ................................... 5-102
Brakes
Brakes assist ............................... 4-59
Foot brake .................................. 4-57
Pad wear indicator ...................... 4-59
Parking brake ............................. 4-58
Break-In ............................................ 3-39
10-2
Index
CX-5_8CA5-EA-11L_Edition3 Page482
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L
