Black plate (501,1)
NOTElBecause genuine leather is a natural
material, its surface is not uniform and it
may have natural scars, scratches, and
wrinkles.
lTo maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
lSand and dust on the seat surface may
damage the overcoat of the genuine leather
surfaces and accelerate wear.
lGreasy soiling on genuine leather may
cause molding and stains.
lRubbing hard with a stiff brush or cloth
may cause damage.
lDo not wipe the leather using alcohol,
chlorine bleach, or organic solvents such as
thinner, benzene, or gasoline. Otherwise, it
may cause discoloration or stains.
lIf the seats get wet, promptly remove
moisture with a dry cloth. Remaining
moisture on the surface may cause
deterioration such as hardening and
shrinkage.
lExposure to direct sunlight for long periods
may cause deterioration and shrinkage.
When parking the car under direct sunlight
for long periods, shade the interior using
sunshades.
lDo not leave vinyl products on the seats for
long periods as they may affect the leather
quality and coloring. If the cabin
temperature becomes hot, the vinyl may
deteriorate and adhere to the genuine
leather.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Panel
When the interior panels need to be
cleaned, use soft material such as a soft
cloth soaked in clean water and wrung out
well and lightly wipe off dirt from the
surface. If a panel requires further
cleaning, use the following procedure.
1. Wipe dirt off using a soft cloth soaked
in mild detergent (about 5% solution).
2. Wipe off any remaining detergent
using a cloth soaked in clean water and
wrung out well.
NOTE
lDo not wipe leather parts using alcohol,
chlorine bleach, or organic solvents such as
thinner, benzene, or gasoline. Otherwise, it
may cause discoloration or stains.
lScratches or nicks on the panels and
metallic trim resulting from the use of a
hard brush or cloth may not be repairable.
lBe particularly careful when cleaning high
lustre panels and metallic trim as they can
be easily scratched.
Maintenance and Care
Appearance Care
6-69
CX-5_8DV2-EA-14K_Edition3 Page501
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (502,1)
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Do not
bleach or dye the webbing; this may
weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
ØDo not scrape or scratch the inside
of the window glass. It could
damage the thermal filaments
and the antenna lines.
ØWhen washing the inside of the
window glass, use a soft cloth
dampened in lukewarm water,
gently wiping the thermal
filaments and the antenna lines.
Use of glass cleaning products
could damage the thermal
filaments and the antenna lines.
qCleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap and water only.
WARNING
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning
rubber floor mats:
Cleaning the rubber floor mats with
rubber cleaning products makes the
floor mats slippery.
This may cause an accident when
depressing the accelerator, brake, or
clutch (Manual transaxle) pedal or
when getting in or out of the vehicle.
After removing the floor mats for
cleaning, always reinstall them
securely.Refer to Floor Mat on page 3-43.
6-70
Maintenance and Care
Appearance Care
CX-5_8DV2-EA-14K_Edition3 Page502
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (507,1)
qJack
To remove the jack
1. Open the trunk board.
2. Secure the trunk board by attaching the
hook to the head restraint.
Without luggage compartment cover
With luggage compartment cover
3. Remove the jack.
To secure the jack
Perform the removal procedure in reverse.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
If Trouble Arises
Flat Tire
7-5
CX-5_8DV2-EA-14K_Edition3 Page507
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (533,1)
“Key not detected”is displayed
This message is displayed when any of
the following operations is performed
with the key out of the operational range
or placed in areas inside the cabin where it
is difficult for the key to be detected.
lThe push button start is pressed with
the ignition switched off
lThe ignition is switched onlAll doors are closed without switching
the ignition off
Type B
If any malfunction occurs in the keyless
entry system, it illuminates continuously.
CAUTION
If the key warning indicator light
illuminates or the push button start
indicator light (amber) flashes, the
engine may not start. If the engine
cannot be started, try starting it
using the emergency operation for
starting the engine, and have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
qIf the high beam control system
(HBC) warning light (amber)
flashes
í
This light turns on if there is a
malfunction in the high beam control
system (HBC). Have your vehicle
inspected by an Authorized Mazda
Dealer.
qIf the wrench indication/indicator
light is indicated
Type A
Perform maintenance in accordance with
the message.
Type B
The wrench indicator light illuminates
when the engine oil replacement period is
reached.
If the light is illuminated, replace the
engine oil.
Refer to Engine Oil on page 6-27.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-31íSome models. CX-5_8DV2-EA-14K_Edition3 Page533
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

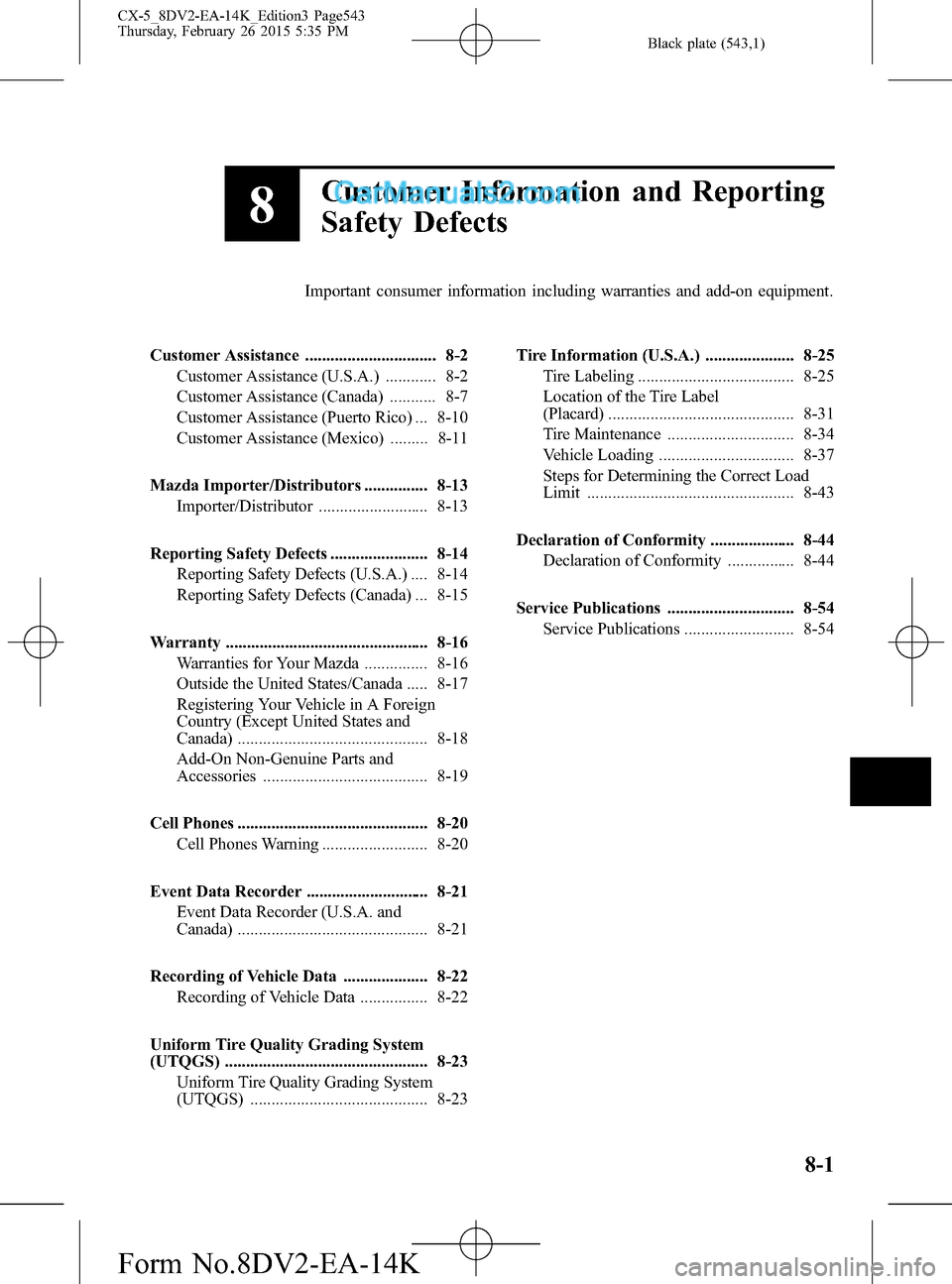

Black plate (543,1)
8
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on equipment.
Customer Assistance ............................... 8-2
Customer Assistance (U.S.A.) ............ 8-2
Customer Assistance (Canada) ........... 8-7
Customer Assistance (Puerto Rico) ... 8-10
Customer Assistance (Mexico) ......... 8-11
Mazda Importer/Distributors ............... 8-13
Importer/Distributor .......................... 8-13
Reporting Safety Defects ....................... 8-14
Reporting Safety Defects (U.S.A.) .... 8-14
Reporting Safety Defects (Canada) ... 8-15
Warranty ................................................ 8-16
Warranties for Your Mazda ............... 8-16
Outside the United States/Canada ..... 8-17
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada) ............................................. 8-18
Add-On Non-Genuine Parts and
Accessories ....................................... 8-19
Cell Phones ............................................. 8-20
Cell Phones Warning ......................... 8-20
Event Data Recorder ............................. 8-21
Event Data Recorder (U.S.A. and
Canada) ............................................. 8-21
Recording of Vehicle Data .................... 8-22
Recording of Vehicle Data ................ 8-22
Uniform Tire Quality Grading System
(UTQGS) ................................................ 8-23
Uniform Tire Quality Grading System
(UTQGS) .......................................... 8-23Tire Information (U.S.A.) ..................... 8-25
Tire Labeling ..................................... 8-25
Location of the Tire Label
(Placard) ............................................ 8-31
Tire Maintenance .............................. 8-34
Vehicle Loading ................................ 8-37
Steps for Determining the Correct Load
Limit ................................................. 8-43
Declaration of Conformity .................... 8-44
Declaration of Conformity ................ 8-44
Service Publications .............................. 8-54
Service Publications .......................... 8-54
8-1
CX-5_8DV2-EA-14K_Edition3 Page543
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (576,1)
Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are
some important maintenance points:
qTire Inflation Pressure
Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain
recommended pressures for the best ride, top handling, and minimum tire wear. Use the
pressures specified on the vehicle tire information placard or tire label for optimum service.
qTire Rotation
To equalize tread wear, rotate the tires every 12,000 km (7,500 miles) or sooner if irregular
wear develops. During rotation, inspect them for correct balance.
Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward
Inspect the tires for uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:
lIncorrect tire pressurelImproper wheel alignmentlOut-of-balance wheellSevere braking
After rotation, inflate all tire pressures to specification (page 9-8) and inspect the lug nuts
for tightness.
8-34
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
CX-5_8DV2-EA-14K_Edition3 Page576
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (596,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-033B-16 2016 WORKSHOP MANUAL (English)
9999-MX-033B-16 2016 WORKSHOP MANUAL (Spanish)
9999-95-076G-16 2016 WIRING DIAGRAM (English)
9999-MX-076G-16 2016 WIRING DIAGRAM (Spanish)
9999-95-050C-16 2016 OWNER'S MANUAL (English)
9999-EC-050C-16 2016 OWNER'S MANUAL (French)
9999-PR-050C-16 2016 OWNER'S MANUAL (Spanish)
9999-95-105F-16 2016 SERVICE HIGHLIGHTS
9999-95-050C-16NAV2016 NAVIGATION SYSTEM OWNER'S MANUAL
(English)
9999-EC-050C-16NAV2016 NAVIGATION SYSTEM OWNER'S MANUAL
(English and French)
9999-PR-050C-16NAV2016 NAVIGATION SYSTEM OWNER'S MANUAL
(Spanish)
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
8-54
Customer Information and Reporting Safety Defects
Service Publications
CX-5_8DV2-EA-14K_Edition3 Page596
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (618,1)
A
Accessory Socket ............................ 5-130
Adaptive Front Lighting System
(AFS) ................................................ 4-92
Add-On Non-Genuine Parts and
Accessories ....................................... 8-19
Advanced Key
Operational range ....................... 3-10
Advanced Keyless Entry System ........ 3-9
Air Bag Systems ............................... 2-44
All-Wheel Drive
(AWD) Operation ............................. 4-87
Antilock Brake System (ABS) .......... 4-80
Audio Control Switch
Adjusting the Volume ................ 5-51
Mute Switch ............................... 5-52
Seek Switch ................................ 5-51
Audio System
Antenna ...................................... 5-13
Audio Control Switch ................ 5-51
Audio Set (Type A) .................... 5-21
Audio Set (Type B) .................... 5-32
AUX/USB/iPod mode ................ 5-52
Operating Tips for Audio
System ........................................ 5-13
Satellite Radio ............................ 5-42
Automatic Transaxle
Driving tips ................................ 4-56
Manual shift mode ..................... 4-52
Shift-lock override ..................... 4-51
Shift-lock system ....................... 4-51
Transaxle ranges ........................ 4-50
B
Battery ............................................... 6-37
Maintenance ............................... 6-38
Replacement ............................... 6-38
Specifications ............................... 9-4
B
Battery runs out ................................. 7-14
Jump-Starting ............................. 7-14
Beep Sounds
Air bag/front seat belt pretensioner
system warning .......................... 7-35
Blind Spot Monitoring
(BSM) system warning .............. 7-37
Electric parking brake warning ... 7-38
Ignition not switched off
(STOP) warning ......................... 7-36
Key left-in-luggage compartment
warning ...................................... 7-37
Key left-in-vehicle warning ....... 7-37
Key removed from vehicle
warning ...................................... 7-36
Lane departure warning ............. 7-37
Lights-on reminder ..................... 7-34
Power steering warning .............. 7-38
Request switch inoperable
warning ...................................... 7-36
Seat belt warning ........................ 7-35
Tire inflation pressure warning ... 7-37
Blind Spot Monitoring
(BSM) System ................................ 4-102
Bluetooth® ....................................... 5-69
Bluetooth® Audio (Type A) .... 5-108
Bluetooth® Audio (Type B) ..... 5-110
Bluetooth® Hands-Free
(Type A) ..................................... 5-91
Bluetooth® Hands-Free
(Type B) ..................................... 5-98
Troubleshooting ....................... 5-124
Body Lubrication .............................. 6-32
Bottle Holder ................................... 5-133
10-2
Index
CX-5_8DV2-EA-14K_Edition3 Page618
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (620,1)
E
Engine
Coolant ....................................... 6-29
Engine Compartment
Overview .................................... 6-26
Exhaust gas ................................ 3-25
Hood release .............................. 6-24
Oil .............................................. 6-27
Starting ......................................... 4-3
Essential information .......................... 6-2
Event Data Recorder ......................... 8-21
Exhaust Gas ...................................... 3-25
Exterior Care ..................................... 6-62
Aluminum Wheel
Maintenance ............................... 6-66
Bright-Metal Maintenance ......... 6-65
Maintaining the Finish ............... 6-63
Plastic Part Maintenance ............ 6-67
F
Flasher
Hazard warning .......................... 4-70
Headlights .................................. 4-58
Flat Tire ............................................... 7-3
Mounting the Spare Tire ............ 7-12
Floor Mat .......................................... 3-43
Fluid
Brake/Clutch .............................. 6-31
Washer ........................................ 6-31
Fluids
Classification ................................ 9-4
Fog Lights ......................................... 4-63
Foot Brake ........................................ 4-74
Forward Sensing Camera (FSC) ..... 4-134
Front Seat ............................................ 2-5
F
Fuel
Filler lid and cap ........................ 3-26
Gauge ......................................... 4-13
Requirements ............................. 3-23
Tank capacity ............................... 9-5
Fuel Consumption Display ................ 4-85
Fuel Economy Monitor ..................... 4-84
Ending Screen Display ............... 4-85
Fuel Consumption Display ......... 4-85
Fuses ................................................. 6-56
Panel description ........................ 6-58
Replacement ............................... 6-56
G
Gauges .............................................. 4-10
Glove Compartment ........................ 5-134
H
Hazard Warning Flasher .................... 4-70
Hazardous Driving ............................ 3-42
Head Restraint .................................. 2-14
Headlights
Coming Home Light System ..... 4-61
Control ....................................... 4-58
Flashing ...................................... 4-61
High-low beam .......................... 4-61
Leaving Home Light System ..... 4-62
Leveling ..................................... 4-62
High Beam Control System (HBC) ... 4-93
Hill Launch Assist (HLA) ................. 4-78
HomeLink Wireless Control
System .............................................. 4-71
Hood Release .................................... 6-24
Horn .................................................. 4-70
10-4
Index
CX-5_8DV2-EA-14K_Edition3 Page620
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (622,1)
I
Interior Care ...................................... 6-68
Cleaning the Lap/Shoulder Belt
Webbing ..................................... 6-70
Cleaning the Upholstery and Interior
Trim ............................................ 6-68
Cleaning the Window Interiors ... 6-70
Dashboard Precautions ............... 6-68
Interior Lights ................................. 5-128
Luggage Compartment Light.... 5-128
Map Lights ............................... 5-128
Overhead Lights ....................... 5-128
J
Jack ..................................................... 7-5
Jump-Starting .................................... 7-14
K
Key Suspend Function ........................ 3-8
Keyless Entry System ......................... 3-4
Keys .................................................... 3-2
Key suspend function ................... 3-8
Transmitter ................................... 3-5
L
Label Information ............................... 9-2
Lane Departure Warning System
(LDWS) ............................................ 4-96
LDWS switch ............................. 4-99
Lane-Change Signals ........................ 4-63
Laser Sensor (Front) ....................... 4-140
Leaving Home Light System ............ 4-62
Liftgate .............................................. 3-19
When liftgate cannot be
opened ........................................ 7-39
L
Light Bulbs
Replacement ............................... 6-46
Specifications ............................... 9-7
Lighting Control ............................... 4-58
Lubricant Quality ................................ 9-4
Luggage Compartment Light .......... 5-128
M
Maintenance and Care ........................ 6-2
Maintenance Monitor ........................ 4-15
Manual Transaxle Operation ............. 4-47
Recommendations for shifting.... 4-48
Map Lights ...................................... 5-128
Mazda Radar Cruise Control
(MRCC) .......................................... 4-116
Close proximity warning .......... 4-119
Display indication .................... 4-119
Setting the system .................... 4-120
Mazda Radar Cruise Control
(MRCC) System Warnings ............... 7-38
Mazda Radar Cruise Control
(MRCC) Warning Light (Amber)/
Indicator Light (Green) ..................... 4-44
Meters and Gauges ........................... 4-10
Mirror Defogger ................................ 4-69
Mirrors
Outside mirrors .......................... 3-29
Rearview mirror ......................... 3-30
O
Outside Mirrors ................................. 3-29
Outside Temperature Display ............ 4-14
Overhead Console ........................... 5-134
Overhead Lights .............................. 5-128
Overheating ....................................... 7-18
Overloading ...................................... 3-46
10-6
Index
CX-5_8DV2-EA-14K_Edition3 Page622
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K
