MAZDA MODEL CX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)

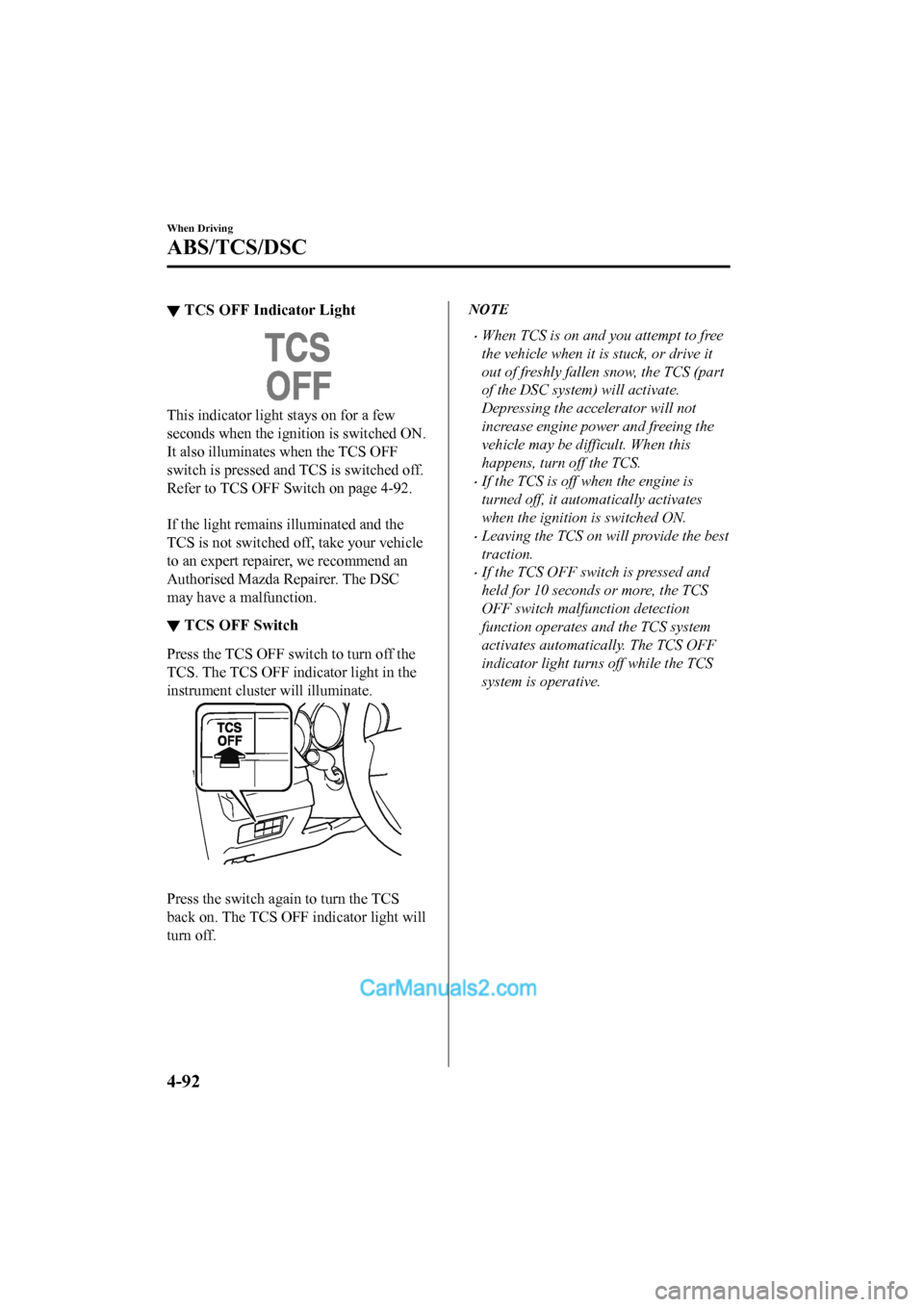

▼TCS OFF Indicator Light
This indicator light
stays on for a few
seconds when the ignition is switched ON.
It also illuminates when the TCS OFF
switch is pressed and TCS is switched off.
Refer to TCS OFF Switch on page 4-92.

If the light remains illuminated and the
TCS is not switched off, take your vehicle
to an expert repairer, we recommend an
Authorised Mazda Repairer. The DSC
may have a malfunction.
▼ TCS OFF Switch
Press the TCS OFF sw
itch to turn off the
TCS. The TCS OFF indicator light in the
instrument cluster will illuminate.
Press the switch agai n to turn the TCS
back on. The TCS OFF indicator light will
turn off.
NOTE
•When TCS is on and you attempt to free
the vehicle when it is stuck, or drive it
out of freshly fallen snow, the TCS (part
of the DSC system) will activate.
Depressing the accelerator will not
increase engine power and freeing the
vehicle may be difficult. When this
happens, turn off the TCS.
•If the TCS is off when the engine is
turned off, it aut omatically activates
when the ignition is switched ON.
•Leaving the TCS on will provide the best
traction.
•If the TCS OFF switch is pressed and
held for 10 seconds or more, the TCS
OFF switch malfunction detection
function operates and the TCS system
activates automatically. The TCS OFF
indicator light turns off while the TCS
system is operative.
When Driving
ABS/TCS/DSC
4-92
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

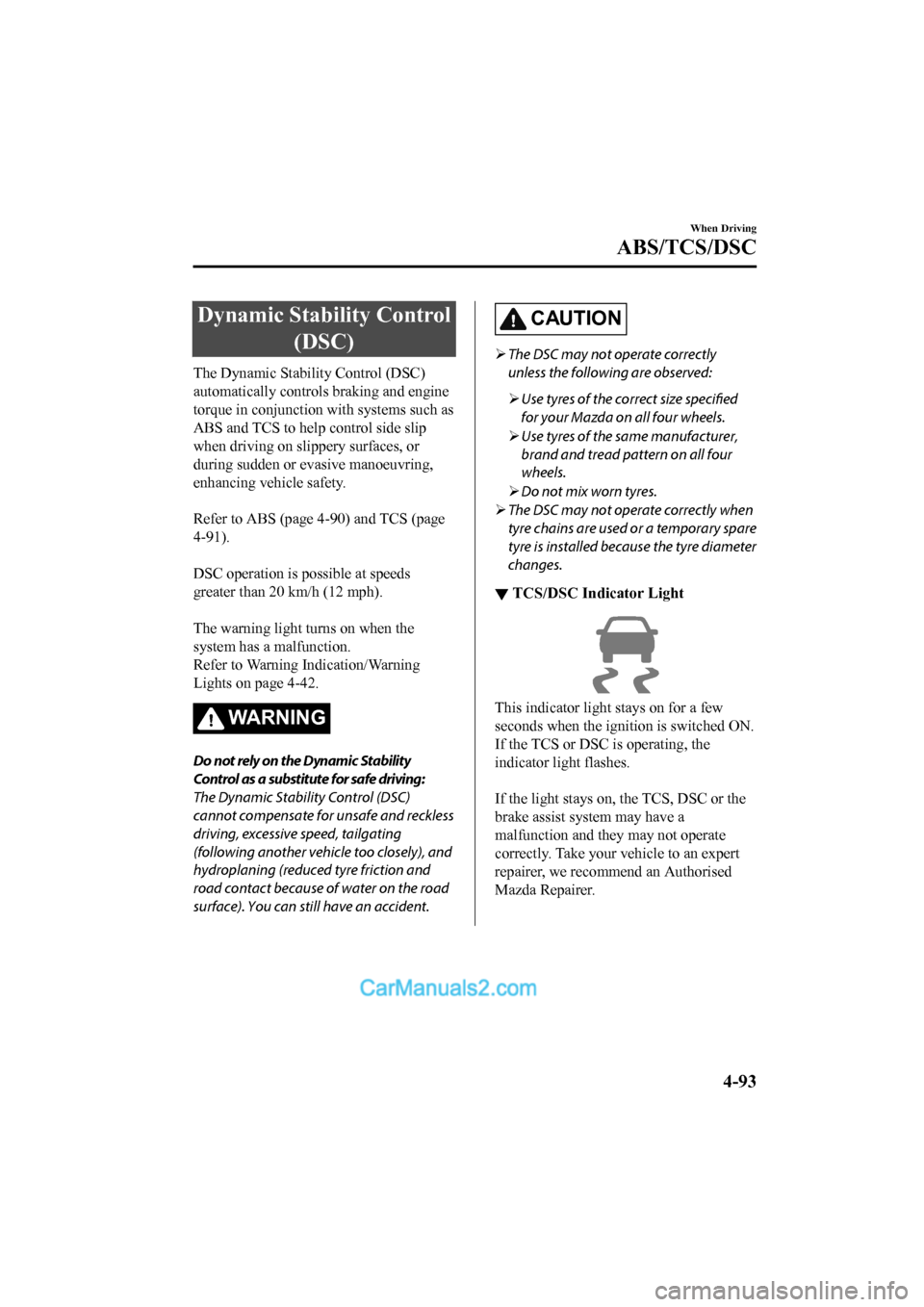

Dynamic Stability Control(DSC)
The Dynamic Stability Control (DSC)
automatically controls braking and engine
torque in conjunction with systems such as
ABS and TCS to help control side slip
when driving on slippery surfaces, or
during sudden or evasive manoeuvring,
enhancing vehicle safety.

Refer to ABS (page 4 -90) and TCS (page
4-91).

DSC operation is possible at speeds
greater than 20 km/h (12 mph).

The warning light turns on when the
system has a malfunction.
Refer to Warning Indication/Warning
Lights on page 4-42.
WA R N I N G
Do not rely on the Dynamic Stability
Control as a substitute for safe driving:
The Dynamic Stability Control (DSC)
cannot compensate for unsafe and reckless
driving, excessive speed, tailgating
(following another vehicle too closely), and
hydroplaning (reduced tyre friction and
road contact because of water on the road
surface). You can still have an accident.
CAUTION
 The DSC may not operate correctly
unless the following are observed:
 Use tyres of the correct size
specified
for your Mazda on all four wheels.
 Use tyres of the same manufacturer,
brand and tread pattern on all four
wheels.
 Do not mix worn tyres.
 The DSC may not operate correctly when
tyre chains are used or a temporary spare
tyre is installed because the tyre diameter
changes.
▼ TCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched ON.
If the TCS or DSC
is operating, the
indicator light flashes.

If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an expert
repairer, we recommend an Authorised
Mazda Repairer.
When Driving
ABS/TCS/DSC
4-93
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

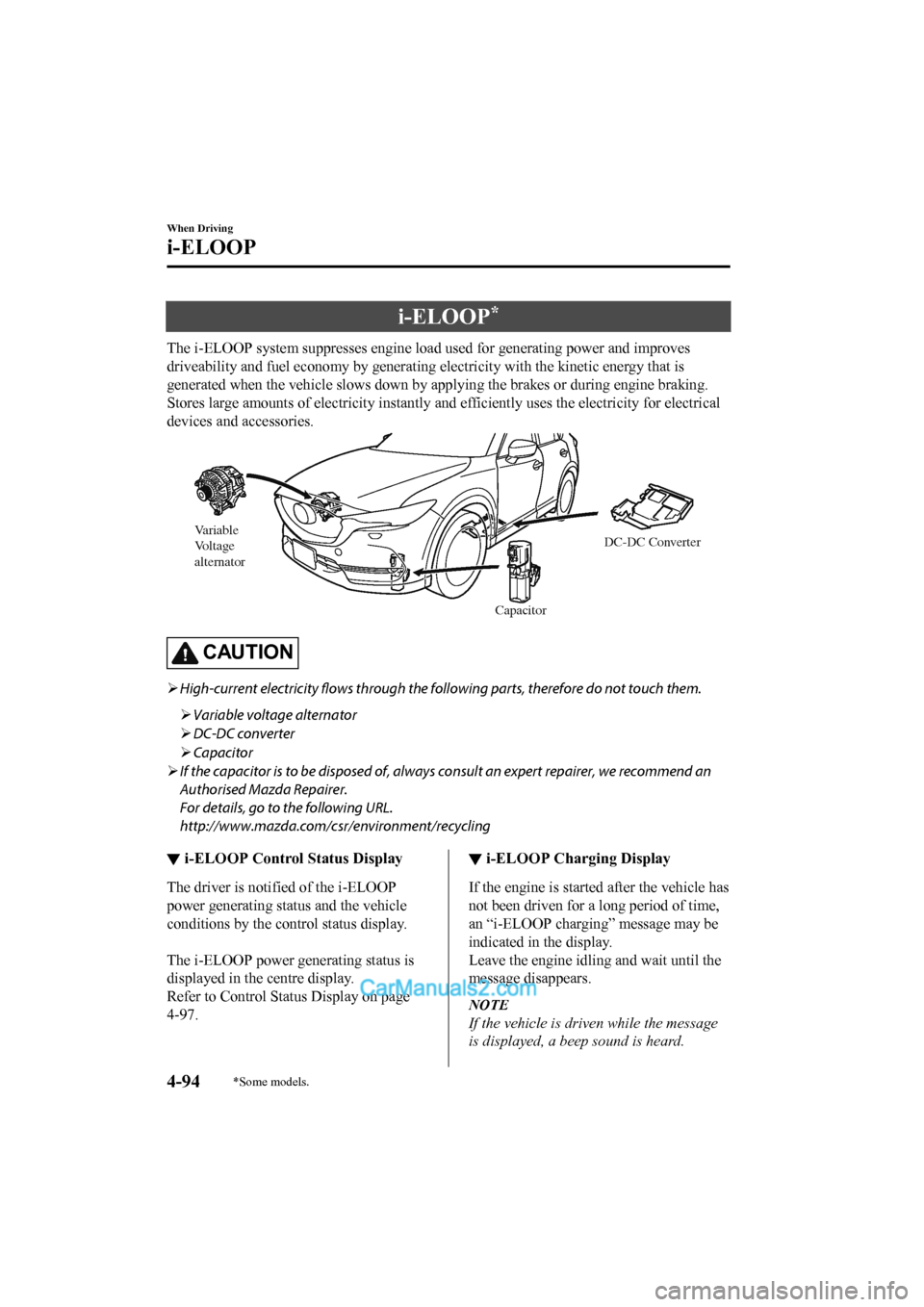

i-ELOOP*
The i-ELOOP system suppresses engine load used for generating power and improves
driveability and fuel economy by generating electricity with th e kinetic energy that is
generated when the vehicle slows down by applying the brakes or during engine braking.
Stores large amounts of electricity instantly and efficiently u ses the electricity for electrical
devices and accessories.
Variable
Voltage
alternator
CapacitorDC-DC Converter
CAUTION

High-current electricity flows through the fo llowing parts, therefore do not touch them.
 Variable voltage alternator
 DC-DC converter
 Capacitor
 If the capacitor is to be disposed of, always consult an expert repairer, we recommend an
Authorised Mazda Repairer.
For details, go to the following URL.
http://www.mazda.com/csr/environment/recycling
▼ i-ELOOP Control Status Display
The driver is noti
fied of the i-ELOOP
power generating status and the vehicle
conditions by the con trol status display.

The i-ELOOP power generating status is
displayed in the centre display.
Refer to Control Status Display on page
4-97.
▼ i-ELOOP Charging Display
If the engine is started after the vehicle has
not been driven for a long period of time,
an “i-ELOOP charging” message may be
indicated in the display.
Leave the engine idling and wait until the
message disappears.
NOTE
If the vehicle is driven while the message
is displayed, a beep sound is heard.
When Driving
i-ELOOP
4-94*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

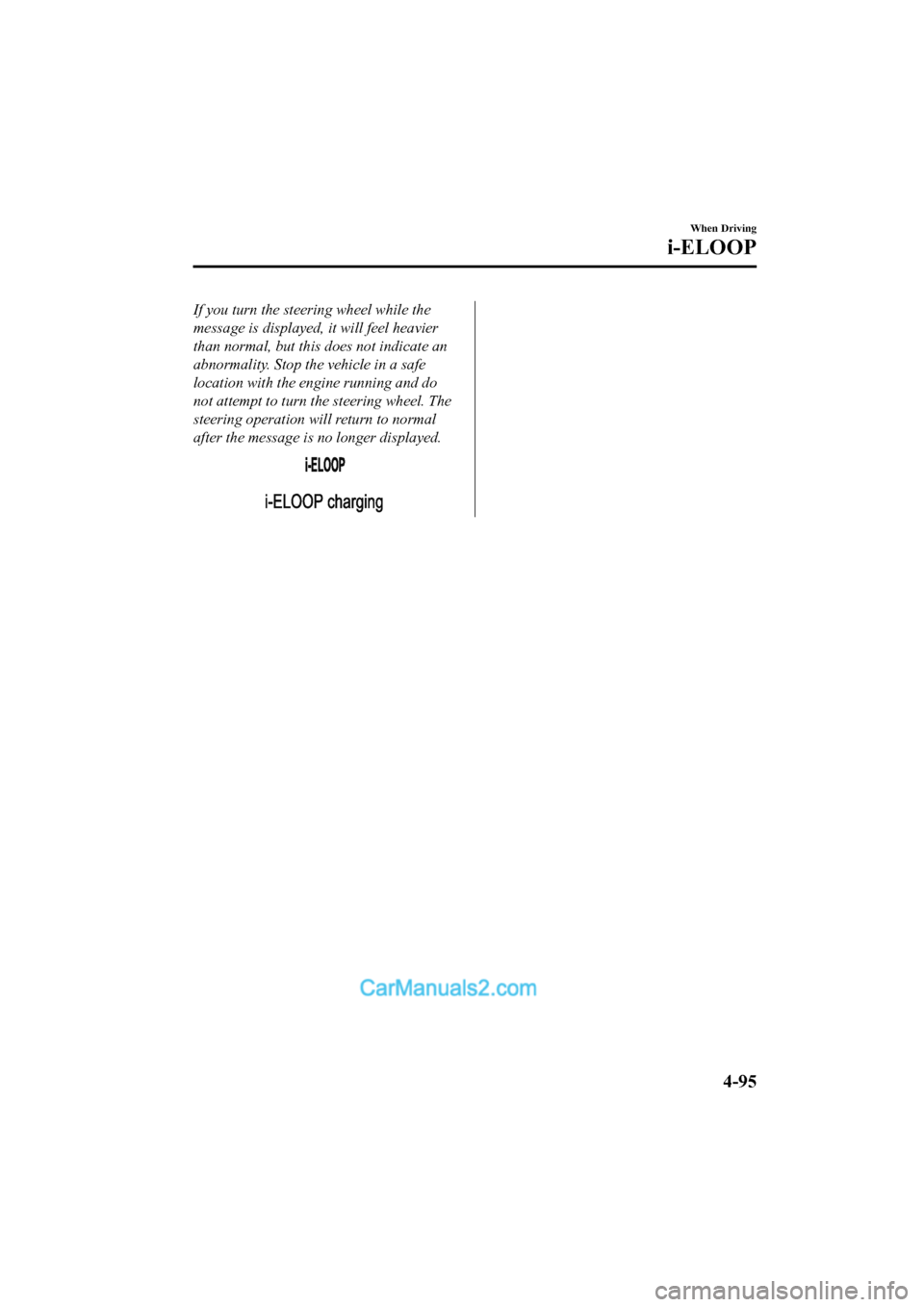

If you turn the steering wheel while the
message is displayed, it will feel heavier
than normal, but this does not indicate an
abnormality. Stop the vehicle in a safe
location with the engine running and do
not attempt to turn the steering wheel. The
steering operation will return to normal
after the message is no longer displayed.
When Driving
i-ELOOP
4-95
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

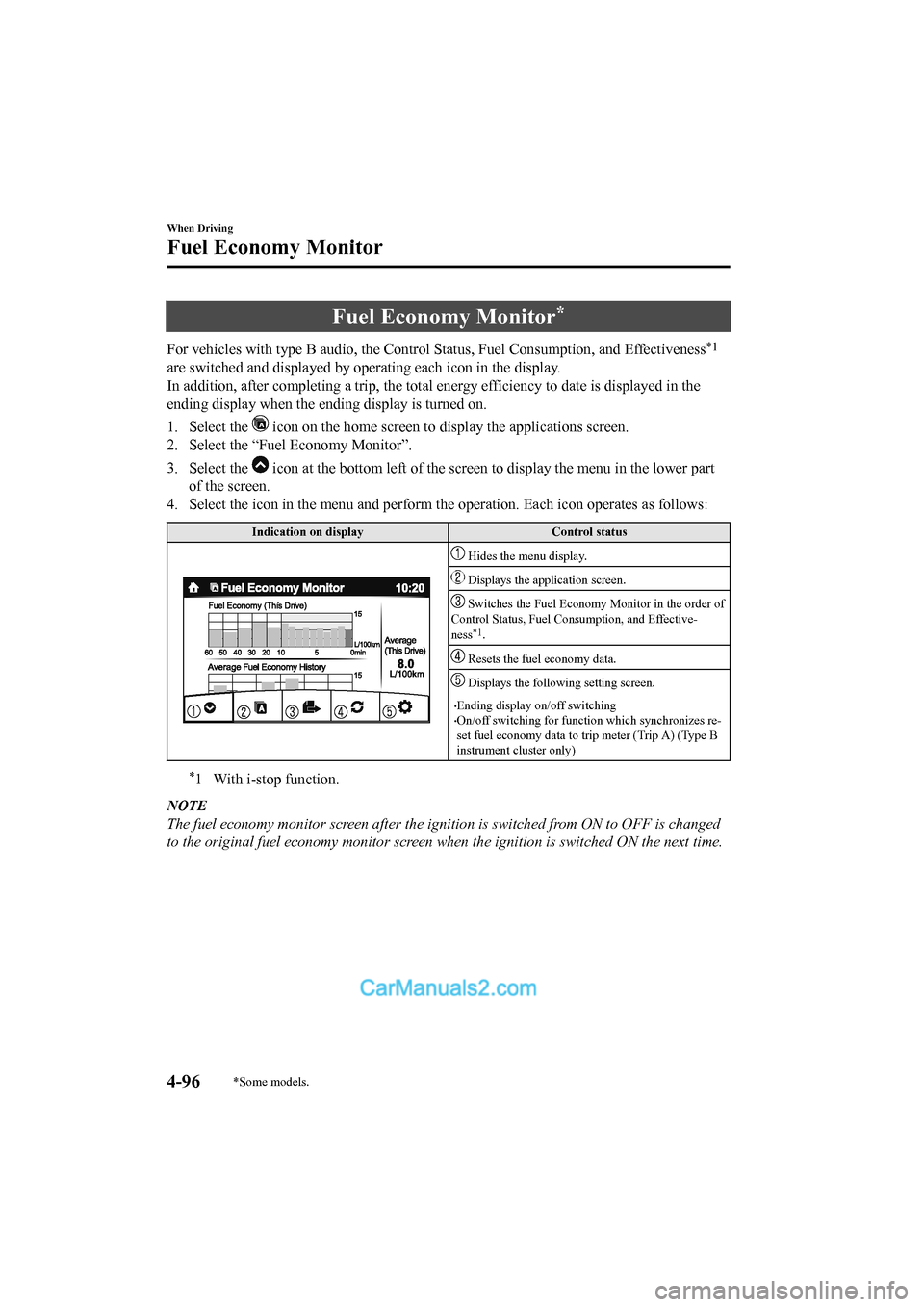

Fuel Economy Monitor*
For vehicles with type B audio, the Control Status, Fuel Consumption, and Effectiveness*1
are switched and displayed by operating each icon in the display.
In addition, after completing a trip, the total energy efficiency to date is displayed in the
ending display when the ending display is turned on.
1. Select the
icon on the home screen to display the applications screen.
2. Select the “Fuel Economy Monitor”.
3. Select the
icon at the bot tom left of the screen t o display the menu in t he lower part
of the screen.
4. Select the icon in the menu and perform the operation. Each i con operates as follows:
Indication on displayControl status
Hides the menu display.
Displays the application screen.
Switches the Fuel Economy Monitor in the order of
Control Status, Fuel Consumption, and Effective-
ness
*1.
Resets the fuel economy data.
Displays the following setting screen.
•Ending display on/off switching•On/off switching for function which synchronizes re-
set fuel economy data to trip meter (Trip A) (Type B
instrument cluster only)
*1 With i-stop function.
NOTE
The fuel economy monitor screen after the ignition is switched from ON to OFF is changed
to the original fuel economy monitor screen when the ignition is switched ON the next time.
When Driving
Fuel Economy Monitor
4-96*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

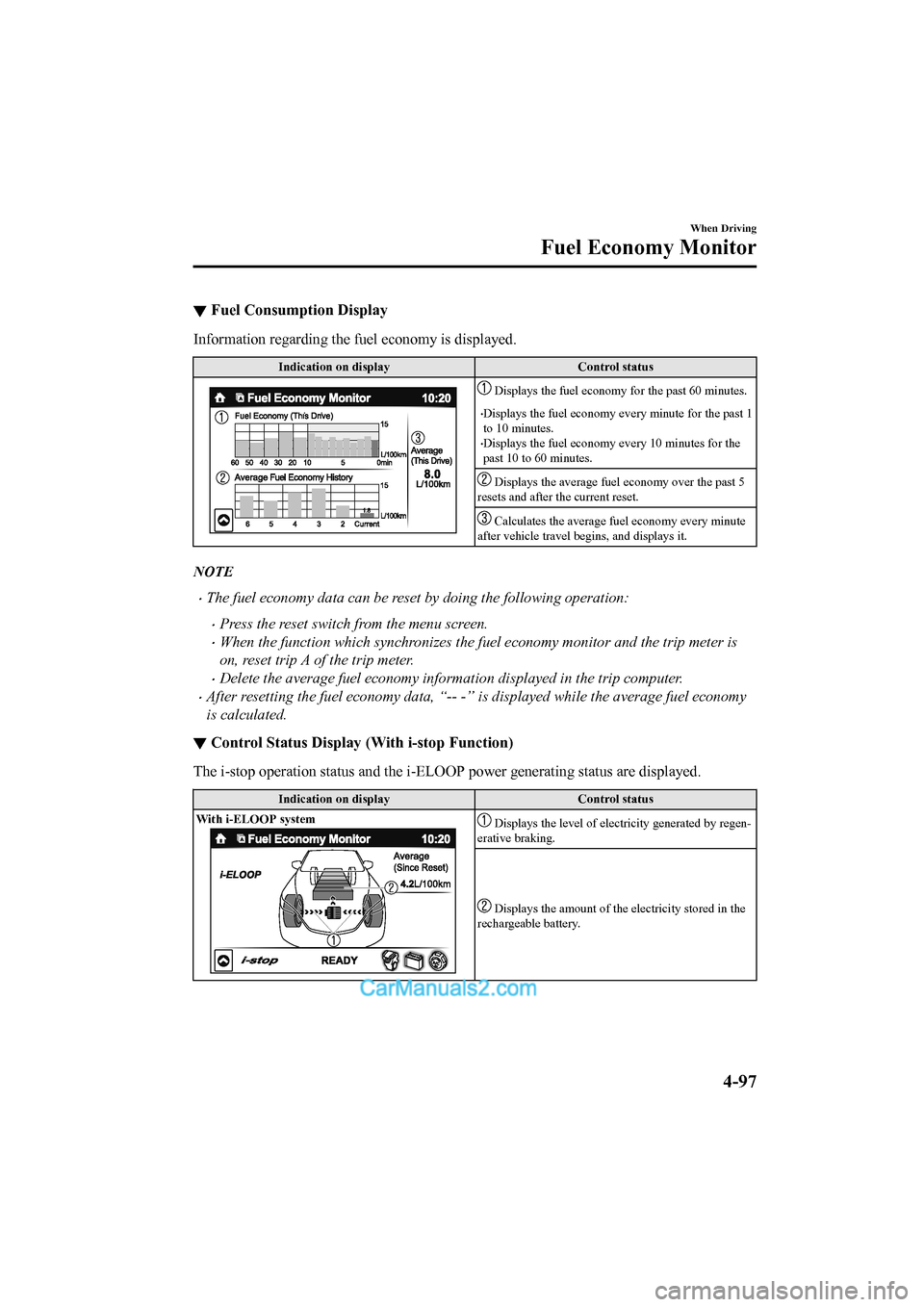

▼Fuel Consumption Display
Information regarding the fuel economy is displayed.
Indication on display
Control status
Displays the fuel economy for the past 60 minutes.
•Displays the fuel economy every minute for the past 1
to 10 minutes.
•Displays the fuel economy every 10 minutes for the
past 10 to 60 minutes.
Displays the average fuel economy over the past 5
resets and after the current reset.
Calculates the average fu el economy every minute
after vehicle travel b egins, and displays it.
NOTE
•The fuel economy data can be reset by doing the following operation:
•Press the reset switch from the menu screen.
•When the function which synchronizes the fu el economy monitor and the trip meter is
on, reset trip A of the trip meter.
•Delete the average fuel economy information displayed in the trip computer.
•After resetting the fuel economy data, “-- -” is displayed while the average fuel economy
is calculated.
▼ Control Status Display
(With i-stop Function)
The i-stop operation status and the i-ELOOP power generating st atus are displayed.
Indication on displayControl status
With i-ELOOP system
Displays the level of electricity generated by regen-
erative braking.
Displays the amount of the electricity stored in the
rechargeable battery.
When Driving
Fuel Economy Monitor
4-97
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

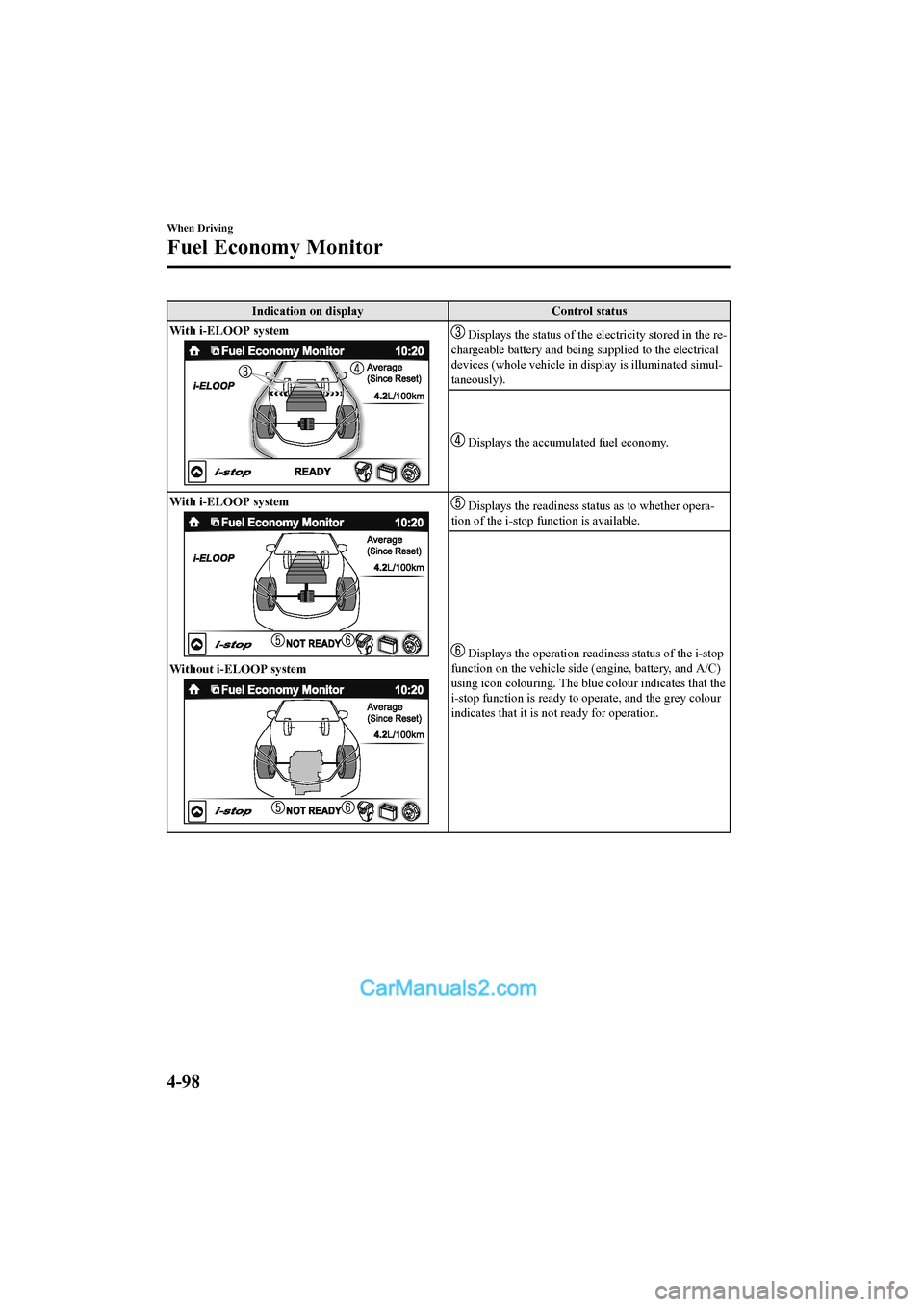

Indication on displayControl status
With i-ELOOP system
Displays the status of the electricity stored in the re-
chargeable battery and being supplied to the electrical
devices (whole vehicle in display is illuminated simul-
taneously).
Displays the accumu lated fuel economy.
With i-ELOOP system
Without i-ELOOP system
Displays the readiness st atus as to whether opera-
tion of the i-stop function is available.
Displays the operation readiness status of the i-stop
function on the vehicle side (engine, battery, and A/C)
using icon colouring. The blue colour indicates that the
i-stop function is ready to operate, and the grey colour
indicates that it is not ready for operation.
When Driving
Fuel Economy Monitor
4-98
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

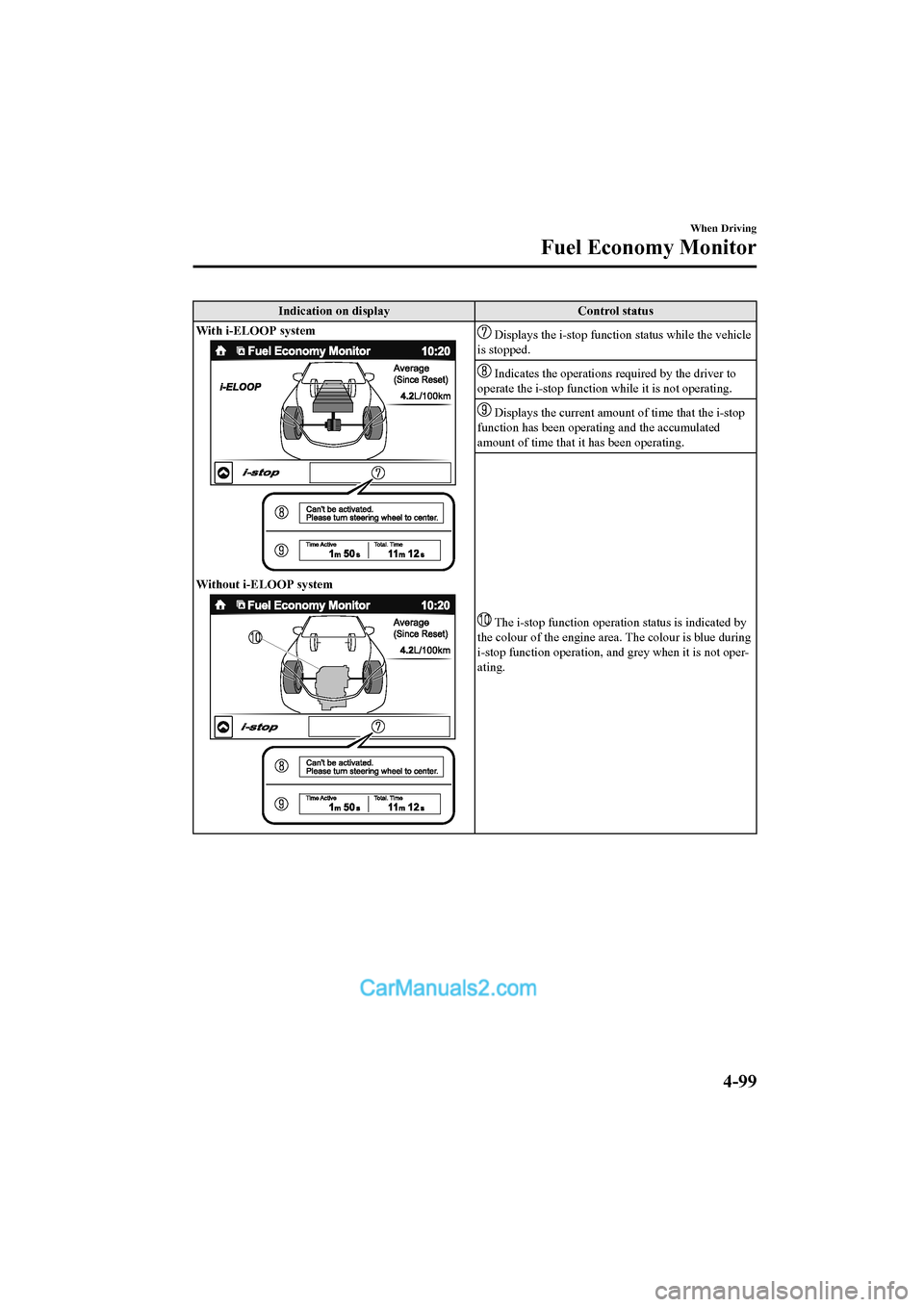

Indication on displayControl status
With i-ELOOP system
Without i-ELOOP system
Displays the i-stop functio n status while the vehicle
is stopped.
Indicates the operations required by the driver to
operate the i-stop function while it is not operating.
Displays the current amount of time that the i-stop
function has been operating and the accumulated
amount of time that it has been operating.
The i-stop function operation status is indicated by
the colour of the engine area. The colour is blue during
i-stop function operation, and grey when it is not oper-
ating.
When Driving
Fuel Economy Monitor
4-99
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

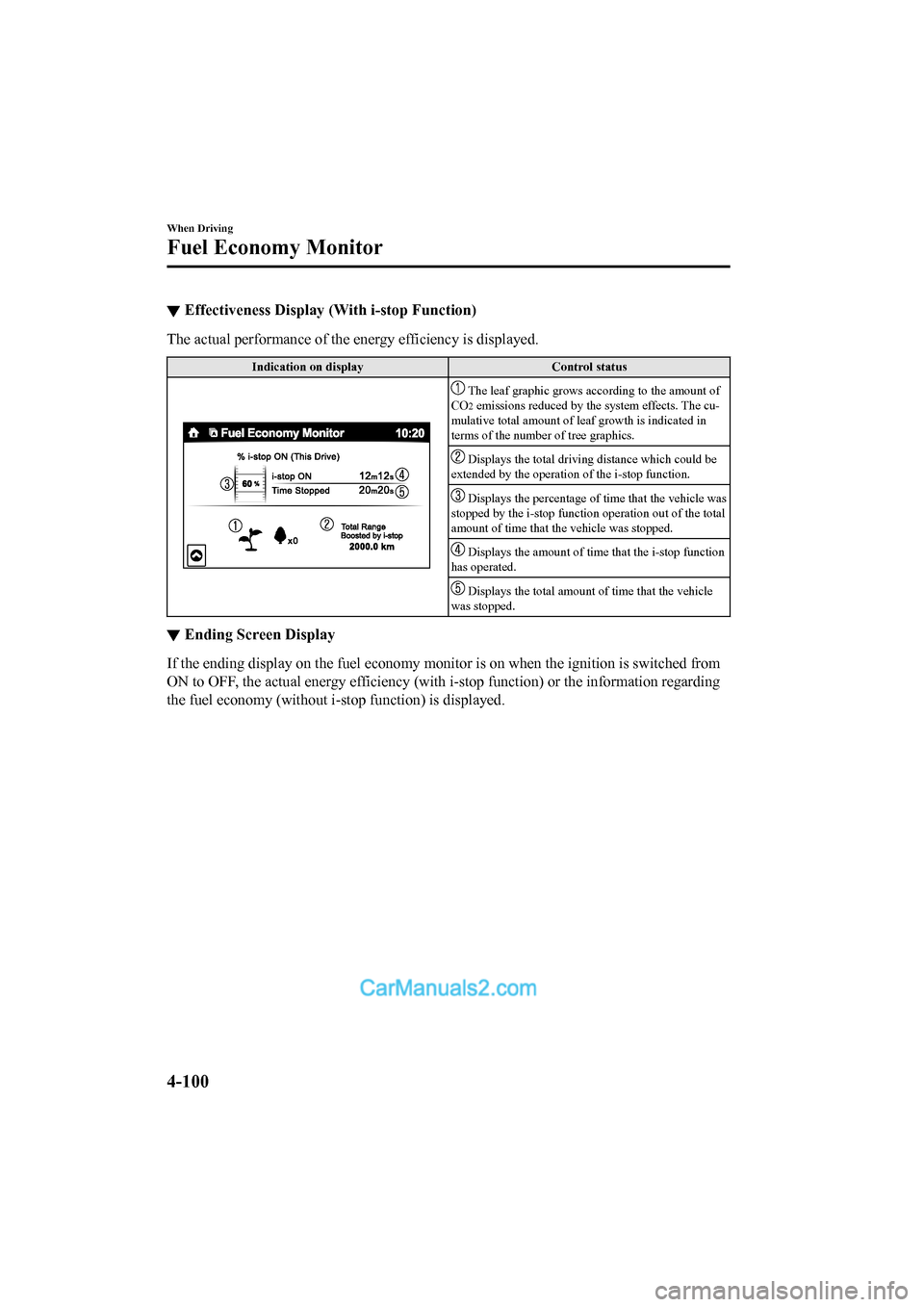

▼Effectiveness Display
(With i-stop Function)
The actual performance of the energy efficiency is displayed.
Indication on display Control status
The leaf graphic grows according to the amount of
CO2 emissions reduced by the system effects. The cu-
mulative total amount of leaf growth is indicated in
terms of the number of tree graphics.
Displays the total drivin g distance which could be
extended by the operation of the i-stop function.
Displays the percentage of time that the vehicle was
stopped by the i-stop function operation out of the total
amount of time that the vehicle was stopped.
Displays the amount of ti me that the i-stop function
has operated.
Displays the total amount of time that the vehicle
was stopped.
▼ Ending Screen Display
If the ending display on the fuel economy monitor is on when th
e ignition is switched from
ON to OFF, the actual energy efficiency (with i-stop function) or the information regarding
the fuel economy (without i-stop function) is displayed.
When Driving
Fuel Economy Monitor
4-100
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Drive Selection*
Drive selection is a system to switch the vehicle's drive mode. When the sport mode is
selected, vehicle's response against accelerator operation is enhanced. This provides
additional quick acceleration which may be needed to safely mak e manoeuvres such as lane
changes, merging onto freeways, or passing other vehicles.
CAUTION
Do not use the sport mode when driving on slip pery roads such as wet or snow-covered roads.
It may cause tyre slipping.
NOTE
•When the sport mode is selected, driving at higher engine speeds increases and it may
increase fuel consumption. Mazda recommends that you cancel the sport mode on normal
driving.
•Drive mode cannot be switched in the following conditions:
•ABS/TCS/DSC is operating
•The Mazda Radar Cruise Control with St op & Go function (MRCC with Stop & Go
function) System/Mazda Radar Cruise Control (MRCC) system/cruise control is
operating.
•Steering wheel is being operated abruptly
▼ Drive Selection Switch
Press the drive selection switch forward
(“
”) to select the sport mode.
Pull the drive selection switch back
(“
”) to cancel the sport mode.

NOTE
•When the ignition is switched off, the
sport mode is cancelled.
•Depending on the driving conditions
when sport mode is selected, the vehicle
may perform shift-down or slightly
accelerate.
▼ Select Mode Indication
When the sport mode is selected, the select
mode indication turns on in the instrument
cluster.
When Driving
Drive Selection
*Some models.4-101
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
