NOTE
If the drive selection cannot be switched to
sport mode, the select mode indication
flashes to notify the driver.
When Driving
Drive Selection
4-102
2017-6-7 7:51:19Form No. CX-5 8FY4-EE-17E+L_Edition2

i-ACTIV AWD Operation*
4WD provides excellent drivability on
snow-covered and ice-packed roads, sand
and mud, as well as on steep slopes and
other slippery surfaces.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Warning Indication/Warning
Lights on page 4-42.
WA R N I N G
Never spin a wheel that is off the ground:
Spinning a wheel that is off the ground as a
result of the vehicle being stuck or in a
ditch is dangerous. The drive assembly
could be seriously damaged which could
lead to an accident or could even lead to
overheating, oil leakage, and a fire.
▼ 4WD Driving
This vehicle has not been designed for the
purpose of off-road driving or rallies. Do
not attempt to drive over uneven or rocky
surfaces, or across rivers.
Although this vehicle is equipped with
4WD, acceleration, steering and braking
operations should be conducted in the
same manner as with a non-4WD vehicle,
with the emphasis placed on safe driving.
▼Tyres and Tyre Chains
The condition of the tyres plays a large
role in the performance of the vehicle.
Moreover, to prevent adverse effects to the
drive assembly, please note the following:
Ty r e s
•When replacing tyres, always replace all
front and rear tyres
at the same time.
•All tyres must be of the same size,
manufacture, brand and tread pattern.
Pay particular attention when equipping
snow or other types of winter tyres.
•Do not mix tread-worn tyres with
normal tyres.
•Inspect tyre inflation pressures at the
specified periods adjust to the specified
pressures.
NOTE
Check the tyre inflation pressure label
attached to driver's door frame for the
correct tyre inflation pressure.
•Make sure to equip the vehicle with
genuine wheels of the specified size, on
all wheels. With 4WD, the system is
calibrated for all four wheels being of
the same dimensions.
Ty r e c h a i n s
•Install tyre chains to the front tyres.
•Do not use tyre chains on the rear
wheels.
•Do not drive the vehicle faster than 30
km/h (19 mph) with the tyre chains
installed.
•Do not drive the vehicle with tyre chains
on road conditions other than snow or
ice.
▼ To w i n g
If the vehicle requires towing, have it
towed with all four wheels completely off
the ground.
Refer to Towing Description on page 7-
39.
When Driving
i-ACTIV AWD
*Some models.4-103
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

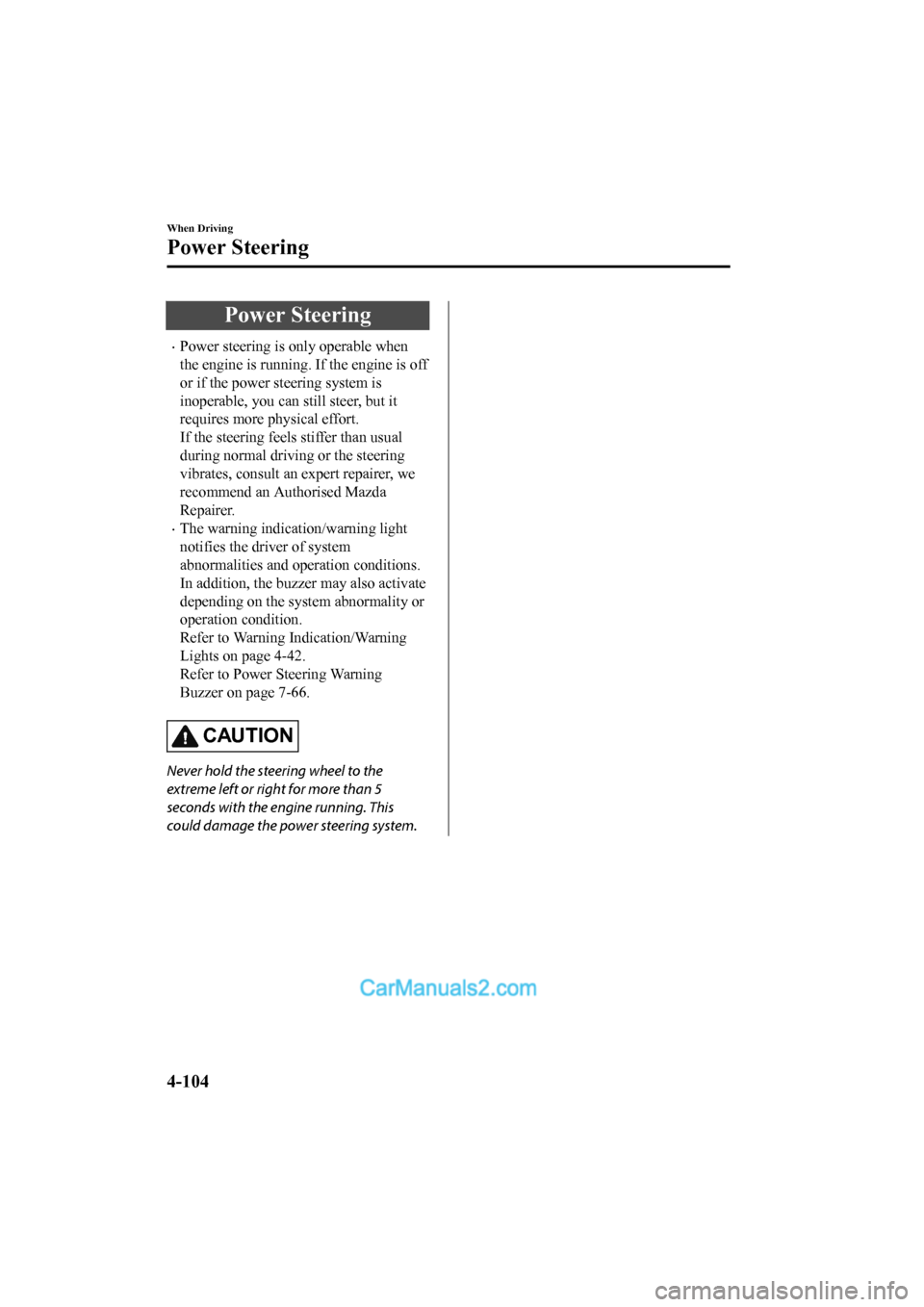

Power Steering
•Power steering is only operable when
the engine is running. If the engine is off
or if the power steering system is
inoperable, you can still steer, but it
requires more physical effort.
If the steering feels stiffer than usual
during normal driving or the steering
vibrates, consult an expert repairer, we
recommend an Authorised Mazda
Repairer.
•The warning indication/warning light
notifies the driver of system
abnormalities and operation conditions.
In addition, the buzzer may also activate
depending on the system abnormality or
operation condition.
Refer to Warning Indication/Warning
Lights on page 4-42.
Refer to Power Steering Warning
Buzzer on page 7-66.
CAUTION
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running. This
could damage the power steering system.
When Driving
Power Steering
4-104
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

i-ACTIVSENSE
i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sensors. These
systems consist of active safety and pre-crash safety systems.
These systems are designed to assist the driver in safer drivin g by reducing the load on the
driver and helping to avert collisions or reduce their severity . However, because each system
has its limitations, always drive carefully and do not rely sol ely on the systems.
▼Active Safety Technology
Active Safety Technology supports safer driving by helping the
driver to recognise potential
hazards and avert accidents.
Driver awareness support systems
Nighttime visibility
Adaptive Front Lighting Sy stem (AFS)...................................................................page 4-108
Adaptive LED Headlights (ALH).............................................................................page 4-112
High Beam Control System (HBC)................................. ........................................ page 4-109
Left/right side and rear side detection
Lane Departure Warning System (LDWS)........................... ................................... page 4-163
Blind Spot Monitoring (BSM)..................................................................................page 4-115
Road sign recognition
Traffic Sign Recognition Sys tem (TSR).................................................................. page 4-120
Inter-vehicle distance recognition
Distance Recognition Support System (DRSS)....................................................... page 4-127
Driver fatigue detection
Driver Attention Alert (DAA)................................... .............................................. page 4-131
Rear obstruction detection wh en leaving a parking space
Rear Cross Traffic Alert (RCTA)................................ .............................................page 4-133
Driver support systems
Inter-vehicle distance
Mazda Radar Cruise Control (MRCC).............................. ...................................... page 4-137
Mazda Radar Cruise Control with Stop & Go function (MRCC with S top & Go function)
.............................................................................................................................. ....page 4-149
When Driving
i-ACTIVSENSE
4-105
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Lane departure
Lane-keep Assist System (LAS).............................................................................. page 4-163
Speed control
Adjustable Speed Limiter (ASL)............................................................................. page 4-174
▼Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in
averting collisions or reduce
their severity in situations where they cannot be avoided.
Collision damage reduction in low vehicle speed range
Forward driving
Smart City Brake Support [Forward] (SCBS F).................... ..................................page 4-185
Advanced Smart City Brake S upport (Advanced SCBS).............. .......................... page 4-181
Reverse driving
Smart City Brake Support [Reverse] (SCBS R).................... .................................. page 4-189
Collision damage reduction in medium/high speed range
Smart Brake Support (SBS)..................................................................................... page 4-193
▼Camera and Sensors
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC) detects lane indications and r
ecognises headlights, tail
lights and city lights during nighttime driving. In addition, i t also detects the vehicle ahead,
pedestrians, or obstructions. The following systems also use th e Forward Sensing Camera
(FSC).
•High Beam Control System (HBC)
•Adaptive LED Headlights (ALH)
•Driver Attention Alert (DAA)
•Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS)
•Traffic Sign Recognition System (TSR)
•Advanced Smart City Brake Support (Advanced SCBS)
•Smart City Brake Support [Forward] (SCBS F)
•Smart Brake Support (SBS)
•Mazda Radar Cruise Control with S top & Go function (MRCC with Stop & Go function)
The Forward Sensing Camera (FSC) is installed at the top of the windscreen near the
rearview mirror.
Refer to Forward Sensing Camera (FSC) on page 4-196.
When Driving
i-ACTIVSENSE
4-106
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Radar sensor (front)
The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead
sent from the radar sensor. The following systems also use the radar sensor (front).
•Mazda Radar Cruise Control with Stop & Go function (MRCC with S top & Go function)
•Mazda Radar Cruise Control (MRCC)
•Distance Recognition Support System (DRSS)
•Smart Brake Support (SBS)
The radar sensor (front) is mount ed behind the radiator grille.
Refer to Radar Sensor (Front) on page 4-201.
Radar sensors (rear)
The radar sensors (rear) function by detecting the radio waves reflected off a vehicle
approaching from the rear or an obstruction sent from the radar sensors. The following
systems also use the radar sensors (rear).
•Blind Spot Monitoring (BSM)
•Rear Cross Traffic Alert (RCTA)
The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Refer to Radar Sensors (Rear) on page 4-204.
Ultrasonic sensors (rear)
The ultrasonic sensors (rear) function by detecting the ultraso nic waves reflected off
obstructions at the rear sent fro m the ultrasonic sensors. The following systems also use the
ultrasonic sensors (rear).
•Smart City Brake Support [Reverse] (SCBS R)
The ultrasonic sensors (rear) are mounted in the rear bumper.
Refer to Ultrasonic Sensors (Rear) on page 4-206.
When Driving
i-ACTIVSENSE
4-107
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

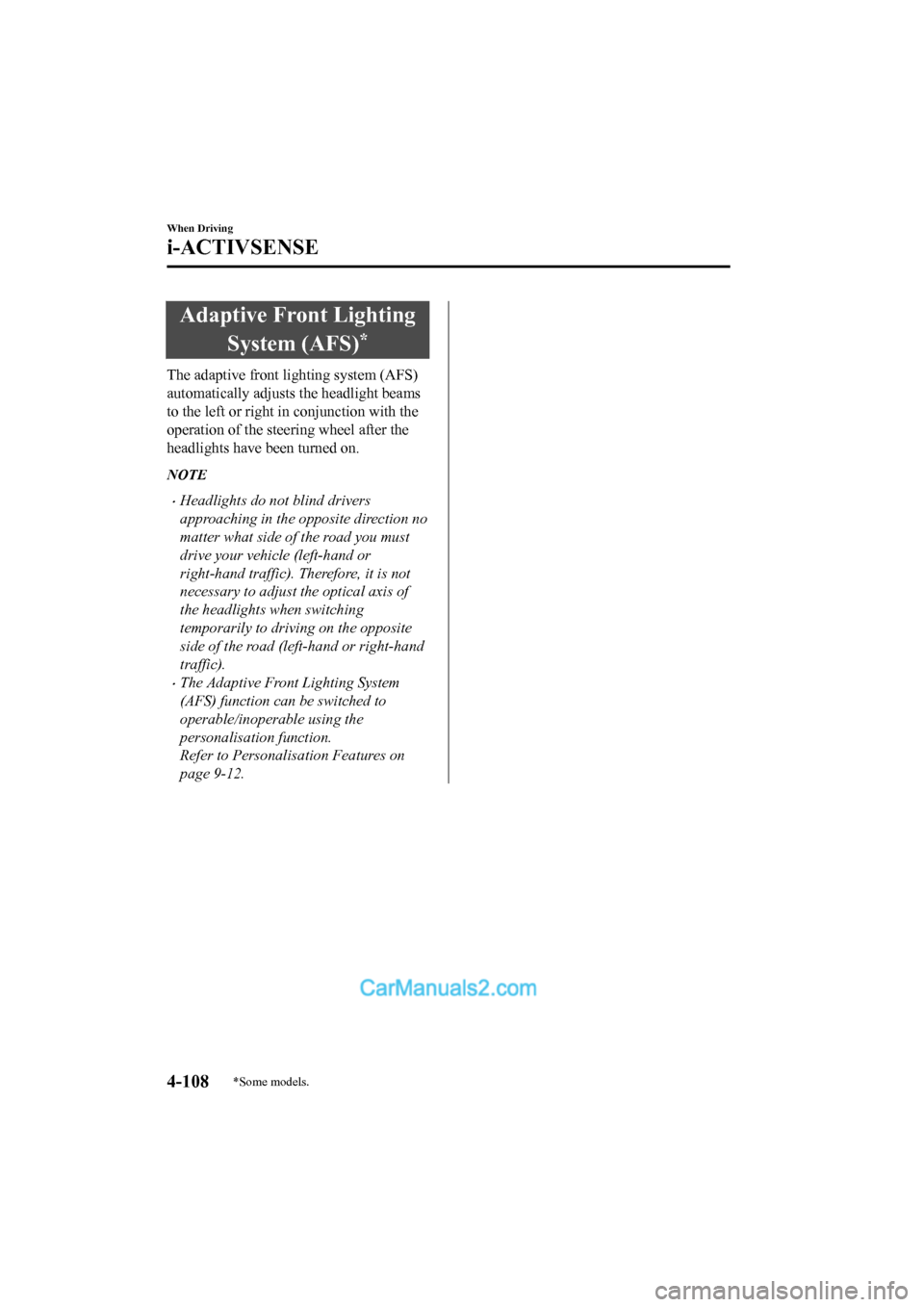

Adaptive Front LightingSystem (AFS)
*
The adaptive front lighting system (AFS)
automatically adjusts the headlight beams
to the left or right i n conjunction with the
operation of the steering wheel after the
headlights have been turned on.
NOTE
•Headlights do not blind drivers
approaching in the opposite direction no
matter what side of the road you must
drive your vehicle (left-hand or
right-hand traffic). Therefore, it is not
necessary to adjust the optical axis of
the headlights when switching
temporarily to driving on the opposite
side of the road (left-hand or right-hand
traffic).
•The Adaptive Front Lighting System
(AFS) function can be switched to
operable/inoperable using the
personalisation function.
Refer to Personalisation Features on
page 9-12.
When Driving
i-ACTIVSENSE
4-108*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

High Beam Control System (HBC)*
The HBC determines the conditions in front of the vehicle using the Forward Sensing
Camera (FSC) while driving in darkness to automatically switch the headlights between
high and low beams.
Refer to Warning/Indicator Lights on page 4-42.
While driving the vehicle at a speed of about 30 km/h (19 mph) or more, the headlights are
switched to high beams when there are no vehicles ahead or appr oaching in the opposite
direction.
The system switches the headlights to low beams when one of the following occurs:
•The system detects a vehicle or the headlights/lights of a vehicle approaching in the
opposite direction.
•The vehicle is driven on roads lin ed with streetlamps or on roads in well-lit cities and
towns.
•The vehicle is driven at less than about 20 km/h (12 mph).
Forward Sensing
Camera (FSC)
The recognition distance of the
Forward Sensing Camera (FSC)
varies according to the
surrounding conditions.
The warning light turns on when the system has a malfunction.
Refer to Warning Indication/Warning Lights on page 4-42.
CAUTION

Do not adjust the vehicle he ight, modify the headlight units, or remove the camera,
otherwise the system will not operate normally.
 Do not rely excessively on the HBC and drive the vehicle while paying
sufficient attention to
safety. Switch the headlights between th e high beams and low beams manually if
necessary.
When Driving
i-ACTIVSENSE
*Some models.4-109
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

NOTE
The timing in which the system switches the headlights changes under the following
conditions. If the system does not switch the headlights appropriately, manually switch
between high and low beams according to the visibility as well as road and traffic
conditions.
•When there are sources of light in the area such as street lamps, illuminated signboards,
and traffic signals.
•When there are reflective objects in the surrounding area such as reflective plates and
signs.
•When visibility is reduced under rain, snow and foggy conditions.
•When driving on roads with sharp turn or hilly terrain.
•When the headlights/rear lamps of vehicles in front of you or in the opposite lane are dim
or not illuminated.
•When there is insufficient darkness such as at dawn or dusk.
•When the luggage compartment is loaded with heavy objects or the rear passenger seats
are occupied.
•When visibility is reduced due to a vehicle in front of you spraying water from its tyres
onto your windscreen.
▼ To Operate the System
The HBC operates to sw
itch the headlights
automatically between high and low
beams after the ignition is switched ON
and the headlight switch is in the AUTO
and high beam position.
The HBC determines t hat it is dark based
on the brightness of the surrounding area.
At the same time, th e HBC indicator light
(green) in the instrument cluster
illuminates.

The HBC determines t hat it is dark based
on the brightness of the surrounding area.
NOTE
•When the vehicle speed is about 30 km/h
(19 mph) or more, the headlights
automatically switch to high beams
when there are no vehicles ahead or
approaching in the opposite direction.
When the vehicle speed is less than
about 20 km/h (12 mph), the HBC
switches the headlights to low beams.
•The low beams may not switch to high
beams when cornering.
•Operation of the HBC function can be
disabled. Refer to Personalisation
Features on page 9-12.
When Driving
i-ACTIVSENSE
4-110
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Manual Switching
Switching to
low beams
Shift the lever to the low beam position.
The HBC indicator light (green) turns off.
Switching to high beams
Turn the headlight switch to the
position.
The HBC indicator light (green) turns off
and the
is illuminated.
When Driving
i-ACTIVSENSE
4 - 111
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
