MAZDA MODEL CX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)

Use only a Mazda-genuine tyre valve cap:
Use of a non-genuine part is dangerous as
the correct tyre air pressure cannot be
maintained if the tyre valve becomes
damaged. If the vehicle is driven under this
condition, the tyre air pressure will
decrease which could result in a serious
accident. Do not use any part for the tyre
valve cap that is not a Mazda-genuine
part.
Inspect all tyre pressures monthly
(including the spare
*) when the tyres are
cold. Maintain recommended pressures for
the best ride, handl ing, and minimum tyre
wear.
Refer to the specification charts (page 9-
9).
NOTE
•Always check tyre pressure when tyres
are cold.
•Warm tyres normally exceed
recommended pressures. Do not release
air from warm tyres to adjust the
pressure.
•Underinflation can cause reduced fuel
economy, uneven and accelerated tyre
wear, and poor sealing of the tyre bead,
which will deform the wheel and cause
separation of tyre from rim.
•Overinflation can produce a harsh ride,
uneven and accelerated tyre wear, and a
greater possibility of damage from road
hazards.
Keep your tyre pressure at the correct
levels. If one frequently needs inflating,
have it inspected.
▼ Tyre Rotation
WA R N I N G
Rotate tyres periodically:
Irregular tyre wear is dangerous. To
equalize tread wear for maintaining good
performance in handling and braking,
rotate the tyres every 10,000 km (6,250
miles), or sooner if irregular wear develops.
During rotation, inspect them for correct
balance.
NOTE
(Without temporary spare tyre)
Because your vehicle is not equipped with
a spare tyre, you cannot do a tyre rotation
safely with the jack
that comes with your
vehicle. Have an expert repairer, we
recommend an Authorised Mazda
Repairer perform tyre rotation.

Do not include (TEMPORARY USE
ONLY) spare tyre in rotation.
Forward
Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:

•Incorrect tyre pressure
•Improper wheel alignment
•Out-of-balance wheel
Maintenance and Care
Owner Maintenance
6-44*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•Severe braking

After rotation, inflate all tyre pressures to
specification (page 9-9) and inspect the
wheel nuts for tightness.
CAUTION
Rotate unidirectional tyres and radial tyres
that have an asymmetrical tread pattern or
studs only from front to rear, not from side
to side. Tyre performance will be reduced if
rotated from side to side.
▼ Replacing a Tyre
WA R N I N G
Always use tyres that are in good
condition:
Driving with worn tyres is dangerous.
Reduced braking, steering, and traction
could result in an accident.
Replace all four tyres at the same time:
Replacing just one ty
re is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle control.
Mazda strongly recommends that you
replace all four tyres at the same time.
If a tyre wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tyre w hen this happens.
New tread
Tread wear
indicator
Worn tread
You should replace the tyre before the
band crosses the entire tread.
▼Temporary Spare Tyre*
Inspect the temporary spare tyre at least
monthly to make su
re it is properly
inflated and stored.
NOTE
The temporary spare tyre condition
gradually deteriorates even if it has not
been used.
The temporary spare tyre is easier to
handle because of its construction which is
lighter and smaller than a conventional
tyre. This tyre should be used only for an
emergency and only for a short distance.

Use the temporary spare tyre only until the
conventional tyre is repaired, which
should be as soon as possible.

Refer to Tyre on page 9-9.
CAUTION
 Do not use your temporary spare tyre rim
with a snow tyre or a conventional tyre.
Neither will properly fit and could
damage both tyre and rim.
Maintenance and Care
Owner Maintenance
*Some models.6-45
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

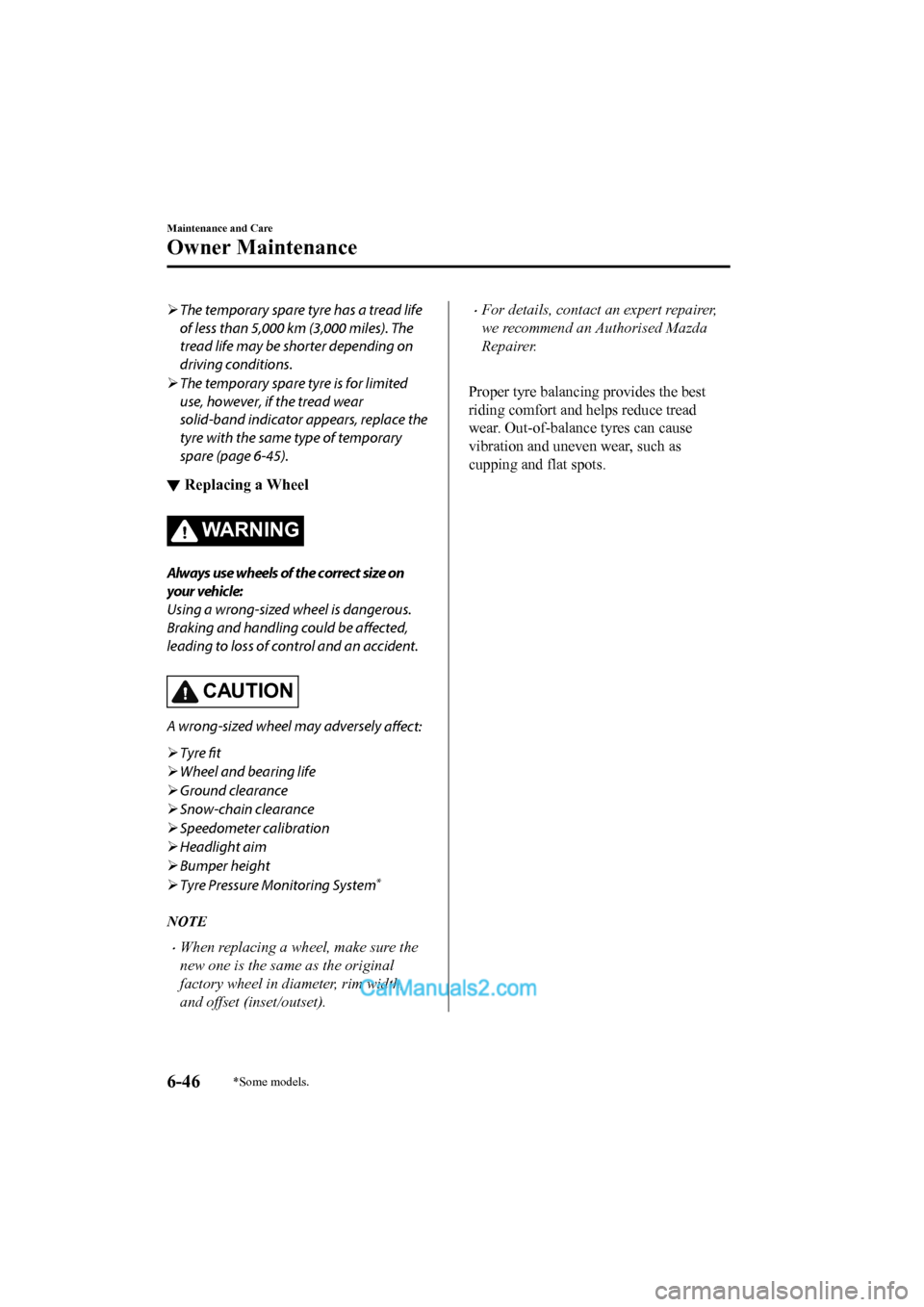

The temporary spare tyre has a tread life
of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.
 The temporary spare tyre is for limited
use, however, if the tread wear
solid-band indicator appears, replace the
tyre with the same type of temporary
spare (page 6-45).
▼ Replacing a Wheel
WA R N I N G
Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is dangerous.
Braking and handling could be
affected,
leading to loss of control and an accident.
CAUTION
A wrong-sized wheel may adversely affect:
 Tyre fit
 Wheel and bearing life
 Ground clearance
 Snow-chain clearance
 Speedometer calibration
 Headlight aim
 Bumper height
 Tyre Pressure Monitoring System
*
NOTE
•When replacing a wheel, make sure the
new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).
•For details, contact an expert repairer,
we recommend an Authorised Mazda
Repairer.

Proper tyre balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tyres can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
6-46*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Light Bulbs
Type A
Type B
Headlights (High/Low beam)
Running lights/Position lights
Headlights (Low beam)*
Running lights*
Front fog lights*
Front direction indicator lights
Position lights
Side direction indicator lights
Brake lights
Maintenance and Care
Owner Maintenance
*Some models.6-47
2017-6-7 7:51:19Form No. CX-5 8FY4-EE-17E+L_Edition2

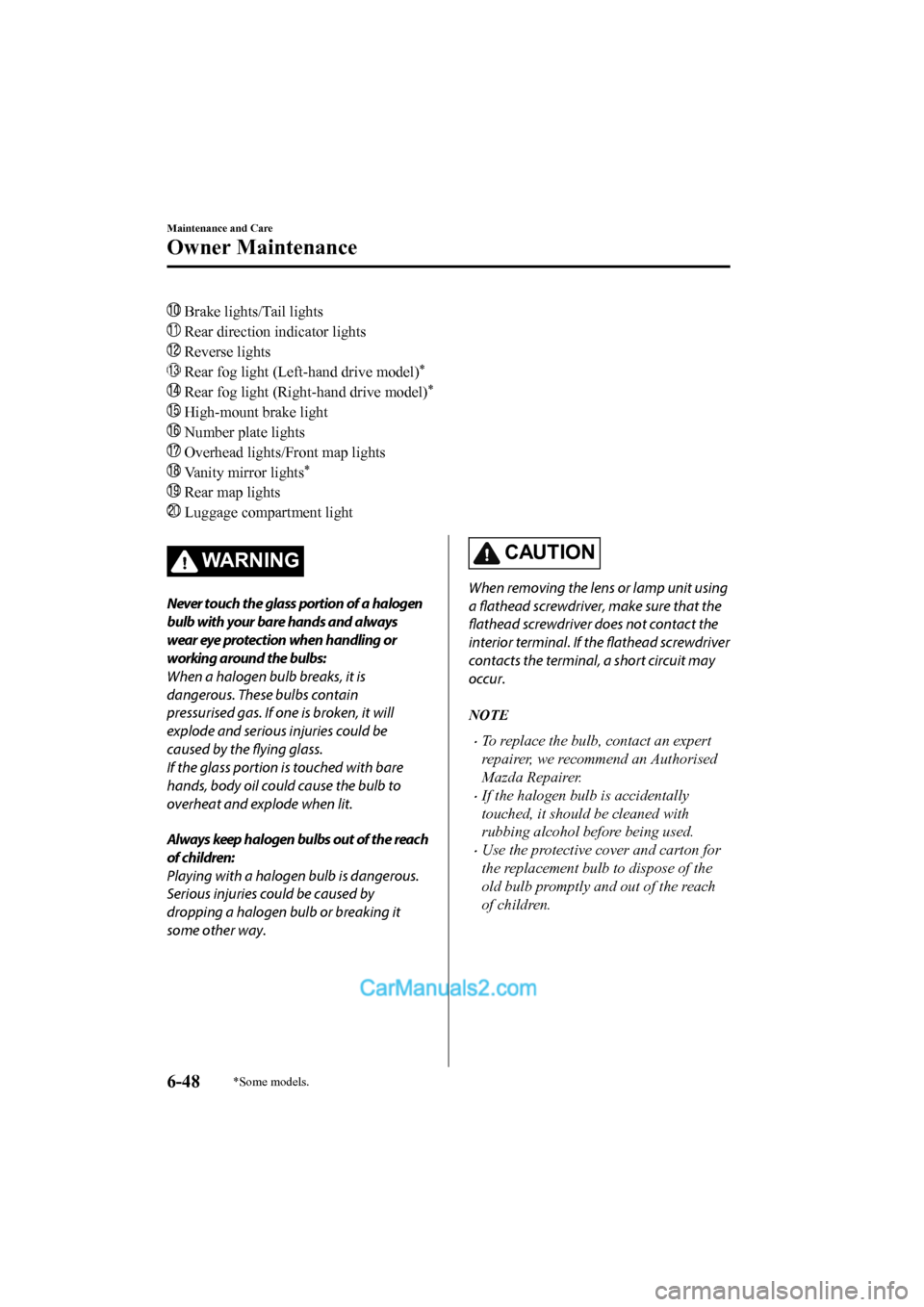

Brake lights/Tail lights
Rear direction indicator lights
Reverse lights
Rear fog light (Left-hand drive model)*
Rear fog light (Right-hand drive model)*
High-mount brake light
Number plate lights
Overhead lights/Front map lights
Vanity mirror lights*
Rear map lights
Luggage compartment light
WA R N I N G
Never touch the glass portion of a halogen
bulb with your bare hands and always
wear eye protection when handling or
working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurised gas. If one is broken, it will
explode and serious injuries could be
caused by the
flying glass.
If the glass portion is touched with bare
hands, body oil could cause the bulb to
overheat and explode when lit.
Always keep halogen bulbs out of the reach
of children:
Playing with a halogen bulb is dangerous.
Serious injuries could be caused by
dropping a halogen bulb or breaking it
some other way.
CAUTION
When removing the lens or lamp unit using
a flathead screwdriver, make sure that the
flathead screwdriver does not contact the
interior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may
occur.
NOTE
•To replace the bulb, contact an expert
repairer, we recommend an Authorised
Mazda Repairer.
•If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
•Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
Maintenance and Care
Owner Maintenance
6-48*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Replacing Exterior Light Bulbs
Headlights, Running lights/Position
lights (Type A), Ru
nning lights (Type
A), Front fog lights*, Side direction
indicator lights, Bra ke lights (Type A),
Brake lights/Tail lights (Type A),
Reverse lights, High-mount brake light
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorised Mazda
Repairer when the replacement is
necessary.
Front direction indicator lights, Position
lights (Type B)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the bonnet. Refer to Bonnet on page 6-22.
3. Turn the socket and bulb assembly anticlockwise and remove it.
4. Disconnect the bulb from the socket. Front direction indicator lights
Position lights
5. Install the new bulb in the reverse
order of the removal procedure.
Running lights (Type B)
*
1. Make sure the ignition is switched off, and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
3. Pull the centre of each plastic retainer
using a flathead screwdriver and
remove the retainers, and then partially
peel back the over fender.
Removal
Installation
Maintenance and Care
Owner Maintenance
*Some models.6-49
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

4. Pull the centre of each plastic retainerusing a flathead screwdriver and
remove the retainers, and then partially
peel back the mudguard.
Removal
Installation
5. Turn the socket and bulb assemblyanticlockwise and remove it.
6. Disconnect the bulb from the socket.
7. Install the new bulb in the reverse order of the removal procedure.
Rear direction indicator lights, Brake
lights/Tail lights (Type B)
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Wrap a small flathead screwdriver witha soft cloth to prev ent damage to the
cover, and then remove the cover with
the flathead screwdriver.
3. Turn the screws anticlockwise and remove them.
4. Pull the unit rearward to remove it.
5. Turn the socket and bulb assembly
anticlockwise and remove it.
Maintenance and Care
Owner Maintenance
6-50
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

6. Disconnect the bulb from the socket.Rear direction indicator lights
Brake lights/Tail lights
7. Install the new bulb in the reverseorder of the removal procedure.
Rear fog light
*
1. Make sure the ignition is switched off and the headlight switch is off.
2. Pull the centre of each plastic retainer and remove the retainers.
3. Remove the cover.
Removal
Installation
4. Turn the socket and bulb assembly
anticlockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order of the removal procedure.
Number plate lights
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on t he edge of the lens
with a flathead screwdriver.
Maintenance and Care
Owner Maintenance
*Some models.6-51
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverseorder of the removal procedure.
▼Replacing Interior Light Bulbs
Overhead light/Front map lights, Rear
map lights, Vanity mirror lights*
1. Wrap a flathead s
crewdriver with a
soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on th e edge of the lens
with a flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light/Front map lights
Maintenance and Care
Owner Maintenance
6-52*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Rear map lights
Vanity mirror lights*
3. Install the new bulb in the reverseorder of the removal procedure.
Luggage compartment light
1. Wrap a small flathead screwdriver witha soft cloth to prev ent damage to the
lens and remove the lens unit by
carefully prying on t he edge of the lens
unit with the flathead screwdriver.
2. Disconnect the electrical connector from the bulb by pressing the tab on
the connector with your finger and
pulling the connector.
CAUTION
When replacing the bulb always
disconnect the connector first.
Otherwise, electric and electronic
devices could be shorted.
Maintenance and Care
Owner Maintenance
*Some models.6-53
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
