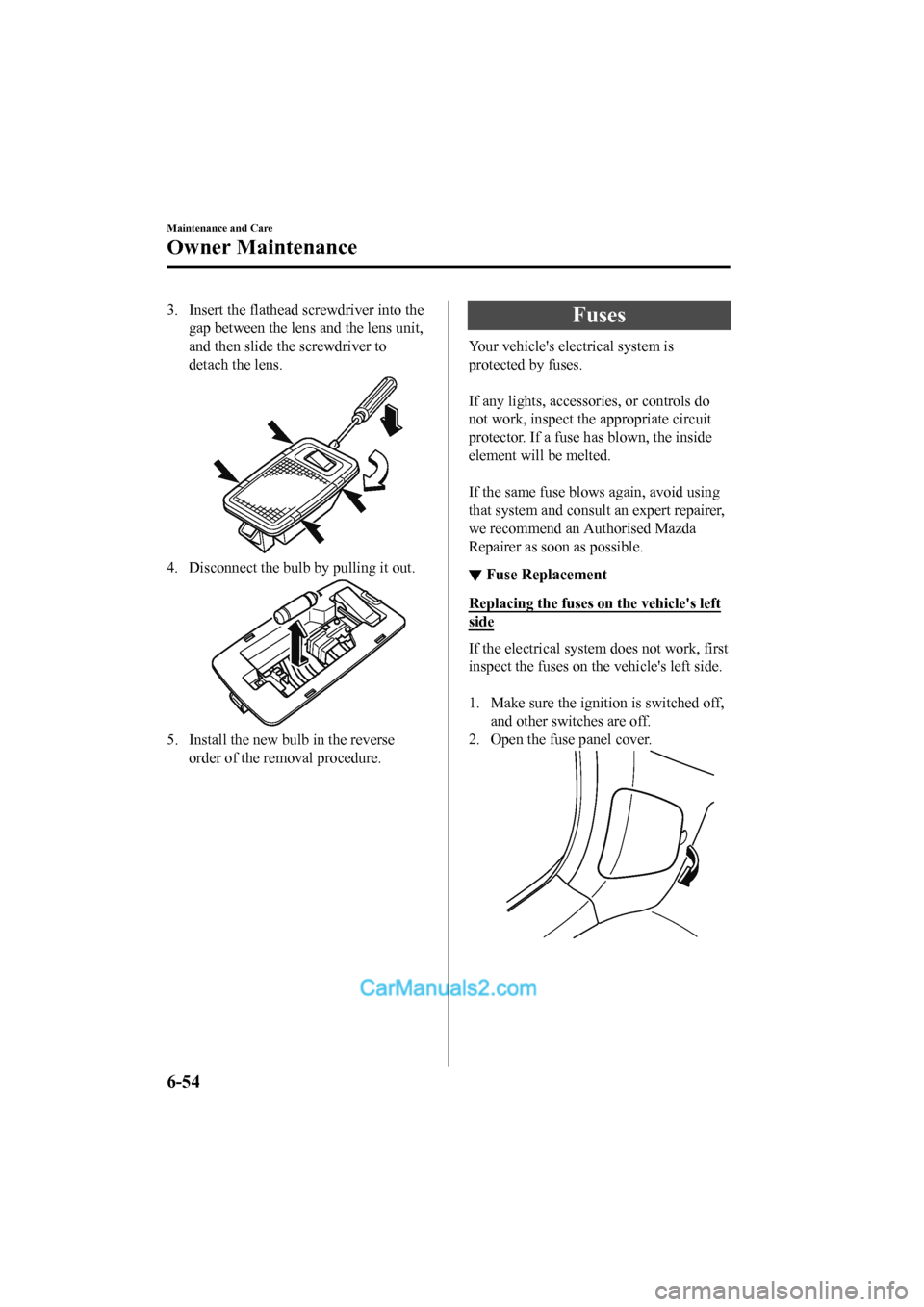

3. Insert the flathead screwdriver into thegap between the lens and the lens unit,
and then slide the screwdriver to
detach the lens.
4. Disconnect the bulb by pulling it out.
5. Install the new bulb in the reverseorder of the removal procedure.
Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect th e appropriate circuit
protector. If a fuse h as blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an expert repairer,
we recommend an Authorised Mazda
Repairer as soon as possible.
▼ Fuse Replacement
Replacing the fuses on
the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.

1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
Maintenance and Care
Owner Maintenance
6-54
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

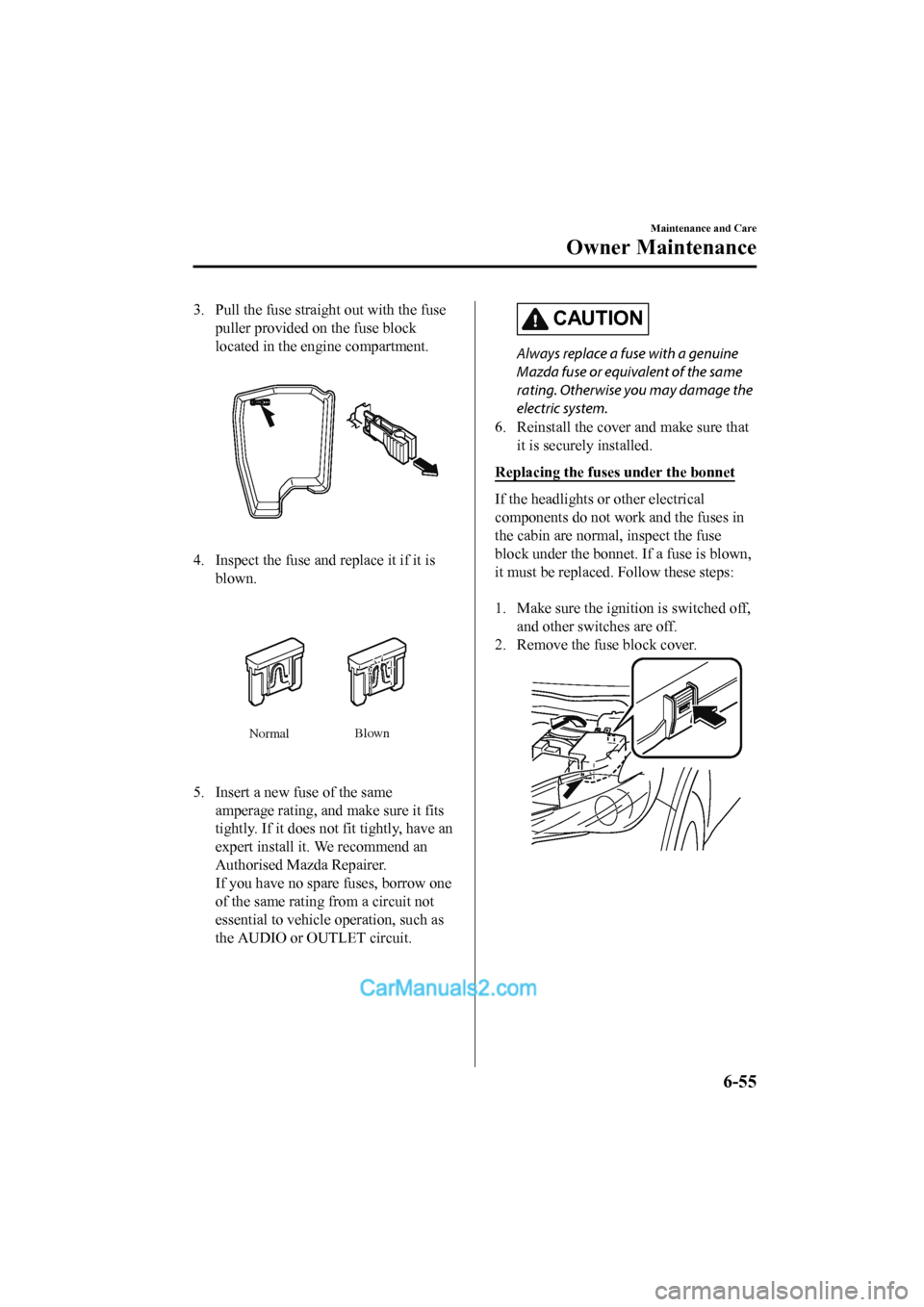

3. Pull the fuse straight out with the fusepuller provided on the fuse block
located in the eng ine compartment.
4. Inspect the fuse and replace it if it is
blown.
Normal Blown
5. Insert a new fu
se of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, have an
expert install it. We recommend an
Authorised Mazda Repairer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.
6. Reinstall the cover and make sure that it is securely installed.
Replacing the fuse s under the bonnet
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the bonnet. If a fuse is blown,
it must be replaced. Follow these steps:

1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
Maintenance and Care
Owner Maintenance
6-55
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

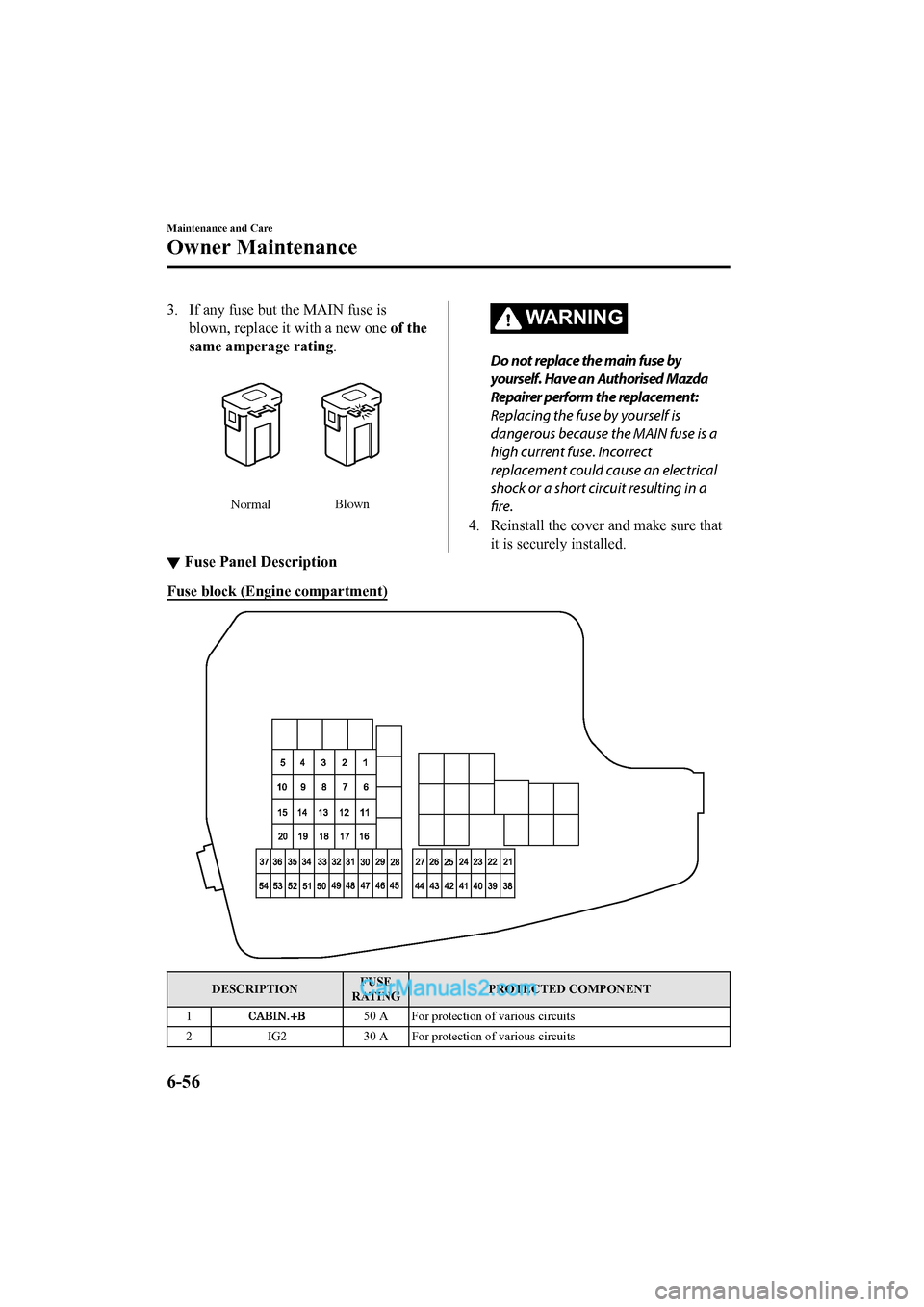

3. If any fuse but the MAIN fuse isblown, replace it with a new one of the
same amperage rating .
NormalBlown
WARNING
Do not replace the main fuse by
yourself. Have an Authorised Mazda
Repairer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that it is securely installed.
▼Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1
50 A For protection of various circuits
2 IG2 30 A For protection of various circuits
Maintenance and Care
Owner Maintenance
6-56
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
3 INJECTOR
ENG.SUB 30 A
Engine control system
*
4 SCR1
EVVT 20 A
Engine control system*
5 P.WINDOW1 30 A Power windows*
6 R.HEATER 20 A ―
7 ADD FAN DE 40 A Cooling fan
*
8 WIPER.DEI 20 AWindscreen wiper de-icer*
9DEFOG 40 A Rear window defogger
10 DCDC DE 40 A For protection of various circuits
*
11EPB R 20 A Electric parking brake (EPB) (RH)
12 EPB L 20 A Electric parking brake (EPB) (LH)
13 AUDIO
DCDC REG 30 A
Audio system
*
14 FAN GE 30 A
Cooling fan*
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17 FAN DE 40 A
Cooling fan
*
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
20 ADD FAN GE 30 A Cooling fan
*
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG115 A For protection of various circuits
23 AUDIO2 7.5 A Audio system
24 METER2 7.5 A Instrument cluster
*
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 AEngine control system
*
28AT 15 A
Transaxle control system*, Ignition switch
29 H/CLEAN 20 A Headlight washer
*
30A/C 7.5 A
Air conditioner*
31 AT PUMP 15 A Transaxle control system*
32HORN 15 A Horn
33 R.WIPER 15 A Rear window wiper
34 H/L HI 20 A Headlight high beam
Maintenance and Care
Owner Maintenance
*Some models.6-57
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

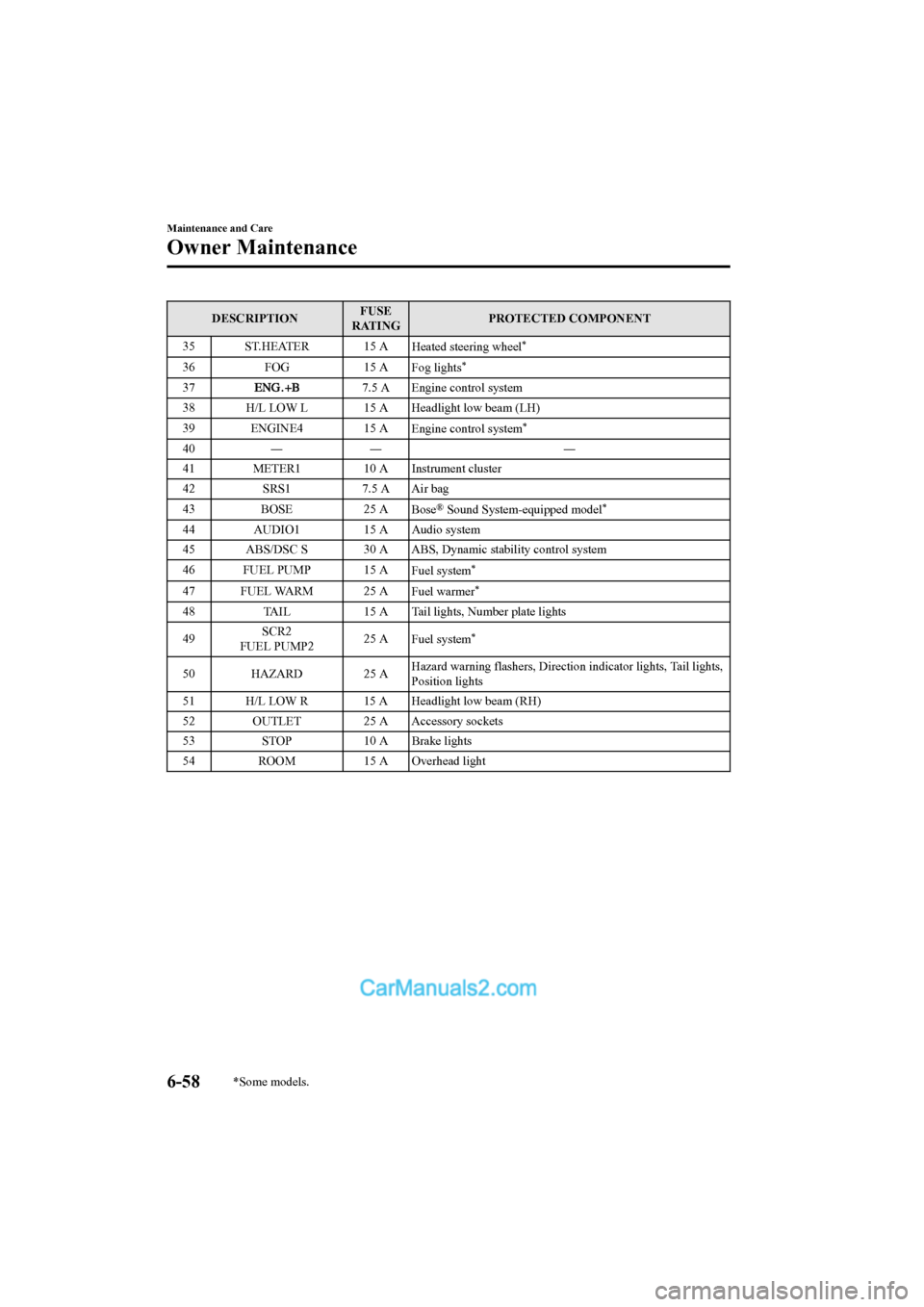

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
35 ST.HEATER 15 A Heated steering wheel
*
36FOG 15 A
Fog lights*
377.5 A Engine control system
38 H/L LOW L 15 A Headlight low beam (LH)
39 ENGINE4 15 A Engine control system
*
40― ― ―
41 METER1 10 A Instrument cluster
42 SRS1 7.5 A Air bag
43 BOSE 25 A
Bose
® Sound System-equipped model*
44 AUDIO1 15 A Audio system
45 ABS/DSC S 30 A ABS, Dynami c stability control system
46 FUEL PUMP 15 A Fuel system
*
47 FUEL WARM 25 AFuel warmer*
48TAIL 15 A Tail lights, Number plate lights
49 SCR2
FUEL PUMP2 25 A
Fuel system
*
50 HAZARD 25 A Hazard warning flashers, Direc
tion indicator lights, Tail lights,
Position lights
51 H/L LOW R 15 A Headlight low beam (RH)
52 OUTLET 25 A Accessory sockets
53 STOP 10 A Brake lights
54 ROOM 15 A Overhead light
Maintenance and Care
Owner Maintenance
6-58*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

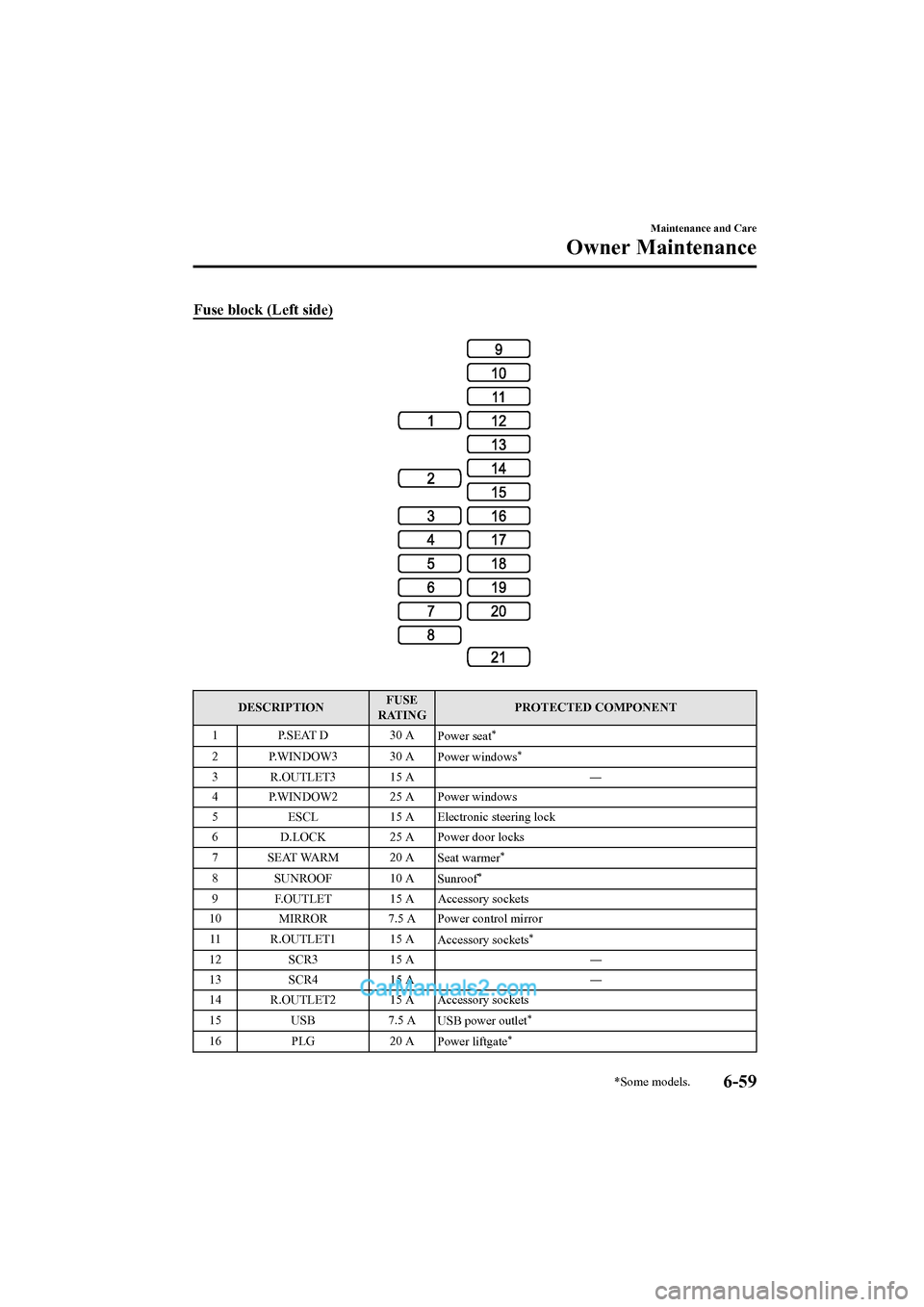

Fuse block (Left side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
*
2P.WINDOW3 30 APower windows*
3 R.OUTLET3 15 A ―
4 P.WINDOW2 25 A Power windows
5 ESCL 15 A Electronic steering lock
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmer
*
8 SUNROOF 10 ASunroof*
9 F.OUTLET 15 A Accessory sockets
10 MIRROR 7.5 A Power control mirror
11 R.OUTLET1 15 A Accessory sockets
*
12SCR3 15 A ―
13 SCR4 15 A ―
14 R.OUTLET2 15 A Accessory sockets
15 USB 7.5 A
USB power outlet
*
16 PLG 20 A
Power liftgate*
Maintenance and Care
Owner Maintenance
*Some models.6-59
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

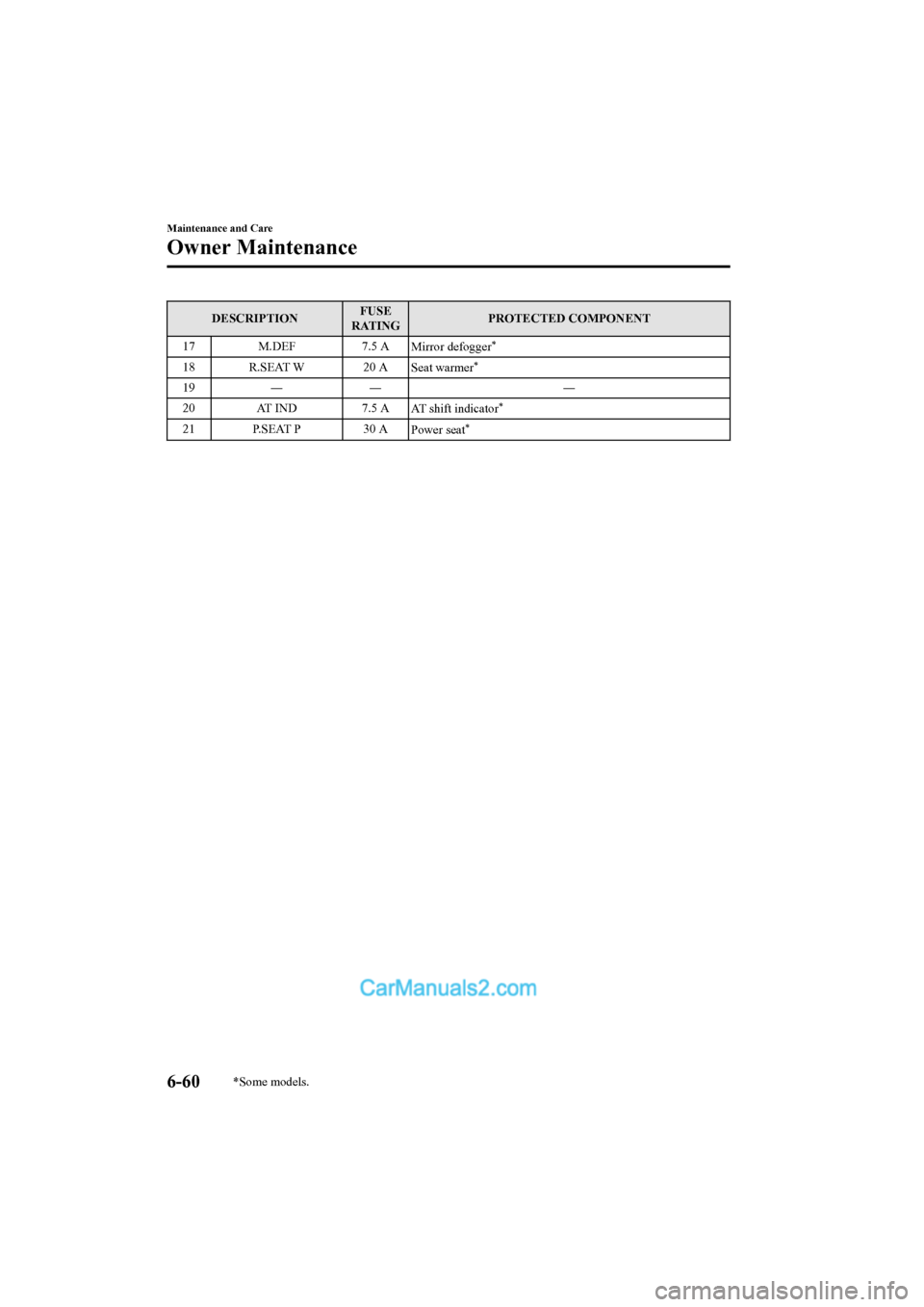

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
17 M.DEF 7.5 A
Mirror defogger
*
18 R.SEAT W 20 A Seat warmer*
19― ― ―
20 AT IND 7.5 A
AT shift indicator
*
21 P.SEAT P 30 A
Power seat*
Maintenance and Care
Owner Maintenance
6-60*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

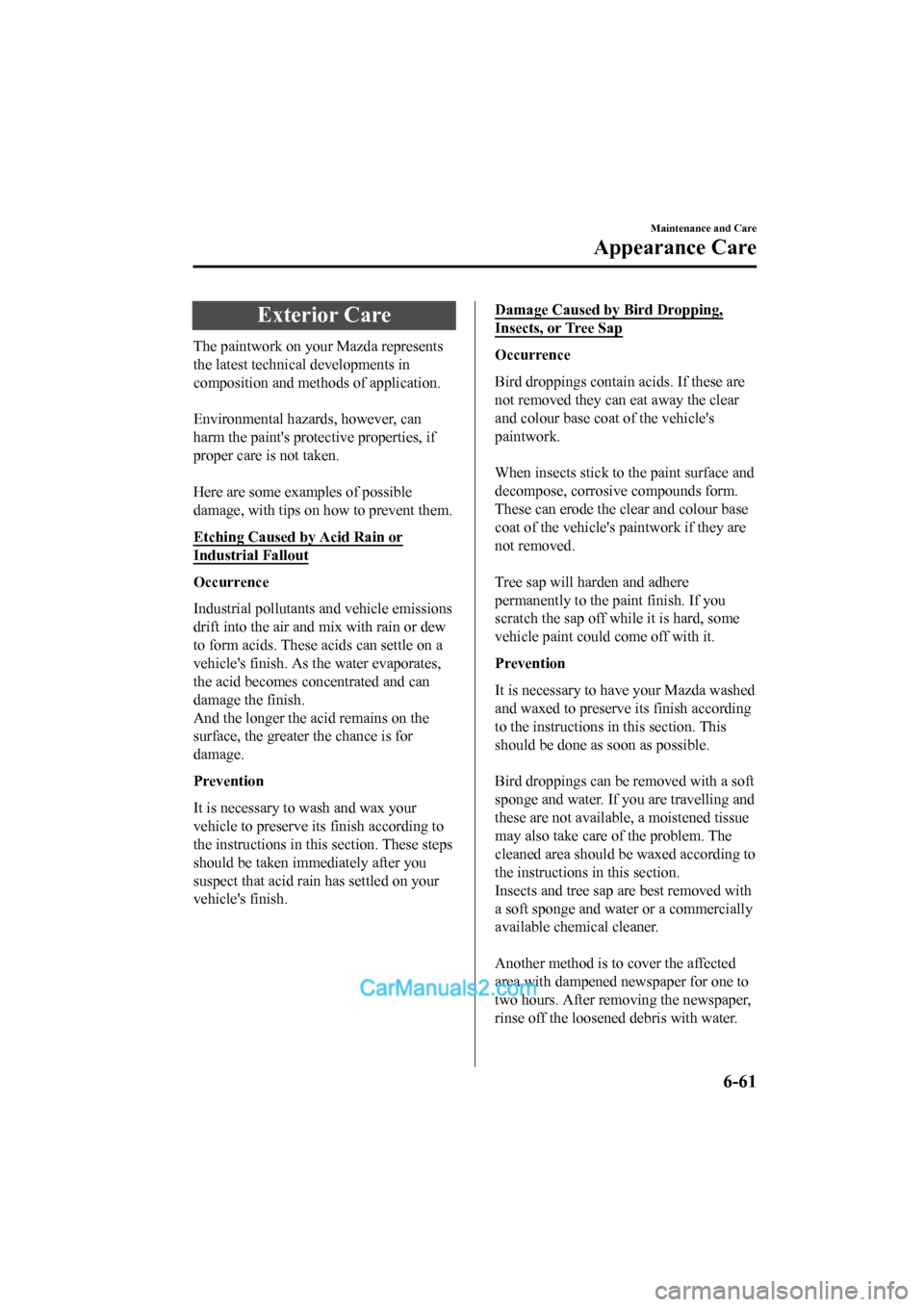

Exterior Care
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.

Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent them.
Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve it s finish according to
the instructions in this section. These steps
should be taken immediately after you
suspect that acid rain has settled on your
vehicle's finish.
Damage Caused by Bird Dropping,
Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these are
not removed they can eat away the clear
and colour base coat of the vehicle's
paintwork.

When insects stick to the paint surface and
decompose, corrosive compounds form.
These can erode the clear and colour base
coat of the vehicle's paintwork if they are
not removed.

Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda washed
and waxed to preserve its finish according
to the instructions in this section. This
should be done as soon as possible.

Bird droppings can be removed with a soft
sponge and water. If you are travelling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according to
the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.

Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
Maintenance and Care
Appearance Care
6-61
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Wa t e r M a r k s
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these minerals
settles on the vehicle and evaporates, the
minerals will concentrate and harden to
form white rings. The rings can damage
your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These steps
should be taken immediately after you find
water marks on your vehicle's finish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another v ehicle's tyres hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
•The paint chipping zone varies with the
speed of the vehicle. For example, when
travelling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
•In low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
•Chipped paint can lead to rust forming
on your Mazda. Before this happens,
repair the damage by using Mazda
touch-up paint according to the
instructions in this section. Failure to
repair the affected area could lead to
serious rusting and expensive repairs.

Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
▼ Maintaining the Finish
Wa s h i n g
CAUTION

When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windscreen above the rain sensor
is touched or wiped with a cloth.
 If the windscreen is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windscreen when the wiper lever is in the
position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windscreen,
be sure the wipers are turned off
completely (when it is most likely that the
engine is left running) this is particularly
important when clearing ice and snow.
Maintenance and Care
Appearance Care
6-62
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

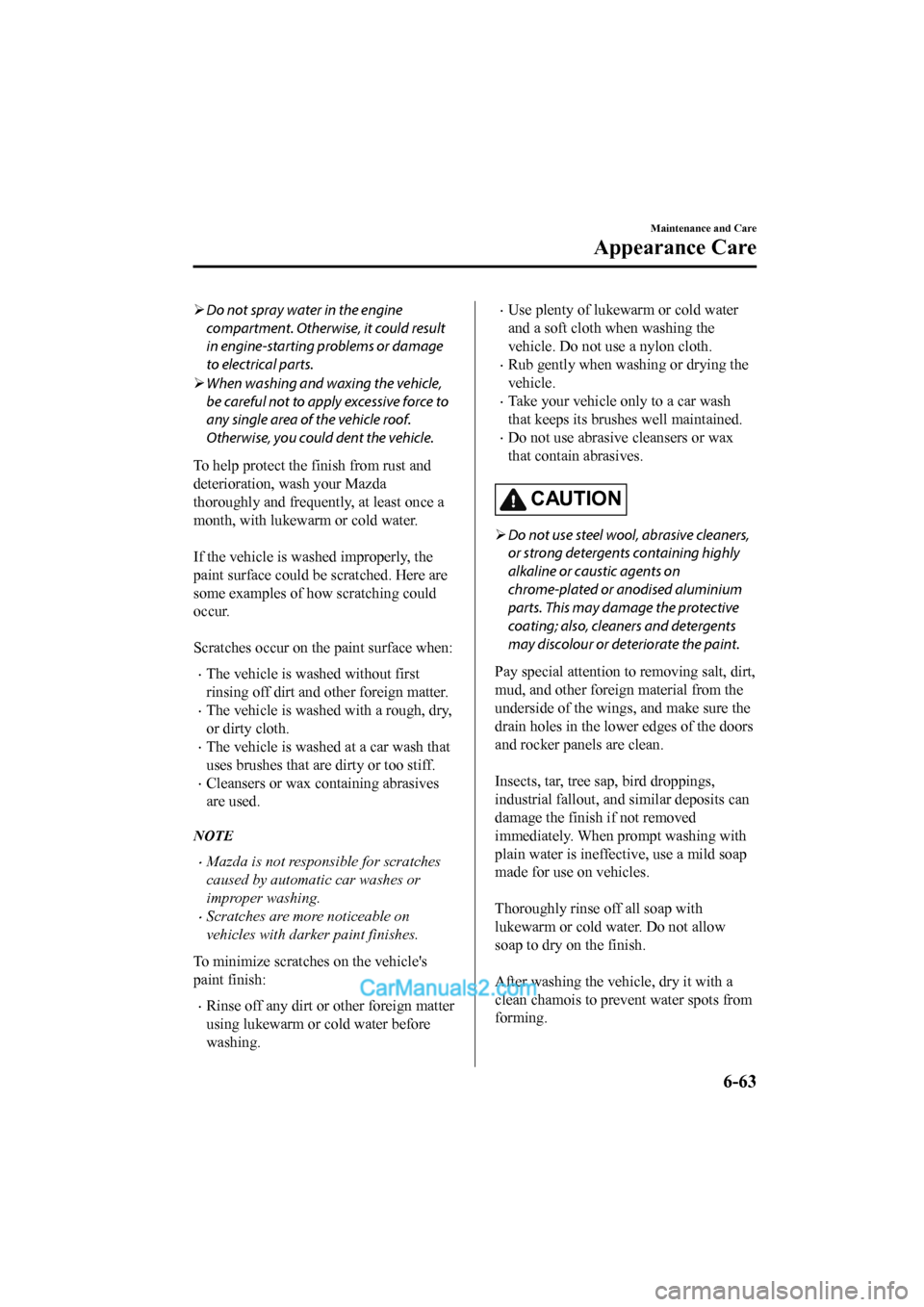

Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
 When washing and waxing the vehicle,
be careful not to apply excessive force to
any single area of the vehicle roof.
Otherwise, you could dent the vehicle.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on th e paint surface when:
•The vehicle is washed without first
rinsing off dirt and other foreign matter.
•The vehicle is washed with a rough, dry,
or dirty cloth.
•The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
•Cleansers or wax containing abrasives
are used.
NOTE
•Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
•Scratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
•Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
•Use plenty of luke warm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
•Rub gently when washing or drying the
vehicle.
•Take your vehicle only to a car wash
that keeps its brushes well maintained.
•Do not use abrasive cleansers or wax
that contain abrasives.
CAUTION
 Do not use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on
chrome-plated or anodised aluminium
parts. This may damage the protective
coating; also, cleaners and detergents
may discolour or deteriorate the paint.
Pay special attention to removing salt, dirt,
mud, and other forei gn material from the
underside of the wing s, and make sure the
drain holes in the lower edges of the doors
and rocker panels are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the ve hicle, dry it with a
clean chamois to prevent water spots from
forming.
Maintenance and Care
Appearance Care
6-63
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
