MAZDA MODEL CX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)

WA R N I N G
Dry off brakes that have become wet by
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
several times until the brake performance
returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the vehicle
pulling to one side when braking could
result in a serious accident. Light braking
will indicate whether the brakes have been
affected.
When using an automatic car wash
•Retract the door mirrors.
•The automatic car wash brushes could
reduce the paint lustre or hasten paint
deterioration.
When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the seal ability of parts, and
allow water to penetra te the interior. Keep
a sufficient space (30 cm (12 in) or more)
between the nozzle a nd the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer be ads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to m aintain its lustre.

1. Use wax which contains no abrasives. Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colours.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take off
the wax. Rewax these areas even if the rest
of the vehicle does not need it.
▼ Paint Damage Touch-up
Repair damage to the finish caused by
stone chipping, damage during parking
etc., by using Mazda touch-up paint before
rust begins to form. F
irst, remove the dirt
and grease with a clean soft cloth.

If rust has already begun to form:

1. Remove rust completely with sandpaper.
2. Wipe with a clean soft cloth.
3. Apply rust preventive primer to the area.
4. After drying it completely, apply a suitable top coat material to the area.
Of course there will be no problem if you
assign the work to an expert repairer, we
recommend an Authorised Mazda
Repairer.
Maintenance and Care
Appearance Care
6-64
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

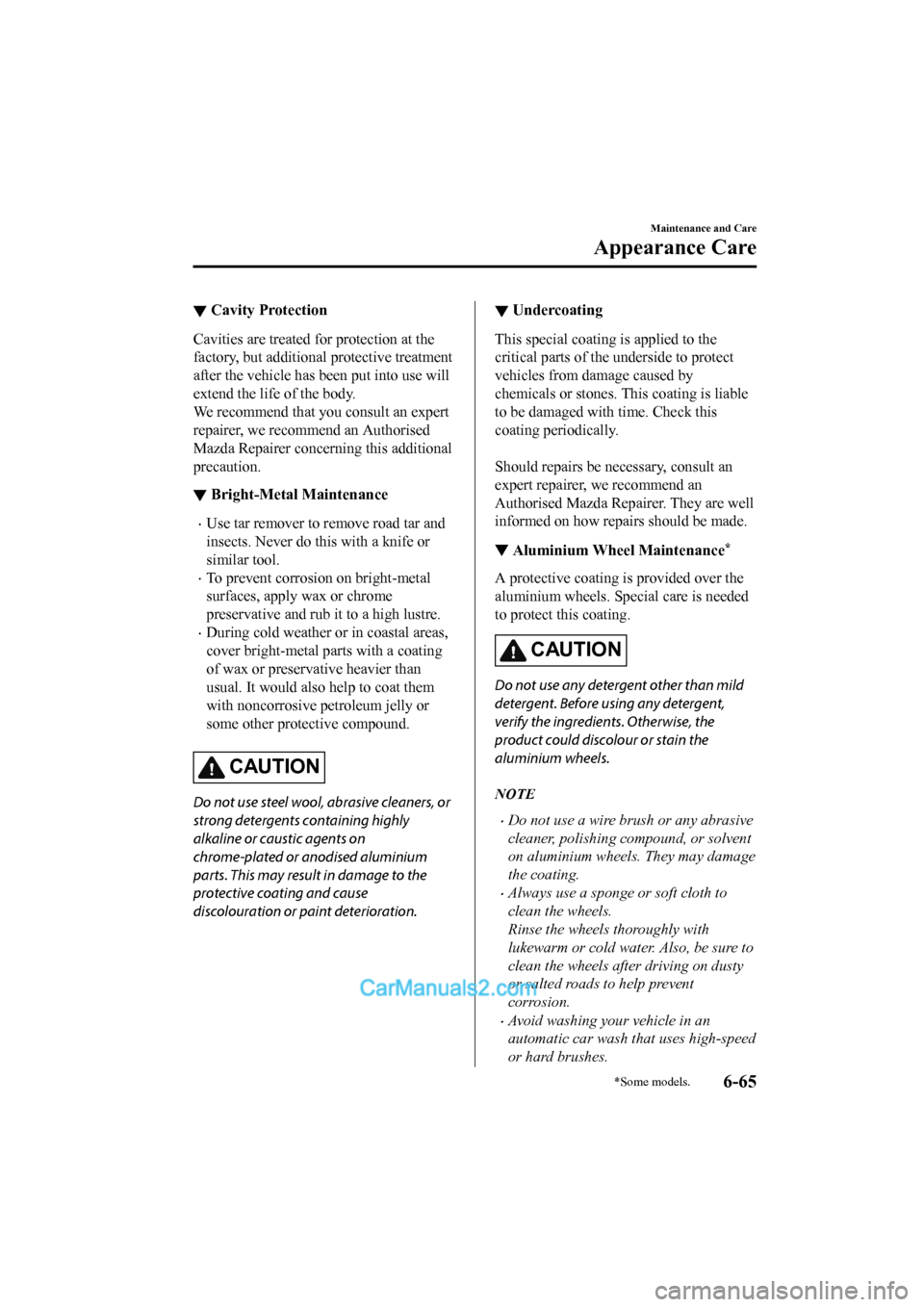

▼Cavity Protection
Cavities are treated for protection at the
factory, but additional protective treatment
after the vehicle has been put into use will
extend the life of the body.
We recommend that you consult an expert
repairer, we recommend an Authorised
Mazda Repairer concerning this additional
precaution.
▼Bright-Metal Maintenance
•Use tar remover to r
emove road tar and
insects. Never do this with a knife or
similar tool.
•To prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high lustre.
•During cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive p etroleum jelly or
some other protective compound.
CAUTION
Do not use steel wool, abrasive cleaners, or
strong detergents containing highly
alkaline or caustic agents on
chrome-plated or anodised aluminium
parts. This may result in damage to the
protective coating and cause
discolouration or paint deterioration.
▼ Undercoating
This special coating is applied to the
critical parts of the underside to protect
vehicles from damage caused by
chemicals or stones. This coating is liable
to be damaged with time. Check this
coating periodically.

Should repairs be necessary, consult an
expert repairer, we recommend an
Authorised Mazda Repairer. They are well
informed on how repairs should be made.
▼
Aluminium Wheel Maintenance*
A protective coating is provided over the
aluminium wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than mild
detergent. Before using any detergent,
verify the ingredients. Otherwise, the
product could discolour or stain the
aluminium wheels.
NOTE
•Do not use a wire brush or any abrasive
cleaner, polishing compound, or solvent
on aluminium wheels. They may damage
the coating.
•Always use a sponge or soft cloth to
clean the wheels.
Rinse the wheels thoroughly with
lukewarm or cold water. Also, be sure to
clean the wheels after driving on dusty
or salted roads to help prevent
corrosion.
•Avoid washing your vehicle in an
automatic car wash that uses high-speed
or hard brushes.
Maintenance and Care
Appearance Care
*Some models.6-65
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•(19-inch wheel vehicle)
If your aluminium wheels lose lustre,
apply wax which contains no polishing
powder.
▼Plastic Part Maintenance
•When cleaning the plastic lenses of the
lights, do not use petrol, paraffin,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolour or damage the
surfaces resulting in a significant loss in
functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
•If plastic parts s
uch as the bumpers
become inadvertently exposed to
chemical agents or fluids such as petrol,
oil, engine coolant, or battery fluid, it
could cause discolouration, staining, or
paint peeling. Wipe off any such
chemical agents or fluids using a soft
cloth immediately.
•High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could defo rm plastic parts or
damage the paint.
•Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
•In addition, do not u se an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
Interior Care
WA R N I N G
Do not spray water into the vehicle cabin:
Spraying water into the vehicle cabin is
dangerous as electrical devices such as the
audio and switches could get wet resulting
in a malfunction or vehicle fire.
NOTE
•Do not wipe the interior using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, and petrol.
Otherwise, it may cause discolouration
or stains.
•Rubbing hard with a stiff brush or cloth
may cause damage.
If the vehicle interior becomes soiled by
any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discolouration, stains, cracks, or peeling of
the coating, and it will make it hard to
wipe off later.
•Beverage or fragrance
•Grease or oil
•Soiling
Maintenance and Care
Appearance Care
6-66
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Seat Belt Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
3. Before retracting seat belts which have
been pulled out for cleaning, dry them
off thoroughly and make sure there is
no remaining moisture on them.
WA R N I N G
If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorised Mazda Repairer:
If a seat belts is used under such a
condition, it cannot function at its full
capacity which could result in serious injury
or death.
Use a mild detergent to remove soiling
from a seat belt:
If organic solvents are used for cleaning the
seat belts or they become stained or
bleached, there is the possibility of them
becoming weakened and as a result, they
may not function at their full capacity
which could cause serious injury or death.
NOTE
Clean seat belts diligently if they get dirty.
Leaving them uncleaned will make it
difficult to clean them later, and it may
affect the smooth retracting of the seat
belt.
▼Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from
vinyl upholstery
using a leather and vinyl upholstery
cleaner.
▼ Upholstery Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
▼Leather Upholstery Maintenance*
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe off the soiled area with a soft cloth and a suitable, special cleaner or
a soft cloth soaked in a mild detergent
(about 5%) diluted with water.
3. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
4. Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, s haded area. If the
leather gets wet such as from rain,
remove the moisture and dry it as soon
as possible.
NOTE
•Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
•To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
Maintenance and Care
Appearance Care
*Some models.6-67
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•If the leather upholstery comes into
contact with any of the following, clean
it immediately.
Leaving it uncleaned could cause
premature wear, mold, or stains.
•Sand or dirt
•Grease or oil, such as hand cream
•Alcohol, such as in cosmetic or hair
dressing items
•If the leather upholstery gets wet,
promptly remove moisture with a dry
cloth. Remaining moisture on the
surface may cause deterioration such as
hardening and shrinkage.
•Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.
•Do not leave vinyl products on the
leather upholstery for long periods.
They may affect the leather quality and
colouring. If the cabin temperature
becomes hot, the vinyl may deteriorate
and adhere to the genuine leather.
▼Plastic Part Maintenance
CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discolouration, stains,
cracks or peeling of the coating.
▼ Instrument Panel Top (Soft pad)
Maintenance
Extremely soft material is used for the soft
pad surface. If the so
ft pad surface is
rubbed harshly with a dry cloth, it could
result in the surface being damaged and
leaving white scratch marks.
1. Wipe the soiled area with a soft cloth soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
▼Active Driving Display
Maintenance*
Windscreen type
The dust-proof sheet has a coating. When
cleaning, do not use a hard or
rough-surface cloth, o
r cleaning detergent.
In addition, if a chemical solvent gets on
the active driving d isplay, wipe it off
immediately. The dust-proof sheet could
be damaged and the surface coating could
be scratched. Use a fine, soft cloth such as
those used for cleaning eyeglasses.
NOTE
Use of compressed air when cleaning the
dust-proof sheet is recommended.
Auto flip-up type
The combiner and mirror surface have a
special coating. When cleaning it, do not
use a hard cloth, a c loth with a rough
surface, or cleaning detergent. Use a
fine-textured, soft cloth.
If a chemical solvent gets on the combiner
or mirror surface, wipe it off immediately.
Otherwise, they could be damaged and the
surface coating could be scratched.
Maintenance and Care
Appearance Care
6-68*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Panel Maintenance
If a panel becomes so
iled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5 %) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
▼Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow th
e directions on the
container.
CAUTION
 Do not scrape or scratch the inside of the
window glass. It could damage the
thermal filaments and the aerial lines.
 When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal filaments and the aerial lines.
Use of glass cleaning products could
damage the thermal filaments and the
aerial lines.
Maintenance and Care
Appearance Care
6-69
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

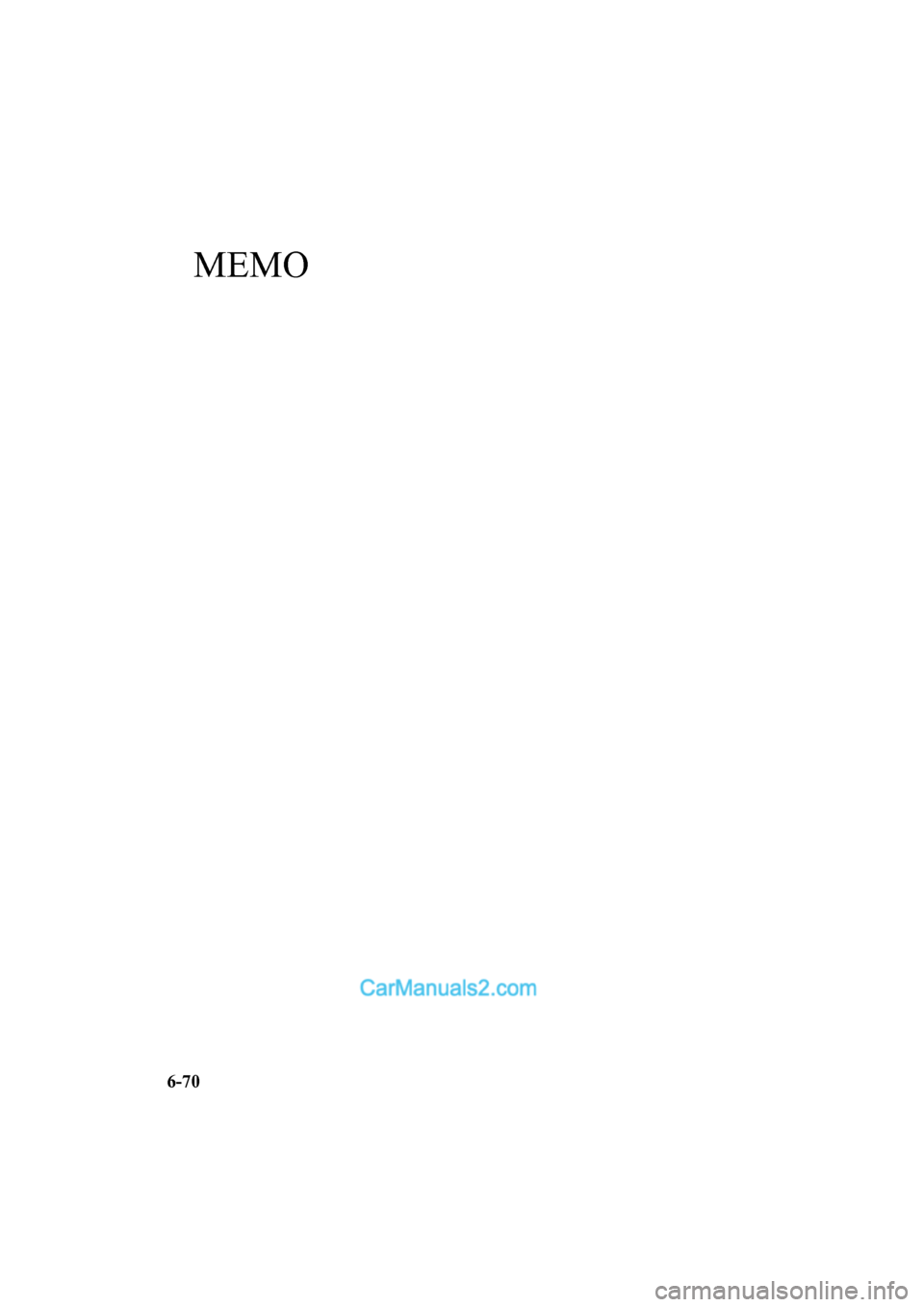

MEMO
6-70
2017-6-7 7:51:19Form No. CX-5 8FY4-EE-17E+L_Edition2

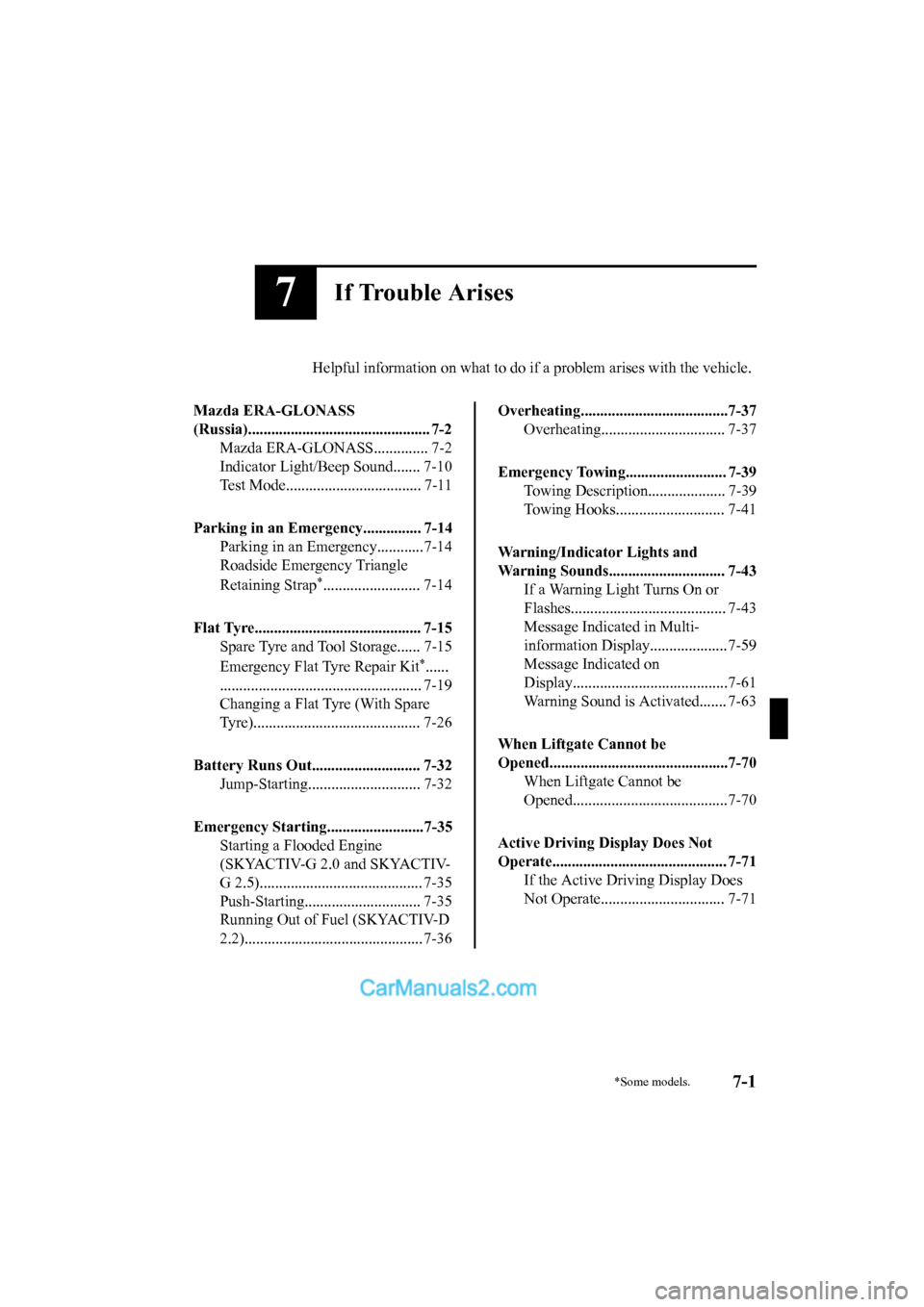

7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Mazda ERA-GLONASS
(Russia)............................................... 7-2 Mazda ERA-GLONASS.............. 7-2
Indicator Light/Beep Sound....... 7-10
Test Mode................................... 7-11
Parking in an Emergency............... 7-14 Parking in an Emergency............7-14
Roadside Emergency Triangle
Retaining Strap
*......................... 7-14
Flat Tyre........................................... 7-15 Spare Tyre and Tool Storage...... 7-15
Emergency Flat Tyre Repair Kit
*......
.................................................... 7-19
Changing a Flat Tyre (With Spare
Tyre)........................................... 7-26
Battery Runs Out............................ 7-32 Jump-Starting............................. 7-32
Emergency Starting.........................7-35 Starting a Flooded Engine
(SKYACTIV-G 2.0 and SKYACTIV-
G 2.5).......................................... 7-35
Push-Starting.............................. 7-35
Running Out of Fuel (SKYACTIV-D
2.2).............................................. 7-36
Overheating......................................7-37
Overheating................................ 7-37
Emergency Towing.......................... 7-39 Towing Description.................... 7-39
Towing Hooks......... ................... 7-41
Warning/Indicator Lights and
Warning Sounds.............................. 7-43 If a Warning Light Turns On or
Flashes........................................ 7-43
Message Indicated in Multi-
information Display.................... 7-59
Message Indicated on
Display........................................7-61
Warning Sound is Activated....... 7-63
When Liftgate Cannot be
Opened..............................................7-70 When Liftgate Cannot be
Opened........................................7-70
Active Driving Display Does Not
Operate............................................. 7-71 If the Active Driving Display Does
Not Operate................................ 7-71
*Some models.7-1
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

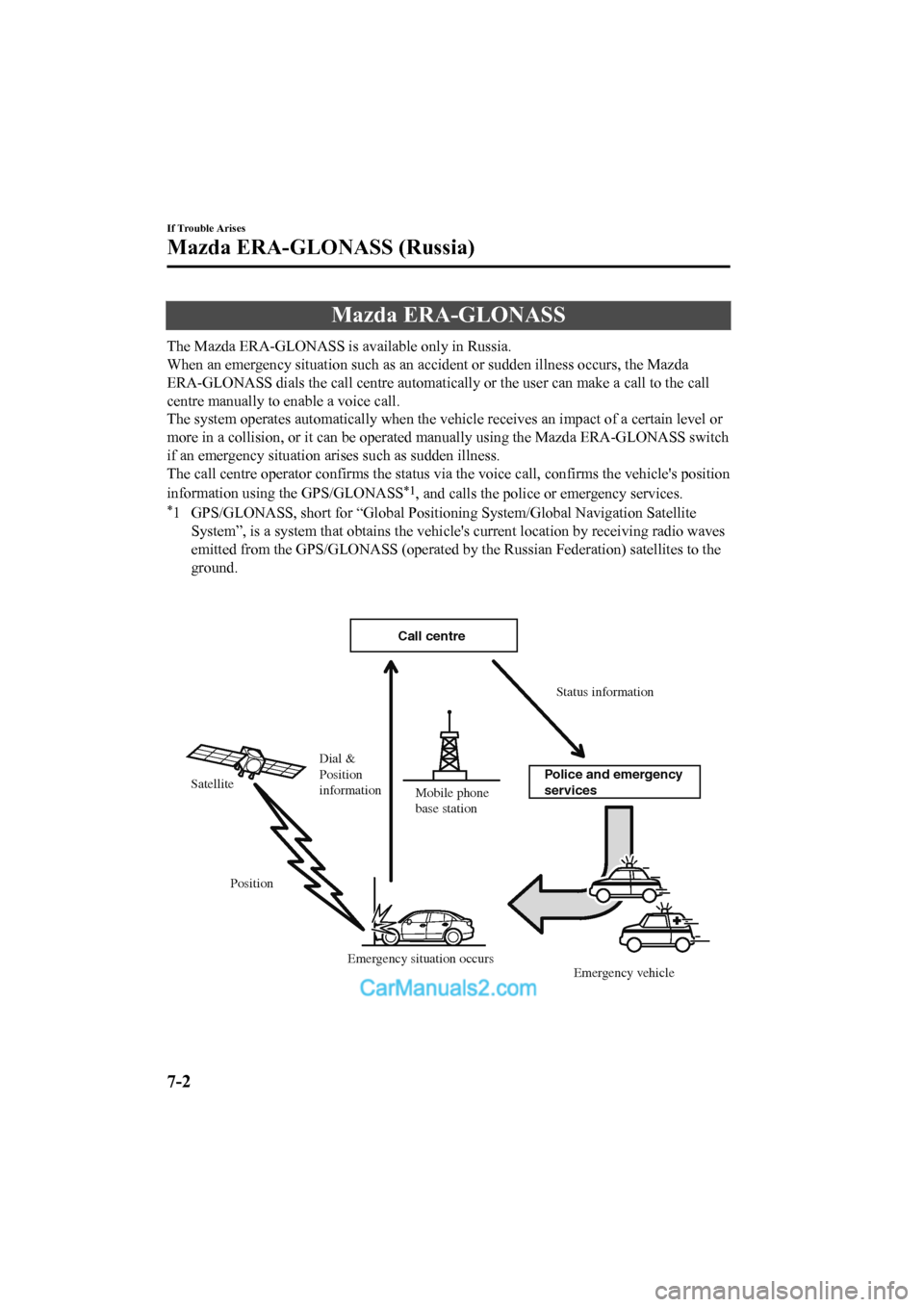

Mazda ERA-GLONASS
The Mazda ERA-GLONASS is available only in Russia.
When an emergency situation such as an accident or sudden illness occurs, the Mazda
ERA-GLONASS dials the call centre automatically or the user can make a call to the call
centre manually to enable a voice call.
The system operates automatically when the vehicle receives an impact of a certain level or
more in a collision, or it can be operated manually using the M azda ERA-GLONASS switch
if an emergency situation arises such as sudden illness.
The call centre operator confirms the status via the voice call , confirms the vehicle's position
information using the GPS/GLONASS
*1, and calls the police or emergency services.
*1 GPS/GLONASS, short for “Global Positioning System/Global Navig ation Satellite
System”, is a system that obtains the vehicle's current locatio n by receiving radio waves
emitted from the GPS/GLONASS (operated by the Russian Federation) satellites to the
ground.
Status information
Emergency vehicle
Dial &
Position
information
Position
Satellite
Mobile phone
base station
Emergency situation occurs Call centre
Police and emergency
services
If Trouble Arises
Mazda ERA-GLONASS (Russia)
7-2
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

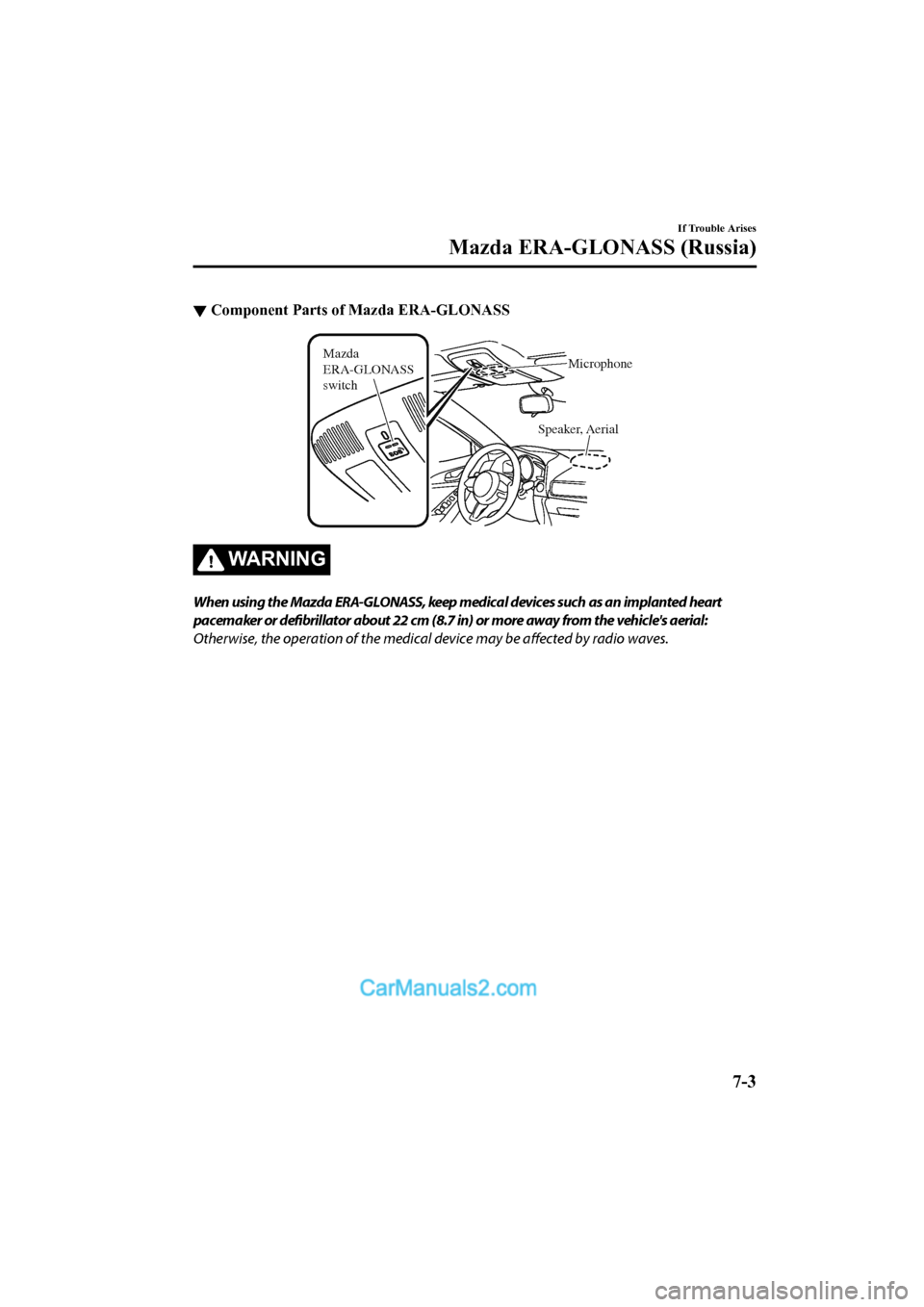

▼Component Parts of Mazda ERA-GLONASS
Speaker, Aerial
Mazda
ERA-GLONASS
switch
Microphone
WA R N I N G
When using the Mazda ERA-GLONASS, keep medical devices such as an implanted heart
pacemaker or
defibrillator about 22 cm (8.7 in) or more away from the vehicle's aerial:
Otherwise, the operation of the medical device may be affected by radio waves.
If Trouble Arises
Mazda ERA-GLONASS (Russia)
7-3
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
