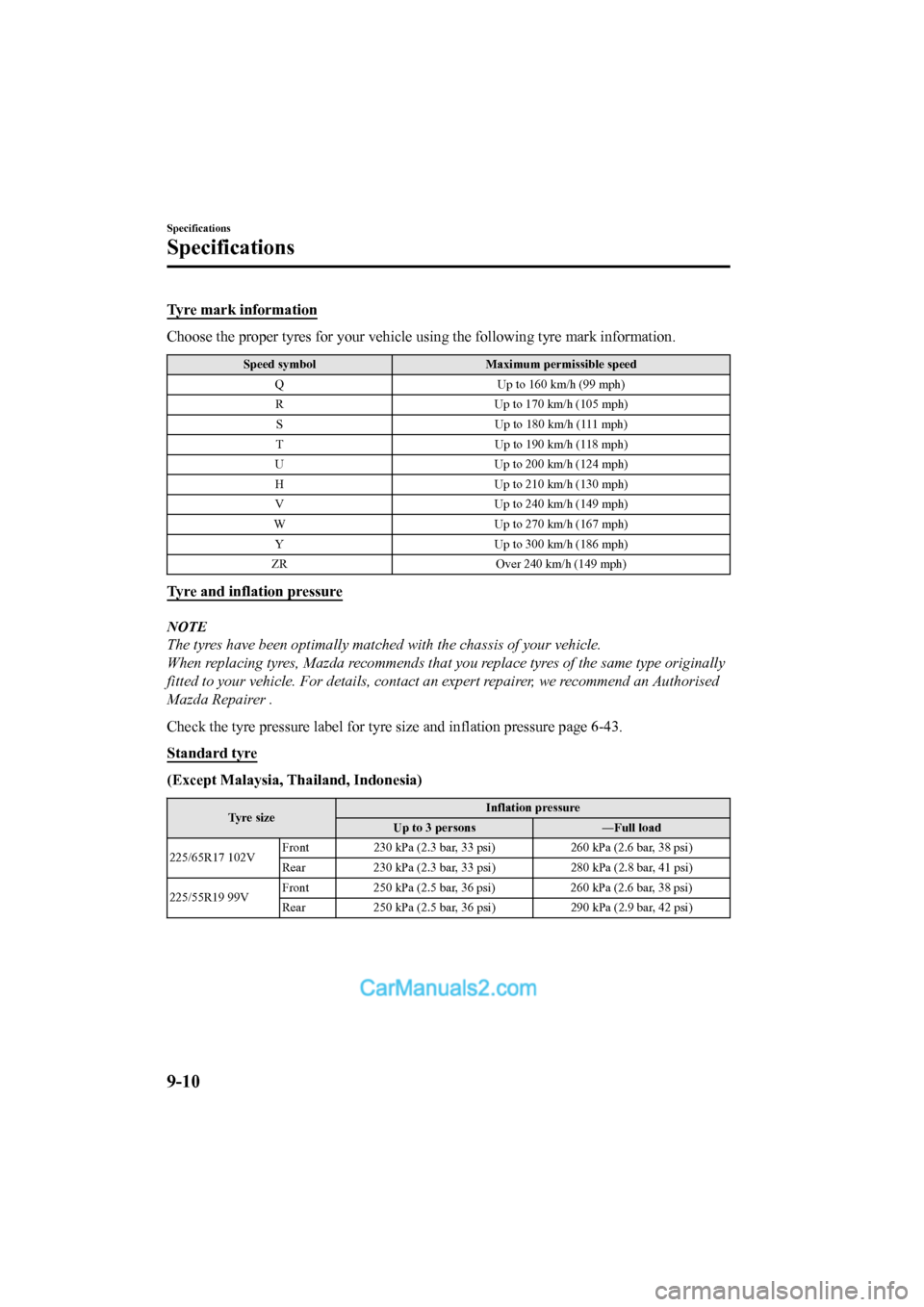

Tyre mark information
Choose the proper tyres for your vehicle using the following tyre mark information.
Speed symbolMaximum permissible speed
Q Up to 160 km/h (99 mph)
R Up to 170 km/h (105 mph)
S Up to 180 km/h (111 mph)
T Up to 190 km/h (118 mph)
U Up to 200 km/h (124 mph)
H Up to 210 km/h (130 mph)
V Up to 240 km/h (149 mph)
W Up to 270 km/h (167 mph)
Y Up to 300 km/h (186 mph)
ZR Over 240 km/h (149 mph)
Tyre and inflation pressure
NOTE
The tyres have been optimally matched with the chassis of your vehicle.
When replacing tyres, Mazda recommends that you replace tyres of the same type originally
fitted to your vehicle. For details, contact an expert repairer, we recommend an Authorised
Mazda Repairer .
Check the tyre pressure label for tyre size and inflation press ure page 6-43.
Standard tyre
(Except Malaysia, Tha iland, Indonesia)
Ty r e s i z e Inflation pressure
Up to 3 persons ―Full load
225/65R17 102V Front
230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear 230 kPa (2.3 bar, 33 psi) 280 kPa (2.8 bar, 41 psi)
225/55R19 99V Front
250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
Specifications
Specifications
9-10
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

(Malaysia, Thailand, Indonesia)
Ty re s i z eInflation pressure
Up to 3 persons ―Full load
225/65R17 102H
*1Front 240 kPa (2.4 bar, 35 psi) 260 kPa (2.6 bar, 38 psi)
Rear 240 kPa (2.4 bar, 35 psi) 280 kPa (2.8 bar, 41 psi)
225/55R19 99V Front
250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
1 person's weight: About 75 kg*1 SKYACTIV-G 2.0, SKYACTIV-G 2.5
Temporary spare tyre*
Tyre size Inflation pressure
185/80R17 99M 320 kPa (3.2 bar, 46 psi)
T145/90D16 106M 420 kPa (4.2 bar, 60 psi)
Winter tyre
Ty re s i z eInflation pressure
Up to 3 persons ―Full load
225/65R17
*1 MS Front
230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 300 kPa (3.0 bar, 44 psi)
225/55R19
*2 MS Front
250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 270 kPa (2.7 bar, 39 psi) 310 kPa (3.1 bar, 45 psi)
1 person's weight: About 75 kg*1 Load index and Speed Symbol: 102Q/102S/102H/102V*2 Load index and Speed Symbol: 99Q/99S/99H/99V
Wheel nut tightening torque
When installing a tyre, tighten the wheel nut to the following torque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)
▼ Fuses
Refer to Fuses on page 6-54.
▼Brakes
If you require information regarding the wear limit specificati
on for the brake disc plates
and the measurement method, please contact an expert repairer, we recommend an
Authorised Mazda Repairer. The information is made freely avail able.
Specifications
Specifications
*Some models.9-11
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

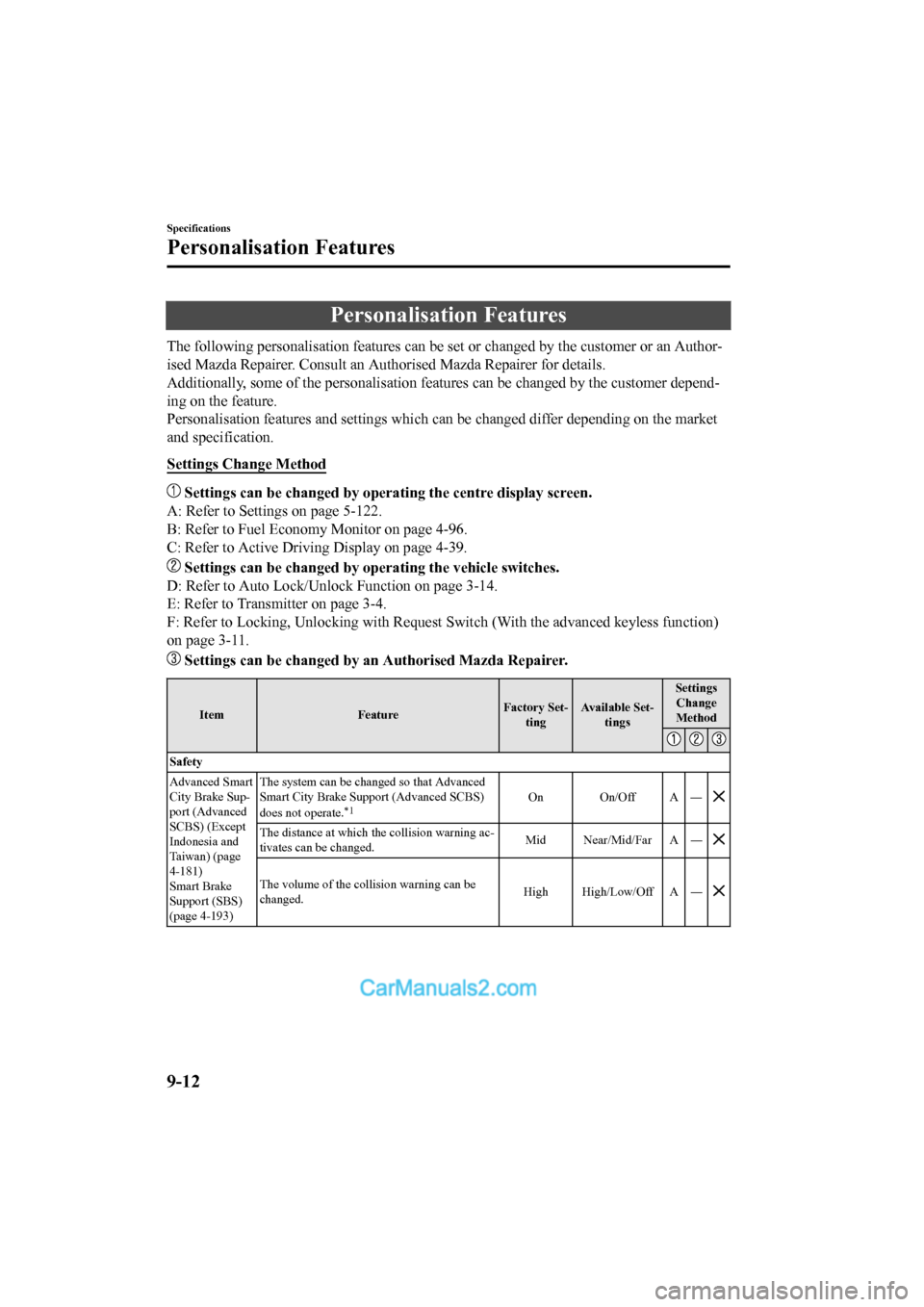

Personalisation Features
The following personalisation features can be set or changed by the customer or an Author-
ised Mazda Repairer. Consult an Authorised Mazda Repairer for d etails.
Additionally, some of the personalisation features can be changed by the customer depend-
ing on the feature.
Personalisation features and se ttings which can be changed diff er depending on the market
and specification.
Settings Change Method
Settings can be changed by oper ating the centre display screen.
A: Refer to Settings on page 5-122.
B: Refer to Fuel Economy Monitor on page 4-96.
C: Refer to Active Driving Display on page 4-39.
Settings can be changed by op erating the vehicle switches.
D: Refer to Auto Lock/Unlock Function on page 3-14.
E: Refer to Transmitter on page 3-4.
F: Refer to Locking, Unlocking with Request Switch (With the ad vanced keyless function)
on page 3-11.
Settings can be changed by an Authorised Mazda Repairer.
ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method
Safety
Advanced Smart
City Brake Sup-
port (Advanced
SCBS) (Except
Indonesia and
Ta i w a n ) ( p a g e
4-181)
Smart Brake
Support (SBS)
(page 4-193) The system can be chan
ged so that Advanced
Smart City Brake Support (Advanced SCBS)
does not operate.
*1On On/Off A ―
The distance at which the collision warning ac-
tivates can be changed. Mid Near/Mid/Far A ―
The volume of the collision warning can be
changed.High High/Low/Off A ―
Specifications
Personalisation Features
9-12
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method

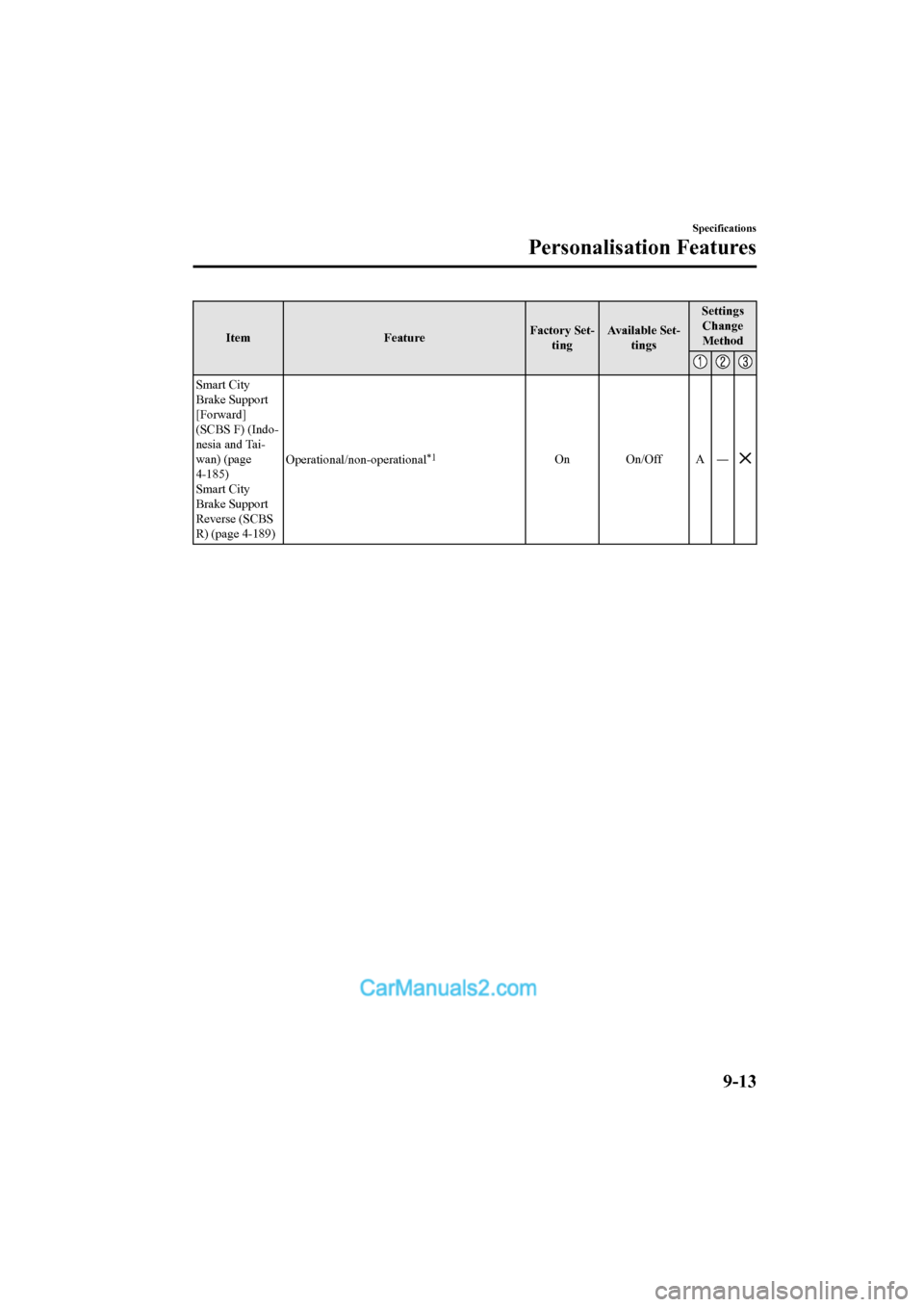

Smart City
Brake Support
[Forward]
(SCBS F) (Indo-
nesia and Tai-
wan) (page
4-185)
Smart City
Brake Support
Reverse (SCBS
R) (page 4-189) Operational/non-operational
*1On On/Off A ―
Specifications
Personalisation Features
9-13
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method

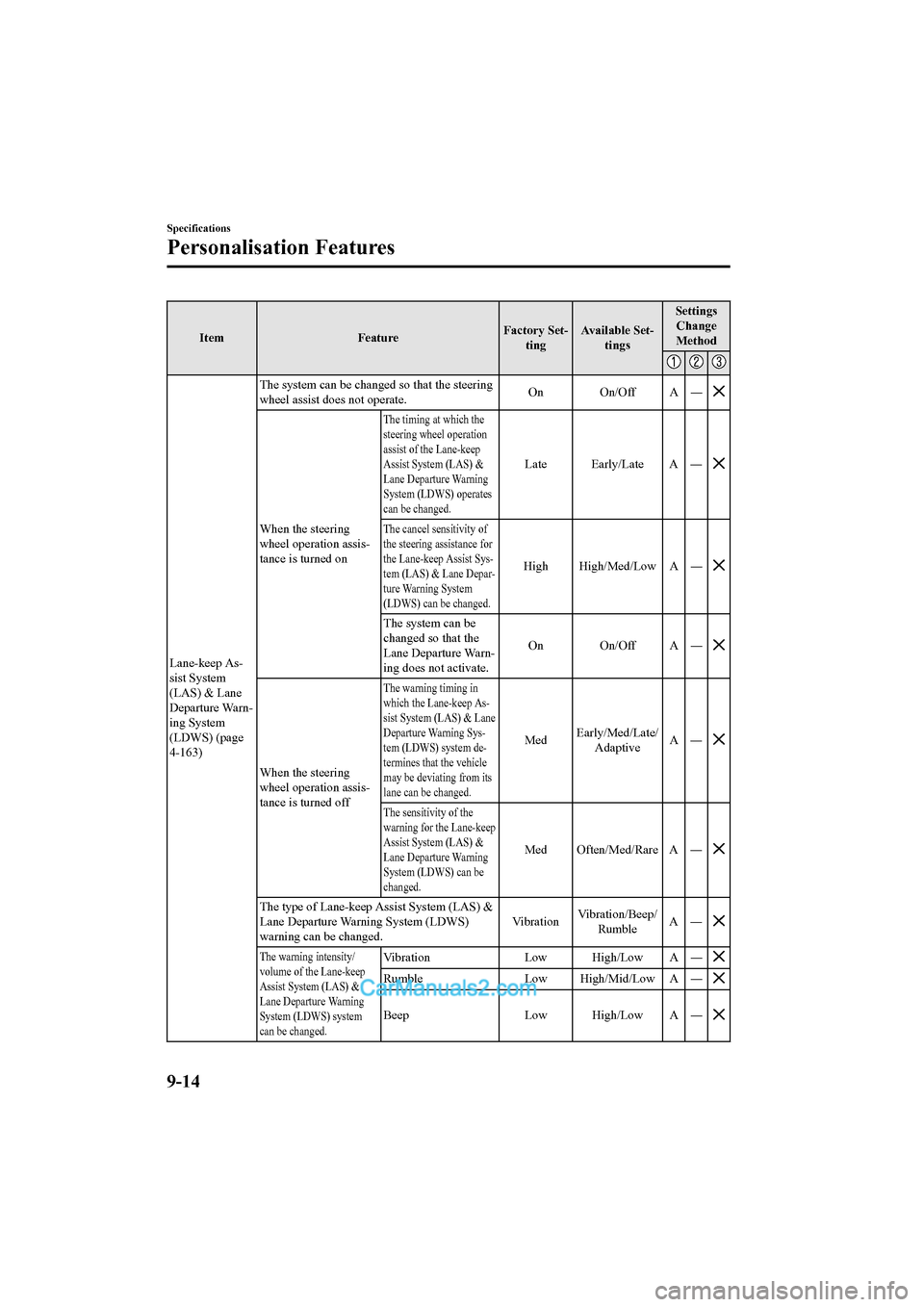

Lane-keep As-
sist System
(LAS) & Lane
Departure Warn-
ing System
(LDWS) (page
4-163) The system can be change
d so that the steering
wheel assist does not operate. On On/Off A ―
When the steering
wheel operation assis-
tance is turned on
The timing at which the
steering wheel operation
assist of the Lane-keep
Assist System (LAS) &
Lane Departure Warning
System (LDWS) operates
can be changed.
Late Early/Late A ―
The cancel sensitivity of
the steering assistance for
the Lane-keep Assist Sys-
tem (LAS) & Lane Depar-
ture Warning System
(LDWS) can be changed.
High High/Med/Low A ―
The system can be
changed so that the
Lane Departure Warn-
ing does not activate.On On/Off A ―
When the steering
wheel operation assis-
tance is turned off
The warning timing in
which the Lane-keep As-
sist System (LAS) & Lane
Departure Warning Sys-
tem (LDWS) system de-
termines that the vehicle
may be deviating from its
lane can be changed.
Med
Early/Med/Late/
Adaptive A―
The sensitivity of the
warning for the Lane-keep
Assist System (LAS) &
Lane Departure Warning
System (LDWS) can be
changed.
Med Often/Med/Rare A ―
The type of Lane-keep Assist System (LAS) &
Lane Departure Warning System (LDWS)
warning can be changed. Vibration
Vibration/Beep/
Rumble A―
The warning intensity/
volume of the Lane-keep
Assist System (LAS) &
Lane Departure Warning
System (LDWS) system
can be changed.Vibration
Low High/Low A ―
RumbleLow High/Mid/Low A ―
BeepLow High/Low A ―
Specifications
Personalisation Features
9-14
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method
Blind Spot Mon-
itoring (BSM)
(page 4-115) The system can be changed so that Blind Spot
Monitoring (BSM) does not operate.*1On On/Off A ―
Warning beep volume*2High
High/
Low/ Off A―
Distance Recog-
nition Support
System (DRSS)
(page 4-127) The system can be changed so that Distance
Recognition Support System (DRSS) does not
operate.*1On On/Off A ―
The distance at which the vehicle ahead indi-
cated in the display illuminates in amber can be
changed.
Near
Far/Medium/
Near A―
Driver Attention
Alert (DAA)
(page 4-131) The system can be changed so that Driver At-
tention Alert (DAA) does not operate.
*1On On/Off A ―
Traffic Sign
Recognition
System (TSR)
*3
(page 4-120)The Traffic Sign Recognition System (TSR)
can be set to inoperable.
*1On On/Off A ―
The warning pattern of the excessive speed
warning can be changed.
OffOff/
Vi s u a l /
Audio & Visual A―
The activation timing for the excessive speed
warning can be changed.00/5/10
A―
Parking sensor
system (page
4-232) Display/non-display
On On/Off A ―
Ve h i c l e
Door locks
(page 3-14)Operation condition of auto lock/unlock func-
tion Lock: Driv-
ing, Unlock: IGN Off Off/
Lock When Driving/
Lock: Driving, Unlock: IGN Off/
Lock When
Shifting Out Of P/
Lock: Shift
From P, Unlock: In P/
Lock: Driving, Unlock: In P AD
Keyless entry
system (page 3-
3)
Time for locking door automatically
30 seconds90 seconds/
60 seconds/
30 seconds A―
Specifications
Personalisation Features
9-15
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method

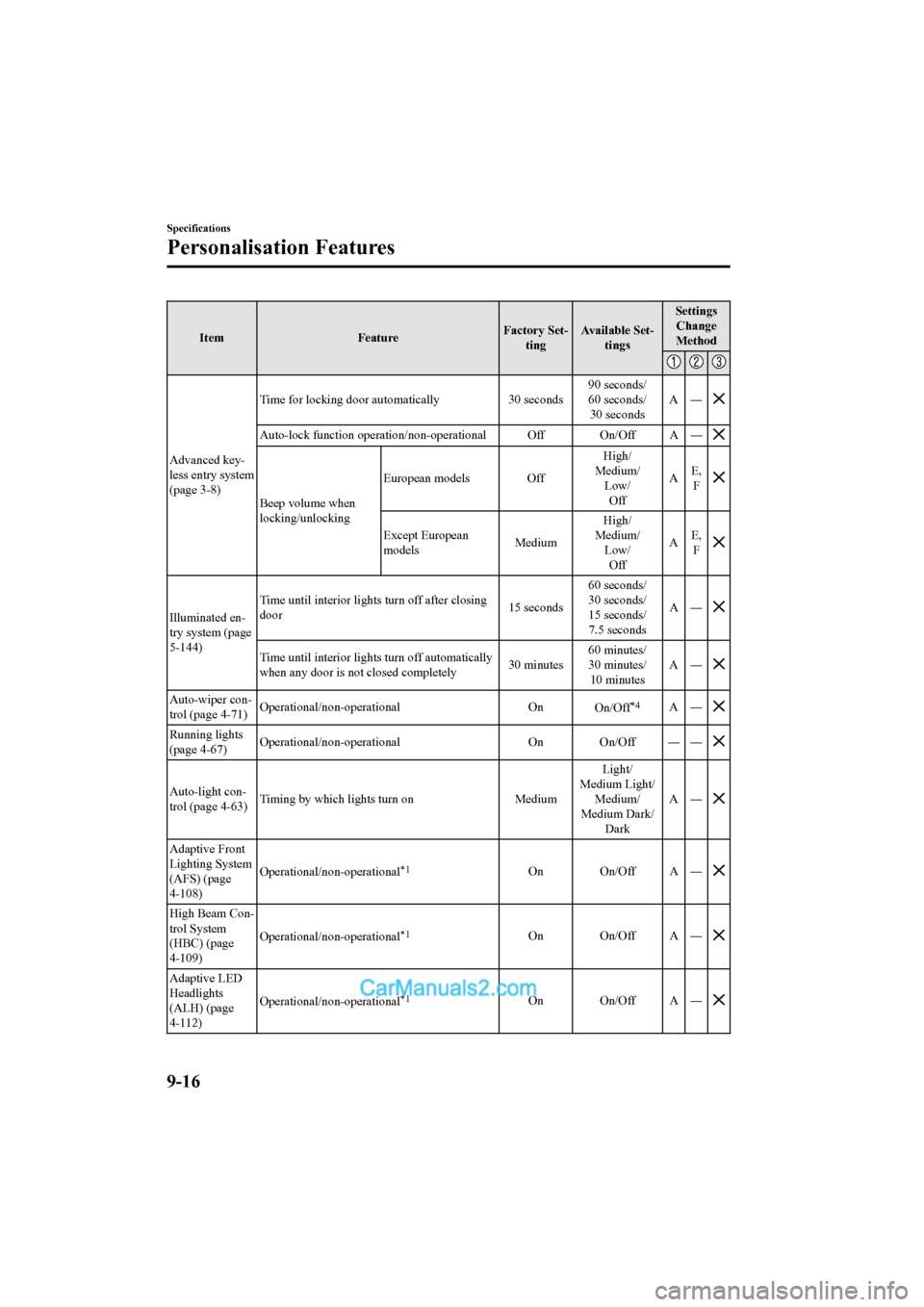

Advanced key-
less entry system
(page 3-8) Time for locking door automatically
30 seconds90 seconds/
60 seconds/
30 seconds A―
Auto-lock function operation/non-operational Off On/Off A ―
Beep volume when
locking/unlocking European models Off
High/
Medium/ Low/Off A
E,
F
Except European
models MediumHigh/
Medium/ Low/Off A
E,
F
Illuminated en-
try system (page
5-144) Time until interior lights turn off after closing
door
15 seconds60 seconds/
30 seconds/
15 seconds/
7.5 seconds A―
Time until interior lights turn off automatically
when any door is not closed completely
30 minutes60 minutes/
30 minutes/
10 minutes A―
Auto-wiper con-
trol (page 4-71)
Operational/non-operational
On
On/Off*4A―
Running lights
(page 4-67) Operational/non-operational
On On/Off ― ―
Auto-light con-
trol (page 4-63)Timing by which lights turn on
MediumLight/
Medium Light/ Medium/
Medium Dark/ Dark A―
Adaptive Front
Lighting System
(AFS) (page
4-108)
Operational/non-operational
*1On On/Off A ―
High Beam Con-
trol System
(HBC) (page
4-109)Operational/non-operational
*1On On/Off A ―
Adaptive LED
Headlights
(ALH) (page
4-112)Operational/non-operational
*1On On/Off A ―
Specifications
Personalisation Features
9-16
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method

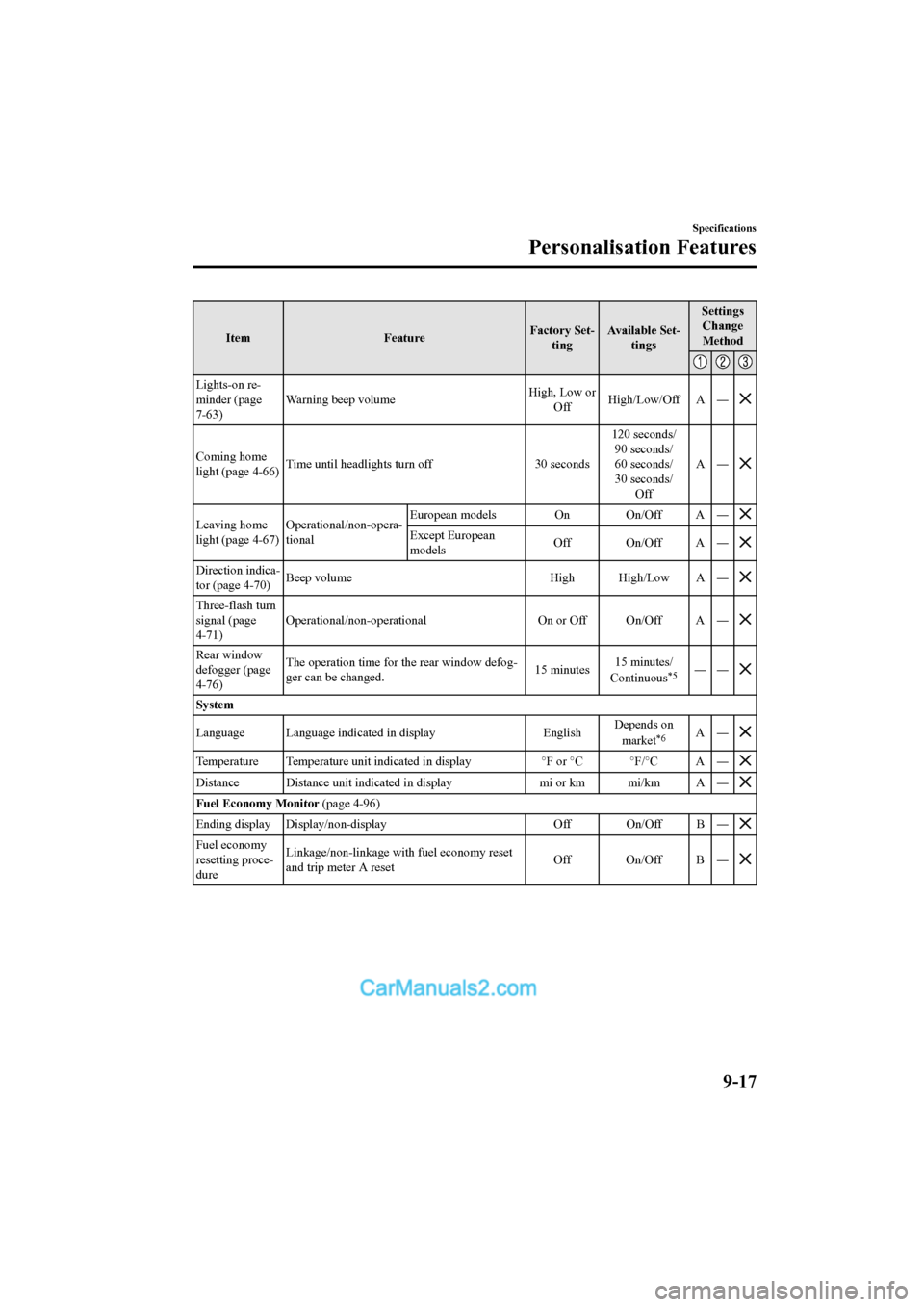

Lights-on re-
minder (page
7-63) Warning beep volume
High, Low or
Off High/Low/Off A ―
Coming home
light (page 4-66) Time until headlights turn off
30 seconds120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off A―
Leaving home
light (page 4-67)
Operational/non-opera-
tional European models On On/Off A ―Except European
models
Off On/Off A ―
Direction indica-
tor (page 4-70)Beep volume
High High/Low A ―
Three-flash turn
signal (page
4-71)Operational/non-operational
On or Off On/Off A ―
Rear window
defogger (page
4-76)The operation time for the rear window defog-
ger can be changed.
15 minutes15 minutes/
Continuous
*5――
System
Language Language indicated in display EnglishDepends on
market
*6A―
Temperature Temperature unit indi cated in display°F or °C °F/°C A ―
Distance Distance unit indicated in display mi or km mi/km A ―
Fuel Economy Monitor (page 4-96)
Ending display Display/non-display Off On/Off B ―
Fuel economy
resetting proce-
dureLinkage/non-linkage with fuel economy reset
and trip meter A reset
Off On/Off B ―
Specifications
Personalisation Features
9-17
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method

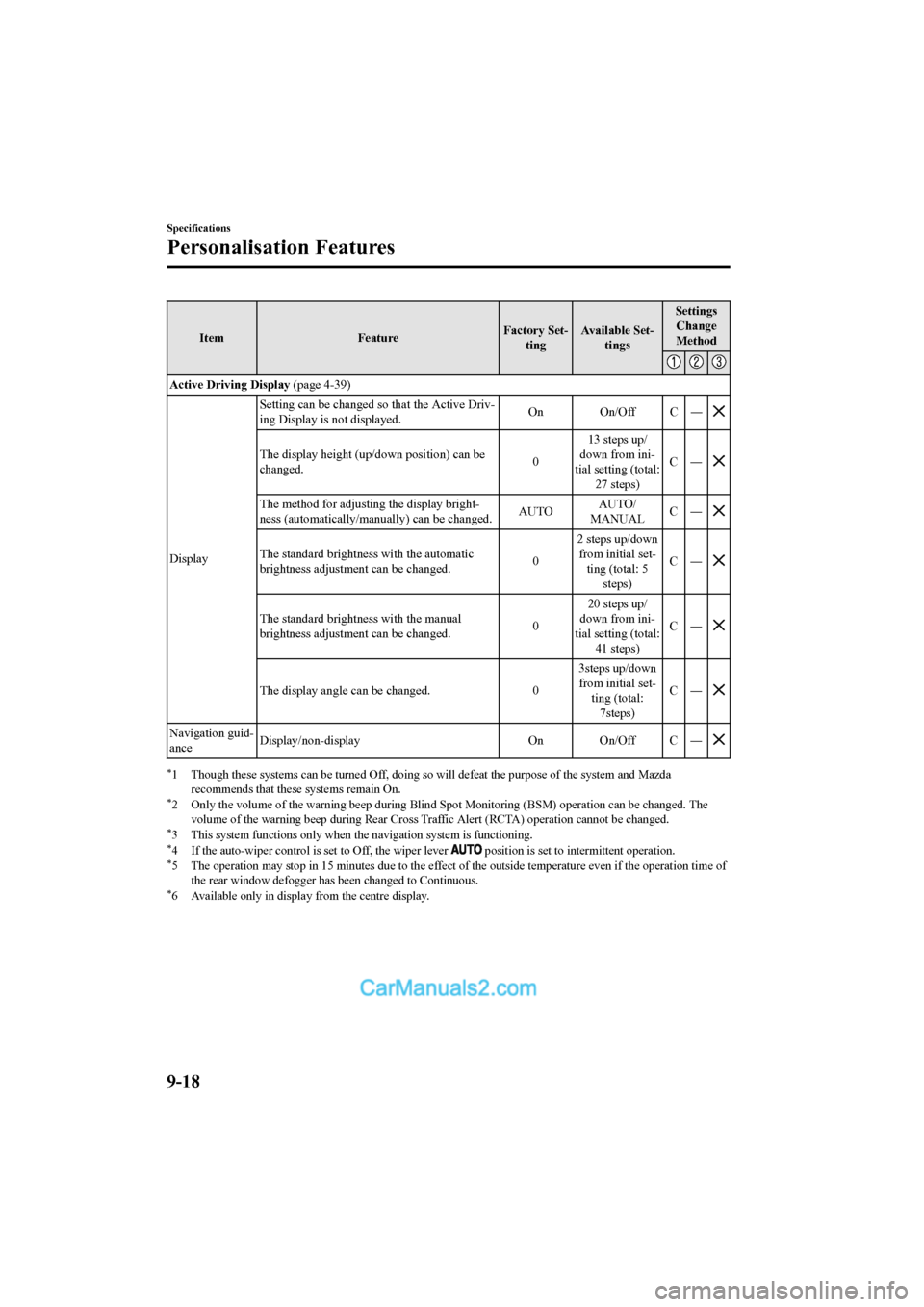

Active Driving Display (page 4-39)
Display Setting can be changed so that the Active Driv-
ing Display is not displayed.
On On/Off C ―
The display height (up/down position) can be
changed.
013 steps up/
down from ini-
tial setting (total: 27 steps) C―
The method for adjusting the display bright-
ness (automatically/manually) can be changed.
AUTOAUTO/
MANUAL C―
The standard brightness with the automatic
brightness adjustment can be changed. 02 steps up/down
from initial set- ting (total: 5
steps) C―
The standard brightness with the manual
brightness adjustment can be changed.
020 steps up/
down from ini-
tial setting (total: 41 steps) C―
The display angle can be changed.
03steps up/down
from initial set- ting (total:7steps) C―
Navigation guid-
ance
Display/non-display
On On/Off C ―
*1 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda
recommends that these systems remain On.
*2 Only the volume of the warning beep during Blind Spot Monitori ng (BSM) operation can be changed. The
volume of the warning beep durin g Rear Cross Traffic Alert (RCTA) operation cannot be changed.
*3 This system functions only when t he navigation system is functioning.*4 If the auto-wiper control is set to Off, the wiper lever position is set to in termittent operation.*5 The operation may stop in 15 mi nutes due to the effect of the outside temperature even if the operation time of
the rear window defogger has been changed to Continuous.
*6 Available only in display from the centre display.
Specifications
Personalisation Features
9-18
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

10Index
10-1
2017-6-7 7:51:19Form No. CX-5 8FY4-EE-17E+L_Edition2
