MAZDA MODEL CX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)

CX-5_Leaflet_030-17_Edition1.fm Page 11 Wednesday, July 5, 2017 11:00 AM

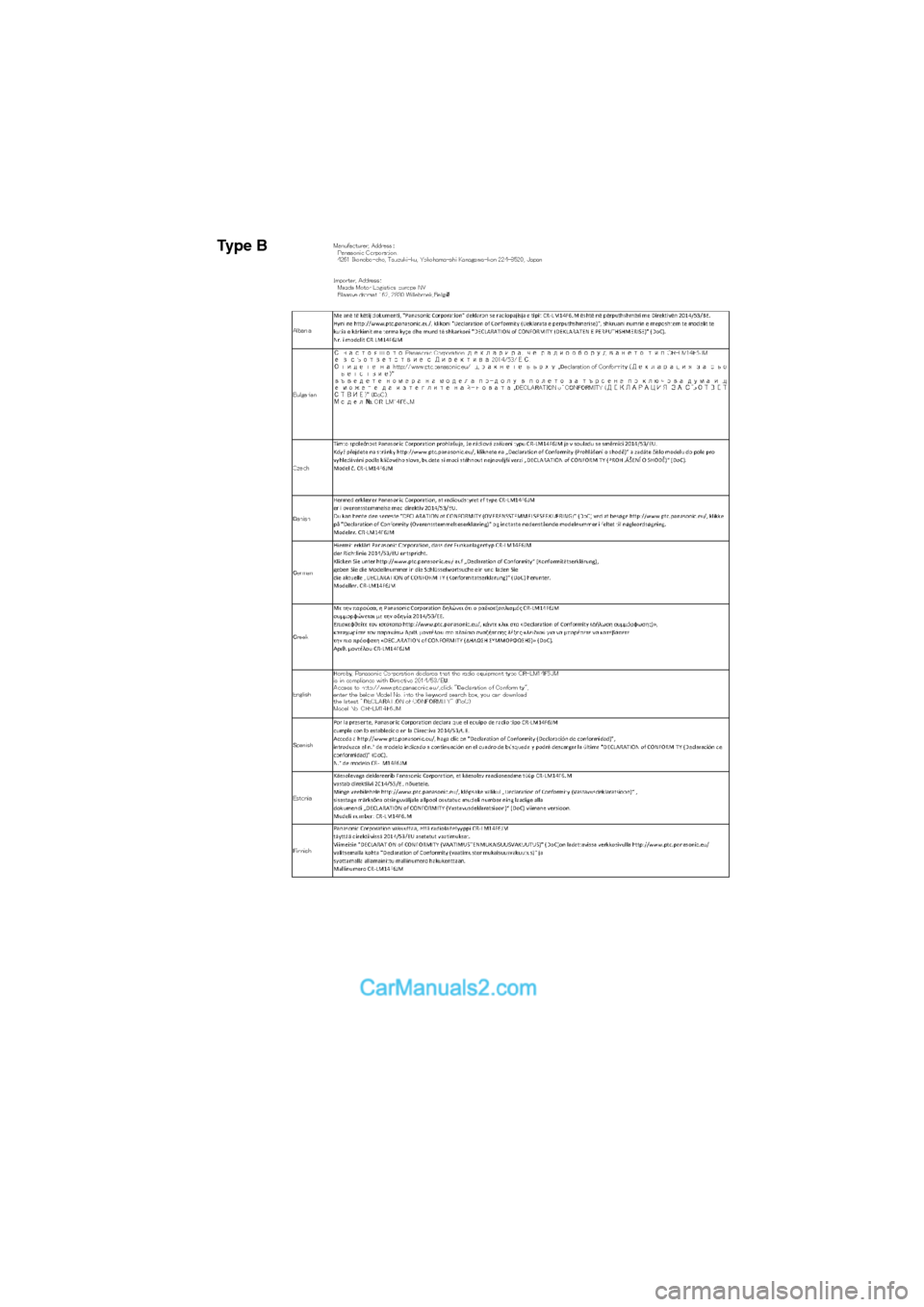

Ty p e B
CX-5_Leaflet_030-17_Edition1.fm Page 12 Wednesday, July 5, 2017 11:00 AM

CX-5_Leaflet_030-17_Edition1.fm Page 13 Wednesday, July 5, 2017 11:00 AM

CX-5_Leaflet_030-17_Edition1.fm Page 14 Wednesday, July 5, 2017 11:00 AM

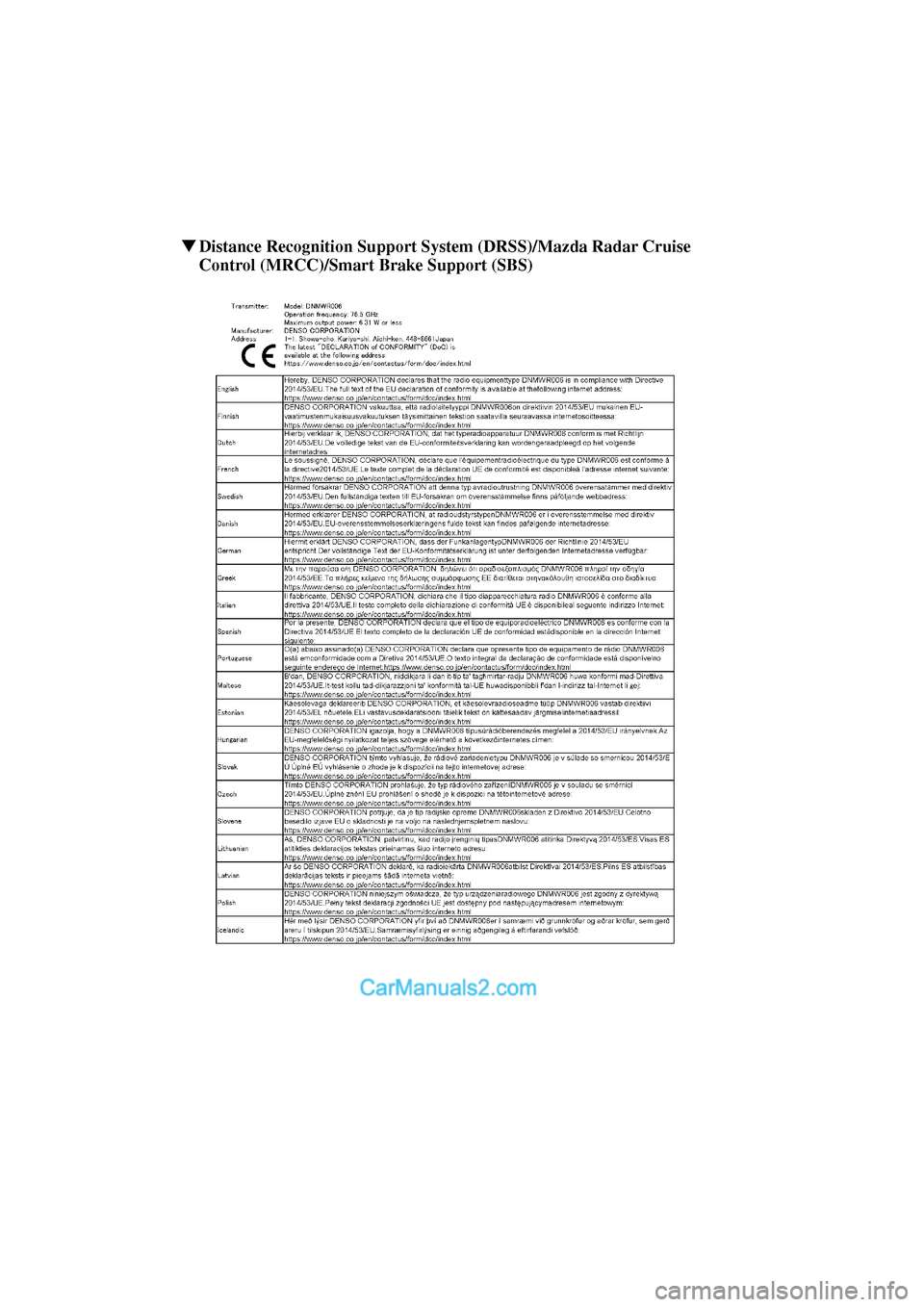

▼Distance Recognition Support Syst em (DRSS)/Mazda Radar Cruise
Control (MRCC)/Smart Brake Support (SBS)
CX-5_Leaflet_030-17_Edition1.fm Page 15 Wednesday, July 5, 2017 11:00 AM

CX-5_Leaflet_030-17_Edition1.fm Page 16 Wednesday, July 5, 2017 11:00 AM

Electromagnetic Compatibility
Your Mazda has been tested and certified to the UNECE*1 10 regulation as related to
electromagnetic compatibility. Ra dio Frequency (RF) transmitter equipment (e.g. cellular
telephones, amateur radio transmitters, etc.) may only be fitte d to your Mazda if they
comply with the parameters shown in the table below.
*1 UNECE stands for United Nations Economic Commission for Europe.

It is your responsibility to ensure that any equipment you have fitted complies with
applicable local legislations. Have any equipment fitted by pro perly trained technicians.
CAUTION
Do not mount any transceiver, microphones, sp eakers, or any other item in the deployment
path of the air bag system.
 Do not fasten aerial lead to original vehicle wiring, fuel pipes or brake pipes. Avoid running
the aerial lead parallel with the wire harness to the best extent possible.
 Keep the aerial and power leads at least 100 mm (3.9 in) from any electronic modules and
the air bags.
 Avoid using the cigar lighter or accessory sock et as a power source for the RF-transmitting
equipment.

Aerial positions: : front right of roof
: front left of roof
: centre of roof
Frequency Band (MHz) Maximum output power (Wattage) Aerial Positi ons
50 ― 54 50
68 ― 87.5 50
142 ― 176 50
380 ― 47050
806 ― 94010
1200 ― 1300 10
Customer Information
Electromagnetic Compatibility
8-32
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

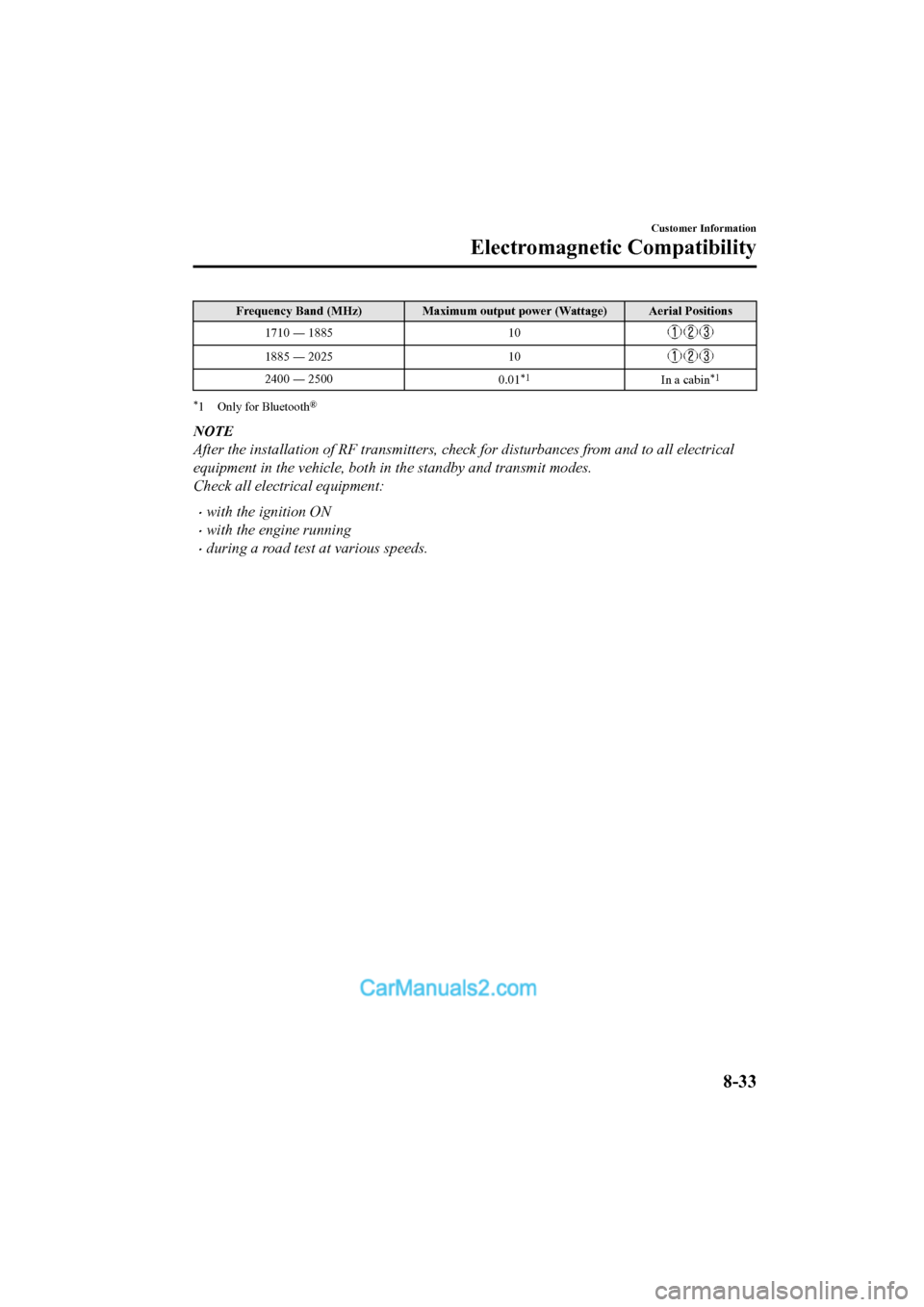

Frequency Band (MHz) Maximum output power (Wattage) Aerial Positions
1710 ― 1885 10
1885 ― 202510
2400 ― 2500
0.01*1In a cabin*1
*1 Only for Bluetooth®
NOTE
After the installation of RF transmitters, check for disturbances from and to all electrical
equipment in the vehicle, both in the standby and transmit modes.
Check all electrical equipment:
•with the ignition ON
•with the engine running
•during a road test at various speeds.
Customer Information
Electromagnetic Compatibility
8-33
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

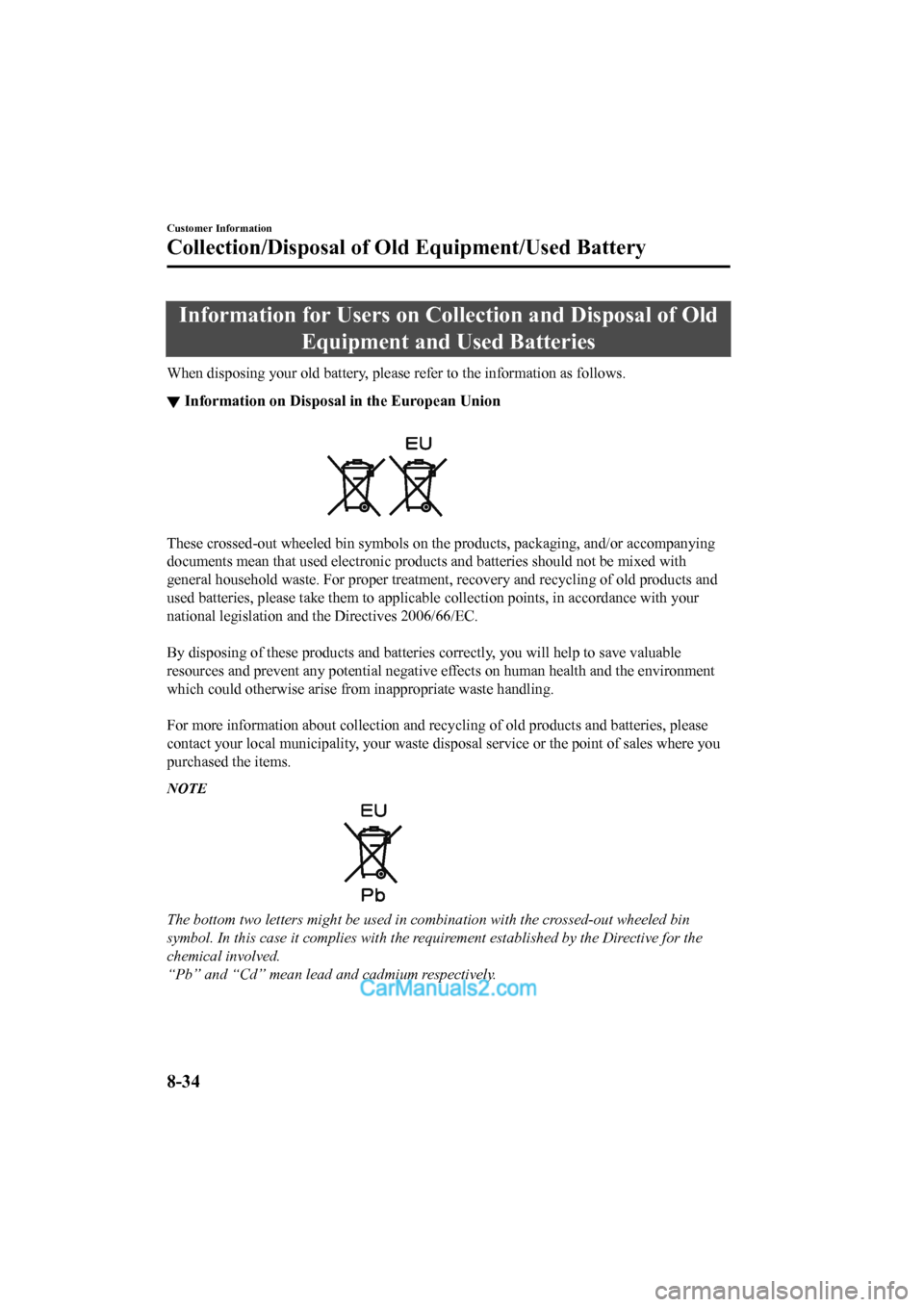

Information for Users on Collection and Disposal of OldEquipment and Used Batteries
When disposing your old battery, please refer to the informatio n as follows.
▼Information on Disposal in the European Union
These crossed-out wheeled bin symbols on the products, packagin
g, and/or accompanying
documents mean that used electronic products and batteries shou ld not be mixed with
general household waste. For proper treatment, recovery and rec ycling of old products and
used batteries, please take them to applicable collection point s, in accordance with your
national legislation and the Directives 2006/66/EC.

By disposing of these products and batteries correctly, you wil l help to save valuable
resources and prevent any potential negative effects on human h ealth and the environment
which could otherwise arise from inappropriate waste handling.

For more information about collect ion and recycling of old products and batteries, please
contact your local municipality, your waste disposal service or the point of sales where you
purchased the items.
NOTE
The bottom two letters might be used in combination with the crossed-out wheeled bin
symbol. In this case it complies with the requirement established by the Directive for the
chemical involved.
“Pb” and “Cd” mean lead and cadmium respectively.
Customer Information
Collection/Disposal of Old Equipment/Used Battery
8-34
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

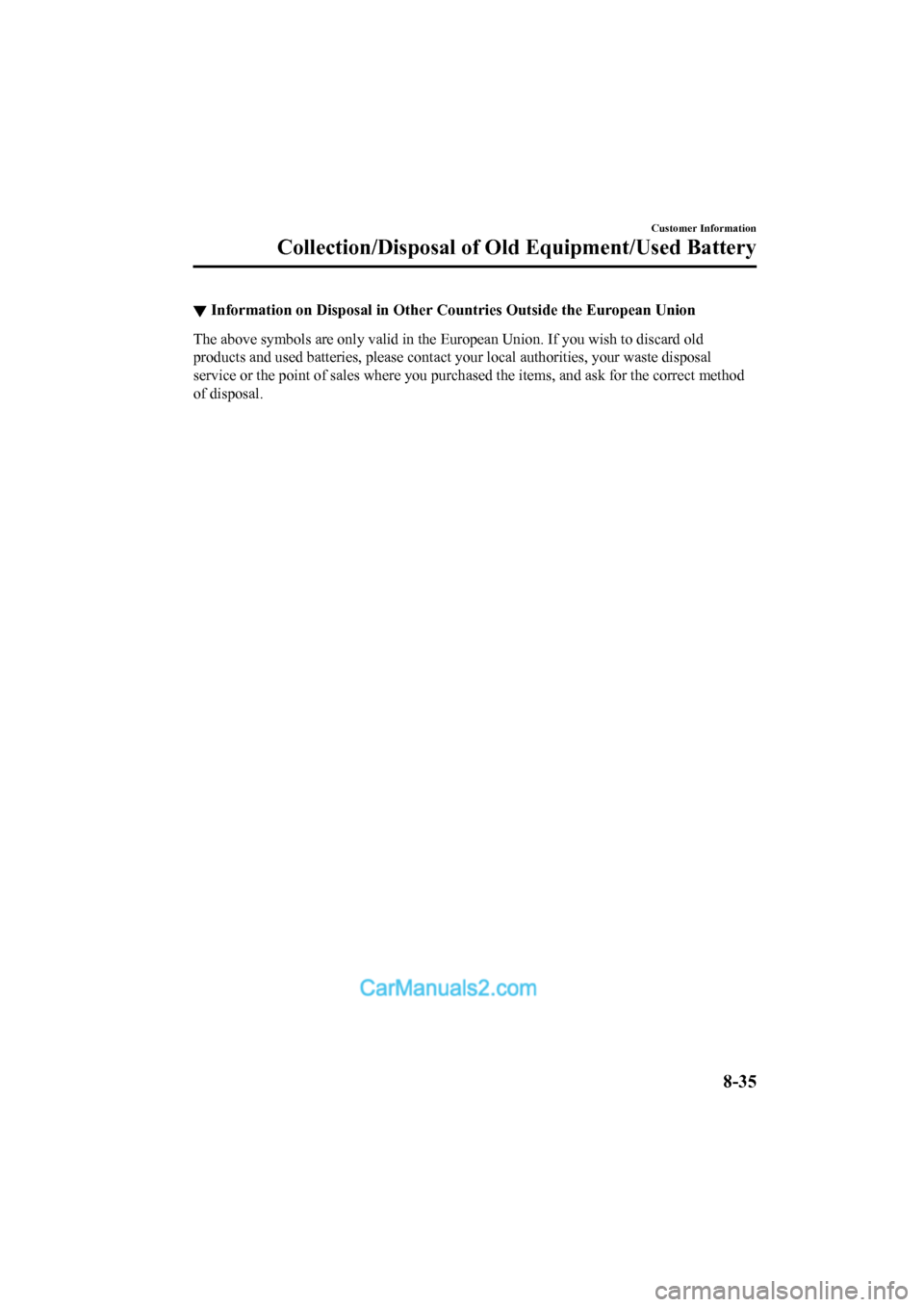

▼Information on Disposal in Other Countries Outside the European
Union
The above symbols are only valid in the European Union. If you wish to discard old
products and used batteries, please contact your local authorit ies, your waste disposal
service or the point of sales where you purchased the items, an d ask for the correct method
of disposal.
Customer Information
Collection/Disposal of Ol d Equipment/Used Battery
8-35
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
