MAZDA MODEL MX-30 EV 2022 Owners Manual

Display*1*2ContentAction to be taken
Battery Heating Can-
celed Due to Five Days
of Vehicle Inactivity Turn
Battery Heater O ff If Ve-
hicle Will Not Be Driven This message is displayed when the
EV system is started after the battery
heater has operated for a long time
and stopped automatically.
If the vehicle is not used for long pe-
riods, set the battery heater to o
ff.
High Voltage Battery
Charging Interrupted This message is displayed when the
charging is interrupted. Check the connection status of the
charge connector.
Rising EV System Temp.
Acceleration May Be
Limited Avoid Moving at
Very Low Speeds. De-
press Brake When Not
Moving This message is indicated when the
vehicle is held in the stopped posi-
tion with the accelerator pedal oper-
ated, such as on an upslope, and the
motor reaches a high temperature.
Depress the brake pedal.
Regenerative Braking Is
Limited This message is indicated when the
regenerative braking is restricted. Drive the vehicle carefully because
the regenerative braking force de-
creases.
Shift Into Park Before Ex-
iting Vehicle This message is indicated when the
driver’s door is opened with the se-
lector lever in a position other than
the P position. Close the driver’s door or shift the se-
lector lever to the P position.
Low Battery Risk. Start
Vehicle to Charge 12V
Battery This message is indicated when the
lead-acid battery charge is low.
To charge the lead-acid battery, start
the EV system and operate it for 5 mi-
nutes or longer.
*1 A pop-up is displayed when a warning occurs.*2 One screen displays four rows. If the entire message cannot be displayed on the screen, it switches to
another screen.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-36
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Warning Sound isActivated
▼Lights-On Reminder
The lights-on reminder is operable
when the time setting*1 of the auto
headlight o ff function is o ff.
If the power switch is switched OFF
with the exterior li ghts turned on and
the driver’s door is opened, a sound is
activated.
Operate the headlight switch to turn
o ff the exterior lights.
*1 If the light switch is left on, the
auto headlight o ff function
automatically turns off the lights
about 30 seconds after switching
the EV system off. The time setting
can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
NOTE
When the power switch is switched
to ACC, the “Power Switch Not
Switched OFF (STOP) Warning Beep”
(page 7-37) overrides the lights-on
reminder.
A personalized function is available
to change the sound volume for the
lights-on reminder.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼ Seat Belt Warning Beep
Front seat
If the driver's seat belt is not fastened
when the power switch is switched
ON, a beep sound will be heard for
about 6 seconds. If the driver or the
front passenger's seat belt is not
fastened and if the vehicle is driven at
about 20 km/h (12 mph) or faster, or
about 10 km/h (6 mph) or faster for a
continuous 30 seconds, with the seat
belt unfastened, a sound is activated
continuously for a certain period.
Until a seat belt is fastened or a given
period of time has elapsed, the beep
sound will not stop even if the vehicle
speed falls below 20 km/h (12 mph).
NOTE
To allow the front passenger
occupant classi
fication sensor to
function properly, do not place and
sit on an additional seat cushion on
the front passenger's seat. The
sensor may not function properly
because the additional seat cushion
could cause sensor interference.
If a small child is seated on the front
passenger's seat, the warning beep
may not operate.
Rear seat
The warning beep only sounds if a seat
belt is unfastened after being fastened.
▼ Power Switch Not Switched OFF
(STOP) Warning Beep
If the driver's door is opened with the
power switch switched to ACC, a beep
will be heard continuously in the cabin
to notify the driver that the power
switch has not been switched OFF
(STOP). Under this condition, the
keyless entry system will not operate,
the vehicle cannot be locked, and the
battery voltage will be depleted.
▼Key Removed from Vehicle
Warning Beep
Vehicles with advanced keyless
function
If the key is taken out of the vehicle
while the power switch is switched to
ACC or ON, and all the doors are
closed, a sound is activated 6 times
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-37
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

outside of the vehicle and a sound is
activated 1 time in the vehicle.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle
while the power switch is switched to
ACC or ON, and all the doors are
closed, a sound is activated 1 time in
the vehicle.
NOTE
Make sure that you leave the vehicle
while carrying the key, or switch the
power switch OFF.
▼Touch Sensor Inoperable Warning
Beep (With the advanced keyless
function)
A warning beep is activated to notify
the driver that the doors are not locked
when all of the following conditions
are met:
The power switch is switched OFF.All the doors and liftgate are not fully
closed.
The lock is operated 3 times within 5
seconds.
Check the power switch and whether
the doors and liftgate are open or
closed, and then operate the lock
again.
▼ Liftgate Door-lock Switch
Inoperable Warning Beep (With
the advanced keyless function)
When the door-lock switch on the
liftgate is pressed under any of the
following conditions, a warning sound
is activated.
The power switch is switched to a
position other than OFF.
Any door is open.
Make sure that none of the above
conditions are present, and then press
the door-lock switch again.
▼
Key Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all the doors locked
and the liftgate closed, a beep will be
heard outside for about 10 seconds to
notify the driver that the key is in the
luggage compartment. In this case,
take out the key by pressing the electric
liftgate opener and opening the
liftgate. The key taken out of the
luggage compartment may not operate
because its functions have been
temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-30).
▼Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage
compartment are locked using another
key while the key is left in the cabin,
the beep which sounds outside of the
vehicle will be heard for about 10
seconds to notify the driver that the
key is in the cabin. In this case, take
out the key by opening the door. A key
taken out of the vehicle using this
method may not operate because its
functions have been temporarily
stopped. To restore the key's functions,
perform the applicable procedure
(page 3-30).
▼Remaining High Voltage Battery
Power Warning Beep
When the remaining high voltage
battery power warning indication
displays, a warning beep is activated
once at the same time.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-38
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

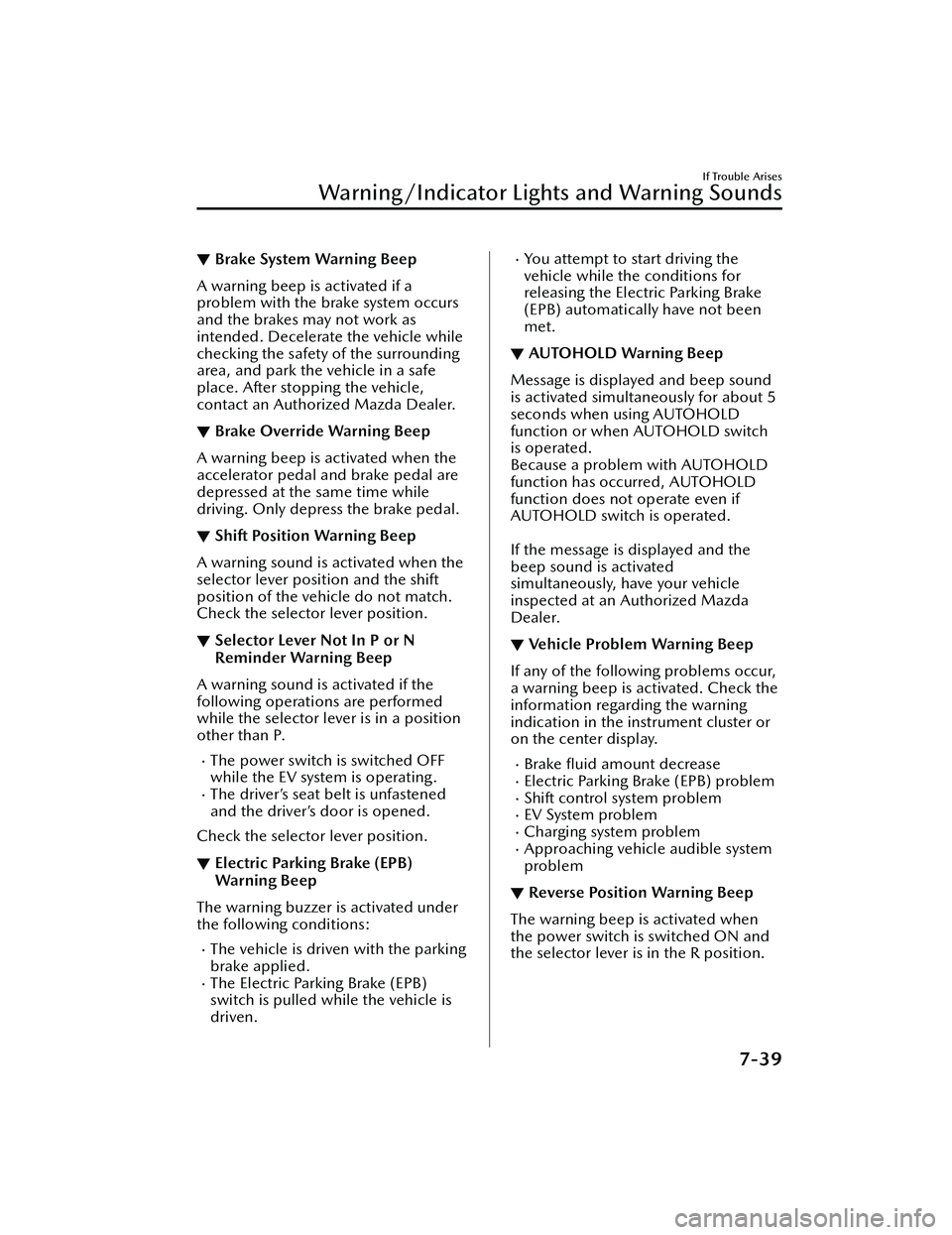

▼Brake System Warning Beep
A warning beep is activated if a
problem with the brake system occurs
and the brakes may not work as
intended. Decelerate the vehicle while
checking the safety of the surrounding
area, and park the vehicle in a safe
place. After stopping the vehicle,
contact an Authorized Mazda Dealer.
▼Brake Override Warning Beep
A warning beep is activated when the
accelerator pedal and brake pedal are
depressed at the same time while
driving. Only depress the brake pedal.
▼Shift Position Warning Beep
A warning sound is activated when the
selector lever position and the shift
position of the vehicle do not match.
Check the selector lever position.
▼Selector Lever Not In P or N
Reminder Warning Beep
A warning sound is activated if the
following operations are performed
while the selector lever is in a position
other than P.
The power switch is switched OFF
while the EV system is operating.
The driver’s seat belt is unfastened
and the driver’s door is opened.
Check the selector lever position.
▼ Electric Parking Brake (EPB)
War n in g Be ep
The warning buzzer is activated under
the following conditions:
The vehicle is driven with the parking
brake applied.
The Electric Parking Brake (EPB)
switch is pulled while the vehicle is
driven.
You attempt to start driving the
vehicle while the conditions for
releasing the Electric Parking Brake
(EPB) automatically have not been
met.
▼
AUTOHOLD Warning Beep
Message is displayed and beep sound
is activated simultaneously for about 5
seconds when using AUTOHOLD
function or when AUTOHOLD switch
is operated.
Because a problem with AUTOHOLD
function has occurred, AUTOHOLD
function does not operate even if
AUTOHOLD switch is operated.

If the message is displayed and the
beep sound is activated
simultaneously, have your vehicle
inspected at an Authorized Mazda
Dealer.
▼Vehicle Problem Warning Beep
If any of the following problems occur,
a warning beep is activated. Check the
information regarding the warning
indication in the instrument cluster or
on the center display.
Brake
fluid amount decreaseElectric Parking Brake (EPB) problemShift control system problemEV System problemCharging system problemApproaching vehicle audible system
problem
▼Reverse Position Warning Beep
The warning beep is activated when
the power switch is switched ON and
the selector lever is in the R position.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-39
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

▼Blind Spot Monitoring (BSM)
System Warning Beep*
The Blind Spot Monitoring (BSM)
warning beep operates when the turn
signal lever is operated to the side
where the Blind Spot Monitoring
(BSM) warning light is illuminated.
▼Front Cross Tra
ffic Alert (FCTA)
Warning Beep*
The Front Cross Tra ffic Alert (FCTA)
warning beep is activated if there is a
possibility of collision with a vehicle
approaching from the front on the left
and right sides of the vehicle.
▼ Rear Cross
Traffic Alert (RCTA)
Warning Beep*
The Rear Cross Tra ffic Alert (RCTA)
warning beep is activated if there is a
possibility of collision with a vehicle
approaching from the rear on the left
and right sides of the vehicle.
▼ Lane/Road Departure Warning
Beep*
The warning beep is activated when
the system determines that the vehicle
may depart from the lane or the road.
Check whether the vehicle has not
deviated from the driving lane/road.
▼Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) System
Warnings
*
The Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function) system warnings notify
the driver of system malfunctions and
cautions on use when required.
Check based on the beep sound.
Warning beep type Noti
fication content
The beep sounds 1
time while the Mazda
Radar Cruise Control
with Stop & Go func-
tion (MRCC with Stop
& Go function) is op-
erating. If a malfunction occurs
in the system, make
sure that the Mazda
Radar Cruise Control
with Stop & Go func-
tion (MRCC with Stop
& Go function) has
been canceled.
The beep sounds in-
termittently while the
Mazda Radar Cruise
Control with Stop &
Go function (MRCC
with Stop & Go func-
tion) is operating. The distance between
your vehicle and the
vehicle ahead is too
close. Check the safety
of the surrounding
area and reduce vehi-
cle speed.
▼
Excessive Speed Warning*
If the vehicle speed exceeds the speed
limit sign displayed in
the active driving
display/instrument cluster, the area
around the speed limit sign flashes in
amber and the warning sound is
activated at the same time. If the
vehicle speed continues to exceed the
displayed speed limit sign, the
indication stops flashing and remains
on.
▼ Collision warning*
If there is a possibility of a collision
with a vehicle ahead, a warning sound
is activated at the same time as the
warning indications are displayed in
the instrument cluster or active driving
display.
▼Door-ajar Warning Beep
A warning beep is activated if the
vehicle is driven with any door or
liftgate ajar. Drive the vehicle after
closing the doors and liftgate.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-40*Some models.
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

▼Low Lead-acid Battery Charge
Warning Sound
The warning sound is activated when
the lead-acid battery charge is low.
To charge the lead-acid battery, start
the EV system and operate it for 5
minutes or longer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-41
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

When Liftgate Cannot beOpened
▼When Liftgate Cannot be Opened
If the lead-acid battery is dead, the
liftgate cannot be unlocked and
opened.
In this case, the liftgate can be
unlocked by taking care of the dead
lead-acid battery situation.
Refer to Jump-Starting on page 7-12.
If the liftgate cannot be unlocked even
if the dead lead-acid battery situation
has been resolved, the electrical
system may have a malfunction.
In this case, the liftgate can be opened
using the following procedure as an
emergency measure.
1. Wrap the end of a
flathead
screwdriver in a cloth and remove
the cover on the interior surface of
the liftgate using it.
2. Turn the lever to the right to unlock
the liftgate.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon
as possible.
If Trouble Arises
When Liftgate Cannot be Opened
7-42
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

If the Active DrivingDisplay Does Not Operate
▼If the Active Driving Display Does
Not Operate
If the active driving display does not
operate, switch the power switch o ff
and then restart the EV system. If the
active driving display does not operate
even with the EV system restarted,
have the vehicle inspected at an
Authorized Mazda Dealer.
If Trouble Arises
Active Driving Display Does Not Operate
7-43
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Windshield Wipers
Operate at High Speed
▼ Windshield Wipers Operate at
High Speed
The windshield wipers may operate at
high speed if there is a problem with
the wiper control. If the windshield
wipers operate at high speed
regardless of the wiper switch
operation, have your vehicle inspected
by an Authorized Mazda Dealer.
If Trouble Arises
Windshield Wipers Operate at High Speed
7-44
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

8
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-
on equipment.
Customer Assistance................. 8-2 Customer Assistance
(U.S.A.).................................8-2
Customer Assistance
(Canada).............................. 8-6
Customer Assistance (Puerto
Rico).....................................8-8
Mazda Importer/Distributors ..........
............................................ 8-10 Importer/Distributor............8-10
Reporting Safety Defects.......... 8-11 Reporting Safety Defects
(U.S.A.)...............................8-11
Reporting Safety Defects
(Canada)............................ 8-12
Warranty................................8-13 Warranties for Your Mazda ..........
.......................................... 8-13
Outside the United States/
Canada............................... 8-13
Registering Your Vehicle in A
Foreign Country (Except United
States and Canada).............. 8-14
Add-On Non-Genuine Parts and
Accessories......................... 8-15
Cell Phones............................ 8-16Cell Phones Warning............ 8-16
Event Data Recorder................ 8-17 Event Data Recorder (U.S.A. and
Canada)..............................8-17
Recording of Vehicle Data........ 8-18 Recording of Vehicle Data.... 8-18
Uniform Tire Quality Grading System
(UTQGS)................................ 8-19 Uniform Tire Quality Grading
System (UTQGS).................. 8-19
Tire Information (U.S.A.).......... 8-21 Tire Labeling........................ 8-21
Location of the Tire Label
(Placard)............................. 8-24
Tire Maintenance................. 8-26
Vehicle Loading................... 8-28
Steps for Determining the Correct
Load Limit........................... 8-31
Declaration of Conformity....... 8-32 Declaration of Conformity ...........
.......................................... 8-32
8-1
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
