MERCEDES-BENZ C-Class SEDAN 2017 W205 Comand Manual

Keyword search
X To select Keyword Search
Keyword Search in the category
list: turn and press the controller.
X Enter and confirm the characters of the
desired search using the controller
(Y page 149).
Search results are sorted according to the
available categories, displayed and can then
be selected. Selecting the playback option
X In media mode, slide 6the controller.
The media menu bar is shown.
X To select Options
Options: turn and press the con-
troller.
X To select the desired playback option: turn
and press the controller.
Additional information on playback options
(Y page 145). Selecting video settings
Video files from Apple
®
devices cannot be
played.
If playable video files are found, they will be
played by the multimedia system.
X To switch on full-screen mode: press the con-
troller in the basic display.
X To show the video menu: slide 6the con-
troller in full-screen mode.
The Media Interface menu bar appears.
X To select Options
Options: turn and press the con-
troller.
X Select Video Settings Video Settings.
To change settings (Y page 161). Video DVD mode
Important safety notes
G
WARNING
The CD/DVD drive is a class 1 laser product. If you open the housing of the CD/DVD drive,
there is a risk of exposure to invisible laser
radiation. This laser radiation could damage
your retina. There is a risk of injury.
Never open the housing. Always have main-
tenance and repair work carried out at a quali- fied specialist workshop. G
WARNING
Handling discs while driving may distract you from traffic conditions. You could also lose
control of the vehicle. There is a risk of an
accident.
Handle discs only when the vehicle is station-
ary.
Bear in mind that at a speed of only 30 mph
(approximately 50 km/h), the vehicle covers a
distance of 44 ft (approximately 14 m)per sec-
ond. General notes
Notes on discs !
Do not affix stickers or labels to the discs.
They could peel off and damage the drive.
The drive is designed to receive EN 60908 standard discs. Therefore, you can
only use discs with a maximum thickness of
1.3 mm.
If you insert thicker discs, e.g. those that con- tain data on both sides (DVD on one side and
audio data on the other), they cannot be ejec-
ted and can damage the drive.
Do not use discs with an 8 cm diameter, even when using an adapter. Only use round discs
with a 12 cm diameter.
The variety of data media, burners and burn
software means there is no guarantee that the
system will be able to play discs that you have
copied yourself. Video DVD mode
159Media Z

DVD playback conditions
The multimedia system can play back video
DVDs produced according to the following
standards:
R Region code 1 or region code 0 (no region
code)
R PAL or NTSC standard
You will generally find the relevant details either
on the DVD itself or on the DVD case.
With DVDs that do not meet the standard
requirements, you may encounter playback
problems.
i Observe the following notes:
R It is also possible to play video DVDs with a
different region code, provided that they
are produced in accordance with the PAL or NTSC standard. If you insert a video DVD
with a different region code, a message to
this effect appears.
R The multimedia system is set to region
code 1 at the factory. This setting can be
changed at an authorized Mercedes-Benz
Center. The region code can be changed up
to five times.
R If a DVD cannot be played back according
to national color transfer methods (PAL or
NTSC standards), problems with the image, sound or playback may occur.
Control options There are four control menus available in video
DVD mode.
Most DVDs have their own control menu. The
DVD is operated directly using the controller or
DVD functions. Control menu and
function Operation
R
DVD's control
menu
Selection of title,
scene, language,
subtitles ... Operation with the
controller
R
Options Options menu
Selection of bright-
ness, contrast,
color, format Operation using the
menu bar
Options Options,
video settings Control menu and
function Operation
R
Video menu
Selection of scene,
fast forward or
rewind In full-screen mode,
slide
6the control-
ler R
DVD functions
Selection of title,
scene, language,
subtitles ... In full-screen mode,
press the controller
Function restrictions
Depending on the DVD, certain functions or
actions may not function at all. The symbol
0047
appears in the display. Switching on video DVD mode
R Insert and eject a disc from the single drive
(Y page 144)
Further options for switching on:
R Using the main function bar (Y page 141)
R Using the device list (Y page 142)
R Using the 00FDbutton (Y page 141) Showing the DVD basic display
0043
Main function bar
0044 Main display field
0087 Media menu bar 160
Video DVD
modeMedia

The DVD basic display can be shown in the fol-
lowing situations:
X To show the DVD menu: press the0038
button.
X To show in the video DVD currently play-
ing: slide 6the controller.
The video menu appears.
X Press the controller.
The basic display appears. Switching on DVD full-screen mode
It is possible to switch from the DVD basic dis-
play to full screen mode as follows:
X Slide 5the controller.
The main function bar and menu bar are hid-
den. A full-screen symbol will be shown.
X Press the controller.
The full-screen mode appears. Calling up the options menu
Selecting options
X In full-screen mode, slide 6the controller
The video menu appears.
X Press the controller.
The DVD basic display appears.
X To select Options Optionsin the menu bar: turn and
press the controller.
A menu appears.
Skip to time
X To select Skip to Time
Skip to Time: turn and press the
controller.
A menu appears.
X To set the time: turn the controller.
X To hide the menu: press the 0038button.
Displaying the DVD functions X To select DVD
DVD Functions Functions: turn and press the
controller.
A menu appears (Y page 162). Selecting video settings
Dynamic image enhancement The dynamic image enhancement function auto-
matically matches brightness, contrast and
color to the film being played. X
To activate or deactivate: tick or remove the
tick from the box in front of Dynamic DynamicImage
Enhancement
Enhancement .
Manual image enhancement In order to manually adjust the brightness, con-
trast and color, the dynamic image enhance-
ment function and the automatic daylight
adjustment feature must be switched off.
X To select Brightness Brightness ,Contrast
Contrast or
Color
Color : turn and press the controller.
A sliding menu appears.
X To select the required value: turn the control-
ler.
X To exit the sliding menu: slide 8the con-
troller. Video DVD mode
161Media Z

Setting the picture format
The following screen format options are availa-
ble for the DVD currently being played:
R Auto Auto
R 16:9
16:9
R 4:3
4:3
R Zoom
Zoom
X To set the picture format: turn and press the
controller.
The dot before the menu entry shows the
selected format. Showing the DVD's control menu
Most DVDs have their own control menuwhich
can be operated using the controller.
Showing the DVD's control menu
X To show DVD functions: in full screen video
mode, press the controller.
The DVD functions menu is shown.
X To select Menu
Menu from the DVD functions menu:
turn and press the controller.
The DVD functions menu is hidden and the
DVD's menu entries (e.g. scenes, language,
trailers) are displayed.
X To select a menu entry: turn and press the
controller. Operating the video menu
0043
Type of data medium
0044 Current title
0087 Shows the menu bars for the DVD basic dis-
play
0085 Current scene
0083 Track time Operating the video menu
X To show the video menu: in full-screen video
mode, slide 6the controller.
X To hide the video menu: slide 5the con-
troller.
X To select the next or previous scene: turn the
controller clockwise/counter-clockwise.
X To fast forward or rewind: slide 9or8
the controller and hold until the desired posi- tion has been reached.
X To show the menu bars for the DVD basic dis-
play: in the video menu, press the controller.
The video menu is hidden and the DVD basic
menu appears. DVD functions
Showing/hiding the DVD functions X
To show DVD functions: in full screen video
mode, press the controller.
The DVD functions menu is shown.
X To hide DVD functions: select0038from the
DVD functions.
X To show the DVD basic display: select00E2
from the DVD functions.
Overview of DVD functions 0043
Activates DVD control menu
0044 Hides DVD functions
0087 Shows the DVD basic display
0085 Confirms entry in control menu
0083 Navigates DVD lists
0084 Jumps to the start of the scene
006B Displays camera perspectives
006C Shows subtitles
006D Selects language 162
Video DVD modeMedia

006E
Stops playback
006F Pauses playback
Using the DVD functions X
In full-screen mode, press the controller
The DVD functions menu is shown.
It is possible to navigate in the DVD's control
menu when the arrows in the upper menu barare activated.
X To select the 0095009700C50096arrow to navigate in the
menu: turn the controller.
The active arrow is highlighted.
X To select a menu entry: press the controller.
The next menu entry in the direction of the
arrow is highlighted.
X To call up a highlighted menu entry: turn the
controller until 0054is highlighted.
X Press the controller.
The selected DVD scene is played.
X To hide DVD functions: select 0039using the
controller.
X Press the controller.
The DVD functions menu is hidden.
If there are functions such as Display camera
perspectives on the DVD, these functions are
shown in the DVD functions menu.
X To call up Display camera perspectives: turn
and press the controller
Continuing/stopping playback Interrupting playback
X Show the DVD functions (Y page 162).
X To select 00DBfrom the DVD functions menu:
turn and press the controller.
The 00CF display changes to 00D0. Playback
is stopped. Continuing playback
X Select 00D0.
Playback continues from the point where it
was interrupted.
Stopping playback X While playback is interrupted select 00DB
again.
Restarting playback
X Select 00D0.
Playback restarts from the beginning.
Pausing/continuing playback Pausing playback
X Show the DVD functions (Y page 162).
X Select 00CF: turn and press the controller.
The 00CF display changes to 00D0.
Continuing playback X Select 00D0. Selecting a scene/chapter
If the film is divided into scenes and chapters,
you can select these directly while the film is
running or you can skip progressively through
them. This is not possible at certain points for
some DVDs (e.g. during the opening credits).
It may also be possible to select the scene and
chapter from the functions stored on the DVD.
X To skip forward or back: in the video menu,
turn the controller.
The next or previous scene in the film is skip- ped to.
i The DVD functions can also be used to make
selections (Y page 162). Picture viewer
General notes
If there are pictures on the active data medium,
you can view them on the multimedia system.
The following data media and picture formats
are supported:
R Data media: Media Register, CD, DVD, USB
devices, SD cards
R Picture formats: jpeg, jpg, bmp, png Picture viewer
163Media Z

The maximum image resolution is
20 megapixels.
It is not possible to view a picture from the driv-
er's side while the vehicle is in motion. Displaying pictures
X In media mode, slide 6the controller.
X To select Search Search: turn and press the control-
ler.
The category list appears.
X To select Photos Photos: turn and press the control-
ler.
A directory list appears. Folders and picture
files can be shown.
X Select a folder or picture.
If there is no picture on the data medium, an
empty list is shown.
Searching for pictures on other data media X You can search for pictures on other data
media.
In the directory list, slide 8the controller.
The device list appears.
X To select a data medium with picture files:
turn the controller and press to confirm.
A directory list appears. Folders and picture
files can be shown.
X Select a folder or picture. Starting a slide show
X While viewing a picture, press the controller.
The image menu appears.
X To select Start Slideshow
Start Slideshow: turn and press
the controller.
The slide show starts.
X To end the slide show: press the controller.
The image menu appears.
X Select End Slide Show
End Slide Show. Changing the picture view
X
While viewing a picture, press the controller.
The image menu appears.
X To select Turn Clockwise Turn Clockwise: turn the control-
ler and press to confirm.
The picture rotates 90 degrees.
X Select Turn Counterclockwise Turn Counterclockwise.
The picture rotates 90 degrees.
X Select Zoom In
Zoom In.
The size of the picture increases. After you
have zoomed into the picture, you can move
the section of the picture.
X To move the section of the picture: slide 4
and 1 the controller.
X To revert to the original size: press the con-
troller.
or
X Press the 0038button. Closing the picture viewer
X While viewing a picture, press the controller.
X To select Close Picture Viewer Close Picture Viewer: turn and
press the controller.
The multimedia system returns to the last
accessed media function. 164
Picture viewerMedia

Your multimedia system equipment
These operating instructions describe all the
standard and optional equipment of your multi-
media system, as available at the time of going
to press. Country-specific differences are pos-
sible. Bear in mind that your vehicle may not
feature all functions described here. This also
applies to safety-relevant systems and func-
tions.
Read the information on qualified specialist
workshops in the vehicle Operator's Manual. Sound settings
Calling up the sound menu
You can make various sound settings for the
different audio and video sources. It is possible to set more bass for radio mode than for CD
audio mode, for example. The respective sound menu can be called up from the menu of the
desired mode.
X Switch to radio mode (Y page 132).
or X Switch to media mode (Y page 141).
X To switch to the menu bar: slide 6the con-
troller.
X To select à: turn and press the controller.
The menu appears with the last setting
accessed, e.g. Equalizer
Equalizer.
Sound menu overview Function Options
Equalizer Sets treble, mid-
range and bass
Balance/fader Moves the sound
focus: left/right and
front/rear Setting treble, mid-range and bass
X
Call up the sound menu (Y page 165).
X Turn the controller until Equalizer Equalizeris brought
to the front.
X To activate rotary menus for treble, mid-range
and bass: slide 6the controller.
X To switch between the rotary menus: slide
8 or9 the controller.
X To make the desired Equalizer Equalizersettings: turn
the controller.
Rotary menus show the set values.
X To return to the menu: slide 5the control-
ler.
X To return to the basic menu: press the 0038
button briefly. Adjusting the balance/fader
Balance moves the focus of the sound between
left and right.
Fader moves the focus of the sound between
front and rear.
X Call up the sound menu (Y page 165).
X Turn the controller until Balance/Fader
Balance/Fader is
brought to the front and then slide 6the
controller. Sound set
tings
165Sound

X
To activate the menu for balance and fader:
press the controller.
X To adjust the balance focus: slide 8or
9 the controller.
X To adjust the fader focus: slide 6or5 the
controller.
An image shows the sound focus set.

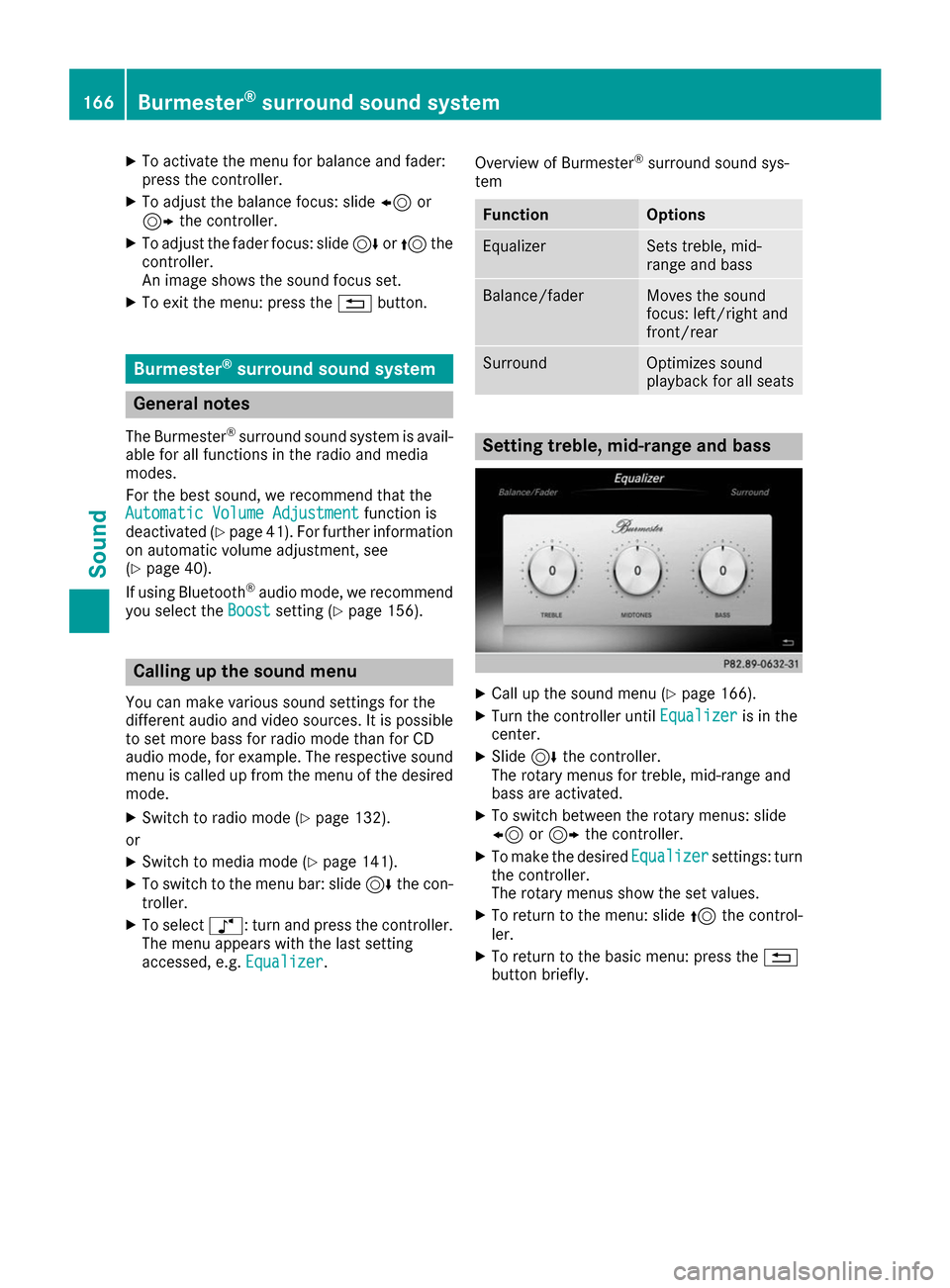

X To exit the menu: press the 0038button. Burmester
®
surround sound system General notes
The Burmester ®
surround sound system is avail-
able for all functions in the radio and media
modes.
For the best sound, we recommend that the
Automatic Volume Adjustment Automatic Volume Adjustment function is
deactivated (Y page 41). For further information
on automatic volume adjustment, see
(Y page 40).
If using Bluetooth ®
audio mode, we recommend
you select the Boost
Boost setting (Y page 156). Calling up the sound menu
You can make various sound settings for the
different audio and video sources. It is possible to set more bass for radio mode than for CD
audio mode, for example. The respective sound
menu is called up from the menu of the desired mode.
X Switch to radio mode (Y page 132).
or X Switch to media mode (Y page 141).
X To switch to the menu bar: slide 6the con-
troller.
X To select à: turn and press the controller.
The menu appears with the last setting
accessed, e.g. Equalizer
Equalizer. Overview of Burmester
®
surround sound sys-
tem Function Options
Equalizer Sets treble, mid-
range and bass
Balance/fader Moves the sound
focus: left/right and
front/rear
Surround Optimizes sound
playback for all seats
Setting treble, mid-range and bass
X
Call up the sound menu (Y page 166).
X Turn the controller until Equalizer Equalizeris in the
center.
X Slide 6the controller.
The rotary menus for treble, mid-range and
bass are activated.
X To switch between the rotary menus: slide
8 or9 the controller.
X To make the desired Equalizer Equalizersettings: turn
the controller.
The rotary menus show the set values.
X To return to the menu: slide 5the control-
ler.
X To return to the basic menu: press the 0038
button briefly. 166
Burmester ®
surround sound systemSound

Adjusting the balance/fader
Balance moves the focus of the sound between
left and right.
Fader moves the focus of the sound between
front and rear.
X Call up the sound menu (Y page 166).
X Turn the controller until Balance/Fader
Balance/Fader is
brought to the front and then slide 6the
controller.
X To activate the menu for balance and fader:
press the controller.
X To adjust the balance focus: slide 8or
9 the controller.
X To adjust the fader focus: slide 6or5 the
controller.
An image shows the sound focus set.
X To exit the menu: press the 0038button. Setting surround sound
The Surround
Surround setting enables a wide-ranging
sound playback.
Switching on/off
X Call up the sound menu (Y page 166).
X Turn the controller until Surround
Surround is in the
center.
X Slide 6the controller.
The left-hand rotary menu to switch surround
sound on and off is activated.
X To switch on Surround
Surround: turn the controller.
Setting the focus
X Slide 9the controller.
The right-hand rotary menu is activated.
X To set the focus: turn the controller.
The menu symbol, text and image show the
selected setting. i
The focus can be set regardless of whether
or not surround sound is activated.
X To exit the menu: press the 0038button. Burmester
®
surround sound system 167Sound

Your multimedia system equipment
These operating instructions describe all the
standard and optional equipment of your multi-
media system, as available at the time of going
to press. Country-specific differences are pos-
sible. Bear in mind that your vehicle may not
feature all functions described here. This also
applies to safety-relevant systems and func-
tions.
Read the information on qualified specialist
workshops in the vehicle Operator's Manual. Weather forecasts
Introduction
This function is currently not available for Can-
ada.
For the reception of weather forecasts via sat-
ellite radio, you will need a SIRIUS XM Satellite
Weather subscription.
If the message appears along with the SIRIUS
telephone and ID numbers, you will need to have the weather service activated first.
X To select Call CallorCancel
Cancel : turn and press the
controller.
If a mobile phone is connected to the multi-
media system (Y page 92), when you select
Call Call a call is placed to a member of the SIR-
IUS service staff. The ID number of the SIRIUS device will be transferred to the telephone
display.
X This will be followed by instructions from the
service employee.
Weather forecasts can be received via the sat-
ellite radio for the USA (including Alaska and
Hawaii).
The received weather data can be displayed as
an information chart (daily forecast, five-day
forecast, detailed information) or on the
weather map.
The weather data received from the weather
station is stored for one hour in the multimedia system. It can therefore be displayed again
immediately after restarting the engine (for
example after refueling). Depending on which scale has been selected,
the weather map can display the following
weather data with symbols:
R rain radar
R storm characteristics
R high and low-pressure areas, weather fronts
R course of tropical cyclones (hurricanes,
typhoons)
R storm warnings
R wind direction and speeds
i The rain radar cannot be displayed for
Alaska, Hawaii and Puerto Rico.
i Hurricane: term used to describe the tropi-
cal cyclones that primarily develop in the
Atlantic, North Pacific and South Pacific
oceans. A wind speeds are above 74 mph
(118 km/h). Five categories are used to clas- sify the strength of a hurricane.
Typhoon: term used to describe a tropical
cyclone that develops in the northwestern
Pacific. The wind speeds are in the category of
a hurricane. Switching the SIRIUS Weather display
on/off
Activating X
Press the 002Bbutton.
X To display the main function bar: slide5
the controller.
X To select 00A7: turn and press the controller.
The online applications menu appears.
X To select SIRIUS Weather SIRIUS Weather, turn and press
the controller.
The information chart shows the daily fore-
cast at the current vehicle position. 168
Wea
ther forecastsSIRIUS Weather
