MERCEDES-BENZ C WAGON 2005 S203 Owner's Manual

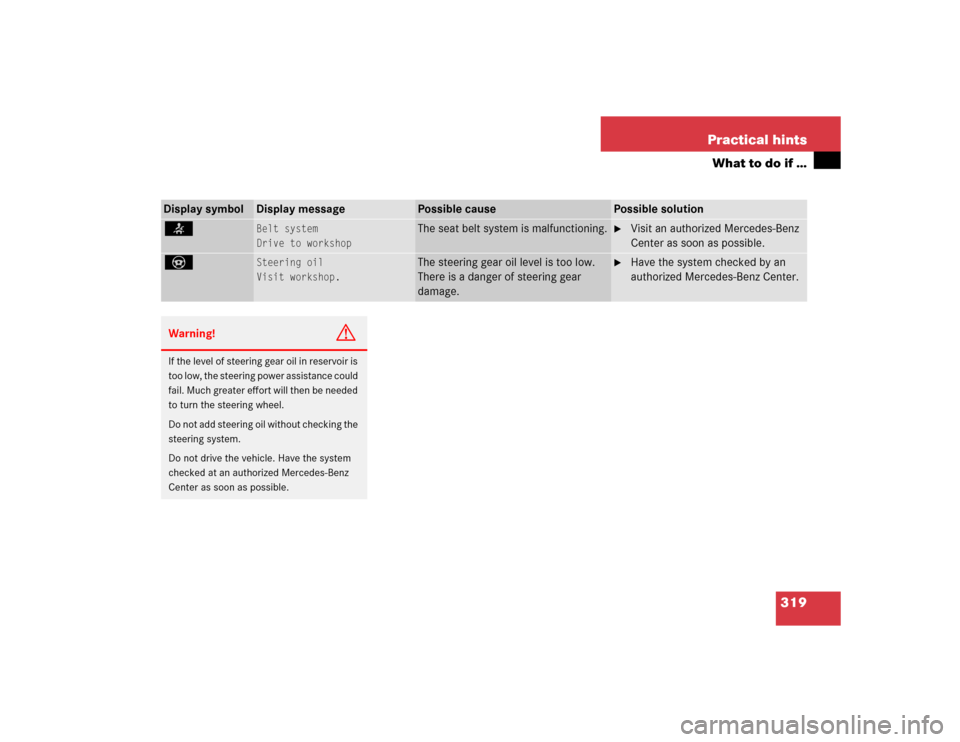

319 Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
<
Belt system
Drive to workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
_
Steering oil
Visit workshop.
The steering gear oil level is too low.
There is a danger of steering gear
damage.

Have the system checked by an
authorized Mercedes-Benz Center.
Warning!
G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at an authorized Mercedes-Benz
Center as soon as possible.

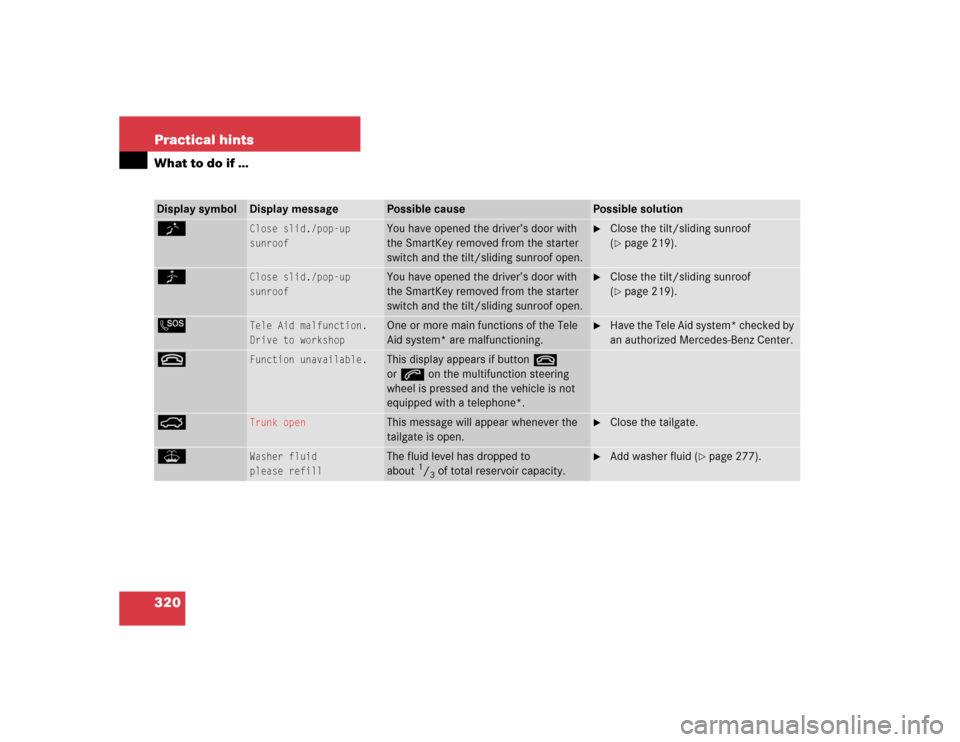

320 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
K
Close slid./pop-up
sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt/sliding sunroof open.

Close the tilt/sliding sunroof
(page 219).
J
Close slid./pop-up
sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt/sliding sunroof open.

Close the tilt/sliding sunroof
(page 219).
L
Tele Aid malfunction.
Drive to workshop
One or more main functions of the Tele
Aid system* are malfunctioning.

Have the Tele Aid system* checked by
an authorized Mercedes-Benz Center.
t
Function unavailable.
This display appears if buttont
ors on the multifunction steering
wheel is pressed and the vehicle is not
equipped with a telephone*.
Ê
Trunk open
This message will appear whenever the
tailgate is open.

Close the tailgate.
W
Washer fluid
please refill
The fluid level has dropped to
about
1/3of total reservoir capacity.

Add washer fluid (
page 277).

321 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is located in the storage
compartment behind the left trim panel.
Press button1.

Fold down panel2.

Remove first aid kit3.
Vehicle tool kit
The vehicle tool kit is located in the storage
compartment behind the left trim panel.
Press button1.

Fold down panel2.
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.

322 Practical hintsWhere will I find ...?3Vehicle tool kit
The following is included:

Towing eye bolt


Wheel wrench


Alignment bolt


Vehicle jack


Spare wheel bolts


Fuse extractor


Spare fuses


Collapsible wheel chock


A pair of glovesVehicle jackThe vehicle jack is located in the storage
compartment behind the left trim panel.
Storage position
Remove vehicle jack from its
compartment.

Push crank handle up.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

323 Practical hints
Where will I find ...?
Operational position
Turn crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its
compartment:


It should be fully collapsed.


The handle must be folded in (storage
position).Setting up the collapsible wheel chock
The collapsible wheel chock serves to
additionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plates upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of the base
plate3.

324 Practical hintsWhere will I find ...?Minispare wheel
The Minispare wheel is located in the
storage compartment underneath the
cargo compartment floor.
Removing the Minispare wheel
Lift up cargo compartment floor cover.
1Storage box

Remove storage box1.2Retaining screw
3Minispare wheel

Loosen retaining screw2 by turning it
counterclockwise.

Remove Minispare wheel3.Storing the Minispare wheel

Store Minispare wheel3 in the
storage compartment underneath the
cargo compartment floor.

Fasten retaining screw2 by turning it
clockwise.

Reinstall storage box1.Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted.
The Minispare wheel should only be used
temporarily, and should be replaced with a
regular road wheel as quickly as possible.

325 Practical hints
Where will I find ...?
In the case of a flat tire, you may
temporarily use the Minispare wheel when
observing the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or
replaced as appropriate.


Do not operate vehicle with more than
one Minispare wheel mounted.
For more information, see “Rims and Tires”
(
page 367).Minispare wheel bolts
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel or other
steel rims (located in vehicle tool kit)
!Wheel bolts2 must be used when
mounting the Minispare wheel or other
steel rims. The use of any wheel bolts
other than wheel bolts2 for the
Minispare wheel or other steel rims will
physically damage the vehicle’s
brakes.Warning!
G
Make sure to use the original length wheel
bolts when remounting the original wheel
after it has been repaired.

326 Practical hintsUnlocking/locking in an emergencyUnlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey, open the driver’s door using
the mechanical key and the tailgate using
the emergency release.
Removing the mechanical key
1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of
arrow.

Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking

Insert the mechanical key into the
driver’s door lock until it stops.

Turn the mechanical key counterclock-
wise to position1.
The driver’s door is unlocked.Unlocking and opening the tailgate
A minimum height clearance of 6.40 ft
(1.95 m) is required to open the tailgate.
The emergency release is located on the
inside of the tailgate.
1Release lever
2CoveriUnlocking the driver’s door with the
mechanical key will trigger the
anti-theft alarm system*.
To cancel the alarm, do one of the
following:

Press buttonŒ or‹ on the
SmartKey


Insert the SmartKey in the starter
switch

327 Practical hints
Unlocking/locking in an emergency

Remove cover2 from the trim on the
tailgate.

Push release lever1 all the way to the
right.

Lift the tailgate.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey, do the following:
Close the passenger doors and the
tailgate.

Press the central locking switch in the
center console (
page 96).

Check to see whether the locking
knobs on the passenger doors have
moved down.

If necessary push them down manually.
Except for the driver’s door, the vehicle
should now be locked.1Locking

Insert the mechanical key into the
driver’s door lock until it stops.

Turn the mechanical key clockwise to
position1.
The driver’s door is locked.
!Always make sure there is sufficient
overhead clearance.iIf the vehicle has previously been
locked from the outside using the
SmartKey, opening the tailgate from
the inside will trigger the anti-theft
alarm system*.
To cancel the alarm, do one of the
following:

Press buttonŒ or‹ on the
SmartKey


Insert the SmartKey in the starter
switch

328 Practical hintsUnlocking/locking in an emergencyFuel filler flap
In case the central locking system does
not release the fuel filler flap, you can open
it manually.

Open the tailgate.

Press button1.

Fold down trim panel2.

Reach inside through opening3 in
direction of arrow.

Turn release knob4 clockwise
(arrow).
The fuel filler flap can now be opened.
Manually unlocking the transmission
gear selector lever
In the case of power failure the transmis-
sion gear selector lever can be manually
unlocked, e.g. to tow the vehicle.
Slide out the swiveling cup holder
(page 236).1Tool

Insert a tool1 (e.g. flat blade
screwdriver) into the opening.

Perform the following two steps
simultaneously:
Press tool1 forward in the
direction of arrow.

Move gear selector lever from
positionP.

Remove tool1 from the opening.
Warning!
G
If you operate the emergency release
button, be careful of the sharp edges so that
you do not injure yourself.
iThe gear selector lever is locked again
when moving it to positionP.
