MERCEDES-BENZ C WAGON 2005 S203 Owner's Manual

339 Practical hints
Replacing bulbs
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 108).

Open the tailgate (

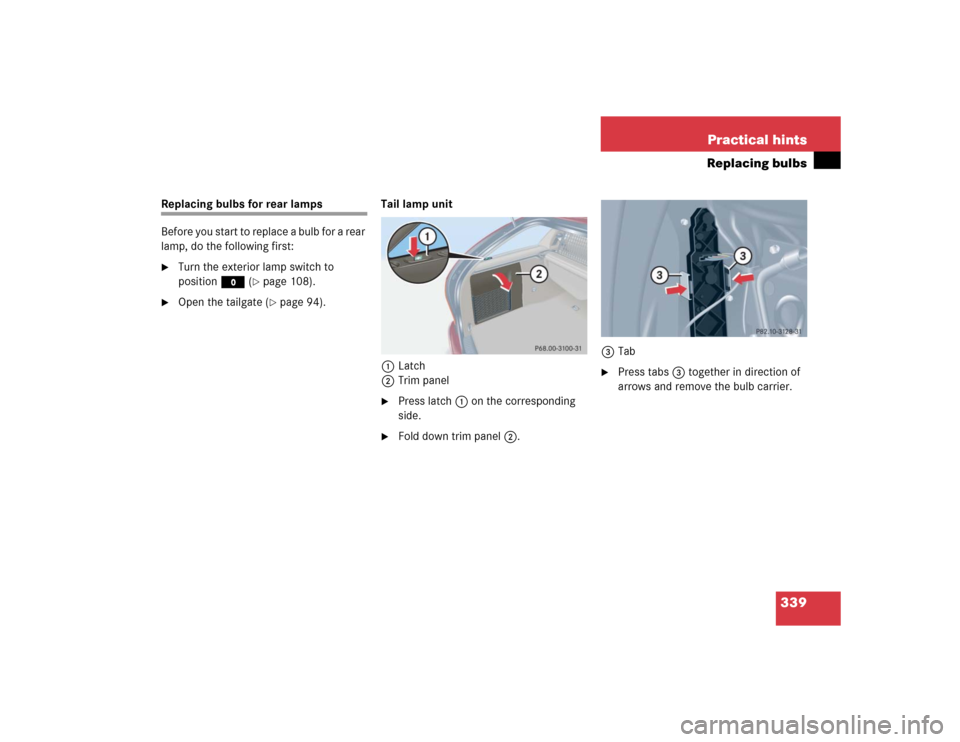

page 94).Tail lamp unit
1Latch
2Trim panel

Press latch1 on the corresponding
side.

Fold down trim panel2.3Tab

Press tabs3 together in direction of
arrows and remove the bulb carrier.

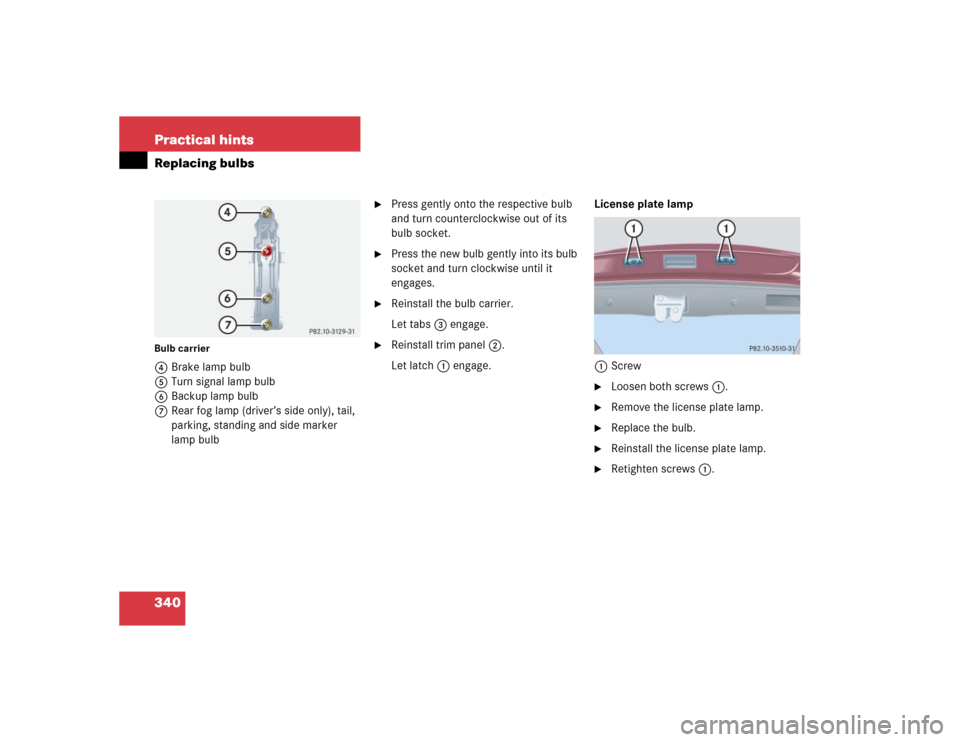

340 Practical hintsReplacing bulbsBulb carrier4Brake lamp bulb
5Turn signal lamp bulb
6Backup lamp bulb
7Rear fog lamp (driver’s side only), tail,
parking, standing and side marker
lamp bulb

Press gently onto the respective bulb
and turn counterclockwise out of its
bulb socket.

Press the new bulb gently into its bulb
socket and turn clockwise until it
engages.

Reinstall the bulb carrier.
Let tabs3 engage.

Reinstall trim panel2.
Let latch1 engage.License plate lamp
1Screw

Loosen both screws1.

Remove the license plate lamp.

Replace the bulb.

Reinstall the license plate lamp.

Retighten screws1.

341 Practical hints

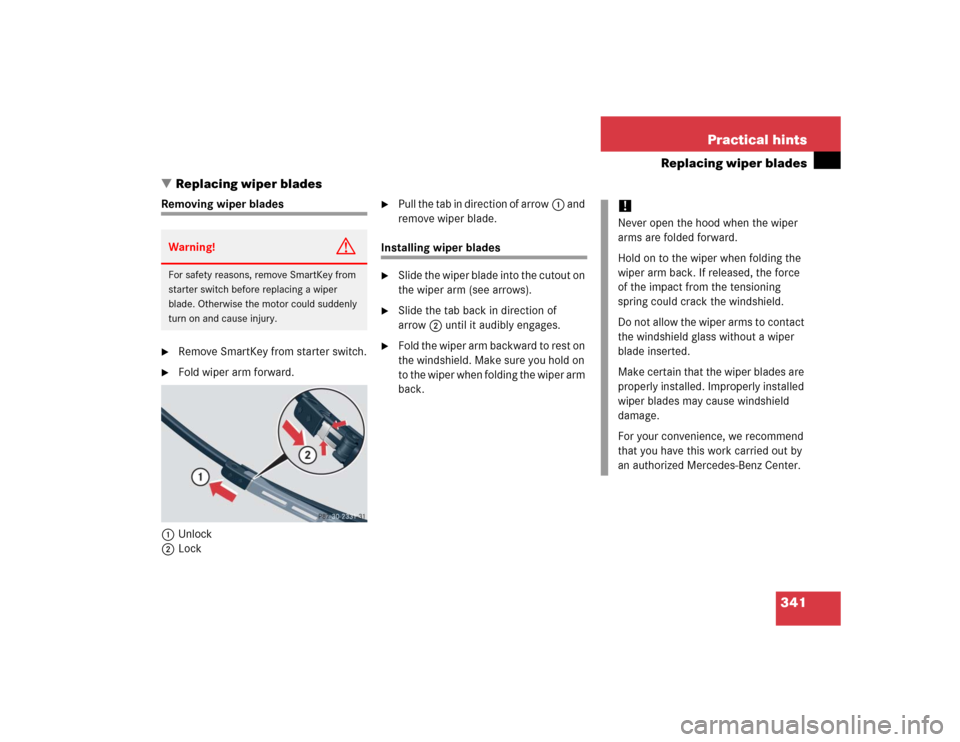

Replacing wiper blades
Replacing wiper blades
Removing wiper blades
Remove SmartKey from starter switch.

Fold wiper arm forward.
1Unlock
2Lock

Pull the tab in direction of arrow1 and
remove wiper blade.
Installing wiper blades
Slide the wiper blade into the cutout on
the wiper arm (see arrows).

Slide the tab back in direction of
arrow2 until it audibly engages.

Fold the wiper arm backward to rest on
the windshield. Make sure you hold on
to the wiper when folding the wiper arm
back.
Warning!
G
For safety reasons, remove SmartKey from
starter switch before replacing a wiper
blade. Otherwise the motor could suddenly
turn on and cause injury.
!Never open the hood when the wiper
arms are folded forward.
Hold on to the wiper when folding the
wiper arm back. If released, the force
of the impact from the tensioning
spring could crack the windshield.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
Make certain that the wiper blades are
properly installed. Improperly installed
wiper blades may cause windshield
damage.
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Center.

342 Practical hintsFlat tire
Preparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flasher
(page 113).

Turn the steering wheel so that the
front wheels are in the straight ahead
position.

Set the parking brake (
page 55).

Move the gear selector lever toP.

Turn off the engine (
page 57).

Remove the SmartKey from the starter
switch.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Mounting the Minispare wheel
Preparing the vehicle
Prepare the vehicle as described on
(page 342).

Take the wheel wrench, the wheel
bolts, and the jack out of the storage
compartment behind the left trim panel
(page 321).

Take the Minispare wheel out of the
storage compartment underneath the
cargo compartment floor
(page 324).
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted. Adapt your driving style accord-
ingly.
The Minispare wheel is for temporary use
only. When driving with spare wheel
mounted, ensure proper tire pressure and
do not exceed a vehicle speed of 50 mph
(80 km/h).
Drive to the nearest Mercedes-Benz Center
as soon as possible to have the Minispare
wheel replaced with a regular road wheel.
Never operate the vehicle with more than
one Minispare wheel mounted.
iOpen door only when conditions are
safe to do so.

343 Practical hints
Flat tire
Lifting the vehicle
Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizable objects.
One wheel chock is included with the
vehicle tool kit (
page 322).
When changing wheel on a level surface:

Place the wheel chock in front of and
another sizable object behind the
wheel that is diagonally opposite to the
wheel being changed.
When changing wheel on a hill:

Place the wheel chock and another
sizable object on the downhill side
blocking both wheels of the other axle.

On wheel to be changed, loosen but do
not yet remove the wheel bolts
(approximately one full turn with
wrench).
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.

344 Practical hintsFlat tireThe jack take-up brackets are located
directly behind the front wheel housings
and in front of the rear wheel housings.
1Take-up bracket
2Jack
Place jack2 on firm ground.

Position jack2 under take-up
bracket1 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an
incline.

Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while
vehicle is raised.Removing the wheel
1Alignment bolt

Unscrew upper-most wheel bolt and
remove.

Replace this wheel bolt with alignment
bolt1 supplied in the tool kit.

Remove the remaining bolts.

Remove the wheel.
Warning!
G
The jack is intended only for lifting the
vehicle briefly for wheel changes. It is not
suited for performing maintenance work
under the vehicle.

Never start the engine when the vehicle
is raised.


Never lie down under the raised vehicle.
!Do not place wheel bolts in sand or dirt.
This could result in damage to the bolts
and wheel hub threads.

345 Practical hints
Flat tire
Mounting the Minispare wheel
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel or other
steel rims (located in vehicle tool kit)
Clean contact surfaces of wheel and
wheel hub.

Guide Minispare wheel onto alignment
bolt and push it on.

Insert wheel bolts and tighten them
slightly.
!Wheel bolts2 must be used when
mounting the Minispare wheel or other
steel rims. The use of any wheel bolts
other than wheel bolts2 for the
Minispare wheel or other steel rims will
physically damage the vehicle’s
brakes.
!To avoid paint damage, place wheel flat
against hub and hold it there while
installing first wheel bolt.Warning!
G
Always replace wheel bolts that are
damaged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be
repaired immediately. Do not continue to
drive under these circumstances! Contact
an authorized Mercedes-Benz Center or call
Roadside Assistance.
Incorrect wheel bolts or improperly tight-
ened wheel bolts can cause the wheel to
come off. This could cause an accident.
Make sure to use the correct wheel bolts.

346 Practical hintsFlat tire
Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.Lowering the vehicle

Lower vehicle by turning crank
counterclockwise until vehicle is
resting fully on its own weight.

Remove the jack.
1 - 5Wheel bolts

Tighten the five wheel bolts evenly,
following the diagonal sequence
illustrated (1to5), until all bolts are
tight. Observe a tightening torque
of 80 lb-ft (110 Nm).Before storing the jack, it should be fully
collapsed, with handle folded in (storage
position) (
page 322).

Store the jack and the other vehicle
tools in the storage compartment be-
hind the left trim panel (
page 322).
Warning!
G
Only use genuine equipment
Mercedes-Benz wheel bolts. Other wheel
bolts may come loose.
Do not tighten the wheel bolts when the
vehicle is raised. Otherwise the vehicle
could fall of the jack.
Warning!
G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque
of 80 lb-ft (110 Nm).

347 Practical hints

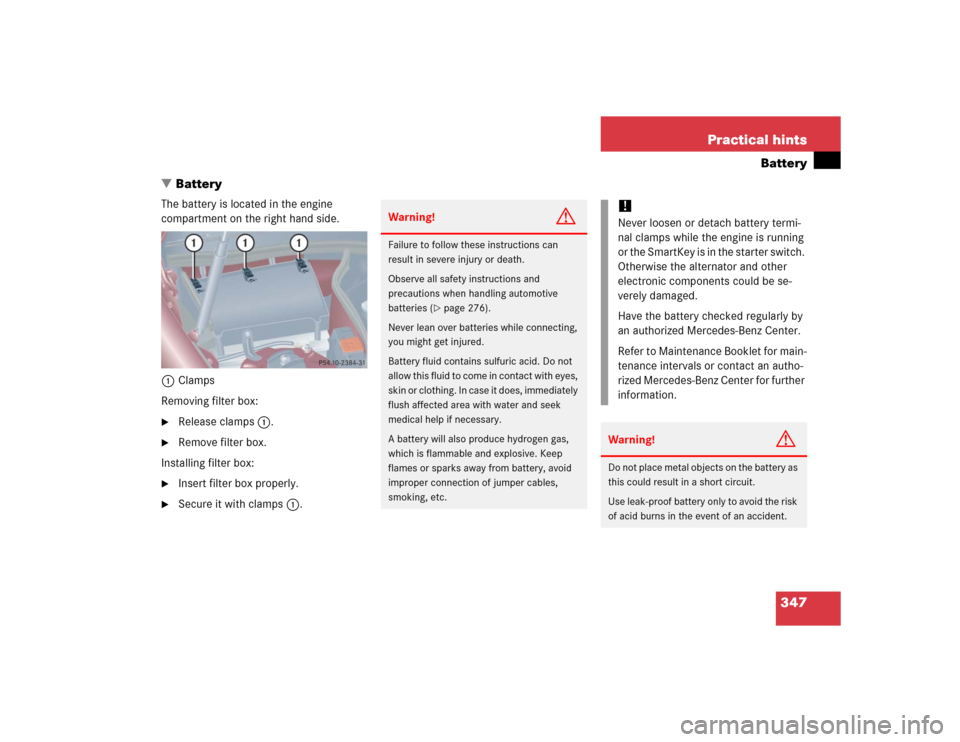

Battery
Battery
The battery is located in the engine
compartment on the right hand side.
1Clamps
Removing filter box:
Release clamps1.

Remove filter box.
Installing filter box:

Insert filter box properly.

Secure it with clamps1.
Warning!
G
Failure to follow these instructions can
result in severe injury or death.
Observe all safety instructions and
precautions when handling automotive
batteries (
page 276).
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Maintenance Booklet for main-
tenance intervals or contact an autho-
rized Mercedes-Benz Center for further
information.Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.

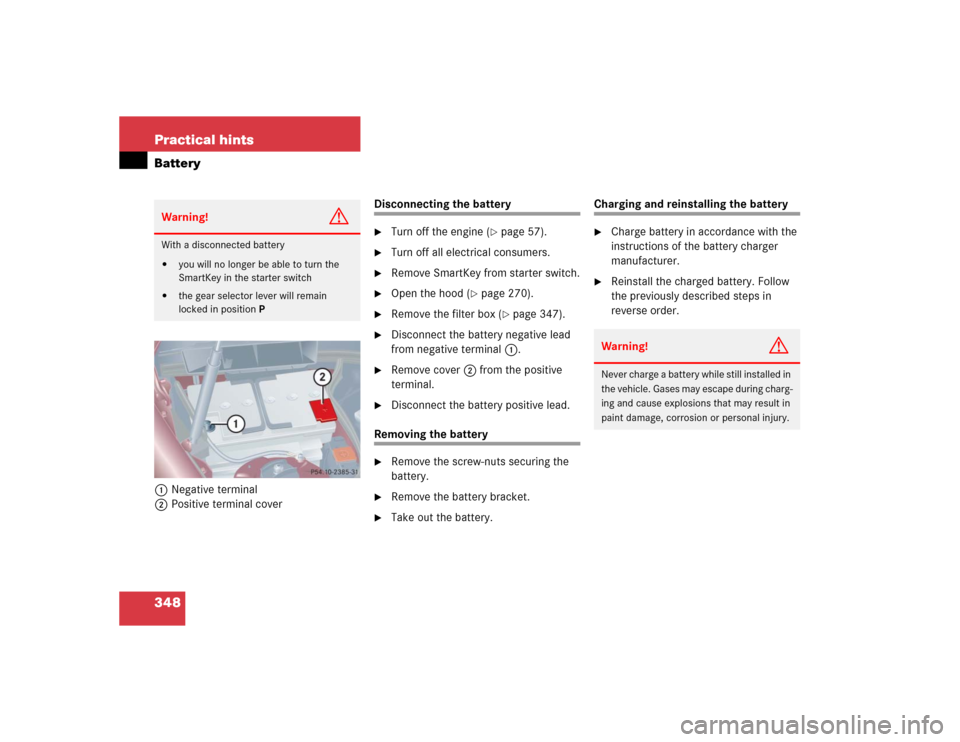

348 Practical hintsBattery1Negative terminal
2Positive terminal cover
Disconnecting the battery
Turn off the engine (
page 57).

Turn off all electrical consumers.

Remove SmartKey from starter switch.

Open the hood (
page 270).

Remove the filter box (
page 347).

Disconnect the battery negative lead
from negative terminal1.

Remove cover2 from the positive
terminal.

Disconnect the battery positive lead.
Removing the battery
Remove the screw-nuts securing the
battery.

Remove the battery bracket.

Take out the battery.
Charging and reinstalling the battery
Charge battery in accordance with the
instructions of the battery charger
manufacturer.

Reinstall the charged battery. Follow
the previously described steps in
reverse order.
Warning!
G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch


the gear selector lever will remain
locked in positionP
Warning!
G
Never charge a battery while still installed in
the vehicle. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
