MERCEDES-BENZ C WAGON 2005 S203 Owner's Manual

329 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Power tilt/sliding sunroof*
You can open or close the tilt/sliding
sunroof manually should an electrical
malfunction occur.

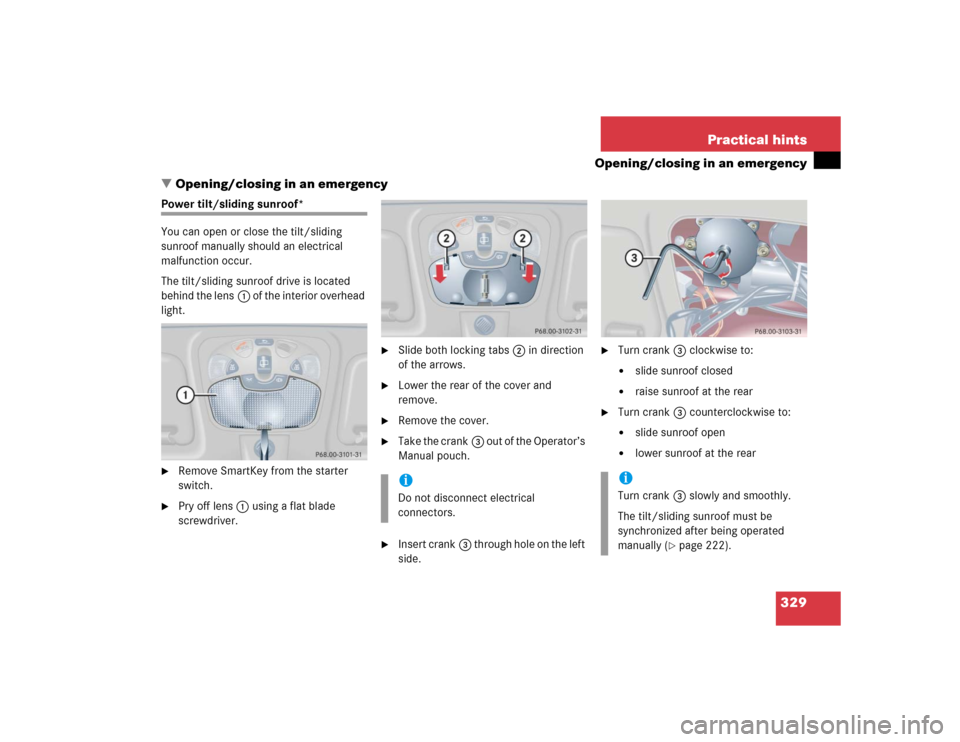

The tilt/sliding sunroof drive is located
behind the lens1 of the interior overhead
light.
Remove SmartKey from the starter
switch.

Pry off lens1 using a flat blade
screwdriver.

Slide both locking tabs2 in direction
of the arrows.

Lower the rear of the cover and
remove.

Remove the cover.

Take the crank3 out of the Operator’s
Manual pouch.

Insert crank3 through hole on the left
side.

Turn crank3 clockwise to:

slide sunroof closed


raise sunroof at the rear

Turn crank3 counterclockwise to:

slide sunroof open


lower sunroof at the rear
iDo not disconnect electrical
connectors.
iTurn crank3 slowly and smoothly.
The tilt/sliding sunroof must be
synchronized after being operated
manually (
page 222).

330 Practical hintsReplacing SmartKey batteriesIf the batteries in the SmartKey are
discharged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an
authorized Mercedes-Benz Center.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen inserting the batteries, make
sure they are clean and free of lint.iWhen replacing batteries, always
replace both batteries.
The required replacement batteries are
available at any Mercedes-Benz
Center.

331 Practical hints
Replacing SmartKey batteries
SmartKey
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove the mechanical key
(page 326).
1Mechanical key
2Battery compartment

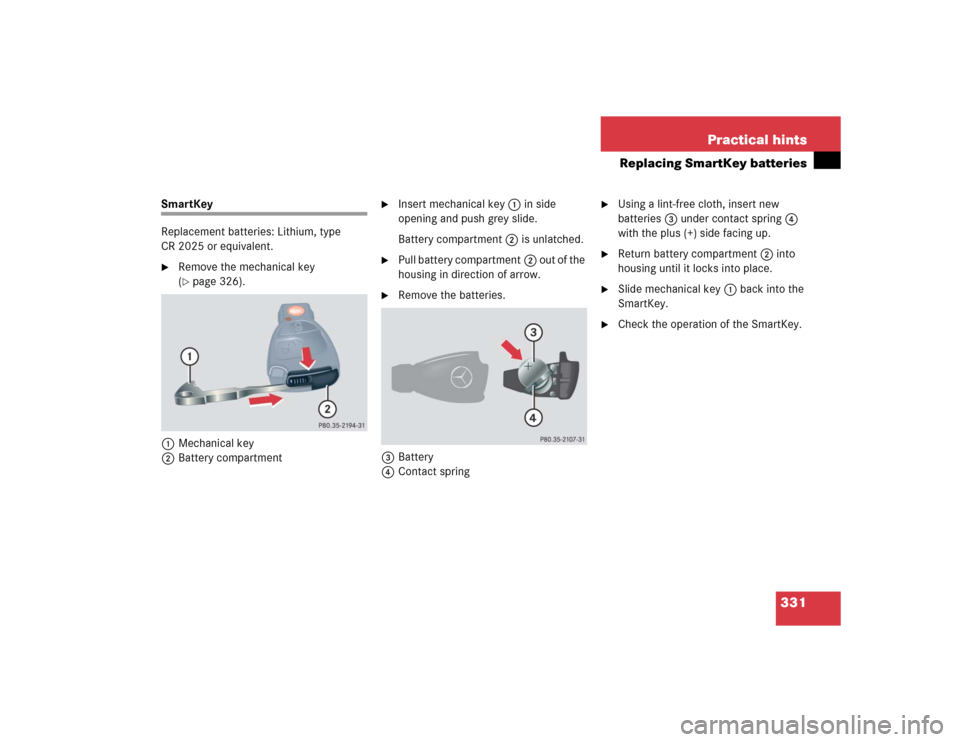

Insert mechanical key1 in side
opening and push grey slide.
Battery compartment2 is unlatched.

Pull battery compartment2 out of the
housing in direction of arrow.

Remove the batteries.
3Battery
4Contact spring

Using a lint-free cloth, insert new
batteries3 under contact spring4
with the plus (+) side facing up.

Return battery compartment2 into
housing until it locks into place.

Slide mechanical key1 back into the
SmartKey.

Check the operation of the SmartKey.

332 Practical hintsReplacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp
assemblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp
adjustment.
Bulbs
iIf the headlamps or front fog lamps are
fogged up on the inside as a result of
high humidity, driving the vehicle a
distance with the lights on should clear
up the fogging.iSubstitute bulbs will be brought into
use when lamps malfunction. Observe
the messages in the multifunction dis-
play (
page 301)

333 Practical hints
Replacing bulbs

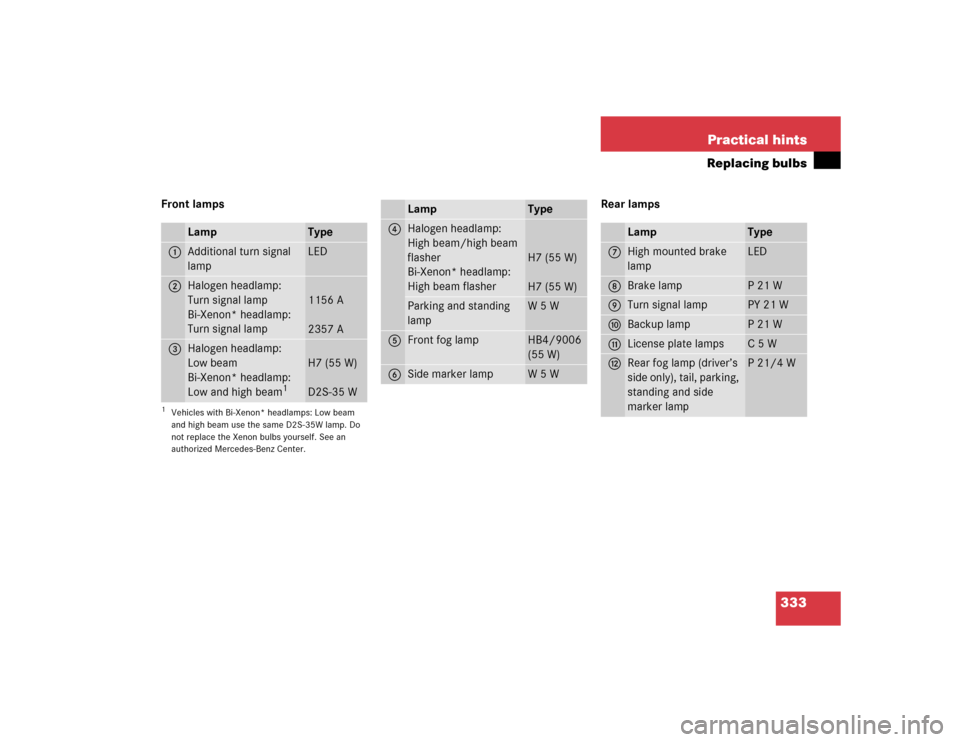

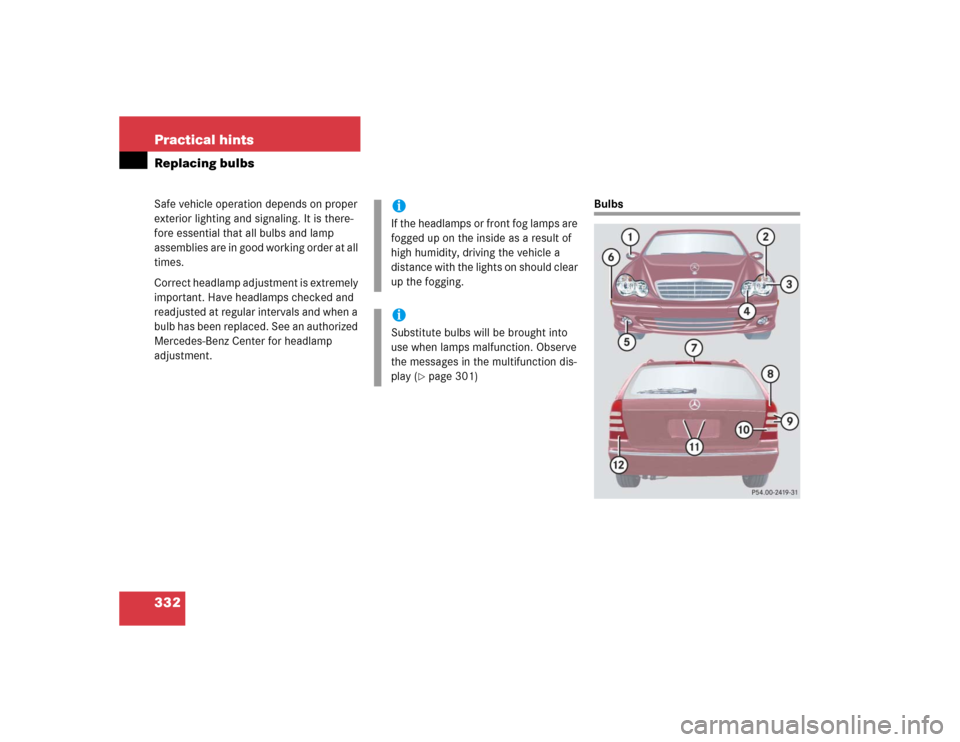

Front lamps Rear lamps
Lamp
Type
1
Additional turn signal
lamp
LED
2
Halogen headlamp:
Turn signal lamp
Bi-Xenon* headlamp:
Turn signal lamp
1156 A
2357 A
3
Halogen headlamp:
Low beam
Bi-Xenon* headlamp:
Low and high beam
1
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Xenon bulbs yourself. See an
authorized Mercedes-Benz Center.
H7 (55 W)
D2S-35 W
Lamp
Type
4
Halogen headlamp:
High beam/high beam
flasher
Bi-Xenon* headlamp:
High beam flasher
H7 (55 W)
H7 (55 W)
Parking and standing
lamp
W5W
5
Front fog lamp
HB4/9006
(55 W)
6
Side marker lamp
W5W
Lamp
Type
7
High mounted brake
lamp
LED
8
Brake lamp
P21W
9
Turn signal lamp
PY 21 W
a
Backup lamp
P21W
b
License plate lamps
C5W
c
Rear fog lamp (driver’s
side only), tail, parking,
standing and side
marker lamp
P 21/4 W

334 Practical hintsReplacing bulbs
Notes on bulb replacement

Only use 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:


Additional turn signals in the
exterior rear view mirrors


High mounted brake lamp


Xenon* lamps


Front fog lamps

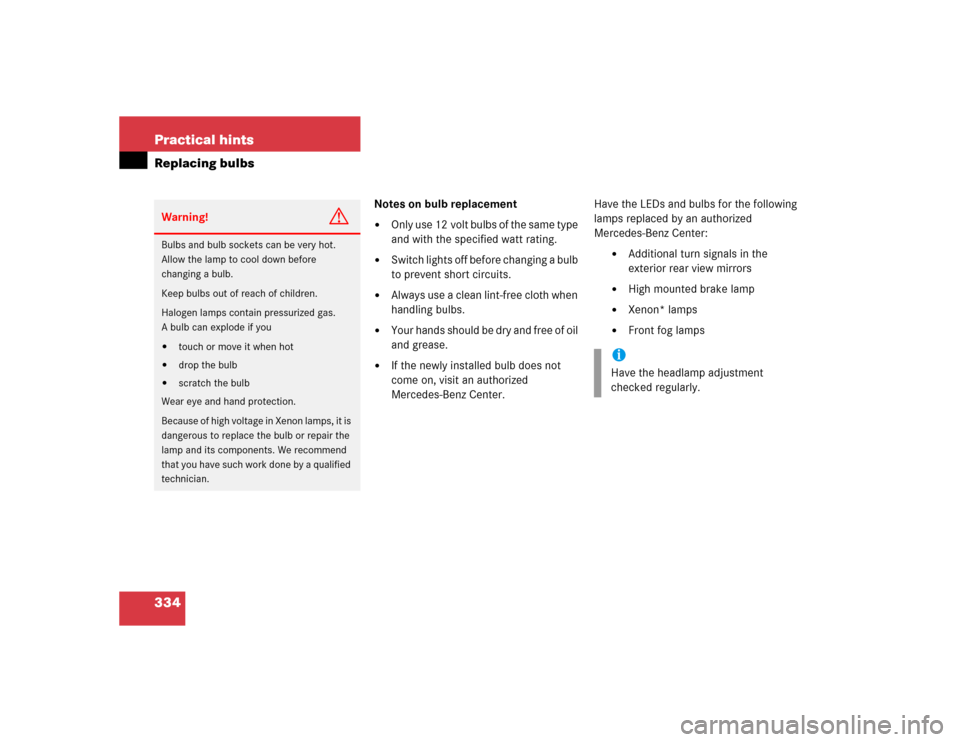

Warning!
G
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before
changing a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
iHave the headlamp adjustment
checked regularly.

335 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 108).

Open the hood (
page 270) (except
for side marker lamps).

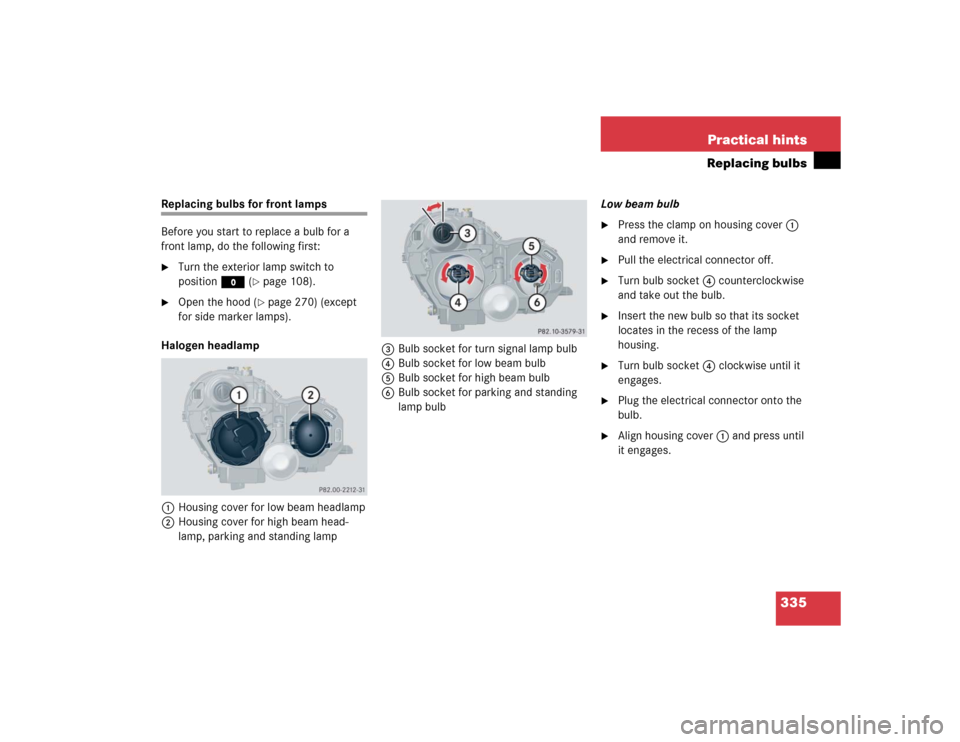

Halogen headlamp
1Housing cover for low beam headlamp
2Housing cover for high beam head-
lamp, parking and standing lamp3Bulb socket for turn signal lamp bulb
4Bulb socket for low beam bulb
5Bulb socket for high beam bulb
6Bulb socket for parking and standing
lamp bulbLow beam bulb

Press the clamp on housing cover1
and remove it.

Pull the electrical connector off.

Turn bulb socket4 counterclockwise
and take out the bulb.

Insert the new bulb so that its socket
locates in the recess of the lamp
housing.

Turn bulb socket4 clockwise until it
engages.

Plug the electrical connector onto the
bulb.

Align housing cover1 and press until
it engages.

336 Practical hintsReplacing bulbsHigh beam bulb
Press the clamp on housing cover2
and remove it.

Pull the electrical connector off.

Turn bulb socket5 counterclockwise
and take out the bulb.

Insert the new bulb so that its socket
locates in the recess of the lamp
housing.

Turn bulb socket5 clockwise until it
engages.

Plug the electrical connector onto the
bulb.

Align housing cover2 and press until
it engages.Front turn signal lamp bulb

Turn bulb socket3 with the bulb
counterclockwise and remove it.

Press gently onto the bulb and turn it
counterclockwise out of bulb
socket3.

Press new bulb gently into bulb
socket3 and turn clockwise until it
engages.

Place bulb socket3 back into the
lamp and turn it clockwise.Parking and standing lamp bulb

Press the clamp on housing cover2
and remove it.

Pull out bulb socket6 with the bulb.

Pull the bulb out of bulb socket6.

Press the new bulb into bulb socket6.

Press bulb socket6 back into the
lamp.

Align housing cover2 and press until
it engages.

337 Practical hints
Replacing bulbs

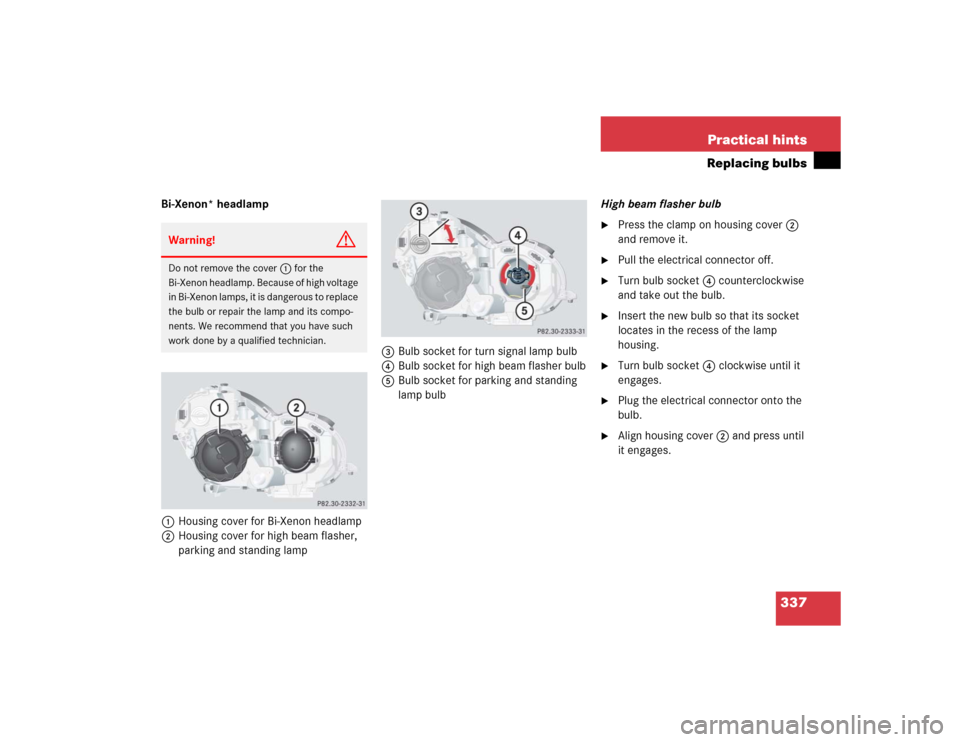

Bi-Xenon* headlamp
1Housing cover for Bi-Xenon headlamp
2Housing cover for high beam flasher,
parking and standing lamp3Bulb socket for turn signal lamp bulb
4Bulb socket for high beam flasher bulb
5Bulb socket for parking and standing
lamp bulbHigh beam flasher bulb

Press the clamp on housing cover2
and remove it.

Pull the electrical connector off.

Turn bulb socket4 counterclockwise
and take out the bulb.

Insert the new bulb so that its socket
locates in the recess of the lamp
housing.

Turn bulb socket4 clockwise until it
engages.

Plug the electrical connector onto the
bulb.

Align housing cover2 and press until
it engages.
Warning!
G
Do not remove the cover1 for the
Bi-Xenon headlamp. Because of high voltage
in Bi-Xenon lamps, it is dangerous to replace
the bulb or repair the lamp and its compo-
nents. We recommend that you have such
work done by a qualified technician.

338 Practical hintsReplacing bulbsFront turn signal lamp bulb
Turn bulb socket3 with the bulb
counterclockwise and remove it.

Press gently onto the bulb and turn it
counterclockwise out of bulb
socket3.

Press new bulb gently into bulb
socket3 and turn clockwise until it
engages.

Place bulb socket3 back into the
lamp and turn it clockwise.Parking and standing lamp bulb

Press the clamp on housing cover2
and remove it.

Pull out bulb socket5 with the bulb.

Pull the bulb out of bulb socket5.

Press the new bulb into bulb socket5.

Press bulb socket5 back into the
lamp.

Align housing cover2 and press until
it engages.Side marker lamp

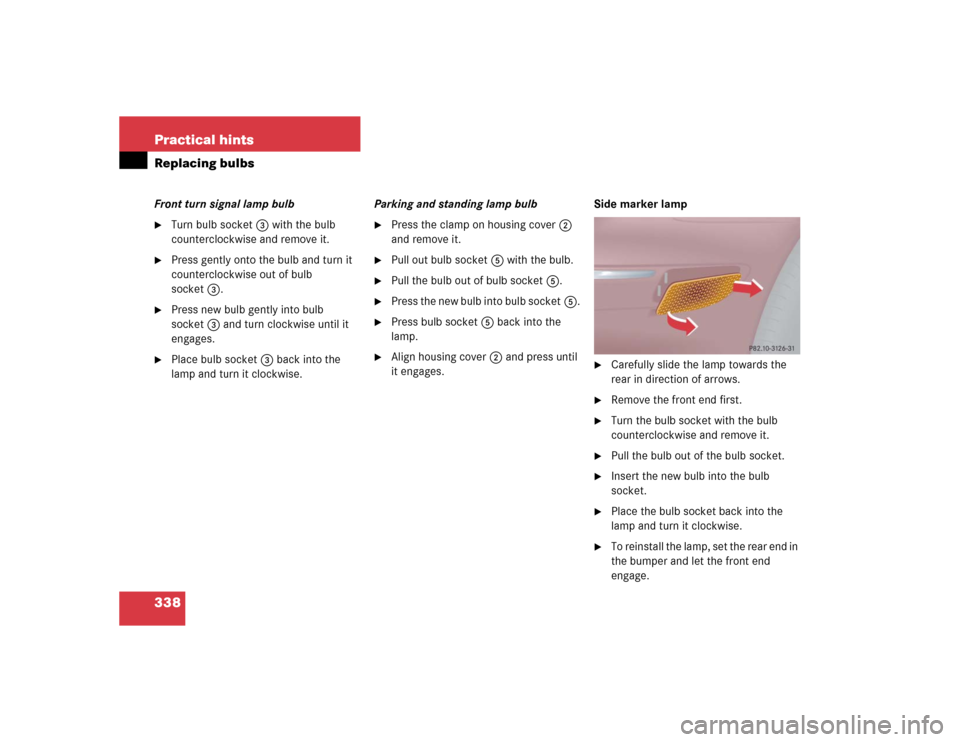

Carefully slide the lamp towards the
rear in direction of arrows.

Remove the front end first.

Turn the bulb socket with the bulb
counterclockwise and remove it.

Pull the bulb out of the bulb socket.

Insert the new bulb into the bulb
socket.

Place the bulb socket back into the
lamp and turn it clockwise.

To reinstall the lamp, set the rear end in
the bumper and let the front end
engage.
