359 Practical hintsFuses
Fuse box in cargo compartment
The fuse box is located in the cargo
compartment behind the left hand trim
panel.
1Button for unlocking trim panel
2Trim panel
Opening trim panel
Press button1.

Fold down trim panel2.3Fuse extractor
4Fuse box
5Spare fuses
Closing trim panel

Fold up trim panel2.

360

361 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and Tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants, etc.
Consumer information

362 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for
maintenance and repair work. In addition,
strategically located parts distribution
centers provide quick and reliable parts
service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are
subjected to stringent quality inspections.
Each part has been specifically developed,
manufactured or selected for and adapted
to Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s
durability or safety.

363 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the “warranties” printed in the Service and
Warranty Information booklet. Your autho-
rized Mercedes-Benz Center will exchange
or repair any defective parts originally
installed in the vehicle in accordance with
the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any Mercedes-Benz
Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you.

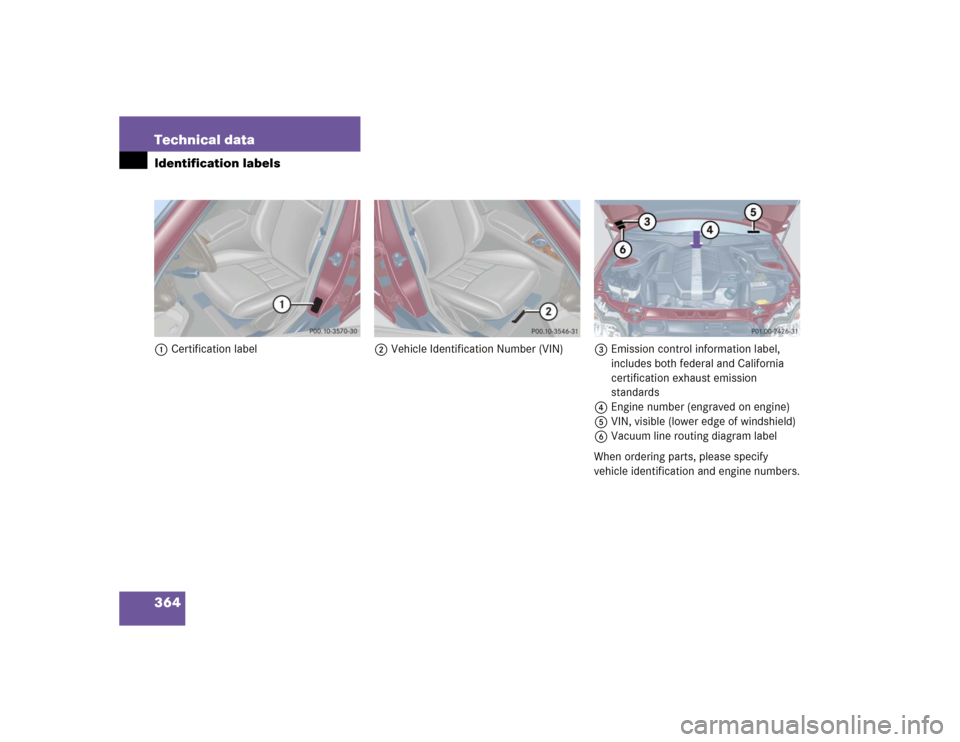

364 Technical dataIdentification labels1Certification label2Vehicle Identification Number (VIN)3Emission control information label,
includes both federal and California
certification exhaust emission
standards
4Engine number (engraved on engine)
5VIN, visible (lower edge of windshield)
6Vacuum line routing diagram label
When ordering parts, please specify
vehicle identification and engine numbers.

365 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive

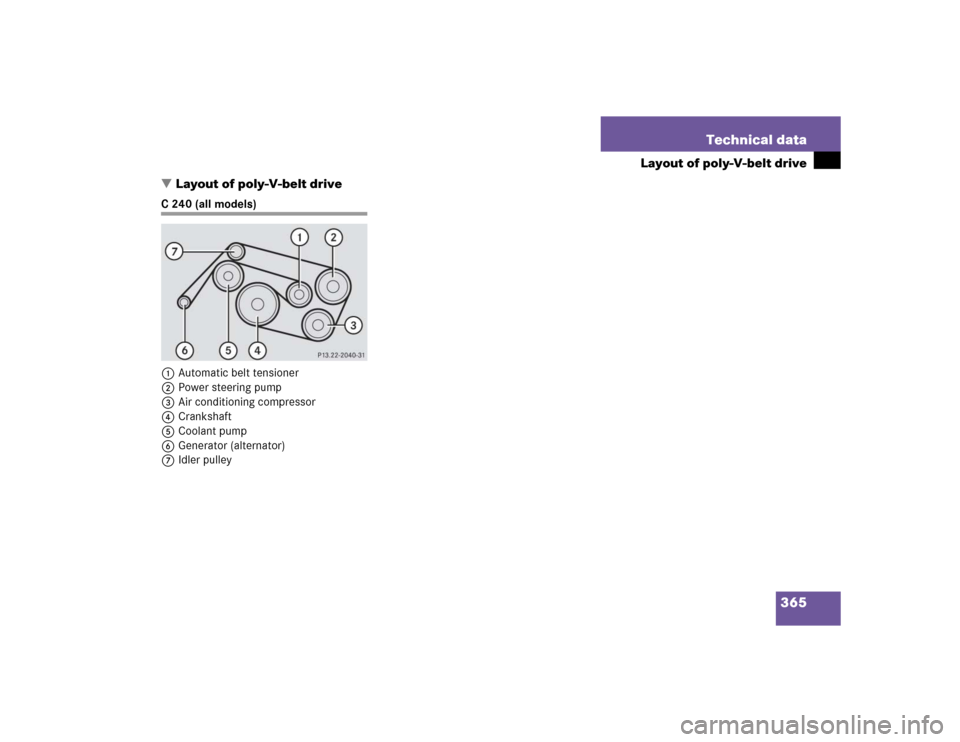

C 240 (all models)
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

366 Technical dataEngineModel
C 240 (203.261)
1
C 240 4MATIC (203.281)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding

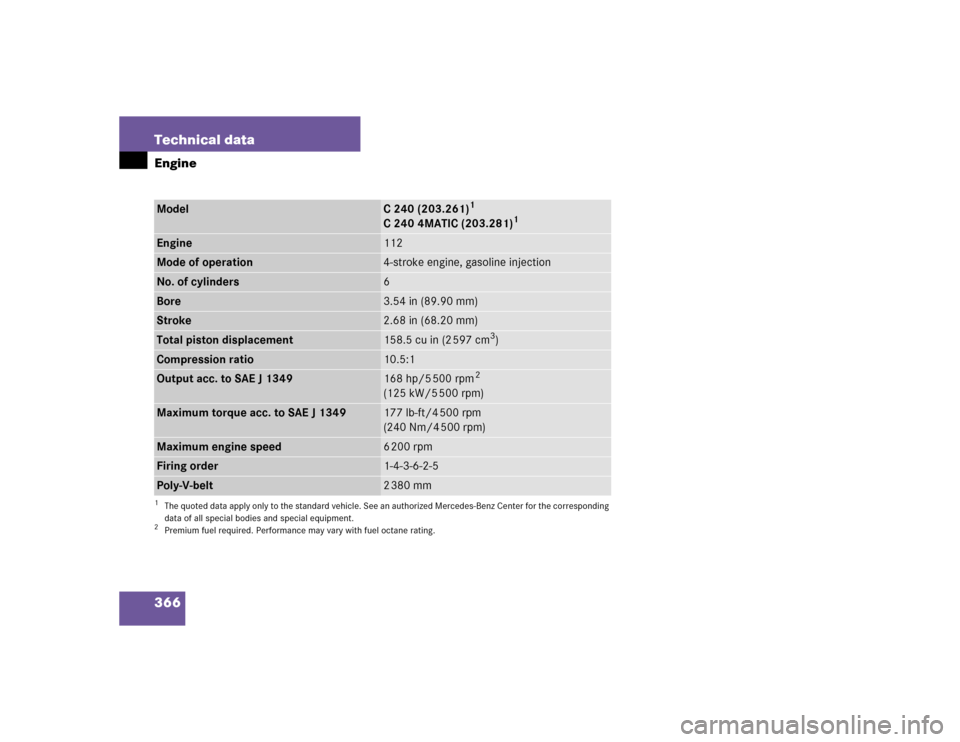

data of all special bodies and special equipment.Engine
112
Mode of operation
4-stroke engine, gasoline injection
No. of cylinders
6
Bore
3.54 in (89.90 mm)
Stroke
2.68 in (68.20 mm)
Total piston displacement
158.5 cu in (2 597 cm
3)
Compression ratio
10.5:1
Output acc. to SAE J 1349
168 hp/5 500 rpm
2
(125 kW/5 500 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.Maximum torque acc. to SAE J 1349
177 lb-ft/4 500 rpm
(240 Nm/4 500 rpm)
Maximum engine speed
6200 rpm
Firing order
1-4-3-6-2-5
Poly-V-belt
2380 mm

367 Technical data
Rims and Tires
Rims and Tires
Only use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and
different tire deformation characteris-
tics that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the
vehicle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel
filler cap of the vehicle. The tire pres-
sure should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

368 Technical dataRims and TiresSame size tiresModel
C 240 (all models)
Rims (light alloy)
7 J x16 H2
Wheel offset
1.22 in (31 mm)
All-season tires (radial-ply tires)
205/55 R16 91H
Summer tires (radial-ply tires)
-
Winter tires (radial-ply tires)
205/55 R16 91H M+S
