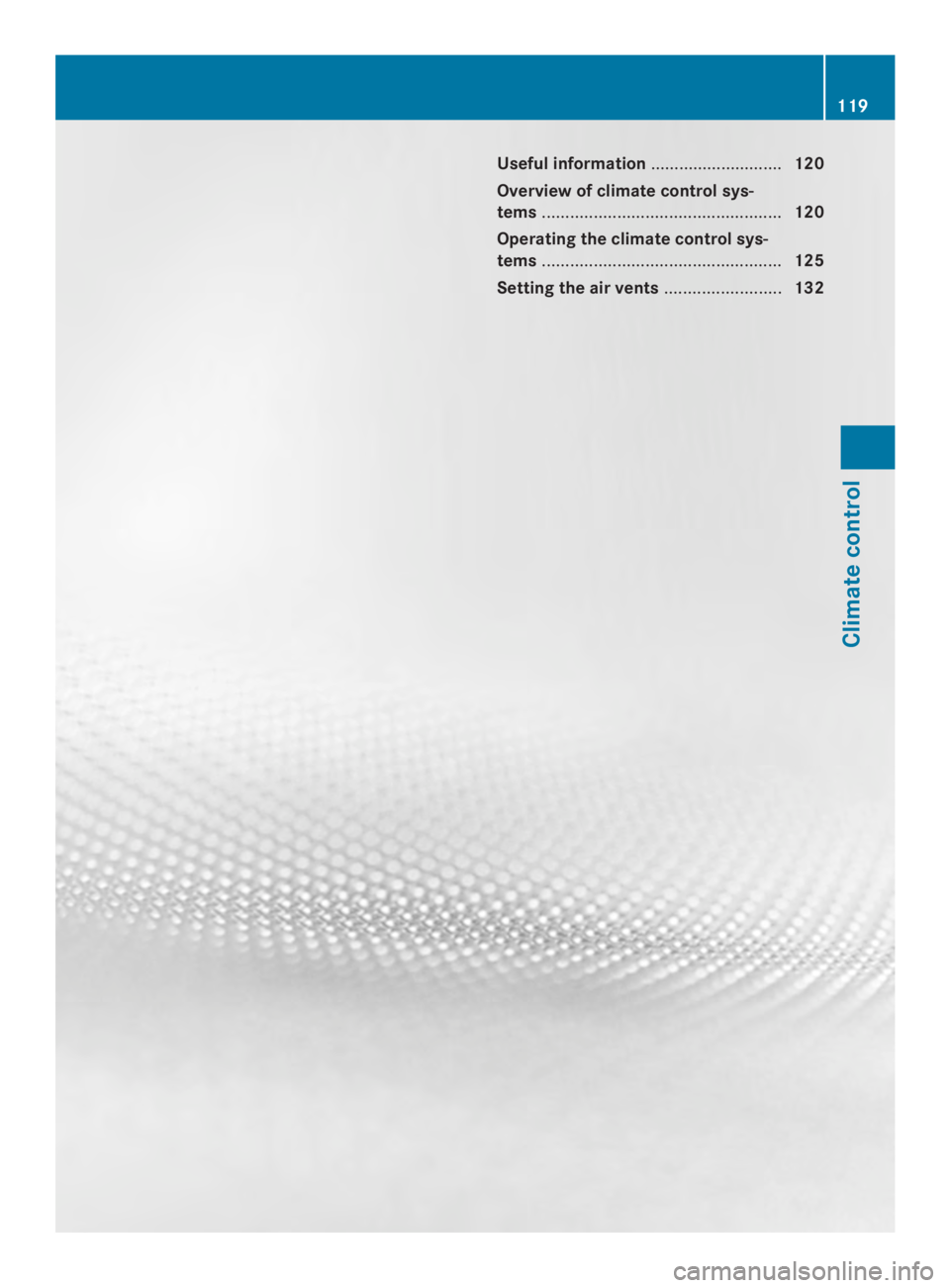

Useful information............................120
Overview of climate control sys-
tems...................................................120
Operating the climate control sys-
tems...................................................125
Setting the air vents.........................132
119
Climate control

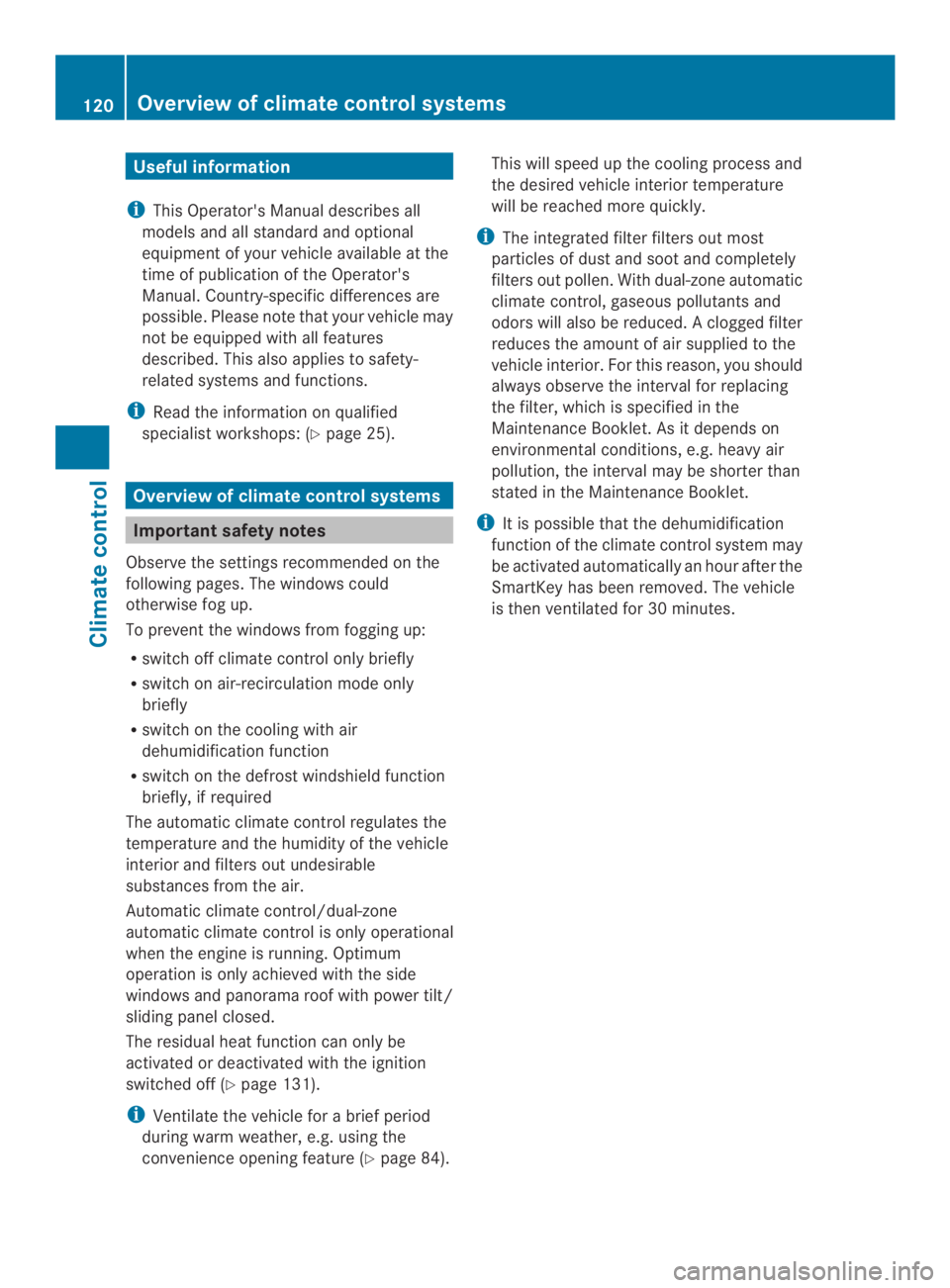

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
iRead the information on qualified
specialist workshops: (Ypage 25).
Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could
otherwise fog up.
To preventthe windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only
briefly
Rswitch on the cooling with air
dehumidification function
Rswitch on the defrost windshield function
briefly, if required
The automatic climate control regulates the
temperature and the humidity of the vehicle
interior and filters out undesirable
substances from the air.
Automatic climate control/dual-zone
automatic climate control is only operational
when the engine is running. Optimum
operation is only achieved with the side
windows and panorama roof with power tilt/
sliding panel closed.
The residual heat function can only be
activated or deactivated with the ignition
switched off (Ypage 131).
iVentilate the vehicle for a brief period
during warm weather, e.g. using the
convenience opening feature (Ypage 84).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly.
iThe integrated filter filters out most
particles of dust and soot and completely
filters out pollen. With dual-zone automatic
climate control, gaseous pollutants and
odors will also be reduced.Aclogged filter
reduces the amountofair supplied to the
vehicle interior.For this reason, you should
always observe the interval for replacing
the filter, which is specified in the
Maintenance Booklet.As it depends on
environmental conditions, e.g. heavy air
pollution, the interval may be shorter than
stated in the Maintenance Booklet.
iIt is possible that the dehumidification
function of the climate control system may
be activated automatically an hour after the
SmartKey has been removed. The vehicle
is then ventilated for 30 minutes.
120Overview of climate control systems
Climate control

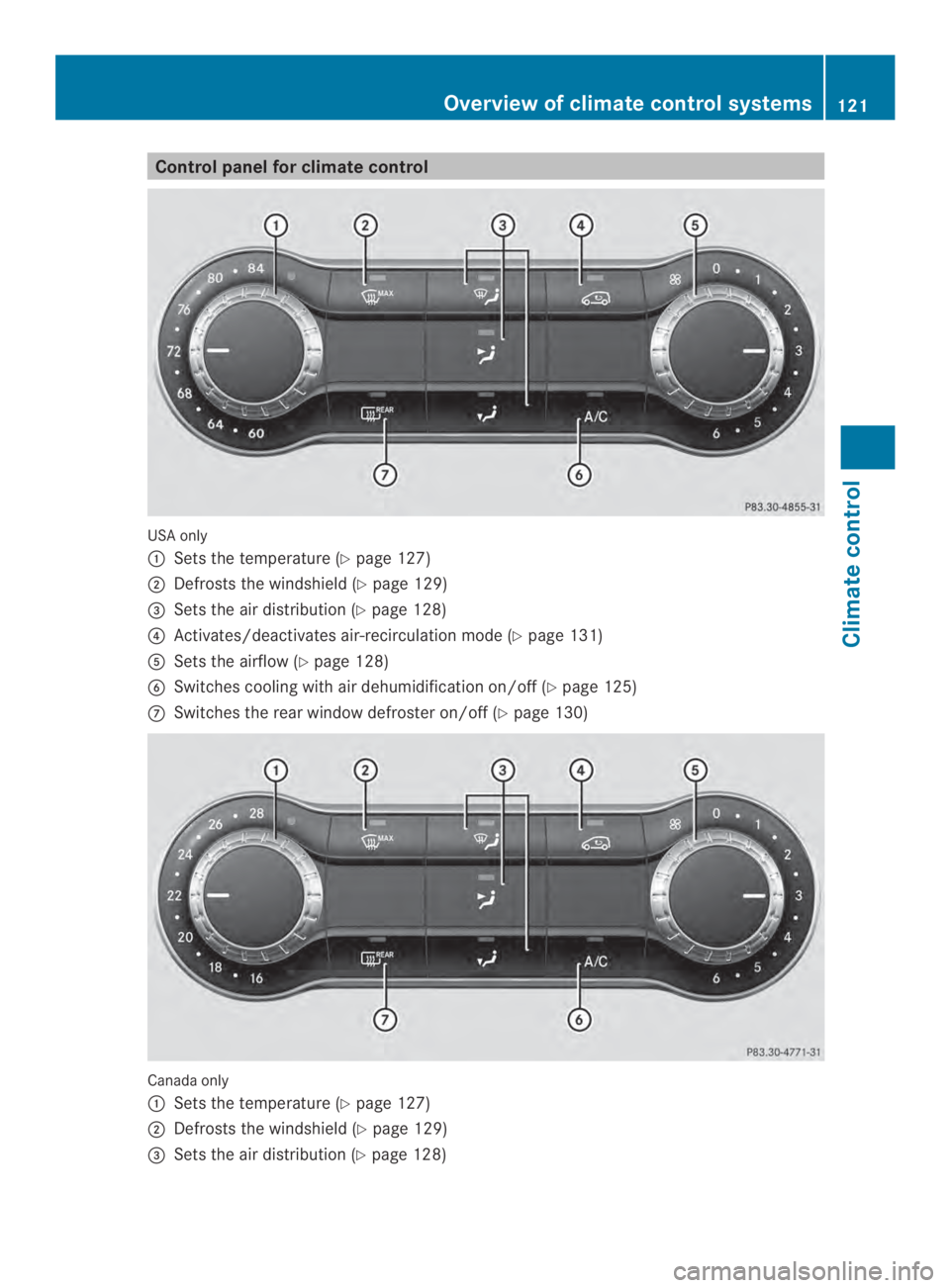

Control panel for climate control
USA only
Sets the temperature (Ypage 127)
Defrosts the windshield (Ypage 129)
"Sets the air distribution (Ypage 128)
!Activates/deactivates air-recirculation mode (Ypage 131)
Sets the airflow (Ypage 128)
Switches cooling with air dehumidification on/off(Ypage 125)
Switches the rear window defroster on/off (Ypage 130)
Canada only
Sets the temperature (Ypage 127)
Defrosts the windshield (Ypage 129)
"Sets the air distribution (Ypage 128)
Overview of climate control systems121
Climate control

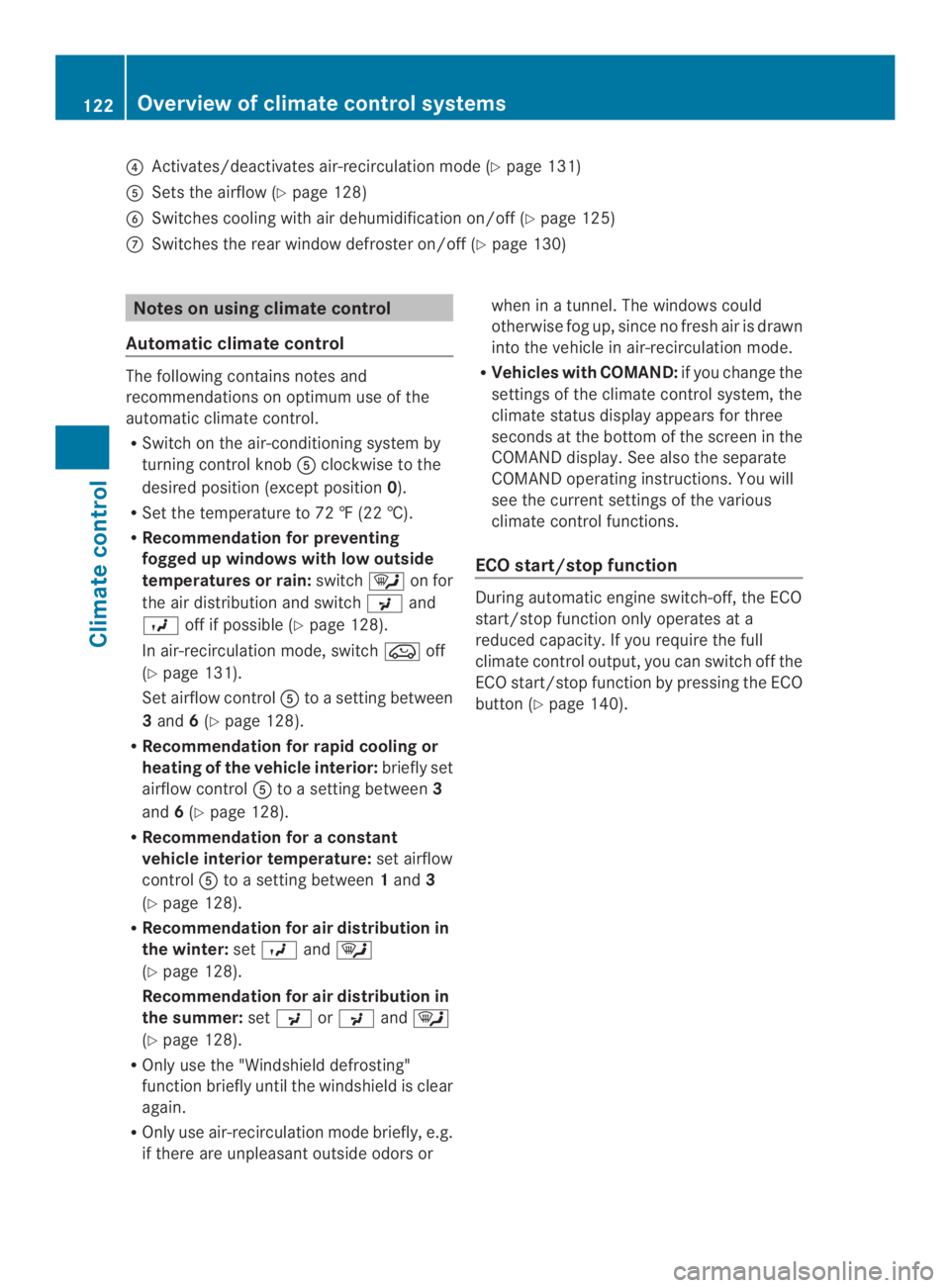

!Activates/deactivates air-recirculation mode (Ypage 131)
Sets the airflow (Ypage 128)
Switches cooling with airdehumidification on/off (Ypage 125)
Switches the rear window defroster on/off (Ypage 130)
Notes on using climate control
Automatic climate control
The following contains notes and
recommendations on optimum use of the
automatic climate control.
RSwitch on the air-conditioning system by
turning control knobclockwise to the
desired position (except position0).
RSet the temperature to 72 ‡ (22 †).
RRecommendation for preventing
fogged up windows with low outside
temperatures or rain:switchon for
the air distribution and switchand
off if possible (Ypage 128).
In air-recirculation mode, switchoff
(Ypage 131).
Set airflow controlto a setting between
3and6(Ypage 128).
RRecommendation for rapid cooling or
heating of the vehicle interior:briefly set
airflow controlto a setting between3
and6(Ypage 128).
RRecommendation for a constant
vehicle interior temperature:set airflow
controlto a setting between1and3
(Ypage 128).
RRecommendation for air distribution in
the winter:setand
(Ypage 128).
Recommendation for air distribution in
the summer:setorand
(Ypage 128).
ROnly use the "Windshield defrosting"
function briefly until the windshield is clear
again.
ROnly use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
RVehicles with COMAND:if you change the
settings of the climate control system, the
climate status display appears for three
seconds at the bottom of the screen in the
COMAND display. See also the separate
COMAND operating instructions. You will
see the currentsettings of the various
climate control functions.
ECO start/stop function
During automatic engine switch-off, the ECO
start/stop function only operates at a
reduced capacity. If you require the full
climate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Ypage 140).
122Overview of climate control systems
Climate control

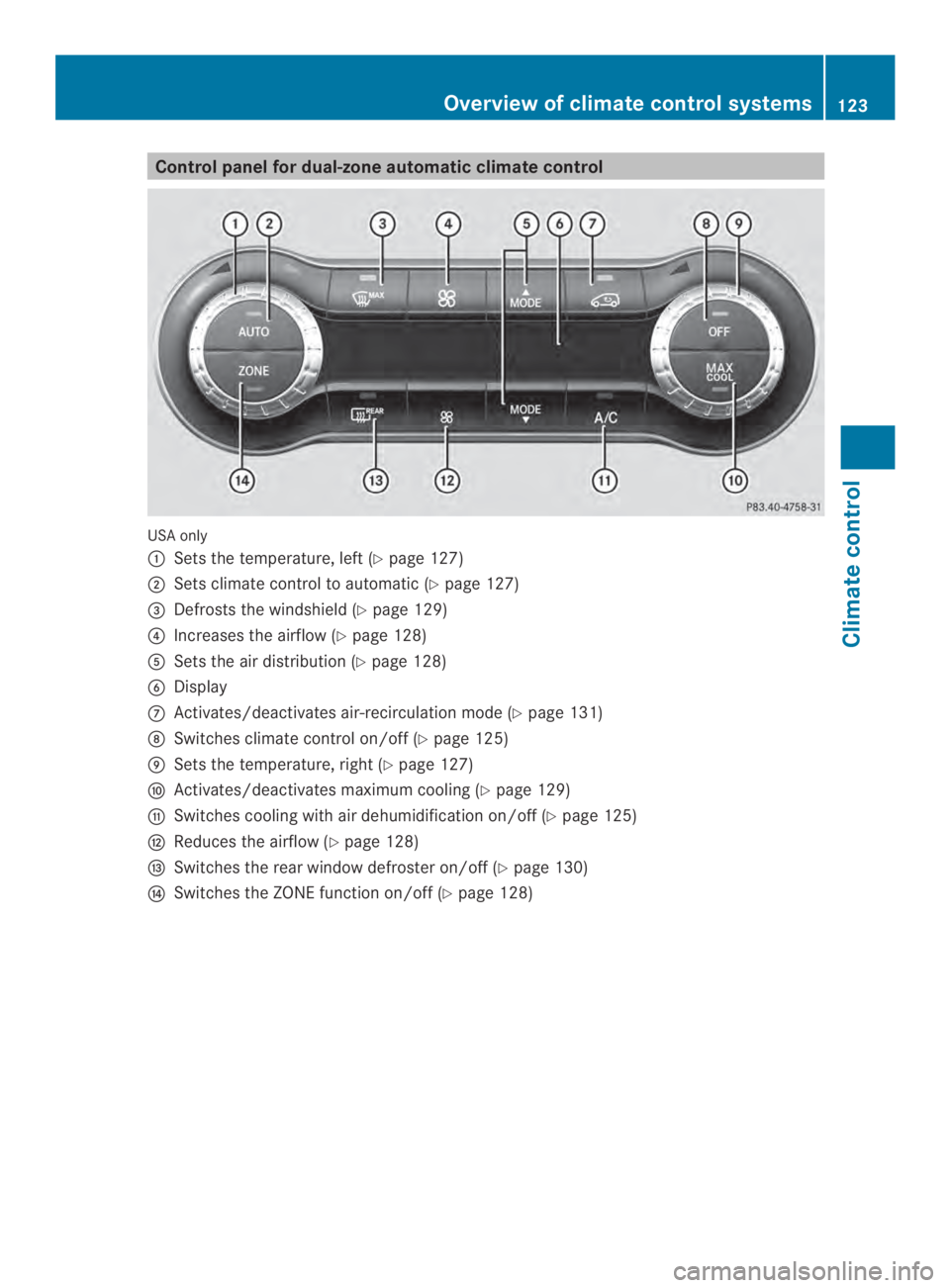

Control panel for dual-zone automatic climate control
USA only
Sets the temperature, left (Ypage 127)
Sets climate control to automatic (Ypage 127)
"Defrosts the windshield (Ypage 129)
!Increases the airflow (Ypage 128)
Sets the air distribution (Ypage 128)
Display
Activates/deactivates air-recirculation mode (Ypage 131)
Switches climate control on/off (Ypage 125)
Sets the temperature, right(Ypage 127)
Activates/deactivates maximum cooling (Ypage 129)
Switches cooling with air dehumidification on/off (Ypage 125)
Reduces the airflow (Ypage 128)
Switches the rear window defroster on/off (Ypage 130)
Switches the ZONE function on/off (Ypage 128)
Overview of climate control systems123
Climate control

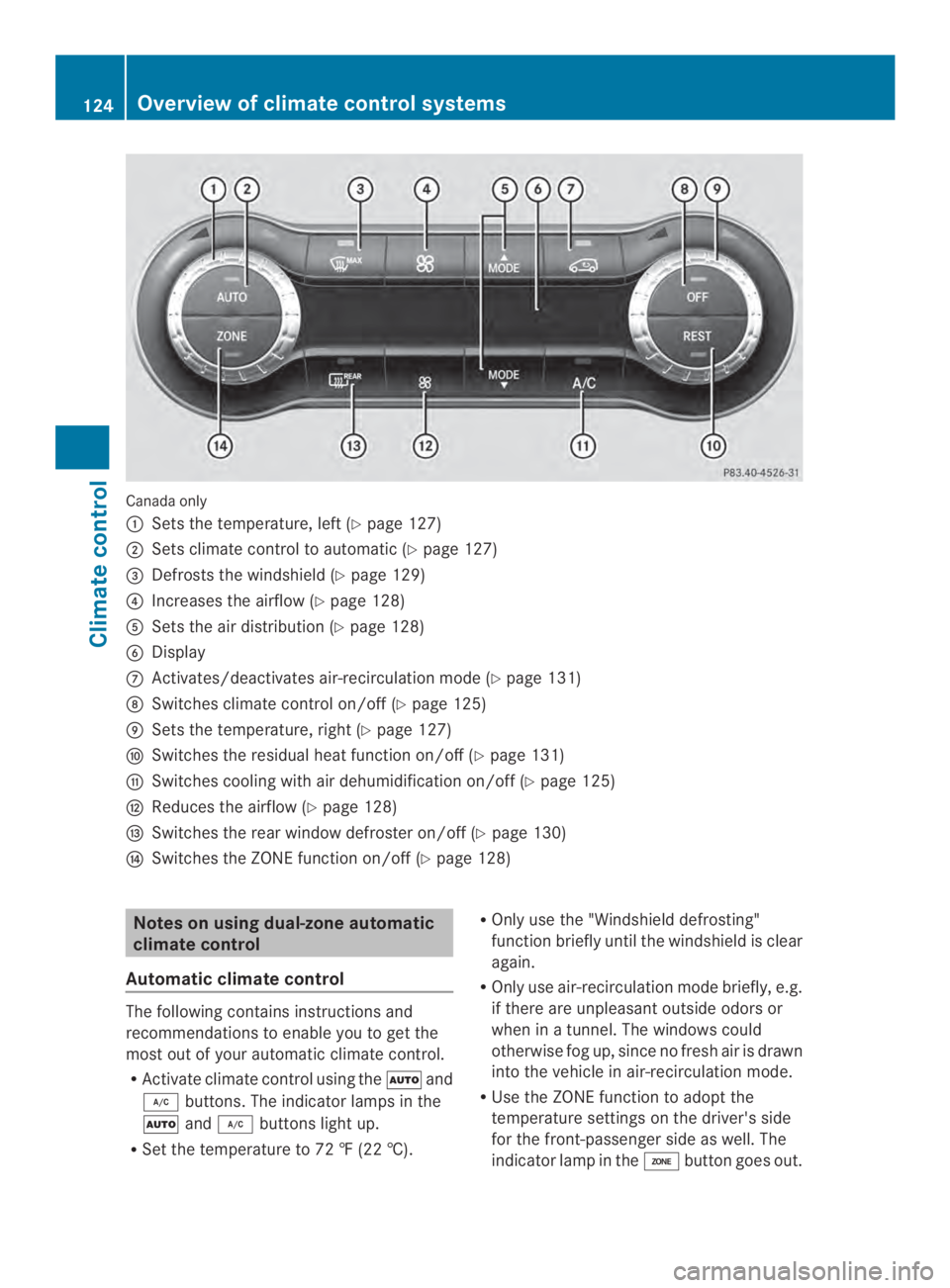

Canada only
Sets the temperature, left (Ypage 127)
Sets climate control to automatic (Ypage 127)
"Defrosts the windshield (Ypage 129)
!Increases the airflow (Ypage 128)
Sets the air distribution (Ypage 128)
Display
Activates/deactivates air-recirculationmode (Ypage 131)
Switches climate control on/off (Ypage 125)
Sets the temperature, right (Ypage 127)
Switches the residual heat function on/off(Ypage 131)
Switches cooling with air dehumidification on/off (Ypage 125)
Reduces the airflow (Ypage 128)
Switches the rear window defroster on/off (Ypage 130)
Switches the ZONE function on/off (Ypage 128)
Notes on using dual-zone automatic
climate control
Automatic climate control
The following contains instructions and
recommendations to enable you to get the
most out of your automatic climate control.
RActivate climate controlusing theand
buttons. The indicator lamps in the
andbuttons light up.
RSet the temperature to 72 ‡ (22 †).
ROnly use the "Windshield defrosting"
function briefly until the windshield is clear
again.
ROnly use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
RUse the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well.The
indicator lamp in thebutton goes out.
124Overview of climate control systems
Climate control

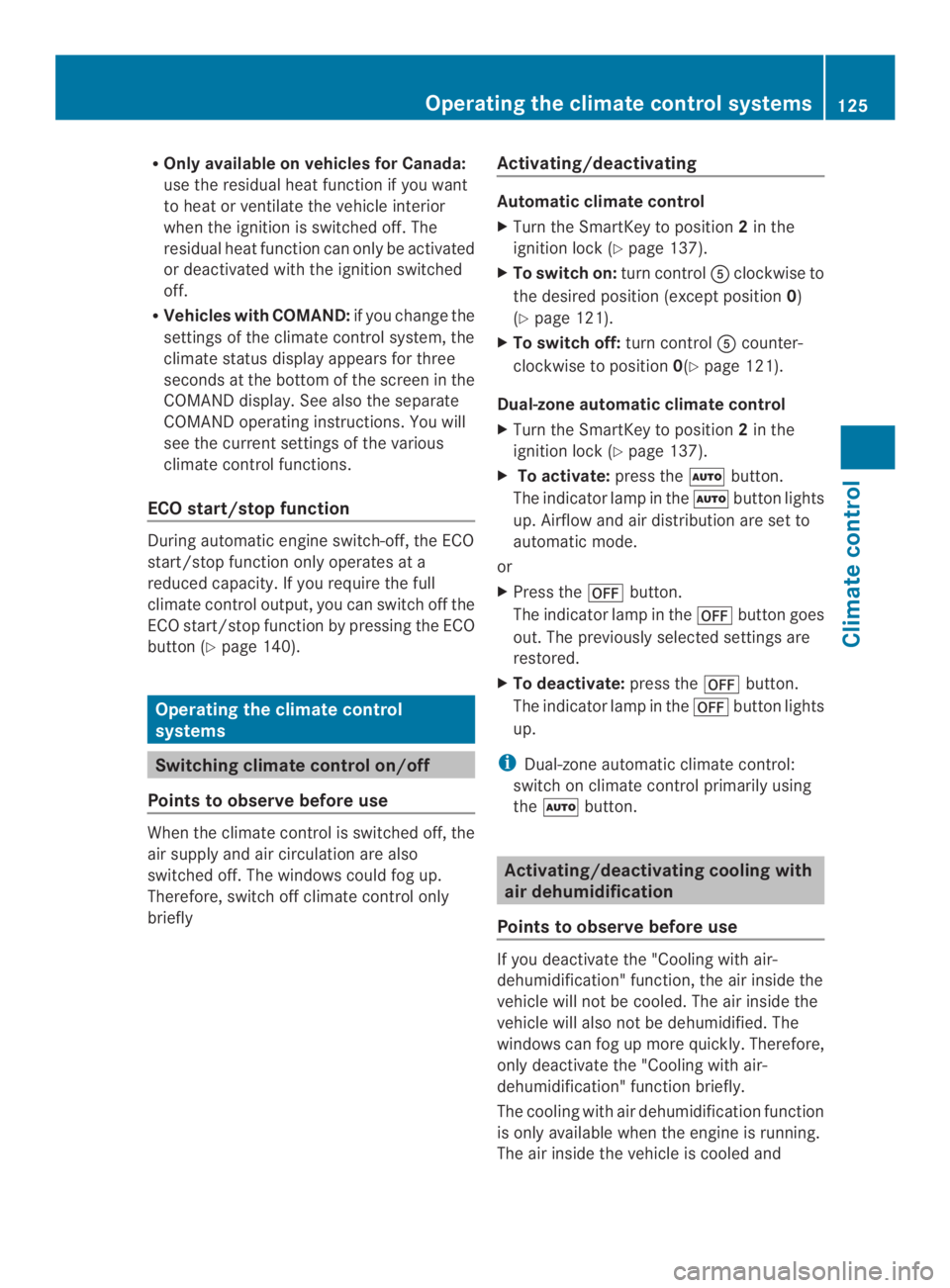

ROnly available on vehicles for Canada:
use the residual heat function if you want
to heat or ventilate the vehicle interior
when the ignition is switched off. The
residual heat function can only be activated
or deactivated with the ignition switched
off.
RVehicles with COMAND:if you change the
settings of the climate control system, the
climate status display appears for three
seconds at the bottom of the screen in the
COMAND display. See also the separate
COMAND operating instructions. You will
see the currentsettings of the various
climate control functions.
ECO start/stop function
During automatic engine switch-off, the ECO
start/stop function only operates at a
reduced capacity. If you require the full
climate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Ypage 140).
Operating the climate control
systems
Switching climate control on/off
Points to observe before use
When the climate control is switched off, the
air supply and air circulation are also
switched off. The windows could fog up.
Therefore, switch off climate control only
briefly
Activating/deactivating
Automatic climate control
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XTo switch on:turn controlclockwise to
the desired position (except position0)
(Ypage 121).
XTo switch off:turn controlcounter-
clockwise to position0(Ypage 121).
Dual-zone automatic climate control
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XTo activate:press thebutton.
The indicator lamp in thebutton lights
up. Airflow and air distribution are set to
automatic mode.
or
XPress thebutton.
The indicator lamp in thebutton goes
out. The previously selected settings are
restored.
XTo deactivate:press thebutton.
The indicator lamp in thebutton lights
up.
iDual-zone automatic climate control:
switch on climate control primarily using
thebutton.
Activating/deactivating cooling with
air dehumidification
Points to observe before use
If you deactivate the "Cooling with air-
dehumidification" function, the air inside the
vehicle will not be cooled. The air inside the
vehicle will also not be dehumidified. The
windows can fog up more quickly. Therefore,
only deactivate the "Cooling with air-
dehumidification" function briefly.
The cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled and
Operating the climate control systems125
Climate control

dehumidified according to the temperature
selected.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a
malfunction.
Activating/deactivating
XTo activate:press thebutton.
The indicator lamp in thebutton lights
up.
XTo deactivate:press thebutton.
The indicator lamp in thebutton goes
out. The "Cooling with air dehumidification"
function has a delayed switch-offfeature.
126Operating the climate control systems
Climate control

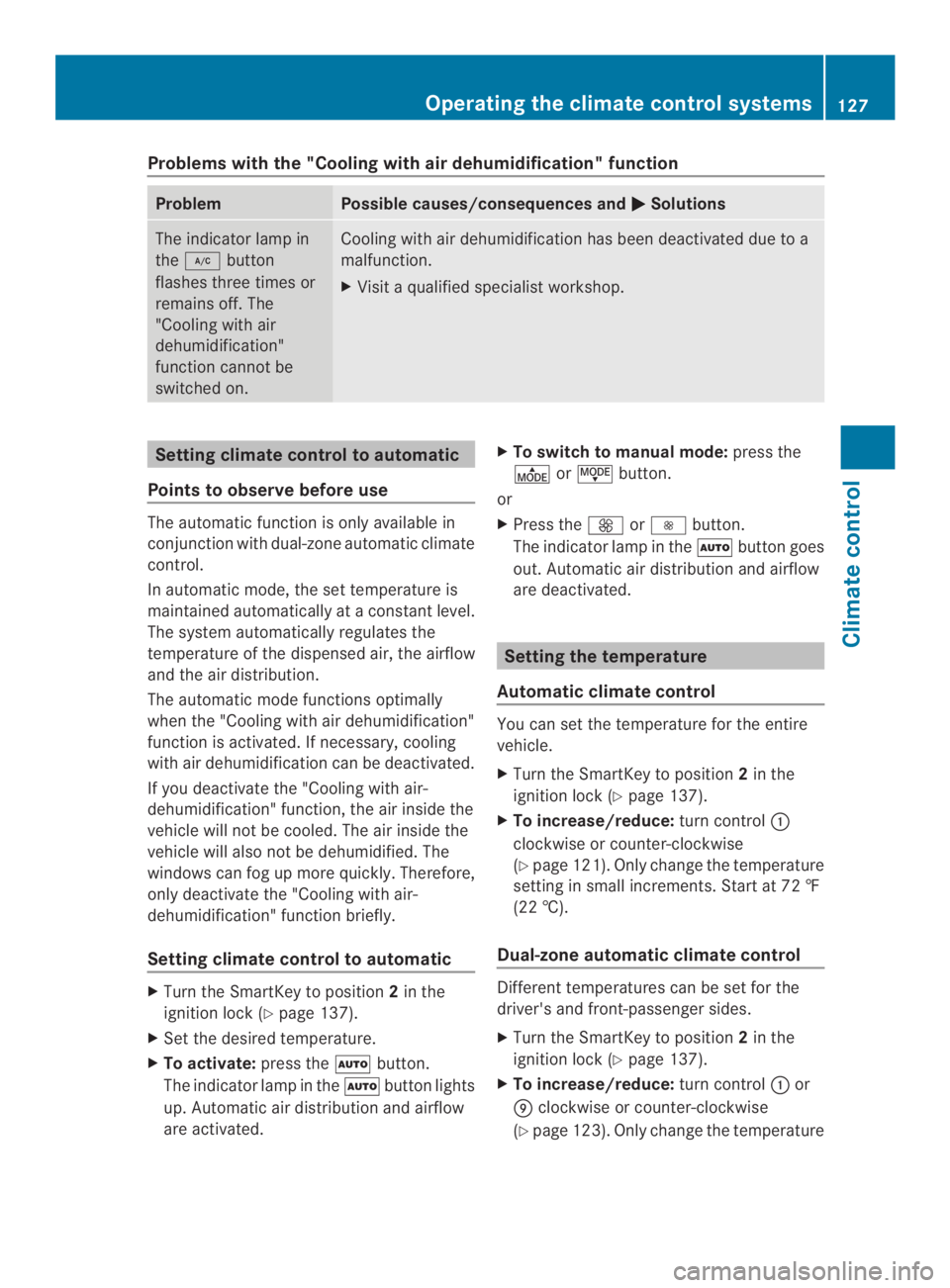

Problems with the "Cooling with air dehumidification" function
ProblemPossible causes/consequences and
Solutions
The indicator lamp in
thebutton
flashes three times or
remains off. The
"Cooling with air
dehumidification"
function cannot be
switched on.
Cooling with air dehumidification has been deactivated due to a
malfunction.
XVisit a qualified specialist workshop.
Setting climate control to automatic
Points to observe before use
The automatic function is only available in
conjunction with dual-zone automatic climate
control.
In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the
temperature of the dispensed air, the airflow
and the air distribution.
The automatic mode functions optimally
when the "Cooling with air dehumidification"
function is activated. If necessary, cooling
with air dehumidification can be deactivated.
If you deactivate the "Cooling with air-
dehumidification" function, the air inside the
vehicle will not be cooled. The air inside the
vehicle will also not be dehumidified. The
windows can fog up more quickly. Therefore,
only deactivate the "Cooling with air-
dehumidification" function briefly.
Setting climate control to automatic
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XSet the desired temperature.
XTo activate:press thebutton.
The indicator lamp in thebutton lights
up. Automatic air distribution and airflow
are activated.
XTo switch to manual mode:press the
orbutton.
or
XPress theorbutton.
The indicator lamp in thebutton goes
out. Automatic air distribution and airflow
are deactivated.
Setting the temperature
Automatic climate control
You can set the temperature for the entire
vehicle.
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XTo increase/reduce:turn control
clockwise or counter-clockwise
(Ypage 121). Only change the temperature
setting in small increments. Start at 72 ‡
(22 †).
Dual-zone automatic climate control
Different temperatures can be set for the
driver's and front-passenger sides.
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XTo increase/reduce:turn controlor
clockwise or counter-clockwise
(Ypage 123). Only change the temperature
Operating the climate control systems127
Climate control

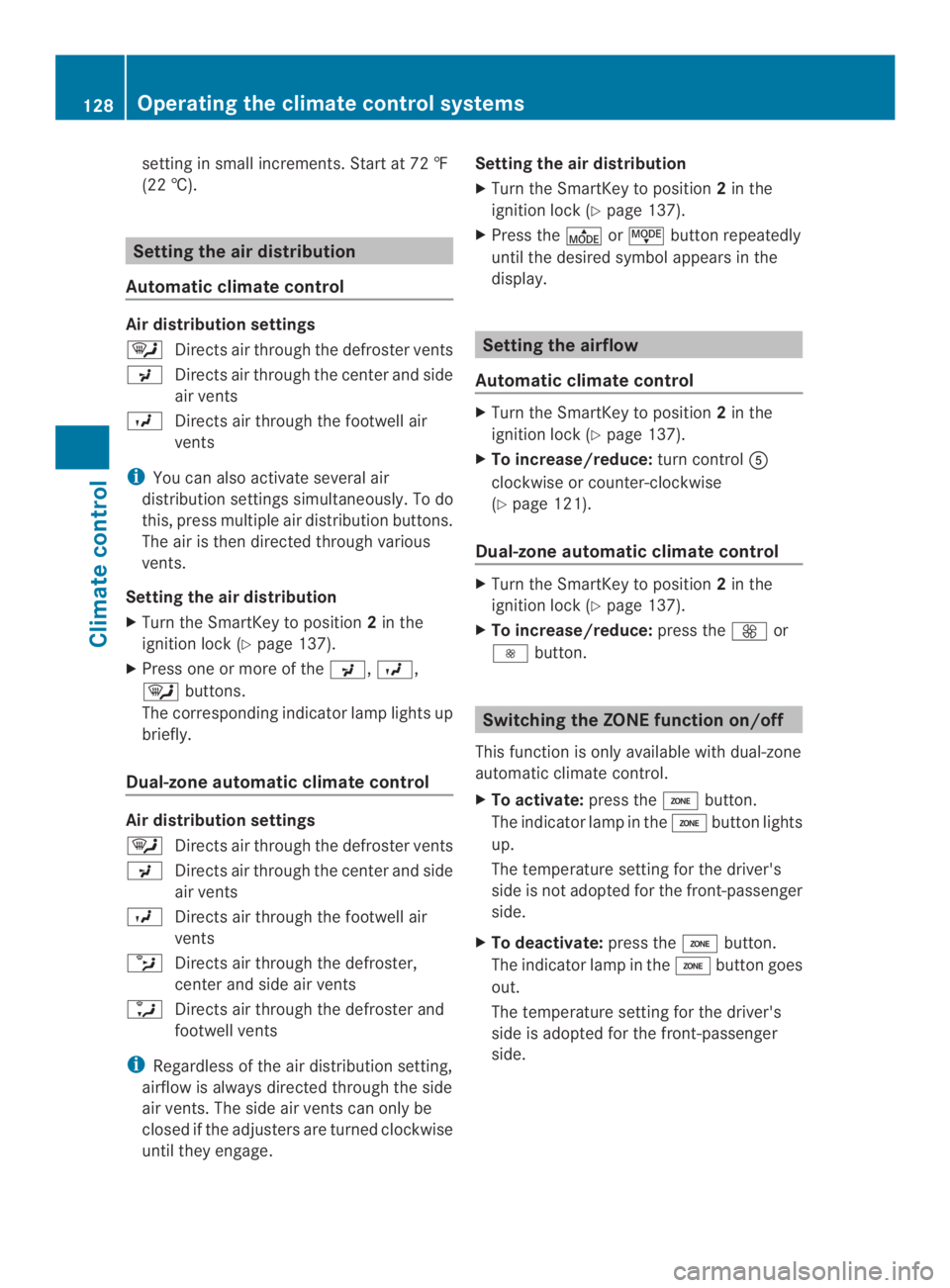

setting in small increments. Start at 72 ‡
(22 †).
Setting the air distribution
Automatic climate control
Air distribution settings
Directs air through the defroster vents
Directs air through the center and side
air vents
Directs air through the footwell air
vents
iYou can also activate several air
distribution settings simultaneously. To do
this, press multiple air distribution buttons.
The air is then directed through various
vents.
Setting the air distribution
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XPress one or more of the,,
buttons.
The corresponding indicator lamp lights up
briefly.
Dual-zone automatic climate control
Air distribution settings
Directs air through the defroster vents
Directs air through the center and side
air vents
Directs air through the footwell air
vents
Directs air through the defroster,
center and side air vents
Directs air through the defroster and
footwell vents
iRegardless of the air distribution setting,
airflow is always directed through the side
air vents. The side air vents can only be
closed if the adjusters are turned clockwise
until they engage.
Setting the air distribution
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XPress theorbutton repeatedly
until the desired symbol appears in the
display.
Setting the airflow
Automatic climate control
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XTo increase/reduce:turn control
clockwise or counter-clockwise
(Ypage 121).
Dual-zone automatic climate control
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XTo increase/reduce:press theor
button.
Switching the ZONE function on/off
This function is only available with dual-zone
automatic climate control.
XTo activate:press thebutton.
The indicator lamp in thebutton lights
up.
The temperature setting for the driver's
side is not adopted for the front-passenger
side.
XTo deactivate:press thebutton.
The indicator lamp in thebutton goes
out.
The temperature setting for the driver's
side is adopted for the front-passenger
side.
128Operating the climate control systems
Climate control
