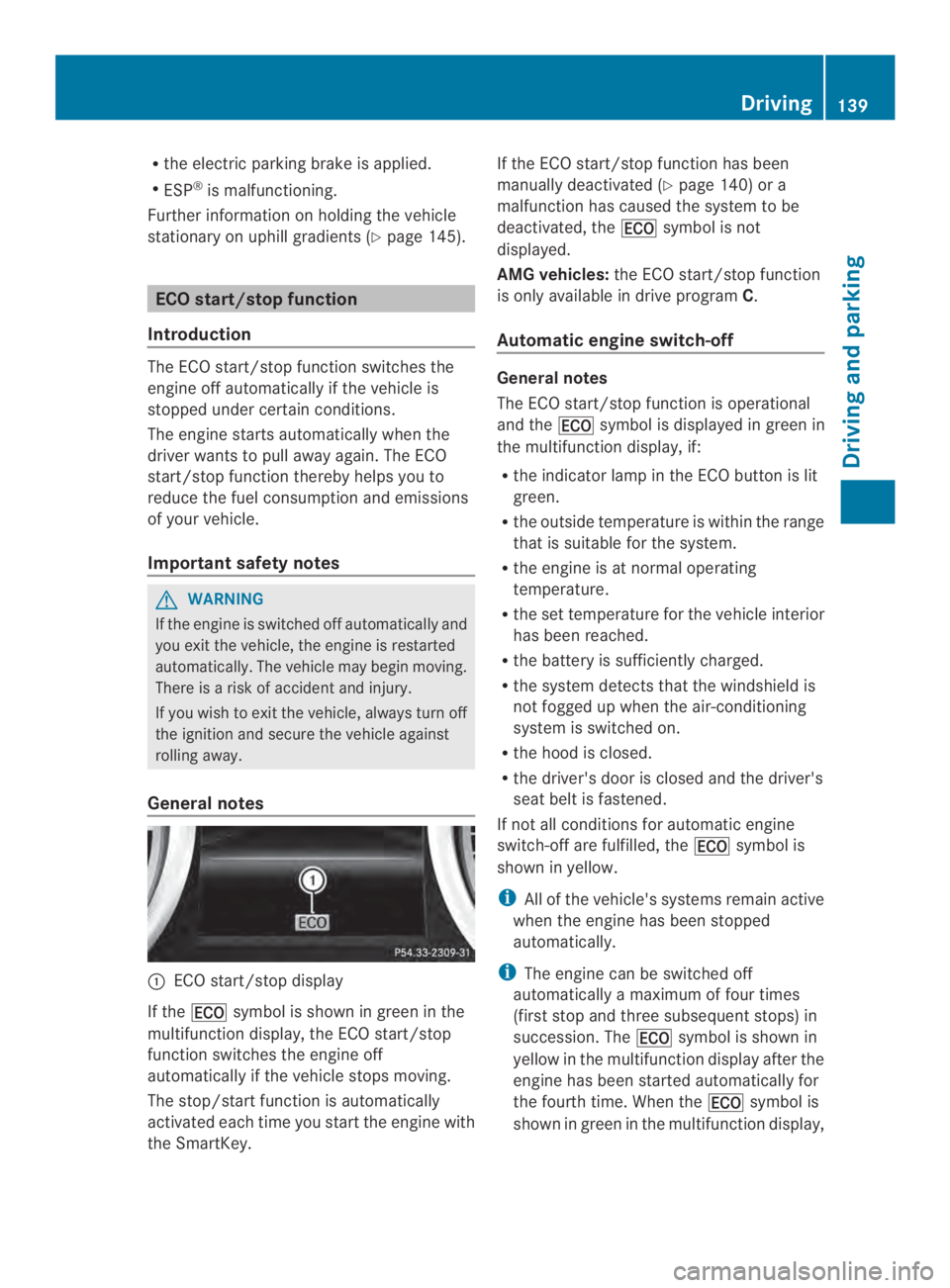

Rthe electric parking brake is applied.
RESP®is malfunctioning.
Furtherinformation on holding the vehicle
stationary on uphill gradients (Ypage 145).
ECO start/stopfunction
Introduction
The ECO start/stop function switches the
engine off automatically if the vehicle is
stopped undercertain conditions.
The engine starts automatically when the
driver wants to pull away again. The ECO
start/stop function thereby helps you to
reduce the fuel consumption and emissions
of your vehicle.
Important safety notes
GWARNING
If the engine is switchedoff automatically and
you exit the vehicle, the engine is restarted
automatically.The vehicle may begin moving.
There is a risk of accident and injury.
If you wish to exit the vehicle, always turn off
the ignition and secure the vehicle against
rolling away.
General notes
ECO start/stop display
If the\rsymbol is shown in green in the
multifunction display, the ECO start/stop
function switches the engine off
automatically if the vehicle stops moving.
The stop/start function is automatically
activated each time you start the engine with
the SmartKey.
If the ECO start/stop function has been
manually deactivated (Ypage 140) or a
malfunction has caused the system to be
deactivated, the\rsymbol is not
displayed.
AMG vehicles:the ECO start/stop function
is only available in drive programC.
Automatic engine switch-off
General notes
The ECO start/stop function is operational
and the\rsymbol is displayed in green in
the multifunction display, if:
Rthe indicator lamp in the ECO button is lit
green.
Rthe outside temperature is within the range
that is suitable for the system.
Rthe engine is at normal operating
temperature.
Rthe set temperature for the vehicle interior
has been reached.
Rthe battery is sufficiently charged.
Rthe system detects that the windshield is
not fogged up when the air-conditioning
system is switched on.
Rthe hood is closed.
Rthe driver's door is closed and the driver's
seat belt is fastened.
If not all conditions for automatic engine
switch-off are fulfilled, the\rsymbol is
shown in yellow.
iAll of the vehicle's systems remain active
when the engine has been stopped
automatically.
iThe engine can be switched off
automatically a maximum of four times
(first stop and three subsequent stops) in
succession. The\rsymbol is shown in
yellow in the multifunction display after the
engine has been started automatically for
the fourth time. When the\rsymbol is
shown in green in the multifunction display,
Driving139
Driving and parking
Z

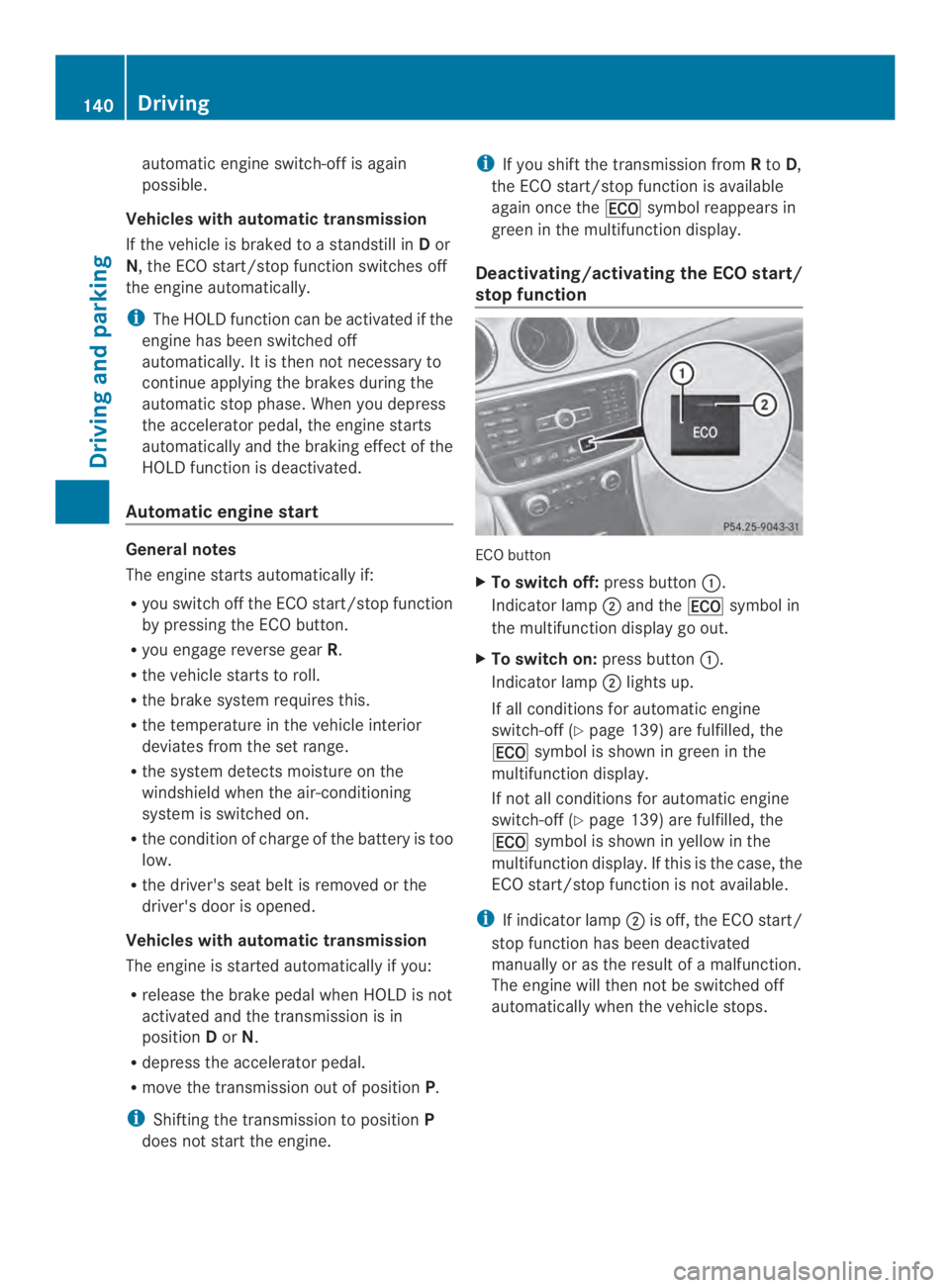

automatic engine switch-off is again
possible.
Vehicles with automatic transmission
If the vehicle is braked to a standstill inDor
N, the ECO start/stop function switches off
the engine automatically.
iThe HOLD function can be activated if the
engine has been switched off
automatically. It is then not necessary to
continue applying the brakes during the
automatic stop phase.When you depress
the accelerator pedal, the engine starts
automatically and the braking effect of the
HOLD function is deactivated.
Automatic engine start
General notes
The engine starts automatically if:
Ryou switch off the ECO start/stop function
by pressing the ECO button.
Ryou engage reverse gearR.
Rthe vehicle starts to roll.
Rthe brake system requires this.
Rthe temperature in the vehicle interior
deviates from the set range.
Rthe system detects moisture on the
windshield when the air-conditioning
system is switched on.
Rthe condition of charge of the battery is too
low.
Rthe driver's seat belt is removed or the
driver's door is opened.
Vehicles with automatic transmission
The engine is started automatically if you:
Rrelease the brake pedal when HOLD is not
activated and the transmission is in
positionDorN.
Rdepress the accelerator pedal.
Rmove the transmission out of positionP.
iShifting the transmission to positionP
does not start the engine.
iIf you shift the transmission fromRtoD,
the ECO start/stop function is available
again once the\rsymbol reappears in
green in the multifunction display.
Deactivating/activating the ECO start/
stop function
ECO button
XTo switch off:press button.
Indicator lampand the\rsymbol in
the multifunction display go out.
XTo switch on:press button.
Indicator lamplights up.
If all conditions for automatic engine
switch-off (Ypage 139) are fulfilled, the
\rsymbol is shown in green in the
multifunction display.
If not all conditions for automatic engine
switch-off (Ypage 139) are fulfilled, the
\rsymbol is shown in yellow in the
multifunction display. If this is the case, the
ECO start/stop function is not available.
iIf indicator lampis off, the ECO start/
stop function has been deactivated
manually or as the result of a malfunction.
The engine will then not be switched off
automatically when the vehicle stops.
140Driving
Driving and parking

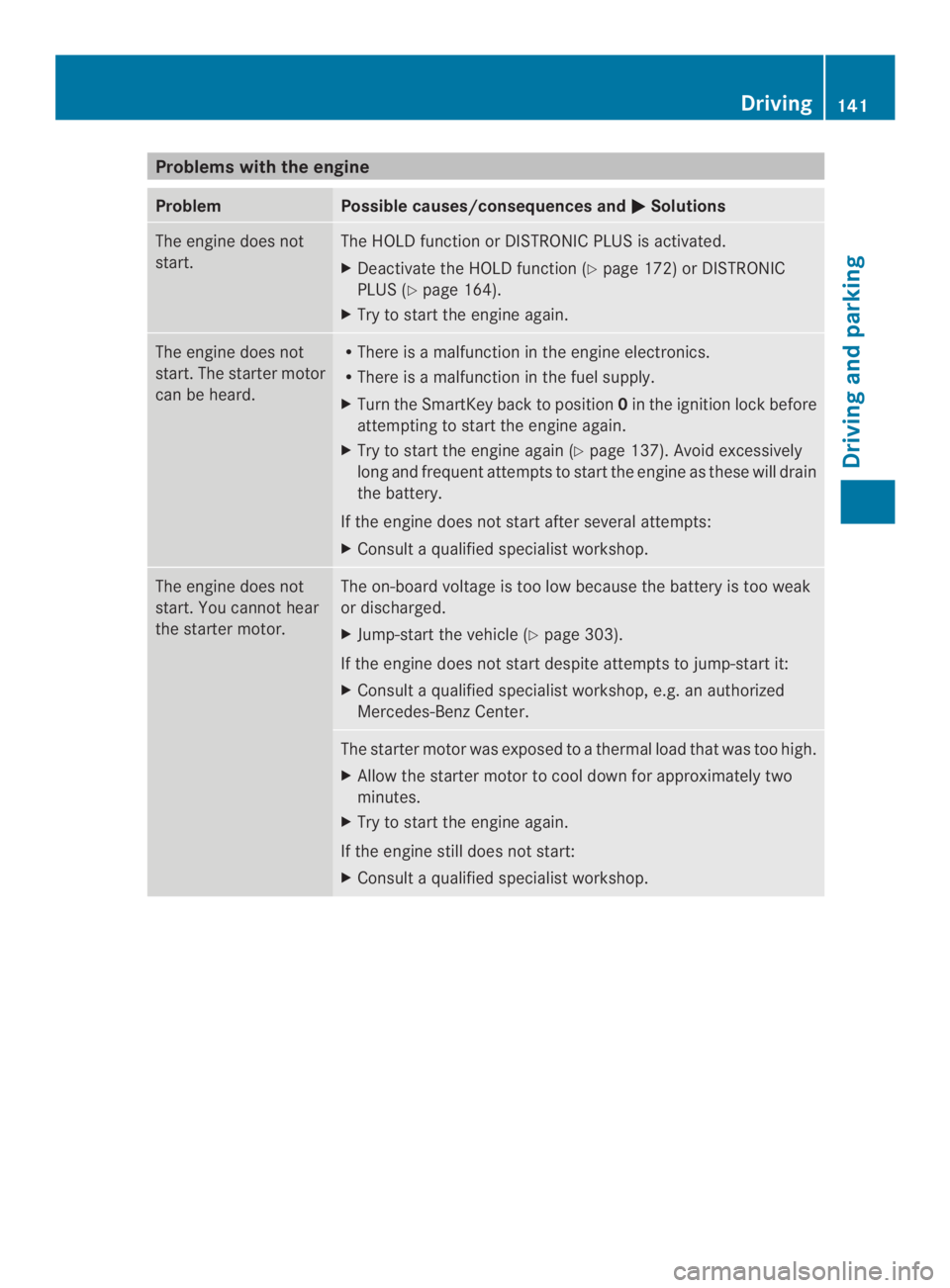

Problems with the engine
ProblemPossible causes/consequences and
Solutions
The engine does not
start.
The HOLD function or DISTRONIC PLUS is activated.
XDeactivate the HOLD function (Ypage 172) or DISTRONIC
PLUS (Ypage 164).
XTry to start the engine again.
The engine does not
start. The starter motor
can be heard.
RThere is a malfunction in the engine electronics.
RThere is a malfunction in the fuel supply.
XTurn the SmartKey back to position0in the ignition lock before
attempting to start the engine again.
XTry to start the engine again (Ypage 137). Avoid excessively
long and frequent attempts to start the engine as these will drain
the battery.
If the engine does not start after several attempts:
XConsult a qualified specialist workshop.
The engine does not
start. You cannot hear
the starter motor.
The on-board voltage is too low because the battery is too weak
or discharged.
XJump-start the vehicle (Ypage 303).
If the engine does not start despite attempts to jump-start it:
XConsult a qualified specialist workshop, e.g. an authorized
Mercedes-Benz Center.
The starter motor was exposed to a thermal load that was too high.
XAllow the starter motor to cool down for approximately two
minutes.
XTry to start the engine again.
If the engine still does not start:
XConsult a qualified specialist workshop.
Driving141
Driving and parking
Z

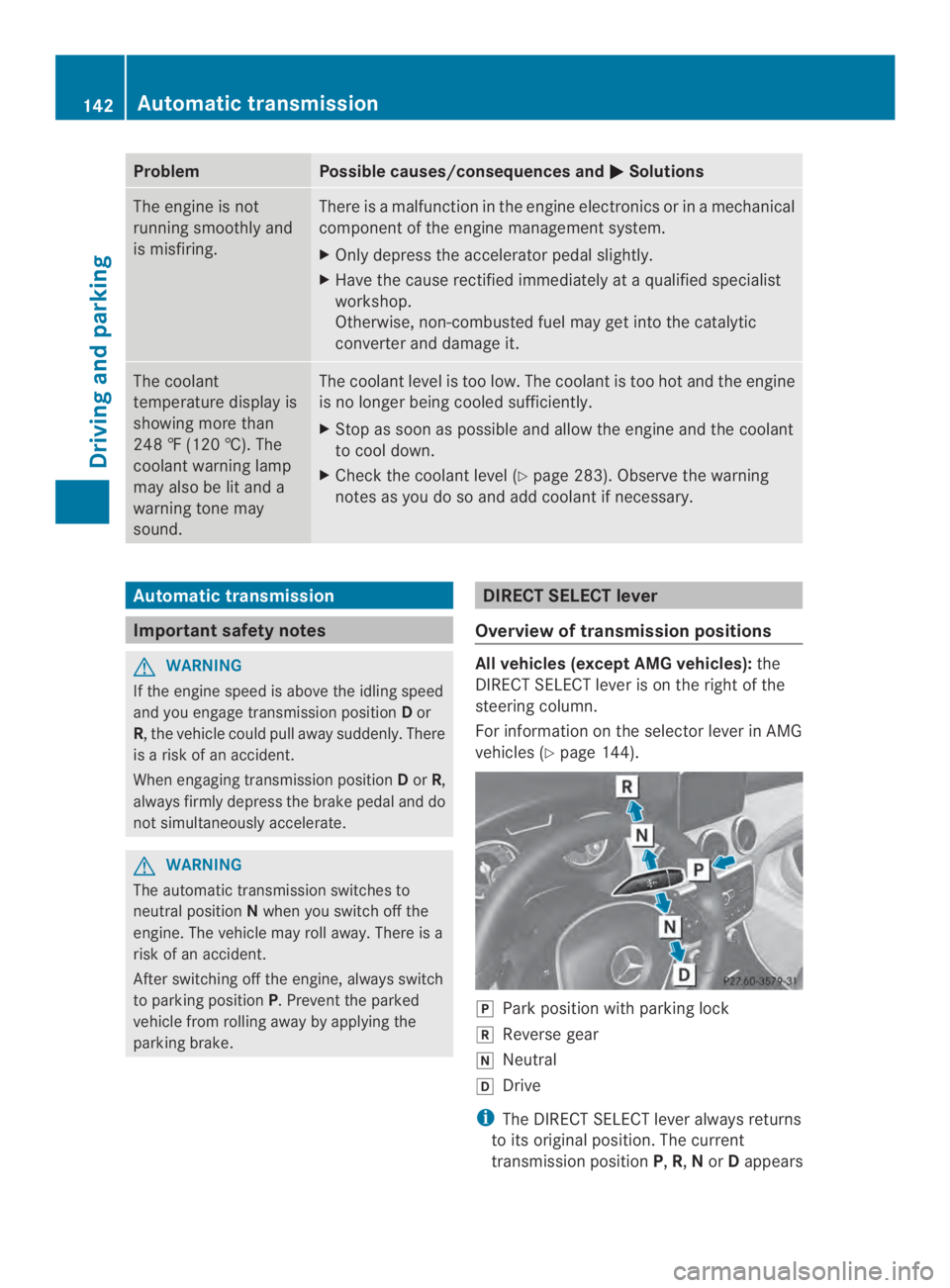

ProblemPossible causes/consequences and
Solutions
The engine is not
running smoothly and
is misfiring.
There is a malfunction in the engine electronics or in a mechanical
component of the engine management system.
XOnly depress the accelerator pedal slightly.
XHave the cause rectified immediately at a qualified specialist
workshop.
Otherwise, non-combusted fuel may get into the catalytic
converter and damage it.
The coolant
temperature display is
showing more than
248 ‡ (120 †). The
coolant warning lamp
may also be lit and a
warning tone may
sound.
The coolant level is too low. The coolant is too hot and the engine
is no longer being cooled sufficiently.
XStop as soon as possible and allow the engine and the coolant
to cool down.
XCheck the coolant level (Ypage 283). Observe the warning
notes as you do so and add coolant if necessary.
Automatic transmission
Important safety notes
GWARNING
If the engine speed is above the idling speed
and you engage transmission positionDor
R, the vehicle could pull away suddenly. There
is a risk of an accident.
When engaging transmission positionDorR,
always firmly depress the brake pedal and do
not simultaneously accelerate.
GWARNING
The automatic transmission switches to
neutral positionNwhen you switch off the
engine. The vehicle may roll away.There is a
risk of an accident.
After switching off the engine, always switch
to parking positionP. Prevent the parked
vehicle from rolling away by applying the
parking brake.
DIRECTSELECT lever
Overview of transmission positions
All vehicles (exceptAMG vehicles):the
DIRECT SELECT lever is on the right of the
steering column.
For information on the selector lever in AMG
vehicles (Ypage 144).
Park position with parking lock
Reverse gear
Neutral
Drive
iThe DIRECT SELECT leveralways returns
to its original position. The current
transmission positionP,R,NorDappears
142Automatic transmission
Driving and parking

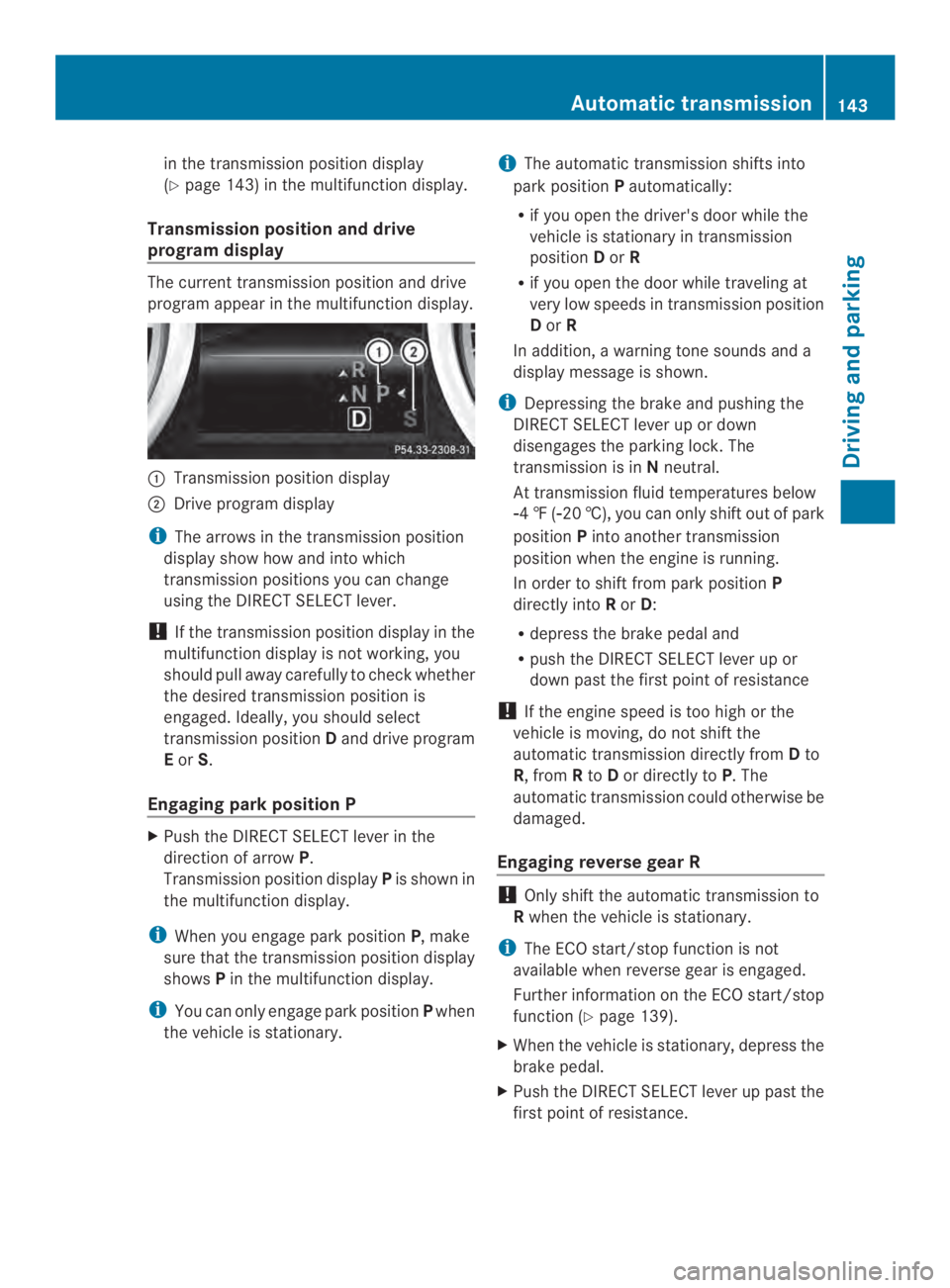

in the transmission position display
(Ypage 143) in the multifunction display.
Transmission position and drive
program display
The current transmission position and drive
program appear in the multifunction display.
Transmission position display
Drive program display
iThe arrows in the transmission position
display show how and into which
transmission positions you can change
using the DIRECT SELECT lever.
!If the transmission position display in the
multifunction display is not working, you
should pull away carefully to checkwhether
the desired transmission position is
engaged. Ideally, you should select
transmission positionDand drive program
EorS.
Engaging parkposition P
XPush the DIRECT SELECT lever in the
directionofarrowP.
Transmission position displayPis shownin
the multifunctiondisplay.
iWhen you engage park positionP, make
sure that the transmission position display
showsPin the multifunction display.
iYou can only engage park positionPwhen
the vehicle is stationary.
iThe automatic transmission shifts into
park positionPautomatically:
Rif you open the driver's door while the
vehicle is stationary in transmission
positionDorR
Rif you open the door while traveling at
very low speeds in transmission position
DorR
In addition, a warning tone sounds and a
display message is shown.
iDepressing the brake and pushing the
DIRECT SELECT lever up or down
disengages the parking lock.The
transmission is inNneutral.
At transmission fluid temperatures below
4‡(20 †), you can only shift out of park
positionPinto another transmission
position whenthe engine is running.
In order to shift from park positionP
directly intoRorD:
Rdepress the brake pedal and
Rpush the DIRECT SELECT lever up or
down past the first point of resistance
!If the engine speed is too high or the
vehicle is moving, do not shift the
automatic transmission directly fromDto
R, fromRtoDor directly toP.The
automatic transmission could otherwise be
damaged.
Engaging reverse gear R
!Only shift the automatic transmission to
Rwhen the vehicle is stationary.
iThe ECO start/stop function is not
available when reverse gear is engaged.
Further information on the ECO start/stop
function (Ypage 139).
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the DIRECT SELECT lever up past the
first point of resistance.
Automatic transmission143
Driving and parking
Z

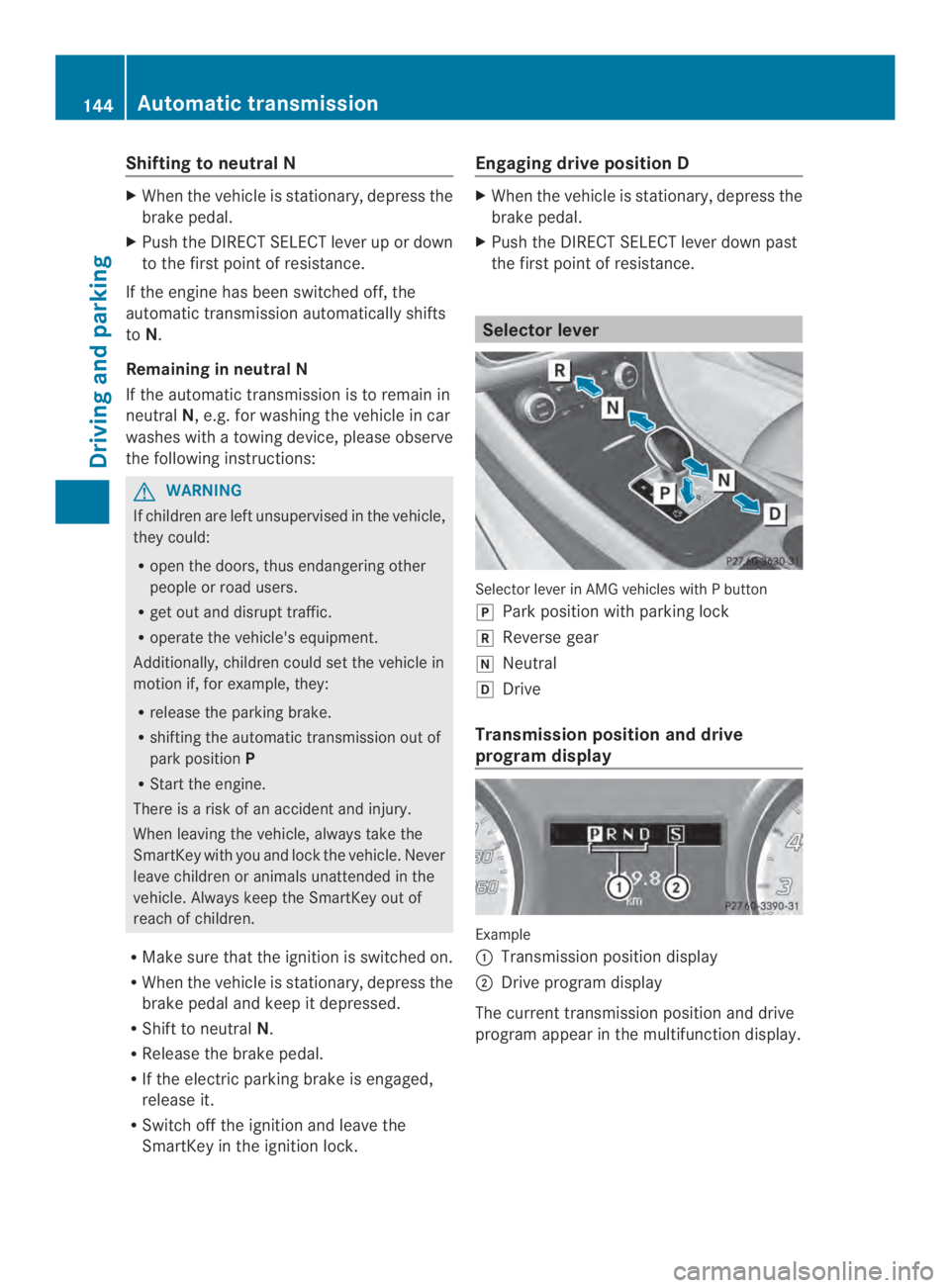

Shifting to neutral N
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the DIRECT SELECT lever up or down
to the first point of resistance.
If the engine has been switched off, the
automatic transmission automatically shifts
toN.
Remaining in neutral N
If the automatic transmission is to remain in
neutralN, e.g. for washing the vehicle in car
washes with a towing device, please observe
the following instructions:
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshifting the automatic transmission out of
park positionP
RStart the engine.
There is a risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
RMake sure that the ignition is switched on.
RWhen the vehicle is stationary, depress the
brake pedal and keep it depressed.
RShift to neutralN.
RRelease the brake pedal.
RIf the electric parking brake is engaged,
release it.
RSwitch off the ignition and leave the
SmartKey in the ignition lock.
Engaging drive position D
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the DIRECT SELECT lever down past
the first point of resistance.
Selector lever
Selector lever in AMG vehicles with P button
Park position with parking lock
Reverse gear
Neutral
Drive
Transmission position and drive
program display
Example
Transmission position display
Drive program display
The current transmission position and drive
program appear in the multifunction display.
144Automatic transmission
Driving and parking

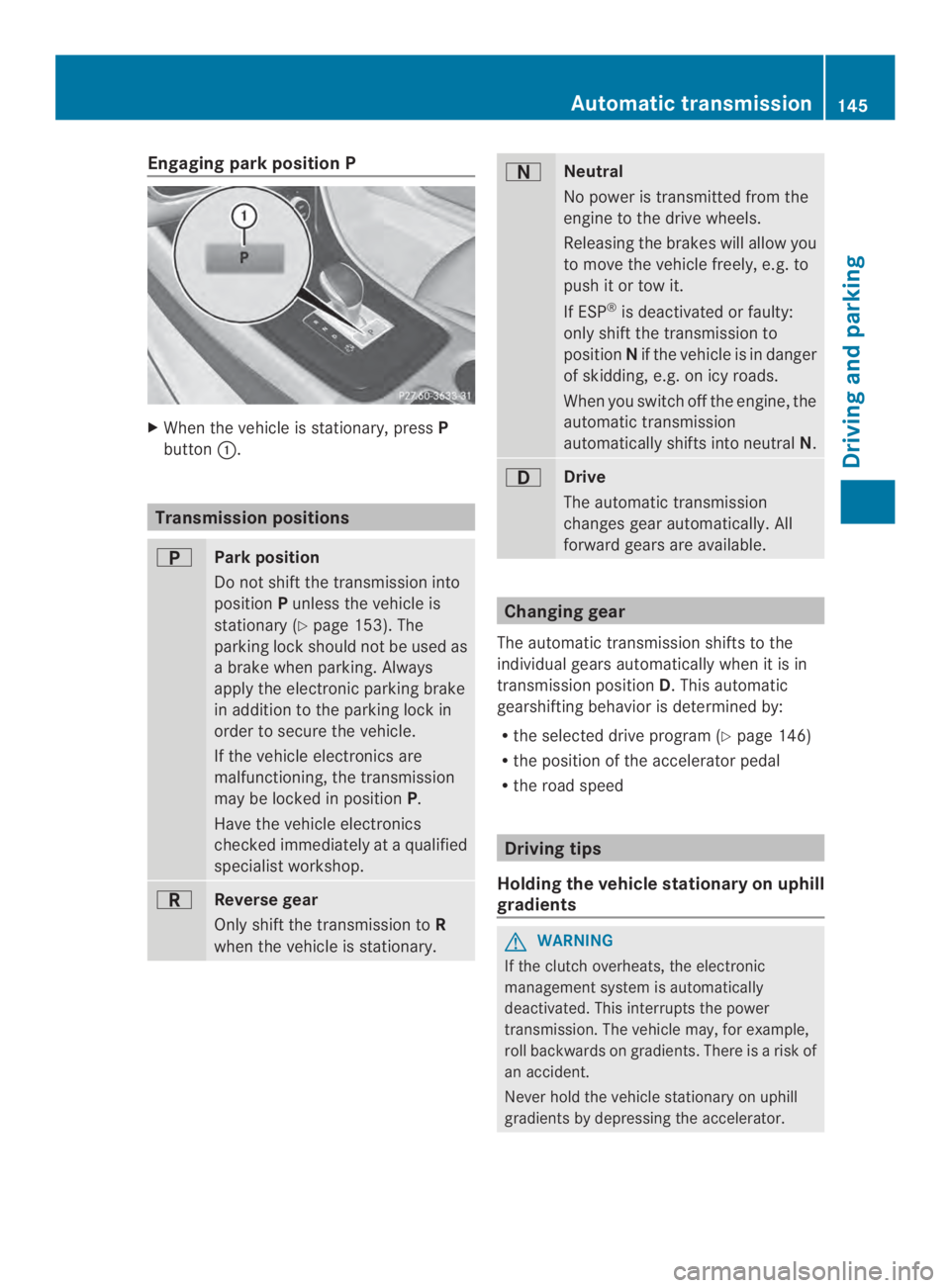

Engaging park position P
XWhen the vehicle is stationary, pressP
button.
Transmission positions
Parkposition
Do not shift the transmission into
positionPunless the vehicle is
stationary (Ypage 153). The
parking lock should not be used as
a brake when parking.Always
apply the electronic parking brake
in additionto the parking lock in
order to secure the vehicle.
If the vehicle electronics are
malfunctioning, the transmission
may be locked in positionP.
Have the vehicle electronics
checked immediately at a qualified
specialist workshop.
Reverse gear
Only shift the transmission toR
when the vehicle is stationary.

Neutral
No power is transmitted from the
engine to the drive wheels.
Releasing the brakes will allow you
to move the vehicle freely, e.g. to
push it or tow it.
If ESP®is deactivated or faulty:
only shift the transmission to
positionNif the vehicle is in danger
of skidding, e.g. on icy roads.
When you switch off the engine, the
automatic transmission
automatically shifts into neutralN.
Drive
The automatic transmission
changes gear automatically. All
forward gears are available.
Changing gear
The automatic transmission shifts to the
individual gears automatically when it is in
transmission positionD.This automatic
gearshifting behavior is determined by:
Rthe selected drive program (Ypage 146)
Rthe position of the accelerator pedal
Rthe road speed
Driving tips
Holding the vehicle stationary on uphill
gradients
GWARNING
If the clutch overheats, the electronic
management system is automatically
deactivated. This interrupts the power
transmission. The vehicle may, for example,
roll backwards on gradients. There is a risk of
an accident.
Never hold the vehicle stationary on uphill
gradients by depressing the accelerator.
Automatic transmission145
Driving and parking
Z

The clutch may overheat if you hold the
vehicle stationary on uphill gradients by
depressing the accelerator pedal. If the clutch
overheats, a warning tone sounds.
All vehicles (except AMG vehicles):the
StopVehicleShifttoPLeaveEngine
Runningdisplay message appears in the
multifunction display.You will only be able to
continue your journey once the clutch has
cooled down and the display message in the
multifunction display has disappeared.
AMG vehicles:theTrans. Oil
Overheated Drive on with Caredisplay
message appears in the multifunction
display.
Do not hold the vehicle stationary on uphill
gradients by depressing the accelerator
pedal. Instead, only ever hold the vehicle
stationary on uphill gradients by:
Rdepressing the brake pedal
Ractivating the HOLD function
Rengaging the electric parking brake
Kickdown
AMG vehicles:kickdown is only possible in
temporary manual drive programM. For
further information on manual drive program
M(Ypage 148).
Use kickdown for maximum acceleration:
XDepress the accelerator pedal beyond the
pressure point.
The automatic transmission shifts to a
lower gear depending on the engine speed.
XEase off the accelerator pedal once the
desired speed is reached.
The automatic transmission shifts back up.
Rocking the vehicle free
Shifting the transmission repeatedly between
gearsDandRmay help to free the vehicle if
it has become stuck in slush or snow. The
vehicle's engine management system limits
the speed to a maximum of 5 mph (9 km/h)
when shifting back and forth. To shift back
and forth between transmission positionsD
andR, move the selector lever up and down
beyond the pressure point.

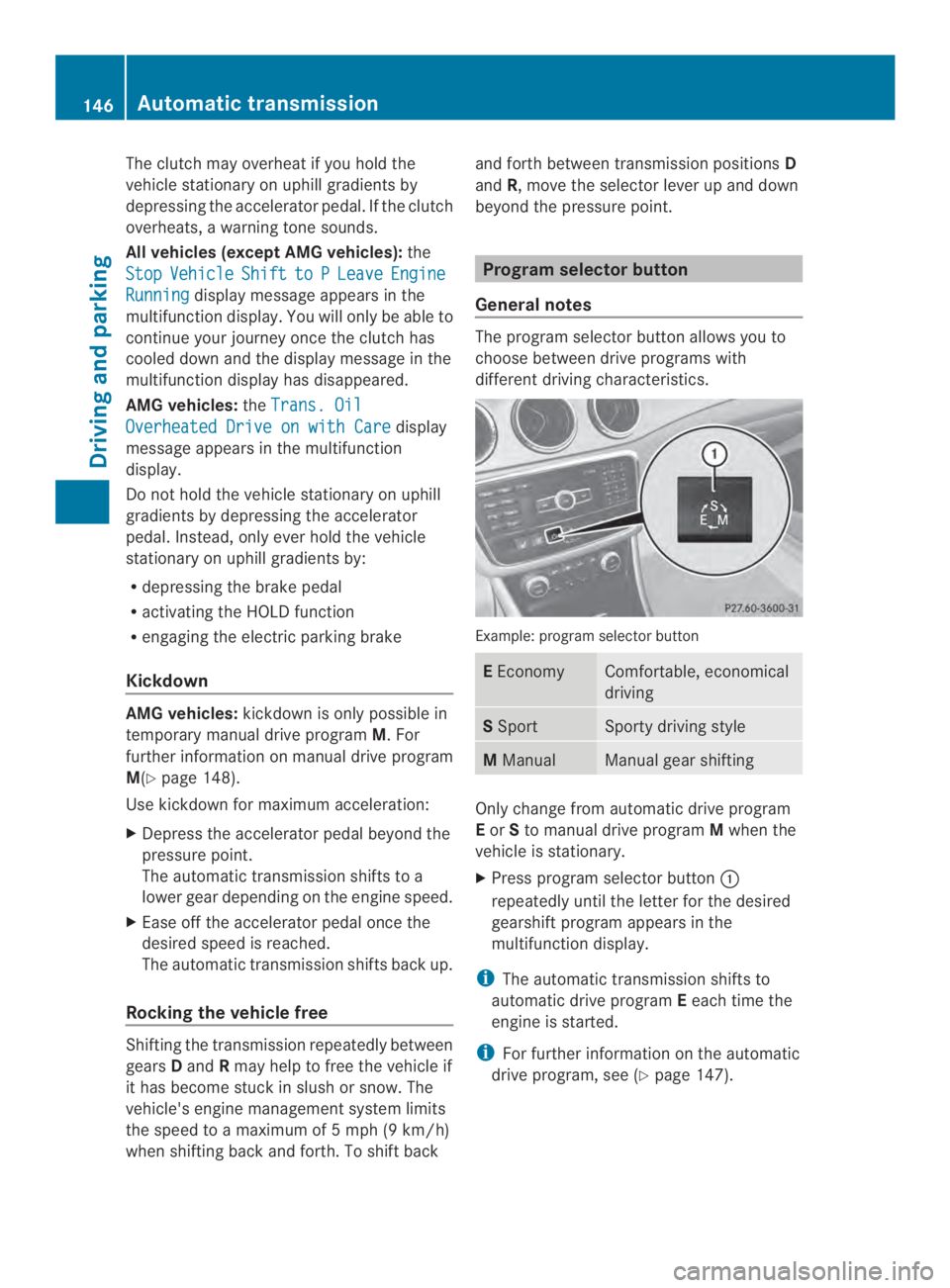

Programselector button
General notes
The program selectorbutton allows you to
choose between drive programs with
different driving characteristics.
Example: program selector button
EEconomyComfortable, economical
driving
SSportSporty driving style
MManualManual gear shifting
Only change from automatic drive program
EorSto manual drive programMwhen the
vehicle is stationary.
XPress program selector button
repeatedly until the letterfor the desired
gearshift program appears in the
multifunction display.
iThe automatic transmission shifts to
automatic drive programEeach time the
engine is started.
iFor further information on the automatic
drive program, see (Ypage 147).
146Automatic transmission
Driving and parking

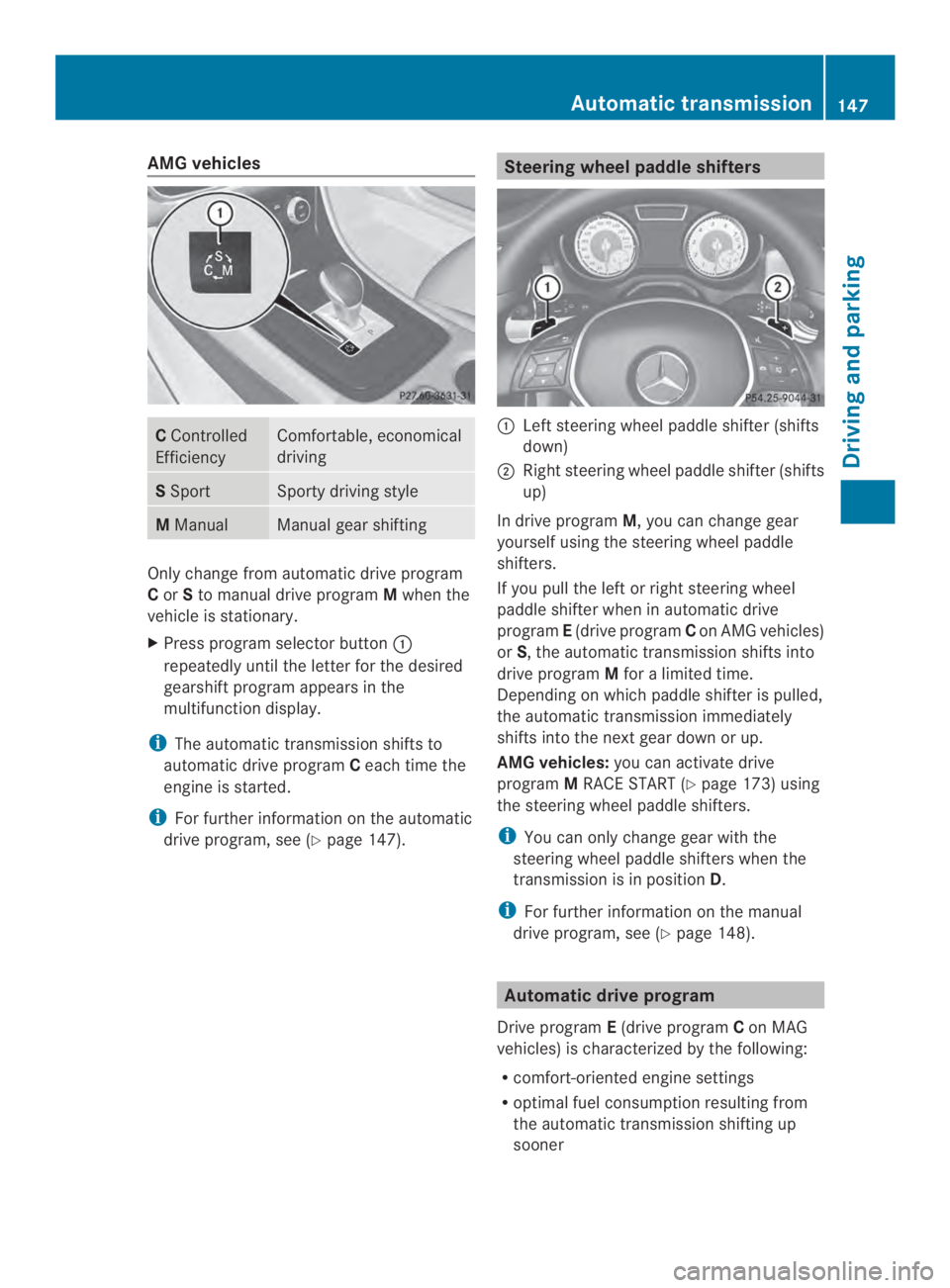

AMG vehicles
CControlled
Efficiency
Comfortable, economical
driving
SSportSporty driving style
MManualManual gear shifting
Only change from automatic drive program
CorSto manual drive programMwhen the
vehicle is stationary.
XPress program selector button
repeatedly until the letterfor the desired
gearshift program appears in the
multifunction display.
iThe automatic transmission shifts to
automatic drive programCeach time the
engine is started.
iFor further information on the automatic
drive program, see (Ypage 147).
Steering wheel paddle shifters
Left steering wheel paddle shifter (shifts
down)
Right steering wheel paddle shifter (shifts
up)
In drive programM, you can change gear
yourself using the steering wheel paddle
shifters.
If you pull the left or right steering wheel
paddle shifter when in automatic drive
programE(drive programCon AMG vehicles)
orS, the automatic transmission shifts into
drive programMfor a limited time.
Depending on which paddle shifter is pulled,
the automatic transmission immediately
shifts into the next gear down or up.
AMG vehicles:you can activate drive
programMRACE START (Ypage 173) using
the steering wheel paddle shifters.
iYou can only change gear with the
steering wheel paddle shifters when the
transmission is in positionD.
iFor further information on the manual
drive program, see (Ypage 148).
Automatic drive program
Drive programE(drive programCon MAG
vehicles) is characterized by the following:
Rcomfort-oriented engine settings
Roptimal fuel consumption resulting from
the automatic transmission shifting up
sooner
Automatic transmission147
Driving and parking
Z

Rthe vehicle pulling away moregently in
forward and reverse gears, unless the
accelerator pedal is depressed fully
Rincreased sensitivity. This improves driving
stability on slippery road surfaces, for
example
Rthe automatic transmission shifting up
sooner.This results in the vehicle being
driven at lower engine speeds and the
wheels being less likely to spin
Drive programSis characterized by the
following:
Rsporty engine settings
Rthe automatic transmission shifting up
later
Rthe fuel consumption possibly being higher
as a result of the later automatic
transmission shift points

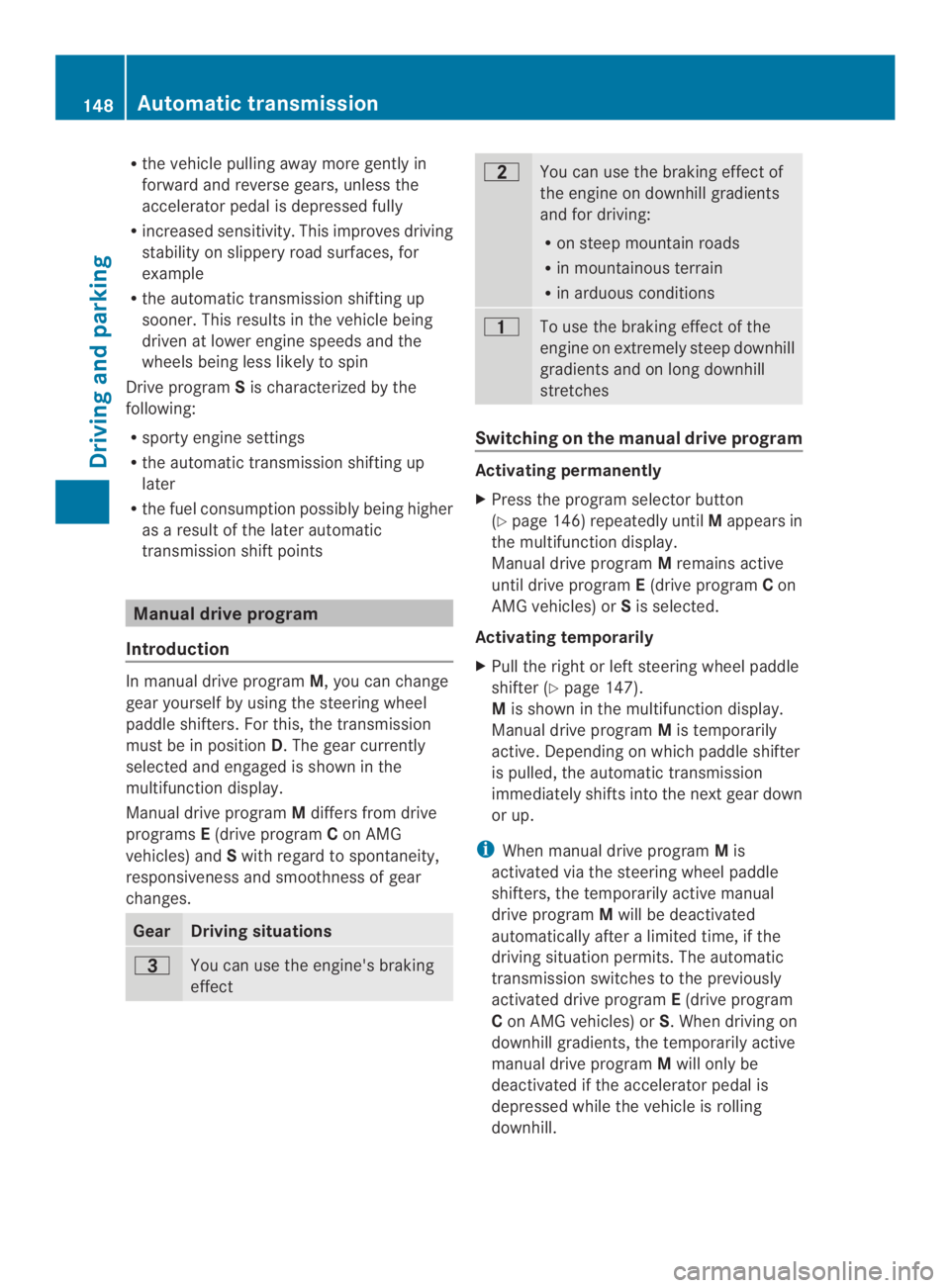

Manual drive program
Introduction
In manual drive programM, you can change
gear yourself by using the steering wheel
paddle shifters. For this, the transmission
must be in positionD. The gear currently
selected and engaged is shown in the
multifunction display.
Manual drive programMdiffers from drive
programsE(drive programCon AMG
vehicles) andSwith regard to spontaneity,
responsiveness and smoothness of gear
changes.
GearDriving situations
You can use the engine's braking
effect
\nYou can use the braking effect of
the engine on downhill gradients
and for driving:
Ron steep mountain roads
Rin mountainous terrain
Rin arduous conditions
To use the braking effect of the
engine on extremely steep downhill
gradients and on long downhill
stretches
Switching on the manual drive program
Activating permanently
XPress the program selector button
(Ypage 146) repeatedly untilMappears in
the multifunction display.
Manual drive programMremains active
until drive programE(drive programCon
AMG vehicles) orSis selected.
Activating temporarily
XPull the right or left steering wheel paddle
shifter (Ypage 147).
Mis shown in the multifunction display.
Manual drive programMis temporarily
active. Depending on which paddle shifter
is pulled, the automatic transmission
immediately shifts into the next gear down
or up.
iWhen manual drive programMis
activated via the steering wheel paddle
shifters, the temporarily active manual
drive programMwill be deactivated
automatically after a limited time, if the
driving situation permits. The automatic
transmission switches to the previously
activated drive programE(drive program
Con AMG vehicles) orS.When driving on
downhill gradients, the temporarily active
manual drive programMwill only be
deactivated if the accelerator pedal is
depressed while the vehicle is rolling
downhill.
148Automatic transmission
Driving and parking
