MERCEDES-BENZ CLA 2014 Owners Manual

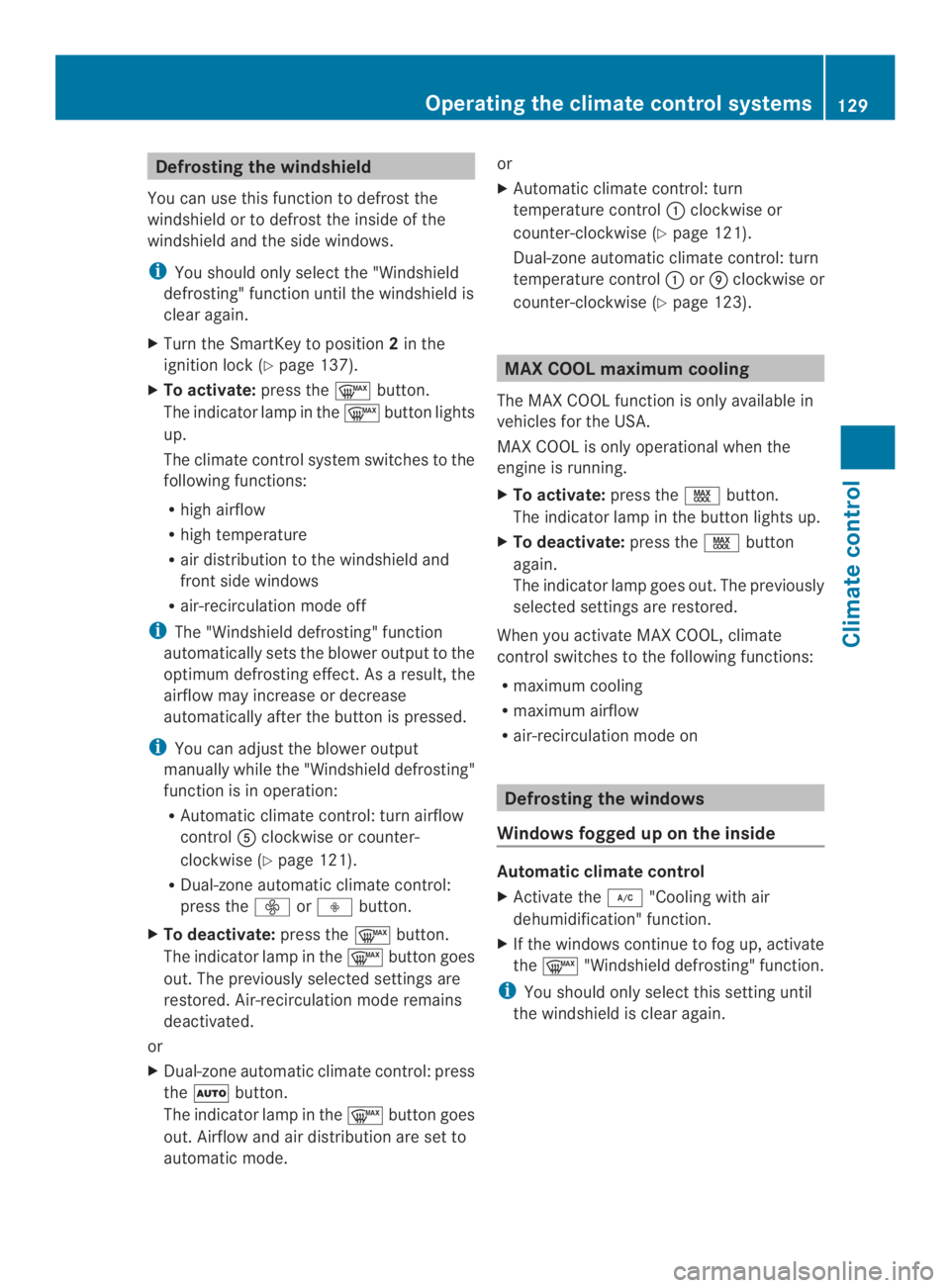

Defrosting the windshield
You can use this function to defrost the
windshield or to defrost theinside of the
windshield and the side windows.
iYou should only select the "Windshield
defrosting" functionuntil the windshield is
clear again.
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XTo activate:press the button.
The indicator lamp in the button lights
up.
The climate control system switches to the
following functions:
Rhigh airflow
Rhigh temperature
Rairdistribution to the windshield and
front side windows
Rair-recirculation mode off
iThe "Windshield defrosting" function
automatically sets the blower output to the
optimum defrosting effect. As a result, the
airflow may increase or decrease
automatically after the button is pressed.
iYou can adjust the blower output
manually while the "Windshield defrosting"
function is in operation:
RAutomatic climate control: turn airflow
controlclockwise or counter-
clockwise (Ypage 121).
RDual-zone automatic climate control:
press theorbutton.
XTo deactivate:press the button.
The indicator lamp in the button goes
out. The previously selected settings are
restored. Air-recirculation mode remains
deactivated.
or
XDual-zone automatic climate control: press
thebutton.
The indicator lamp in the button goes
out. Airflow and air distribution are set to
automatic mode.
or
XAutomatic climate control: turn
temperature controlclockwise or
counter-clockwise (Ypage 121).
Dual-zone automatic climate control: turn
temperature controlorclockwise or
counter-clockwise (Ypage 123).
MAX COOL maximum cooling
The MAX COOL function is only available in
vehicles for the USA.
MAX COOL is only operational when the
engine is running.
XTo activate:press the
button.
The indicator lamp in the button lights up.
XTo deactivate:press the
button
again.
The indicator lamp goes out. The previously
selected settings are restored.
When you activate MAX COOL, climate
control switches to the following functions:
Rmaximum cooling
Rmaximum airflow
Rair-recirculation mode on
Defrosting the windows
Windows fogged up on theinside
Automatic climate control
XActivate the"Cooling with air
dehumidification" function.
XIf the windows continue to fog up, activate
the "Windshield defrosting" function.
iYou should only select this setting until
the windshield is clear again.
Operating the climate control systems129
Climate control

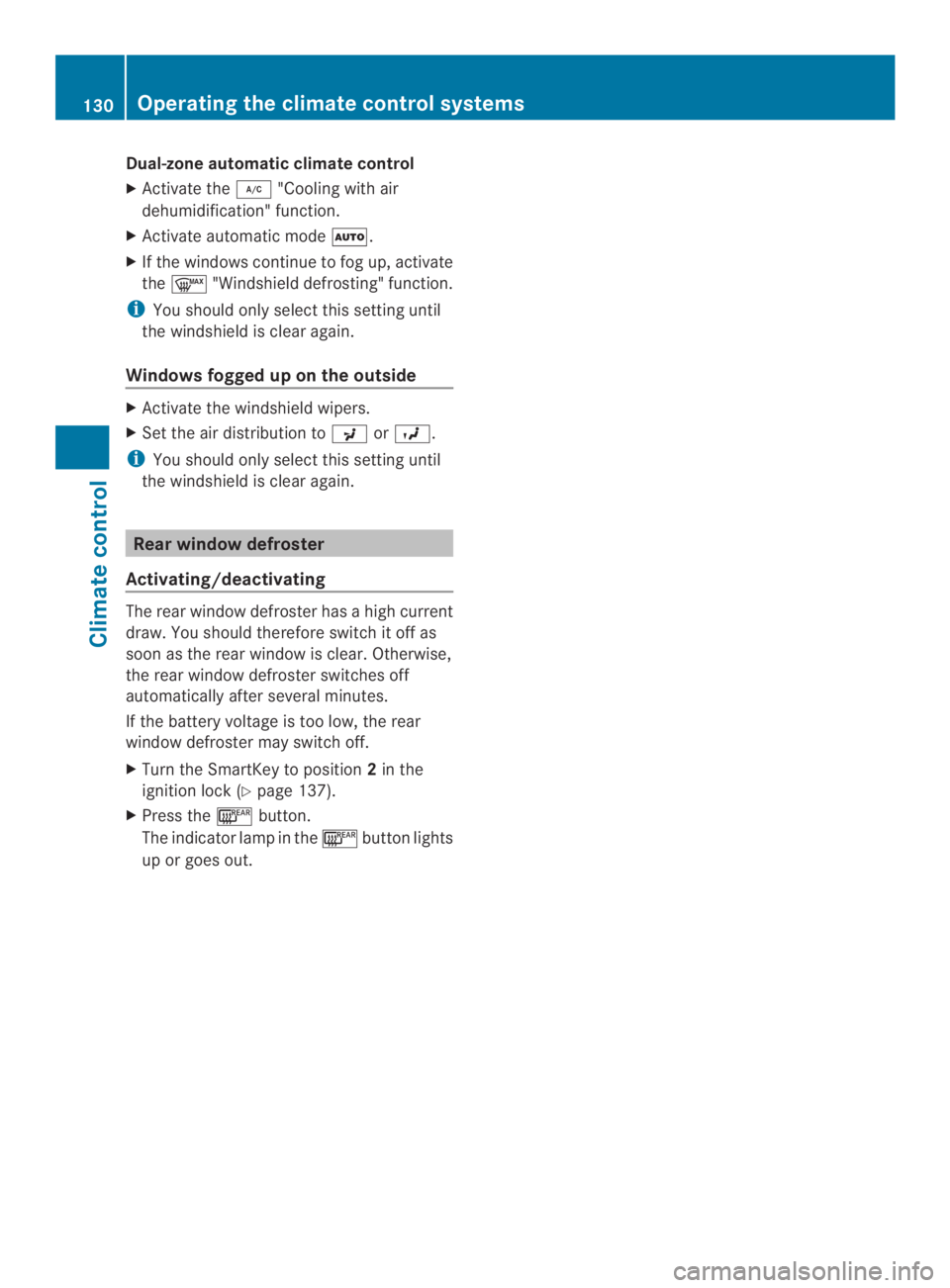

Dual-zone automatic climate control
XActivate the"Cooling with air
dehumidification" function.
XActivate automatic mode.
XIf the windows continue to fog up, activate
the "Windshield defrosting" function.
iYou should only select this setting until
the windshield is clear again.
Windows fogged up on the outside
XActivate the windshield wipers.
XSetthe air distribution toor.
iYou should only select this setting until
the windshield is clear again.
Rear window defroster
Activating/deactivating
The rear window defroster has a high current
draw. You should therefore switch it off as
soon as the rear window is clear. Otherwise,
the rear window defroster switches off
automatically after several minutes.
If the battery voltage is too low, the rear
window defroster may switch off.
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XPress thebutton.
The indicator lamp in thebutton lights
up or goes out.
130Operating the climate control systems
Climate control

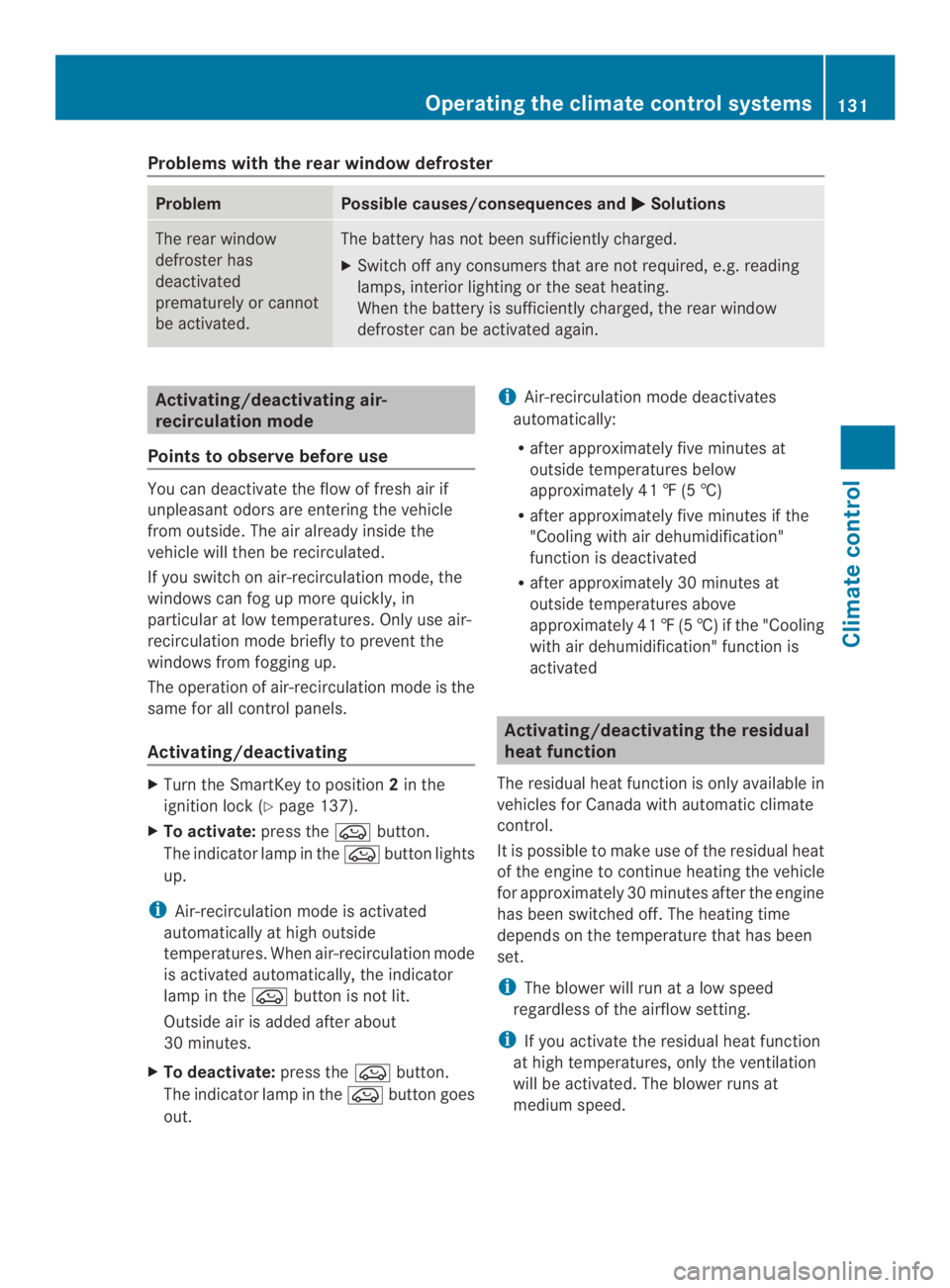

Problems with the rear window defroster
ProblemPossible causes/consequences and
Solutions
The rear window
defroster has
deactivated
prematurely or cannot
be activated.
The battery has not been sufficiently charged.
XSwitch off any consumers that are not required, e.g. reading
lamps, interior lighting or the seat heating.
When the battery is sufficiently charged, the rear window
defroster can be activated again.
Activating/deactivating air-
recirculation mode
Points to observe before use
You can deactivate the flow of fresh air if
unpleasant odors are enteringthe vehicle
from outside. The air already inside the
vehicle will then be recirculated.
If you switch on air-recirculation mode, the
windows can fog up more quickly, in
particular at low temperatures. Only use air-
recirculation mode briefly to prevent the
windows from fogging up.
The operation of air-recirculation mode is the
same for all control panels.
Activating/deactivating
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XTo activate:press thebutton.
The indicator lamp in thebutton lights
up.
iAir-recirculation mode is activated
automatically at high outside
temperatures. When air-recirculation mode
is activated automatically, the indicator
lamp in thebutton is not lit.
Outside air is added after about
30 minutes.
XTo deactivate:press thebutton.
The indicator lamp in thebutton goes
out.
iAir-recirculation mode deactivates
automatically:
Rafter approximately five minutes at
outside temperatures below
approximately 41 ‡ (5 †)
Rafter approximately five minutes if the
"Cooling with air dehumidification"
function is deactivated
Rafter approximately 30 minutes at
outside temperatures above
approximately 41‡(5†) if the "Cooling
with air dehumidification" function is
activated
Activating/deactivating the residual
heat function
The residual heat function is only available in
vehicles for Canada with automatic climate
control.
It is possible to make use of the residual heat
of the engine to continue heating the vehicle
for approximately 30 minutes after the engine
has been switched off. The heating time
depends on the temperature that has been
set.
iThe blower will run at a low speed
regardless of the airflow setting.
iIf you activate the residual heat function
at high temperatures, only the ventilation
will be activated. The blower runs at
medium speed.
Operating the climate control systems131
Climate control

XTurn the SmartKey to position0in the
ignition lock or remove it (Ypage 137).
XTo activate:press thebutton.
The indicator lamp in thebutton lights
up.
XTo deactivate:press thebutton.
The indicator lamp in thebutton goes
out.
iResidual heat is deactivated
automatically:
Rafter approximately 30 minutes
Rwhen the ignition is switched on
Rif the battery voltage drops

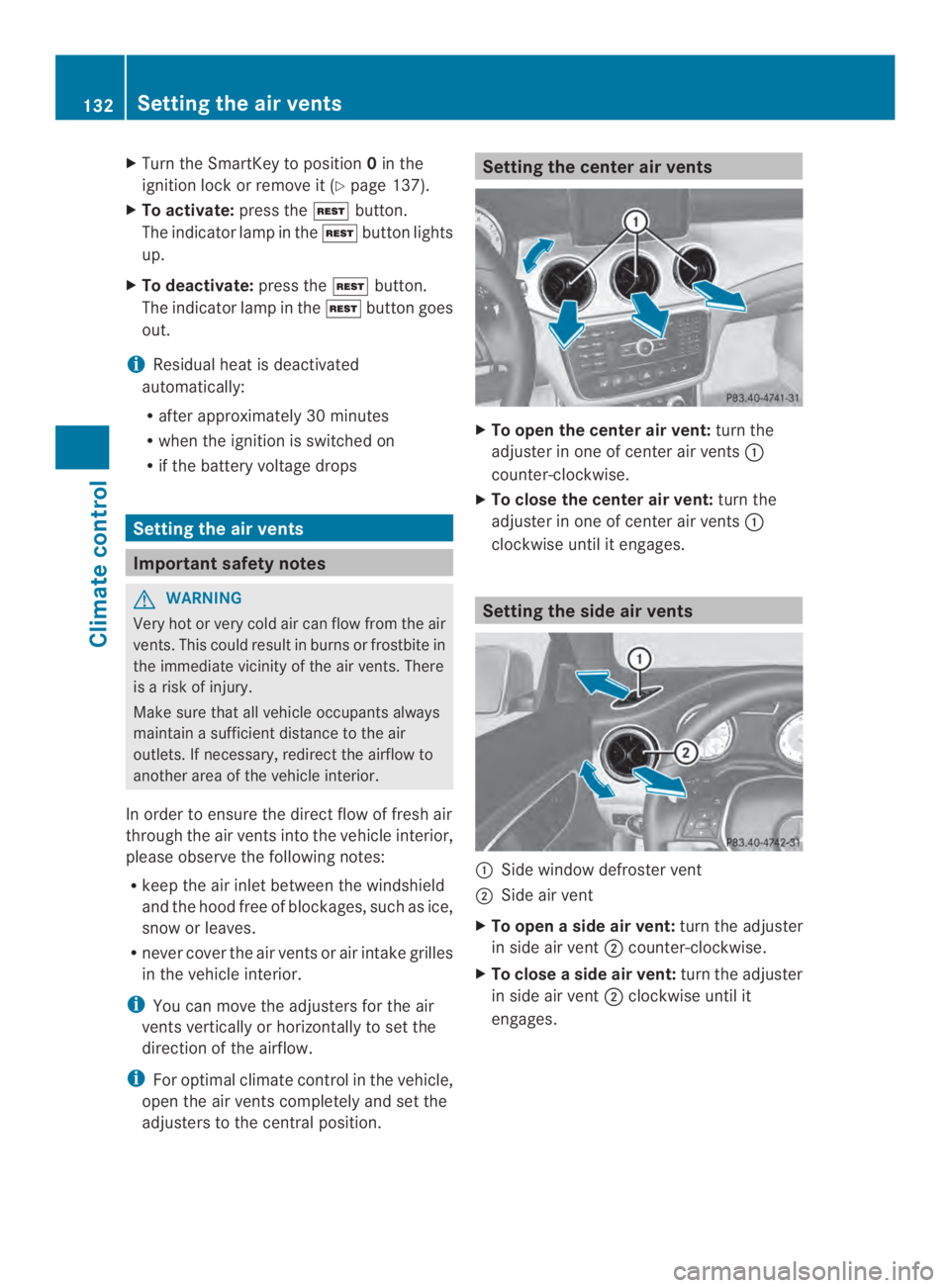

Setting the air vents
Important safety notes
GWARNING
Very hot or very cold air can flow from the air
vents. This could result in burns or frostbite in
the immediate vicinity of the air vents. There
is a risk of injury.
Make sure that all vehicle occupants always
maintain a sufficient distance to the air
outlets. If necessary, redirect the airflow to
another area of the vehicle interior.
In order to ensure the direct flow of fresh air
through the air vents into the vehicle interior,
please observe the following notes:
Rkeep the air inlet between the windshield
and the hood free of blockages, such as ice,
snow or leaves.
Rnever cover the air vents or air intake grilles
in the vehicle interior.
iYou can move the adjusters for the air
vents vertically or horizontally to set the
direction of the airflow.
iFor optimal climate control in the vehicle,
open the air vents completely and set the
adjusters to the central position.
Setting the center air vents
XTo open the center air vent:turn the
adjuster in one of center air vents
counter-clockwise.
XTo close the center air vent:turn the
adjuster in one of center air vents
clockwise until it engages.
Setting the side air vents
Side window defroster vent
Side air vent
XTo openaside air vent:turn the adjuster
in side air ventcounter-clockwise.
XTo closeaside air vent:turn the adjuster
in side air ventclockwise until it
engages.
132Setting the air vents
Climate control

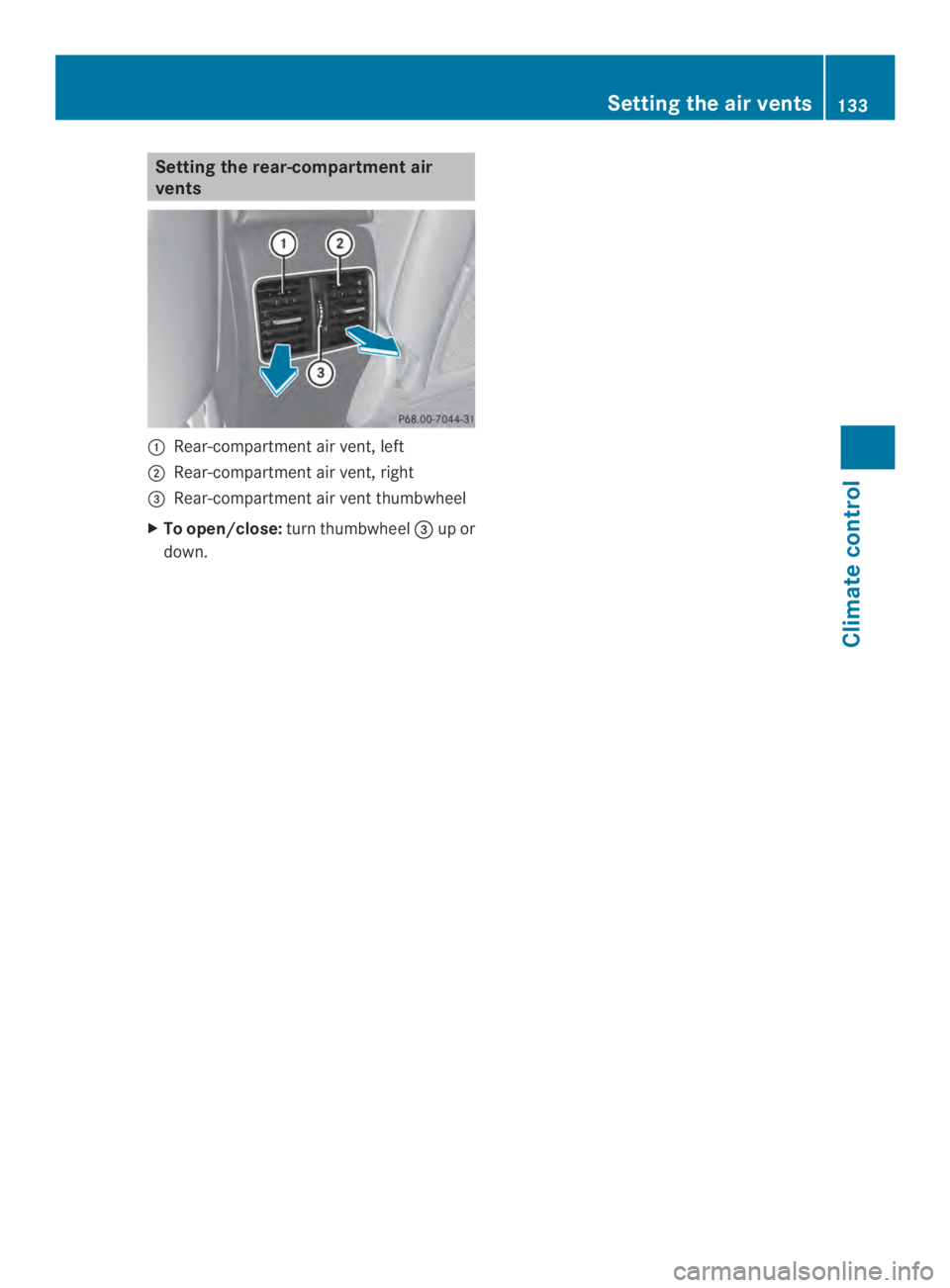

Setting the rear-compartment air
vents
Rear-compartment air vent, left
Rear-compartment air vent, right
"Rear-compartment air vent thumbwheel
XTo open/close:turn thumbwheel"up or
down.
Setting the air vents133
Climate control
Z

134

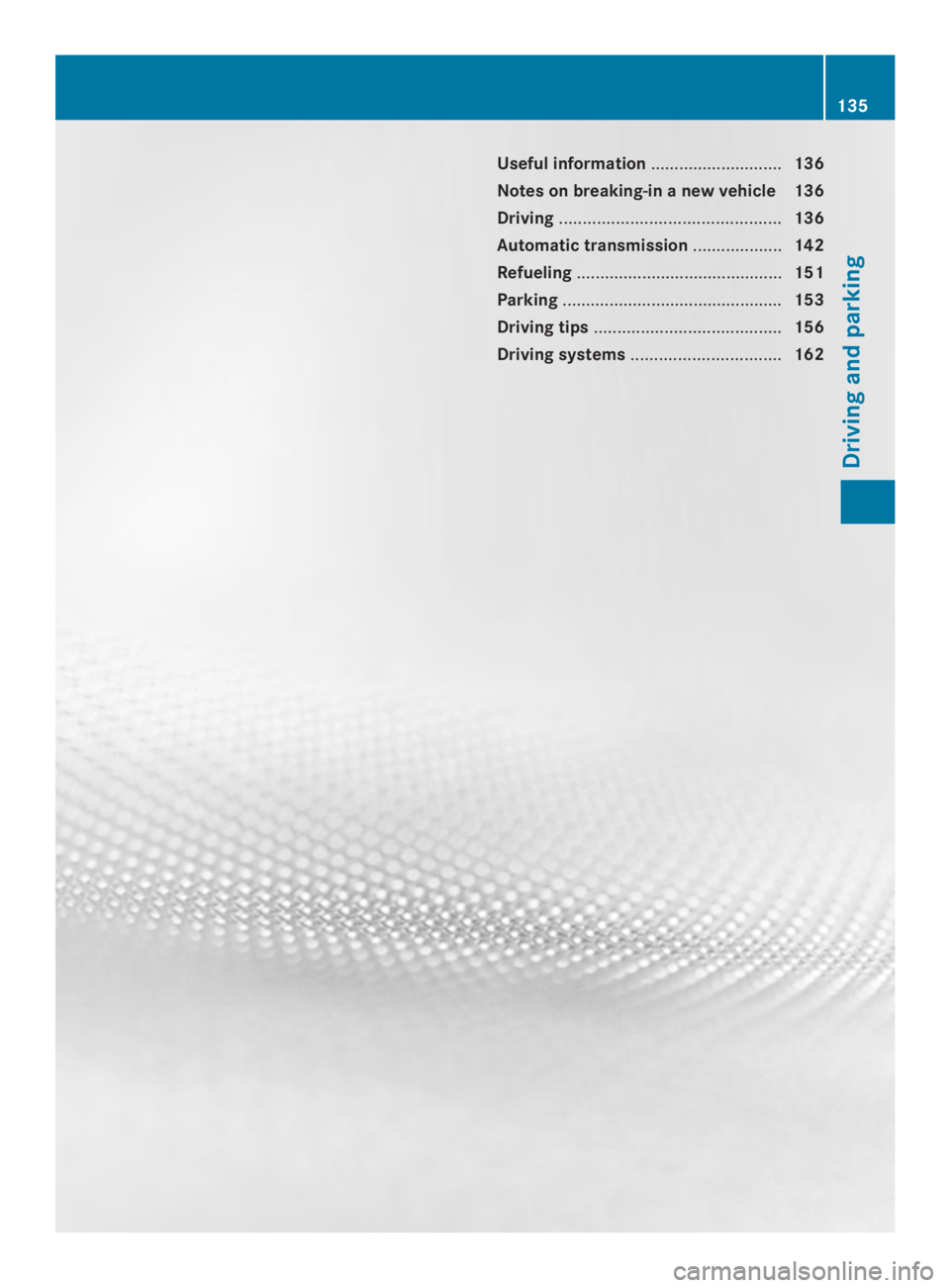

Useful information............................136
Notes on breaking-inanew vehicle 136
Driving...............................................136
Automatic transmission...................142
Refueling............................................151
Parking...............................................153
Driving tips........................................156
Driving systems................................162
135
Driving and parking

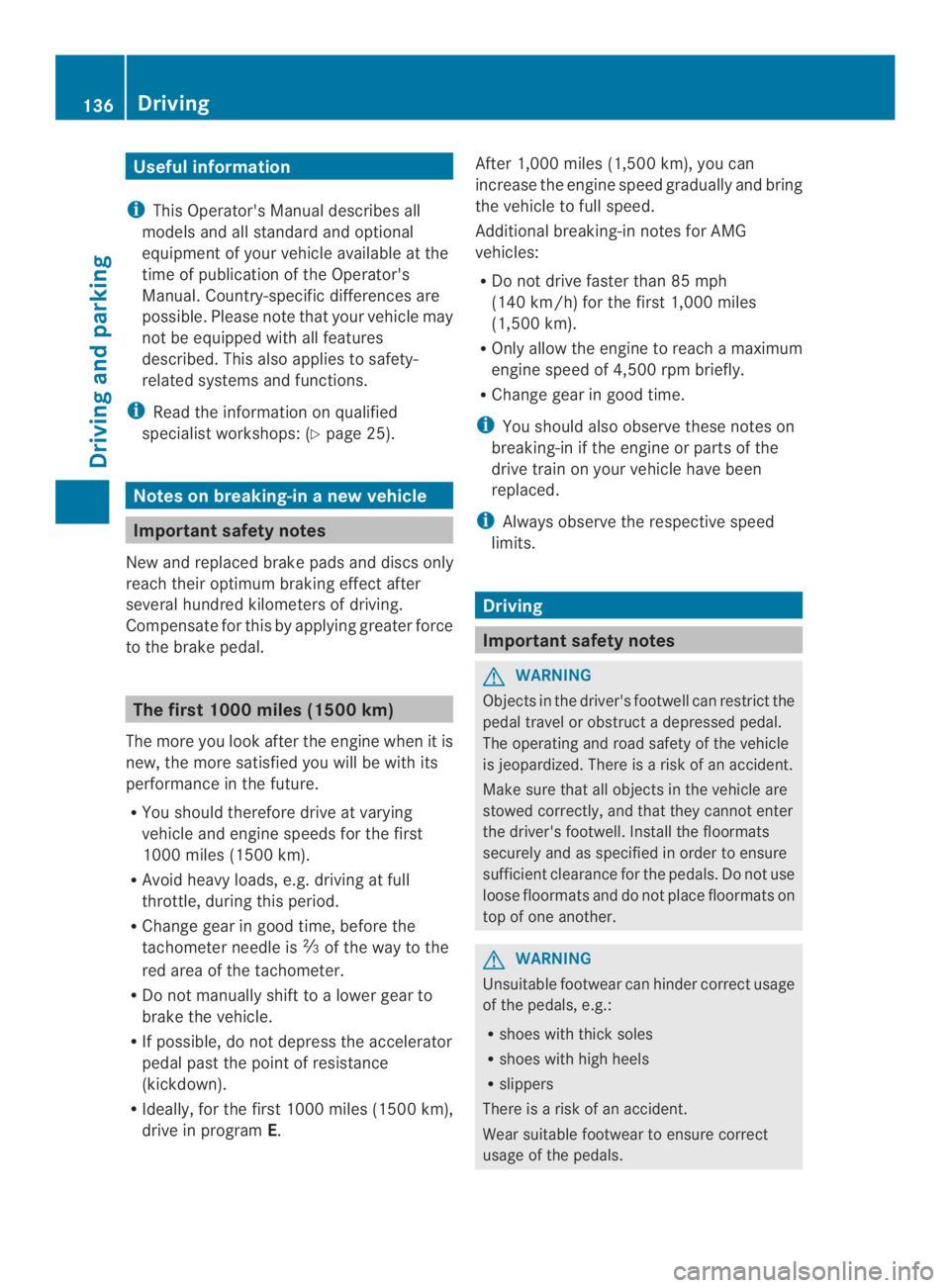

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
iRead the information on qualified
specialist workshops: (Ypage 25).
Notes on breaking-inanew vehicle
Important safety notes
New and replaced brake pads and discs only
reach their optimum braking effect after
several hundred kilometers of driving.
Compensate for this by applying greater force
to the brake pedal.
The first 1000 miles (1500 km)
The more you look after the engine when it is
new, the more satisfied you will be with its
performance in the future.
RYou should therefore drive at varying
vehicle and engine speeds for the first
1000 miles (1500 km).
RAvoid heavy loads, e.g.driving at full
throttle, during this period.
RChange gearingood time, before the
tachometer needle is
of the way to the
red area of the tachometer.
RDo not manually shift to a lower gear to
brake the vehicle.
RIf possible, do not depress the accelerator
pedal past the point of resistance
(kickdown).
RIdeally, for the first 1000 miles(1500 km),
drive in programE.
After 1,000 miles (1,500 km), you can
increase the engine speed gradually and bring
the vehicle to full speed.
Additional breaking-in notes for AMG
vehicles:
RDo not drive faster than 85 mph
(140 km/h) for the first 1,000 miles
(1,500 km).
ROnly allow the engine to reach a maximum
engine speed of 4,500 rpm briefly.
RChange gearingood time.
iYou should also observe these notes on
breaking-in if the engine or parts of the
drive train on your vehicle have been
replaced.
iAlways observe the respective speed
limits.
Driving
Important safety notes
GWARNING
Objects in the driver's footwell can restrictthe
pedal travel or obstructadepressed pedal.
The operating and road safety of the vehicle
is jeopardized. There is a risk of an accident.
Make sure that all objects in the vehicle are
stowed correctly, and that they cannot enter
the driver's footwell. Install the floormats
securely and as specified in order to ensure
sufficientclearance for the pedals. Do not use
loose floormats and do not place floormats on
top of one another.
GWARNING
Unsuitable footwear can hindercorrect usage
of the pedals, e.g.:
Rshoes with thick soles
Rshoes with high heels
Rslippers
There is a risk of an accident.
Wear suitable footwear to ensure correct
usage of the pedals.
136Driving
Driving and parking

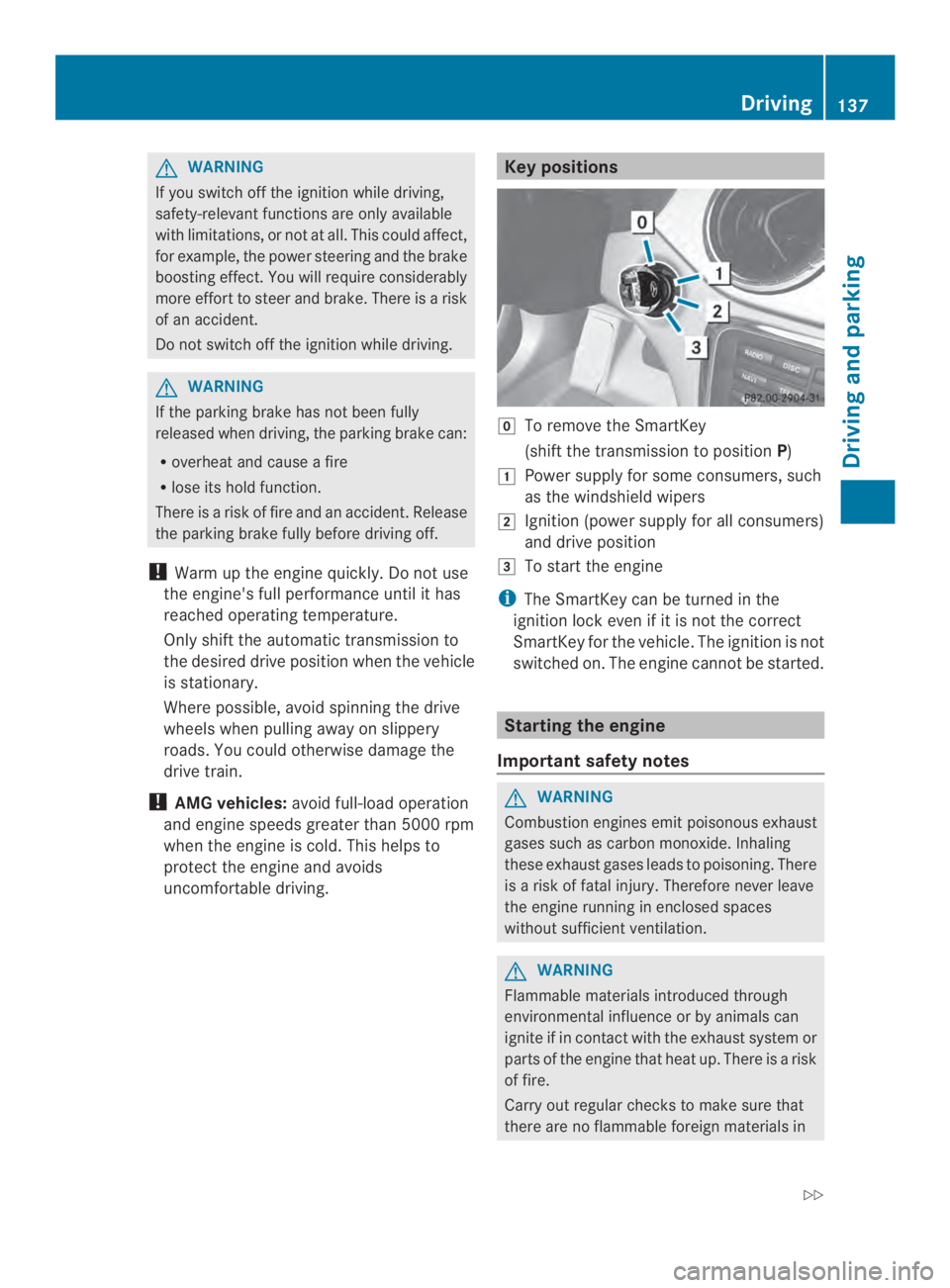

GWARNING
If you switch off the ignitionwhile driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect.You will require considerably
more effort to steer and brake. There is a risk
of an accident.
Do not switch off the ignition while driving.
GWARNING
If the parking brake has not been fully
released when driving, the parking brake can:
Roverheat and cause a fire
Rlose its hold function.
There is a risk of fire and an accident.Release
the parking brake fully before driving off.
!Warm up the engine quickly. Do not use
the engine's full performance until it has
reached operating temperature.
Only shift the automatic transmission to
the desired drive position when the vehicle
is stationary.
Where possible, avoid spinning the drive
wheels when pulling away on slippery
roads. You could otherwise damage the
drive train.
!AMG vehicles:avoid full-load operation
and engine speeds greater than 5000rpm
when the engine is cold. This helps to
protect the engine and avoids
uncomfortable driving.
Key positions
\rTo remove the SmartKey
(shift the transmission to positionP)
Power supply for some consumers, such
as the windshield wipers
Ignition (power supply for all consumers)
and drive position
To start the engine
iThe SmartKey can be turned in the
ignition lock even if it is not the correct
SmartKey for the vehicle. The ignition is not
switched on. The engine cannot be started.
Starting the engine
Important safety notes
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Inhaling
these exhaust gases leads to poisoning. There
is a risk of fatal injury. Therefore never leave
the engine running in enclosed spaces
without sufficient ventilation.
GWARNING
Flammable materials introduced through
environmental influence or by animals can
ignite if in contact with the exhaust system or
parts of the engine that heat up. There is a risk
of fire.
Carry out regular checks to make sure that
there are no flammable foreign materials in
Driving137
Driving and parking
Z

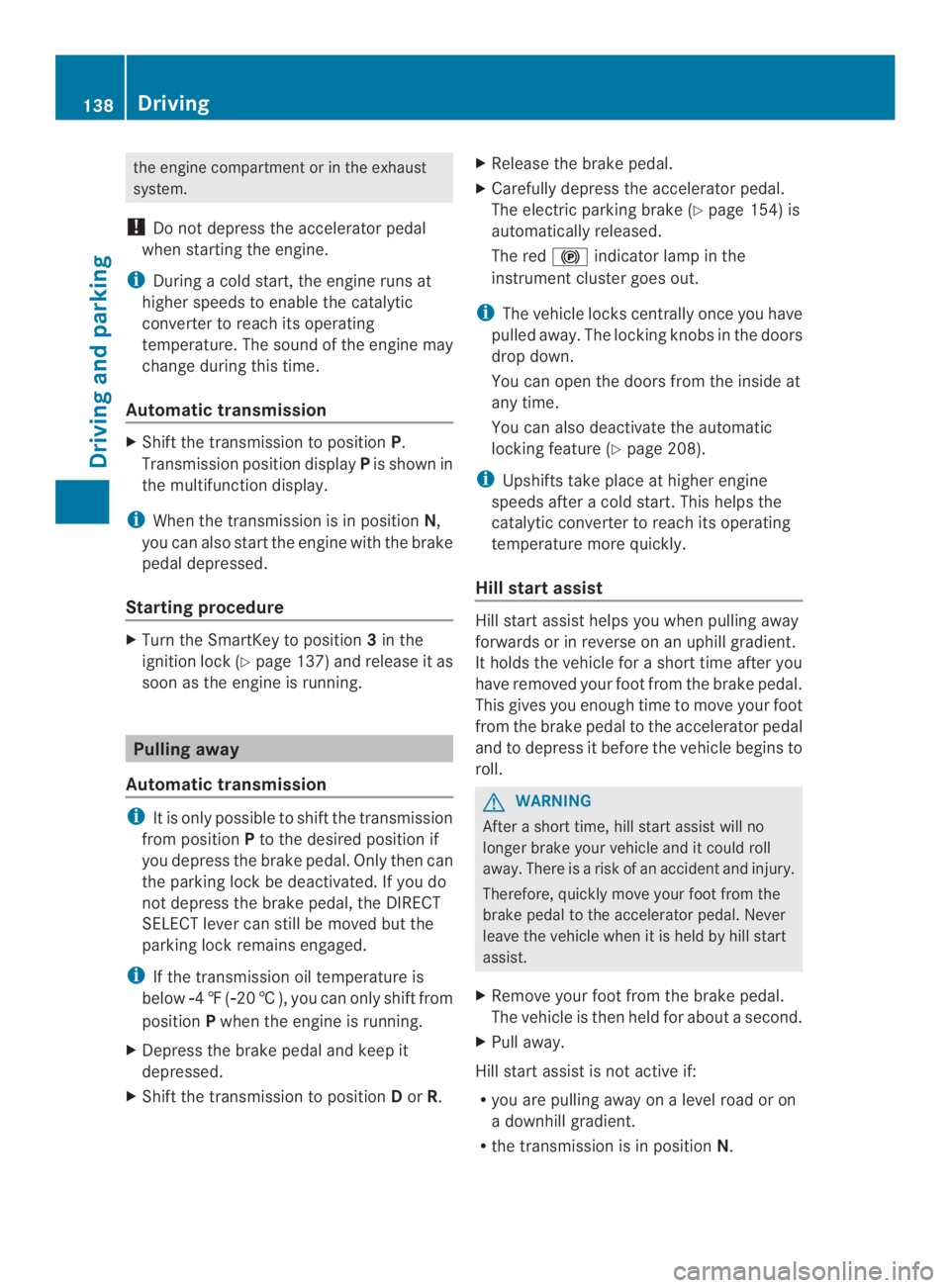

the engine compartment or in the exhaust
system.
!Do not depress the accelerator pedal
when starting the engine.
iDuring a cold start, the engine runs at
higherspeeds to enable the catalytic
converter to reach its operating
temperature. The sound of the engine may
change during this time.
Automatic transmission
XShift the transmission to positionP.
Transmission position displayPis shown in
the multifunction display.
iWhen the transmission is in positionN,
you can also start the engine with the brake
pedal depressed.
Starting procedure
XTurn the SmartKey to position3in the
ignition lock (Ypage 137)and release it as
soonas the engine is running.
Pulling away
Automatic transmission
iIt is only possible to shift the transmission
from positionPto the desired position if
you depress the brake pedal.Only then can
the parking lock be deactivated.Ifyou do
not depress the brake pedal, the DIRECT
SELECT lever can still be moved but the
parking lock remains engaged.
iIf the transmission oil temperature is
below4‡(20†), you can only shift from
positionPwhen the engine is running.
XDepress the brake pedal and keep it
depressed.
XShiftthe transmission to positionDorR.
XRelease the brake pedal.
XCarefully depress the accelerator pedal.
The electric parking brake (Ypage 154) is
automatically released.
The red indicator lamp in the
instrumentcluster goes out.
iThe vehicle locks centrally once you have
pulled away. The locking knobs in the doors
drop down.
You can open the doors fromthe inside at
any time.
You can also deactivate the automatic
locking feature (Ypage 208).
iUpshifts take place at higher engine
speeds after a cold start. This helps the
catalytic converter to reach its operating
temperature more quickly.
Hill startassist
Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient.
It holds the vehicle for a short time after you
have removed your foot from the brake pedal.
This gives you enough time to move your foot
from the brake pedal to the accelerator pedal
and to depress it before the vehicle begins to
roll.
GWARNING
After a short time, hill start assist will no
longer brake your vehicle and it could roll
away. There is a risk of an accident and injury.
Therefore, quickly move your foot from the
brake pedal to the accelerator pedal. Never
leave the vehicle when it is held by hill start
assist.
XRemove your foot from the brake pedal.
The vehicle is then held for about a second.
XPull away.
Hill start assist is not active if:
Ryou are pulling away on a level road or on
a downhill gradient.
Rthe transmission is in positionN.
138Driving
Driving and parking
