MERCEDES-BENZ CLA 2014 Owners Manual

click and then the mirrors engage in
position.
The mirror housing is engaged againand
you can adjustthe exterior mirrors as usual
(Ypage 97).
Automatic anti-glare mirrors
The "Automatic anti-glare mirrors" function is
only available if the vehicle is equipped with
the "Mirrors package".
The rear-view mirror and the exterior mirror
on the driver's side automatically go into anti-
glare mode if:
Rthe ignition is switched on and
Rincident light from headlamps strikes the
sensor in the rear-view mirror.
The mirrors do not go into anti-glare mode if
reverse gear is engaged or the interior lighting
is switched on.
Parking position for the exterior
mirror on the front-passenger side
General notes
The "Parking position of the exterior mirror on
the front-passenger side" function is only
available if the vehicle is equipped with the
"Mirrors package".
Setting and storing the parking position
Using reverse gear
You can position the front-passenger side
exterior mirror in such a way that you can see
the rear wheel on that side as soon as you
engage reverse gear. You can store this
position.
XMake sure that the vehicle is stationary.
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XPress buttonfor the exterior mirror on
the front-passenger side.
XEngage reverse gear.
The exterior mirror on the front-passenger
side moves to the preset parking position.
XUse adjustment button"to adjust the
exterior mirror. You should see the rear
wheel and the curb in the exterior mirror.
The parking position is stored.
iIf you shift the transmission to another
position, the exterior mirror on the front-
passenger side returns to the driving
position.
Using the memory button
You can position the front-passenger side
exterior mirror in such a way that you can see
the rear wheel on that side as soon as you
engage reverse gear. You can store this
position. This setting can be stored using
memory buttonM!.
XMake sure that the vehicle is stationary.
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XPress buttonfor the exterior mirror on
the front-passenger side.
XUse adjustment button"to adjust the
exterior mirror. You should see the rear
wheel and the curb in the exterior mirror.
Mirrors99
Seats, steering wheel and mirrors
Z

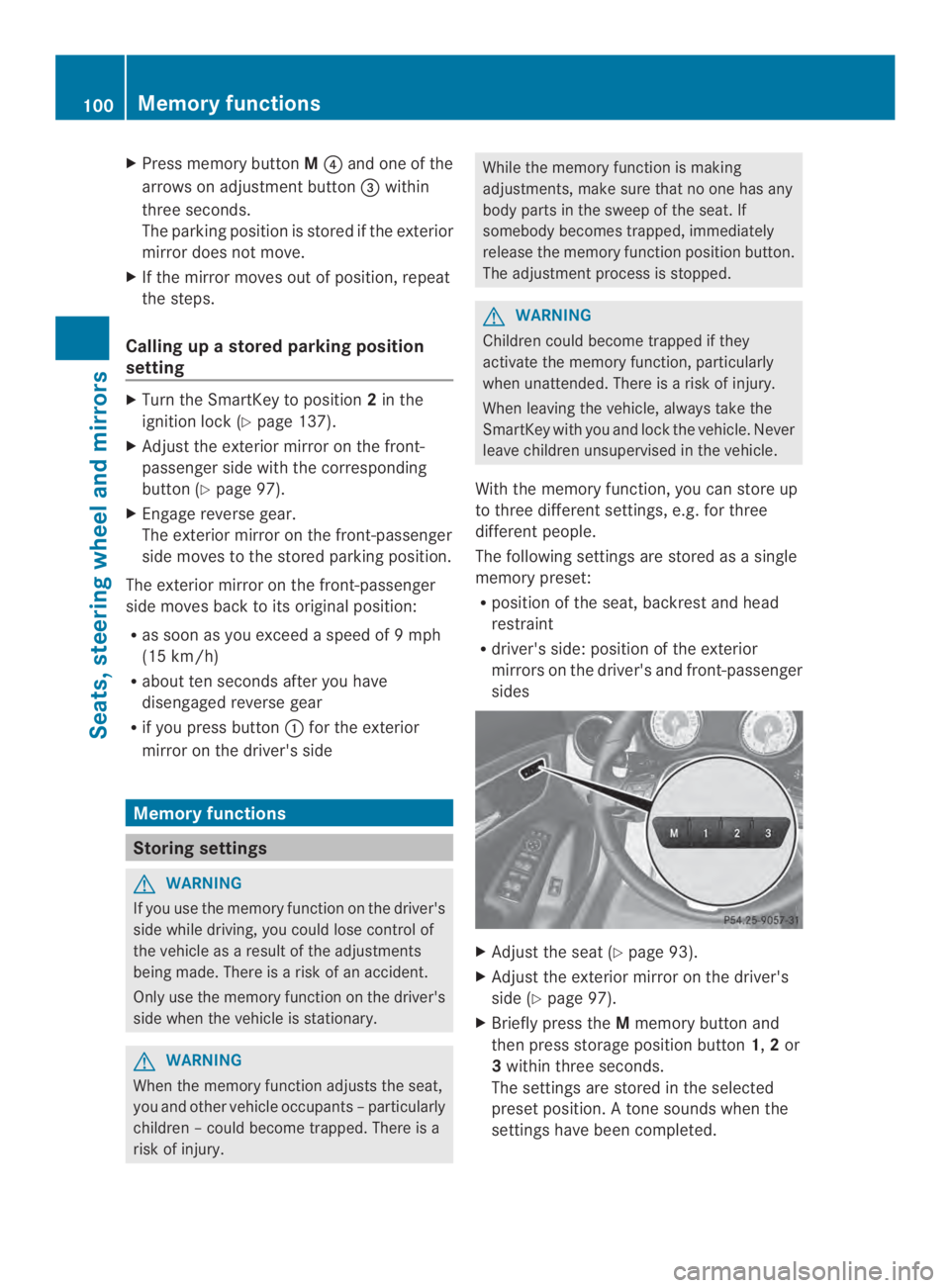

XPress memory buttonM!and one of the
arrows on adjustment button"within
three seconds.
The parking position is stored if the exterior
mirror does not move.
XIf the mirror moves out of position, repeat
the steps.
Calling up a stored parking position
setting
XTurn the SmartKey to position2in the
ignition lock (Ypage 137).
XAdjust the exterior mirror on the front-
passenger side with the corresponding
button (Ypage 97).
XEngage reverse gear.
The exterior mirror on the front-passenger
side moves to the stored parking position.
The exterior mirror on the front-passenger
side moves back to its original position:
Ras soon as you exceed a speed of9mph
(15 km/h)
Rabout ten seconds after you have
disengaged reverse gear
Rif you press buttonfor the exterior
mirror on the driver's side
Memory functions
Storing settings
GWARNING
If you use the memoryfunctiononthe driver's
side while driving, you could lose control of
the vehicle as a result of the adjustments
being made. There is a risk of an accident.
Only use the memory function on the driver's
side when the vehicle is stationary.
GWARNING
When the memory function adjusts the seat,
you and other vehicle occupants–particularly
children–could become trapped. There is a
risk of injury.
While the memory function is making
adjustments, make sure that no one has any
body parts in the sweep of the seat. If
somebody becomes trapped, immediately
release the memory function position button.
The adjustmentprocess is stopped.
GWARNING
Children could become trapped if they
activate the memory function, particularly
when unattended.There isarisk of injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
With the memory function, you can store up
to three different settings, e.g. for three
differentpeople.
The following settings are stored as a single
memory preset:
Rposition of the seat, backrest and head
restraint
Rdriver's side: position of the exterior
mirrors on the driver's and front-passenger
sides
XAdjust the seat (Ypage 93).
XAdjust the exterior mirror on the driver's
side (Ypage 97).
XBriefly press theMmemory button and
then press storage position button1,2or
3within three seconds.
The settings are stored in the selected
preset position.Atone sounds when the
settings have been completed.
100Memory functions
Seats, steering wheel and mirrors

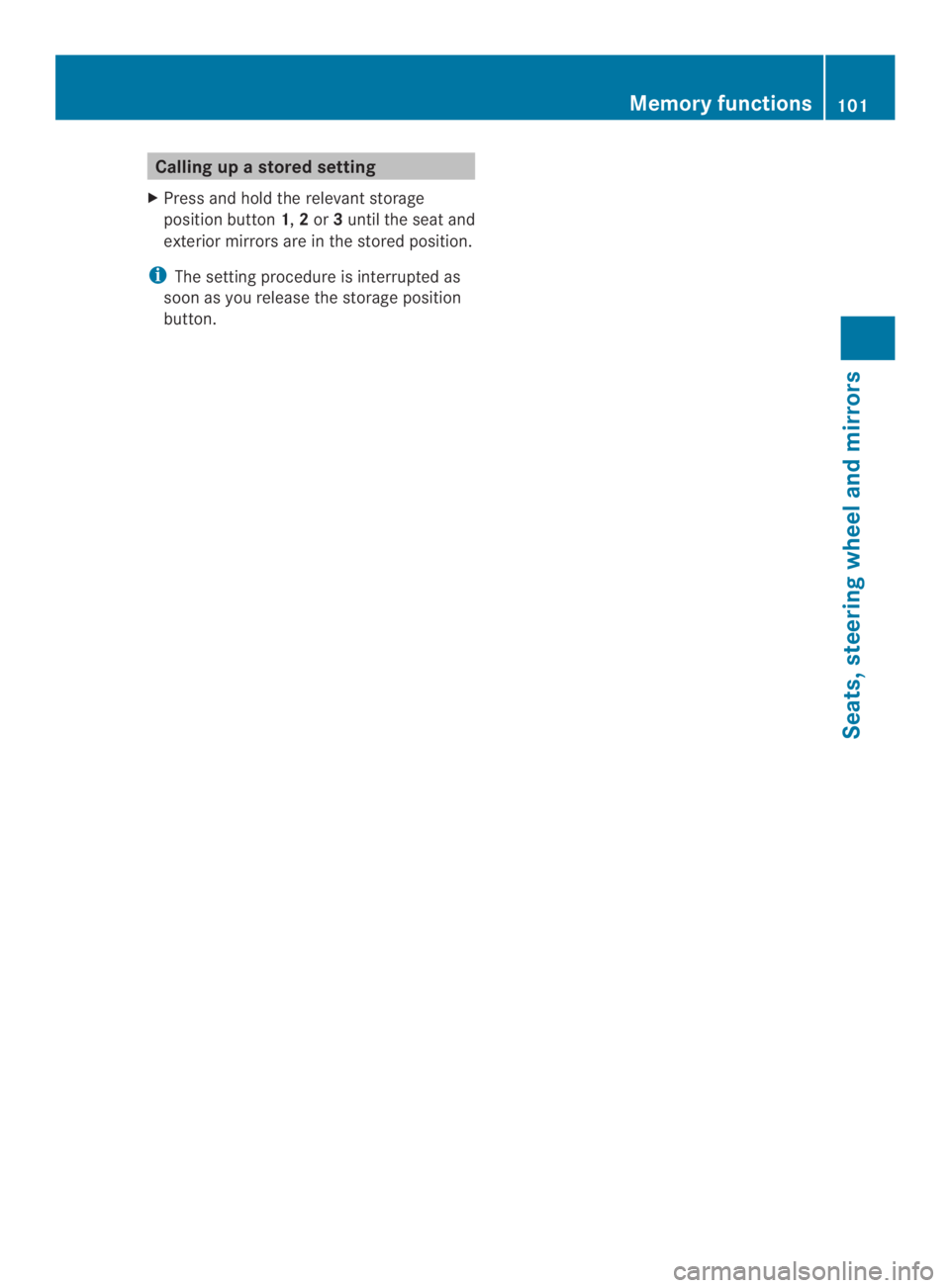

Calling upastoredsetting
XPress and hold the relevant storage
position button1,2or3until the seat and
exteriormirrors are in the stored position.
iThe setting procedure is interrupted as
soon as you release the storage position
button.
Memory functions101
Seats, steering wheel and mirrors
Z

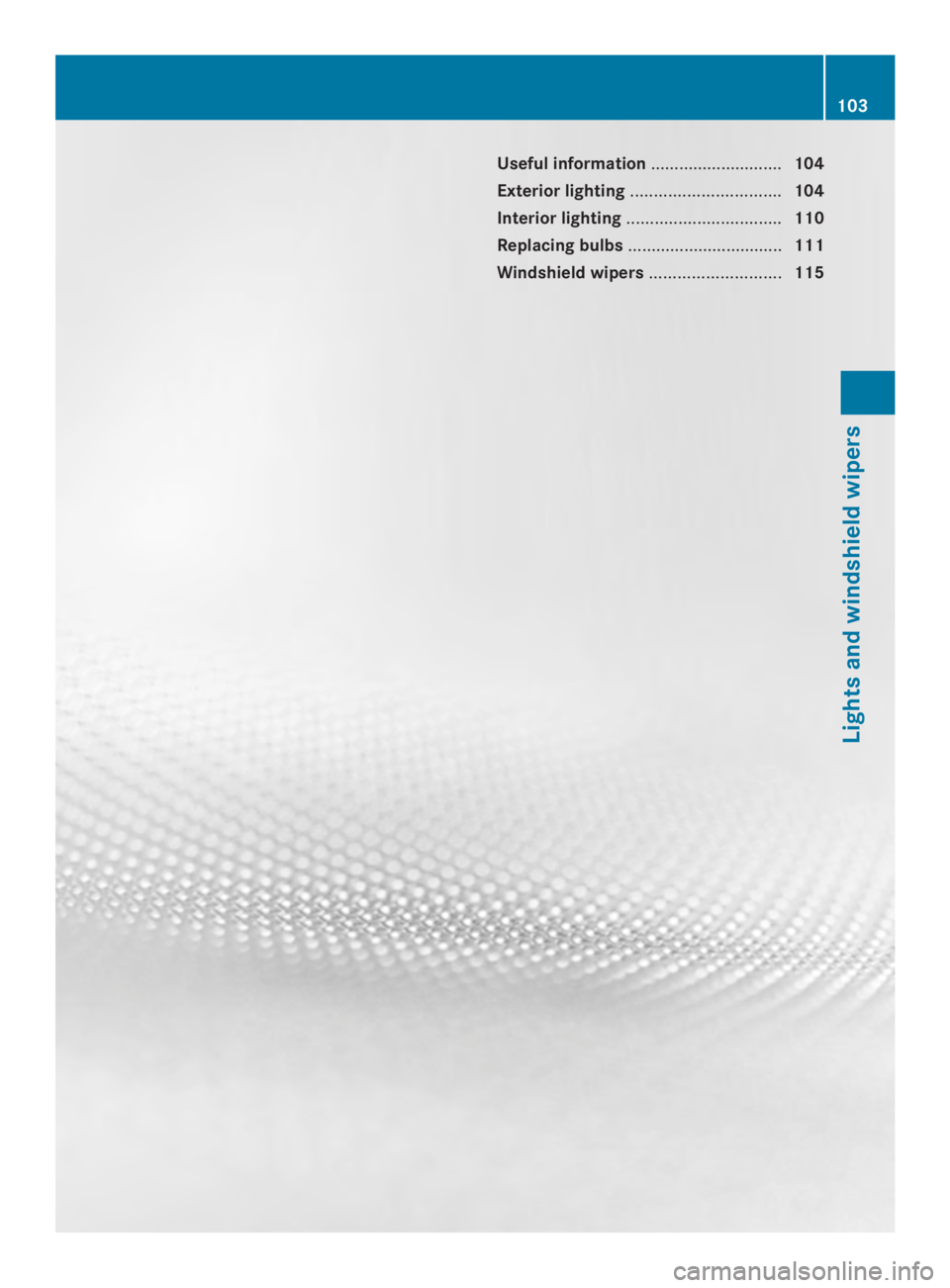

102

Useful information............................104
Exterior lighting................................104
Interior lighting.................................110
Replacing bulbs.................................111
Windshield wipers............................115
103
Lights and windshield wipers

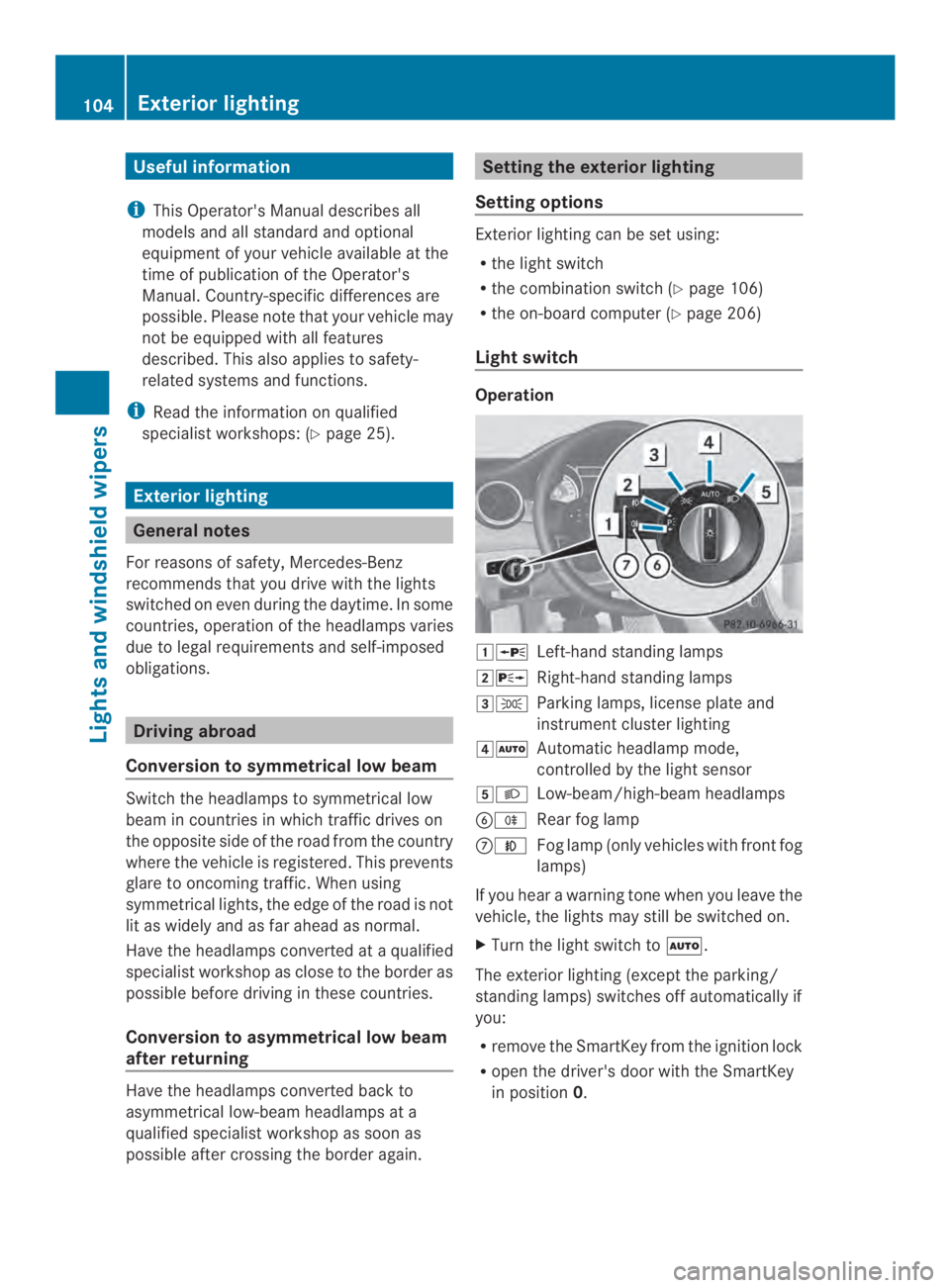

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
iRead the information on qualified
specialist workshops: (Ypage 25).
Exterior lighting
General notes
For reasons of safety, Mercedes-Benz
recommends that you drive with the lights
switched on even during the daytime. In some
countries, operation of the headlamps varies
due to legal requirements and self-imposed
obligations.
Driving abroad
Conversion to symmetrical low beam
Switch the headlamps to symmetrical low
beam in countries in which traffic drives on
the opposite side of the road from the country
where the vehicle is registered. This prevents
glare to oncoming traffic. When using
symmetrical lights, the edge of the road is not
lit as widely and as far ahead as normal.
Have the headlamps converted at a qualified
specialist workshop as close to the border as
possible before driving in these countries.
Conversion to asymmetrical low beam
after returning
Have the headlamps converted back to
asymmetrical low-beam headlamps at a
qualified specialist workshop as soon as
possible after crossing the border again.
Setting the exterior lighting
Setting options
Exterior lighting can be set using:
Rthe light switch
Rthe combination switch (Ypage 106)
Rthe on-board computer (Ypage 206)
Light switch
Operation
Left-hand standing lamps
Right-hand standing lamps
Parking lamps, license plate and
instrumentclusterlighting
Automatic headlamp mode,
controlled by the light sensor
Low-beam/high-beam headlamps
Rear fog lamp
\rFog lamp (only vehicles with front fog
lamps)
If you hear a warning tone when you leave the
vehicle, the lights may still be switched on.
XTurn the light switch to.
The exterior lighting (except the parking/
standing lamps) switches off automatically if
you:
Rremove the SmartKey fromthe ignition lock
Ropen the driver's door with the SmartKey
in position0.
104Exterior lighting
Lights and windshield wipers

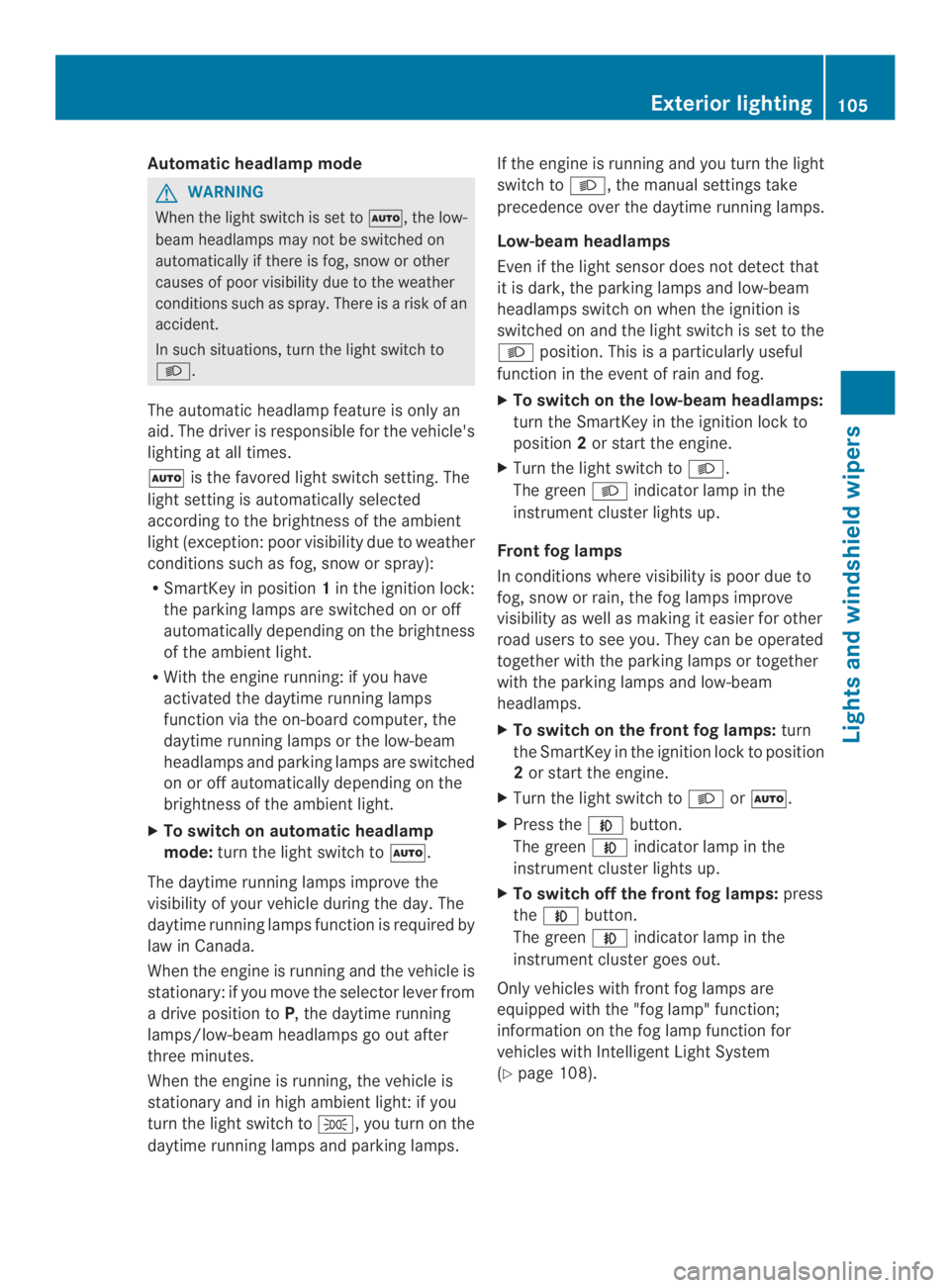

Automatic headlamp mode
GWARNING
When the lightswitch is set to, the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There is a risk of an
accident.
In such situations, turnthe light switch to
.
The automatic headlamp feature is only an
aid. The driver is responsible for the vehicle's
lighting at all times.
is the favored light switch setting. The
light setting is automatically selected
according to the brightness of the ambient
light (exception: poor visibility due to weather
conditions such as fog, snow or spray):
RSmartKey in position1in the ignition lock:
the parking lamps are switched on or off
automatically depending on the brightness
of the ambient light.
RWith the engine running: if you have
activated the daytime running lamps
function via the on-board computer, the
daytime running lamps or the low-beam
headlamps and parking lamps are switched
on or off automatically depending on the
brightness of the ambient light.
XTo switch on automatic headlamp
mode:turn the light switch to.
The daytime running lamps improve the
visibility of your vehicle during the day. The
daytime running lamps function is required by
law in Canada.
When the engine is running and the vehicle is
stationary: if you move the selector lever from
a drive position toP, the daytime running
lamps/low-beam headlamps go out after
three minutes.
When the engine is running, the vehicle is
stationary and in high ambient light: if you
turn the light switch to, you turn on the
daytime running lamps and parking lamps.
If the engine is running and you turn the light
switch to, the manual settings take
precedence over the daytime running lamps.
Low-beam headlamps
Even if the light sensor does not detect that
it is dark, the parking lamps and low-beam
headlamps switch on when the ignition is
switched on and the light switch is set to the
position. This is a particularly useful
function in the event of rain and fog.
XTo switch on the low-beam headlamps:
turn the SmartKey in the ignition lock to
position2or start the engine.
XTurn the light switch to.
The greenindicator lamp in the
instrumentcluster lights up.
Front fog lamps
In conditions where visibility is poor due to
fog, snow or rain, the fog lamps improve
visibility as well as making it easier for other
road users to see you. They can be operated
together with the parking lamps or together
with the parking lamps and low-beam
headlamps.
XTo switch on the front fog lamps:turn
the SmartKey in the ignition lock to position
2or start the engine.
XTurn the light switch toor.
XPress the\rbutton.
The green\rindicator lamp in the
instrumentcluster lights up.
XTo switch off the front fog lamps:press
the\rbutton.
The green\rindicator lamp in the
instrumentcluster goes out.
Only vehicles with front fog lamps are
equipped with the "fog lamp" function;
information on the fog lamp function for
vehicles with Intelligent Light System
(Ypage 108).
Exterior lighting105
Lights and windshield wipers
Z

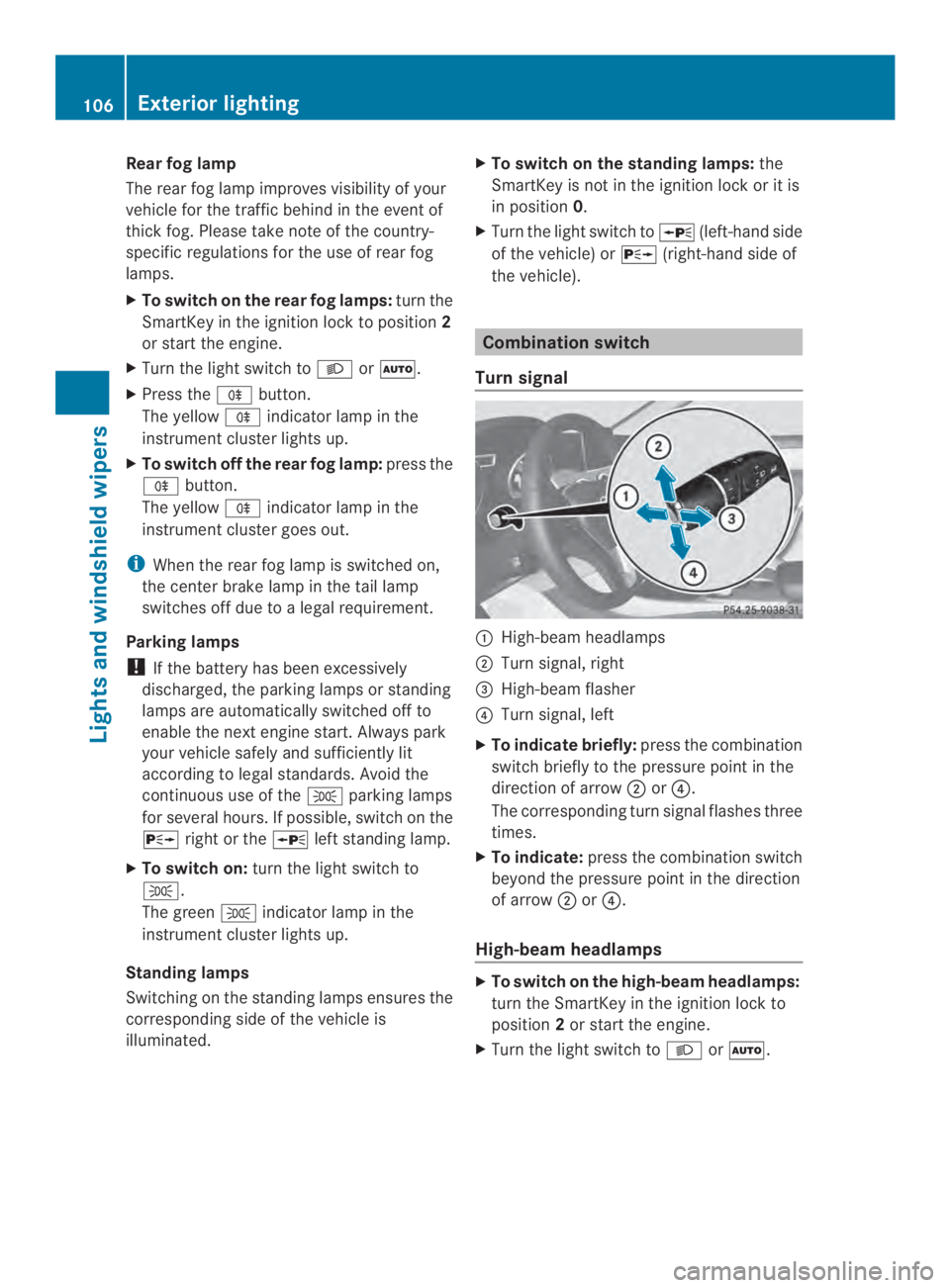

Rear fog lamp
The rearfog lamp improves visibility of your
vehicle for the traffic behind in the event of
thick fog. Please take note of the country-
specific regulations for the use of rear fog
lamps.
XTo switch on the rear fog lamps:turn the
SmartKey in the ignition lock to position2
or start the engine.
XTurn the light switch toor.
XPress thebutton.
The yellowindicator lamp in the
instrument cluster lights up.
XTo switch off the rear fog lamp:press the
button.
The yellowindicator lamp in the
instrument cluster goes out.
iWhen the rear fog lamp is switched on,
the center brake lamp in the tail lamp
switches off due to a legal requirement.
Parking lamps
!If the battery has been excessively
discharged, the parking lamps or standing
lamps are automatically switched off to
enable the next engine start.Always park
your vehicle safely and sufficiently lit
according to legal standards. Avoid the
continuous use of theparking lamps
for several hours. If possible, switch on the
right or theleft standing lamp.
XTo switch on:turn the light switch to
.
The greenindicator lamp in the
instrumentcluster lights up.
Standing lamps
Switching on the standinglamps ensures the
corresponding side of the vehicle is
illuminated.
XTo switch on the standing lamps:the
SmartKey is not in the ignition lock or it is
in position0.
XTurn the light switch to(left-hand side
of the vehicle) or(right-hand side of
the vehicle).
Combination switch
Turn signal
High-beam headlamps
Turn signal, right
"High-beam flasher
!Turn signal, left
XTo indicate briefly:press the combination
switch briefly to the pressure pointinthe
direction of arrowor!.
The corresponding turn signal flashes three
times.
XTo indicate:press the combination switch
beyond the pressure point in the direction
of arrowor!.
High-beam headlamps
XTo switch on the high-beam headlamps:
turn the SmartKey in the ignition lock to
position2or start the engine.
XTurn the light switch toor.
106Exterior lighting
Lights and windshield wipers

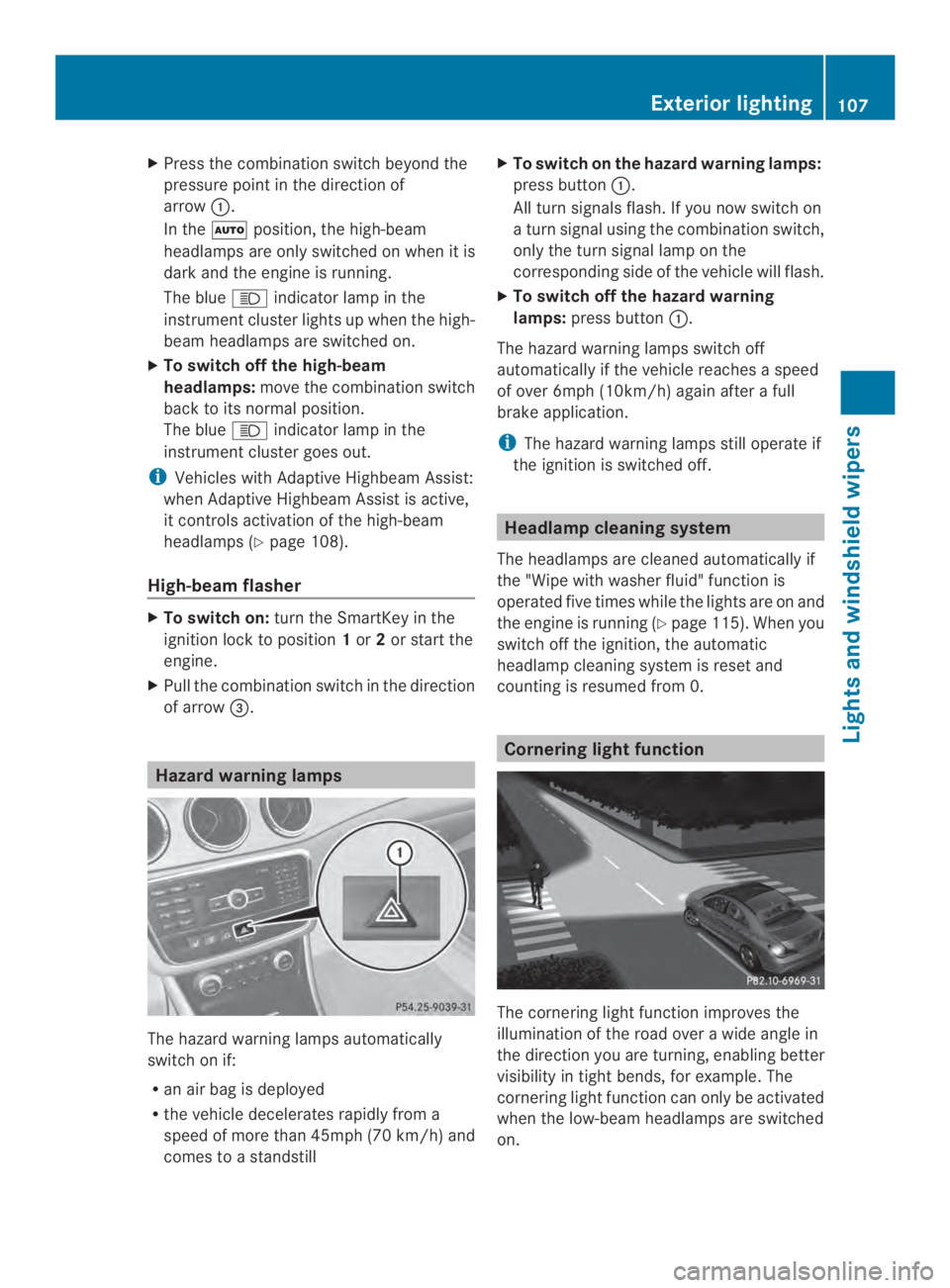

XPress the combination switch beyond the
pressure point in the direction of
arrow.
In theposition, the high-beam
headlamps are only switched on when it is
dark and the engine is running.
The blueindicator lamp in the
instrument cluster lights up when the high-
beam headlamps are switched on.
XTo switch off the high-beam
headlamps:move the combination switch
back to its normal position.
The blueindicator lamp in the
instrument cluster goes out.
iVehicles with Adaptive Highbeam Assist:
when Adaptive Highbeam Assist is active,
it controls activation of the high-beam
headlamps (Ypage 108).
High-beam flasher
XTo switch on:turn the SmartKey in the
ignition lock to position1or2or start the
engine.
XPull the combination switch in the direction
of arrow".
Hazard warning lamps
The hazard warning lamps automatically
switch on if:
Ran air bag is deployed
Rthe vehicle decelerates rapidly from a
speed of more than 45mph(70 km/h) and
comes to a standstill
XTo switch on the hazard warning lamps:
press button.
All turn signals flash. If you now switch on
a turn signal using the combination switch,
only the turn signal lamp on the
corresponding side of the vehicle will flash.
XTo switch off the hazard warning
lamps:press button.
The hazard warning lamps switch off
automatically if the vehicle reaches a speed
of over 6mph (10km/h) again after a full
brake application.
iThe hazard warning lamps still operate if
the ignition is switched off.
Headlamp cleaning system
The headlamps are cleaned automatically if
the "Wipe with washer fluid" function is
operated five times while the lights are on and
the engine is running (Ypage 115). When you
switch off the ignition, the automatic
headlamp cleaning system is reset and
counting is resumed from 0.
Cornering light function
The cornering light function improves the
illumination of the road over a wide angle in
the direction you are turning, enabling better
visibility in tight bends, for example. The
cornering light function can only be activated
whenthe low-beam headlamps are switched
on.
Exterior lighting107
Lights and windshield wipers
Z

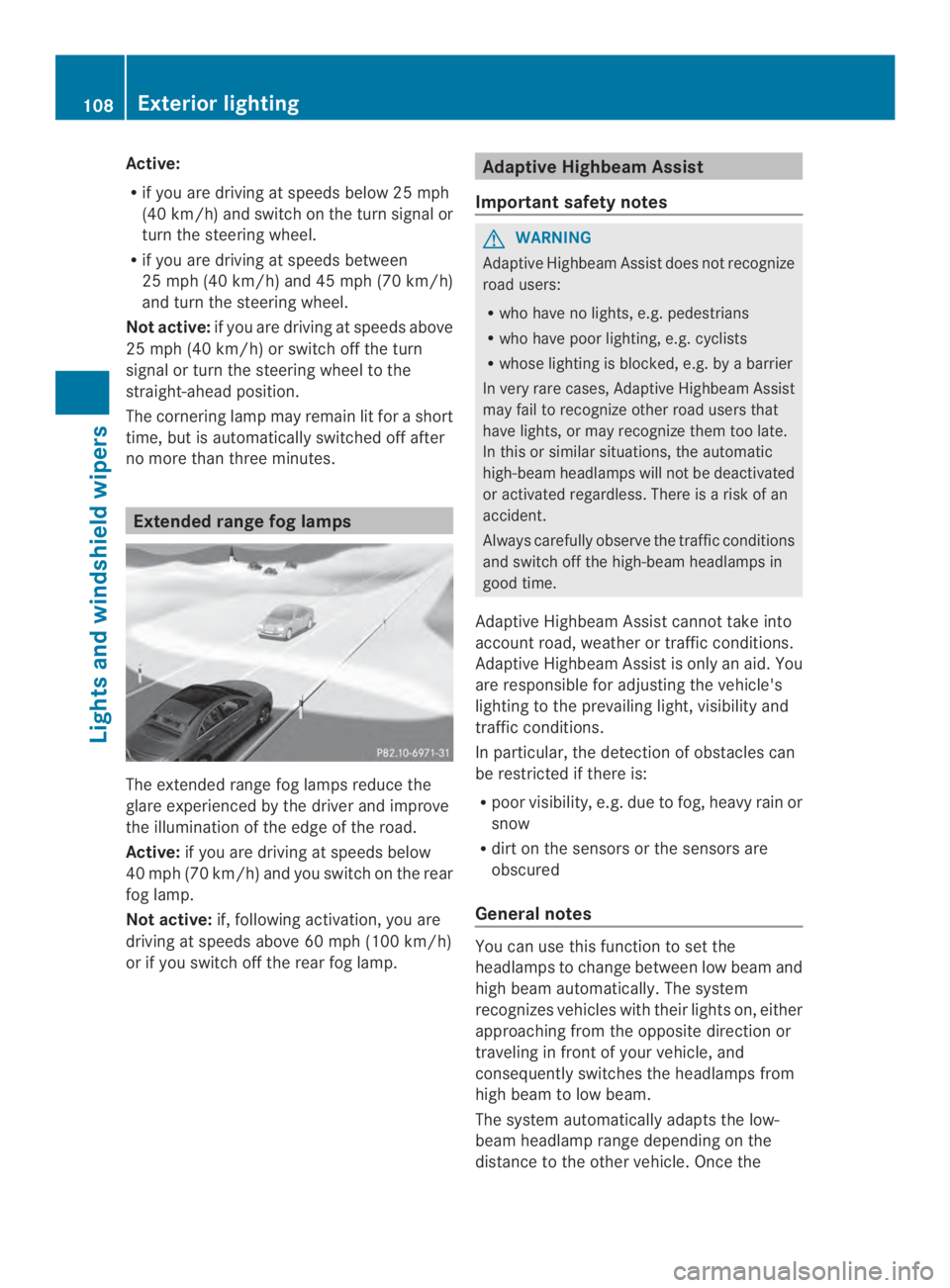

Active:
Rif you are driving at speeds below 25 mph
(40 km/h) and switch on the turnsignal or
turnthe steering wheel.
Rif you are driving at speeds between
25 mph(40 km/h) and 45 mph(70 km/h)
and turn the steering wheel.
Not active:if you are driving at speeds above
25 mph (40 km/h) or switch off the turn
signal or turn the steering wheel to the
straight-ahead position.
The cornering lamp may remain lit for a short
time, but is automatically switched off after
no more than three minutes.
Extended range fog lamps
The extended range fog lamps reduce the
glare experienced by the driverand improve
the illuminationofthe edge of the road.
Active:if you are driving at speeds below
40 mph (70 km/h) and you switch on the rear
fog lamp.
Not active:if, following activation, you are
driving at speeds above 60 mph (100 km/h)
or if you switch off the rear fog lamp.
Adaptive Highbeam Assist
Important safety notes
GWARNING
Adaptive Highbeam Assist does not recognize
road users:
Rwho have no lights, e.g. pedestrians
Rwho have poor lighting, e.g. cyclists
Rwhose lighting is blocked, e.g. by a barrier
In very rare cases, Adaptive Highbeam Assist
may fail to recognize other road users that
have lights, or may recognize them too late.
In this or similar situations, the automatic
high-beam headlamps will not be deactivated
or activated regardless. There is a risk of an
accident.
Always carefully observe the traffic conditions
and switch off the high-beam headlamps in
good time.
Adaptive Highbeam Assist cannot take into
account road, weather or traffic conditions.
Adaptive Highbeam Assist is only an aid. You
are responsible for adjusting the vehicle's
lighting to the prevailing light, visibility and
traffic conditions.
In particular, the detection of obstacles can
be restricted if there is:
Rpoor visibility, e.g. due to fog, heavy rain or
snow
Rdirt on the sensors or the sensors are
obscured
General notes
You can use this function to set the
headlamps to change between low beam and
high beam automatically.The system
recognizes vehicles with their lights on, either
approaching from the opposite direction or
traveling in front of your vehicle, and
consequently switches the headlamps from
high beam to low beam.
The system automatically adapts the low-
beam headlamp range depending on the
distance to the other vehicle. Once the
108Exterior lighting
Lights and windshield wipers
