MERCEDES-BENZ E-CLASS CABRIOLET 2010 Owners Manual

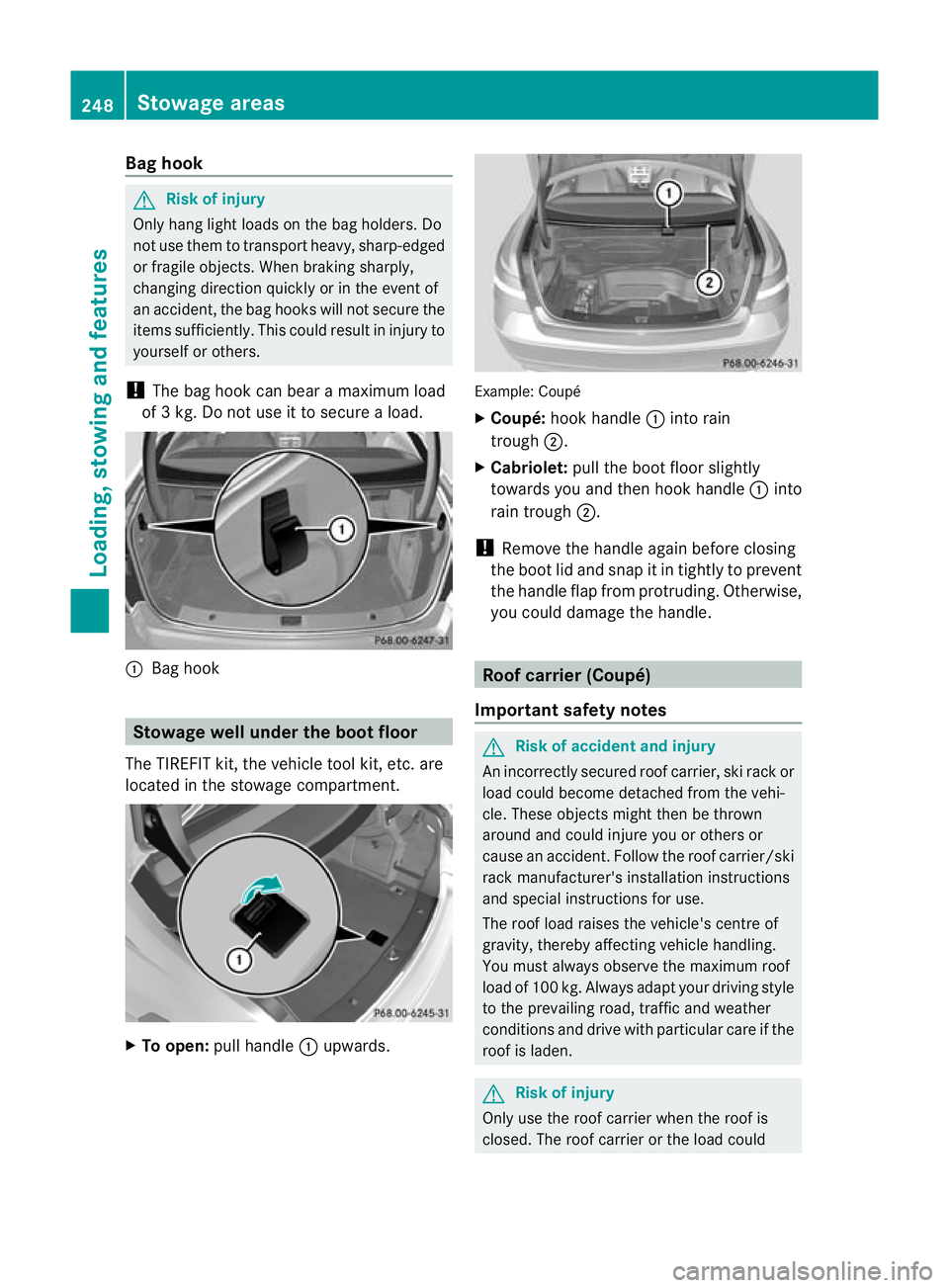

Bag hook
G
Ris
kofi njury
Onl yhanglight load sonthe bag holders. Do
not use them to transport heavy, sharp- edged
or fragile objects. Whe nbraking sharply,
changing directio nquickly or in the event of
an accident, the bag hooks wil lnot secur ethe
item ssufficiently. This could resul tininjury to
yoursel forothers.
! Theb aghoo kcan bear amaximum load
of 3k g. Do not us eittosecureaload. :
Bag hook Stowage well under th
eboot floor
The TIREFI Tkit,t he vehicl etoolkit,e tc. are
locate dinthe stowage compartm ent. X
To open: pull handle :upwards. Examp
le:C oupé
X Coupé: hook handle :into rain
trough ;.
X Cabriolet: pull the boot floo rslightly
towards you and then hook handle :into
rain trough ;.
! Remove the handl eagain befor eclosing
the boot lid and snap it in tightly to prevent
the handle flap from protruding. Otherwise,
you could damage the handle. Roof carrier (Coupé)
Important safet ynotes G
Risk of accident and injury
An incorrectly secured roof carrier, ski rack or
load could become detached from the vehi-
cle. These object smight then be thrown
around and could injur eyou or other sor
caus eana ccident. Follo wthe roof carrier/ski
rack manufacturer' sinstallation instructions
and special instructions for use.
The roof load raise sthe vehicle' scentre of
gravity, thereby affecting vehicle handling.
You must always observ ethe maximum roof
load of 10 0kg. Always adapt your driving style
to the prevailin groad, traffic and weather
conditions and driv ewith particular care if the
roof is laden. G
Risk of injury
Only use the roof carrier when the roof is
closed. The roof carrier or the load could 248
Stowage areasLoading
,stowin gand feat ures
BA 20 7ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 248

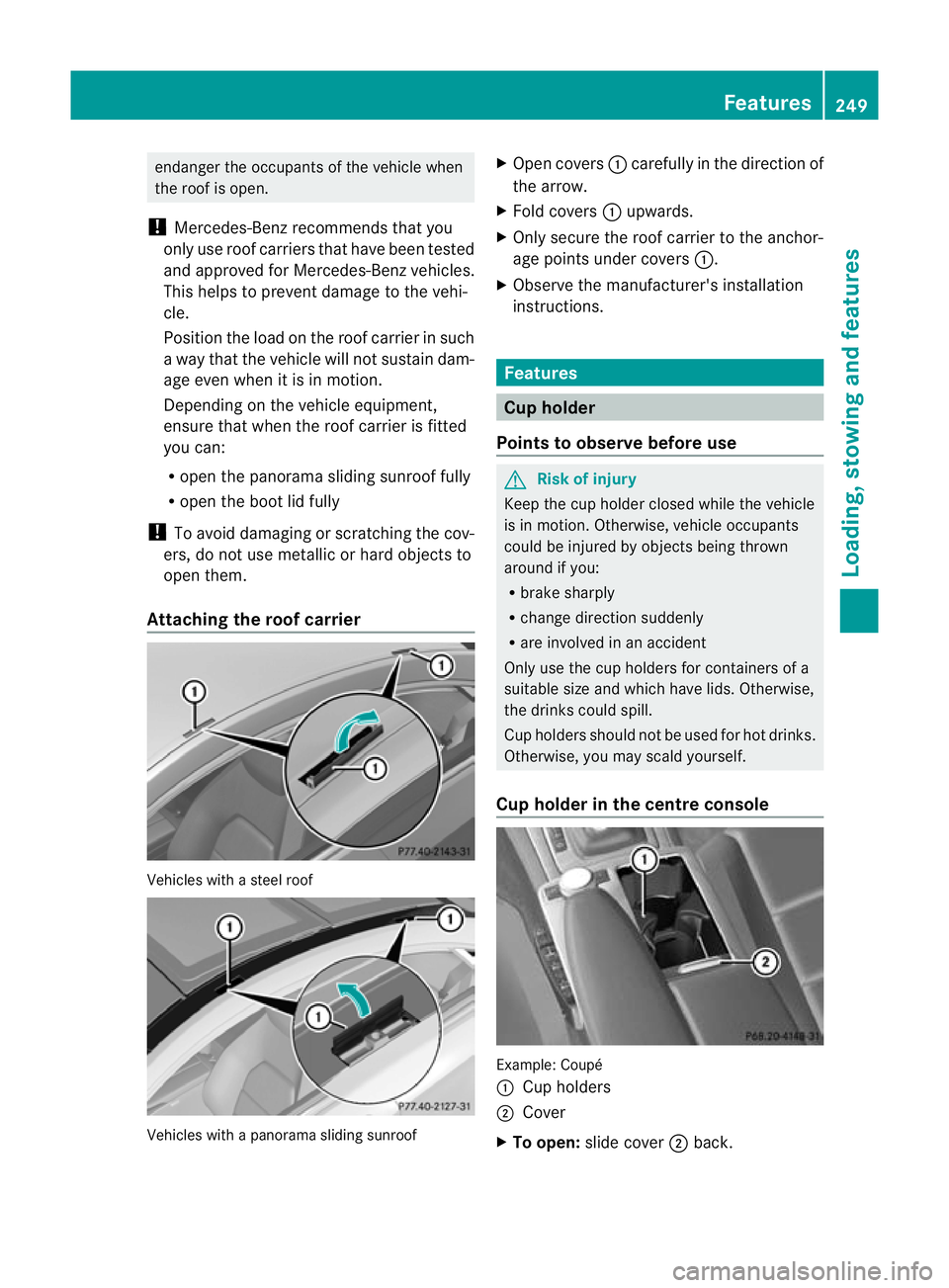

endanger the occupant
softhe vehicle when
the roof is open.
! Mercedes-Ben zrecommends that you
only use roof carrier sthat hav ebeen tested
and approved for Mercedes-Benz vehicles.
This helps to preven tdamage to the vehi-
cle.
Position the load on the roof carrier in such
aw ay that the vehicle will not sustain dam-
age even when it is in motion.
Depending on the vehicle equipment,
ensure that when the roof carrier is fitted
you can:
R open the panorama sliding sunroof fully
R open the boot lid fully
! To avoid damaging or scratching the cov-
ers, do not use metallic or hard objects to
open them.
Attaching the roof carrier Vehicles with
asteel roof Vehicles with
apanorama sliding sunroof X
Ope ncovers :carefully in the direction of
the arrow.
X Fold covers :upwards.
X Only secur ethe roof carrie rtothe anchor-
age point sunder covers :.
X Observe the manufacturer's installation
instructions. Features
Cup holder
Points to observe before use G
Risk of injury
Keep the cup holder closed whil ethe vehicle
is in motion. Otherwise, vehicle occupants
coul dbei njured by object sbeing thrown
around if you:
R brak esharply
R change direction suddenly
R arei nvolved in an accident
Only use the cup holders for container sofa
suitable size and whic hhave lids. Otherwise,
the drink scould spill.
Cup holders should not be used for hot drin ks.
Otherwise, you ma yscald yourself.
Cup holde rint he centre console Example
:Coupé
: Cup holders
; Cover
X To open: slide cover ;back. Featu
res
249Loading, stowing and fea tures
BA 207ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 249 Z

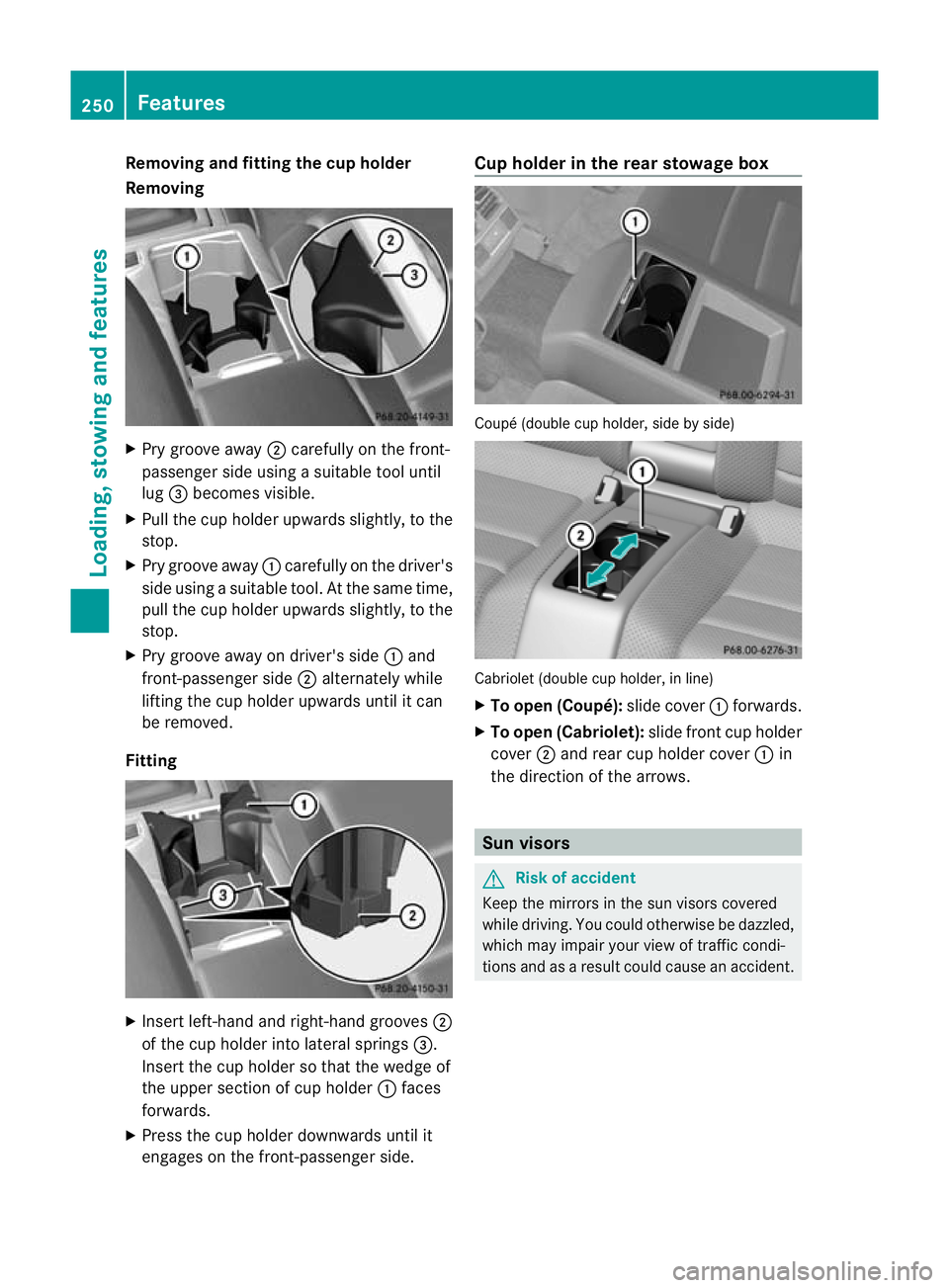

Removi
ngand fitting the cup holder
Removi ng X
Pry groove away ;carefully on the front-
passenger sid eusing asuitable tool until
lug =becomes visible.
X Pull the cup holder upwards slightly, to the
stop.
X Pry groove away :carefully on the driver's
sid eusing asuitable tool.Att he sam etime,
pull the cup holder upwards slightly, to the
stop.
X Pry groove away on driver's side :and
front-passenger side ;alternately while
lifting the cup holder upwards until it can
be removed.
Fitting X
Insert left-han dand right-hand grooves ;
of the cup holder into lateral springs =.
Insert the cup holder so that the wedg eof
the uppe rsection of cup holder :faces
forwards.
X Press the cup holder downwards until it
engages on the front-passenger side. Cup holder in the rea
rstowage box Coupé (double cup holder, side by side)
Cabriolet (double cup holder, in line)
X
To open (Coupé): slide cover:forwards.
X To open (Cabriolet): slide front cup holder
cover ;and rear cup holder cover :in
the directio nofthe arrows. Sun visors
G
Risk of accident
Kee pthe mirror sinthe sun visor scovered
while driving. You coul dotherwis ebedazzled,
which may impair your view of traffic condi-
tions and as aresult could cause an accident. 250
FeaturesLoading, stowing and features
BA 20
7ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 250

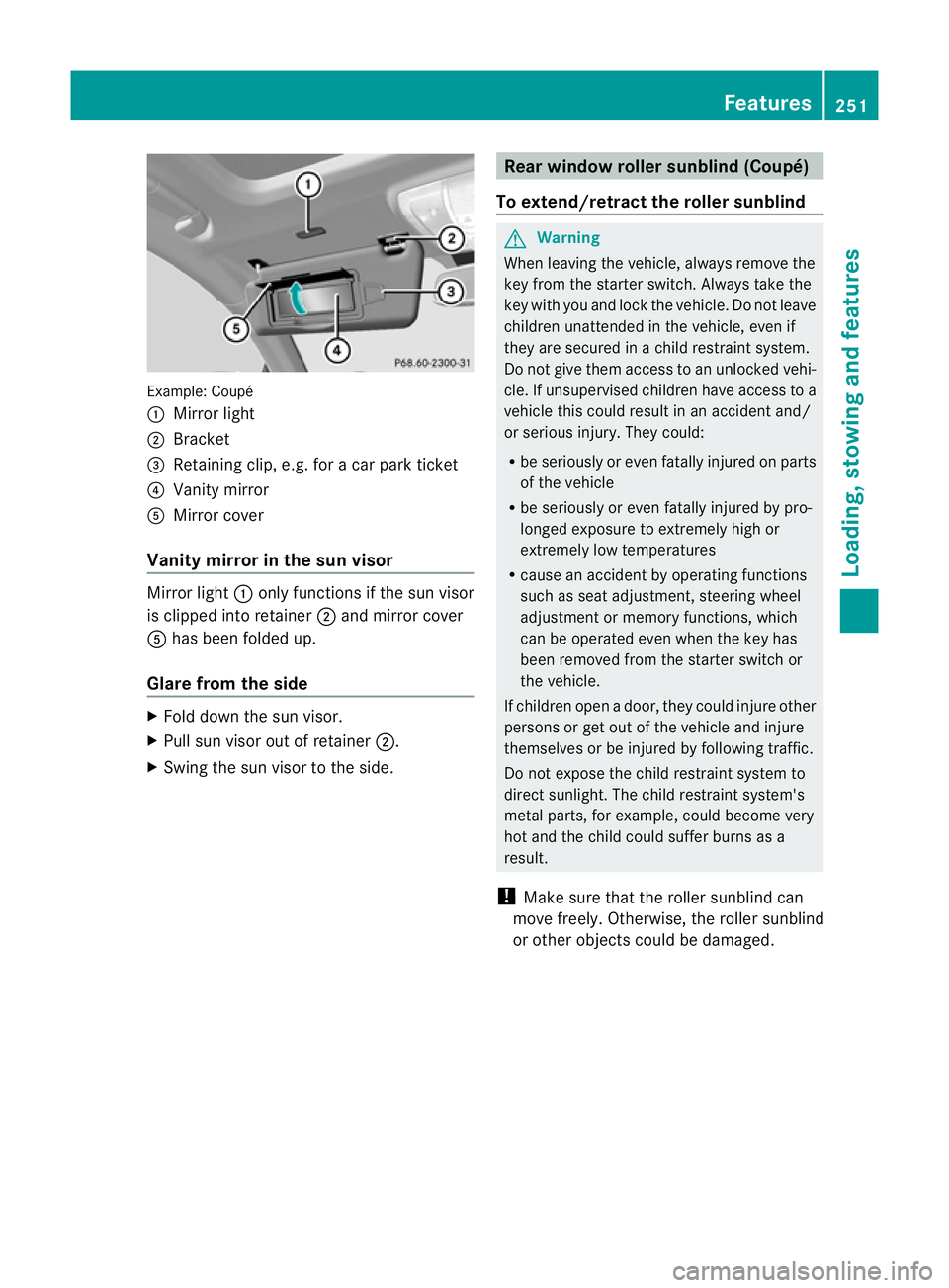

Examp
le:C oupé
: Mirror light
; Bracket
= Retainin gclip, e.g .for ac ar park ticket
? Vanity mirror
A Mirror cover
Vanity mirro rint he sun visor Mirror light
:onlyfun ctions if the su nvisor
is clipped into retainer ;and mirror cover
A hasb eenf olded up.
Glare from th eside X
Fol dd ownthe sun visor.
X Pul lsun visor out of retainer ;.
X Swin gthe sun viso rtot he side. Rea
rwindow roller sunblind (Coupé)
To extend/retract th eroller sunblind G
Warning
When leavin gthe vehi cle, alway sremove the
key from the starter switch. Alway staket he
key with you and lock the vehi cle. Do not leave
children unattended in the vehicle, even if
the yare secured in achild restraint system.
Do not give the macces stoanu nlocked vehi-
cle .Ifu nsupervised children have access to a
vehicl ethis could resul tinanaccident and/
or seriou sinjury. The ycould:
R be seriously or even fatally injured on parts
of the vehicle
R be se riously or even fatally injure dbypro-
longed exposure to extremel yhigh or
extremely low temperatures
R caus eana ccidentby operating functions
such as seat adjustment, steering wheel
adjustmen tormemory functions, which
can be operate deven when the key has
been removed from the starter switch or
the vehicle.
If children open adoor, they coul dinjure other
persons or get out of the vehicl eand injure
themselves or be injured by following traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's
metal parts, for example ,could becom every
hot and the child could suffer burn sasa
result.
! Make sure that th eroller sunblind can
mov efreely. Otherwise ,the roller sunblind
or other objec ts could be damaged. Features
251Loading, stowin gand features
BA 20 7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 251 Z

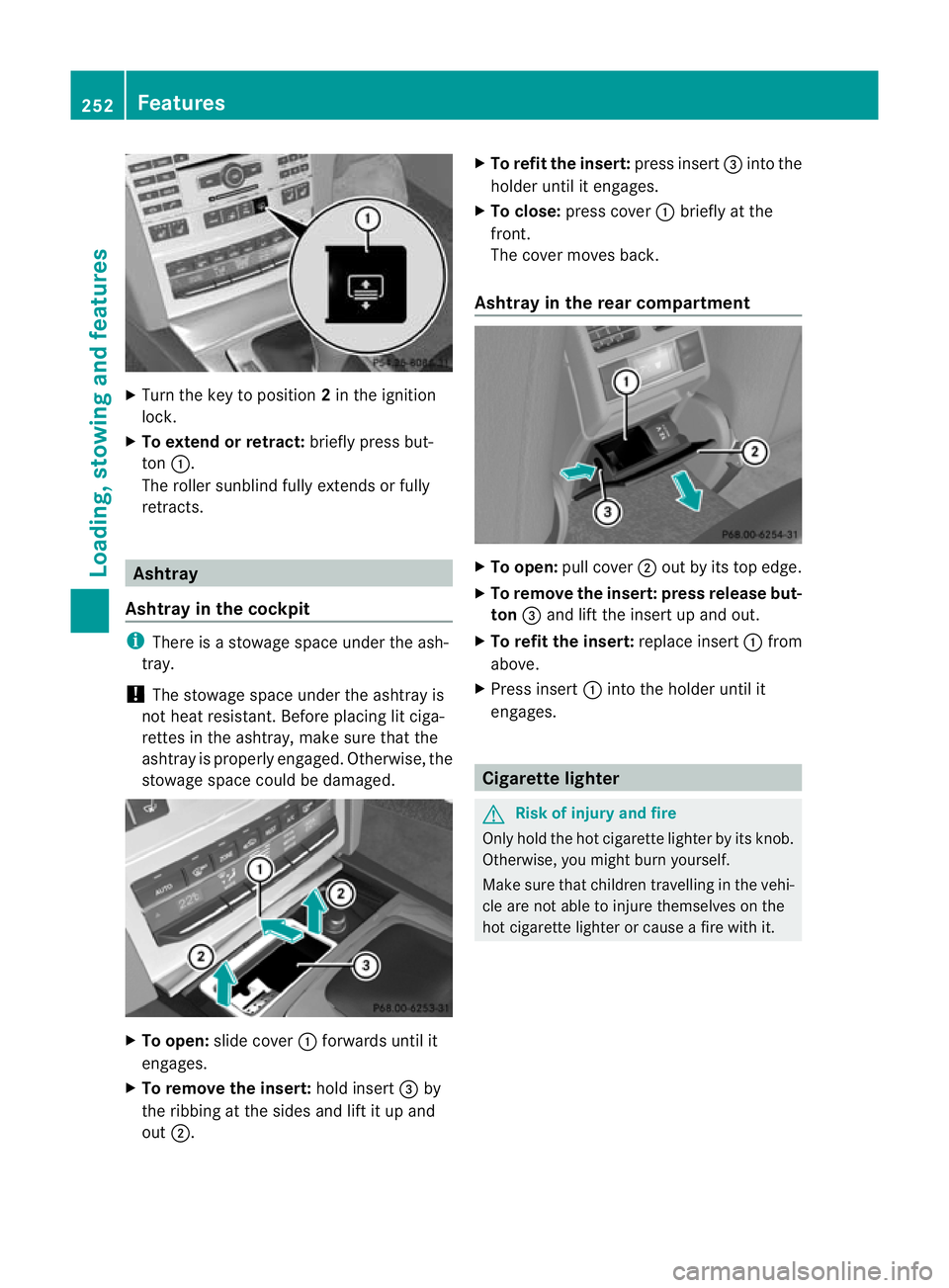

X
Tur nthe key to position 2in the ignition
lock.
X To extend or ret ract: briefly press but-
ton :.
The roller sunblind fully extends or fully
retracts. Ashtray
Ashtray in the cockpit i
There is astowag espace under the ash-
tray.
! The stowage space under the ashtra yis
not hea tresistant .Befor eplacing lit ciga-
rettes in the ashtray, make sure that the
ashtray is properly engaged. Otherwise, the
stowage space could be damaged. X
To open: slide cover :forwards until it
engages.
X To remove the insert: hold insert=by
the ribbing at the sides and lift it up and
out ;. X
To refit the insert: press insert=intothe
holder until it engages.
X To close: press cover :briefl yatthe
front.
The cover moves back.
Ashtray in th erear compartment X
To open: pull cover ;out by its top edge.
X To remove the insert: press release but-
ton =and lift the insert up and out.
X To refit the insert: replace insert:from
above.
X Press insert :intot he holder until it
engages. Cigaret
telighter G
Risk of injur
yand fire
Only hold the hot cigarette lighter by its knob.
Otherwise, you might burn yourself.
Make sure that children travelli ngin the vehi-
cle are not able to injur ethemselves on the
hot cigarette lighte rorcause afire with it. 252
FeaturesLoading
,stowin gand features
BA 20 7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 252

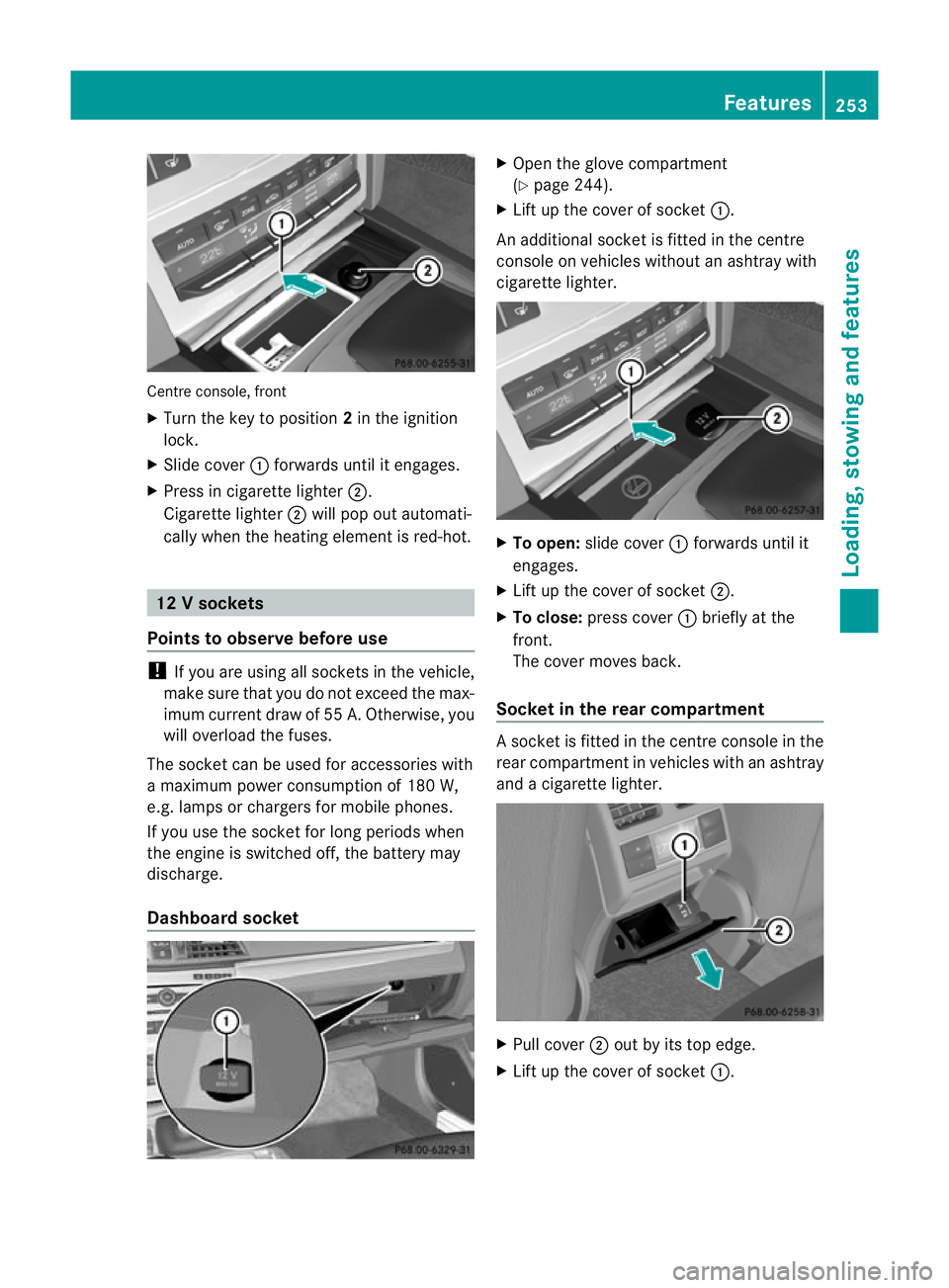

Centre console, front
X
Turn the key to position 2in the ignition
lock.
X Slide cover :forwards until it engages.
X Press in cigarette ligh ter;.
Cigarett elighter ;will pop out automati-
cally when th eheating element is red-hot. 12
Vsockets
Point stoo bserve befo reuse !
If you are using all so cketsi nt he vehicle,
make surethat yo udonot excee dthe max-
im um current dra wof55A.O therwise, you
wil loverl oadt he fuses.
The socket can be used for accessories with
am aximum power consumptio nof180 W,
e.g .lamp sorc hargers for mobi lephones.
If you use the socket for long periods when
the engine is switched off ,the battery may
discharge.
Dashboar dsocket X
Open the glove compartment
(Y pag e244).
X Lift up the cove rofsocket :.
An additional socket is fitted in the centre
console on vehicles without an ashtray with
cigarette lighter. X
To open: slide cover :forwards until it
engages.
X Lif tu pt he cover of socket ;.
X To close: press cover :briefly at the
front.
The cover moves back.
Socket in th erear compartment As
ocke tisf itted in the centre console in the
rear compartment in vehicles with an ashtray
and acigarett elighter. X
Pull cover ;out by its top edge.
X Lif tu pt he cover of socket :. Featu
res
253Loading, stowing and features
BA 207ECE ÄJ 2010 /1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 253 Z

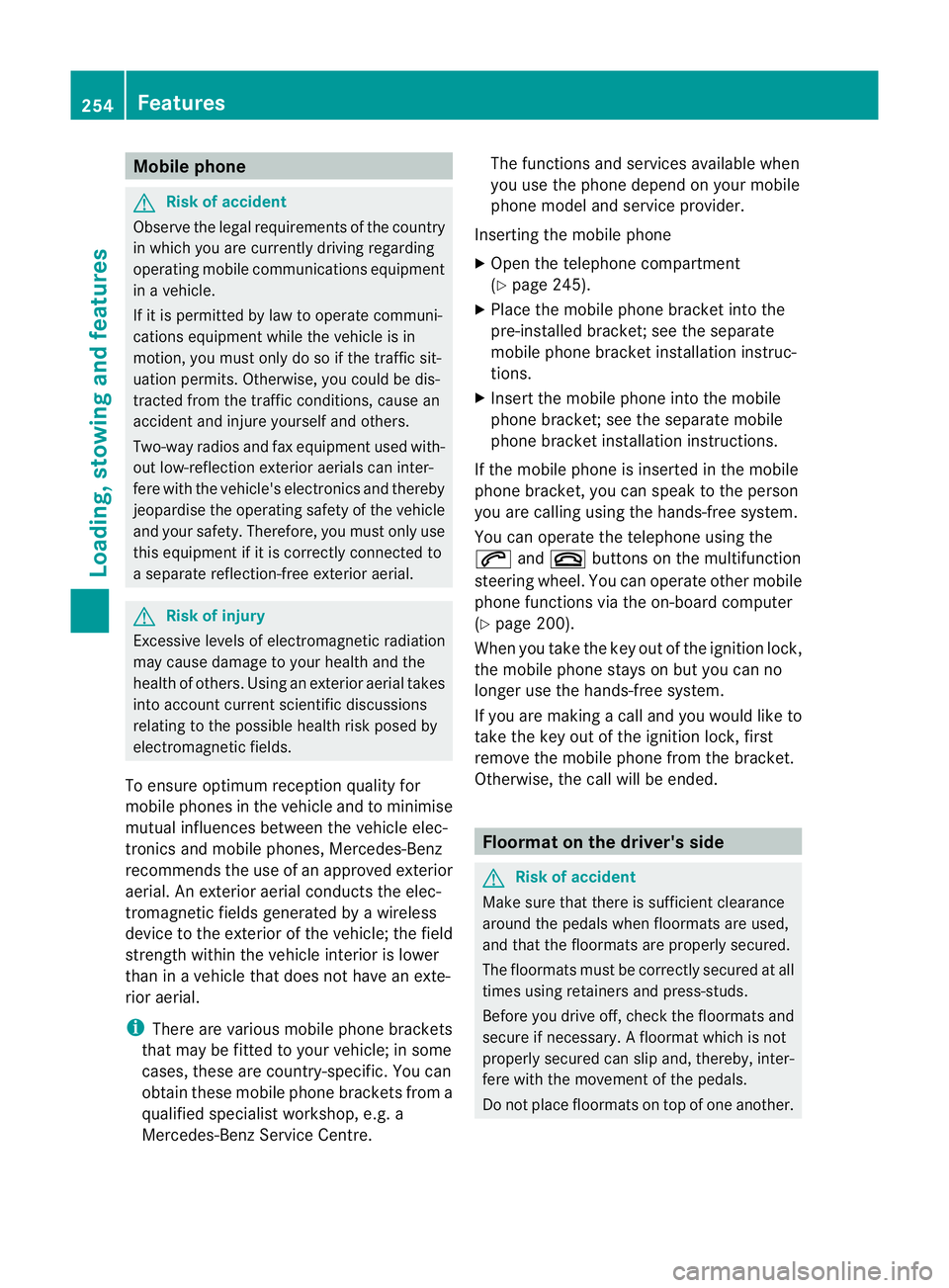

Mob
ilep hone G
Ris
kofa ccident
Observe the lega lrequirements of the country
in which you are currently driv ingr egarding
operating mobile communications equipment
in av ehicle.
If it is permitted by law to operate communi-
cations equipment while the vehic leis in
motion, you must only do so if the traffic sit-
uation permits. Otherwise, you could be dis-
tracted from the traffic conditions, cause an
accident and injur eyourself and others.
Two-way rad iosa nd fax equipment use dwith-
out low-reflection exter iora erials can inter-
fere with the vehicle's electronics and thereby
jeopardis ethe operating safety of the vehicle
and your safety. Therefore, you must only use
this equipment if it is correctly connected to
as eparate reflection-free exterior aerial. G
Risk of injury
Excessive levels of electromagnetic radiation
may cause damage to your health and the
health of others. Usin ganexterior aerial takes
into account current scientific discussions
relating to the possible health risk posed by
electromagnetic fields.
To ensure optimum reception quality for
mobil ephones in the vehicle and to minimise
mutua linfluences between the vehicl eelec-
tronics and mobile phones, Mercedes-Benz
recommends the use of an approved exterior
aerial. An exterior aerial conduct sthe elec-
tromagnetic fields generated by awireless
device to the exterior of the vehicle; the field
strength within the vehicle interior is lower
than in avehicle that does not have an exte-
rior aerial.
i There are various mobile phone brackets
that may be fit tedtoy our vehicle; in some
cases, these ar ecountry-specific. You can
obtain these mobile phone bracke ts from a
qualified specialist workshop, e.g. a
Mercedes-Benz Servic eCentre. The functions and services available when
you use the phone depend on your mobile
phone model and service provider.
Inserting the mobile phone
X Open the telephone compart ment
(Y page 245).
X Place the mobil ephone bracket int othe
pre-installed bracket ;see the separate
mobile phone bracket installation instruc-
tions.
X Insert the mobile phone into the mobile
phone bracket ;see the separate mobile
phone bracket installation instructions.
If the mobile phone is inser tedint he mobile
phone bracket ,you can speak to the person
you ar ecalling using the hands-free system.
You can operate the telephone using the
6 and~ button sonthe multifunc tion
steerin gwheel. You can operate other mobile
phone func tions via the on-boar dcomputer
(Y page 200).
When you tak ethe key out of the ignition lock,
the mobile phone stay sonb ut you can no
longer use the hands-free system.
If you are making acall and you would like to
take the key out of the ignition lock, first
remove the mobile phone from the bracket.
Otherwise, the call will be ended. Floormat on the driver'
sside G
Risk of accident
Make sure that there is sufficien tclearance
around the pedals when floormats are used,
and that the floormats are properly secured.
The floormats must be correctly secured at all
times using retainer sand press-s tuds.
Befor eyou driv eoff, check the floormat sand
secure if necessary. Afloormat which is not
properly secured can slip and, thereby, inter-
fere with the movemen tofthe pedals.
Do not plac efloormats on top of one another. 254
FeaturesLoading
,stowin gand features
BA 20 7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00 -Seite 254

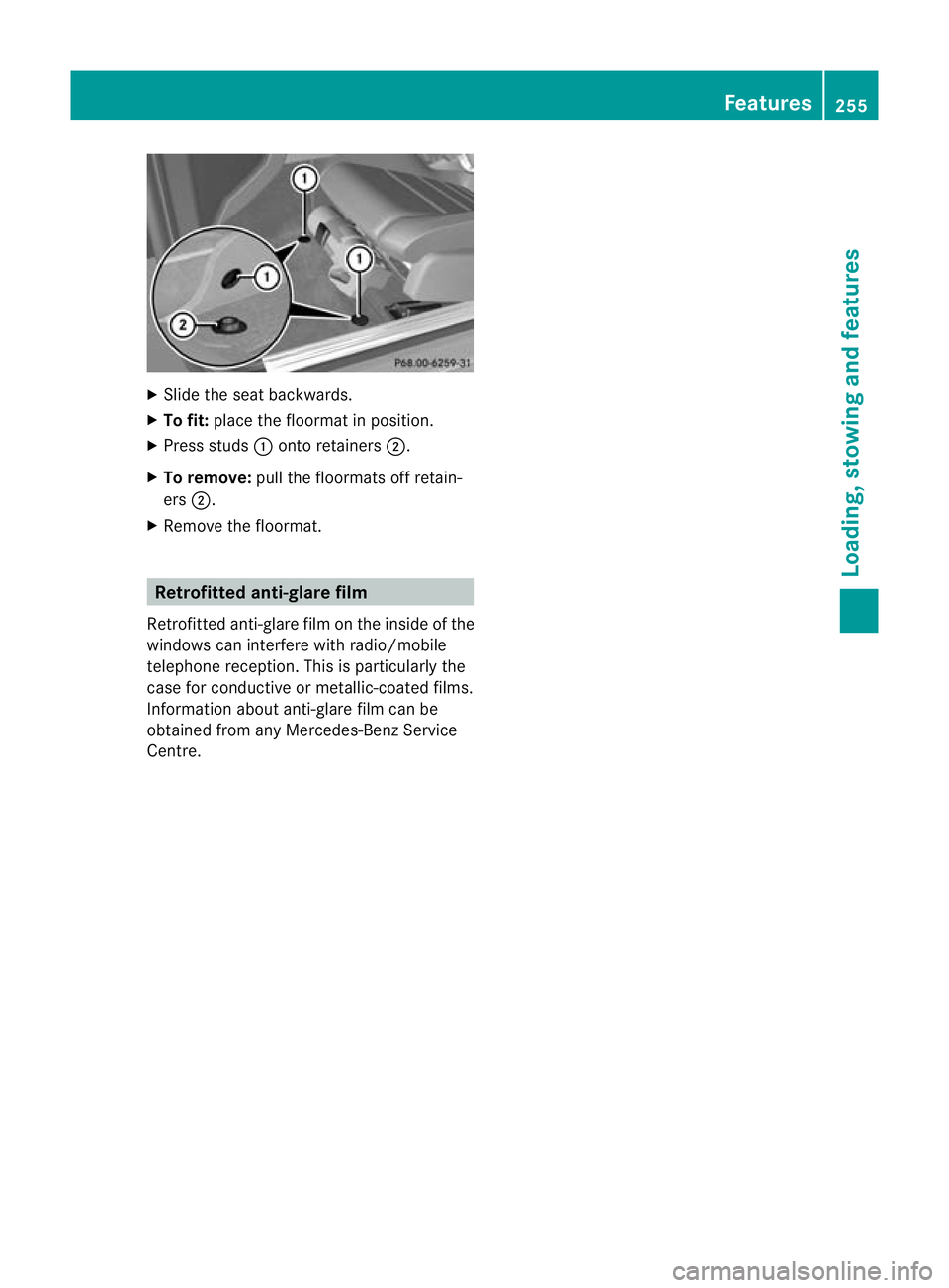

X
Slide the se at backwards.
X To fit: placethe floormat in position.
X Press studs :onto retainers ;.
X To remove: pull the floormats off retain-
ers ;.
X Remove the floormat. Retrofitted anti-glar
efilm
Retrofitted anti-glare film on th einside of the
windows can interfere with radio/mobile
telephone reception. This is particularly the
case for conduc tiveor metallic-coated films.
Infor mation about anti-glare film can be
obtained from any Mercedes-Benz Service
Centre. Features
255Loading,stowin gand features
BA 20 7ECE ÄJ 2010 /1a;1;2,e n-GB
mkalafa Version: 3.0.2.11 2010-01-26T13:03:22+01:00-Seite 255 Z

256 BA 20
7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 256

Vehicl
eequipment ............................ 258
Engine compartment ........................258
Service ............................................... 262
Care .................................................... 263 257Maintenance and care
BA 20
7ECE ÄJ 2010/1a; 1; 2, en-GB
mkalafa Version:3.0.2.11
2010-01-26T13:03:22+01:0
0-Seite 257
