MERCEDES-BENZ E-CLASS COUPE 2009 Owners Manual

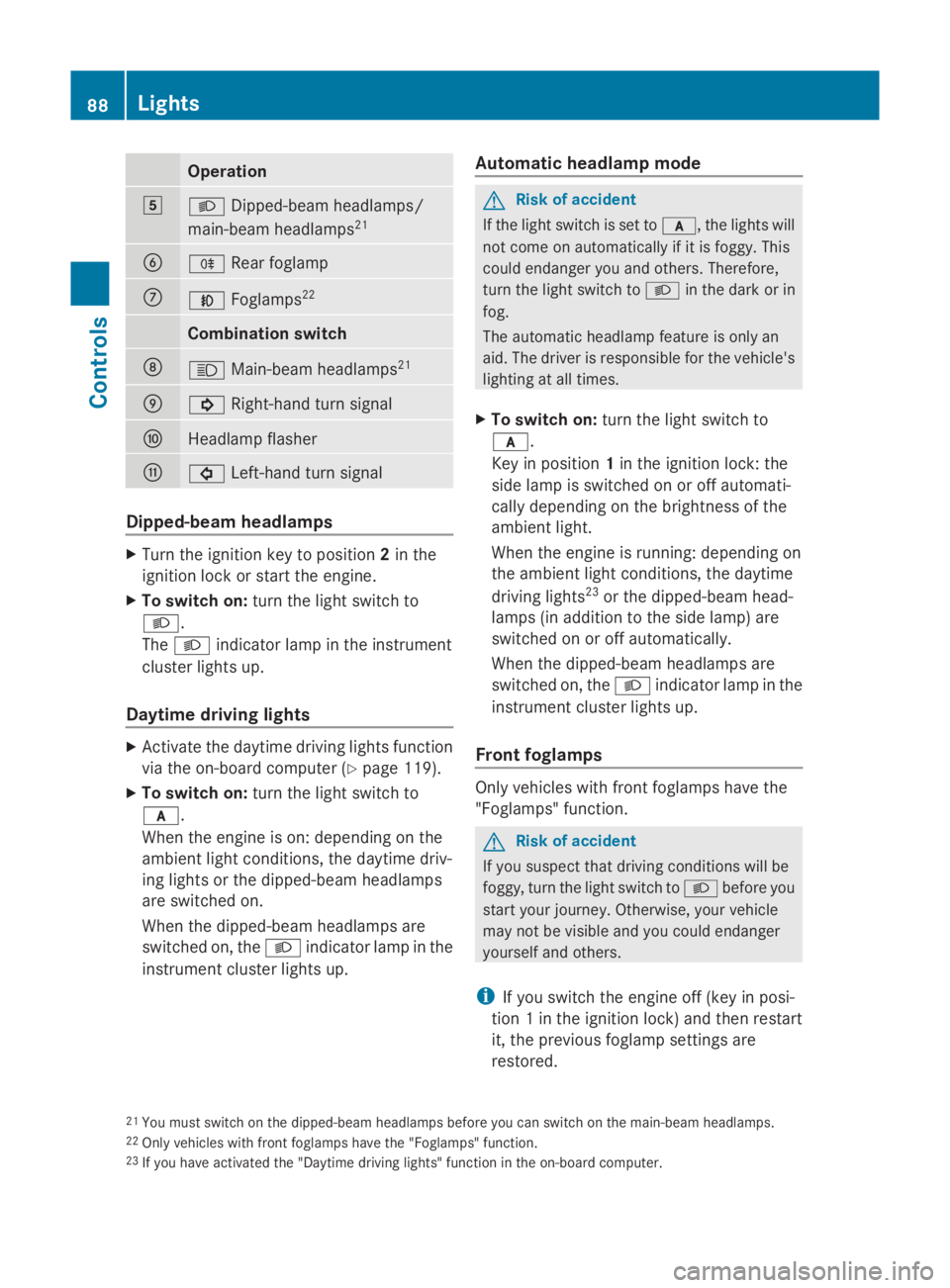

Operation
004E
0064
Dipped-beam headlamps/
main-beam headlamps 210087
006A
Rear foglamp 006E
0066
Foglamps 22 Combination switch
006F
0063
Main-beam headlamps 210070
0024
Right-han dturn signal 0071
Headlamp flasher
0072
0026
Left-hand turn signal Dipped-beam headlamps
X
Turn the ignition key to position 2in the
ignition lock or start the engine.
X To switch on: turn the light switch to
0064.
The 0064 indicator lamp in the instrument
cluster lights up.
Daytim edriving lights X
Activat ethe daytime driving lights function
via the on-board computer (Y page 119).
X To switch on: turn the light switch to
0066.
When the engine is on: depending on the
ambient light conditions, the daytime driv-
ing lights or the dipped-beam headlamps
are switched on.
When the dipped-beam headlamps are
switched on, the 0064indicator lamp in the
instrument cluster lights up. Automatic headlamp mode G
Risk of accident
If the light switch is set to 0066,the lights will
not come on automatically if it is foggy. This
could endanger you and others .Therefore,
turn the light switch to 0064in the dark or in
fog.
The automatic headlamp feature is only an
aid. The driver is responsible for the vehicle's
lighting at all times.
X To switch on: turn the light switch to
0066.
Key in position 1in the ignition lock: the
side lamp is switched on or off automati-
cally depending on the brightness of the
ambient light.
When the engine is running: depending on
the ambient light conditions, the daytime
driving lights 23
or the dipped-beam head-
lamps (in addition to the side lamp) are
switched on or off automatically.
When the dipped-beam headlamps are
switched on, the 0064indicator lamp in the
instrument cluster lights up.
Front foglamps Only vehicles with fron
tfoglamps have the
"Foglamps" function. G
Risk of accident
If you suspect that driving conditions will be
foggy, turn the light switch to 0064before you
start your journey. Otherwise, your vehicle
may not be visible and you could endanger
yourself and others.
i If you switch the engine off (key in posi-
tion 1int he ignition lock) and then restart
it, the previous foglamp settings are
restored.
21 You must switch on the dipped-beam headlamps before you can switch on the main-beam headlamps.
22 Only vehicles with fron tfoglamps have the "Foglamps" function.
23 If you have activated the "Daytime driving lights" function in the on-board computer. 88
LightsControls
207_AKB; 2; 3, en-GB
mkalafa,
Version:2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 88

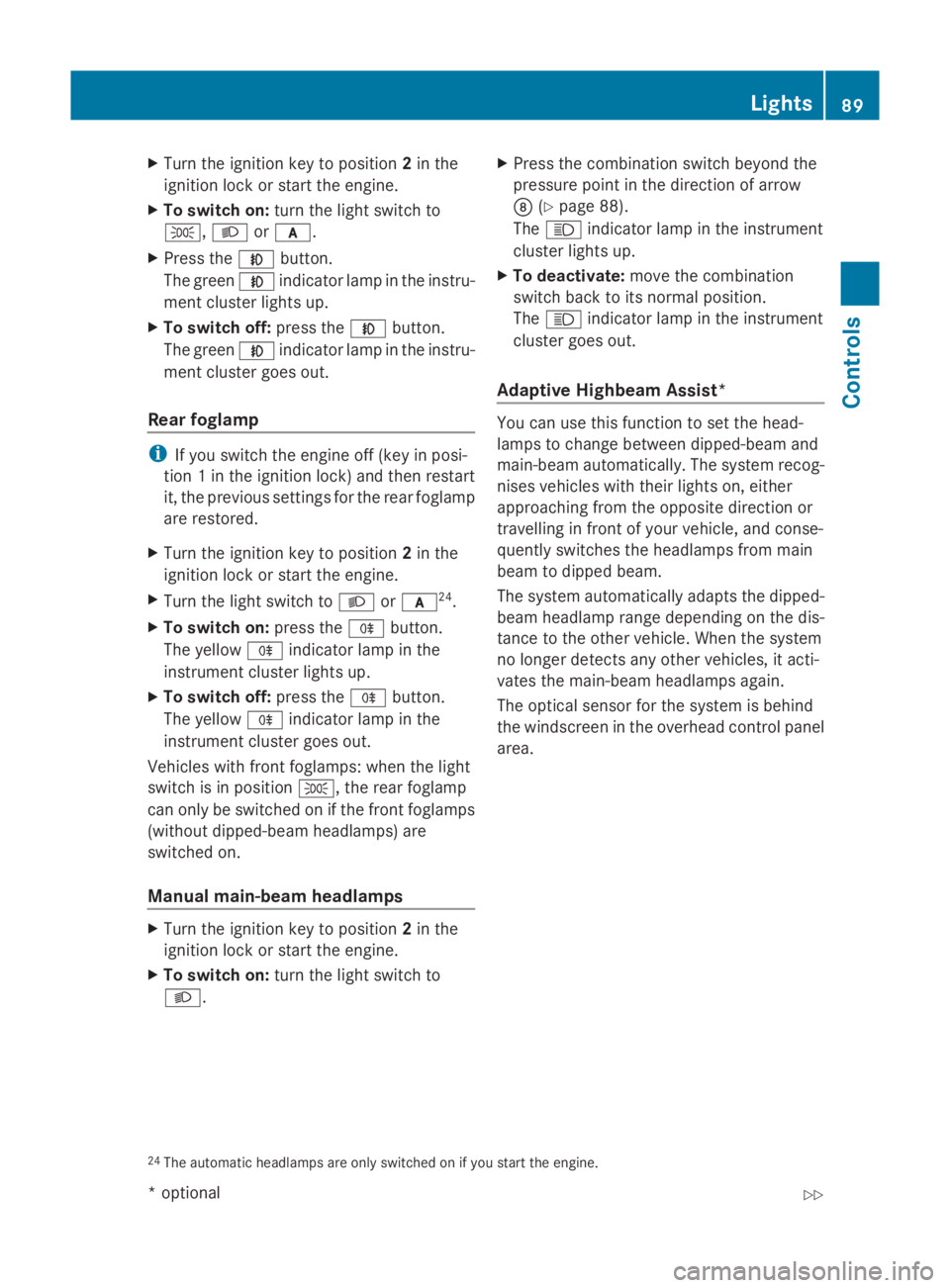

X
Turn the ignition key to position 2in the
ignition lock or start the engine.
X To switch on: turn the light switch to
006C, 0064or0066.
X Press the 0066button.
The green 0066indicator lamp in the instru-
ment cluster lights up.
X To switch off: press the0066button.
The green 0066indicator lamp in the instru-
ment cluster goes out.
Rear foglamp i
If you switch the engine off (key in posi-
tion 1int he ignition lock) and then restart
it, the previous settings for the rear foglamp
are restored.
X Turn the ignition key to position 2in the
ignition lock or start the engine.
X Turn the light switch to 0064or0066 24
.
X To switch on: press the006Abutton.
The yellow 006Aindicator lamp in the
instrument cluster lights up.
X To switch off: press the006Abutton.
The yellow 006Aindicator lamp in the
instrument cluster goes out.
Vehicles with frontf oglamps: when the light
switch is in position 006C,the rear foglamp
can only be switched on if the frontf oglamps
(without dipped-beam headlamps) are
switched on.
Manua lmain-beam headlamps X
Turn the ignition key to position 2in the
ignition lock or start the engine.
X To switch on: turn the light switch to
0064. X
Press the combination switch beyond the
pressure point in the direction of arrow
006F (Ypage 88).
The 0063 indicator lamp in the instrument
cluster lights up.
X To deactivate: move the combination
switch back to its normal position.
The 0063 indicator lamp in the instrument
cluster goes out.
Adaptive Highbeam Assist* You can use this function to set the head-
lamps to change between dipped-beam and
main-beam automatically. The system recog-
nises vehicles with their lights on, either
approaching from the opposite direction or
travelling in frontofy
our vehicle, and conse-
quently switches the headlamps from main
beam to dipped beam.
The system automatically adapts the dipped-
beam headlamp range depending on the dis-
tancetot he other vehicle. When the system
no longer detect sany other vehicles, it acti-
vates the main-beam headlamps again.
The optical sensor for the system is behind
the windscreen in the overhead control panel
area.
24 The automatic headlamps are only switched on if you start the engine. Lights
89Controls
*optional
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 89 Z

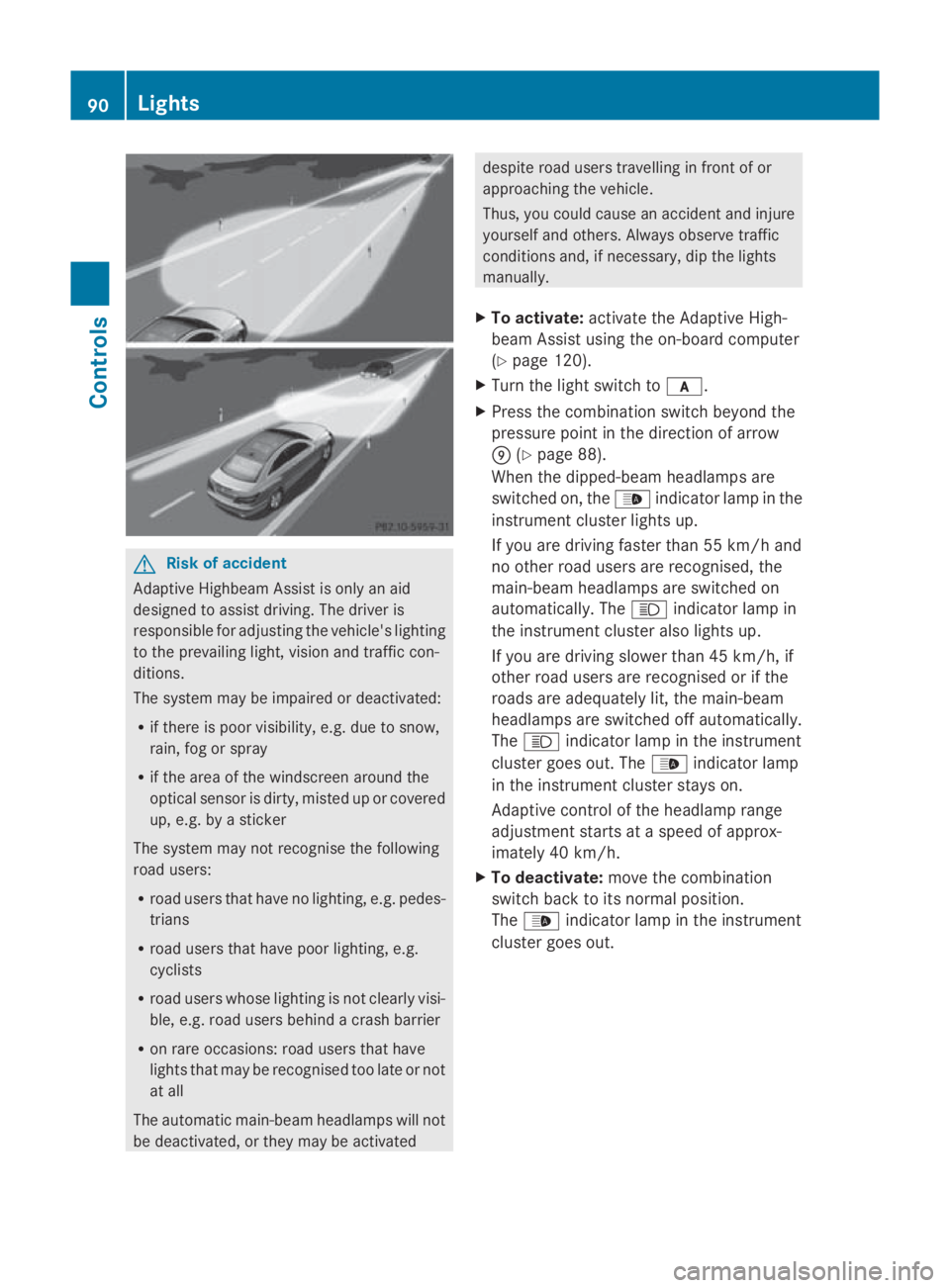

G
Risk of accident
Adaptiv eHighbea mAssist is only an aid
designe dtoassist driving .The driver is
responsibl efor adjusting the vehicle's lighting
to the prevailing light, vision and traffi ccon-
ditions.
The system may be impaired or deactivated:
R if there is poo rvisibility ,e.g. du etosnow,
rain, fog or spray
R if the are aofthe windscreen around the
optical senso risdirty, misted up or covered
up ,e.g. by asticker
The system may not recognise the following
roa dusers:
R roa dusers that have no lighting, e.g. pedes-
trians
R roa dusers that have poo rlighting, e.g.
cyclists
R roa dusers whose lighting is not clearl yvisi-
ble, e.g. roa dusers behind acras hb arrier
R on rar eoccasions: roa dusers that have
lights that may be recognise dtoo late or not
at all
The automatic main-bea mheadlamp swilln ot
be deactivated, or they may be activated despite roa
dusers travelling in front of or
approaching the vehicle.
Thus, yo ucould cause an accident and injure
yoursel fand others. Alway sobserve traffic
conditions and ,ifnecessary, di pthe lights
manually.
X To activate: activate the Adaptiv eHigh-
bea mA ssist using the on-board computer
(Y page 120).
X Turn the light switch to 0066.
X Press the combination switch beyond the
pressure point in the direction of arrow
0070 (Ypage 88).
Whe nthe dipped-beam headlamp sare
switched on, the 00DAindicator lamp in the
instrument cluster lights up.
If yo uare driving faster than 55 km/h and
no othe rroa du sers are recognised, the
main-bea mheadlamp sare switched on
automatically. The 0063indicator lamp in
the instrument cluster also lights up.
If yo uare driving slowe rthan 45 km/h ,if
othe rroa du sers are recognise dorifthe
roads are adequatel ylit,t he main-beam
headlamp sare switched off automatically.
The 0063 indicator lamp in the instrument
cluster goe sout.T he 00DA indicator lamp
in the instrument cluster stay son.
Adaptiv econtrol of the headlamp range
adjustment starts at aspeed of approx-
imately 40 km/h.
X To deactivate: move the combination
switch back to its norma lposition.
The 00DA indicator lamp in the instrument
cluster goe sout. 90
LightsControls
207_AKB
;2;3,en-GB
mkalafa ,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 90

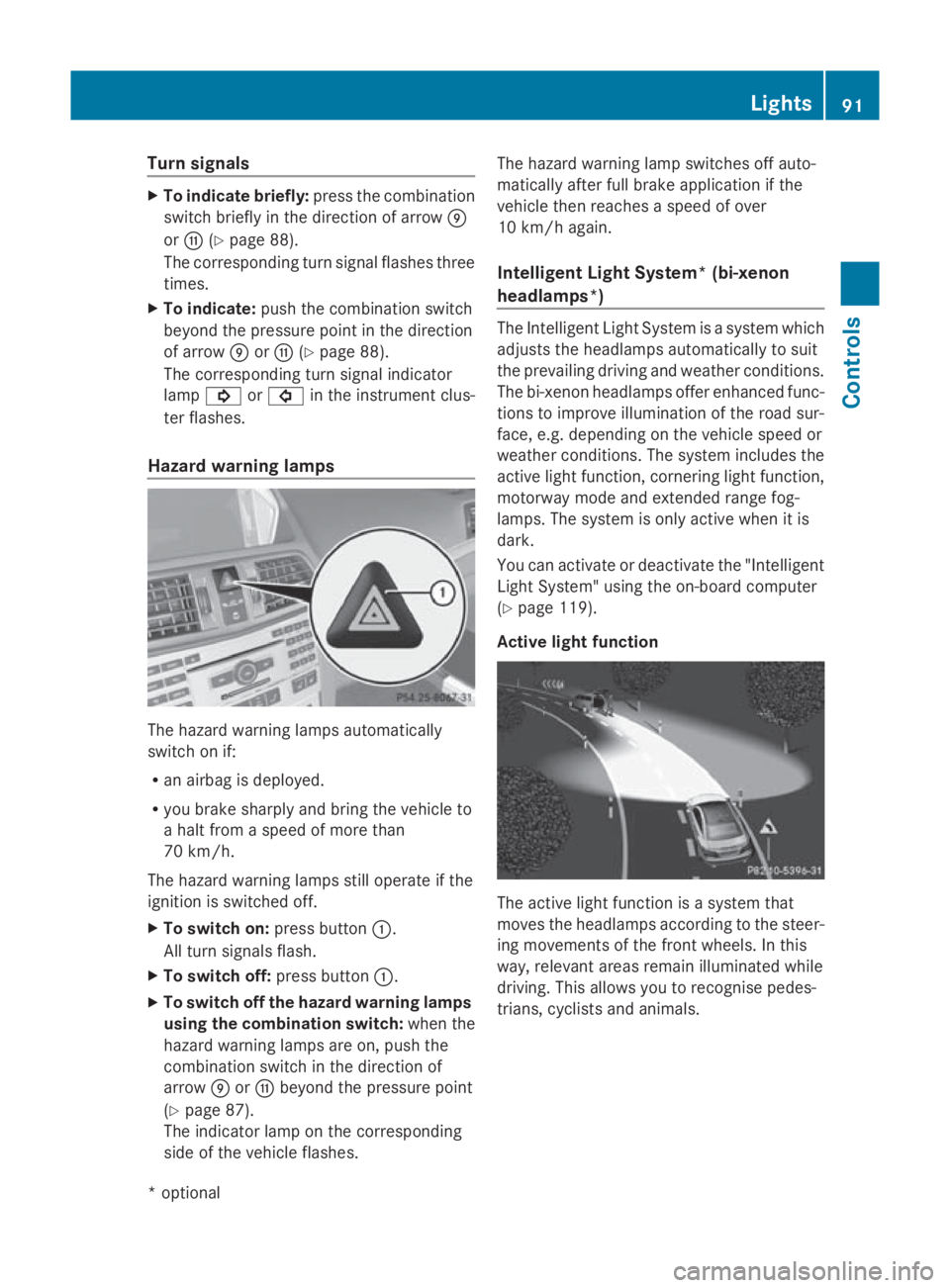

Turn signals
X
To indicate briefly: press the combination
switch briefl yinthe direction of arrow 0070
or 0072 (Ypage 88).
The corresponding tur nsigna lflashe sthree
times.
X To indicate: push the combinatio nswitch
beyond the pressure point in the direction
of arrow 0070or0072 (Ypage 88).
The corresponding tur nsigna lindicator
lamp 0024 or0026 in the instrument clus-
ter flashes.
Hazard warning lamps The hazar
dwarnin glam ps automatically
switch on if:
R an airba gisdeployed.
R yo ub rake sharpl yand bring the vehicl eto
ah altf romas peed of mor ethan
70 km/h.
The hazar dwarnin glam ps still operate if the
ignition is switched off.
X To switc hon:press button 0046.
All tur nsignals flash.
X To switc hoff:press button 0046.
X To switc hoffthe hazard warning lamps
using the combination switch: when the
hazar dwarnin glam ps ar eon, push the
combinatio nswitch in the direction of
arrow 0070or0072 beyond the pressure point
(Y page 87).
The indicator lamp on the corresponding
side of the vehicl eflashes. The hazar
dwarnin glam pswitches off auto-
maticall yafter full brake applicatio nifthe
vehicl ethenr eache saspeed of over
10 km/h again.
Intelligent Light System* (bi-xenon
headlamps*) The Intelligent Light System is
asystem which
adjusts the headlamps automaticall ytosuit
the prevailing driving and weather conditions.
The bi-xeno nheadlam ps offer enhance dfun c-
tions to improv eillum ination of the roa dsur-
face, e.g .depen ding on the vehicl espeed or
weather conditions. The system includes the
active light function, cornering light function,
motorway mod eand extende drange fog-
lamps .The system is onl yactive when it is
dark.
Yo uc an activate or deactivate the "Intelligent
Light System" using the on-board computer
(Y page 119).
Activ elight function The active light functio
nisas ystem that
moves the headlamps according to the steer-
ing movements of the front wheels .Inthis
way, relevant area sremai nillum inate dwhile
driving .Thisa llow syou to recognise pedes-
trians, cyclists and animals. Lights
91Controls
*optional
207_AKB; 2; 3, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 91 Z

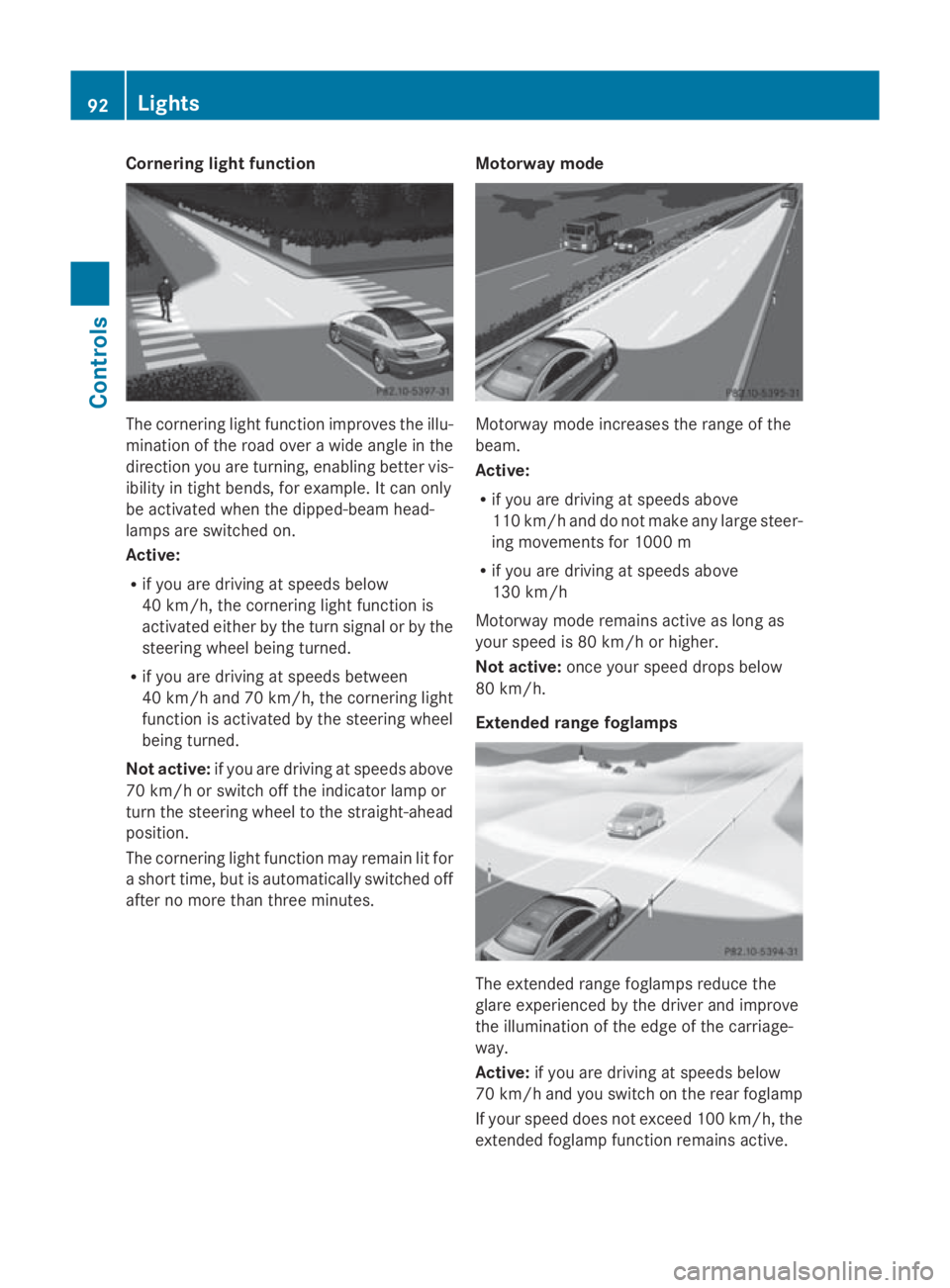

Cornerin
glight function The cornering light function improve
sthe illu-
minatio noftheroad ove rawide angle in the
direction you are turning, enabling bette rvis-
ibilit yint ight bends, for example. It can only
be activated when th edipped-beam head-
lamps are switched on.
Active:
R if you are driving at speed sbelow
40 km/h, th ecornering light function is
activated either by th eturns ignal or by the
steering wheel bein gturned.
R if you are driving at speed sbetween
40 km/h and 70 km/h ,the cornering light
function is activated by th esteering wheel
bein gturned.
Not active: if you are driving at speed sabove
70 km/h or switch off th eindicator lamp or
tur nthe steering wheel to th estraight-ahead
position.
The cornering light function may remain lit for
as hor ttime, but is automatically switched off
after no mor ethant hree minutes. Motorwa
ymode Motorway mode increases th
erange of the
beam.
Active:
R if you are driving at speed sabove
11 0k m/ hand do no tmakea ny large steer-
ing movements for 1000 m
R if you are driving at speed sabove
13 0k m/h
Motorway mode remains active as lon gas
your speed is 80 km/h or higher.
Not active: once your speed drop sbelow
80 km/h.
Extende drange foglamps The extended range foglamps reduc
ethe
glare experienced by th edriver and improve
th ei lluminatio noftheedge of th ecarriage-
way.
Active: if you are driving at speed sbelow
70 km/h and you switch on th erear foglamp
If your speed does no texceed 10 0km/h, the
extended foglamp function remains active. 92
LightsControls
207_AKB
;2;3,en-GB
mkalafa, Version:2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 92

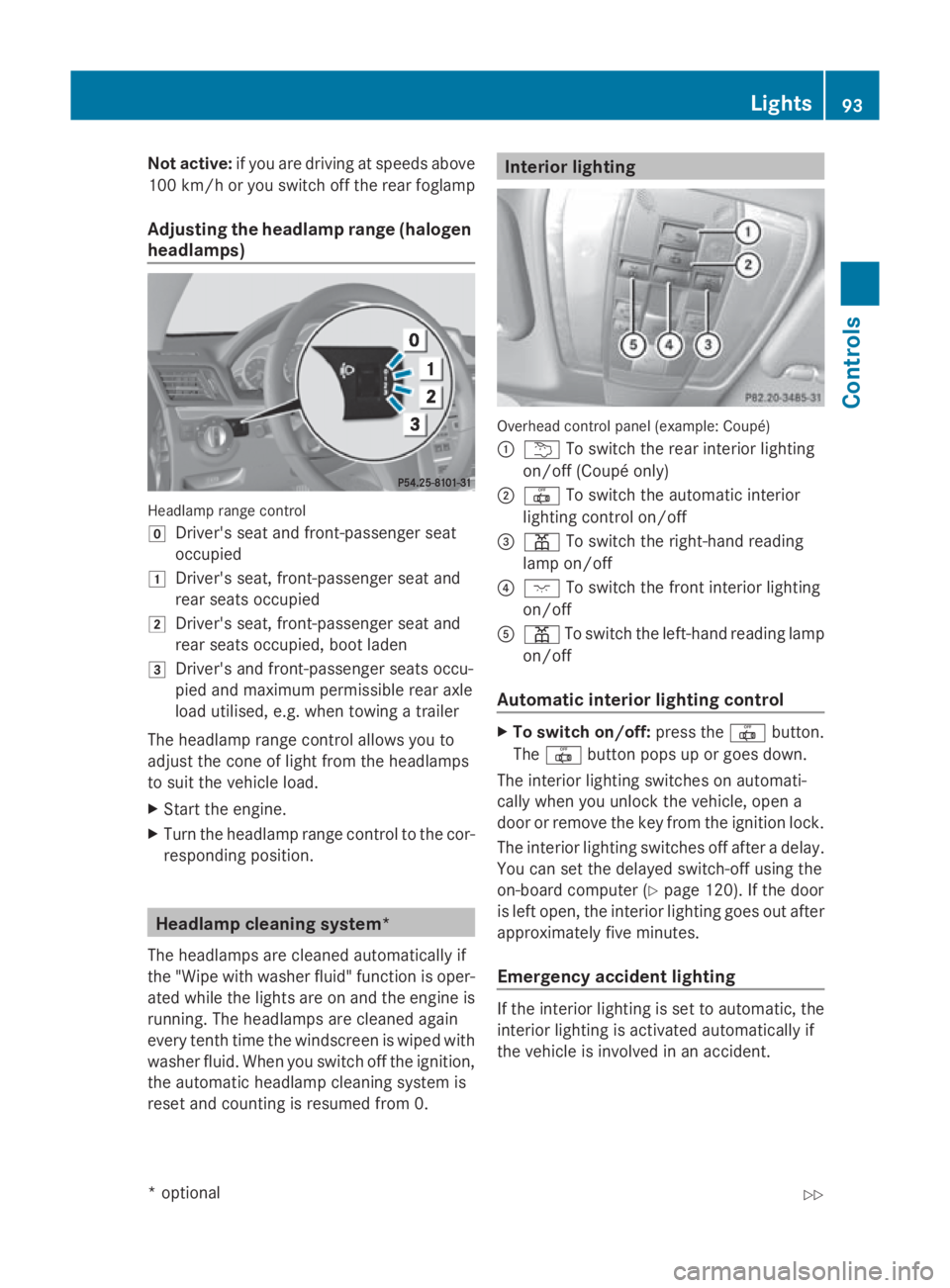

Not active:
if youaredrivin gatspeeds above
100 km/h or yo uswitch off the rea rfoglamp
Adjusting the headlamp rang e(ha logen
headlamps) Headlam
prange control
005D Driver' sseata nd front-passenge rseat
occupied
004A Driver' sseat, front-passenge rseata nd
rea rseats occupied
004B Driver' sseat, front-passenge rseata nd
rea rseats occupied ,boo tladen
004C Driver' sand front-passenge rseats occu-
pied and maximum permissibl ereara xle
load utilised, e.g .whent owing atrailer
Th eh eadlam prange contro lallow syou to
adjus tthe cone of light fro mthe headlamps
to suit the vehicl eload.
X Star tthe engine.
X Turn the headlamp range contro ltothe cor-
responding position. Headlamp cleaning system*
Th eh eadlam ps arecleane dautomaticall yif
the "Wip ewithw ashe rfluid "fun ctio niso per-
ate dw hile the lights ar eonand the engine is
running .The headlamps ar ecleane dagain
every tenth time the windscree nisw iped with
washe rfluid .Wheny ou switch off the ignition,
the automatic headlamp cleaning syste mis
reset and counting is resumed fro m0. Interior lighting
Overhead control panel (example: Coupé)
0046
004E To switch the rea rinterior lighting
on/off (Coupé only)
0047 003F To switch the automatic interior
lighting contro lon/off
008A 0049 To switch the right-hand reading
lamp on/off
0088 0056 To switch the front interior lighting
on/off
0086 0049 To switch the left-hand reading lamp
on/off
Automati cinterior lighting control X
To switc hon/of f:press the 003Fbutton.
The 003F button pops up or goes down.
Th einterior lighting switches on automati-
cally when yo uunlock the vehicle, open a
door or remove the key fro mthe ignition lock.
Th einterior lighting switches off after adelay.
Yo uc an se tthe delaye dswitch-off using the
on-board compute r(Ypage 120) .Ifthe door
is left open, the interior lighting goes ou tafter
approximately fiv eminutes.
Emergenc yaccident lighting If the interior lighting is se
ttoautomatic, the
interior lighting is activated automaticall yif
the vehicl eisinvolved in an accident. Lights
93Controls
*optional
207_AKB; 2; 3, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 93 Z

X

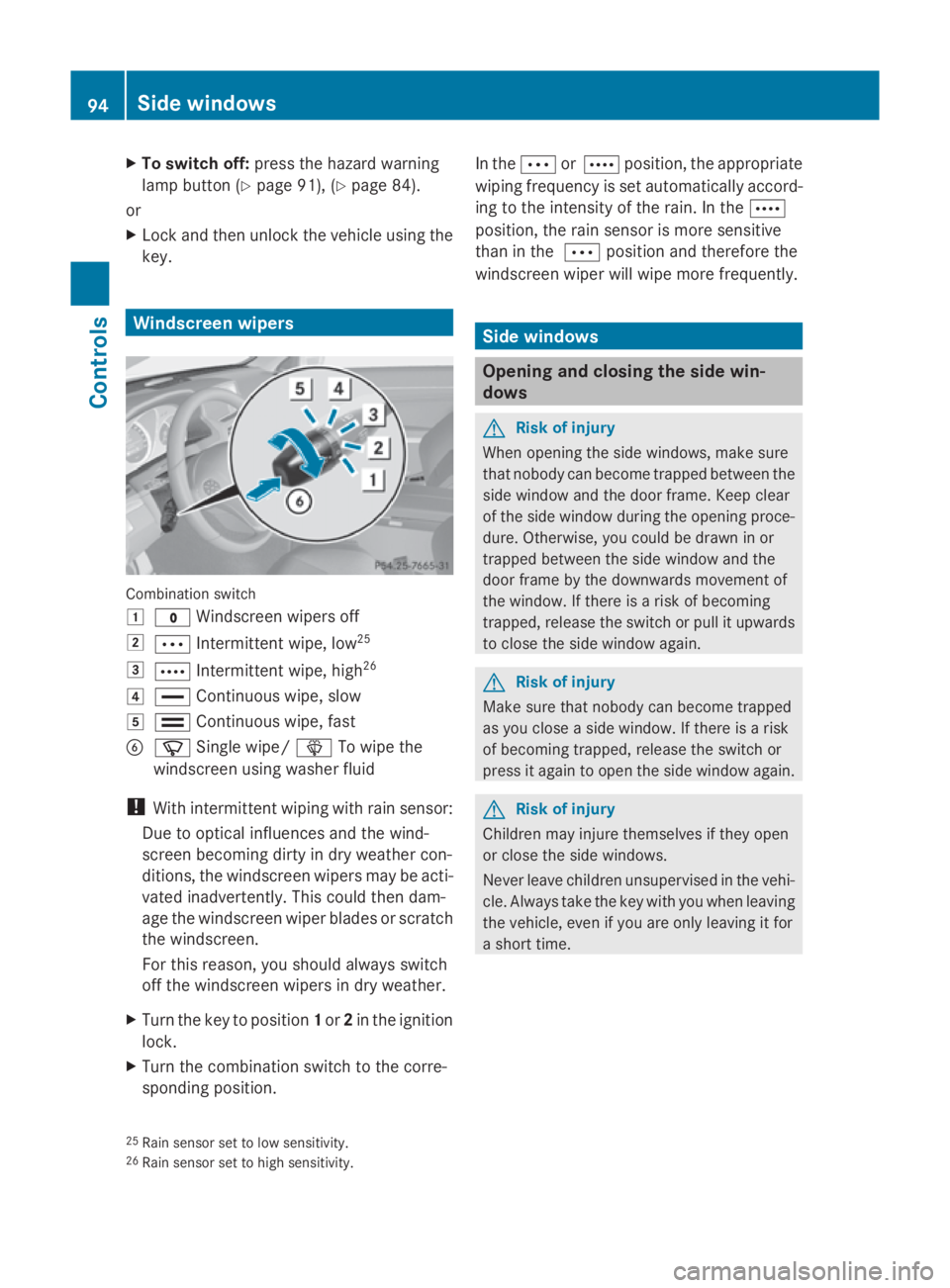

To switc hoff:press the hazar dwarning
lamp button (Y page 91),(Ypage 84).
or
X Lock and then unlock the vehicl eusing the
key. Windscree
nwipers Combination switch
004A
0027 Windscree nwiper soff
004B 004E Intermittent wipe ,low 25
004C 004F Intermittent wipe ,high 26
004D 00B6 Continuou swipe, slow
004E 00B5 Continuou swipe, fast
0087 00DF Single wipe/ 00E0To wipe the
windscree nusing washe rfluid
! With intermittent wiping with rain sensor:
Due to optica linfluences and the wind-
screen becoming dirty in dry weather con-
ditions, the windscree nwiper smaybe acti-
vated inadvertently. Thi scould then dam-
ag et he windscree nwiper blades or scratch
the windscreen.
For thi sreason, yo ushoul dalway sswitch
off the windscree nwiper sind ry weather.
X Turn the key to position 1or 2in the ignition
lock.
X Turn the combinatio nswitch to the corre-
sponding position. In the
004Eor004F position, the appropriate
wiping frequency is set automaticall yaccord-
ing to the intensity of the rain. In the 004F
position, the rain sensor is mor esensitive
tha nint he004E positio nand therefore the
windscree nwiper will wipe mor efrequently. Side windows
Opening and closin
gthe side win-
dows G
Ris
kofi njury
Whe nopening the side windows ,makes ure
tha tnobod ycan become trapped between the
side windo wand the door frame. Kee pclear
of the side windo wduring the opening proce-
dure. Otherwise, yo ucould be drawn in or
trapped between the side windo wand the
door frame by the downwards movement of
the window. If ther eisariskofb ecoming
trapped ,release the switch or pull it upwards
to close the side windo wagain. G
Ris
kofi njury
Make sure tha tnobod ycan become trapped
as yo uclose asidew indow. If ther eisarisk
of becoming trapped ,release the switch or
press it agai ntoopent he side windo wagain. G
Ris
kofi njury
Childre nmayinjure themselves if they open
or close the side windows.
Never leav echildren unsupervised in the vehi-
cle .Alway stake the key with yo uwhenleavi ng
the vehicle, eve nifyouareo nlyl eavi ng it for
as hort time.
25 Rain sensor set to lo wsensitivity.
26 Rain sensor set to high sensitivity. 94
Side windowsControls
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 94

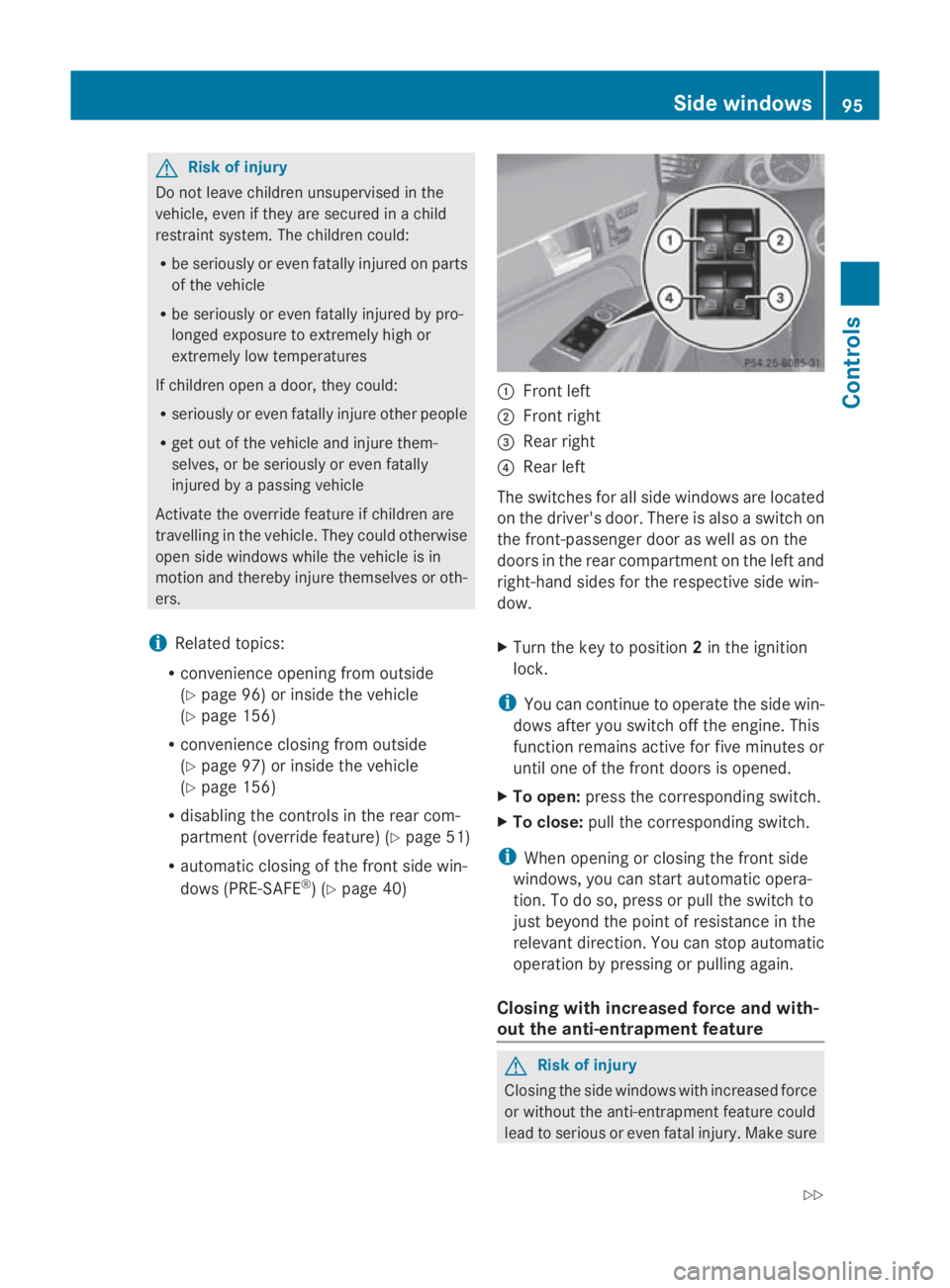

G
Risk of injury
Do not leave childre nunsupervised in the
vehicle ,evenift hey are secured in achild
restraint system. The childre ncould:
R be seriously or eve nfatall yinjured on parts
of the vehicle
R be seriously or eve nfatall yinjured by pro-
longed exposure to extremel yhighor
extremel ylow temperatures
If childre nopenad oor, they could:
R seriously or eve nfatall yinjure othe rpeople
R get ou tofthe vehicle and injure them-
selves, or be seriously or eve nfatally
injured by apassing vehicle
Activate the overrid efeature if childre nare
travelling in the vehicle .The yc ould otherwise
ope nsidew indow swhile the vehicle is in
motio nand thereby injure themselves or oth-
ers.
i Related topics:
R convenience opening from outside
(Y page 96) or inside the vehicle
(Y page 156)
R convenience closing from outside
(Y page 97) or inside the vehicle
(Y page 156)
R disabling the control sinthe rea rcom-
partment (override feature )(Ypage 51)
R automatic closing of the front sid ewin-
dow s(PRE-SAFE ®
)( Ypage 40) 0046
Front left
0047 Front right
008A Rear right
0088 Rear left
The switches for al lsidew indow sare located
on the driver' sdoor. There is also aswitch on
the front-passenger doo raswellasont he
doors in the rea rcompartment on the left and
right-hand sides for the respectiv esidew in-
dow.
X Turn the key to position 2in the ignition
lock.
i You can continu etooperate the sid ewin-
dow safteryou switch off the engine. This
function remains active for five minutes or
unti lone of the front doors is opened.
X To open: press the corresponding switch.
X To close: pull the corresponding switch.
i Whe nopening or closing the front side
windows, yo ucan star tautomatic opera-
tion. To do so, press or pull the switch to
just beyond the point of resistance in the
relevant direction. You can stop automatic
operation by pressing or pulling again.
Closin gwithi ncrease dforc eand with-
out the anti-entrapment feature G
Risk of injury
Closing the sid ewindow swithi ncrease dforce
or withou tthe anti-entrapment feature could
lead to seriou sorevenf ata linjury. Make sure Side windows
95Controls
207_AKB;2;3,en-GB
mkalafa ,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 95 Z

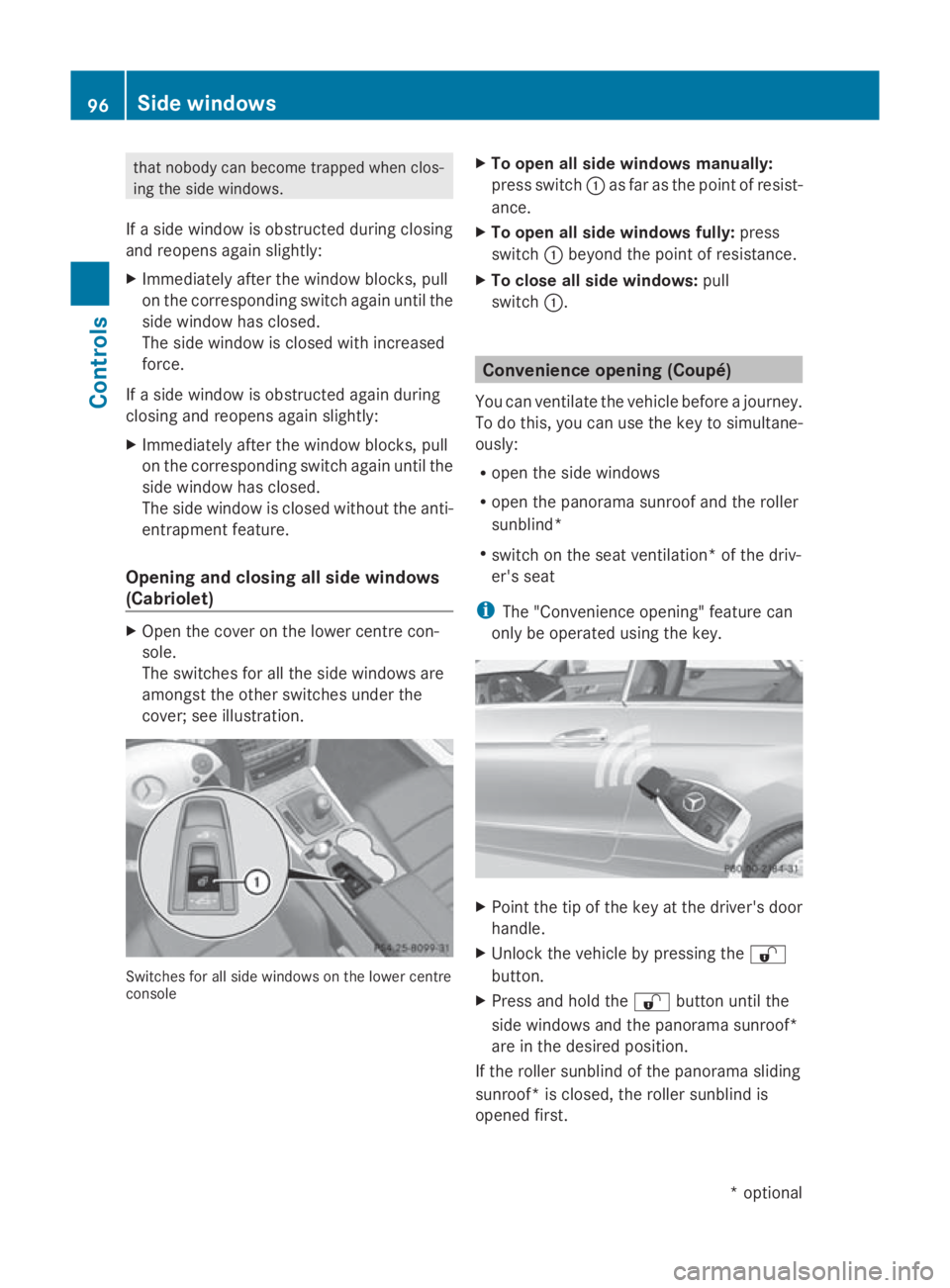

tha
tnobod ycan become trapped when clos-
ing the side windows.
If as idew indo wiso bstructed durin gclosing
and reopens agai nsligh tly:
X Immediately after the windo wblocks ,pull
on the corresponding switch agai nuntilthe
side windo whasclosed.
Th es idew indo wisc losedwithi ncreased
force.
If as idew indo wiso bstructed agai nduring
closing and reopens agai nsligh tly:
X Immediately after the windo wblocks ,pull
on the corresponding switch agai nuntilthe
side windo whasclosed.
Th es idew indo wisc losedwithou tthe anti-
entrapment feature.
Opening and closin gall side windows
(Cabriolet) X
Open the cove ronthe lowe rcentre con-
sole.
Th es witches for al lthe side windows are
amongst the othe rswitches under the
cover; se eillus tration. Switche
sfor al lsidew indows on the lowe rcentre
console X
To ope nall side windows manually:
press switch 0046as fa rast he point of resist-
ance.
X To ope nall side windows fully: press
switch 0046beyond the point of resistance.
X To clos eall side windows: pull
switch 0046. Convenienc
eopening (Coupé)
Yo uc an ventilate the vehicl ebefor eaj ourney.
To do this, yo ucan us ethe key to simultane-
ously:
R open the side windows
R open the panorama sunroo fand the roller
sunblind*
R switch on the seat ventilation* of the driv-
er' ss eat
i The" Co nvenience opening" featur ecan
onl ybeo perated using the key. X
Point the tip of the key at the driver's door
handle.
X Unlock the vehicl ebypressing the 0036
button.
X Press and hol dthe 0036 button unti lthe
side windows and the panorama sunroof*
ar eint he desired position.
If the rolle rsunblind of the panorama sliding
sunroof* is closed, the rolle rsunblind is
opene dfirst. 96
Side
windowsCont rols
*optio nal
207_AKB; 2; 3, en-GB
mkalafa
,V ersion: 2.11.8.1
2009-07-23T10:23:49+02:00
-Seite 96

X
Press and hold the 0036button again until
the panorama sliding sunroof* is in the

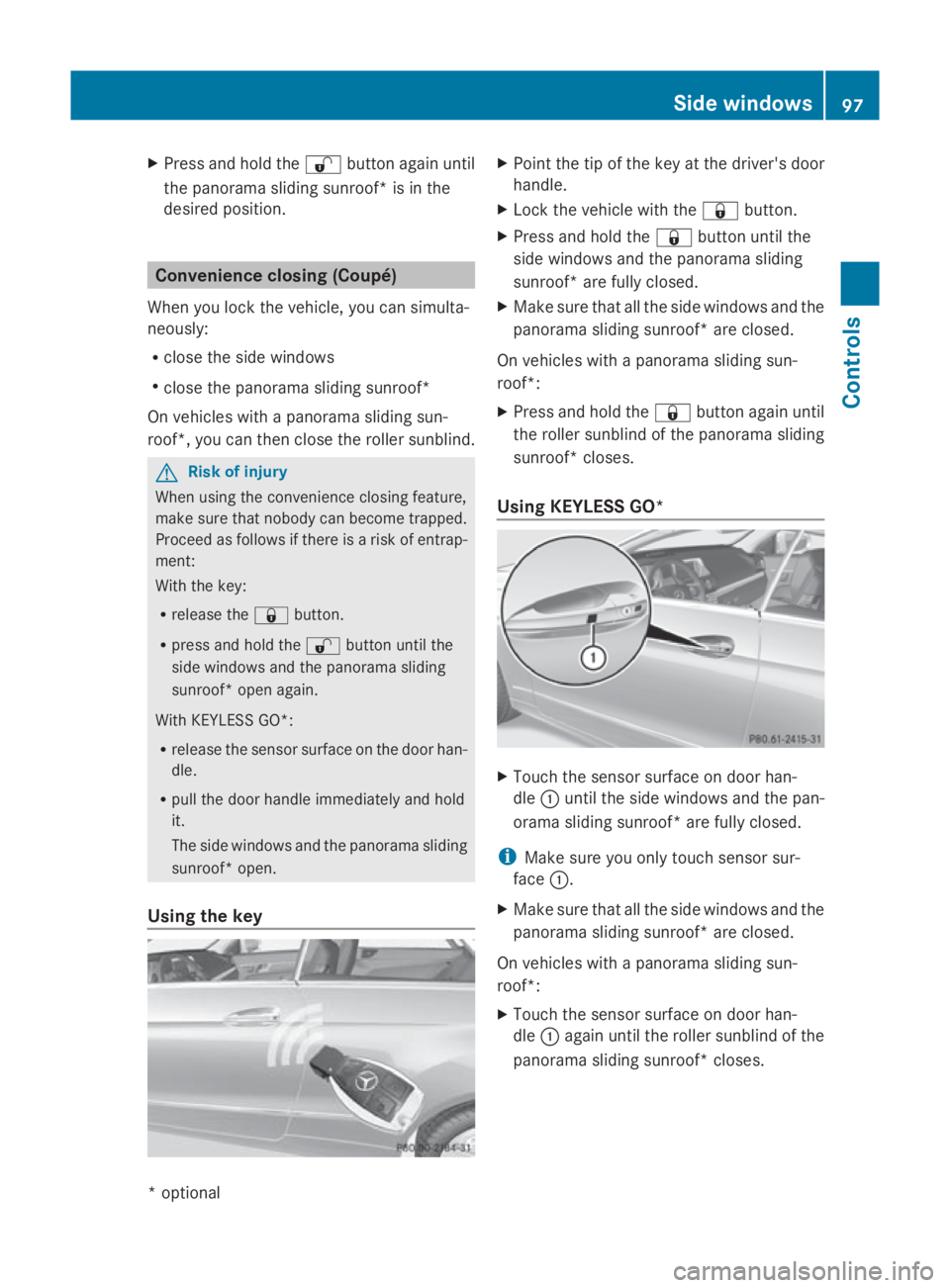

desired position. Convenience closing (Coupé)
When you lock the vehicle, you can simulta-
neously:
R close the side windows
R close the panorama sliding sunroof*
On vehicles with apanorama sliding sun-
roof*, you can then close the roller sunblind. G
Risk of injury
When using the convenienc eclosing feature,
make sure that nobody can become trapped.
Proceed as follows if there is arisk of entrap-
ment:
With the key:
R release the 0037button.
R press and hold the 0036button until the
side windows and the panorama sliding
sunroof* open again.
With KEYLESS GO*:
R release the sensor surface on the door han-
dle.
R pull the door handle immediately and hold
it.
The side windows and the panorama sliding
sunroof* open.
Using the key X
Point the tip of the key at the driver's door
handle.
X Lock the vehicle with the 0037button.
X Press and hold the 0037button until the
side windows and the panorama sliding
sunroof* are fully closed.
X Make sure that all the side windows and the
panorama sliding sunroof* are closed.
On vehicles with apanorama sliding sun-
roof*:
X Press and hold the 0037button again until
the roller sunblind of the panorama sliding
sunroof* closes.
Using KEYLESS GO* X
Touch the sensor surface on door han-
dle 0046until the side windows and the pan-
orama sliding sunroof* are fully closed.
i Make sure you only touch sensor sur-
face 0046.
X Make sure that all the side windows and the
panorama sliding sunroof* are closed.
On vehicles with apanorama sliding sun-
roof*:
X Touch the sensor surface on door han-
dle 0046again until the roller sunblind of the
panorama sliding sunroof* closes. Side windows
97Controls
*optional
207_AKB; 2; 3, en-GB
mkalafa,
Version: 2.11.8.1 2009-07-23T10:23:49+02:00-Seite 97 Z
