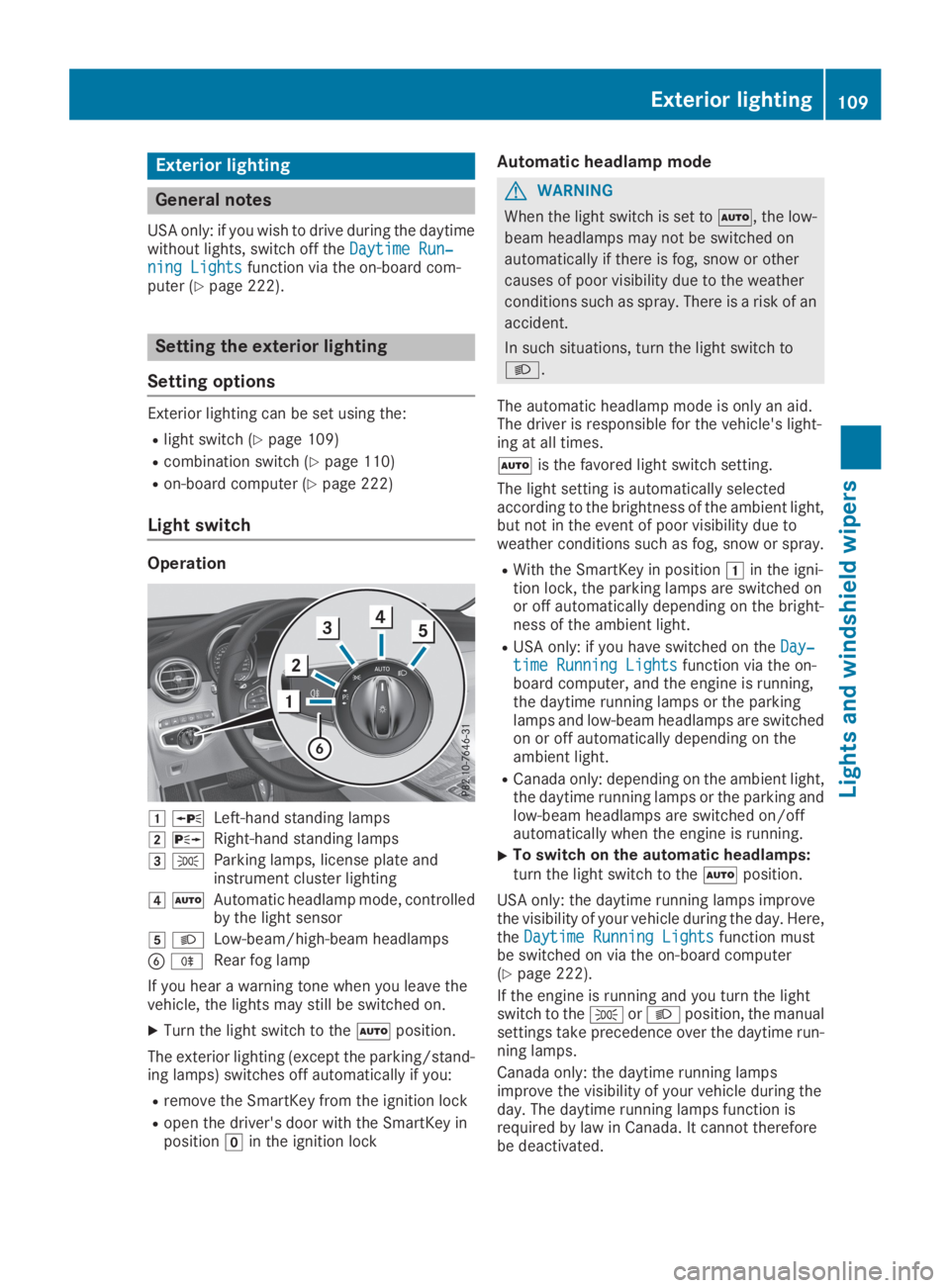

Exterior lighting
General notes
USA only: if you wish to drive during the daytimewithout lights, switch off theDaytime Run‐Daytime Run‐ning Lightsning Lightsfunction via the on-board com-puter (Ypage 222).
Setting the exterior lighting
Setting options
Exterior lighting can be set using the:
Rlight switch (Ypage 109)
Rcombination switch (Ypage 110)
Ron-board computer (Ypage 222)
Light switch
Operation
GcLeft-hand standing lamps
HdRight-hand standing lamps
I`Parking lamps, license plate andinstrument cluster lighting
JXAutomatic headlamp mode, controlledby the light sensor
KXLow-beam/high-beam headlamps

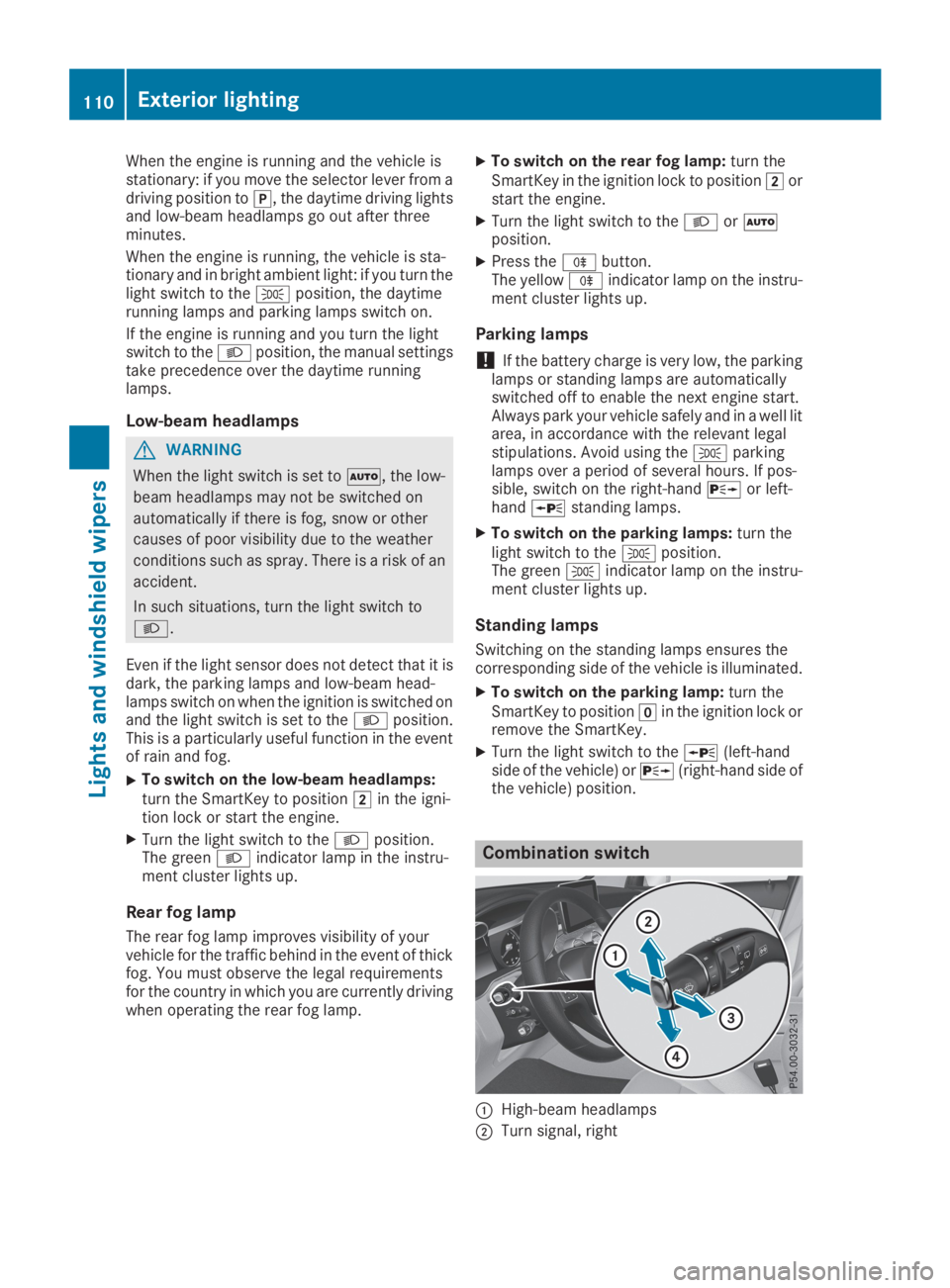

When the engine is running and the vehicle isstationary: if you move the selector lever from adriving position to], the daytime driving lightsand low-beam headlamps go out after threeminutes.
When the engine is running, the vehicle is sta-tionary and in bright ambient light: if you turn thelight switch to the`position, the daytimerunning lamps and parking lamps switch on.
If the engine is running and you turn the lightswitch to theXposition, the manual settingstake precedence over the daytime runninglamps.
Low-beam headlamps
GWARNING
When the light switch is set toX, the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There is a risk of an
accident.
In such situations, turn the light switch to
X.
Even if the light sensor does not detect that it isdark, the parking lamps and low-beam head-lamps switch on when the ignition is switched onand the light switch is set to theXposition.This is a particularly useful function in the eventof rain and fog.
XTo switch on the low-beam headlamps:turn the SmartKey to positionHin the igni-tion lock or start the engine.
XTurn the light switch to theXposition.The greenXindicator lamp in the instru-ment cluster lights up.
Rear fog lamp
The rear fog lamp improves visibility of yourvehicle for the traffic behind in the event of thickfog. You must observe the legal requirementsfor the country in which you are currently drivingwhen operating the rear fog lamp.
XTo switch on the rear fog lamp:turn theSmartKey in the ignition lock to positionHorstart the engine.
XTurn the light switch to theXorXposition.
XPress the^button.The yellow^indicator lamp on the instru-ment cluster lights up.
Parking lamps
!If the battery charge is very low, the parkinglamps or standing lamps are automaticallyswitched off to enable the next engine start.Always park your vehicle safely and in a well litarea, in accordance with the relevant legalstipulations. Avoid using the`parkinglamps over a period of several hours. If pos-sible, switch on the right-handdor left-handcstanding lamps.
XTo switch on the parking lamps:turn thelight switch to the`position.The green`indicator lamp on the instru-ment cluster lights up.
Standing lamps
Switching on the standing lamps ensures thecorresponding side of the vehicle is illuminated.
XTo switch on the parking lamp:turn theSmartKey to positionZin the ignition lock orremove the SmartKey.
XTurn the light switch to thec(left-handside of the vehicle) ord(right-hand side ofthe vehicle) position.
Combination switch
CHigh-beam headlamps
DTurn signal, right
110Exterior lighting
Lights and windshield wipers

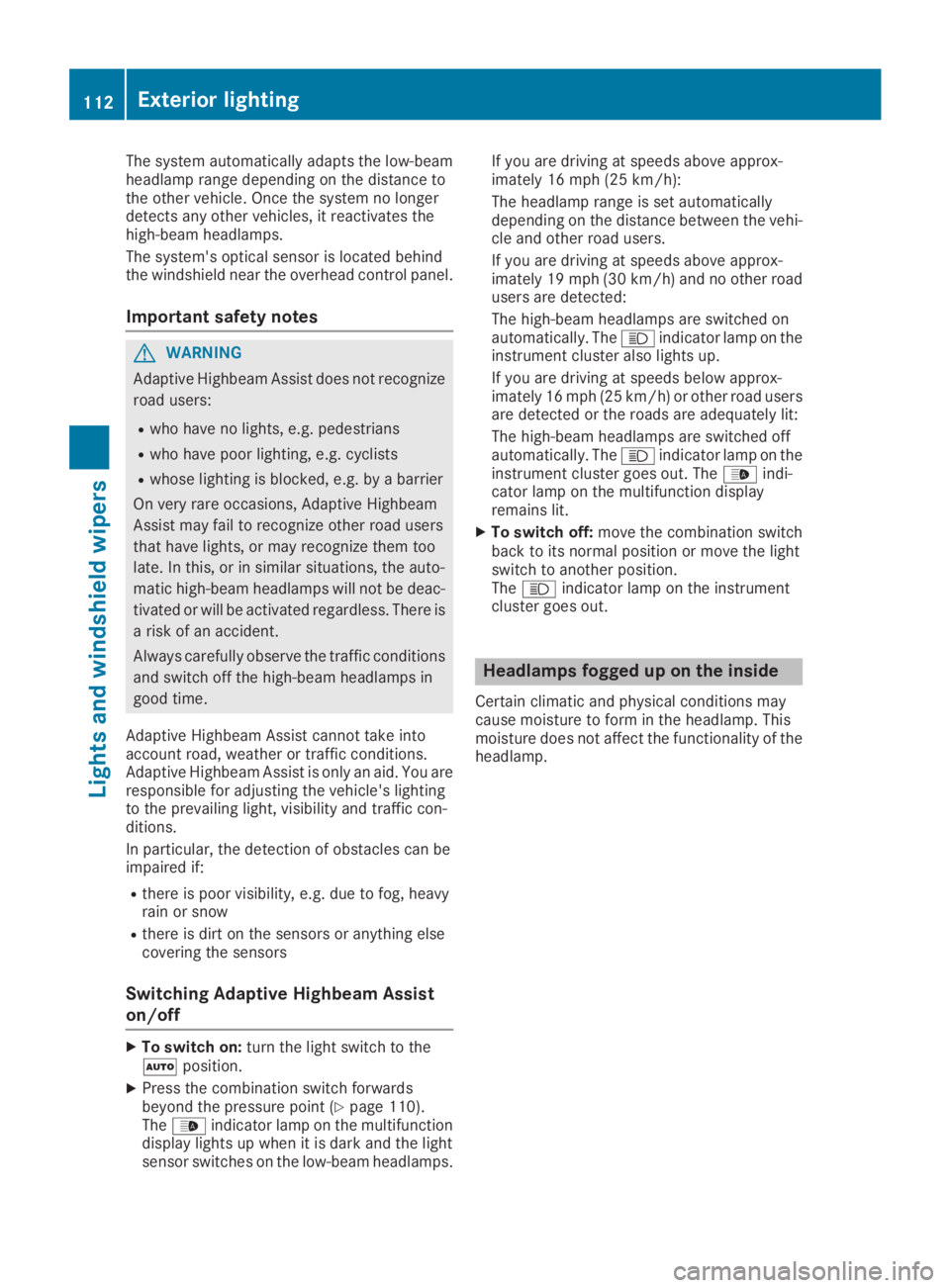

The system automatically adapts the low-beamheadlamp range depending on the distance tothe other vehicle. Once the system no longerdetects any other vehicles, it reactivates thehigh-beam headlamps.
The system's optical sensor is located behindthe windshield near the overhead control panel.
Important safety notes
GWARNING
Adaptive Highbeam Assist does not recognize
road users:
Rwho have no lights, e.g. pedestrians
Rwho have poor lighting, e.g. cyclists
Rwhose lighting is blocked, e.g. by a barrier
On very rare occasions, Adaptive Highbeam
Assist may fail to recognize other road users
that have lights, or may recognize them too
late. In this, or in similar situations, the auto-
matic high-beam headlamps will not be deac-
tivated or will be activated regardless. There is
a risk of an accident.
Always carefully observe the traffic conditions
and switch off the high-beam headlamps in
good time.
Adaptive Highbeam Assist cannot take intoaccount road, weather or traffic conditions.Adaptive Highbeam Assist is only an aid. You areresponsible for adjusting the vehicle's lightingto the prevailing light, visibility and traffic con-ditions.
In particular, the detection of obstacles can beimpaired if:
Rthere is poor visibility, e.g. due to fog, heavyrain or snow
Rthere is dirt on the sensors or anything elsecovering the sensors
Switching Adaptive Highbeam Assist
on/off
XTo switch on:turn the light switch to theXposition.
XPress the combination switch forwardsbeyond the pressure point (Ypage 110).The

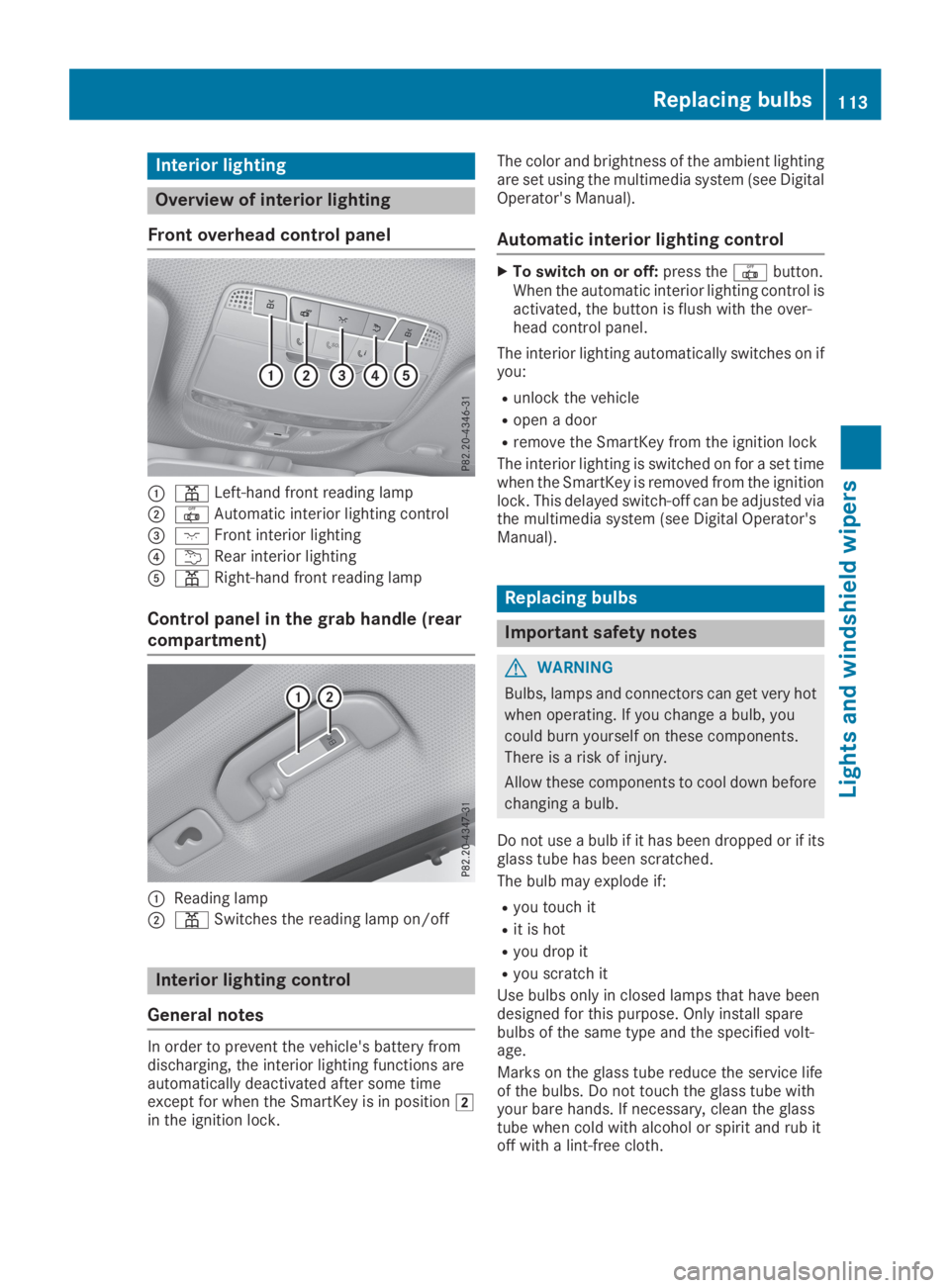

Interior lighting
Overview of interior lighting
Front overhead control panel
C=Left-hand front reading lamp
D3Automatic interior lighting control

Protect bulbs from moisture during operation.Do not allow bulbs to come into contact withliquids.
Replace only the bulbs listed (Ypage 114).Have the bulbs that you cannot change yourselfreplaced at a qualified specialist workshop.
If you require assistance replacing bulbs, con-sult a qualified specialist workshop.
If the new bulb still does not light up, consult aqualified specialist workshop.
Headlamps and lights are an important aspect ofvehicle safety. You must therefore make surethat these function correctly at all times. Havethe headlamp setting checked regularly.
Vehicles with LED headlamps:the front andrear light clusters of your vehicle are equippedwith LED bulbs. Do not replace the bulbs your-self. Contact a qualified specialist workshopwhich has the necessary specialist knowledgeand tools to carry out the work required.

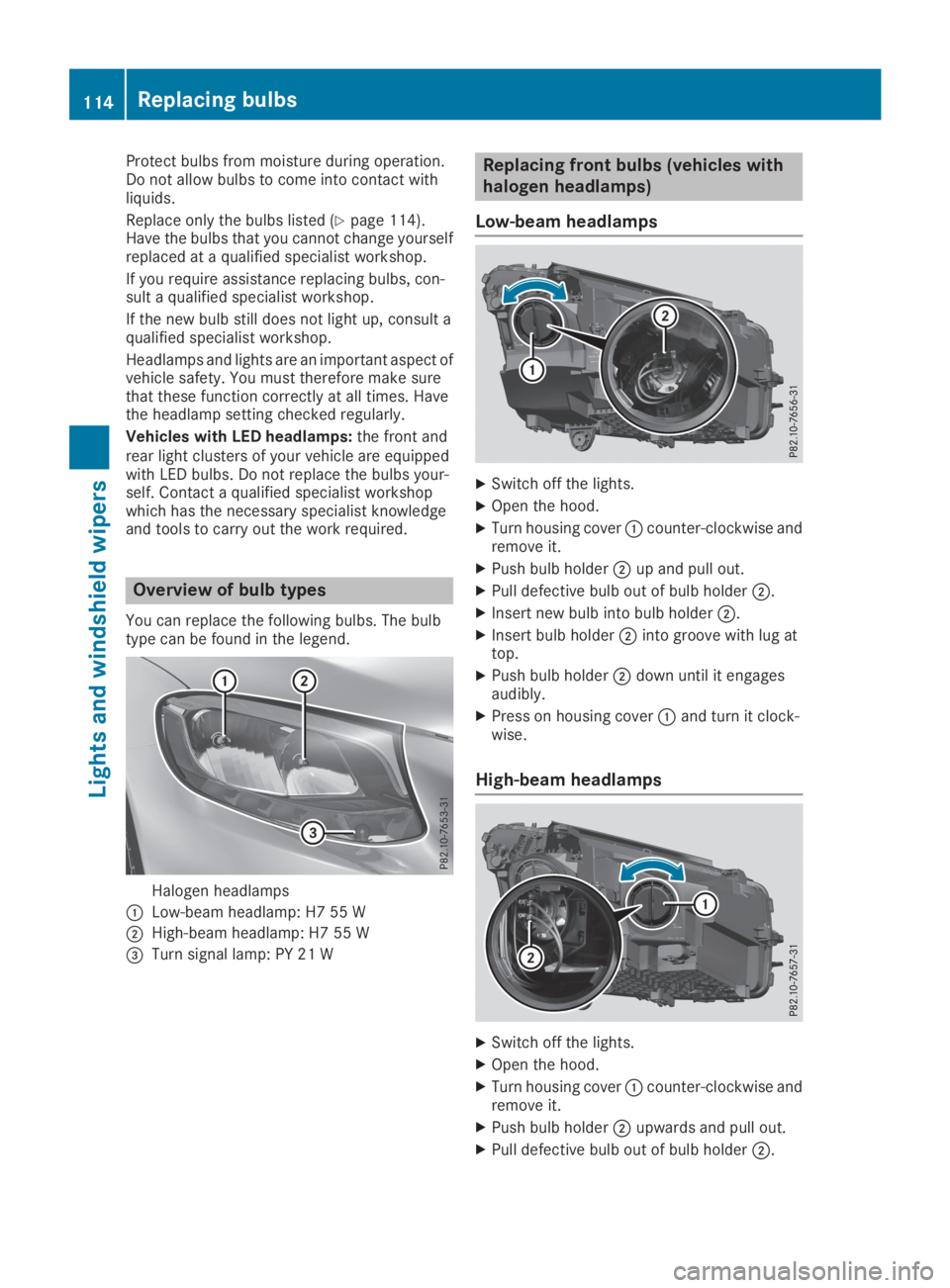

Overview of bulb types
You can replace the following bulbs. The bulbtype can be found in the legend.
Halogen headlamps
CLow-beam headlamp: H7 55 W
DHigh-beam headlamp: H7 55 W

XInsert new bulb into bulb holderD.
XInsert bulb holderDinto groove with lug attop.
XPush bulb holderDdown until it engagesaudibly.
XPress on housing coverCand turn it clock-wise.

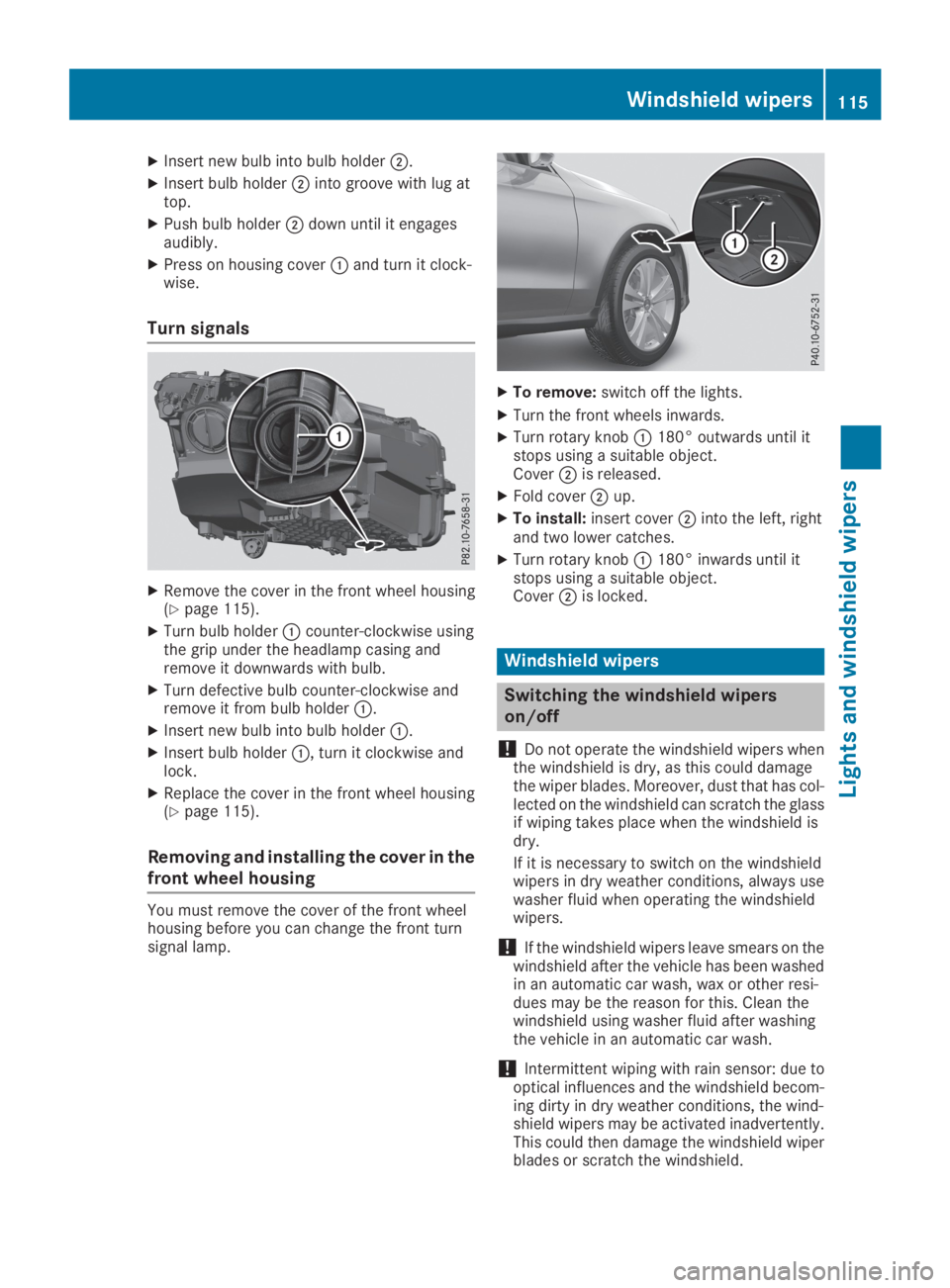

Turn signals
XRemove the cover in the front wheel housing(Ypage 115).
XTurn bulb holderCcounter-clockwise usingthe grip under the headlamp casing andremove it downwards with bulb.
XTurn defective bulb counter-clockwise andremove it from bulb holderC.
XInsert new bulb into bulb holderC.
XInsert bulb holderC, turn it clockwise andlock.
XReplace the cover in the front wheel housing(Ypage 115).
Removing and installing the cover in the
front wheel housing
You must remove the cover of the front wheelhousing before you can change the front turnsignal lamp.
XTo remove:switch off the lights.
XTurn the front wheels inwards.
XTurn rotary knobC180° outwards until itstops using a suitable object.CoverDis released.
XFold coverDup.
XTo install:insert coverDinto the left, rightand two lower catches.
XTurn rotary knobC180° inwards until itstops using a suitable object.CoverDis locked.
Windshield wipers
Switching the windshield wipers
on/off
!Do not operate the windshield wipers whenthe windshield is dry, as this could damagethe wiper blades. Moreover, dust that has col-lected on the windshield can scratch the glassif wiping takes place when the windshield isdry.
If it is necessary to switch on the windshieldwipers in dry weather conditions, always usewasher fluid when operating the windshieldwipers.
!If the windshield wipers leave smears on thewindshield after the vehicle has been washedin an automatic car wash, wax or other resi-dues may be the reason for this. Clean thewindshield using washer fluid after washingthe vehicle in an automatic car wash.
!Intermittent wiping with rain sensor: due tooptical influences and the windshield becom-ing dirty in dry weather conditions, the wind-shield wipers may be activated inadvertently.This could then damage the windshield wiperblades or scratch the windshield.

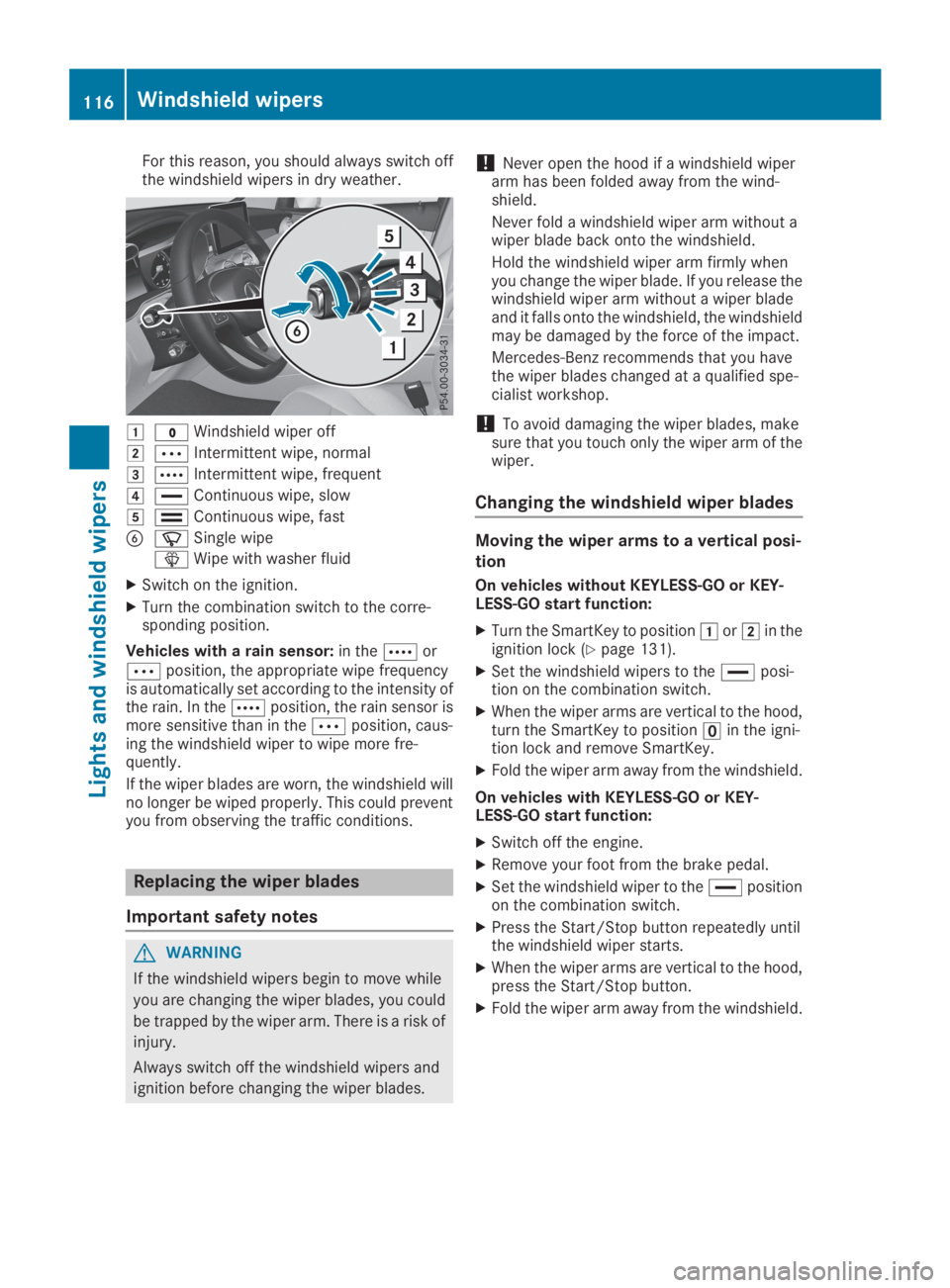

Windshield wipers115
Lights and windshield wipers
Z

For this reason, you should always switch offthe windshield wipers in dry weather.
G?Windshield wiper off
HbIntermittent wipe, normal
IcIntermittent wipe, frequent
J

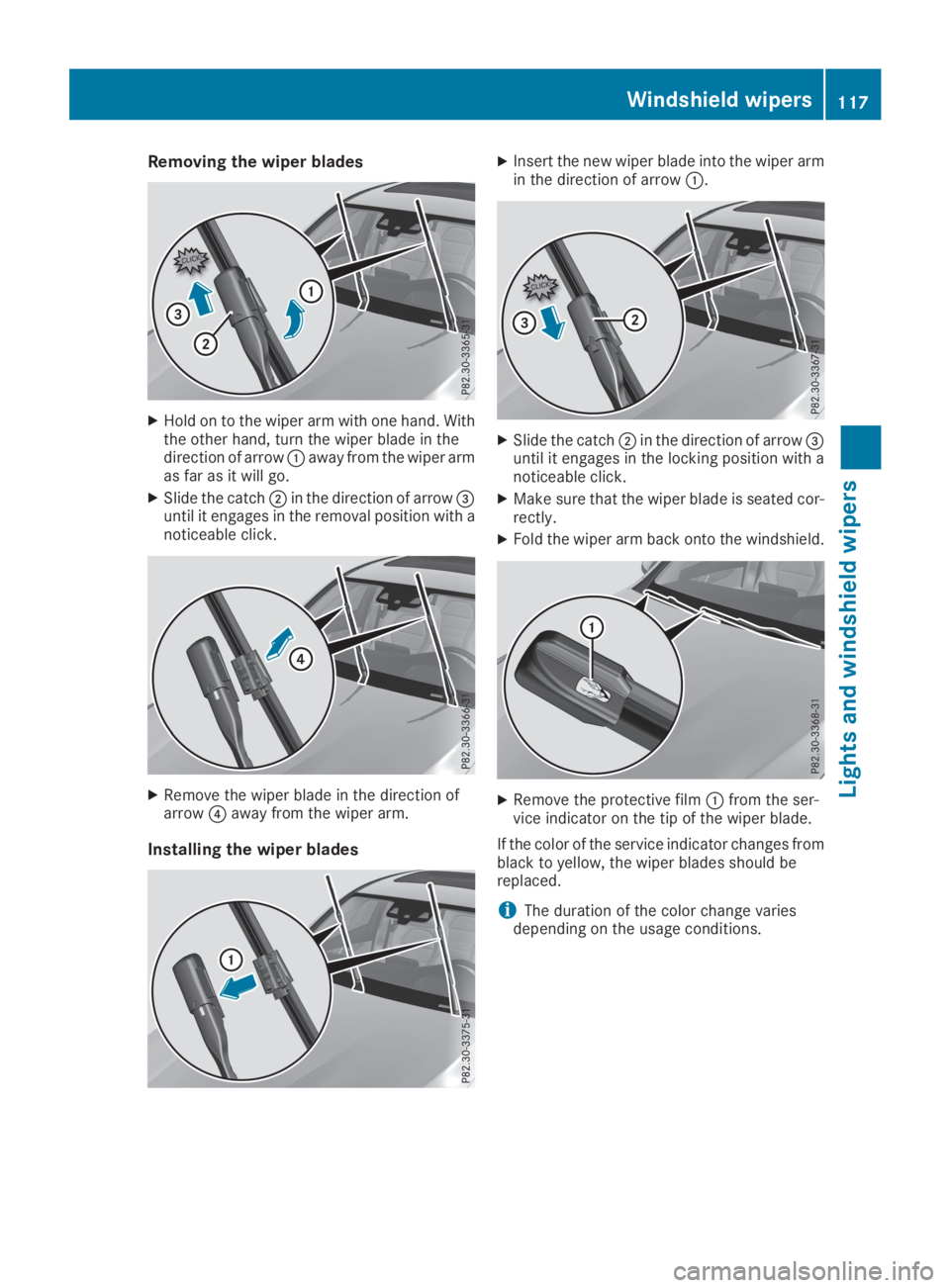

Removing the wiper blades
XHold on to the wiper arm with one hand. Withthe other hand, turn the wiper blade in thedirection of arrowCaway from the wiper armas far as it will go.
XSlide the catchDin the direction of arrow

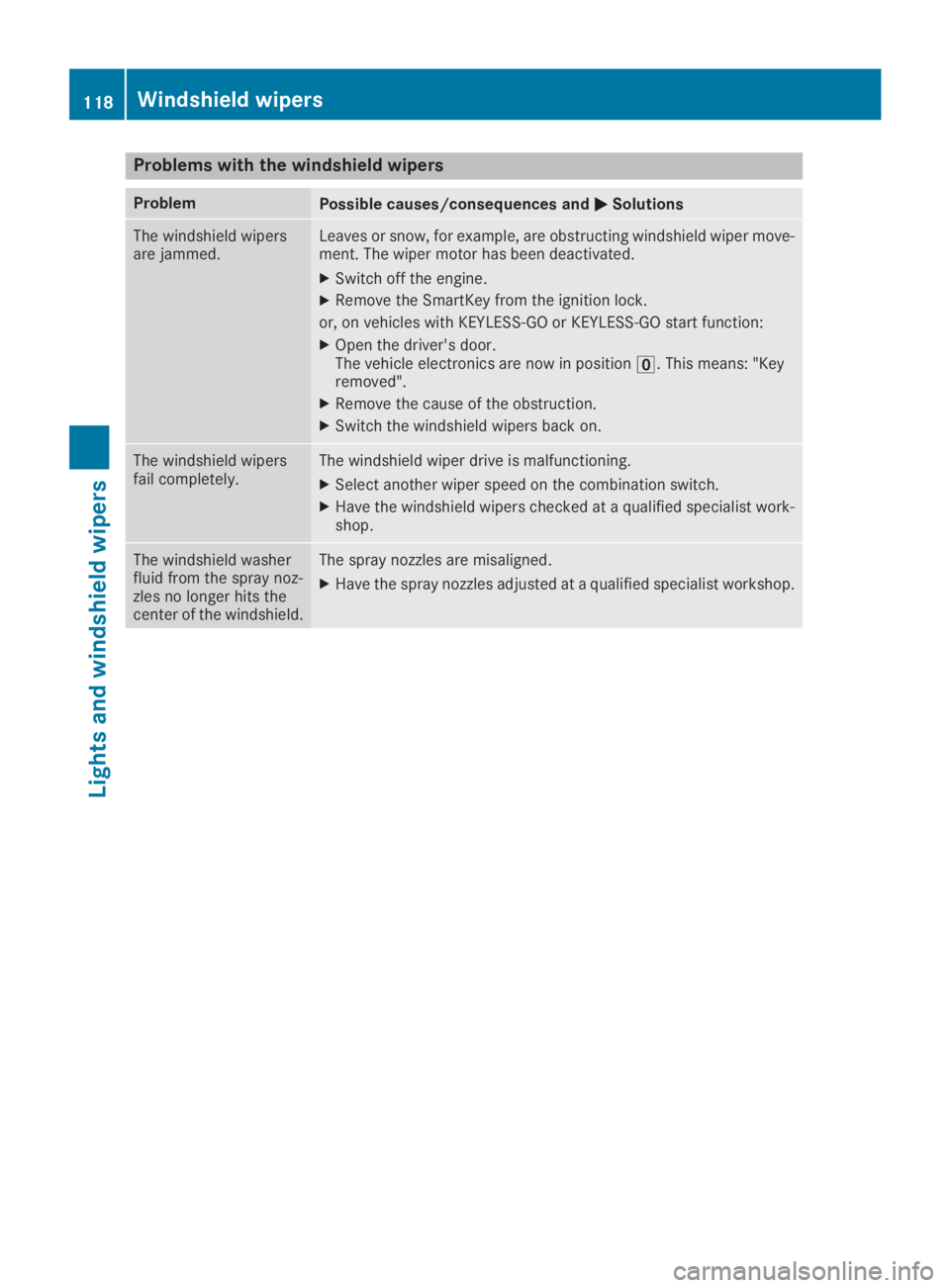

Problems with the windshield wipers
ProblemPossible causes/consequences andPPSolutions
The windshield wipersare jammed.Leaves or snow, for example, are obstructing windshield wiper move-ment. The wiper motor has been deactivated.
XSwitch off the engine.
XRemove the SmartKey from the ignition lock.
or, on vehicles with KEYLESS-GO or KEYLESS‑GO start function:
XOpen the driver's door.The vehicle electronics are now in position
