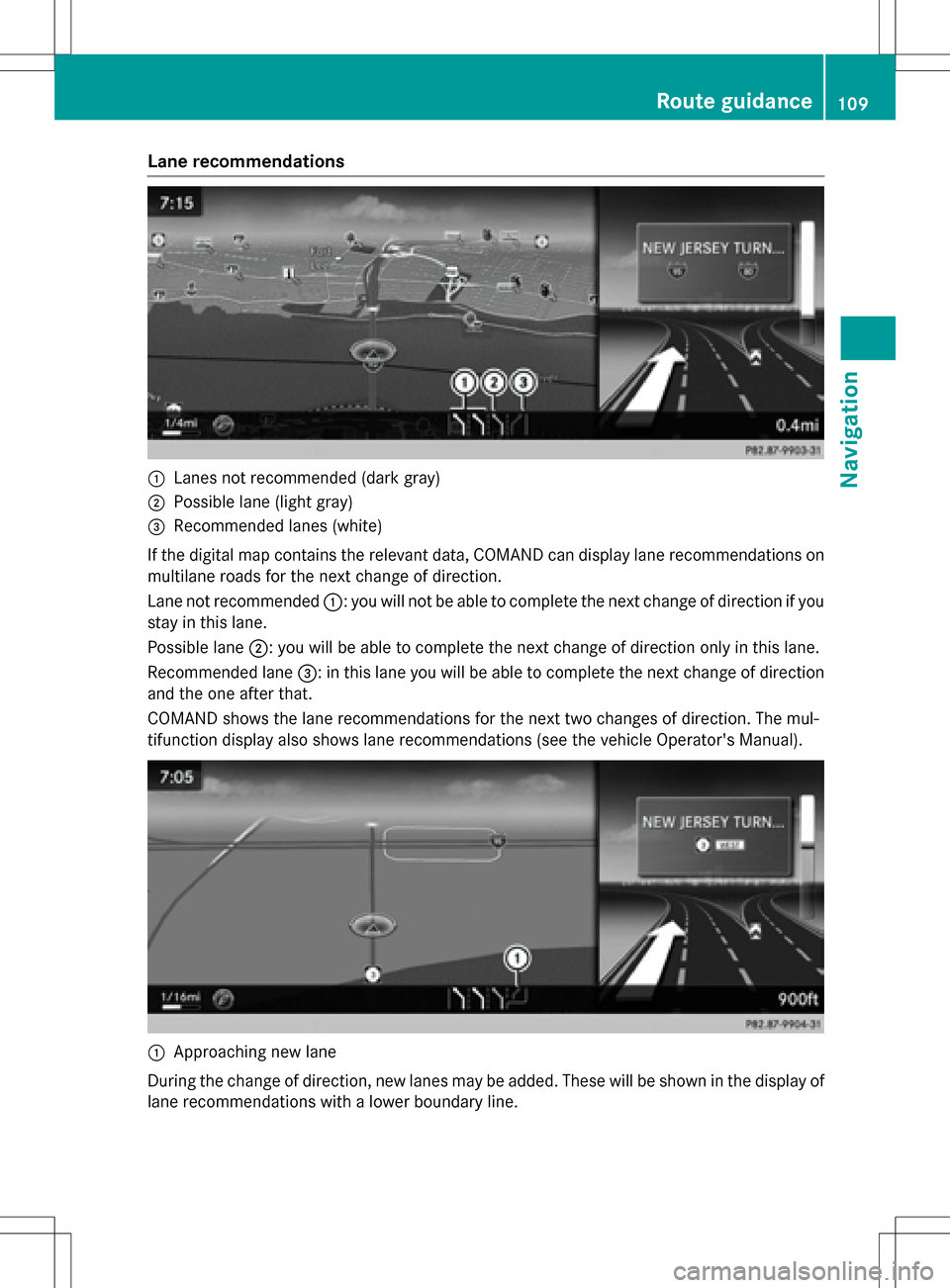

Lane recommendations
:Lanes not recommended (dark gray)
;Possible lane (light gray)
=Recommended lanes (white)
If the digital map contains the relevant data, COMAND can display lane recommendations on multilane roads for the next change of direction.
Lane not recommended :: you will not be able to complete the next change of direction if you
stay in this lane.
Possible lane ;: you will be able to complete the next change of direction only in this lane.
Recommended lane =: in this lane you will be able to complete the next change of direction
and the one after that.
COMAND shows the lane recommendations for the next two changes of direction. The mul-
tifunction display also shows lane recommendations (see the vehicle Operator's Manual).
:Approaching new lane
During the change of direction, new lanes may be added. These will be shown in the display of
lane recommendations with a lower boundary line.
Route guidance109
Navigation
Z

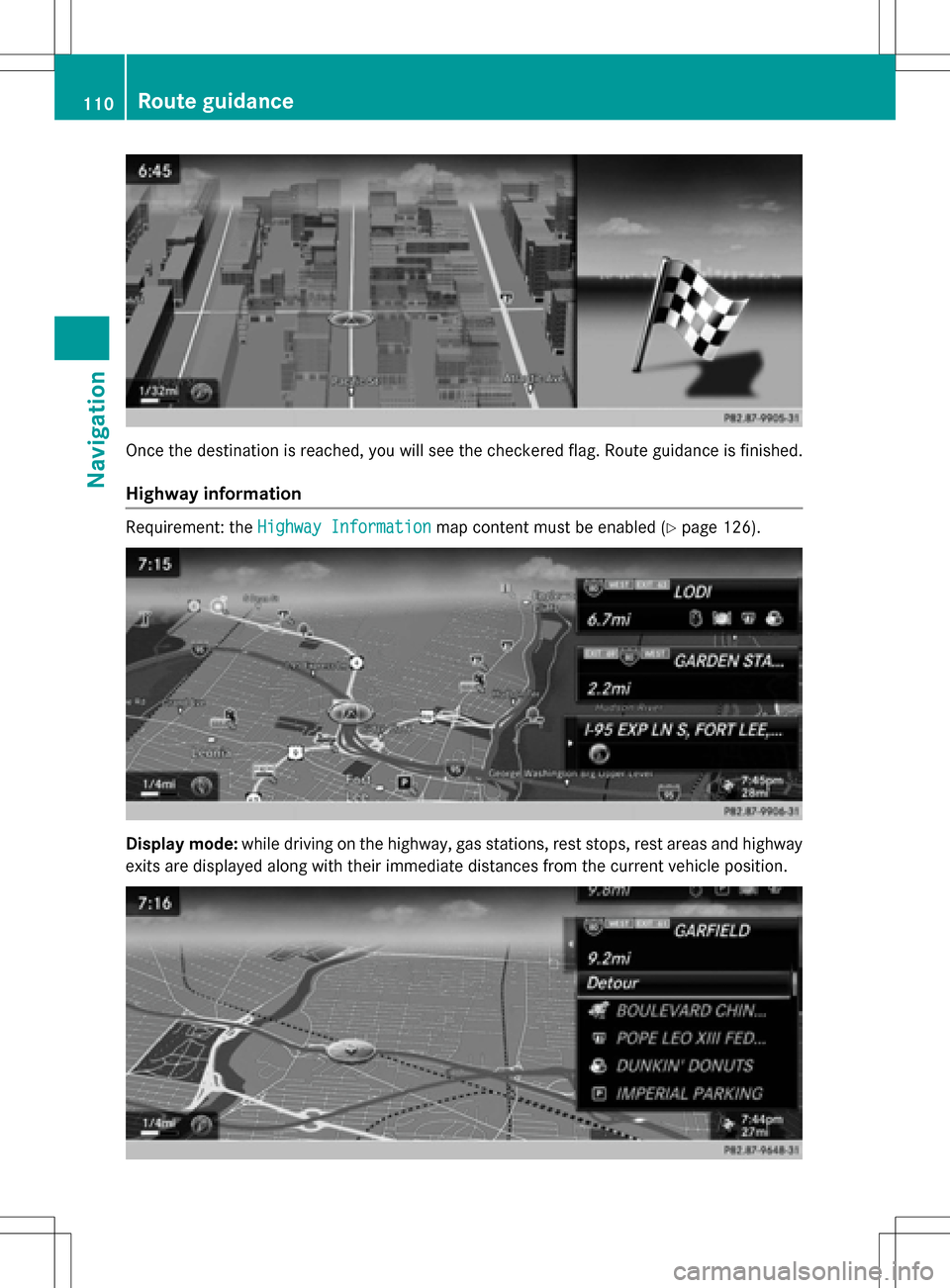

Once the destination is reached, you will see the checkered flag. Route guidance is finished.
Highway information
Requirement: theHighway Informationmap content must be enabled (Ypage 126).
Display mode:while driving on the highway, gas stations, rest stops, rest areas and highway
exits are displayed along with their immediate distances from the current vehicle position.
110Route guidance
Navigation

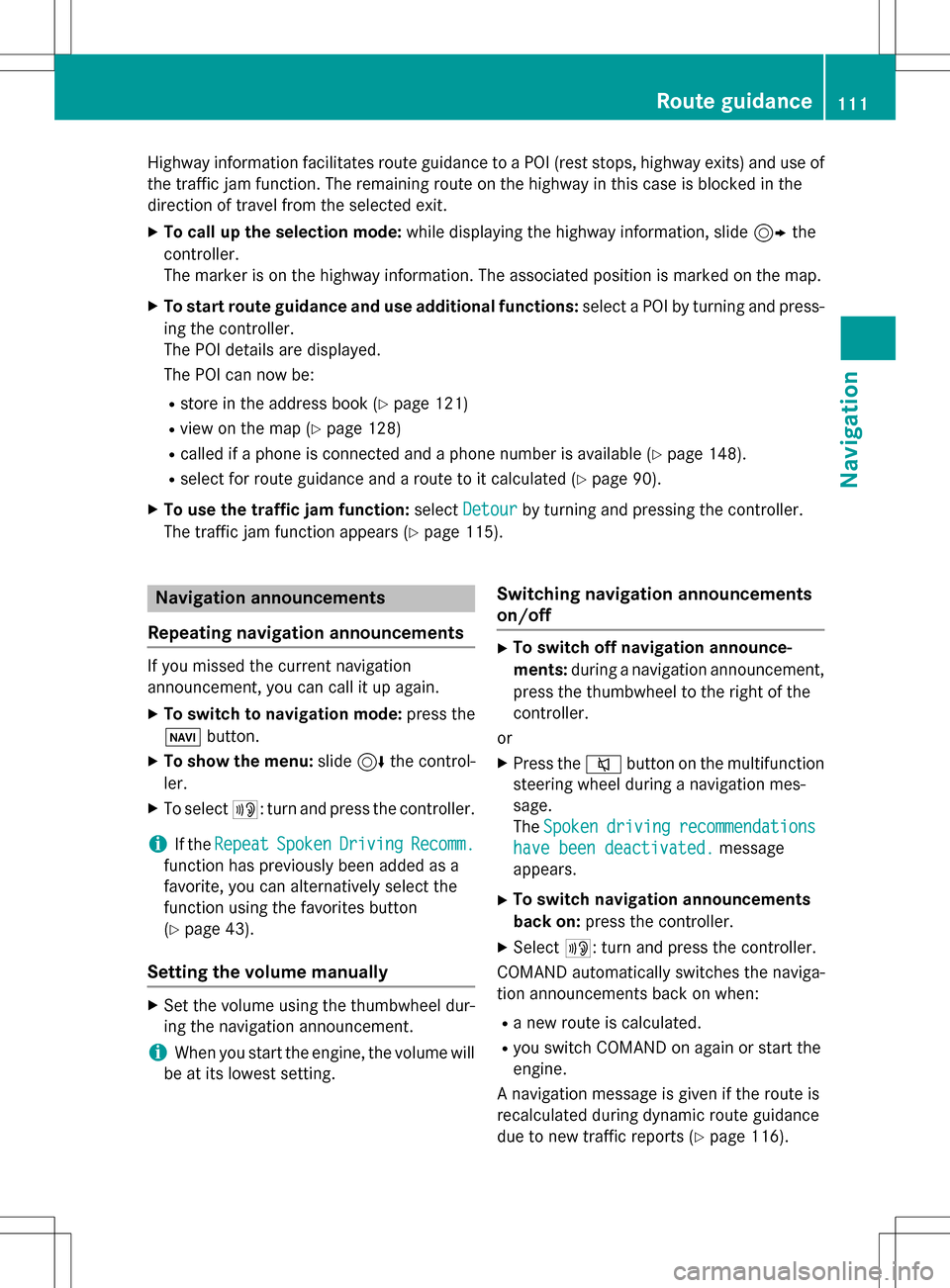

Highway information facilitates route guidance to a POI (rest stops, highway exits) and use of
the traffic jam function. The remaining route on the highway in this case is blocked in the
direction of travel from the selected exit.
XTo call up the selection mode:while displaying the highway information, slide 9the
controller.
The marker is on the highway information. The associated position is marked on the map.
XTo start route guidance and use additional functions: select a POI by turning and press-
ing the controller.
The POI details are displayed.
The POI can now be:
Rstore in the address book (Ypage 121)
Rview on the map (Ypage 128)
Rcalled if a phone is connected and a phone number is available (Ypage 148).
Rselect for route guidance and a route to it calculated (Ypage 90).
XTo use the traffic jam function: selectDetourby turning and pressing the controller.
The traffic jam function appears (
Ypage 115).
Navigation announcements
Repeating navigation announcements
If you missed the current navigation
announcement, you can call it up again.
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the control-
ler.
XTo select +: turn and press the controller.
iIf theRepeatSpokenDrivingRecomm.
function has previously been added as a
favorite, you can alternatively select the
function using the favorites button
(
Ypage 43).
Setting the volume manually
XSet the volume using the thumbwheel dur-
ing the navigation announcement.
iWhen you start the engine, the volume will
be at its lowest setting.
Switching navigation announcements
on/off
XTo switch off navigation announce-
ments: during a navigation announcement,
press the thumbwheel to the right of the
controller.
or
XPress the 8button on the multifunction
steering wheel during a navigation mes-
sage.
The Spoken
drivingrecommendations
have been deactivated.message
appears.
XTo switch navigation announcements
back on: press the controller.
XSelect+: turn and press the controller.
COMAND automatically switches the naviga-
tion announcements back on when:
Ra new route is calculated.
Ryou switch COMAND on again or start the
engine.
A navigation message is given if the route is
recalculated during dynamic route guidance
due to new traffic reports (
Ypage 116).
Route guidance111
Navigation
Z

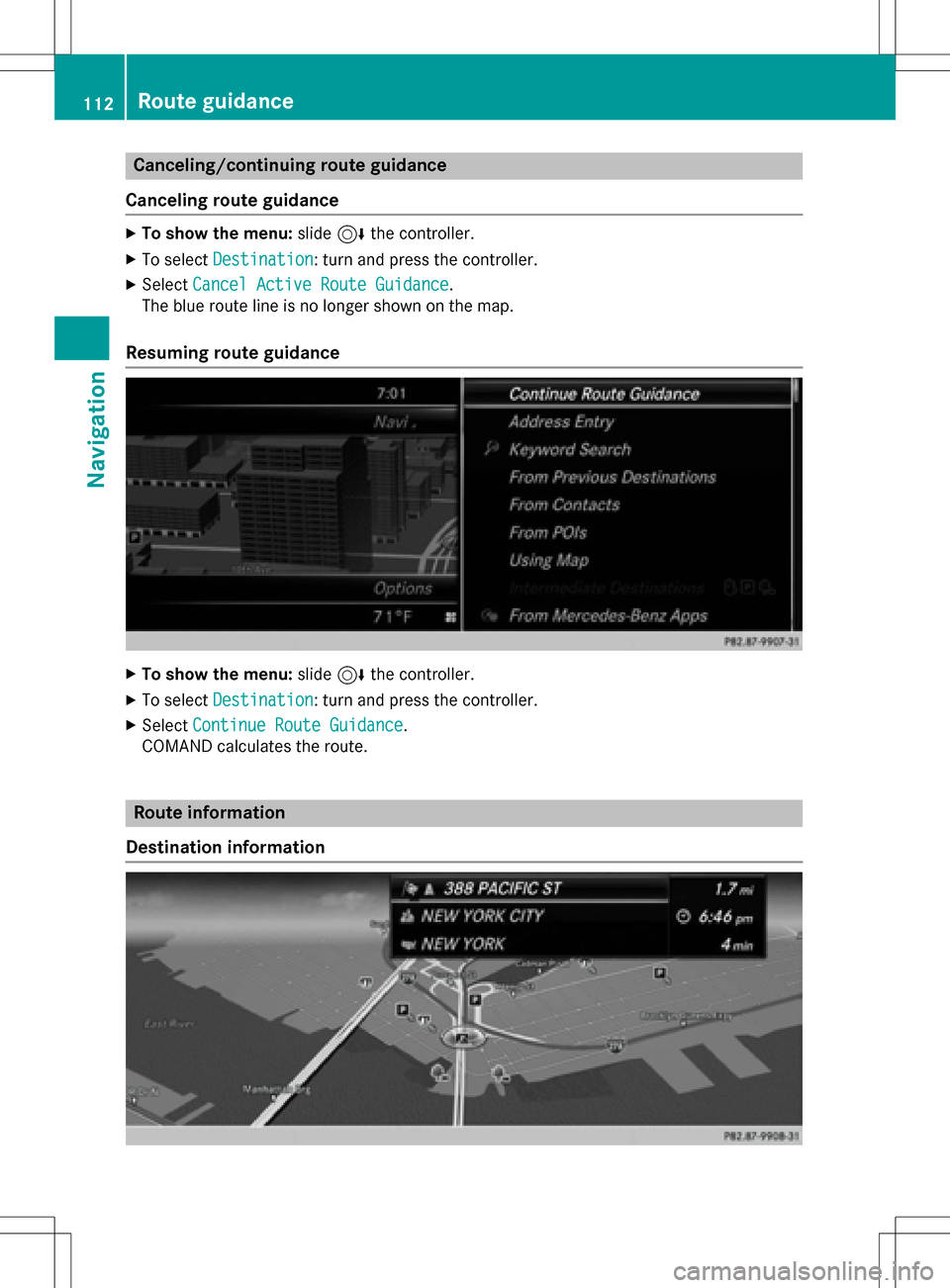

Canceling/continuing route guidance
Canceling route guidance
XTo show the menu: slide6the controller.
XTo select Destination: turn and press the controller.
XSelectCancel Active Route Guidance.
The blue route line is no longer shown on the map.
Resuming route guidance
XTo show the menu: slide6the controller.
XTo select Destination: turn and press the controller.
XSelectContinue Route Guidance.
COMAND calculates the route.
Route information
Destination information
112Route guidance
Navigation

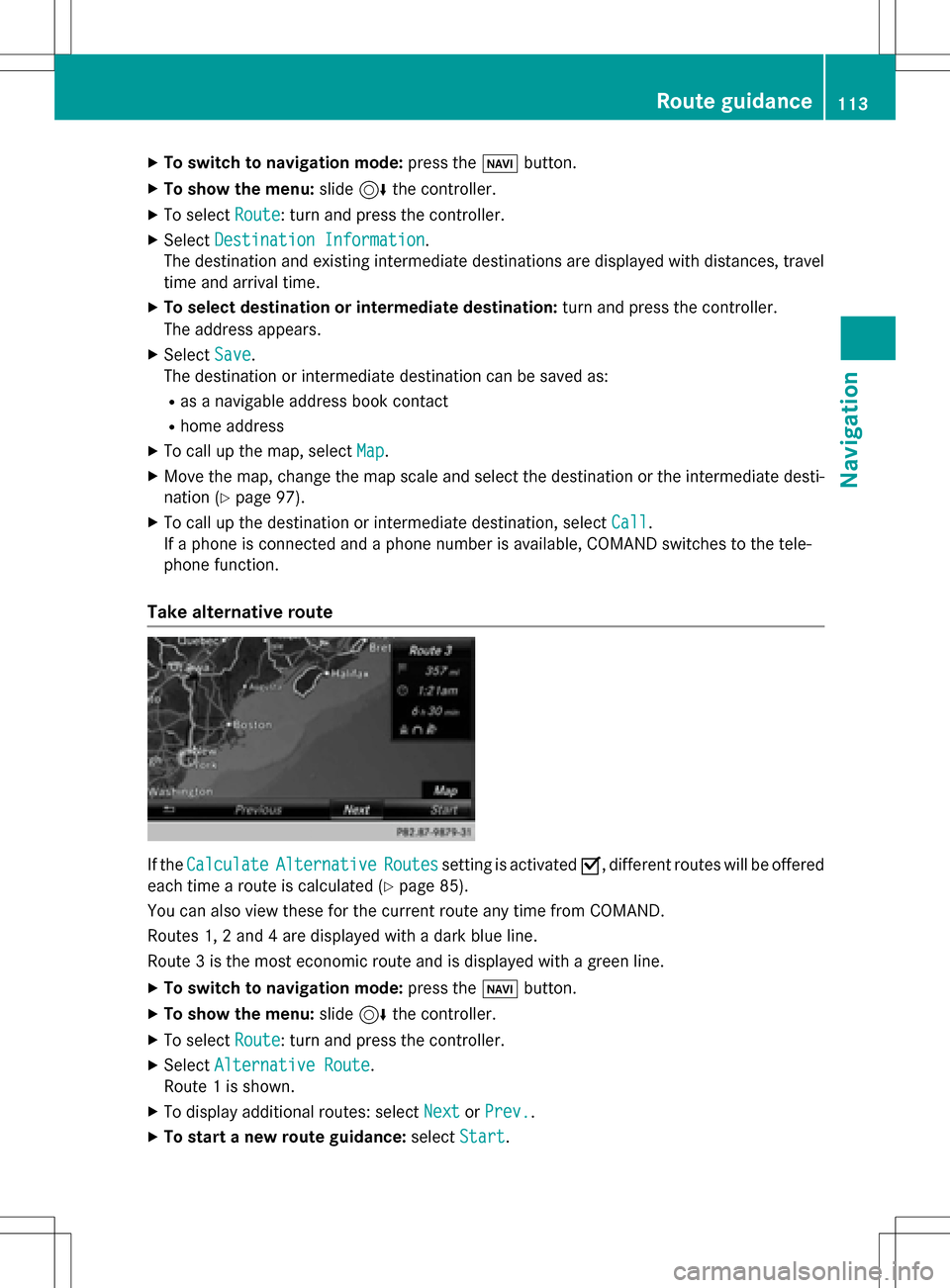

XTo switch to navigation mode:press theØbutton.
XTo show the menu: slide6the controller.
XTo select Route: turn and press the controller.
XSelectDestination Information.
The destination and existing intermediate destinations are displayed with distances, travel
time and arrival time.
XTo select destination or intermediate destination: turn and press the controller.
The address appears.
XSelect Save.
The destination or intermediate destination can be saved as:
Ras a navigable address book contact
Rhome address
XTo call up the map, select Map.
XMove the map, change the map scale and select the destination or the intermediate desti-
nation (
Ypage 97).
XTo call up the destination or intermediate destination, select Call.
If a phone is connected and a phone number is available, COMAND switches to the tele-
phone function.
Take alternative route
If the CalculateAlternativeRoutessetting is activated O, different routes will be offered
each time a route is calculated (
Ypage 85).
You can also view these for the current route any time from COMAND.
Routes 1, 2 and 4 are displayed with a dark blue line.
Route 3 is the most economic route and is displayed with a green line.
XTo switch to navigation mode: press theØbutton.
XTo show the menu: slide6the controller.
XTo select Route: turn and press the controller.
XSelectAlternative Route.
Route 1 is shown.
XTo display additional routes: select NextorPrev..
XTo start a new route guidance: selectStart.
Route guidance113
Navigation
Z

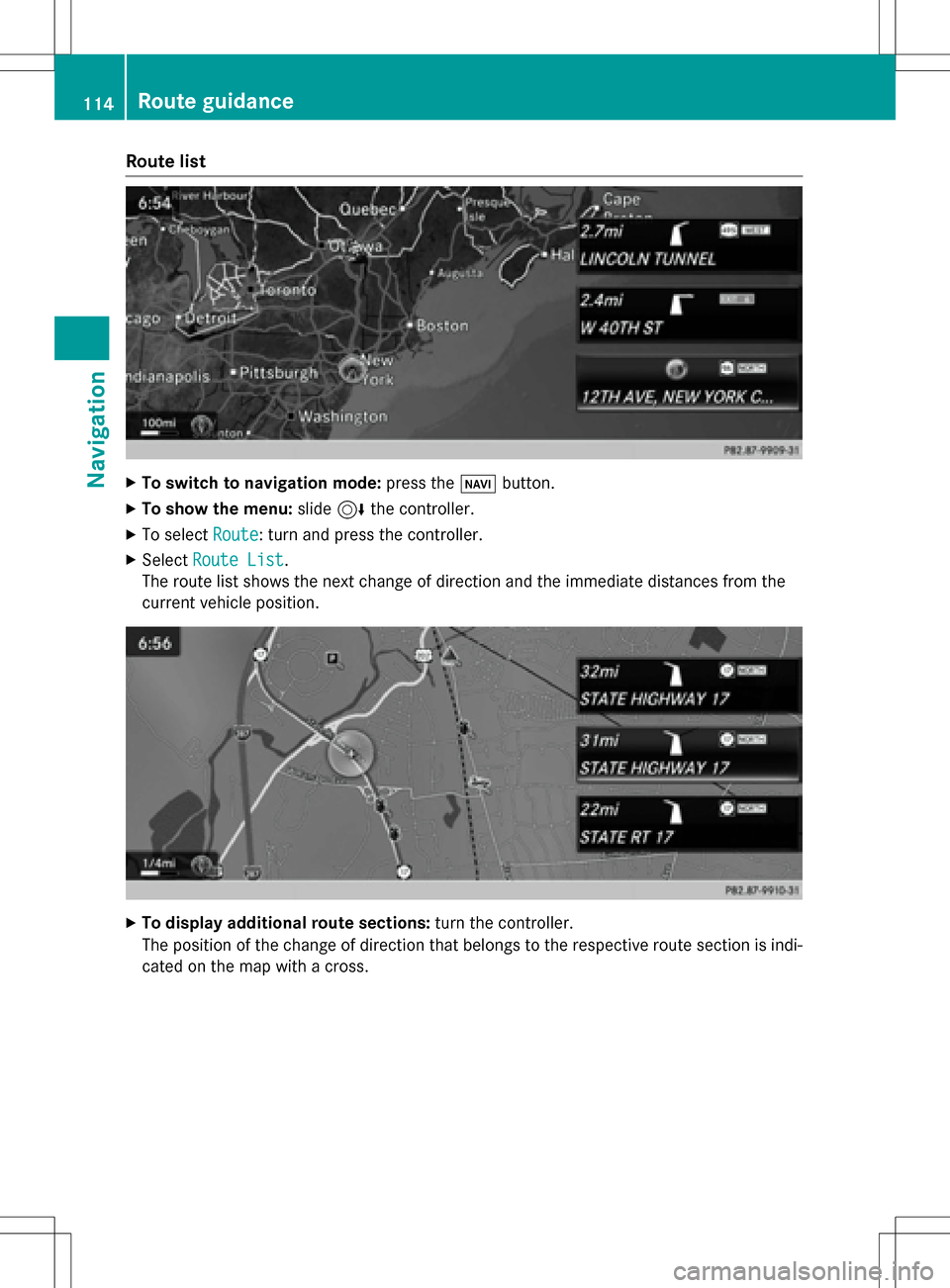

Route list
XTo switch to navigation mode:press theØbutton.
XTo show the menu: slide6the controller.
XTo select Route: turn and press the controller.
XSelectRoute List.
The route list shows the next change of direction and the immediate distances from the
current vehicle position.
XTo display additional route sections: turn the controller.
The position of the change of direction that belongs to the respective route section is indi- cated on the map with a cross.
114Route guidance
Navigation

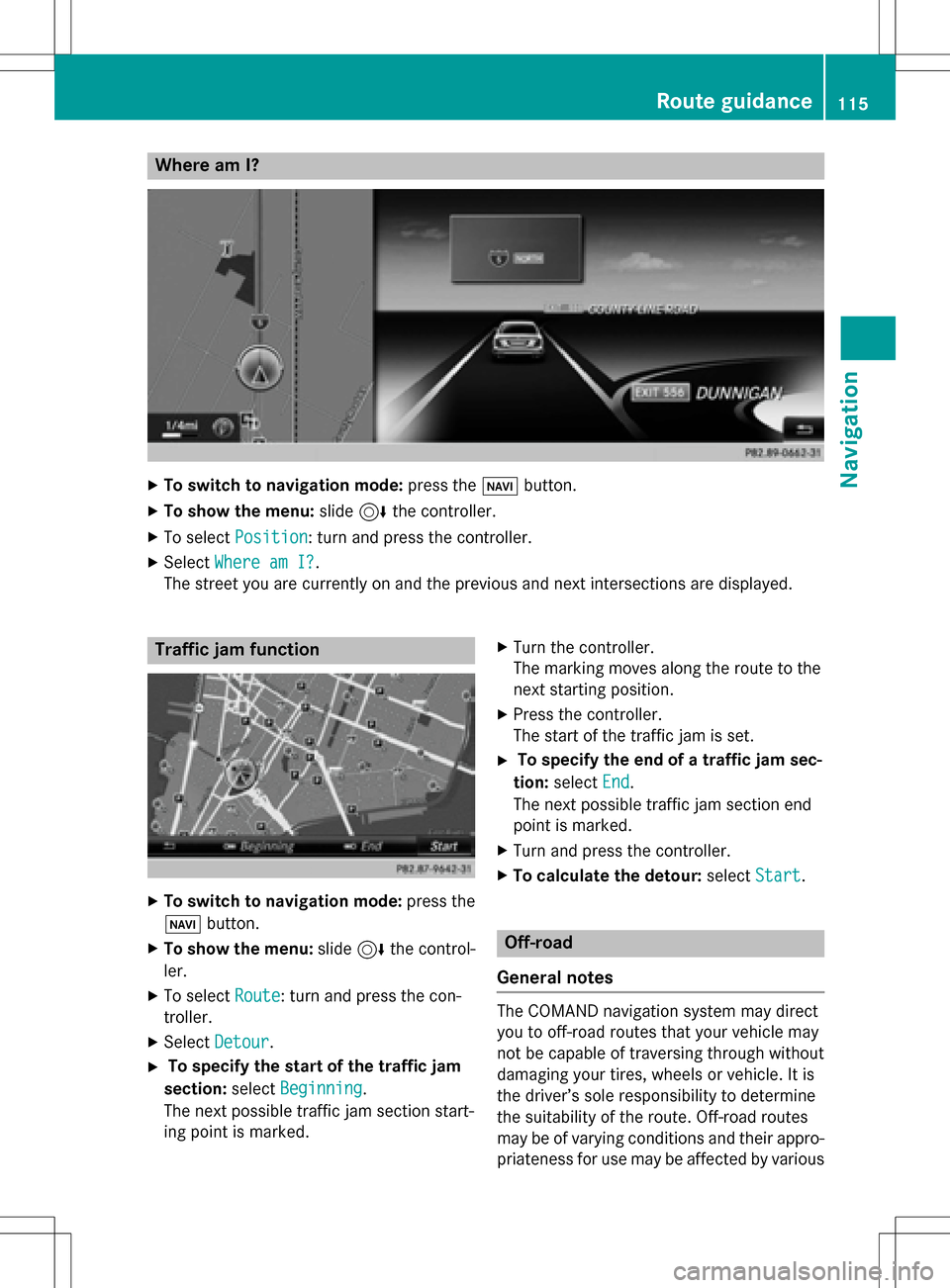

Where am I?
XTo switch to navigation mode:press theØbutton.
XTo show the menu: slide6the controller.
XTo select Position: turn and press the controller.
XSelectWhere am I?.
The street you are currently on and the previous and next intersections are displayed.
Traffic jam function
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the control-
ler.
XTo select Route: turn and press the con-
troller.
XSelect Detour.
XTo specify the start of the traffic jam
section: selectBeginning
.
The next possible traffic jam section start-
ing point is marked.
XTurn the controller.
The marking moves along the route to the
next starting position.
XPress the controller.
The start of the traffic jam is set.
XTo specify the end of a traffic jam sec-
tion: select End
.
The next possible traffic jam section end
point is marked.
XTurn and press the controller.
XTo calculate the detour: selectStart.
Off-road
General notes
The COMAND navigation system may direct
you to off-road routes that your vehicle may
not be capable of traversing through without
damaging your tires, wheels or vehicle. It is
the driver’s sole responsibility to determine
the suitability of the route. Off-road routes
may be of varying conditions and their appro-
priateness for use may be affected by various
Route guidance115
Navigation
Z

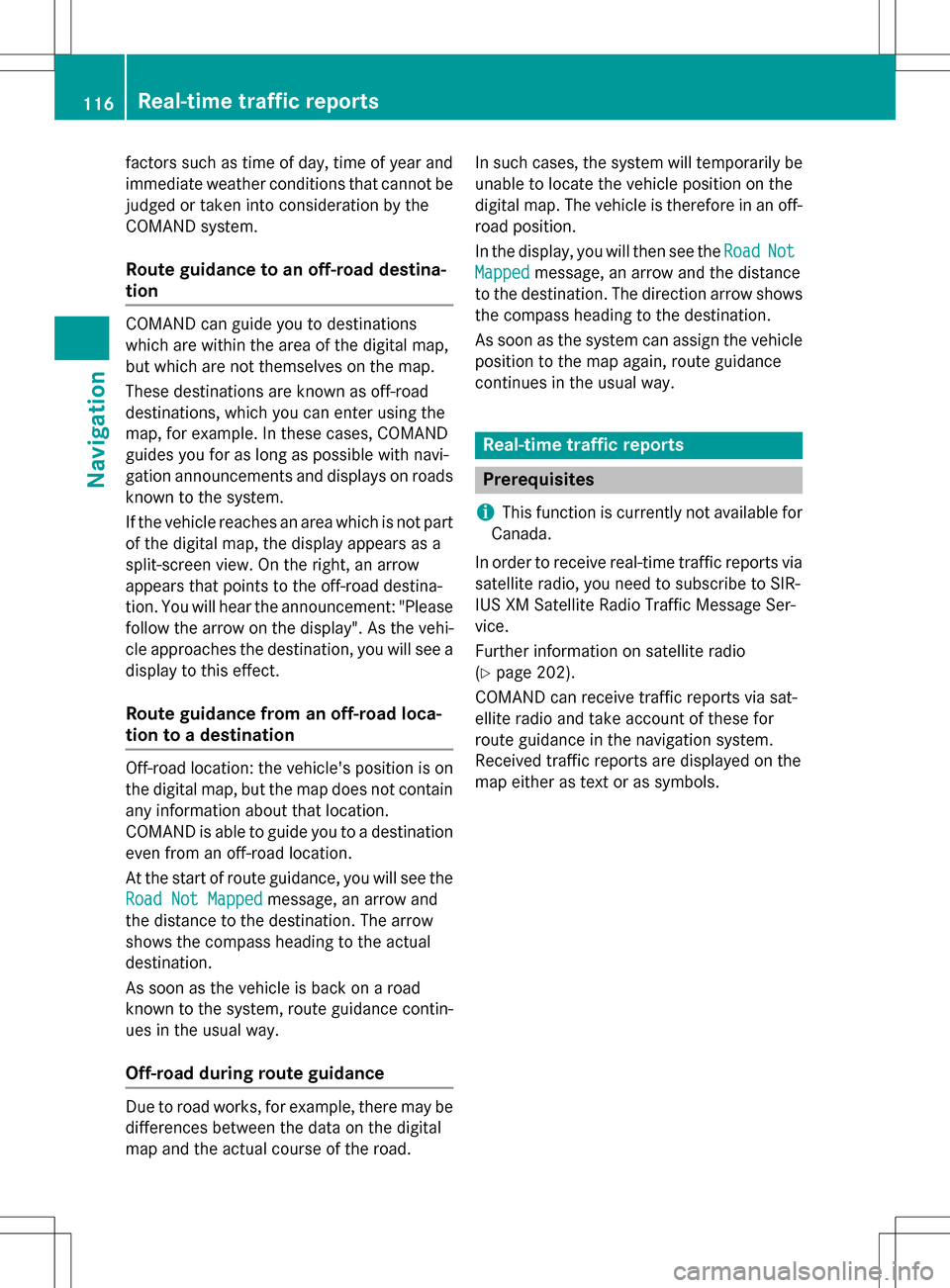

factors such as time of day, time of year and
immediate weather conditions that cannot be
judged or taken into consideration by the
COMAND system.
Route guidance to an off-road destina-
tion
COMAND can guide you to destinations
which are within the area of the digital map,
but which are not themselves on the map.
These destinations are known as off-road
destinations, which you can enter using the
map, for example. In these cases, COMAND
guides you for as long as possible with navi-
gation announcements and displays on roads
known to the system.
If the vehicle reaches an area which is not part
of the digital map, the display appears as a
split-screen view. On the right, an arrow
appears that points to the off-road destina-
tion. You will hear the announcement: "Please
follow the arrow on the display". As the vehi-
cle approaches the destination, you will see a
display to this effect.
Route guidance from an off-road loca-
tion to a destination
Off-road location: the vehicle's position is on
the digital map, but the map does not contain
any information about that location.
COMAND is able to guide you to a destination
even from an off-road location.
At the start of route guidance, you will see the
Road Not Mapped
message, an arrow and
the distance to the destination. The arrow
shows the compass heading to the actual
destination.
As soon as the vehicle is back on a road
known to the system, route guidance contin-
ues in the usual way.
Off-road during route guidance
Due to road works, for example, there may be
differences between the data on the digital
map and the actual course of the road. In such cases, the system will temporarily be
unable to locate the vehicle position on the
digital map. The vehicle is therefore in an off-
road position.
In the display, you will then see the Road
Not
Mappedmessage, an arrow and the distance
to the destination. The direction arrow shows
the compass heading to the destination.
As soon as the system can assign the vehicle
position to the map again, route guidance
continues in the usual way.
Real-time traffic reports
Prerequisites
i
This function is currently not available for
Canada.
In order to receive real-time traffic reports via
satellite radio, you need to subscribe to SIR-
IUS XM Satellite Radio Traffic Message Ser-
vice.
Further information on satellite radio
(
Ypage 202).
COMAND can receive traffic reports via sat-
ellite radio and take account of these for
route guidance in the navigation system.
Received traffic reports are displayed on the
map either as text or as symbols.
116Real-time traffic reports
Navigation

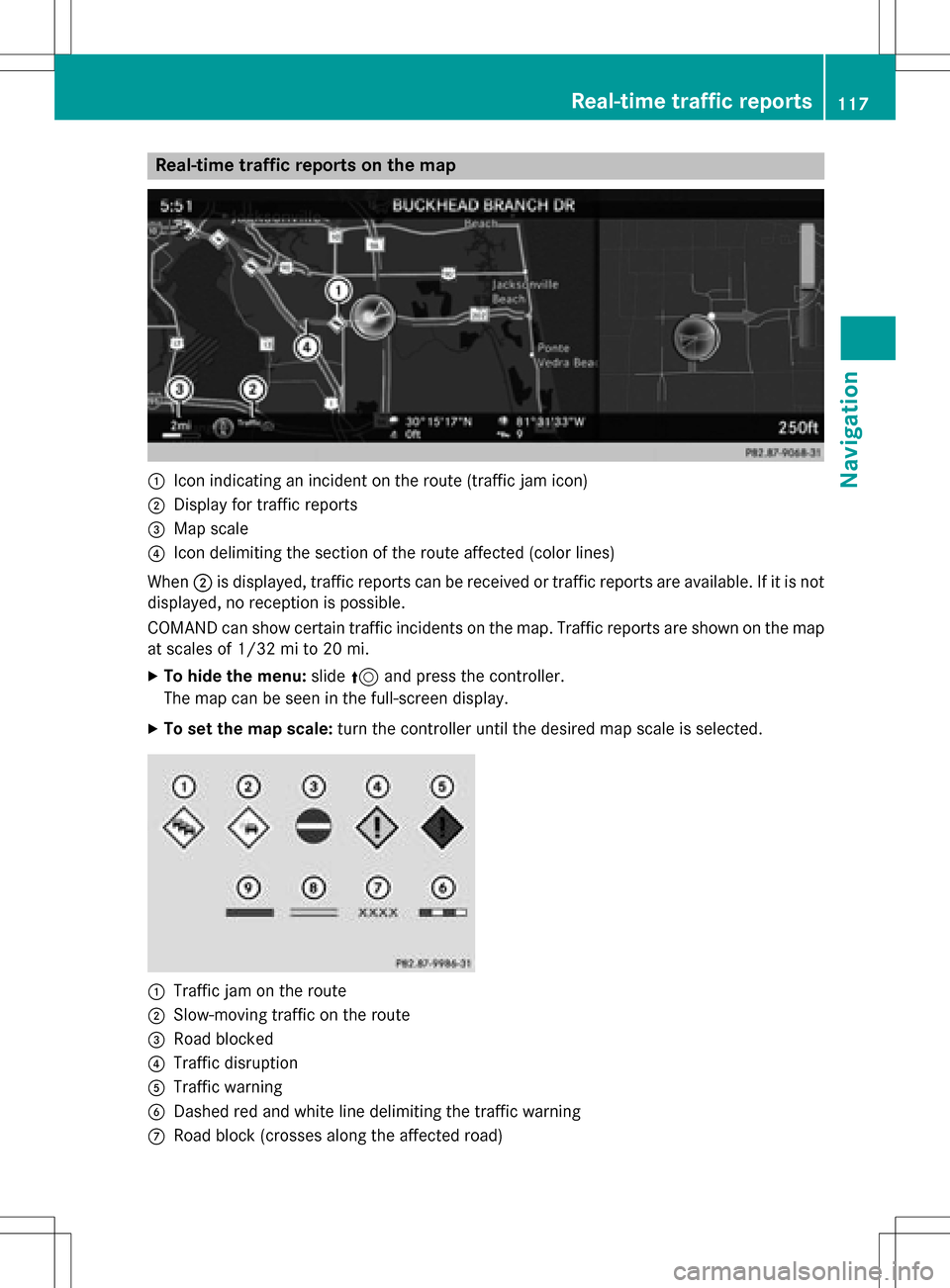

Real-time traffic reports on the map
:Icon indicating an incident on the route (traffic jam icon)
;Display for traffic reports
=Map scale
?Icon delimiting the section of the route affected (color lines)
When ;is displayed, traffic reports can be received or traffic reports are available. If it is not
displayed, no reception is possible.
COMAND can show certain traffic incidents on the map. Traffic reports are shown on the map
at scales of 1/32 mi to 20 mi.
XTo hide the menu: slide5and press the controller.
The map can be seen in the full-screen display.
XTo set the map scale: turn the controller until the desired map scale is selected.
:Traffic jam on the route
;Slow-moving traffic on the route
=Road blocked
?Traffic disruption
ATraffic warning
BDashed red and white line delimiting the traffic warning
CRoad block (crosses along the affected road)
Real-time traffic reports117
Navigation
Z

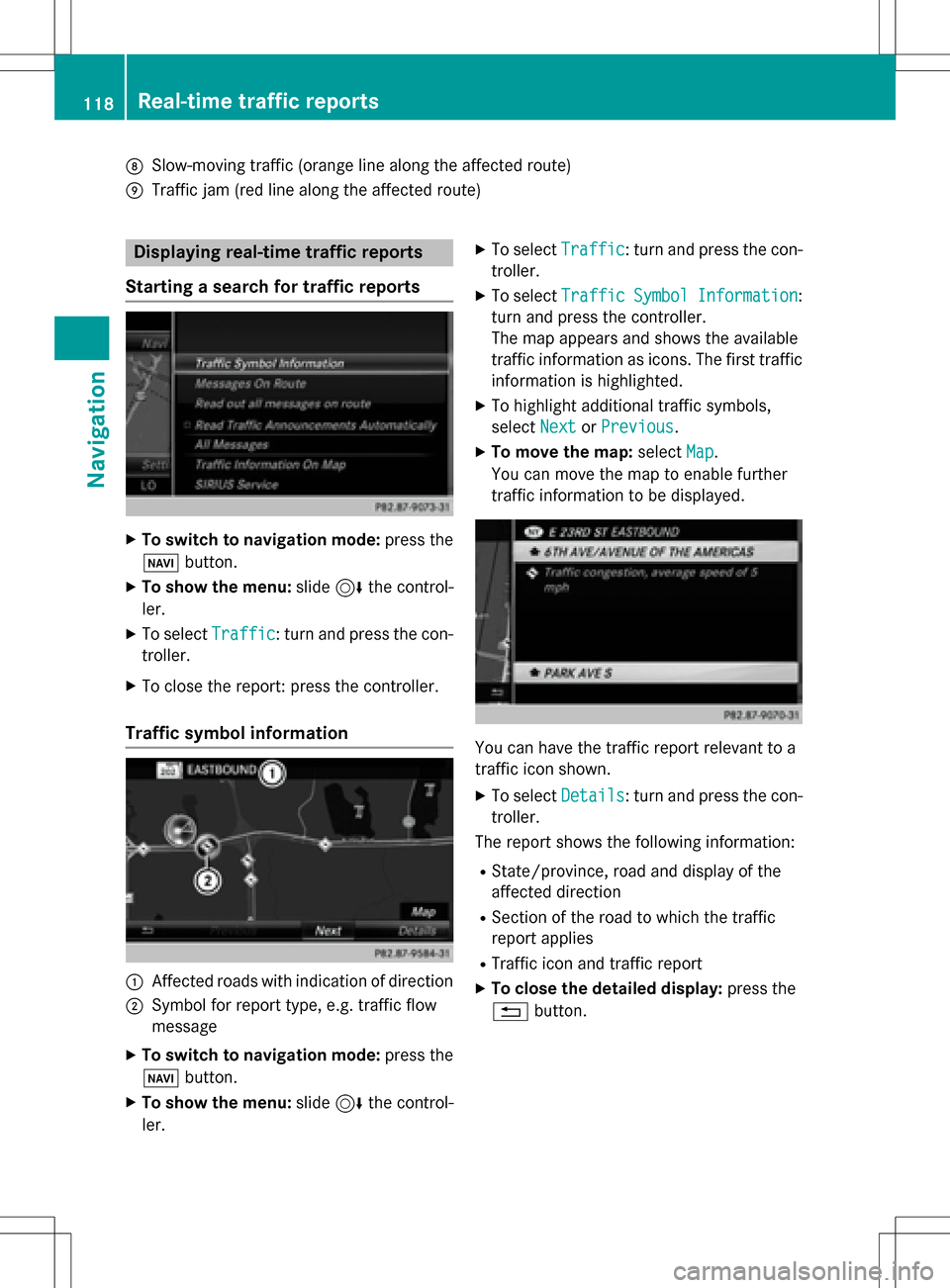

DSlow-moving traffic (orange line along the affected route)
ETraffic jam (red line along the affected route)
Displaying real-time traffic reports
Starting a search for traffic reports
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the control-
ler.
XTo select Traffic: turn and press the con-
troller.
XTo close the report: press the controller.
Traffic symbol information
:Affected roads with indication of direction
;Symbol for report type, e.g. traffic flow
message
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the control-
ler.
XTo select Traffic: turn and press the con-
troller.
XTo select TrafficSymbolInformation:
turn and press the controller.
The map appears and shows the available
traffic information as icons. The first traffic
information is highlighted.
XTo highlight additional traffic symbols,
select Next
orPrevious.
XTo move the map: selectMap.
You can move the map to enable further
traffic information to be displayed.
You can have the traffic report relevant to a
traffic icon shown.
XTo select Details: turn and press the con-
troller.
The report shows the following information:
RState/province, road and display of the
affected direction
RSection of the road to which the traffic
report applies
RTraffic icon and traffic report
XTo close the detailed display: press the
% button.
118Real-time traffic reports
Navigation
