MERCEDES-BENZ SL-Class 2015 R131 Owner's Manual

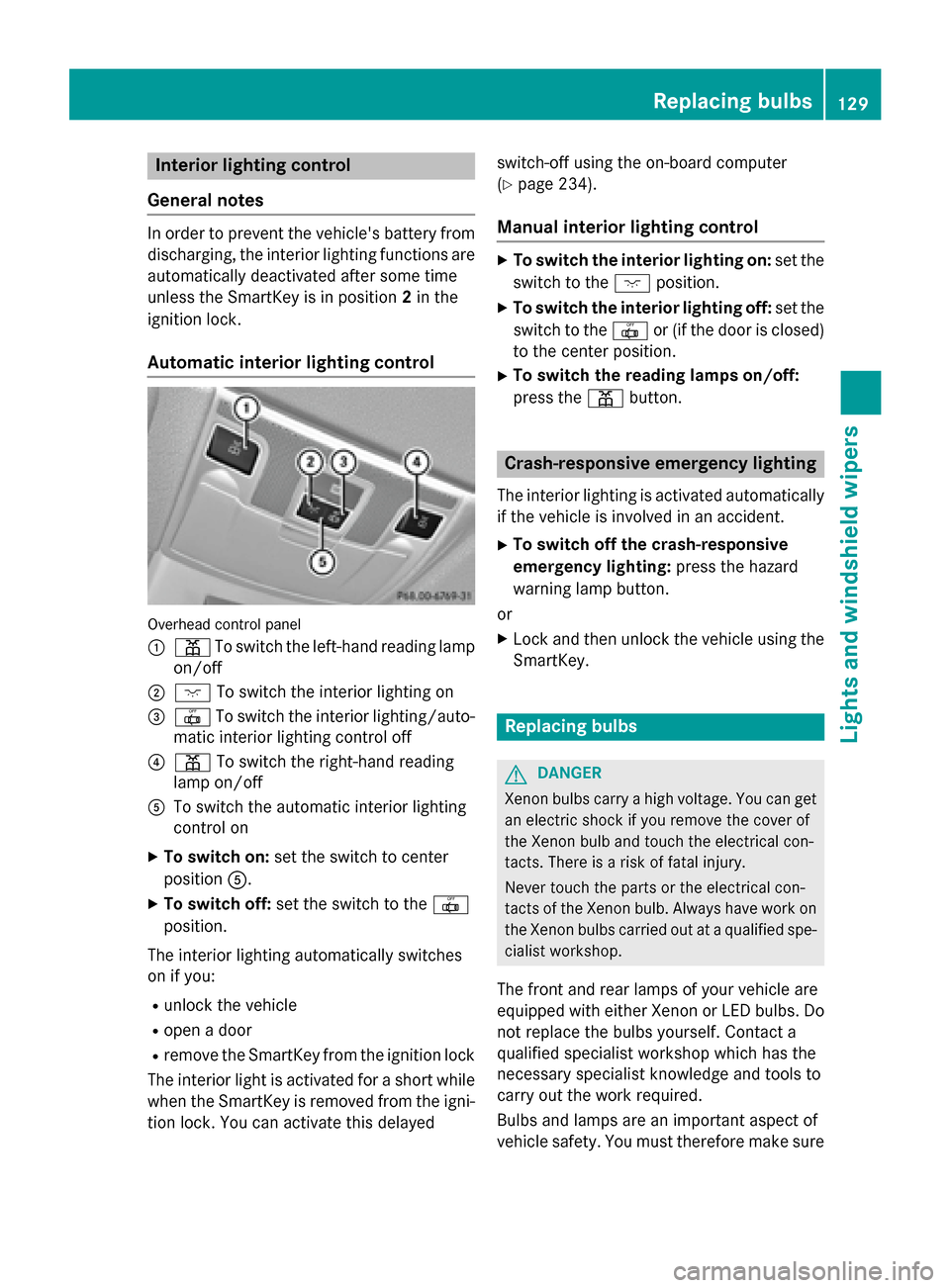

Interior lighting control
General notes In order to prevent the vehicle's battery from
discharging, the interior lighting functions are
automatically deactivated after some time
unless the SmartKey is in position 2in the
ignition lock.
Automatic interior lighting control Overhead control panel
0043 003D To switch the left-hand reading lamp
on/off
0044 004A To switch the interior lighting on
0087 0033 To switch the interior lighting/auto-
matic interior lighting control off
0085 003D To switch the right-hand reading
lamp on/off
0083 To switch the automatic interior lighting
control on
X To switch on: set the switch to center
position 0083.
X To switch off: set the switch to the 0033
position.
The interior lighting automatically switches
on if you:
R unlock the vehicle
R open a door
R remove the SmartKey from the ignition lock
The interior light is activated for a short while when the SmartKey is removed from the igni-
tion lock. You can activate this delayed switch-off using the on-board computer
(Y
page 234).
Manual interior lighting control X
To switch the interior lighting on: set the
switch to the 004Aposition.
X To switch the interior lighting off: set the
switch to the 0033or (if the door is closed)
to the center position.
X To switch the reading lamps on/off:
press the 003Dbutton. Crash-responsive emergency lighting
The interior lighting is activated automatically
if the vehicle is involved in an accident.
X To switch off the crash-responsive
emergency lighting: press the hazard
warning lamp button.
or X Lock and then unlock the vehicle using the
SmartKey. Replacing bulbs
G
DANGER
Xenon bulbs carry a high voltage. You can get an electric shock if you remove the cover of
the Xenon bulb and touch the electrical con-
tacts. There is a risk of fatal injury.
Never touch the parts or the electrical con-
tacts of the Xenon bulb. Always have work on
the Xenon bulbs carried out at a qualified spe-
cialist workshop.
The front and rear lamps of your vehicle are
equipped with either Xenon or LED bulbs. Do
not replace the bulbs yourself. Contact a
qualified specialist workshop which has the
necessary specialist knowledge and tools to
carry out the work required.
Bulbs and lamps are an important aspect of
vehicle safety. You must therefore make sure Replacing bulbs
129Lights and windshield wipers Z

that these function correctly at all times.

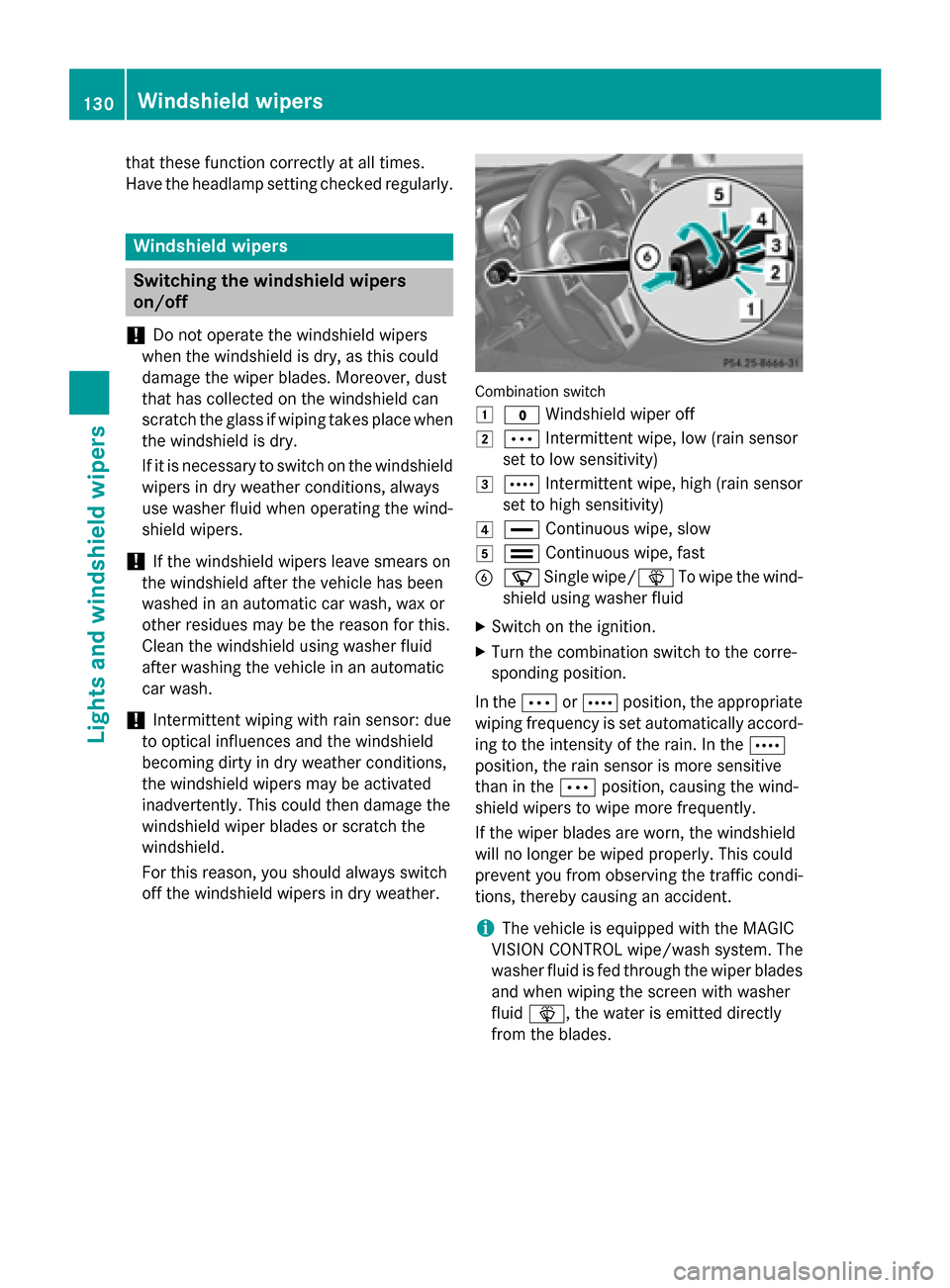

Have the headlamp setting checked regularly. Windshield wipers
Switching the windshield wipers
on/off
! Do not operate the windshield wipers
when the windshield is dry, as this could
damage the wiper blades. Moreover, dust
that has collected on the windshield can
scratch the glass if wiping takes place when the windshield is dry.
If it is necessary to switch on the windshield
wipers in dry weather conditions, always
use washer fluid when operating the wind-
shield wipers.
! If the windshield wipers leave smears on
the windshield after the vehicle has been
washed in an automatic car wash, wax or
other residues may be the reason for this.
Clean the windshield using washer fluid
after washing the vehicle in an automatic
car wash.
! Intermittent wiping with rain sensor: due
to optical influences and the windshield
becoming dirty in dry weather conditions,
the windshield wipers may be activated
inadvertently. This could then damage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather. Combination switch
0047
003F Windshield wiper off
0048 0062 Intermittent wipe, low (rain sensor
set to low sensitivity)
0049 0063 Intermittent wipe, high (rain sensor
set to high sensitivity)
004A 00AA Continuous wipe, slow
004B 00A9 Continuous wipe, fast
0084 00D3 Single wipe/00D4 To wipe the wind-
shield using washer fluid
X Switch on the ignition.
X Turn the combination switch to the corre-
sponding position.
In the 0062or0063 position, the appropriate
wiping frequency is set automatically accord-
ing to the intensity of the rain. In the 0063
position, the rain sensor is more sensitive
than in the 0062position, causing the wind-
shield wipers to wipe more frequently.
If the wiper blades are worn, the windshield
will no longer be wiped properly. This could
prevent you from observing the traffic condi-
tions, thereby causing an accident.
i The vehicle is equipped with the MAGIC
VISION CONTROL wipe/wash system. The
washer fluid is fed through the wiper blades and when wiping the screen with washer
fluid 00D4, the water is emitted directly
from the blades. 130
Windshield
wipersLights and windshield wipers

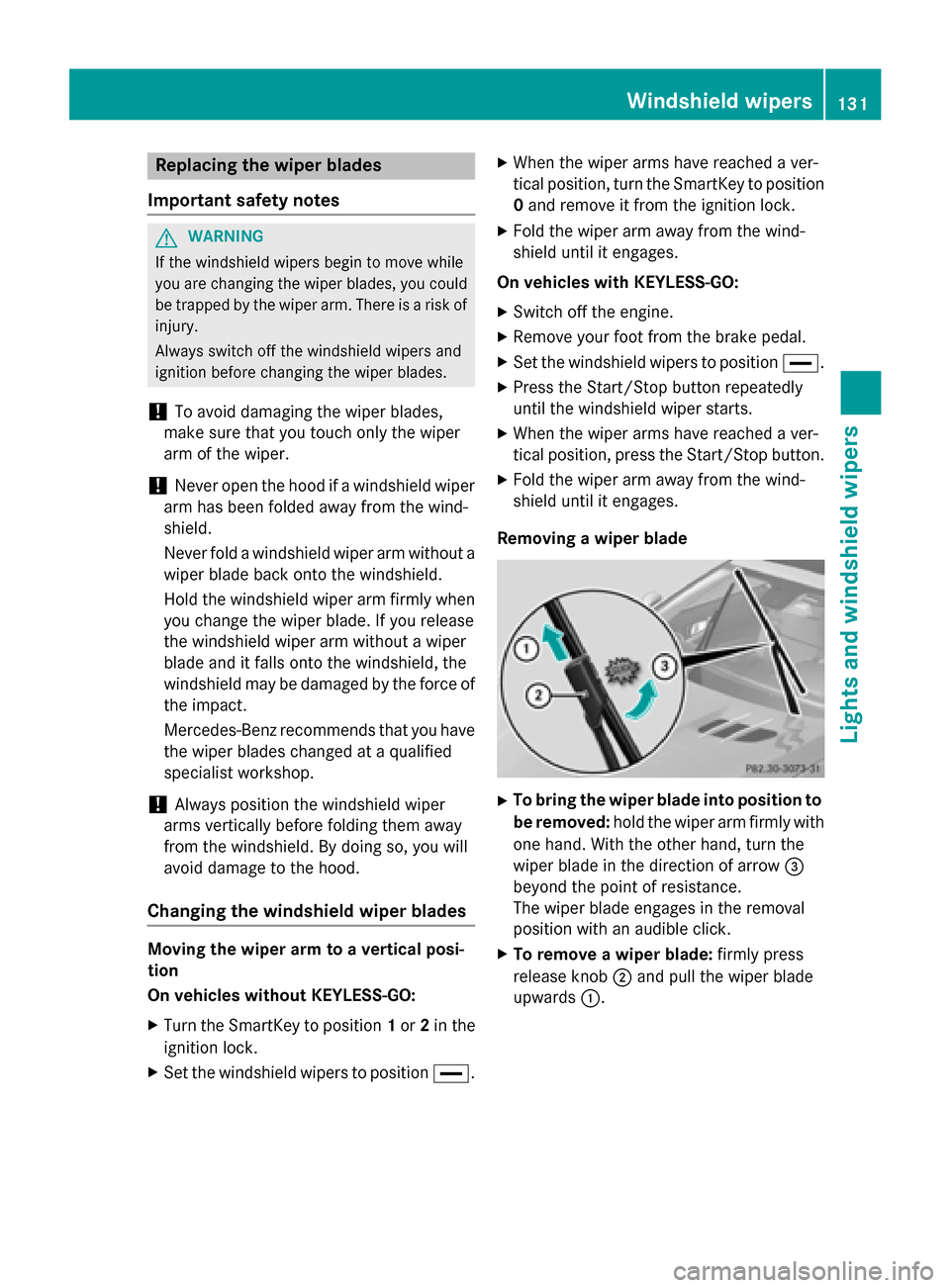

Replacing the wiper blades
Important safety notes G
WARNING
If the windshield wipers begin to move while
you are changing the wiper blades, you could be trapped by the wiper arm. There is a risk of
injury.
Always switch off the windshield wipers and
ignition before changing the wiper blades.
! To avoid damaging the wiper blades,
make sure that you touch only the wiper
arm of the wiper.
! Never open the hood if a windshield wiper
arm has been folded away from the wind-
shield.
Never fold a windshield wiper arm without a
wiper blade back onto the windshield.
Hold the windshield wiper arm firmly when you change the wiper blade. If you release
the windshield wiper arm without a wiper
blade and it falls onto the windshield, the
windshield may be damaged by the force of
the impact.
Mercedes-Benz recommends that you have the wiper blades changed at a qualified
specialist workshop.
! Always position the windshield wiper
arms vertically before folding them away
from the windshield. By doing so, you will
avoid damage to the hood.
Changing the windshield wiper blades Moving the wiper arm to a vertical posi-
tion
On vehicles without KEYLESS-GO:
X Turn the SmartKey to position 1or 2in the
ignition lock.
X Set the windshield wipers to position 00AA.X
When the wiper arms have reached a ver-
tical position, turn the SmartKey to position
0 and remove it from the ignition lock.
X Fold the wiper arm away from the wind-
shield until it engages.
On vehicles with KEYLESS-GO: X Switch off the engine.
X Remove your foot from the brake pedal.
X Set the windshield wipers to position 00AA.
X Press the Start/Stop button repeatedly
until the windshield wiper starts.
X When the wiper arms have reached a ver-
tical position, press the Start/Stop button.
X Fold the wiper arm away from the wind-
shield until it engages.
Removing a wiper blade X
To bring the wiper blade into position to
be removed: hold the wiper arm firmly with
one hand. With the other hand, turn the
wiper blade in the direction of arrow 0087
beyond the point of resistance.
The wiper blade engages in the removal
position with an audible click.
X To remove a wiper blade: firmly press
release knob 0044and pull the wiper blade
upwards 0043. Windshield wipers
131Lights and windshield wipers Z

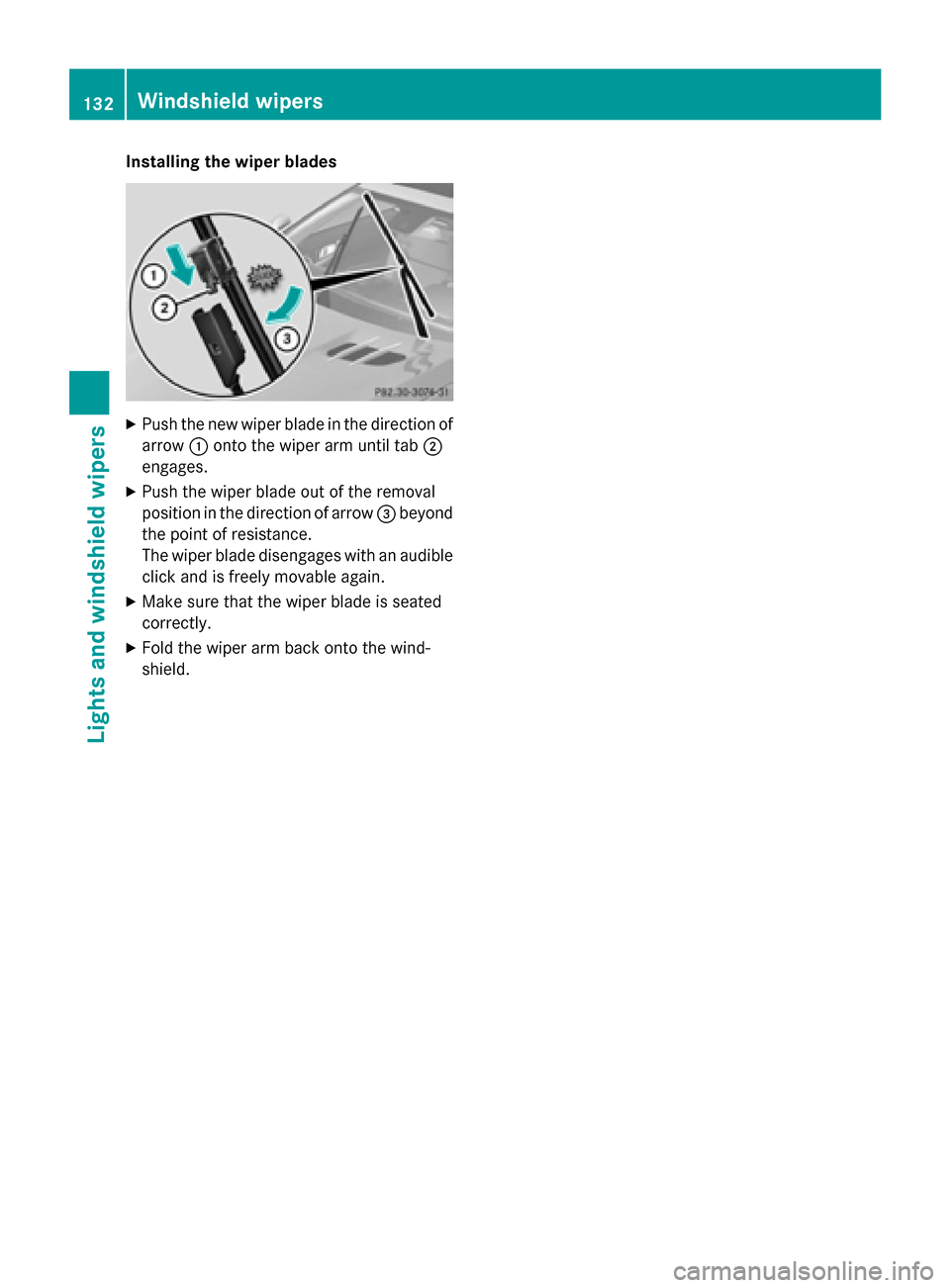

Installing the wiper blades
X
Push the new wiper blade in the direction of
arrow 0043onto the wiper arm until tab 0044
engages.
X Push the wiper blade out of the removal
position in the direction of arrow 0087beyond
the point of resistance.
The wiper blade disengages with an audible
click and is freely movable again.
X Make sure that the wiper blade is seated
correctly.
X Fold the wiper arm back onto the wind-
shield. 132
Windshield wipersLights and windshield wipers

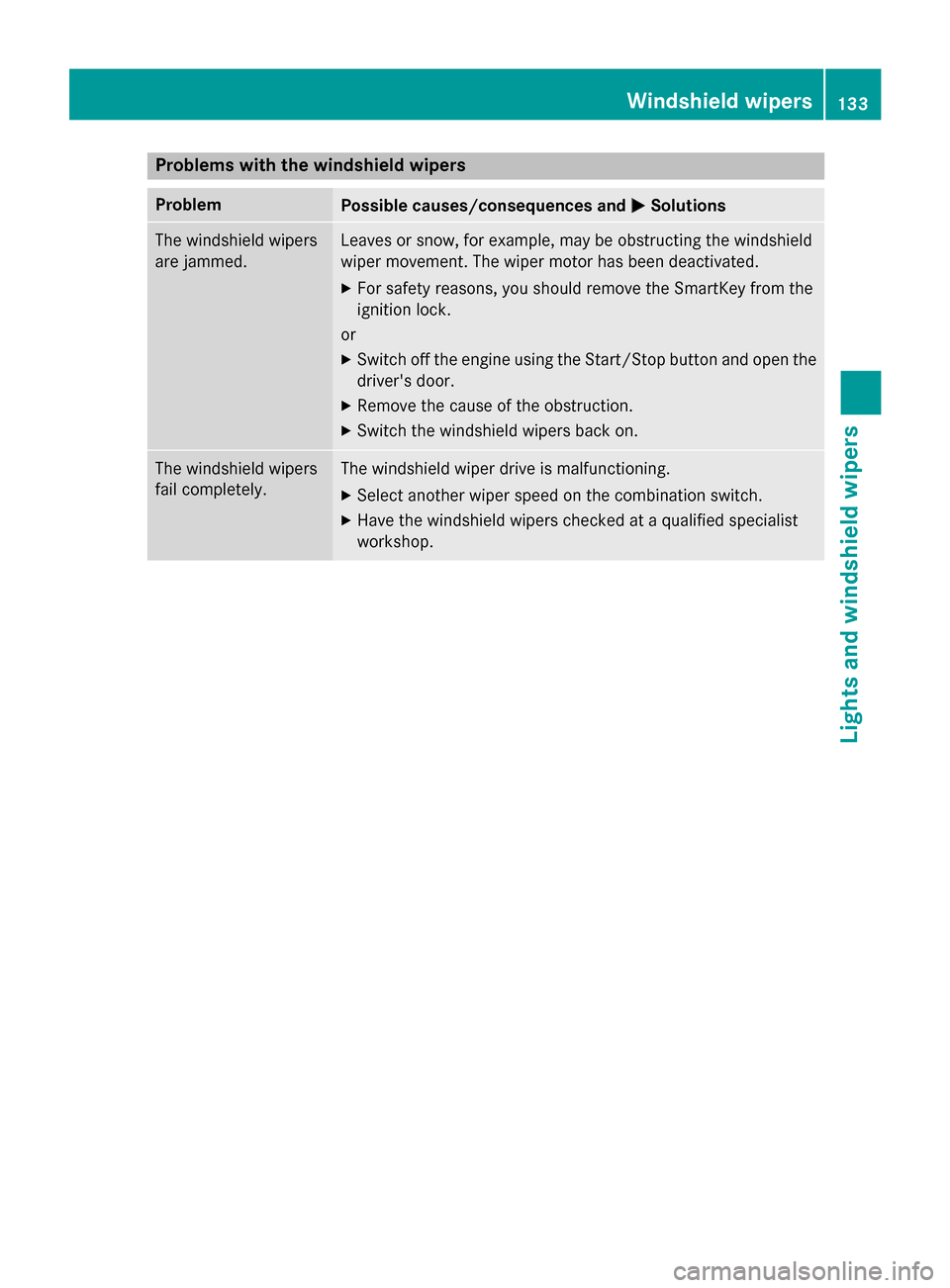

Problems with the windshield wipers
Problem
Possible causes/consequences and
0050
0050Solutions The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated.
X For safety reasons, you should remove the SmartKey from the
ignition lock.
or X Switch off the engine using the Start/Stop button and open the
driver's door.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on. The windshield wipers
fail completely. The windshield wiper drive is malfunctioning.
X Select another wiper speed on the combination switch.
X Have the windshield wipers checked at a qualified specialist
workshop. Windshield wipers
133Lights and windshield wipers Z

134

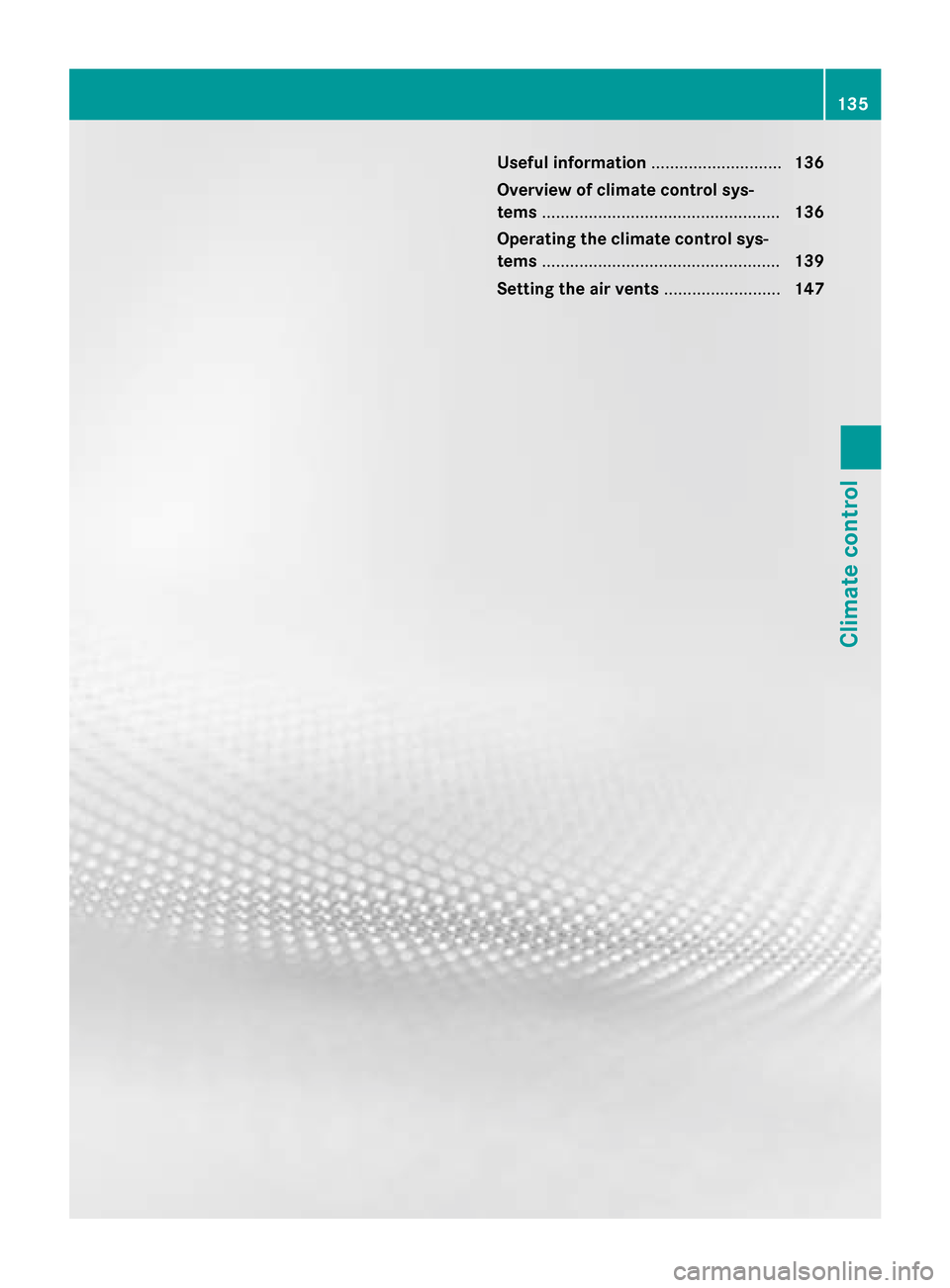

Useful information
............................136
Overview of climate control sys-
tems ................................................... 136
Operating the climate control sys-
tems ................................................... 139
Setting the air vents .........................147 135Climate control

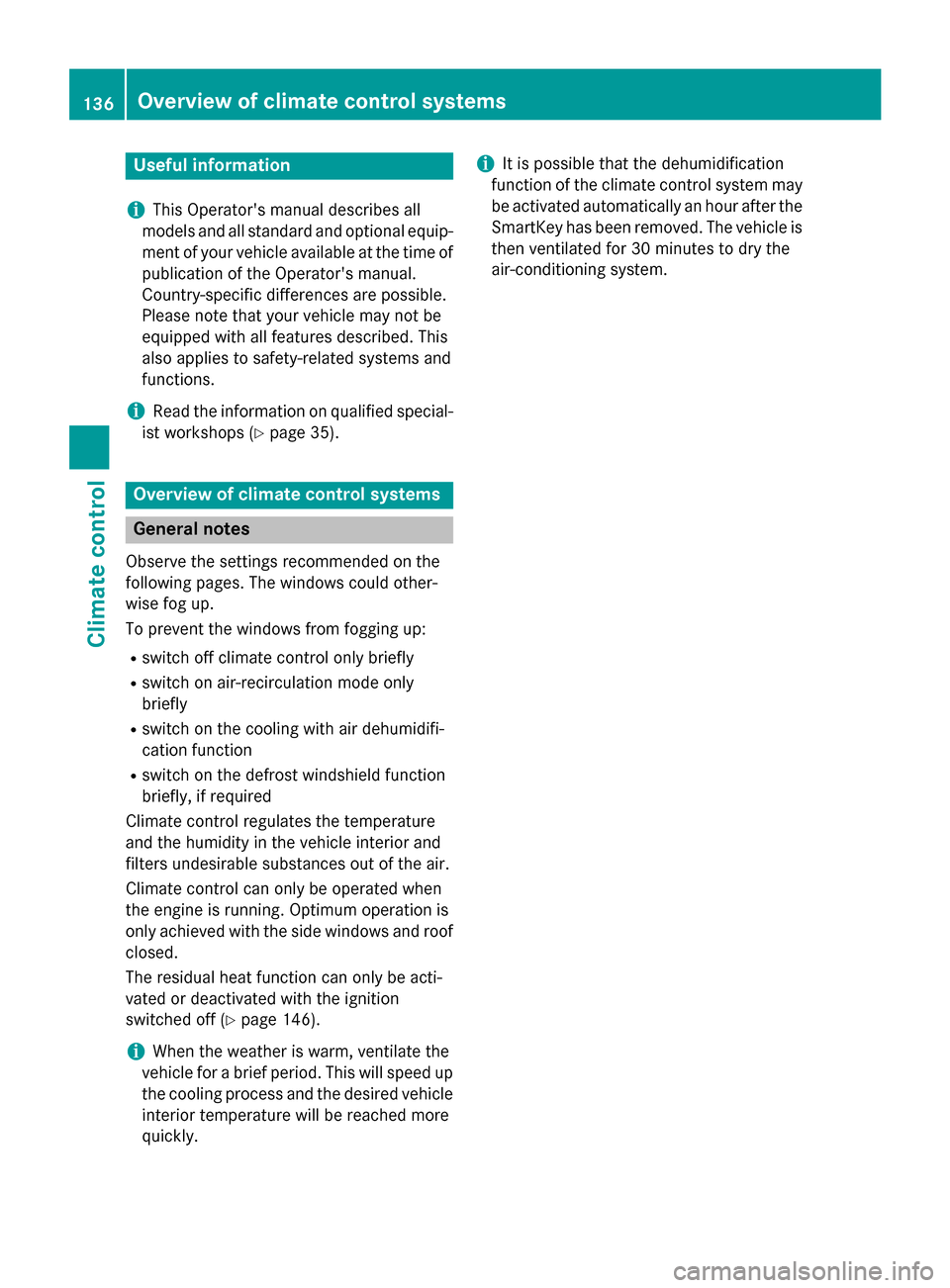

Useful information
i This Operator's manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 35). Overview of climate control systems
General notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air dehumidifi-
cation function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (Y page 146).
i When the weather is warm, ventilate the
vehicle for a brief period. This will speed up the cooling process and the desired vehicle
interior temperature will be reached more
quickly. i
It is possible that the dehumidification
function of the climate control system may be activated automatically an hour after the
SmartKey has been removed. The vehicle is
then ventilated for 30 minutes to dry the
air-conditioning system. 136
Overview of climate control systemsClimate control

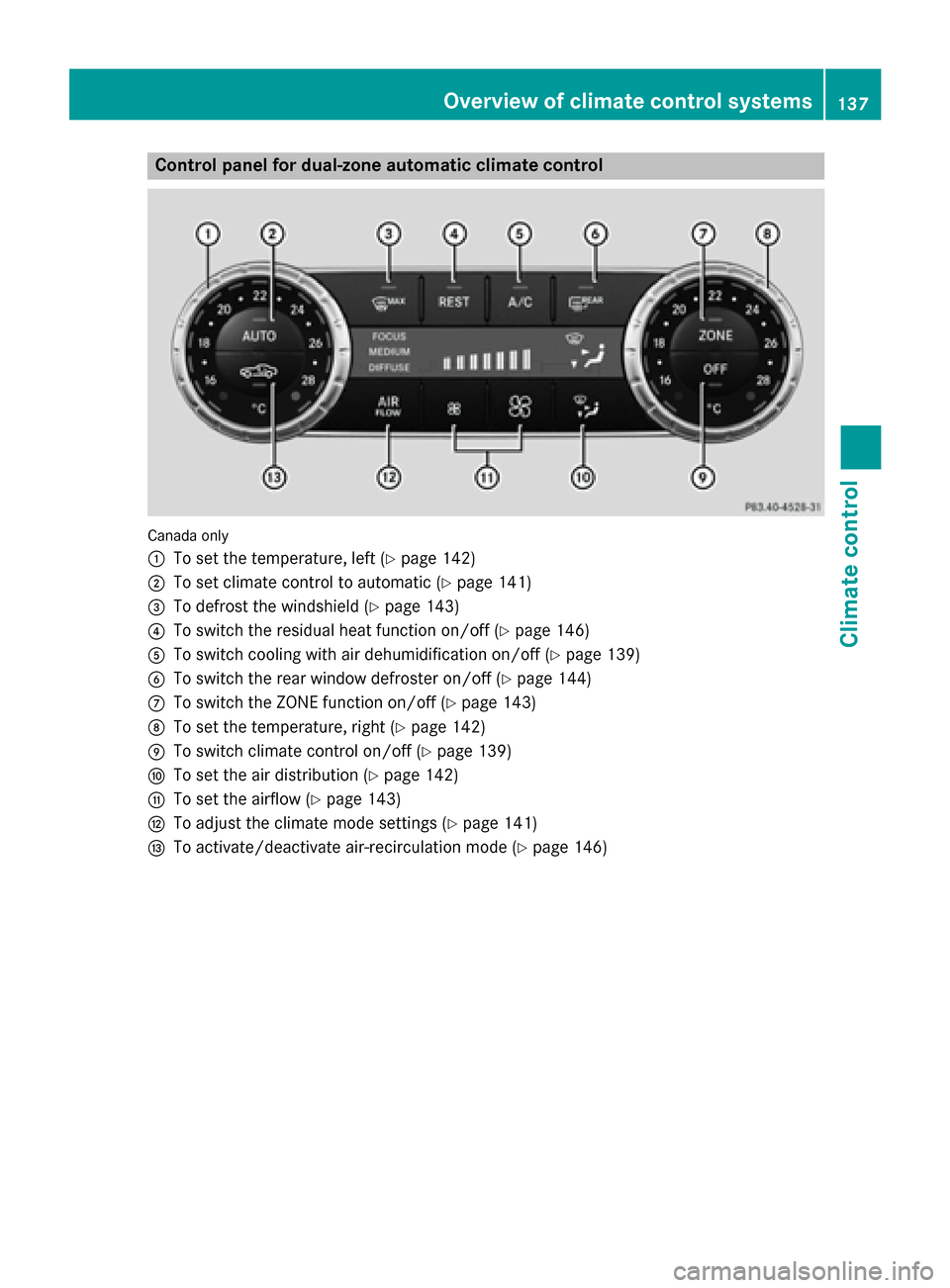

Control panel for dual-zone automatic climate control
Canada only
0043
To set the temperature, left (Y page 142)
0044 To set climate control to automatic (Y page 141)
0087 To defrost the windshield (Y page 143)
0085 To switch the residual heat function on/off (Y page 146)
0083 To switch cooling with air dehumidification on/off (Y page 139)
0084 To switch the rear window defroster on/off (Y page 144)
006B To switch the ZONE function on/off (Y page 143)
006C To set the temperature, right (Y page 142)
006D To switch climate control on/off (Y page 139)
006E To set the air distribution (Y page 142)
006F To set the airflow (Y page 143)
0070 To adjust the climate mode settings (Y page 141)
0071 To activate/deactivate air-recirculation mode (Y page 146) Overview of climate control systems
137Climate control

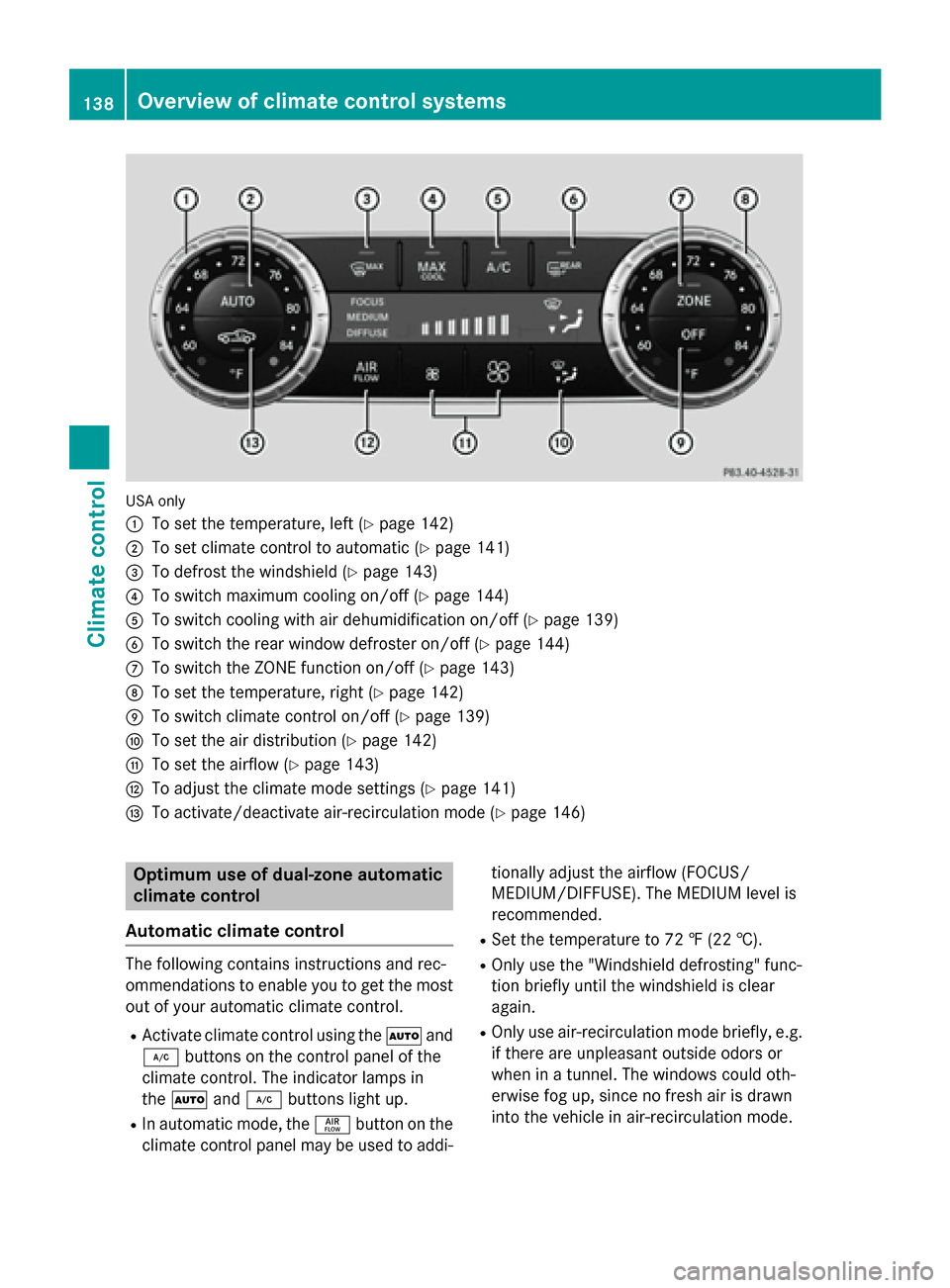

USA only
0043
To set the temperature, left (Y page 142)
0044 To set climate control to automatic (Y page 141)
0087 To defrost the windshield (Y page 143)
0085 To switch maximum cooling on/off (Y page 144)
0083 To switch cooling with air dehumidification on/off (Y page 139)
0084 To switch the rear window defroster on/off (Y page 144)
006B To switch the ZONE function on/off (Y page 143)
006C To set the temperature, right (Y page 142)
006D To switch climate control on/off (Y page 139)
006E To set the air distribution (Y page 142)
006F To set the airflow (Y page 143)
0070 To adjust the climate mode settings (Y page 141)
0071 To activate/deactivate air-recirculation mode (Y page 146)Optimum use of dual-zone automatic
climate control
Automatic climate control The following contains instructions and rec-
ommendations to enable you to get the most
out of your automatic climate control.
R Activate climate control using the 0058and
005A buttons on the control panel of the
climate control. The indicator lamps in
the 0058 and005A buttons light up.
R In automatic mode, the 00F0button on the
climate control panel may be used to addi- tionally adjust the airflow (FOCUS/
MEDIUM/DIFFUSE). The MEDIUM level is
recommended.
R Set the temperature to 72 ‡ (22 †).
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode. 138
Overview of climate control systemsClimate control
