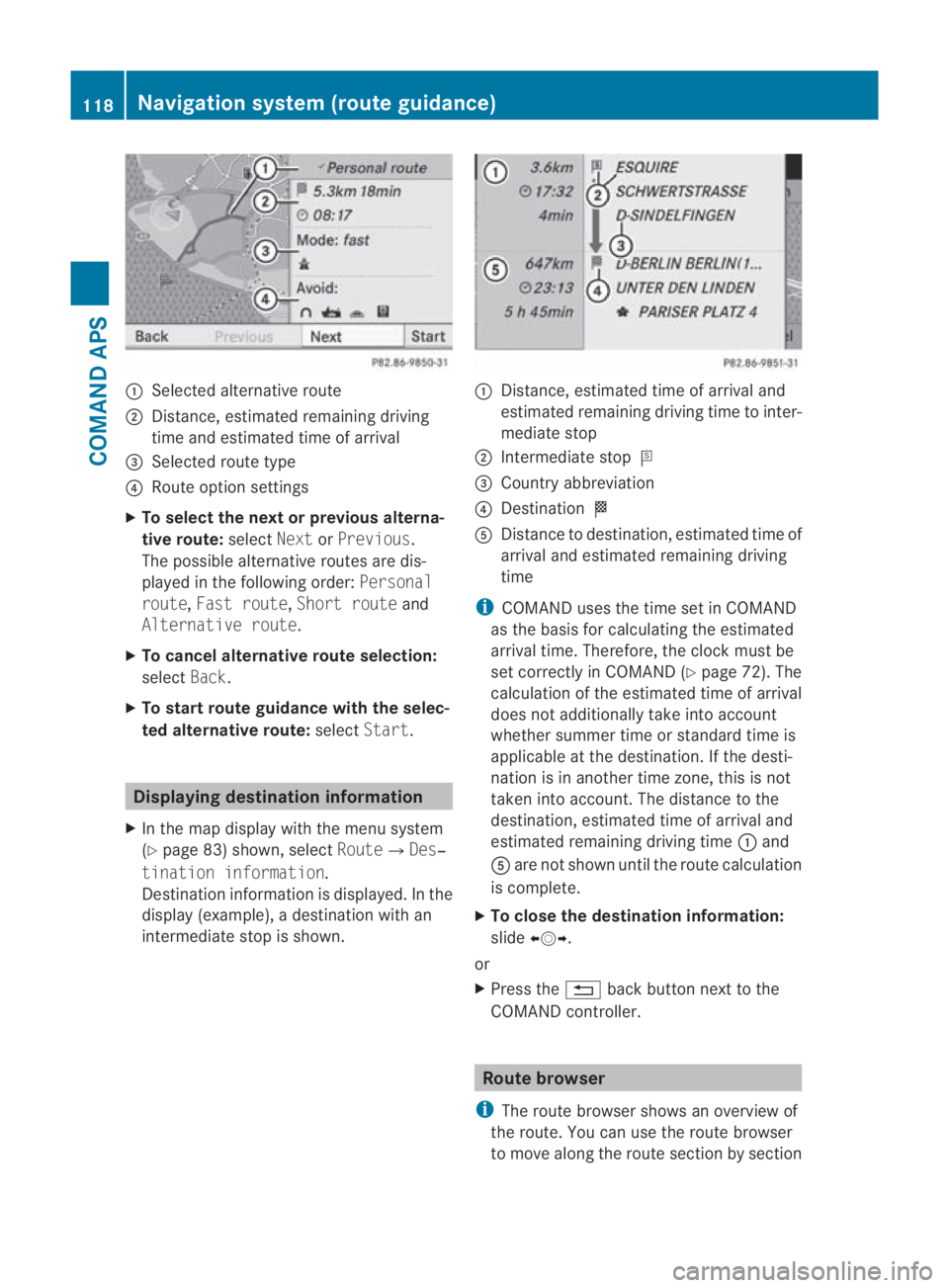

Page 121 of 361
0001
Selected alternative route
0002 Distance, estimated remaining driving
time and estimated time of arrival
0015 Selected route type
0014 Route option settings
X To select the next or previous alterna-
tive route: selectNextorPrevious.
The possible alternative routes are dis-
played in the following order: Personal
route, Fast route, Short route and
Alternative route.
X To cancel alternative route selection:
select Back.
X To start route guidance with the selec-
ted alternative route: selectStart. Displaying destination information
X In the map display with the menu system
(Y page 83) shown, select Route0004Des‐
tination information.
Destination information is displayed .Inthe
display (example), a destination with an
intermediate stop is shown. 0001
Distance, estimated time of arrival and
estimated remaining driving time to inter-
mediate stop
0002 Intermediate stop 000C
0015 Country abbreviation
0014 Destination 000B
0012 Distance to destination, estimated time of
arrival and estimated remaining driving
time
i COMAND uses the time set in COMAND
as the basis for calculating the estimated
arrival time. Therefore, the clock must be
set correctly in COMAND (Y page 72). The
calculation of the estimated time of arrival
does not additionally take into account
whether summer time or standard time is
applicable at the destination. If the desti-
nation is in another time zone, this is not
taken into account. The distance to the
destination, estimated time of arrival and
estimated remaining driving time 0001and
0012 are not shown until the route calculation
is complete.
X To close the destination information:
slide 002B0013002C.
or
X Press the 0001back button next to the
COMAND controller. Route browser
i The route browser shows an overview of
the route. You can use the route browser
to move along the route section by section 118
Navigation system (route guidance)COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 118

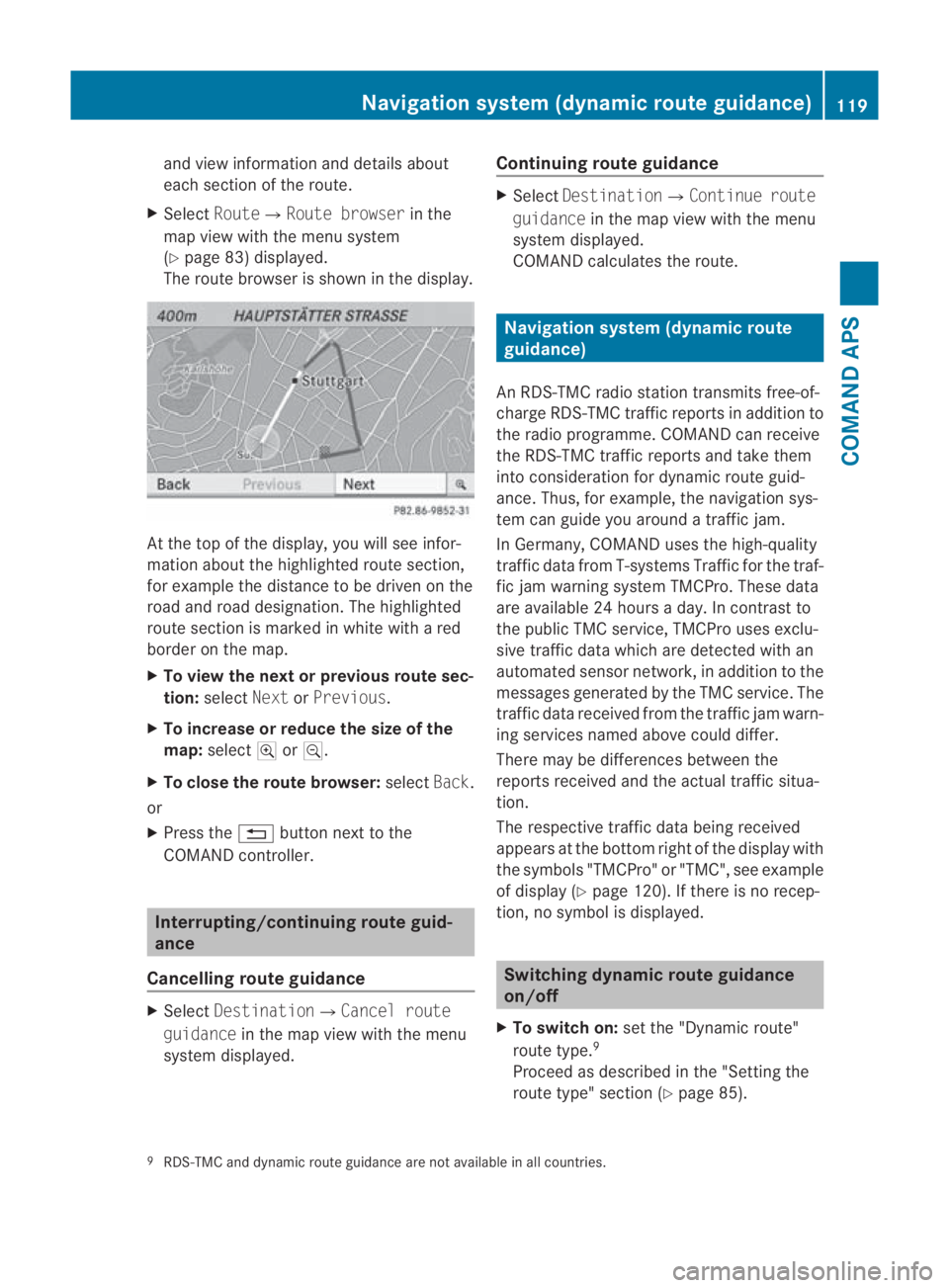

Page 122 of 361
and view informatio
nand details about
each sectio nofthe route.
X Select Route0004Route browser in the
map view with the menu system
(Y page 83) displayed.
The route browser is shown in the display. At the top of the display, you will see infor-
mation about the highlighted route section,
for example the distance to be driven on the
road and road designation. The highlighted
route section is marked in white with a red
border on the map.
X To view the next or previous route sec-
tion: select NextorPrevious.
X To increase or reduce the size of the
map: select 000Aor0009.
X To close the route browser: selectBack.
or
X Press the 0001button next to the
COMAND controller. Interrupting/continuing route guid-
ance
Cancelling route guidance X
Select Destination0004Cancel route
guidance in the map view with the menu
system displayed. Continuing route guidance X
Select Destination0004Continue route
guidance in the map view with the menu
system displayed.
COMAND calculates the route. Navigation system (dynamic route
guidance)
An RDS-TMC radio station transmits free-of-
charge RDS-TMC traffic reports in addition to
the radio programme. COMAND can receive
the RDS-TMC traffic reports and take them
into consideration for dynamic route guid-
ance. Thus, for example, the navigation sys-
tem can guide you around a traffic jam.
In Germany, COMAND uses the high-quality
traffic data from T-systems Traffic for the traf-
fic jam warning system TMCPro. These data
are available 24 hours a day. In contrast to
the publicT MC service, TMCPro uses exclu-
sive traffic data which are detected with an
automated sensor network, in addition to the
messages generated by the TMC service. The
traffic data received from the traffic jam warn-
ing services named above could differ.
There may be differences between the
reports received and the actual traffic situa-
tion.
The respective traffic data being received
appears at the bottom right of the display with
the symbols "TMCPro" or "TMC", see example
of display (Y page 120). If there is no recep-
tion, no symbol is displayed. Switching dynamic route guidance
on/off
X To switch on: set the "Dynamic route"
route type. 9
Proceed as described in the "Setting the
route type" section (Y page 85).
9 RDS-TMC and dynamic route guidance are not available in all countries. Navigation system (dynamic route guidance)
119COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 119 Z

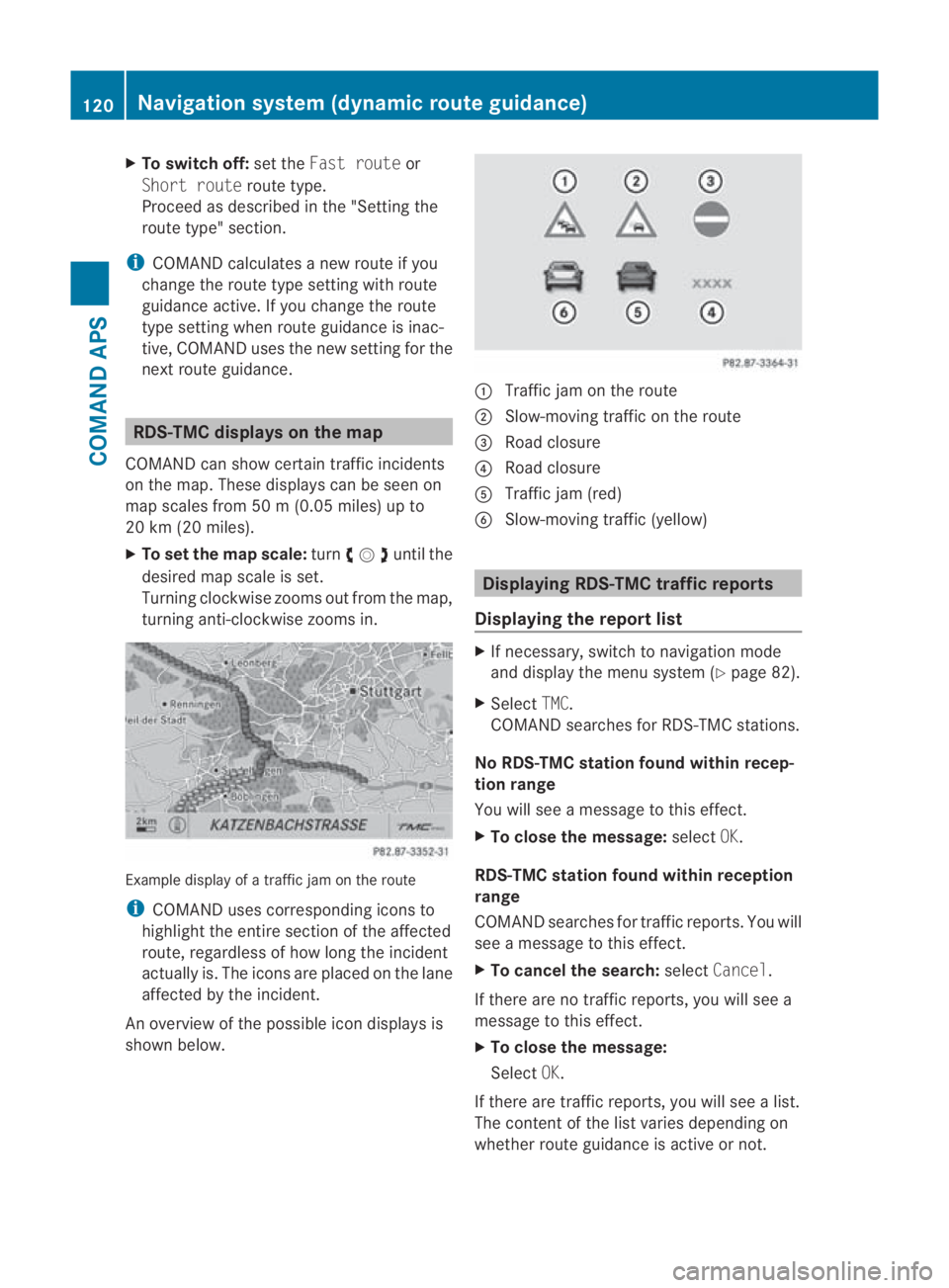

Page 123 of 361
X
To switch off: set theFast route or
Short route route type.
Proceed as described in the "Setting the
route type" section.
i COMAND calculates a new route if you
change the route type setting with route
guidance active. If you change the route
type setting when route guidance is inac-
tive, COMAND uses the new setting for the
next route guidance. RDS-TMC displays on the map
COMAND can show certain traffic incidents
on the map. These displays can be see non
map scales from 50 m (0.05 miles) up to
20 km (20 miles).
X To set the map scale: turn002800130029until the
desired map scale is set.
Turning clockwise zooms out from the map,
turning anti-clockwise zooms in. Example display of a traffic jam on the route
i COMAND uses corresponding icons to
highlight the entire section of the affected
route, regardless of how lon gthe incident
actually is. The icons are placed on the lane
affected by the incident.
An overview of the possible icon displays is
shown below. 0001
Traffic jam on the route
0002 Slow-moving traffic on the route
0015 Road closure
0014 Road closure
0012 Traffic jam (red)
0013 Slow-moving traffic (yellow) Displaying RDS-TMC traffic reports
Displaying the report list X
If necessary, switch to navigation mode
and display the menu system (Y page 82).
X Select TMC.
COMAND searches for RDS-TMC stations.
No RDS-TMC station found within recep-
tion range
You will see a message to this effect.
X To close the message: selectOK.
RDS-TMC station found within reception
range
COMAND searches for traffic reports. You will
see a message to this effect.
X To cancel the search: selectCancel.
If there are no traffic reports, you will see a
message to this effect.
X To close the message:
Select OK.
If there are traffic reports, you will see a list.
The content of the list varies depending on
whether route guidance is active or not. 120
Navigation system (dynamic route guidance)COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 120
Page 124 of 361
List when route guidance is not active
The list shows all the roads, areas or regions
for which reports are available.
0001
To call up TMC icon information
0002 Icon for warning message
0015 Country designation
0014 Road concerned
i A traffic report may also concern an area
or regio nrather than a road, e.g .impaired
visibility due to fog.
X To read a traffic report: select a road, an
area or region.
You will find an example of a traffic report
on (Y page 122).
X To close the list: slide002B0013002C .
or
X Press the 0001button next to the
COMAND controller.
X To call up TMC icon information: select
TMC icon information. Example display
0001
Affected section of motorway
0002 Icon for incident (traffic jam in the exam-
ple shown)
0015 Icon display for the section of route affec-
ted
X To display next/previous incident:
select NextorPrevious (if available).
X To display details: selectDetails.
X To move the map: selectMap.
You can move the map (Y page 83) to ena-
ble further traffic reports to be displayed.
List when route guidance is active
The list first shows roads, areas or regions on
the route for which there are traffic reports. 0001
To call up TMC icon information
0002 To display all traffic reports (including
those not concerning the route)
0015 To have traffic reports read out on route
(Ypage 122)
0014 Affected roads, areas or regions (only
available when there are traffic reports
for the route) Navigation system (dynamic route guidance)
121COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeuVersion: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 121 Z

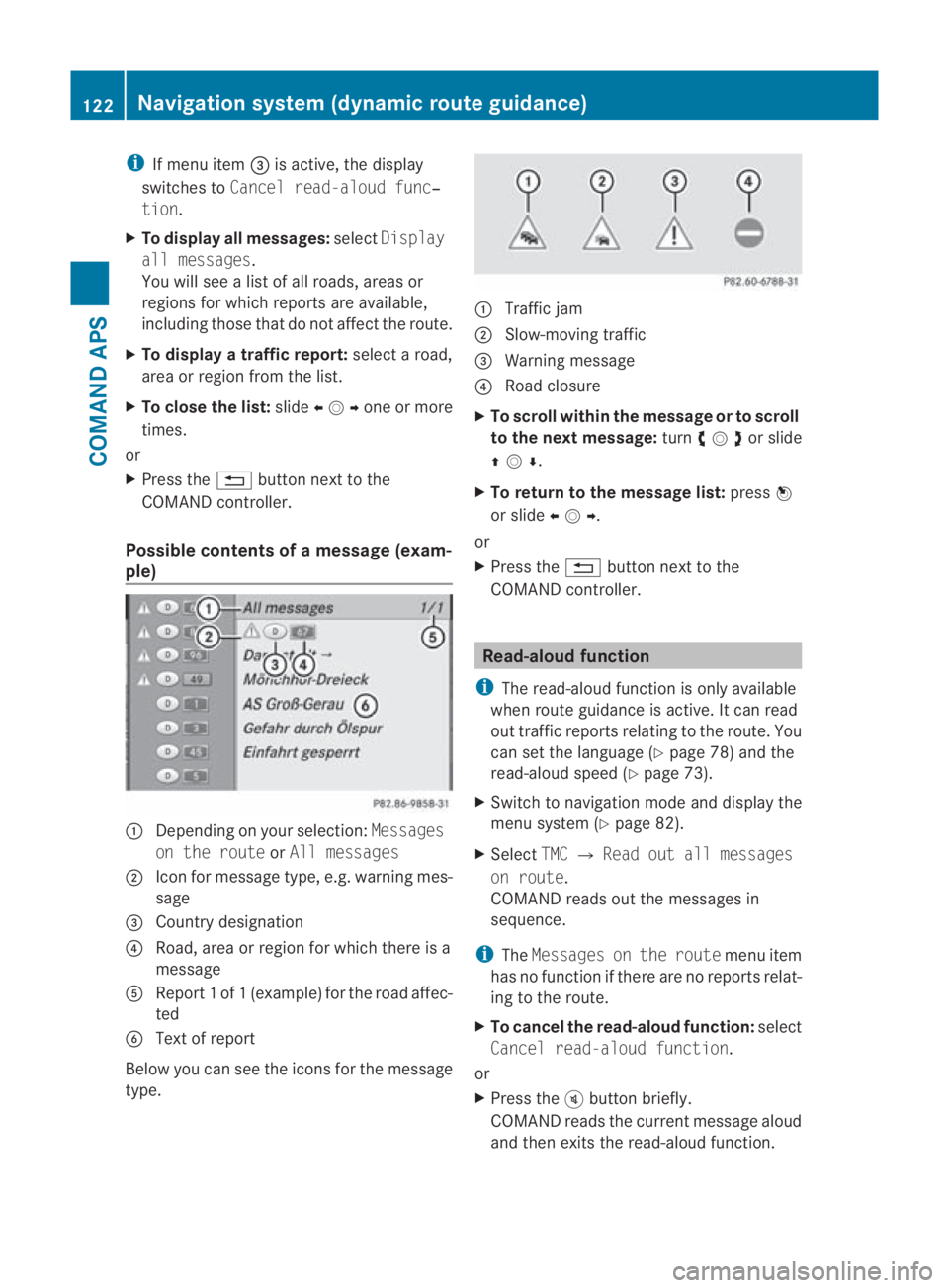

Page 125 of 361
i
If menu item 0015is active, the display
switches to Cancel read-aloud func‐
tion.
X To display all messages: selectDisplay
all messages.
You will see a list of all roads, areas or
regions for which reports are available,
including those that do not affect the route.
X To display a traffic report: select a road,
area or region from the list.
X To close the list: slide002B0013002Cone or more
times.
or
X Press the 0001button next to the
COMAND controller.
Possible contents of amessag e(exam-
ple) 0001
Depending on your selection: Messages
on the route orAll messages
0002 Icon for message type, e.g .warning mes-
sage
0015 Country designation
0014 Road, area or region for which there is a
message
0012 Repor t1of1( example) for the road affec-
ted
0013 Text of report
Below you can see the icons for the message
type. 0001
Traffic jam
0002 Slow-moving traffic
0015 Warning message
0014 Road closure
X To scroll within the message or to scroll
to the next message: turn002800130029 or slide
001F0013000D .
X To return to the message list: press0017
or slide 002B0013002C.
or
X Press the 0001button next to the
COMAND controller. Read-aloud function
i The read-aloud function is only available
when route guidance is active. It can read
out traffic reports relating to the route. You
can set the language (Y page 78) and the
read-aloud speed (Y page 73).
X Switch to navigation mode and display the
menu system (Y page 82).
X Select TMC0004Read out all messages
on route.
COMAND reads out the messages in
sequence.
i The Messages on the route menu item
has no function if there are no reports relat-
ing to the route.
X To cancel the read-aloud function: select
Cancel read-aloud function.
or
X Press the 000Bbutton briefly.
COMAND reads the current message aloud
and then exits the read-aloud function. 122
Navigation system (dynamic route guidance)COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 122
Page 126 of 361
Automatic read-aloud function
You can have the TMC traffic reports along
the route read aloud automatically.
Announcements will be made as you
approach traffic incidents.
X To activate/deactivate the function:
select Navi0004Read TMC traffic mes‐
sages automatically.
The function is switched on 0019or off 0004
depending on the previous status. Navigation system (destination mem-
ory) My address
i The destination memory always contains
an entry named My addresswhich is at the
top of the list .You may wish to assign your
home address to this entry, for example. If
the My address (¤icon) entry already
contains data that can be used for naviga-
tion, you can select it for route guidance.
Assigning dataf or the first time/editing
My address X
Switch to navigation mode and display the
menu system (Y page 82).
X Select Destination 0004From memory .
If more than eight entries are listed in the
destination memory, the destination list
appears with the input speller; otherwise,
the destination list appears without the
input speller.
If the list appears without the input speller,
the My address entry is highlighted auto-
matically. 0001
Entry contains data that can be used for
navigation ¤
0002 To call up options
Switching to the list without input speller
X Slide 001F0013repeatedly until the inpu tspeller
disappears.
The My address list entry is automatically
highlighted unless you have entered a char-
acter using the input speller.
If characters have been entered using the
input speller:
X Turn 002800130029or slide 001F0013in the list until the
My address entry is highlighted.
or
X To assign an address for the first time:
press and hold 0017until the input speller
disappears.
The My address entry is automatically
highlighted in the list.
X To exit the menu: selectBack.
or
X Press the 0001back button next to the
COMAND controller.
X Subsequent operation depends on whether
you enter the address or wish to use an
address book entry that can be used for
navigation as My address.
Entering or changing your address
X If necessary, change to the destination list
without speller. Navigation system (destination memory)
123COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite123 Z
Page 127 of 361
X
To enter the address for the first time:
press 0017and select New entry.
X To change the address: selectOptions
0004 New entry.
In both cases, the address input menu
appears.
X Enter the address. Proceed in the same way
as you would ente radestination as descri-
bed in the "Entering adestination by
address" section (Y page 93).
X Select Saveafter you have entered the
address.
COMAND then stores the entry. You will
see a message and then the address menu
with the selected address. Startis high-
lighted automatically.
Using an address book entry for My
address
X If necessary, change to the destination list
without input speller (Y page 123).
X To assign an address for the first time:
press 0017and select Assign to address
book entry.
X Select HomeorWork.
X To edit My address: selectOptions 0004
Assign to address book entry.
X Select HomeorWork.
In both cases, you will see either a list or,
for more than eight address book entries,
the search menu with the smart speller.
X Select the desired address book entry. Pro-
ceed as described in the "Searching for an
address book entry" section
(Y page 152).
i Information on how to link address book
entries with navigation data can be found
in "Assigning a destination to an address
book entry" (Y page 126).
X To confirm your selection: press0017.
An address is assigned for the first time:
COMAND stores the entry. You will see a
message and then the address menu with the selected address.
Startis highlighted
automatically.
The address is changed:
Ap rompt appears, asking if you really wish
to overwrite My address.
X Select YesorNo.
If you select Yes, COMAND overwrites the
destination. You will see a message and
then the address menu with the selected
address. Startis highlighted automati-
cally.
If you select No, the list will reappear.
Selecting My address for route guid-
ance i
If the My address (¤icon) entry already
contains data that can be used for naviga-
tion, you can select it for route guidance. If
not, then first assign adestination to this
entry (Y page 123).
X Switch to navigation mode and display the
menu system (Y page 82).
X Select Destination 0004From memory.
If more than eight entries are listed in the
destination memory, the destination list
appears with the input speller; otherwise,
the destination list appears without the
input speller.
X Destination memory with input
speller: slide001F0013repeatedly until the list
appears without the inpu tspeller.
or
X Select 0005on the bottom right in the input
speller.
X Destination memory list without input
speller: press0017. 124
Navigation system (destination memory)COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 124
Page 128 of 361

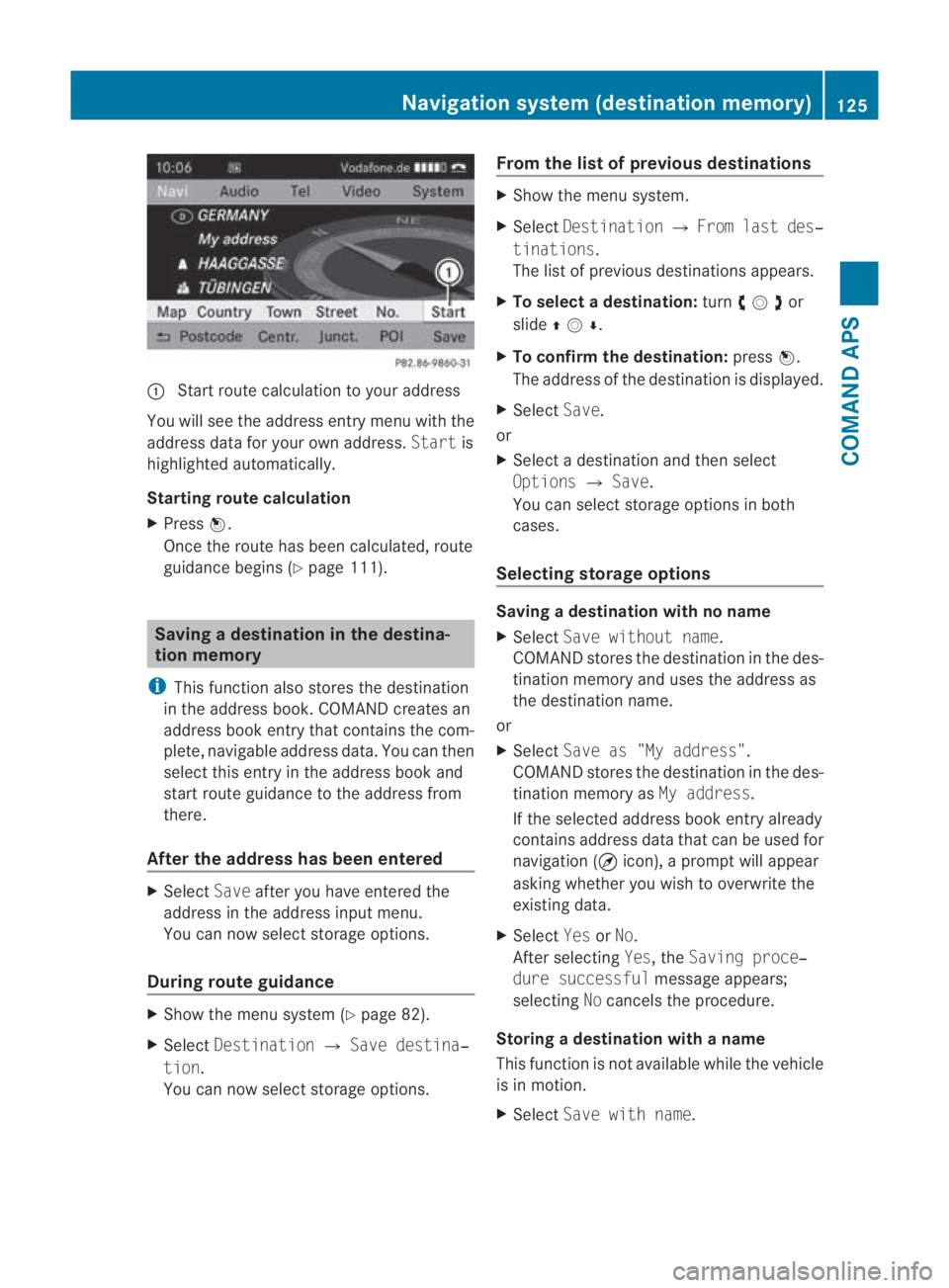

0001
Start route calculation to your address
You will see the address entry menu with the
address data for your ow naddress. Startis
highlighted automatically.
Starting route calculation
X Press 0017.
Once the route has been calculated, route
guidance begins (Y page 111). Saving
adestination in th edestina-
tion memory
i This function also stores the destination
in the address book .COMAND creates an
address book entry that contains the com-
plete, navigable address data. You can then
select this entry in the address book and
start route guidance to the address from
there.
After the address has been entered X
Select Saveafter you have entered the
address in the address input menu.
You can now select storage options.
During route guidance X
Show the menu system (Y page 82).
X Select Destination 0004Save destina‐
tion.
You can now select storage options. From the list of previous destinations X
Show the menu system.
X Select Destination 0004From last des‐
tinations.
The list of previous destinations appears.
X To select adestination: turn002800130029or
slide 001F0013000D .
X To confirm the destination: press0017.
The address of the destination is displayed.
X Select Save.
or
X Select a destination and then select
Options 0004Save.
You can select storage options in both
cases.
Selecting storage options Saving
adestination with no name
X Select Save without name.
COMAND stores the destination in the des-
tinatio nmemory and uses the address as
the destination name.
or
X Select Save as "My address".
COMAND stores the destination in the des-
tination memory as My address.
If the selected address book entry already
contains address data that can be used for
navigation (¤ icon), a prompt will appear
asking whether you wish to overwrite the
existing data.
X Select YesorNo.
After selecting Yes, theSaving proce‐
dure successful message appears;
selecting Nocancels the procedure.
Storing a destination with a name
This function is not available while the vehicle
is in motion.
X Select Save with name. Navigation system (destination memory)
125COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 125 Z
Page 129 of 361
X

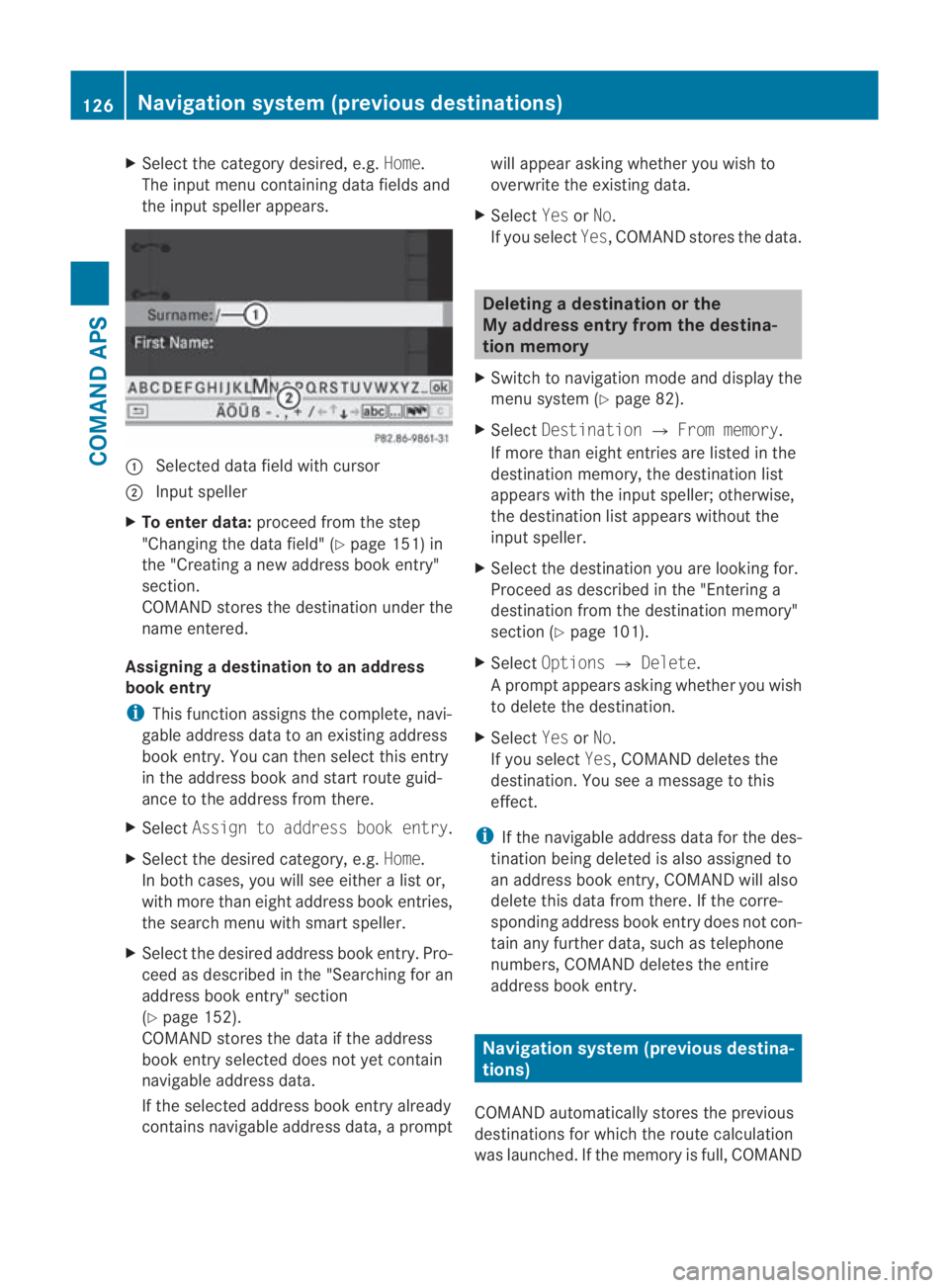

Select the category desired, e.g. Home.
The input menu containing data fields and
the input speller appears. 0001
Selected data field with cursor
0002 Inpu tspeller
X To enter data: proceed from the step
"Changing the data field" (Y page 151) in
the "Creating a new address book entry"
section.
COMAND stores the destination under the
name entered.
Assigning adestination to an address
book entry
i This function assigns the complete, navi-
gable address data to an existing address
book entry. You can then select this entry
in the address book and start route guid-
ance to the address fro mthere.
X Select Assign to address book entry .
X Select the desired category, e.g. Home.
In both cases, you will see either a list or,
with more than eight address book entries,
the search menu with smart speller.
X Select the desired address book entry. Pro-
ceed as described in the "Searching for an
address book entry" section
(Y page 152).
COMAND stores the data if the address
book entry selected does not yet contain
navigable address data.
If the selected address book entry already
contains navigable address data, a prompt will appeara
sking whether you wish to
overwrite the existing data.
X Select YesorNo.
If you select Yes, COMAND stores the data. Deleting
adestination or the
My address entry from th edestina-
tion memory
X Switch to navigation mode and display the
menu system (Y page 82).
X Select Destination 0004From memory .
If more than eight entries are listed in the
destination memory, the destination list
appears with the input speller; otherwise,
the destination list appears without the
input speller.
X Select the destination you are looking for.
Proceed as described in the "Entering a
destination from the destination memory"
sectio n(Ypage 101).
X Select Options 0004Delete .
Ap rompt appears asking whethe ryou wish
to delete the destination.
X Select YesorNo.
If you select Yes, COMAND deletes the
destination .You see a message to this
effect.
i If the navigable address data for the des-
tination being deleted is also assigned to
an address book entry, COMAND will also
delete this data from there. If the corre-
sponding address book entryd oes not con-
tain any further data, such as telephone
numbers, COMAND deletes the entire
address book entry. Navigation system (previous destina-
tions)
COMAND automatically stores the previous
destinations for which the route calculation
was launched. If the memory is full, COMAND 126
Navigation system (previous destinations)COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 126
Page 130 of 361

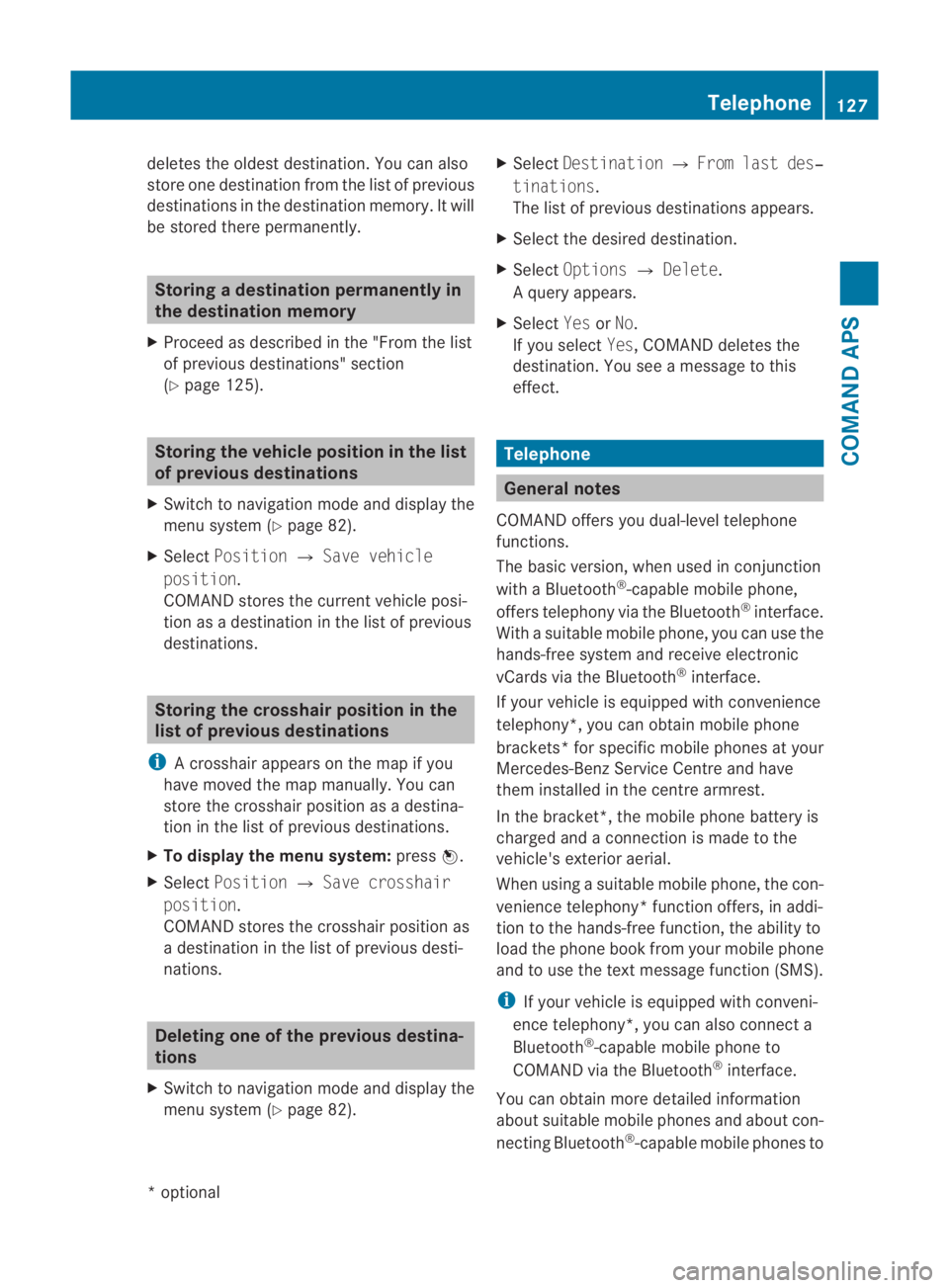

deletes the oldest destination. You can also
store one destination from the list of previous
destinations in the destination memory. It will
be stored there permanently. Storing
adestination permanently in
the destination memory
X Proceed as described in the "From the list
of previous destinations" section
(Y page 125). Storing the vehicle position in the list
of previous destinations
X Switch to navigation mode and display the
menu system (Y page 82).
X Select Position 0004Save vehicle
position.
COMAND stores the curren tvehicle posi-
tion as a destination in the list of previous
destinations. Storing the crosshair position in the
list of previous destinations
i Acrosshair appears on the map if you
have moved the map manually.Y ou can
store the crosshair position as a destina-
tion in the list of previous destinations.
X To display the menu system: press0017.
X Select Position 0004Save crosshair
position.
COMAND stores the crosshair position as
a destination in the list of previous desti-
nations. Deleting one of the previous destina-
tions
X Switch to navigation mode and display the
menu system (Y page 82). X
Select Destination 0004From last des‐
tinations.
The list of previous destinations appears.
X Select the desired destination.
X Select Options 0004Delete.
Aq uery appears.
X Select YesorNo.
If you select Yes, COMAND deletes the
destination .You see a message to this
effect. Telephone
General notes
COMAND offers you dual-level telephone
functions.
The basic version, when used in conjunction
with a Bluetooth ®
-capable mobile phone,
offers telephony via the Bluetooth ®
interface.
With a suitable mobile phone, you can use the
hands-free system and receive electronic
vCards via the Bluetooth ®
interface.
If your vehicle is equipped with convenience
telephony*, you can obtain mobile phone
brackets* for specific mobile phones at your
Mercedes-Benz Service Centre and have
them installed in the centre armrest.
In the bracket*, the mobile phone battery is
charged and a connection is made to the
vehicle's exterior aerial.
When using a suitable mobile phone, the con-
venience telephony* function offers, in addi-
tion to the hands-free function, the ability to
load the phone book from your mobile phone
and to use the text message function (SMS).
i If your vehicle is equipped with conveni-
ence telephony*, you can also connect a
Bluetooth ®
-capable mobile phone to
COMAND via the Bluetooth ®
interface.
You can obtain more detailed information
about suitable mobile phones and about con-
necting Bluetooth ®
-capable mobile phones to Telephone
127COMAND APS
*optional
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 127 Z
