MERCEDES-BENZ SPRINTER 2005 Service Repair Manual

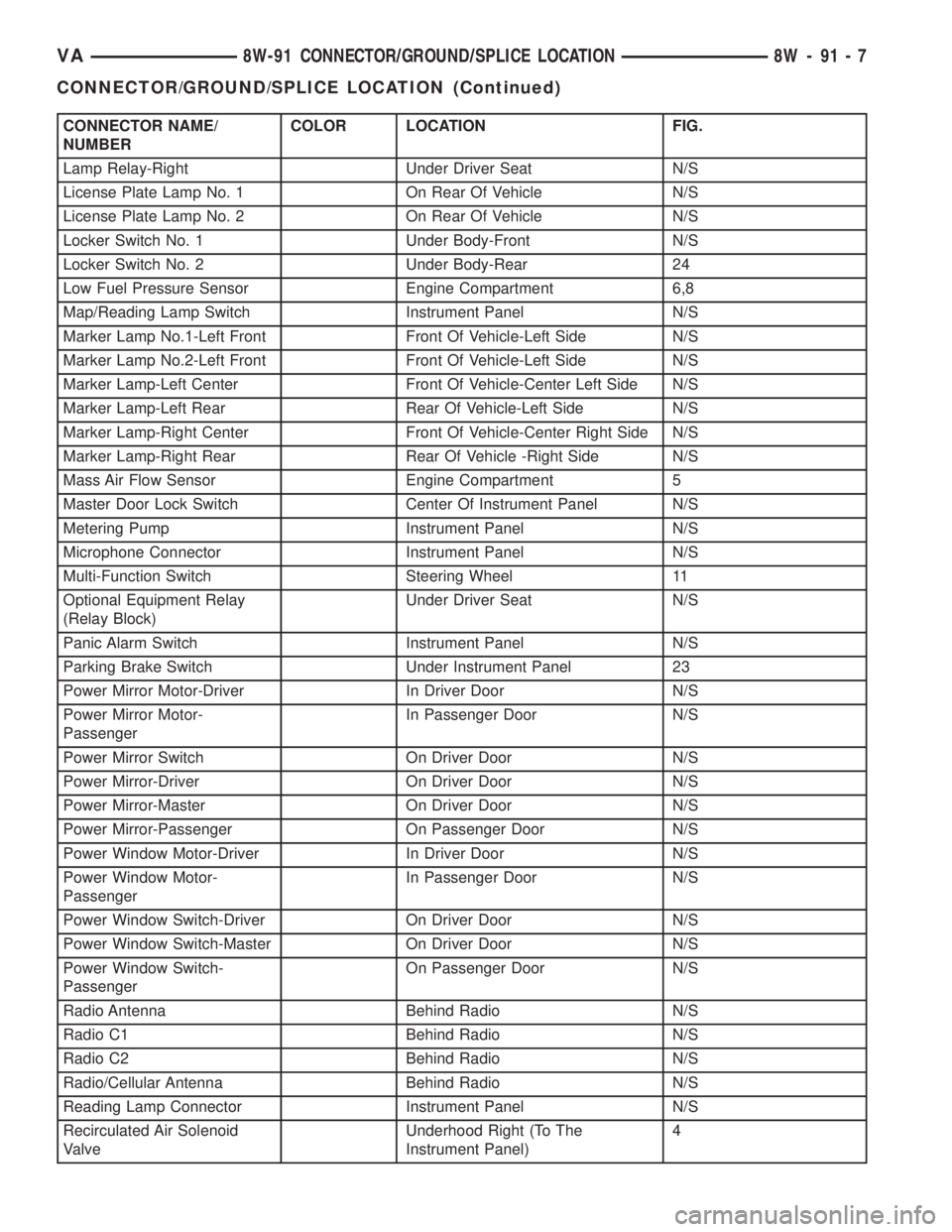

CONNECTOR NAME/
NUMBERCOLOR LOCATION FIG.
Lamp Relay-Right Under Driver Seat N/S
License Plate Lamp No. 1 On Rear Of Vehicle N/S
License Plate Lamp No. 2 On Rear Of Vehicle N/S
Locker Switch No. 1 Under Body-Front N/S
Locker Switch No. 2 Under Body-Rear 24
Low Fuel Pressure Sensor Engine Compartment 6,8
Map/Reading Lamp Switch Instrument Panel N/S
Marker Lamp No.1-Left Front Front Of Vehicle-Left Side N/S
Marker Lamp No.2-Left Front Front Of Vehicle-Left Side N/S
Marker Lamp-Left Center Front Of Vehicle-Center Left Side N/S
Marker Lamp-Left Rear Rear Of Vehicle-Left Side N/S
Marker Lamp-Right Center Front Of Vehicle-Center Right Side N/S
Marker Lamp-Right Rear Rear Of Vehicle -Right Side N/S
Mass Air Flow Sensor Engine Compartment 5
Master Door Lock Switch Center Of Instrument Panel N/S
Metering Pump Instrument Panel N/S
Microphone Connector Instrument Panel N/S
Multi-Function Switch Steering Wheel 11
Optional Equipment Relay
(Relay Block)Under Driver Seat N/S
Panic Alarm Switch Instrument Panel N/S
Parking Brake Switch Under Instrument Panel 23
Power Mirror Motor-Driver In Driver Door N/S
Power Mirror Motor-
PassengerIn Passenger Door N/S
Power Mirror Switch On Driver Door N/S
Power Mirror-Driver On Driver Door N/S
Power Mirror-Master On Driver Door N/S
Power Mirror-Passenger On Passenger Door N/S
Power Window Motor-Driver In Driver Door N/S
Power Window Motor-
PassengerIn Passenger Door N/S
Power Window Switch-Driver On Driver Door N/S
Power Window Switch-Master On Driver Door N/S
Power Window Switch-
PassengerOn Passenger Door N/S
Radio Antenna Behind Radio N/S
Radio C1 Behind Radio N/S
Radio C2 Behind Radio N/S
Radio/Cellular Antenna Behind Radio N/S
Reading Lamp Connector Instrument Panel N/S
Recirculated Air Solenoid
ValveUnderhood Right (To The
Instrument Panel)4

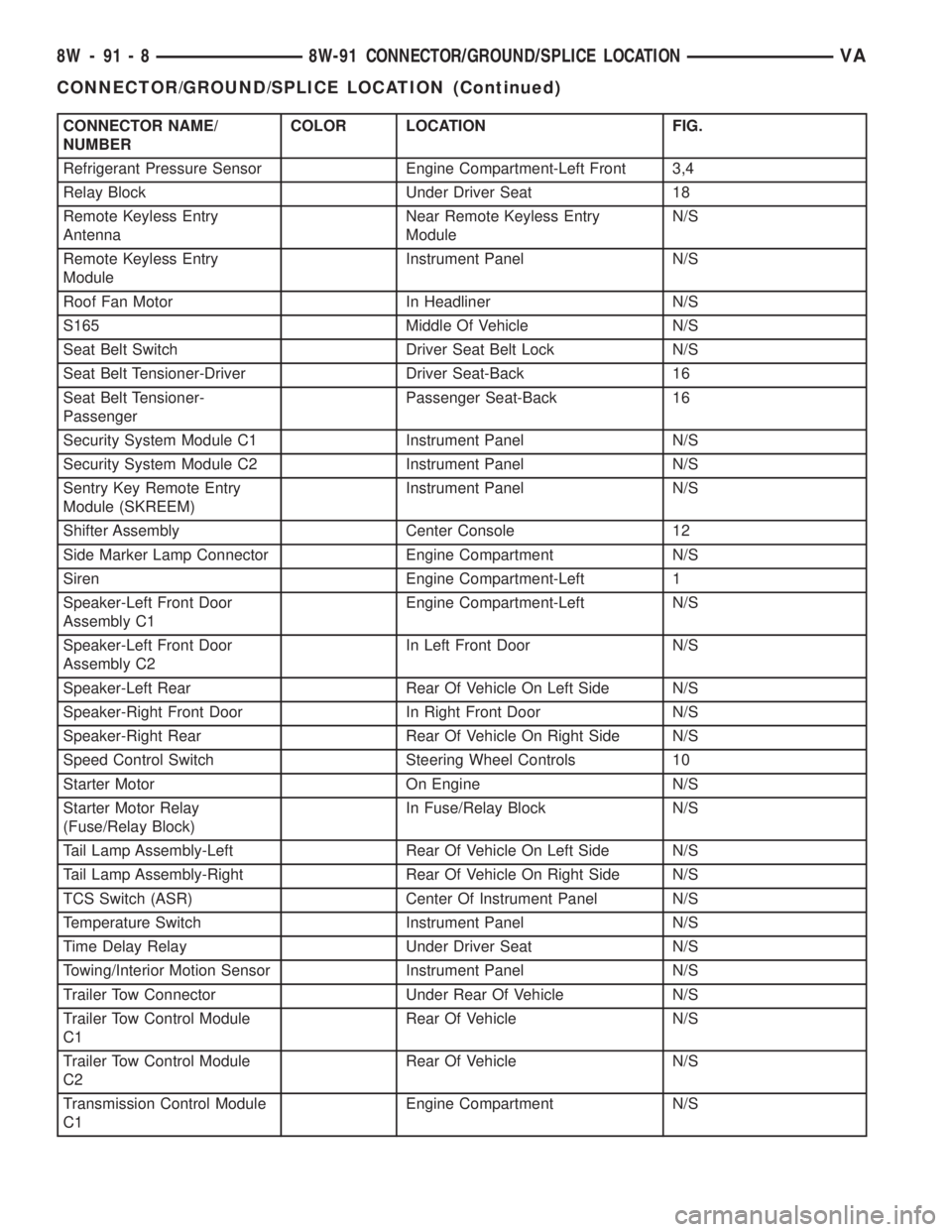

VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 7
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

CONNECTOR NAME/
NUMBERCOLOR LOCATION FIG.
Refrigerant Pressure Sensor Engine Compartment-Left Front 3,4
Relay Block Under Driver Seat 18
Remote Keyless Entry
AntennaNear Remote Keyless Entry
ModuleN/S
Remote Keyless Entry
ModuleInstrument Panel N/S
Roof Fan Motor In Headliner N/S
S165 Middle Of Vehicle N/S
Seat Belt Switch Driver Seat Belt Lock N/S
Seat Belt Tensioner-Driver Driver Seat-Back 16
Seat Belt Tensioner-
PassengerPassenger Seat-Back 16
Security System Module C1 Instrument Panel N/S
Security System Module C2 Instrument Panel N/S
Sentry Key Remote Entry
Module (SKREEM)Instrument Panel N/S
Shifter Assembly Center Console 12
Side Marker Lamp Connector Engine Compartment N/S
Siren Engine Compartment-Left 1
Speaker-Left Front Door
Assembly C1Engine Compartment-Left N/S
Speaker-Left Front Door
Assembly C2In Left Front Door N/S
Speaker-Left Rear Rear Of Vehicle On Left Side N/S
Speaker-Right Front Door In Right Front Door N/S
Speaker-Right Rear Rear Of Vehicle On Right Side N/S
Speed Control Switch Steering Wheel Controls 10
Starter Motor On Engine N/S
Starter Motor Relay
(Fuse/Relay Block)In Fuse/Relay Block N/S
Tail Lamp Assembly-Left Rear Of Vehicle On Left Side N/S
Tail Lamp Assembly-Right Rear Of Vehicle On Right Side N/S
TCS Switch (ASR) Center Of Instrument Panel N/S
Temperature Switch Instrument Panel N/S
Time Delay Relay Under Driver Seat N/S
Towing/Interior Motion Sensor Instrument Panel N/S
Trailer Tow Connector Under Rear Of Vehicle N/S
Trailer Tow Control Module
C1Rear Of Vehicle N/S
Trailer Tow Control Module
C2Rear Of Vehicle N/S
Transmission Control Module
C1Engine Compartment N/S
8W - 91 - 8 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

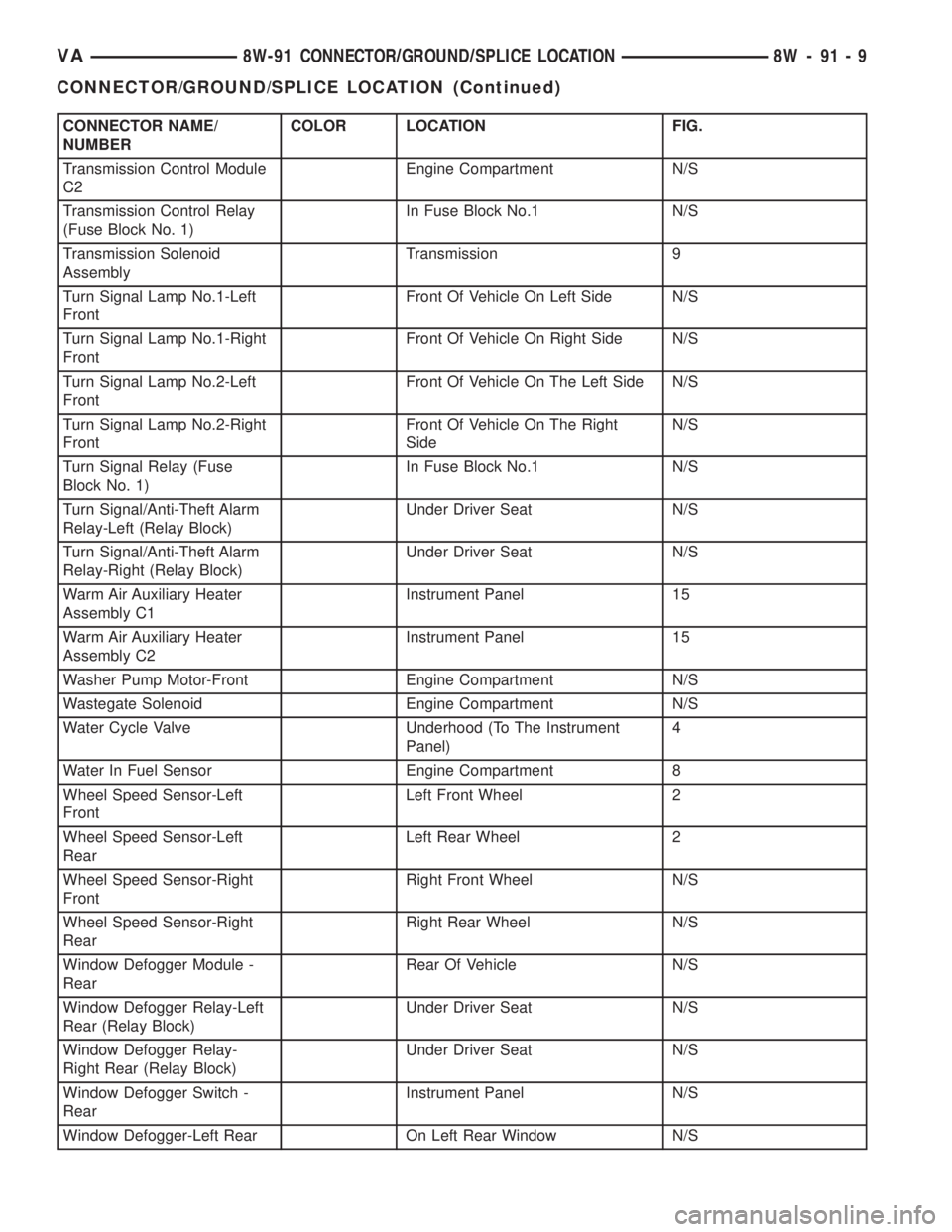

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

CONNECTOR NAME/
NUMBERCOLOR LOCATION FIG.
Transmission Control Module
C2Engine Compartment N/S
Transmission Control Relay
(Fuse Block No. 1)In Fuse Block No.1 N/S
Transmission Solenoid
AssemblyTransmission 9
Turn Signal Lamp No.1-Left
FrontFront Of Vehicle On Left Side N/S
Turn Signal Lamp No.1-Right
FrontFront Of Vehicle On Right Side N/S
Turn Signal Lamp No.2-Left
FrontFront Of Vehicle On The Left Side N/S
Turn Signal Lamp No.2-Right
FrontFront Of Vehicle On The Right
SideN/S
Turn Signal Relay (Fuse
Block No. 1)In Fuse Block No.1 N/S
Turn Signal/Anti-Theft Alarm
Relay-Left (Relay Block)Under Driver Seat N/S
Turn Signal/Anti-Theft Alarm
Relay-Right (Relay Block)Under Driver Seat N/S
Warm Air Auxiliary Heater
Assembly C1Instrument Panel 15
Warm Air Auxiliary Heater
Assembly C2Instrument Panel 15
Washer Pump Motor-Front Engine Compartment N/S
Wastegate Solenoid Engine Compartment N/S
Water Cycle Valve Underhood (To The Instrument
Panel)4
Water In Fuel Sensor Engine Compartment 8
Wheel Speed Sensor-Left
FrontLeft Front Wheel 2
Wheel Speed Sensor-Left
RearLeft Rear Wheel 2
Wheel Speed Sensor-Right
FrontRight Front Wheel N/S
Wheel Speed Sensor-Right
RearRight Rear Wheel N/S
Window Defogger Module -
RearRear Of Vehicle N/S
Window Defogger Relay-Left
Rear (Relay Block)Under Driver Seat N/S
Window Defogger Relay-
Right Rear (Relay Block)Under Driver Seat N/S
Window Defogger Switch -
RearInstrument Panel N/S
Window Defogger-Left Rear On Left Rear Window N/S
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 9

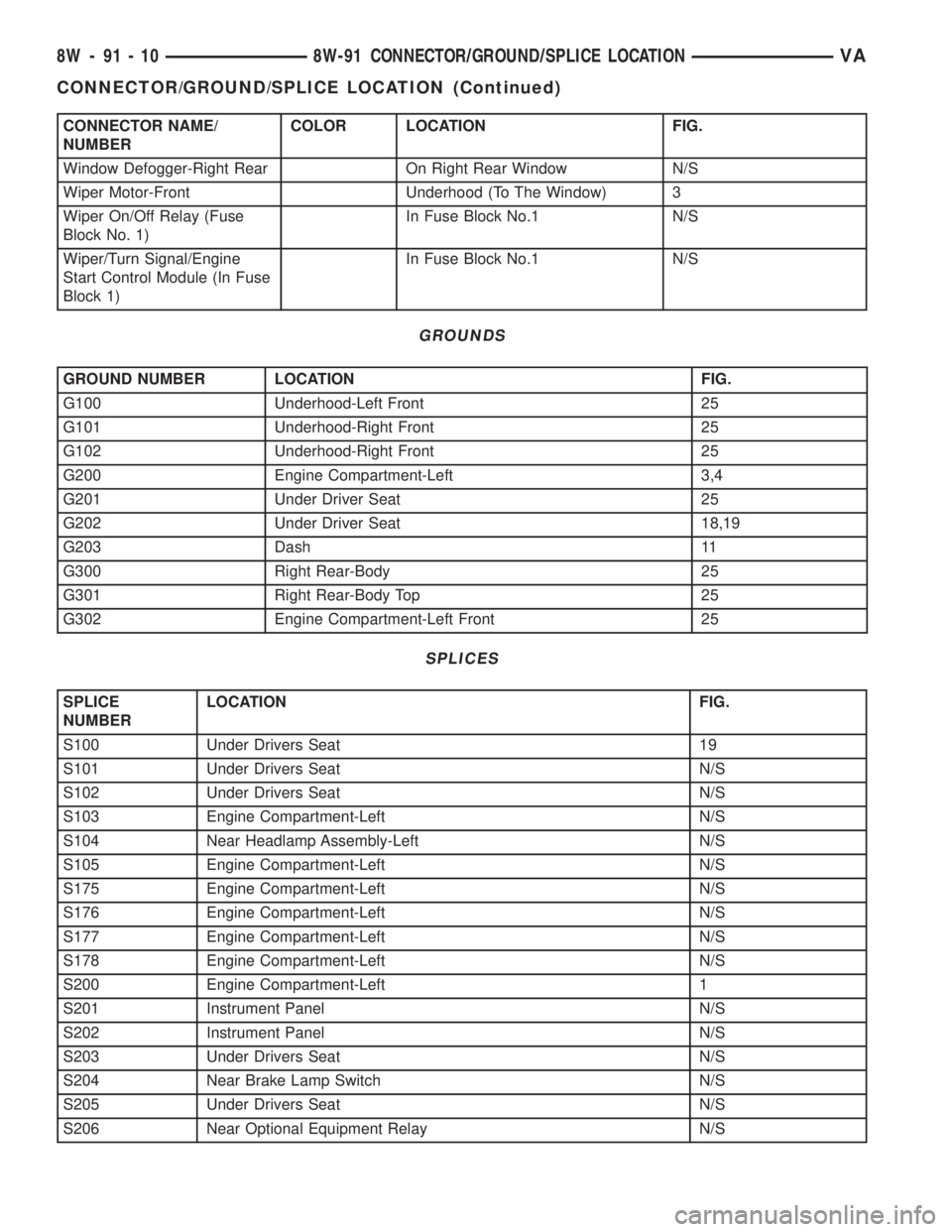

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

CONNECTOR NAME/
NUMBERCOLOR LOCATION FIG.
Window Defogger-Right Rear On Right Rear Window N/S
Wiper Motor-Front Underhood (To The Window) 3
Wiper On/Off Relay (Fuse
Block No. 1)In Fuse Block No.1 N/S
Wiper/Turn Signal/Engine
Start Control Module (In Fuse
Block 1)In Fuse Block No.1 N/S
GROUNDS
GROUND NUMBER LOCATION FIG.
G100 Underhood-Left Front 25
G101 Underhood-Right Front 25
G102 Underhood-Right Front 25
G200 Engine Compartment-Left 3,4
G201 Under Driver Seat 25
G202 Under Driver Seat 18,19
G203 Dash 11
G300 Right Rear-Body 25
G301 Right Rear-Body Top 25
G302 Engine Compartment-Left Front 25
SPLICES
SPLICE
NUMBERLOCATION FIG.
S100 Under Drivers Seat 19
S101 Under Drivers Seat N/S
S102 Under Drivers Seat N/S
S103 Engine Compartment-Left N/S
S104 Near Headlamp Assembly-Left N/S
S105 Engine Compartment-Left N/S
S175 Engine Compartment-Left N/S
S176 Engine Compartment-Left N/S
S177 Engine Compartment-Left N/S
S178 Engine Compartment-Left N/S
S200 Engine Compartment-Left 1
S201 Instrument Panel N/S
S202 Instrument Panel N/S
S203 Under Drivers Seat N/S
S204 Near Brake Lamp Switch N/S
S205 Under Drivers Seat N/S
S206 Near Optional Equipment Relay N/S

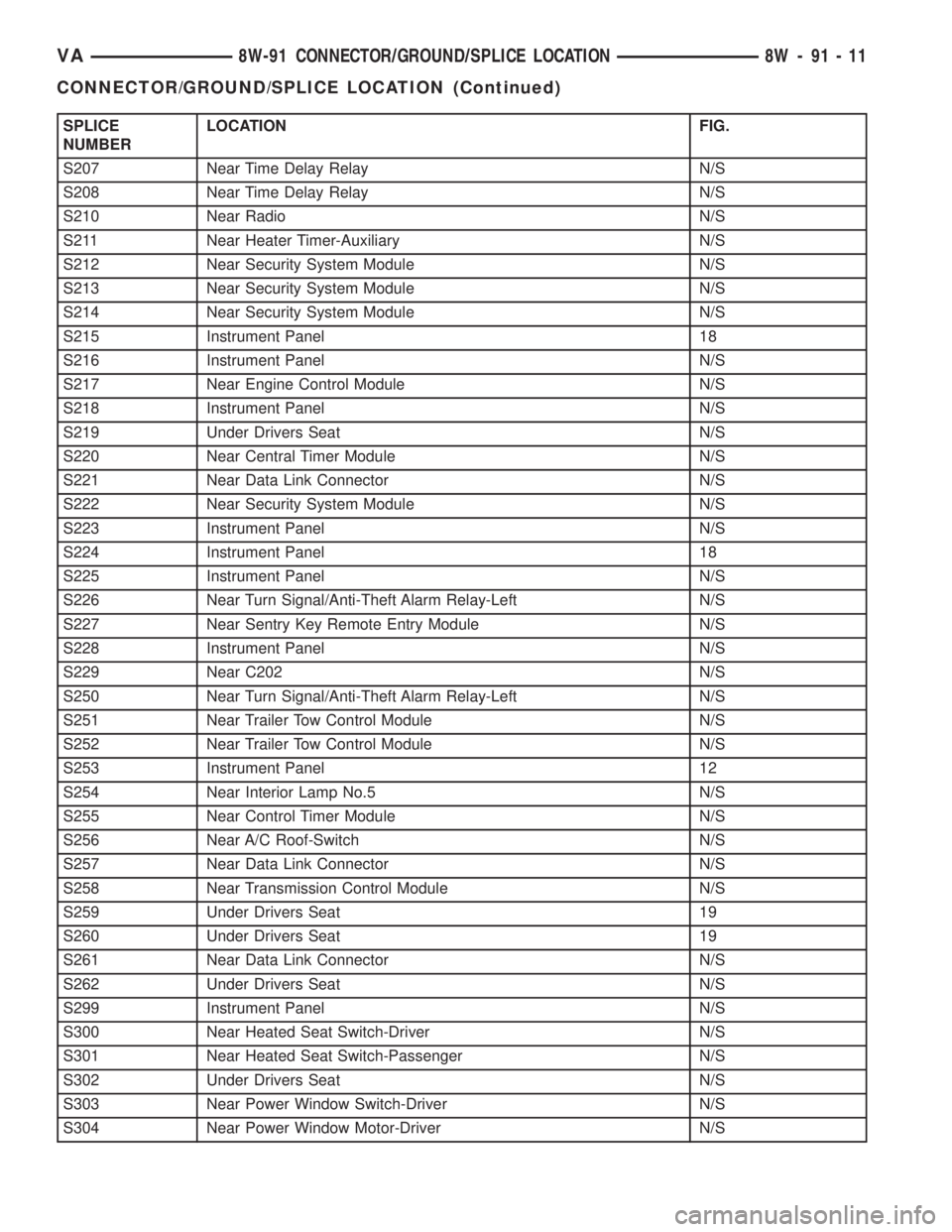

8W - 91 - 10 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

SPLICE
NUMBERLOCATION FIG.
S207 Near Time Delay Relay N/S
S208 Near Time Delay Relay N/S
S210 Near Radio N/S
S211 Near Heater Timer-Auxiliary N/S
S212 Near Security System Module N/S
S213 Near Security System Module N/S
S214 Near Security System Module N/S
S215 Instrument Panel 18
S216 Instrument Panel N/S
S217 Near Engine Control Module N/S
S218 Instrument Panel N/S
S219 Under Drivers Seat N/S
S220 Near Central Timer Module N/S
S221 Near Data Link Connector N/S
S222 Near Security System Module N/S
S223 Instrument Panel N/S
S224 Instrument Panel 18
S225 Instrument Panel N/S
S226 Near Turn Signal/Anti-Theft Alarm Relay-Left N/S
S227 Near Sentry Key Remote Entry Module N/S
S228 Instrument Panel N/S
S229 Near C202 N/S
S250 Near Turn Signal/Anti-Theft Alarm Relay-Left N/S
S251 Near Trailer Tow Control Module N/S
S252 Near Trailer Tow Control Module N/S
S253 Instrument Panel 12
S254 Near Interior Lamp No.5 N/S
S255 Near Control Timer Module N/S
S256 Near A/C Roof-Switch N/S
S257 Near Data Link Connector N/S
S258 Near Transmission Control Module N/S
S259 Under Drivers Seat 19
S260 Under Drivers Seat 19
S261 Near Data Link Connector N/S
S262 Under Drivers Seat N/S
S299 Instrument Panel N/S
S300 Near Heated Seat Switch-Driver N/S
S301 Near Heated Seat Switch-Passenger N/S
S302 Under Drivers Seat N/S
S303 Near Power Window Switch-Driver N/S
S304 Near Power Window Motor-Driver N/S

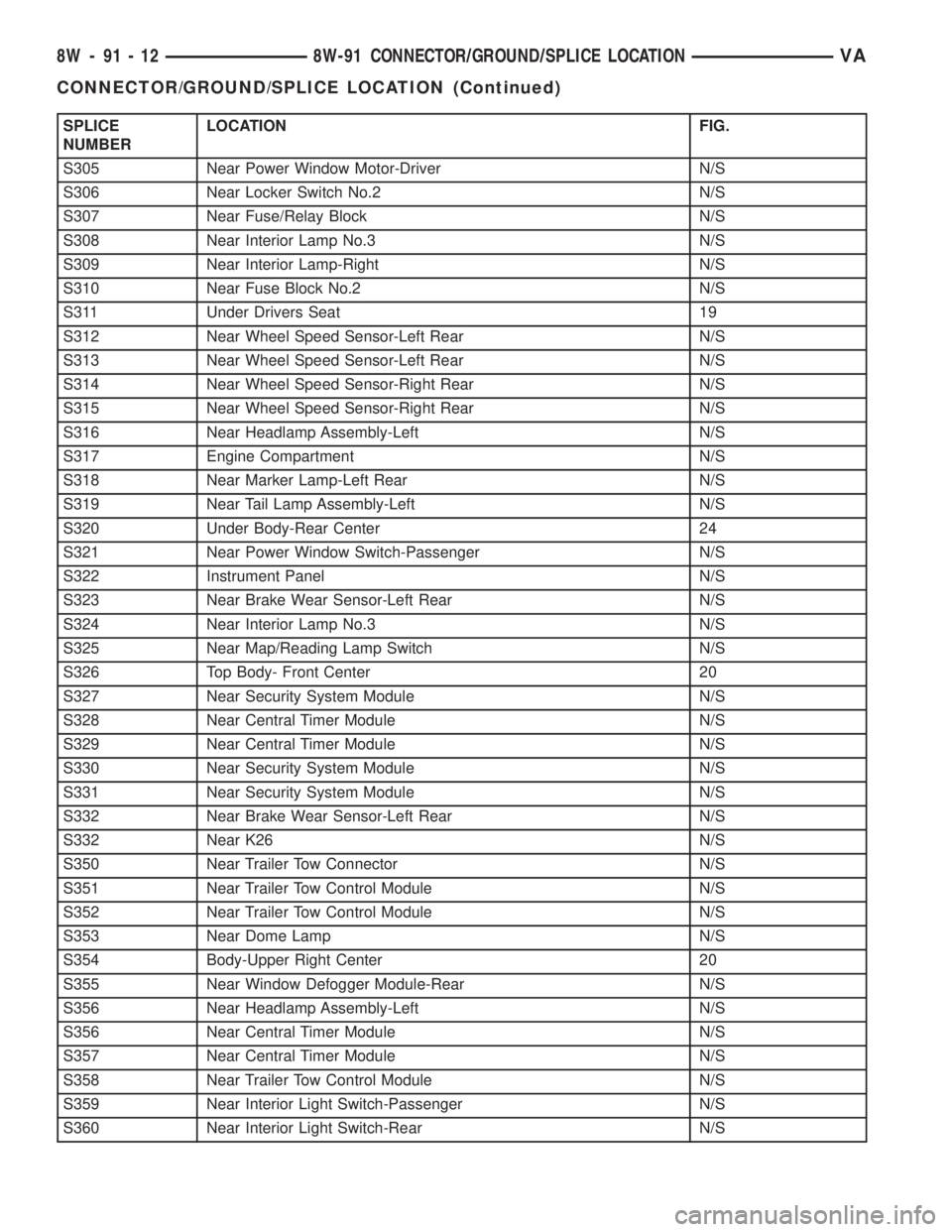

VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 11
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

SPLICE
NUMBERLOCATION FIG.
S305 Near Power Window Motor-Driver N/S
S306 Near Locker Switch No.2 N/S
S307 Near Fuse/Relay Block N/S
S308 Near Interior Lamp No.3 N/S
S309 Near Interior Lamp-Right N/S
S310 Near Fuse Block No.2 N/S
S311 Under Drivers Seat 19
S312 Near Wheel Speed Sensor-Left Rear N/S
S313 Near Wheel Speed Sensor-Left Rear N/S
S314 Near Wheel Speed Sensor-Right Rear N/S
S315 Near Wheel Speed Sensor-Right Rear N/S
S316 Near Headlamp Assembly-Left N/S
S317 Engine Compartment N/S
S318 Near Marker Lamp-Left Rear N/S
S319 Near Tail Lamp Assembly-Left N/S
S320 Under Body-Rear Center 24
S321 Near Power Window Switch-Passenger N/S
S322 Instrument Panel N/S
S323 Near Brake Wear Sensor-Left Rear N/S
S324 Near Interior Lamp No.3 N/S
S325 Near Map/Reading Lamp Switch N/S
S326 Top Body- Front Center 20
S327 Near Security System Module N/S
S328 Near Central Timer Module N/S
S329 Near Central Timer Module N/S
S330 Near Security System Module N/S
S331 Near Security System Module N/S
S332 Near Brake Wear Sensor-Left Rear N/S
S332 Near K26 N/S
S350 Near Trailer Tow Connector N/S
S351 Near Trailer Tow Control Module N/S
S352 Near Trailer Tow Control Module N/S
S353 Near Dome Lamp N/S
S354 Body-Upper Right Center 20
S355 Near Window Defogger Module-Rear N/S
S356 Near Headlamp Assembly-Left N/S
S356 Near Central Timer Module N/S
S357 Near Central Timer Module N/S
S358 Near Trailer Tow Control Module N/S
S359 Near Interior Light Switch-Passenger N/S
S360 Near Interior Light Switch-Rear N/S
8W - 91 - 12 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

SPLICE
NUMBERLOCATION FIG.

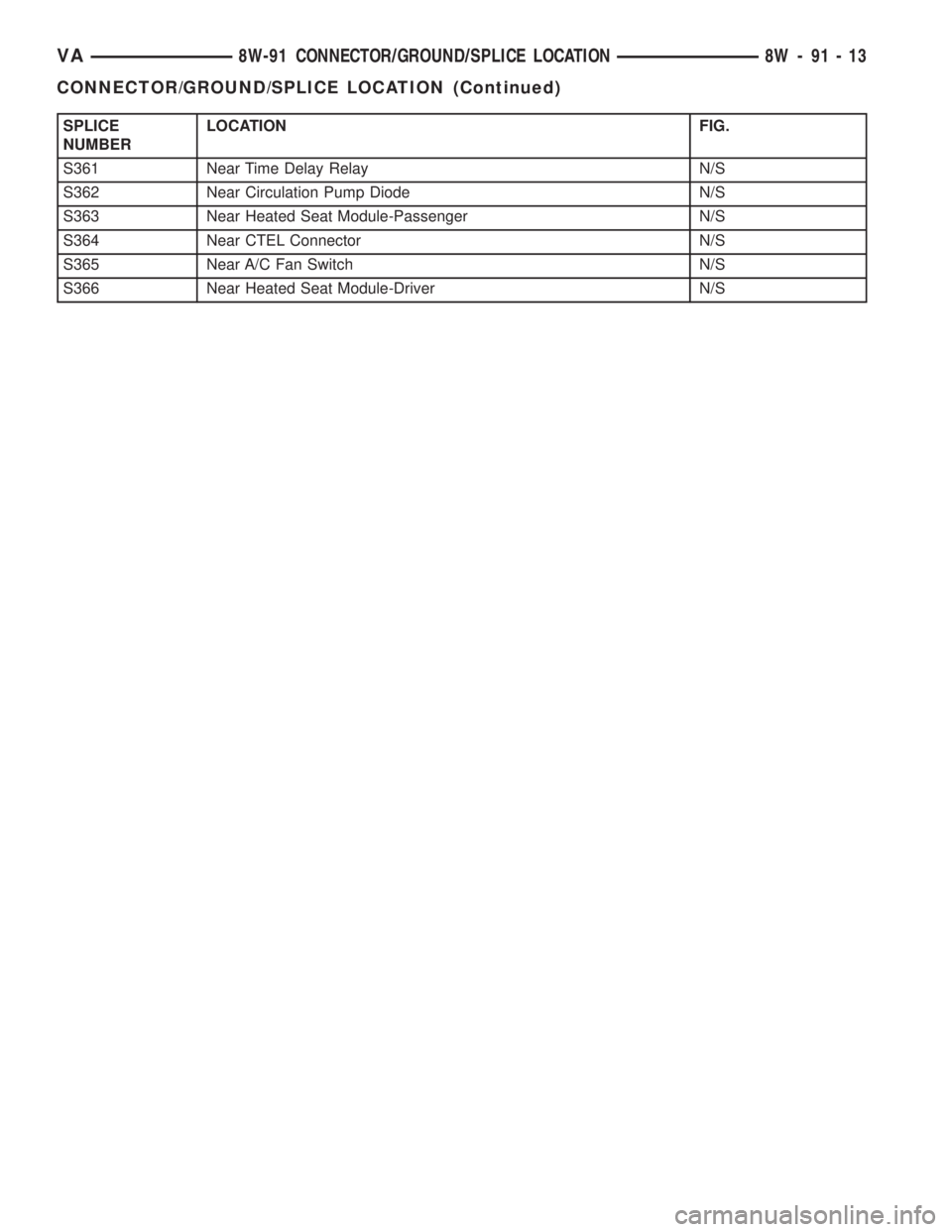

S361 Near Time Delay Relay N/S
S362 Near Circulation Pump Diode N/S
S363 Near Heated Seat Module-Passenger N/S
S364 Near CTEL Connector N/S
S365 Near A/C Fan Switch N/S
S366 Near Heated Seat Module-Driver N/S
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 13
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 1 VIEW 1
8W - 91 - 14 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 2 VIEW 2
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 15
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 3 VIEW 3
Fig. 4 VIEW 4
8W - 91 - 16 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
