MERCEDES-BENZ SPRINTER 2013 MY13 Operator’s Manual

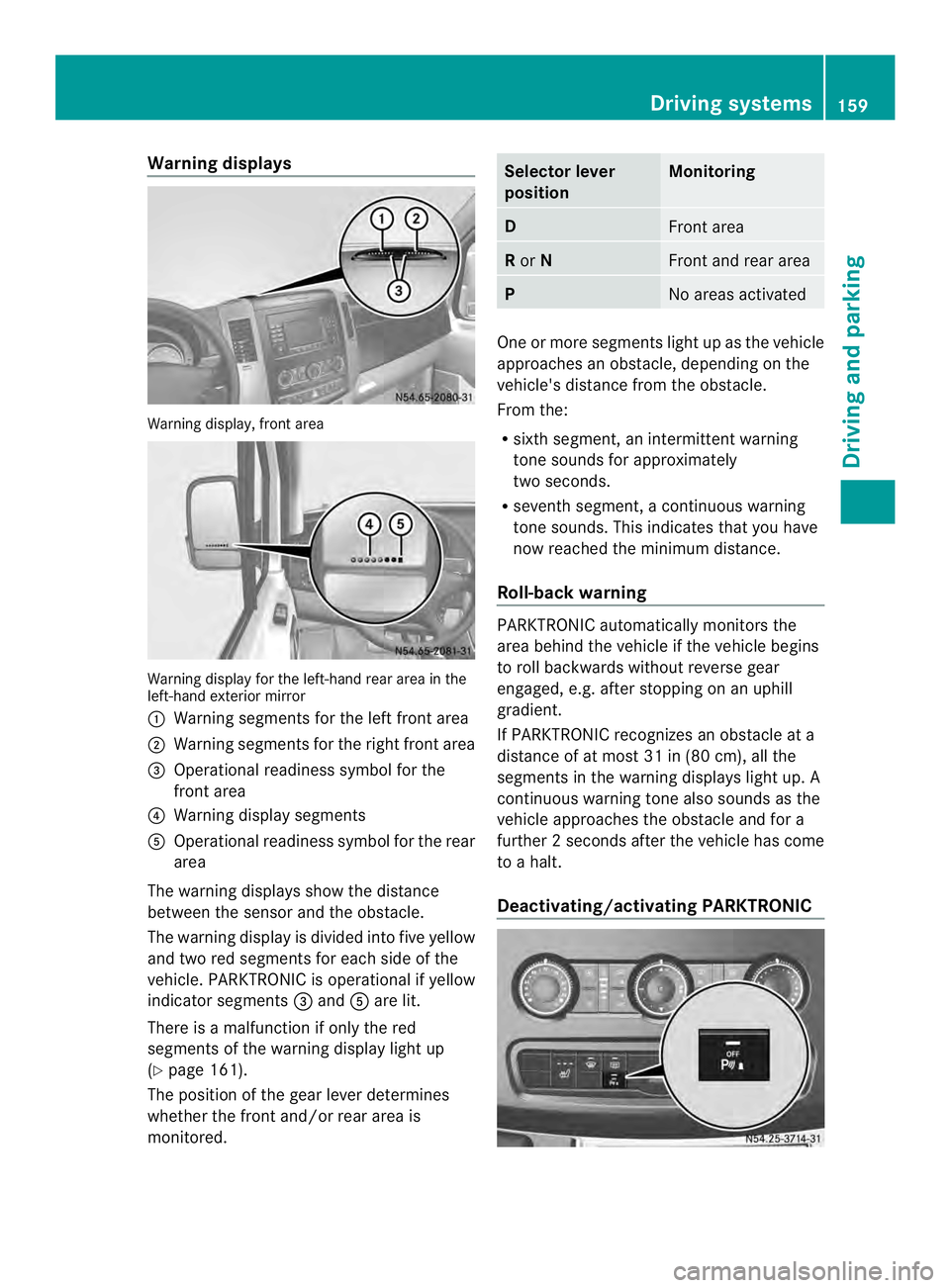

Warning displays
Warning display, front area
Warning display for the left-hand rear area in the
left-hand exterior mirror
0005
Warning segments for the left front area
0006 Warning segments for the right front area
0026 Operational readiness symbol for the
front area
0025 Warning display segments
0023 Operational readiness symbol for the rear
area
The warning displays show the distance
between the sensor and the obstacle.
The warning display is divided into five yellow
and two red segments for each side of the
vehicle. PARKTRONIC is operational if yellow
indicator segments 0026and 0023are lit.
There is a malfunction if only the red
segments of the warning display light up
(Y page 161).
The position of the gea rlever determines
whether the front and/or rear area is
monitored. Selector lever
position Monitoring
D
Front area
R
or N Front and rear area
P
No areas activated
One or more segments light up as the vehicle
approaches an obstacle, depending on the
vehicle's distance from the obstacle.
From the:
R
sixth segment, an intermittent warning
tone sounds for approximately
two seconds.
R seventh segment, a continuous warning
tone sounds. This indicates that you have
now reached the minimum distance.
Roll-back warning PARKTRONIC automatically monitors the
area behind the vehicle if the vehicle begins
to roll backwards without reverse gear
engaged, e.g. after stopping on an uphill
gradient.
If PARKTRONIC recognizes an obstacle at a
distance of at most 31 in (80 cm), all the
segments in the warning displays light up. A
continuous warning tone also sounds as the
vehicle approaches the obstacle and for a
further
2seconds after the vehicle has come
to a halt.

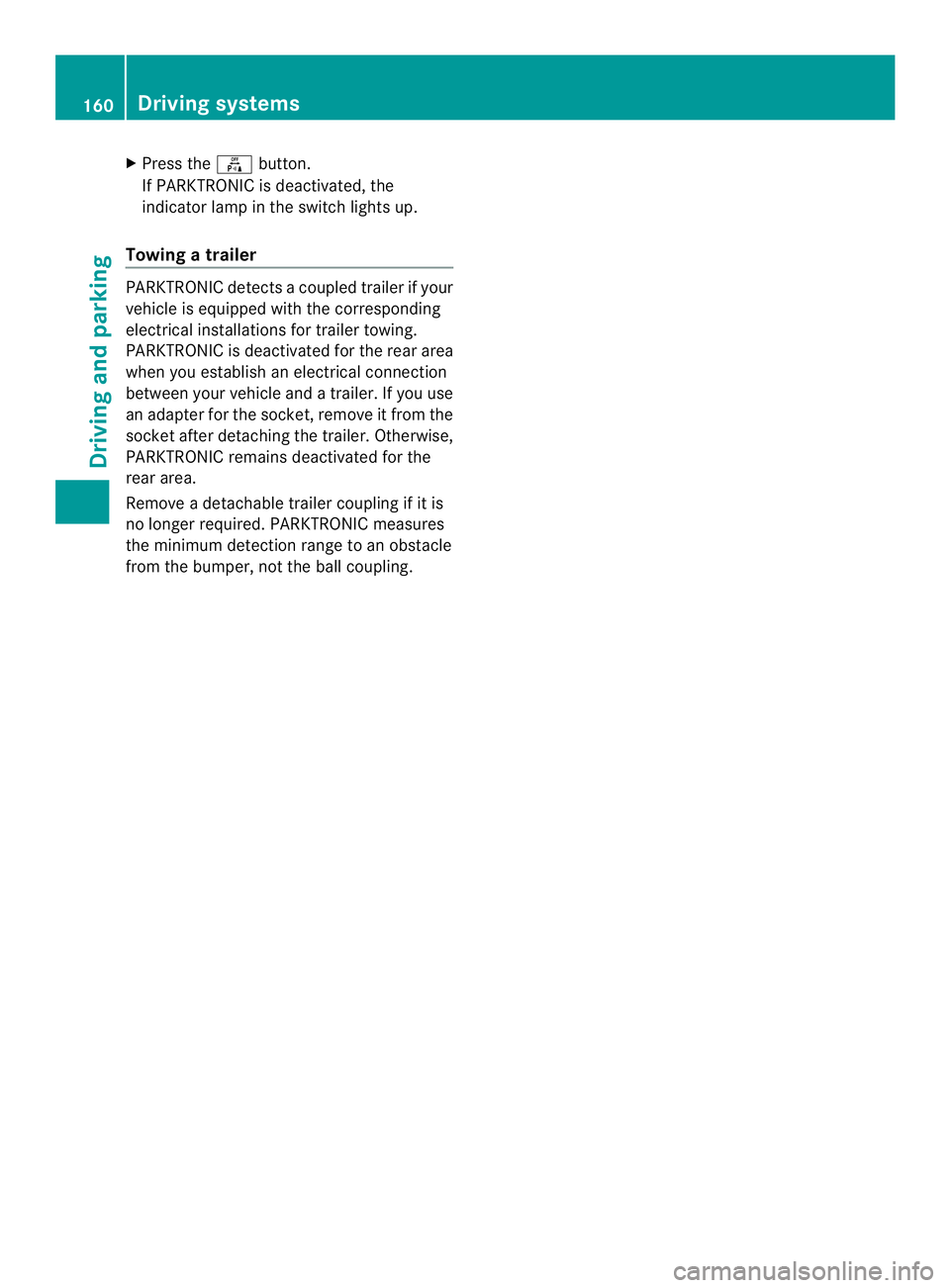

Deactivating/activating PARKTRONIC Driving systems
159Driving and parking Z

X
Press the 000Cbutton.
If PARKTRONIC is deactivated, the
indicator lamp in the switch lights up.
Towing atrailer PARKTRONIC detects a coupled trailer if your
vehicle is equipped with the corresponding
electrical installations for trailer towing.
PARKTRONIC is deactivated for the rea
rarea
when you establish an electrical connection
between yourv ehicle andatrailer. If you use
an adapter for the socket, remove it from the
socket after detaching the trailer. Otherwise,
PARKTRONIC remains deactivated for the
rear area.
Remove a detachable trailer coupling if it is
no longer required .PARKTRONIC measures
the minimum detection range to an obstacle
fro mt he bumper, not the ball coupling. 160
Driving systemsDriving and parking

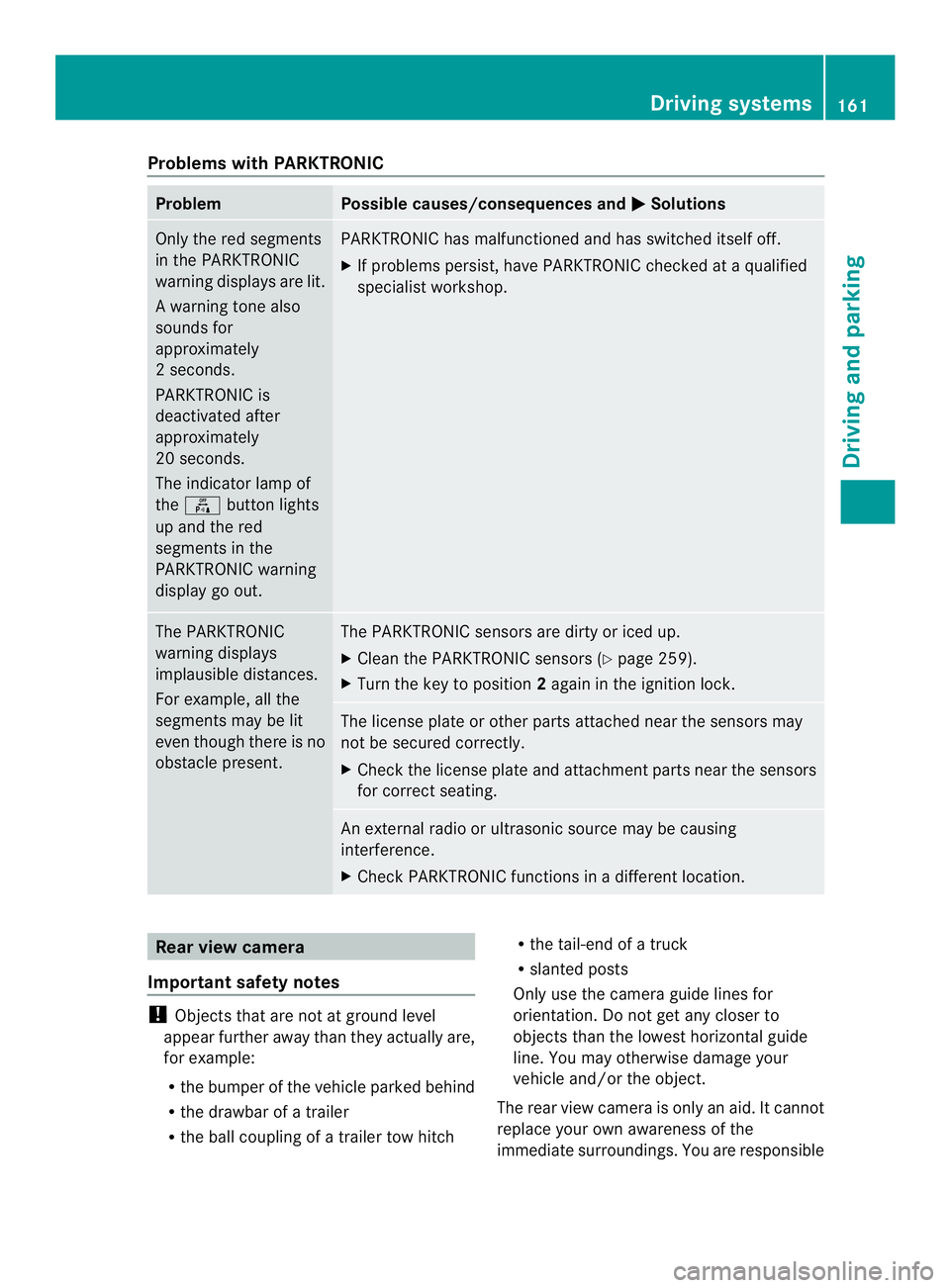

Problems with PARKTRONIC
Problem Possible causes/consequences and
0004 Solutions
Only the red segments
in the PARKTRONIC
warning displays are lit.
Aw
arning tone also
sounds for
approximately
2s econds.
PARKTRONIC is
deactivated after
approximately
20 seconds.
The indicator lamp of
the 000C button lights
up and the red
segments in the
PARKTRONIC warning
display go out. PARKTRONIC has malfunctioned and has switched itself off.
X
If problems persist, have PARKTRONIC checked at a qualified
specialist workshop. The PARKTRONIC
warning displays
implausible distances.
For example, all the
segments may be lit
even though there is no
obstacle present. The PARKTRONIC sensors are dirty or iced up.
X
Clean the PARKTRONIC sensors (Y page 259).
X Turn the key to position 2again in the ignition lock. The license plate or other parts attached near the sensors may
not be secured correctly.
X
Check the license plate and attachment parts near the sensors
for correct seating. An external radio or ultrasonic source may be causing
interference.
X
Check PARKTRONIC functions in a different location. Rear view camera
Important safety notes !
Objects that are not at ground level
appear further away than they actually are,
for example:
R the bumper of the vehicle parked behind
R the drawbar of a trailer
R the ball coupling of a trailer tow hitch R
the tail-end of a truck
R slanted posts
Only use the camera guide lines for
orientation. Do not get any closer to
objects than the lowest horizontal guide
line. You may otherwise damage your
vehicle and/or the object.
The rear view camera is only an aid. It cannot
replace your own awareness of the
immediate surroundings. You are responsible Driving systems
161Driving and parking Z

for safe maneuvering and parking. When
maneuvering and parking, make sure that
there are no persons, animals or objects in
the maneuvering area.
The rear view camera is
avisual parking aid.
It shows you the area behind the vehicle on a
separate monitor on the center console.
The camera is in the middle of the roof above
the high-mounted brake lamp (Y page 259).
The rear view camera may show obstacles in
perspectival distortion, incorrectly or not at
all. The rear view camera cannot display all
objects located very near and/or under the
rear bumper. It does not warn you of a
collision, persons or objects.
The area behind the vehicle is displayed in a
mirrored fashion, as in the rear-view mirror or
the exterior mirrors. The guide lines displayed
assist you in backing up.
The function of the rear view camera may be
partially or completely impaired in the
following circumstances:
R it is raining very heavily or snowing, or it is
foggy.
R the parking space is located in a very dark
place.
R the camera is exposed to very strong white
light .White stripes may appearont he
display.
R the surrounding area is illuminated with
fluorescent light. The displaym ay flicker.
R if the temperature changes very quickly, for
example if you drive int oaheated garage
in the winter.
R ambient temperatures are very high.
R the camera lens is dirty or obstructed.
R the rear of the vehicle is damaged. In this
case, have the position and setting
checked at a specialist workshop.
The rear view camera is switched on when
you engage reverse gear R.
You can find information on cleaning the
camera in the "Maintenance and care"
section (Y page 259). Monitor
Monitor in the stowage space on the center
console
Monitor buttons
0005
0008 Down button
0006 0006 Up button
0026 0003 Menu/confirm button
0025 0004 Monitor on/off switch
0023 Speaker cover
X To activate: engage reverse gear R.
The rear view camera is activated. The
monitor switches on.
If you engage reverse gear Rwhile using
auxiliary equipment, the monitor switches
to the rear view camera.
Or
X Press the 0004button.
The monitor shows AUX .T
he input for
auxiliary equipment (AUX) on the monitor
is activated.
i If you have switched the monitor off using
the 0004 button, you must press the 162
Driving systemsDriving and parking

0004
button after engaging reverse gear
R.O nly then is the monitor switched on.
X To adjust the volume: press the0008or
0006 button.
The volume of the integrated loudspeaker
is adjusted in increments.
X Press the 0003button.
Or
X Do not press any buttons for approximately
7s econds.
The volume adjustment is complete.
i The volume of the optional infrared
headphones is adjusted on the
headphones themselves.
X To switch off: move the selector lever to
position P,Nor D.
The rear view camera is deactivated after
approximately 15 seconds. The monitor
then switches off or back to the auxiliary
device input (AUX).
Or
X Press the 0004button.
The monitor shows the following message
for approximately 7seconds and then
switches off. If you drive faster than 6 mph
(10 km/h), the
monitor switches off automatically for safety
reasons.
The monitor shows the following message for
approximately 7seconds and then switches
off. If the speed falls below
5mph (8 km/h), the
monitor switches on again.
Menu system Main menu
–menu selection Main menu
X
Press the 0003button.
The menu selection for the main menu
(menu level 1) is displayed.
X Press the 0008or0006 button until the
desired menu is highlighted.
X Press the 0003button.
The highlighted menu is selected.
You can selec tthe following menus:
R Display (Y page 164)
R Picture format (Y page 165)
R Standard (Y page 165)
R Menu language (Y page 166)
R Factory setting (Y page 166)
R Back 0005 Driving systems
163Driving and parking Z

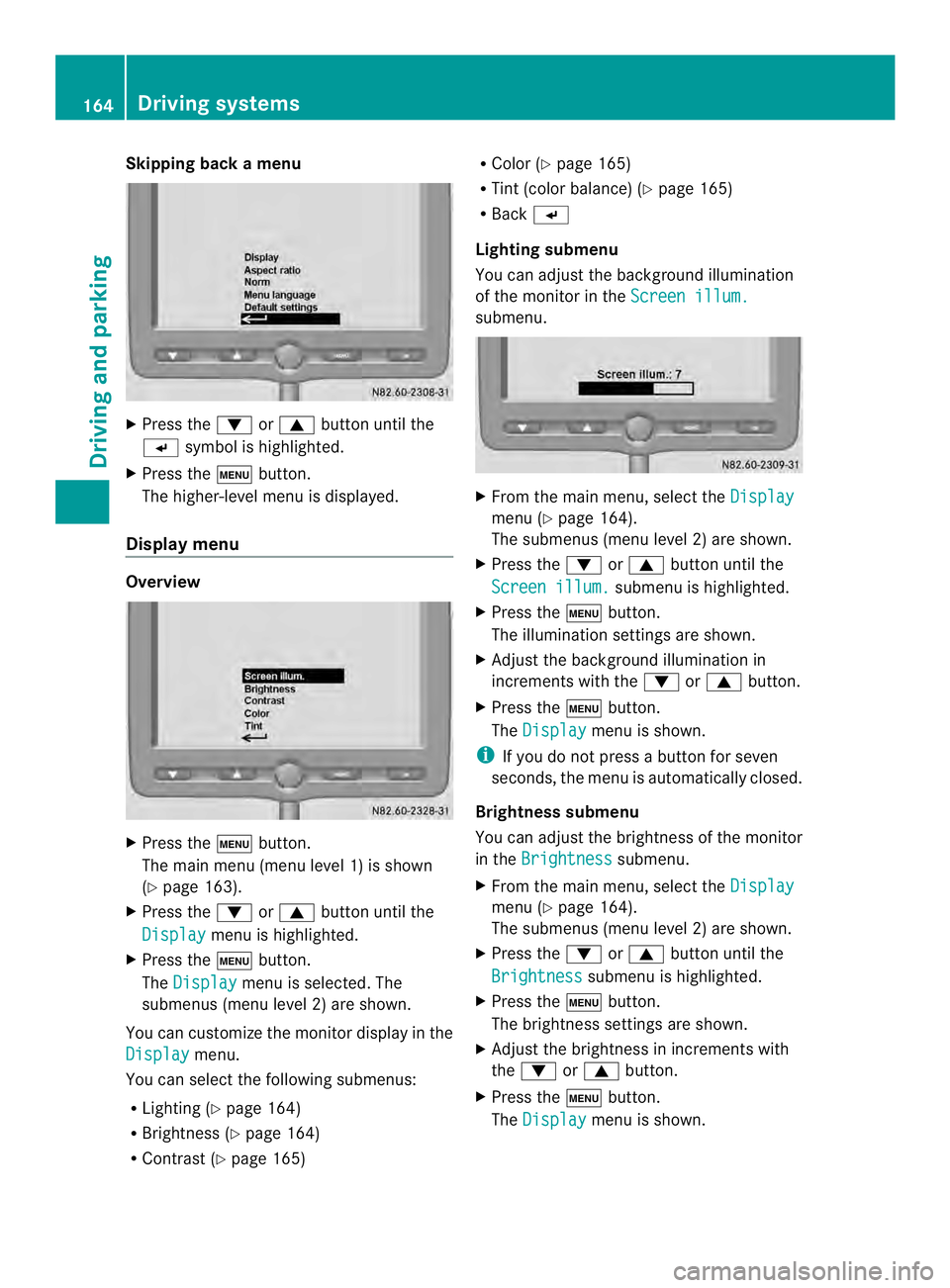

Skipping back a menu
X
Press the 0008or0006 button until the
0005 symbol is highlighted.
X Press the 0003button.
The higher-level menu is displayed.
Display menu Overview
X
Press the 0003button.
The main menu (menu level 1) is shown
(Y page 163).
X Press the 0008or0006 button until the
Display menu is highlighted.
X Press the 0003button.
The Display menu is selected. The
submenus (menu level 2) are shown.
You can customize the monitor display in the
Display menu.
You can select the following submenus:
R Lighting (Y page 164)
R Brightness (Y page 164)
R Contrast (Y page 165) R
Color (Y page 165)
R Tint (color balance) (Y page 165)
R Back 0005
Lighting submenu
You can adjust the background illumination
of the monitor in the Screen illum. submenu.
X
From the main menu, select the Display menu (Y
page 164).
The submenus (menu level 2) are shown.
X Press the 0008or0006 button until the
Screen illum. submenu is highlighted.
X Press the 0003button.
The illumination settings are shown.
X Adjust the background illumination in
increments with the 0008or0006 button.
X Press the 0003button.
The Display menu is shown.
i If you do not press a button for seven
seconds, the menu is automatically closed.
Brightness submenu
You can adjust the brightness of the monitor
in the Brightness submenu.
X From the main menu, select the Display menu (Y
page 164).
The submenus (menu level 2) are shown.
X Press the 0008or0006 button until the
Brightness submenu is highlighted.
X Press the 0003button.
The brightness settings are shown.
X Adjust the brightness in increments with
the 0008 or0006 button.
X Press the 0003button.
The Display menu is shown.164
Driving systemsDriving and parking

Contrast submenu
You can adjust the picture contrast of the
monitor in the Contrast submenu.
X From the main menu, select the Displaymenu (Y
page 164).
The submenus (menu level 2) are shown.
X Press the 0008or0006 button until the
Contrast submenu is highlighted.
X Press the 0003button.
The contrast settings are shown.
X Adjust the contrast in increments with
the 0008 or0006 button.
X Press the 0003button.
The Display menu is shown.
Color submenu
You can adjus tthe color setting of the
monitor in the Color submenu.
X From the main menu, select the Displaymenu (Y
page 164).
The submenus (menu level 2) are shown.
X Press the 0008or0006 button until the
Color submenu is highlighted.
X Press the 0003button.
The color settings are shown.
X Adjust the color in increments with
the 0008 or0006 button.
X Press the 0003button.
The Display menu is shown.
Tint submenu (NTSC colorb alance)
In the NTSC standard, you can adjust the
color balance of the monitor in the Tintsubmenu.
X
From the main menu, select the Displaymenu (Y
page 164).
The submenus (menu level 2) are shown.
X Press the 0008or0006 button until the
Tint submenu is highlighted.
X Press the 0003button.
The color balance setting is displayed. X
Adjust the color balance in increments with
the 0008 or0006 button.
X Press the 0003button.
The Display menu is shown.
Picture format menu You can set the picture forma
tofthe monitor
in the Aspect ratio menu.
The 16:9 format fills the entire monitor
screen. The rear view camera generates a
16:9 format. For normal video signals, select
4:3 format. X
Press the 0003button.
The main menu (menu level 1) is shown
(Y page 163).
X Press the 0008or0006 button until the
Aspect ratio menu is highlighted.
X Press the 0003button.
The Aspect ratio menu (menu level 2) is
shown. The current aspect ratio is marked
with the 0004symbol.
X Press the 0008or0006 button until the
desired aspect ratio is highlighted.
X Press the 0003button.
Your selected format is activated.
i If you select 0005and press the 0003
button, the monitor goes back to the main
menu (menu level 1).
Standard menu You can set the video standard for the
monitor in the
Norm menu. Driving systems
165Driving and parking Z

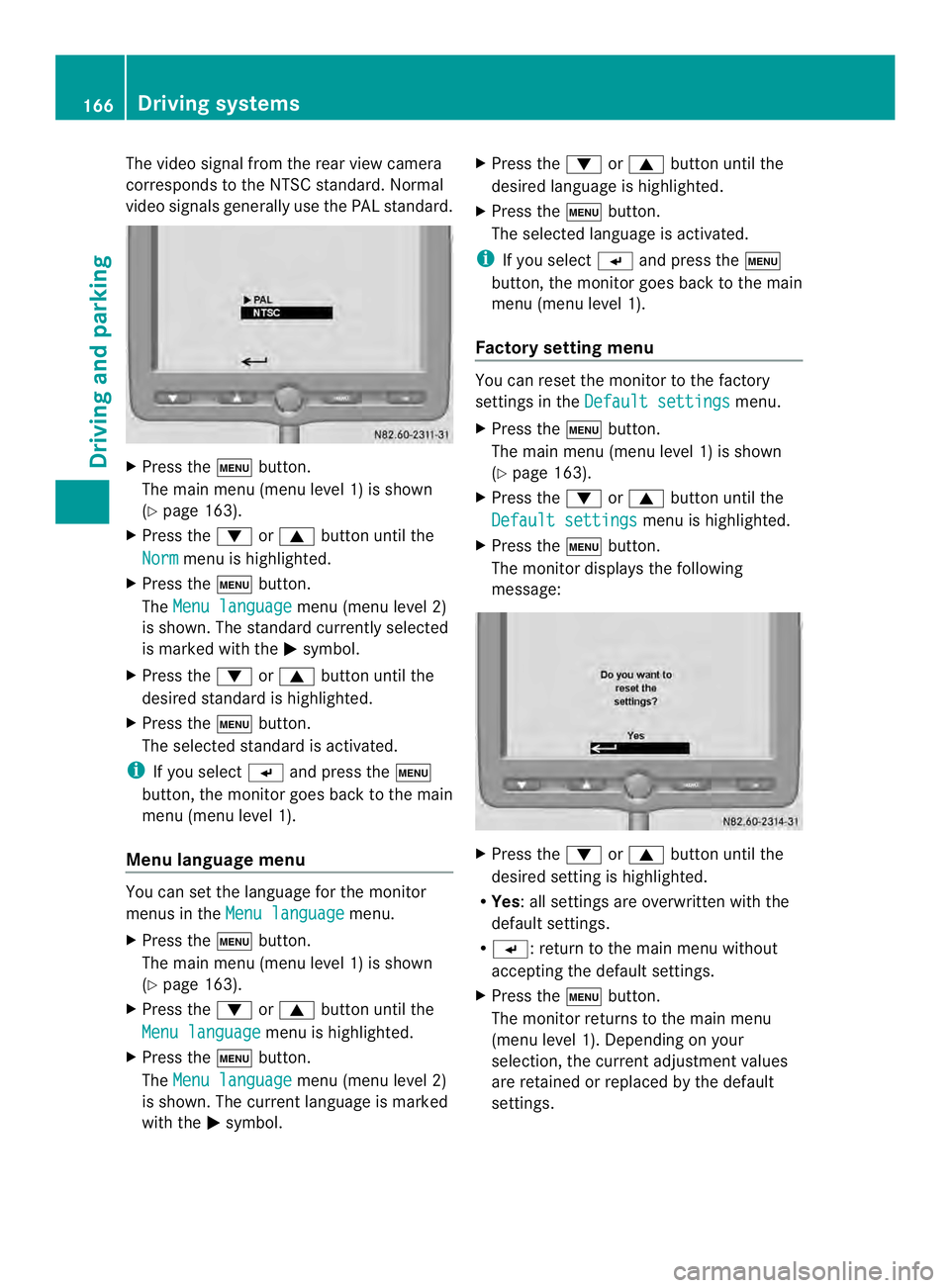

The video signal from the rear view camera
corresponds to the NTSC standard. Normal
video signals generally use the PAL standard. X
Press the 0003button.
The main menu (menu level 1) is shown
(Y page 163).
X Press the 0008or0006 button until the
Norm menu is highlighted.
X Press the 0003button.
The Menu language menu (menu level 2)
is shown. The standard currently selected
is marked with the 0004symbol.
X Press the 0008or0006 button until the
desired standard is highlighted.
X Press the 0003button.
The selected standard is activated.
i If you select 0005and press the 0003
button, the monitor goes back to the main
menu (menu level 1).
Menu language menu You can set the language for the monitor
menus in the
Menu language menu.
X Press the 0003button.
The main menu (menu level 1) is shown
(Y page 163).
X Press the 0008or0006 button until the
Menu language menu is highlighted.
X Press the 0003button.
The Menu language menu (menu level 2)
is shown. The curren tlanguage is marked
with the 0004symbol. X
Press the 0008or0006 button until the
desired language is highlighted.
X Press the 0003button.
The selected language is activated.
i If you select 0005and press the 0003
button, the monito rgoes back to the main
menu (menu level 1).
Factory setting menu You can reset the monitor to the factory
settings in the
Default settings menu.
X Press the 0003button.
The main menu (menu level 1) is shown
(Y page 163).
X Press the 0008or0006 button until the
Default settings menu is highlighted.
X Press the 0003button.
The monitor displays the following
message: X
Press the 0008or0006 button until the
desired setting is highlighted.
R Yes:a ll settings are overwritten with the
default settings.
R 0005: return to the main menu without
accepting the default settings.
X Press the 0003button.
The monitor returns to the main menu
(menu level 1). Depending on your
selection, the current adjustmen tvalues
are retained or replaced by the default
settings. 166
Driving systemsDriving and parking

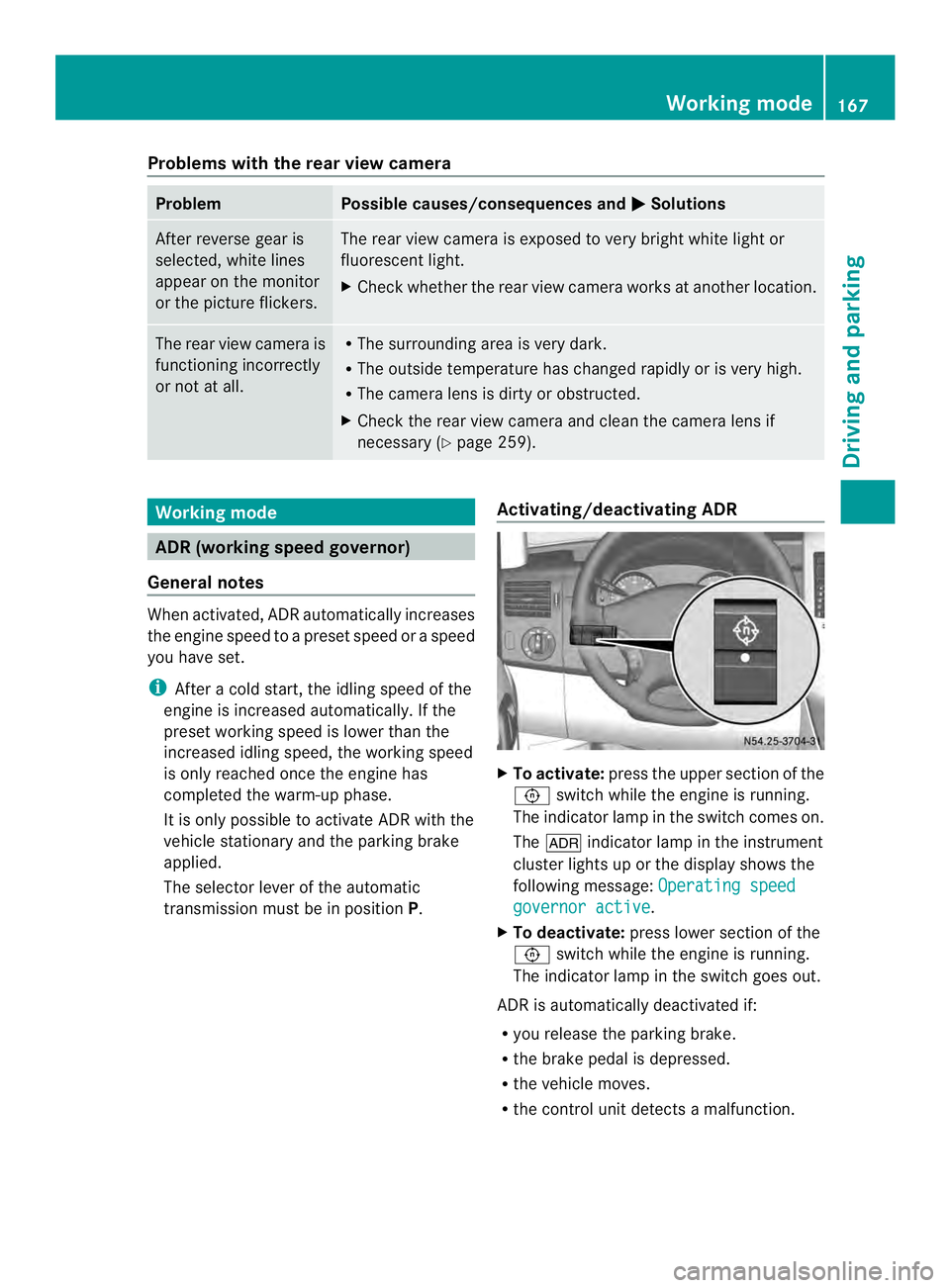

Problems with the rear view camera
Problem Possible causes/consequences and
0004 Solutions
After reverse gear is
selected, white lines
appear on the monitor
or the picture flickers. The rear view camera is exposed to very bright white light or
fluorescent light.
X
Check whether the rear view camera works at another location. The rear view camera is
functioning incorrectly
or not at all. R
The surrounding area is very dark.
R The outside temperature has changed rapidly or is very high.
R The camera lens is dirty or obstructed.
X Check the rear view camera and clean the camera lens if
necessary (Y page 259). Working mode
ADR (working speed governor)
General notes When activated, ADR automatically increases
the engine speed to a preset speed or a speed
you have set.
i After a cold start, the idling speed of the
engine is increased automatically. If the
preset working speed is lower than the
increased idling speed, the working speed
is only reached once the engine has
completed the warm-up phase.
It is only possible to activate ADR with the
vehicle stationary and the parking brake
applied.
The selector lever of the automatic
transmission must be in position P.Activating/deactivating ADR X
To activate: press the upper section of the
0023 switch while the engine is running.
The indicator lamp in the switch comes on.
The 0004 indicator lamp in the instrument
cluster lights up or the display shows the
following message: Operating speed governor active .
X To deactivate: press lower section of the
0023 switch while the engine is running.
The indicator lamp in the switch goes out.
ADR is automatically deactivated if:
R you release the parking brake.
R the brake pedal is depressed.
R the vehicle moves.
R the control unit detects a malfunction. Working mode
167Driving and parking Z

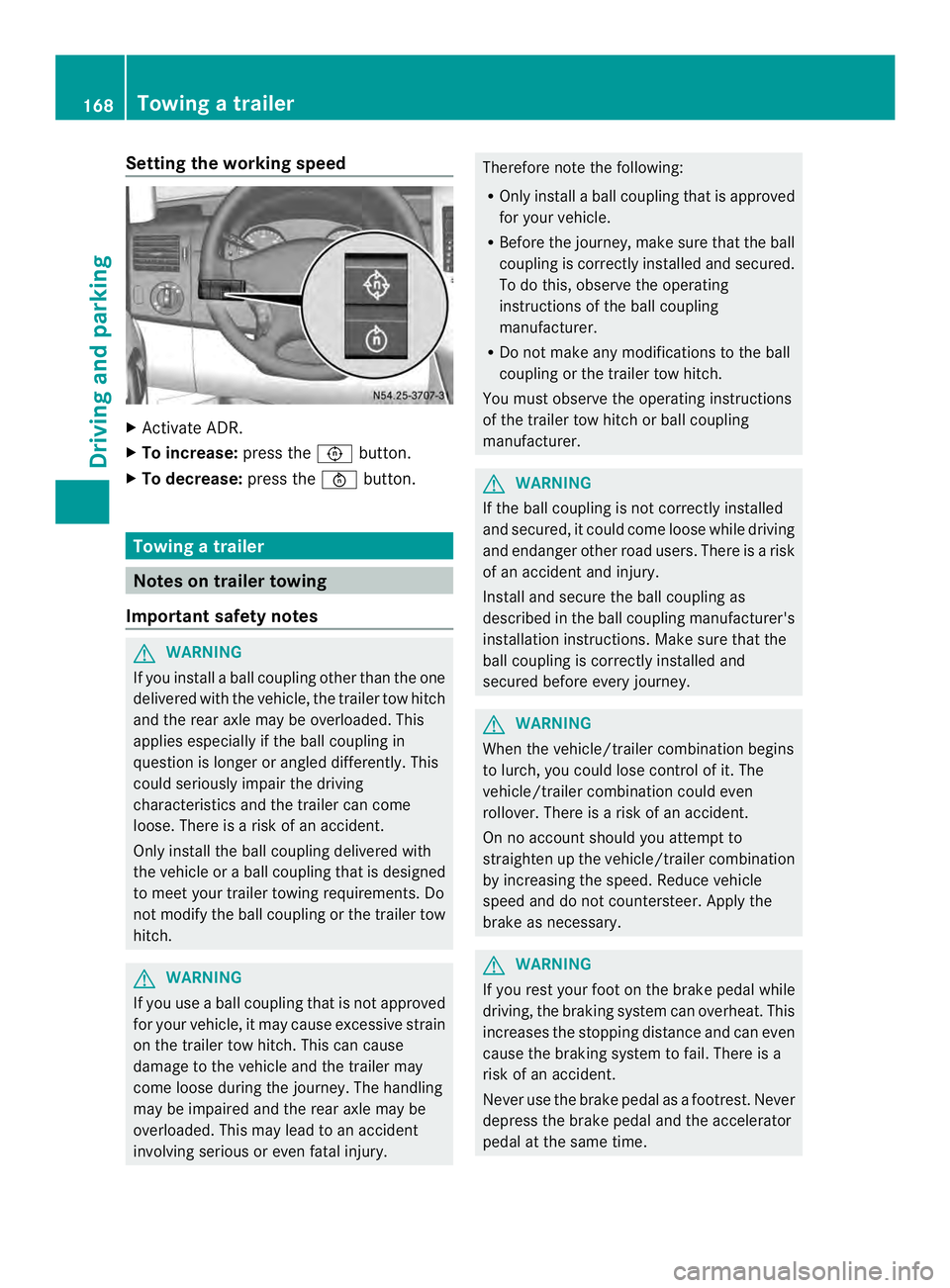

Setting the working speed
X
Activate ADR.
X To increase: press the0023button.
X To decrease: press the0024button. Towing
atrailer Notes on traile
rtowing
Important safety notes G
WARNING
If you install a ball coupling other than the one
delivered with the vehicle, the trailer tow hitch
and the rear axle may be overloaded. This
applies especially if the ball coupling in
question is longer or angled differently. This
could seriously impair the driving
characteristics and the trailer can come
loose .There is a risk of an accident.
Only install the ball coupling delivered with
the vehicle or a ball coupling that is designed
to meet your trailer towing requirements. Do
not modify the ball coupling or the trailer tow
hitch. G
WARNING
If you use a ball coupling that is not approved
for your vehicle, it may cause excessive strain
on the trailer tow hitch. This can cause
damage to the vehicle and the trailer may
come loose during the journey. The handling
may be impaired and the rear axle may be
overloaded. This may lead to an accident
involving serious or even fatal injury. Therefore note the following:
R
Only install a ball coupling that is approved
for your vehicle.
R Before the journey, make sure that the ball
coupling is correctly installed and secured.
To do this, observe the operating
instructions of the ball coupling
manufacturer.
R Do not make any modifications to the ball
coupling or the trailer tow hitch.
You must observe the operating instructions
of the trailer tow hitch or ball coupling
manufacturer. G
WARNING
If the ball coupling is not correctly installed
and secured, it could come loose while driving
and endanger other road users. There is a risk
of an accident and injury.
Install and secure the ball coupling as
described in the ball coupling manufacturer's
installation instructions. Make sure that the
ball coupling is correctly installed and
secured before every journey. G
WARNING
When the vehicle/trailer combination begins
to lurch, you could lose control of it. The
vehicle/trailer combination could even
rollover. There is a risk of an accident.
On no account should you attempt to
straighten up the vehicle/trailer combination
by increasing the speed. Reduce vehicle
speed and do not countersteer. Apply the
brake as necessary. G
WARNING
If you rest your foot on the brake pedal while
driving, the braking system can overheat. This
increases the stopping distance and can even
cause the braking system to fail. There is a
risk of an accident.
Never use the brake pedal as a footrest.N ever
depress the brake pedal and the accelerator
pedal at the same time. 168
Towing
atrailerDriving an d parking
