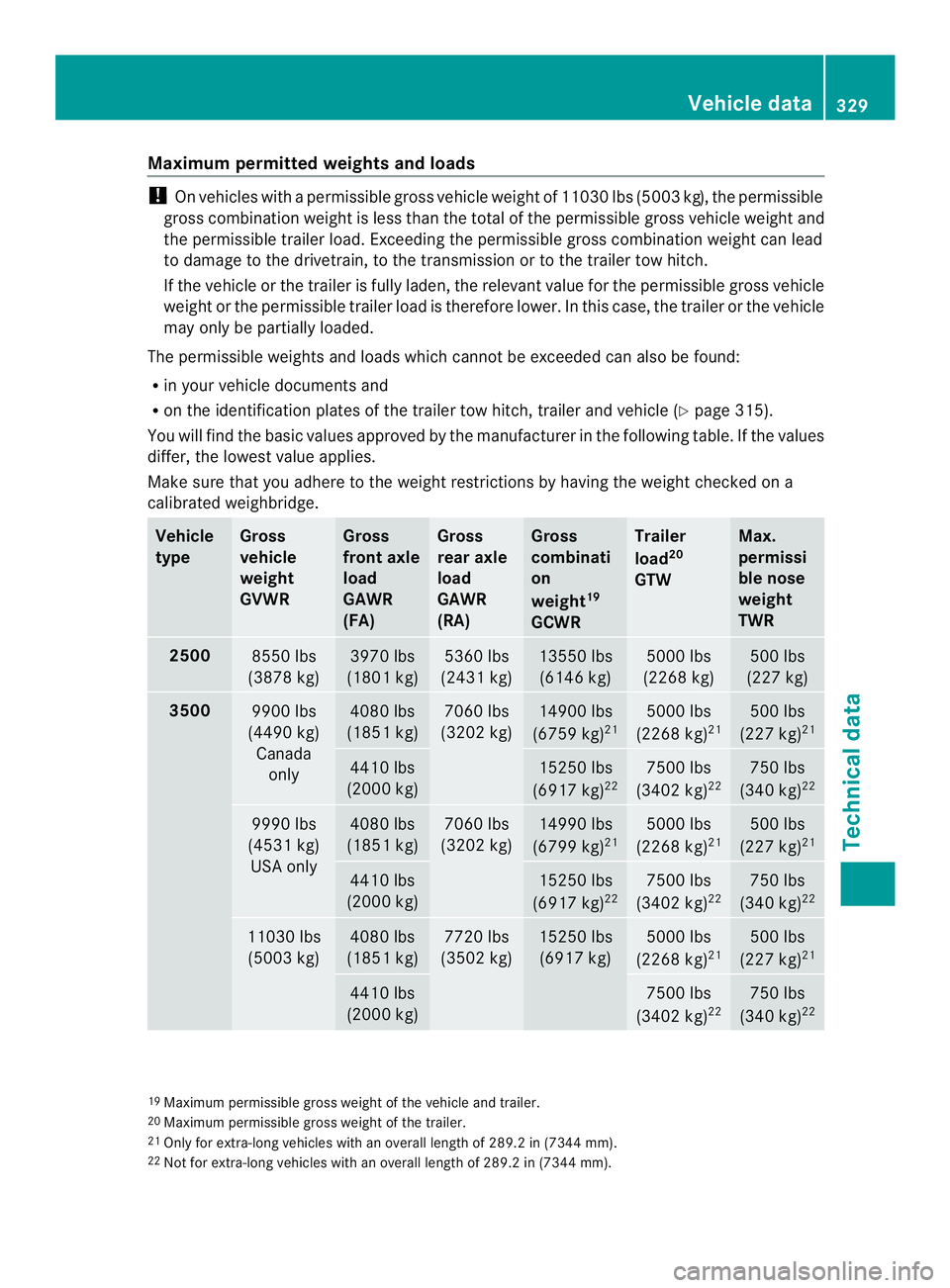

Maximum permitted weights and loads
!
On vehicles with a permissible gross vehicle weight of 11030 lbs (5003 kg), the permissible
gross combination weight is less than the total of the permissible gross vehicle weight and
the permissible trailer load. Exceeding the permissible gross combination weight can lead
to damage to the drivetrain, to the transmission or to the trailer tow hitch.
If the vehicle or the trailer is fully laden, the relevant value for the permissible gross vehicle
weight or the permissible trailer load is therefore lower. In this case, the trailer or the vehicle
may only be partially loaded.
The permissible weights and loads which cannot be exceeded can also be found:
R in yourv ehicle documents and
R on the identification plates of the trailer tow hitch, trailer and vehicle (Y page 315).
You will find the basic values approved by the manufacturer in the following table. If the values
differ, the lowest value applies.
Make sure that you adhere to the weight restrictions by having the weight checked on a
calibrated weighbridge. Vehicle
type Gross
vehicle
weight
GVWR Gross
front axle
load
GAWR
(FA) Gross
rear axle
load
GAWR
(RA) Gross
combinati
on
weight
19
GCWR Trailer
load
20
GTW Max.
permissi
ble nose
weight
TWR
2500
8550 lbs
(3878 kg) 3970 lbs
(1801 kg) 5360 lbs
(2431 kg) 13550 lbs
(6146 kg) 5000 lbs
(2268 kg) 500 lbs
(227 kg) 3500
9900 lbs
(4490 kg) Canada only 4080 lbs
(1851 kg) 7060 lbs
(3202 kg) 14900 lbs
(6759 kg) 21 5000 lbs
(2268 kg) 21 500 lbs
(227 kg) 21 4410 lbs
(2000 kg) 15250 lbs
(6917 kg) 22 7500 lbs
(3402 kg) 22 750 lbs
(340 kg) 22 9990 lbs
(4531 kg) USA only 4080 lbs
(1851 kg) 7060 lbs
(3202 kg) 14990 lbs
(6799 kg) 21 5000 lbs
(2268 kg) 21 500 lbs
(227 kg) 21 4410 lbs
(2000 kg) 15250 lbs
(6917 kg) 22 7500 lbs
(3402 kg) 22 750 lbs
(340 kg) 22 11030 lbs
(5003 kg) 4080 lbs
(1851 kg) 7720 lbs
(3502 kg) 15250 lbs
(6917 kg) 5000 lbs
(2268 kg) 21 500 lbs
(227 kg) 21 4410 lbs
(2000 kg) 7500 lbs
(3402 kg) 22 750 lbs
(340 kg) 22 19
Maximum permissible gross weight of the vehicle and trailer.
20 Maximum permissible gross weight of the trailer.
21 Only for extra-long vehicles with an overall length of 289.2 in (7344 mm).
22 Not for extra-long vehicles with an overall length of 289.2 in (7344 mm). Vehicle data
