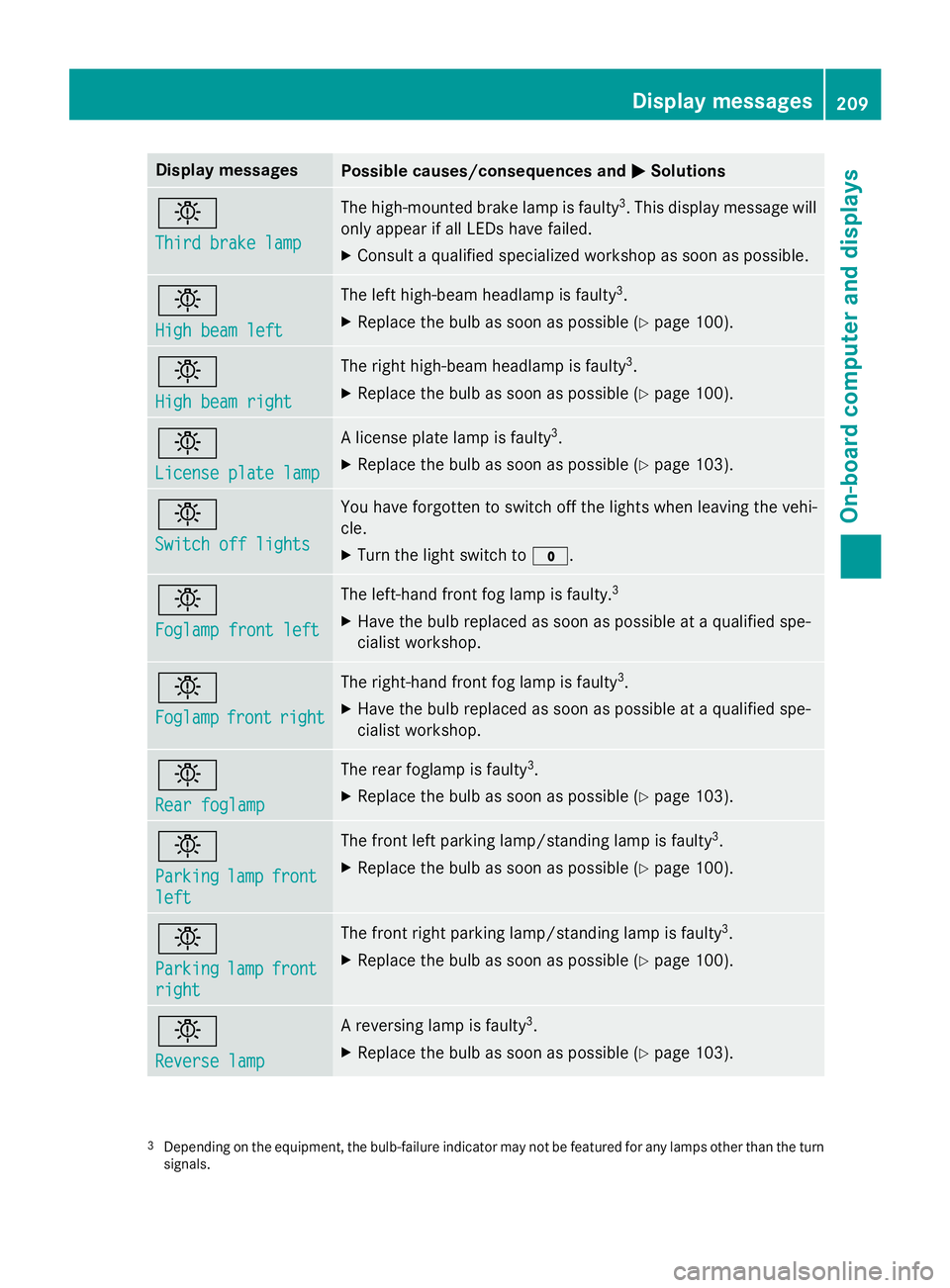

Page 211 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions 0049
Third brake lamp Third brake lamp The high-mounted brake lamp is faulty
3
. This display message will
only appear if all LEDs have failed.
X Consult a qualified specialized workshop as soon as possible. 0049
High beam left High beam left The left high-beam headlamp is faulty
3
.
X Replace the bulb as soon as possible (Y page 100).0049
High beam right High beam right The right high-beam headlamp is faulty
3
.
X Replace the bulb as soon as possible (Y page 100).0049
License plate lamp License plate lamp A license plate lamp is faulty
3
.
X Replace the bulb as soon as possible (Y page 103).0049
Switch off lights Switch off lights You have forgotten to switch off the lights when leaving the vehi-
cle.
X Turn the light switch to 003F.0049
Foglamp front left Foglamp front left The left-hand front fog lamp is faulty.
3
X Have the bulb replaced as soon as possible at a qualified spe-
cialist workshop. 0049
Foglamp Foglamp
front
frontright
right The right-hand front fog lamp is faulty
3
.
X Have the bulb replaced as soon as possible at a qualified spe-
cialist workshop. 0049
Rear foglamp Rear foglamp The rear foglamp is faulty
3
.
X Replace the bulb as soon as possible (Y page 103).0049
Parking Parking
lamp
lampfront
front
left
left The front left parking lamp/standing lamp is faulty
3
.
X Replace the bulb as soon as possible (Y page 100).0049
Parking Parking
lamp
lampfront
front
right
right The front right parking lamp/standing lamp is faulty
3
.
X Replace the bulb as soon as possible (Y page 100).0049
Reverse lamp Reverse lamp A reversing lamp is faulty
3
.
X Replace the bulb as soon as possible (Y page 103).3
Depending on the equipment, the bulb-failure indicator may not be featured for any lamps other than the turn
signals. Display
messages
209On-board computer and displays Z

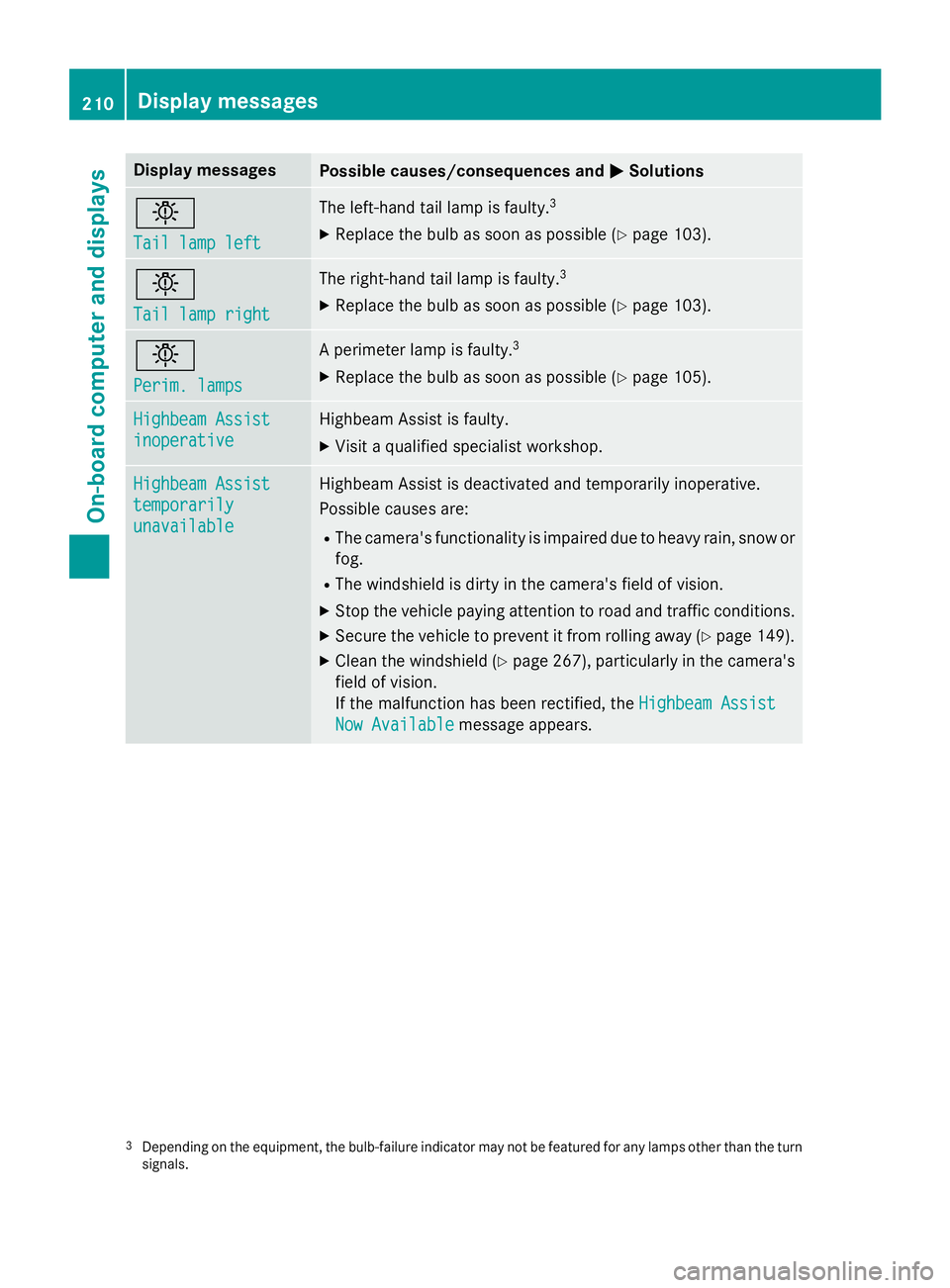

Page 212 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions 0049
Tail lamp left Tail lamp left The left-hand tail lamp is faulty.
3
X Replace the bulb as soon as possible (Y page 103).0049
Tail lamp right Tail lamp right The right-hand tail lamp is faulty.
3
X Replace the bulb as soon as possible (Y page 103).0049
Perim. lamps Perim. lamps A perimeter lamp is faulty.
3
X Replace the bulb as soon as possible (Y page 105).Highbeam Assist
Highbeam Assist
inoperative inoperative Highbeam Assist is faulty.
X Visit a qualified specialist workshop. Highbeam Assist
Highbeam Assist
temporarily temporarily
unavailable unavailable Highbeam Assist is deactivated and temporarily inoperative.
Possible causes are:
R The camera's functionality is impaired due to heavy rain, snow or
fog.
R The windshield is dirty in the camera's field of vision.
X Stop the vehicle paying attention to road and traffic conditions.
X Secure the vehicle to prevent it from rolling away (Y page 149).
X Clean the windshield (Y page 267), particularly in the camera's
field of vision.
If the malfunction has been rectified, the Highbeam Assist Highbeam Assist
Now Available
Now Available message appears. 3
Depending on the equipment, the bulb-failure indicator may not be featured for any lamps other than the turn
signals. 210
Display
messagesOn-board computer and displays

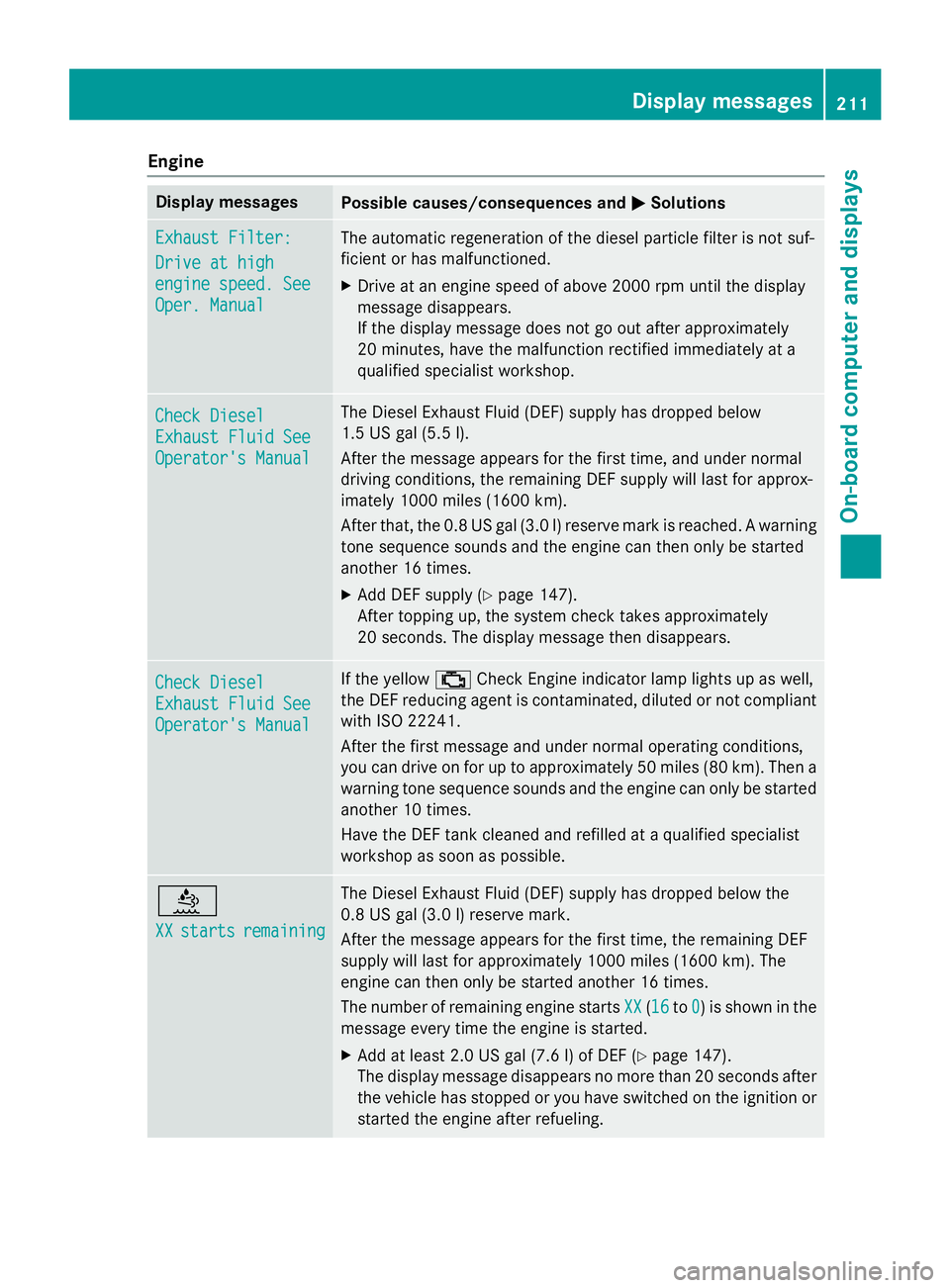

Page 213 of 334
Engine
Display messages
Possible causes/consequences and
0050
0050Solutions Exhaust Filter:
Exhaust Filter:
Drive at high Drive at high
engine speed. See engine speed. See
Oper. Manual Oper. Manual The automatic regeneration of the diesel particle filter is not suf-
ficient or has malfunctioned.
X Drive at an engine speed of above 2000 rpm until the display
message disappears.
If the display message does not go out after approximately
20 minutes, have the malfunction rectified immediately at a
qualified specialist workshop. Check Diesel Check Diesel
Exhaust Fluid See Exhaust Fluid See
Operator's Manual Operator's Manual The Diesel Exhaust Fluid (DEF) supply has dropped below
1.5 US gal (5.5 l).
After the message appears for the first time, and under normal
driving conditions, the remaining DEF supply will last for approx-
imately 1000 miles (1600 km).
After that, the 0.8 US gal (3.0 l) reserve mark is reached. A warning
tone sequence sounds and the engine can then only be started
another 16 times.
X Add DEF supply (Y page 147).
After topping up, the system check takes approximately
20 seconds. The display message then disappears. Check Diesel Check Diesel
Exhaust Fluid See Exhaust Fluid See
Operator's Manual Operator's Manual If the yellow
00B9Check Engine indicator lamp lights up as well,
the DEF reducing agent is contaminated, diluted or not compliant
with ISO 22241.
After the first message and under normal operating conditions,
you can drive on for up to approximately 50 miles (80 km). Then a
warning tone sequence sounds and the engine can only be started
another 10 times.
Have the DEF tank cleaned and refilled at a qualified specialist
workshop as soon as possible. 00E2
XX XX
starts
starts remaining
remaining The Diesel Exhaust Fluid (DEF) supply has dropped below the
0.8 US gal (3.0 l) reserve mark.
After the message appears for the first time, the remaining DEF
supply will last for approximately 1000 miles (1600 km). The
engine can then only be started another 16 times.
The number of remaining engine starts
XX
XX (1616 to0 0) is shown in the
message every time the engine is started.
X Add at least 2.0 US gal (7.6 l) of DEF (Y page 147).
The display message disappears no more than 20 seconds after
the vehicle has stopped or you have switched on the ignition or started the engine after refueling. Display messages
211On-board computer and displays Z

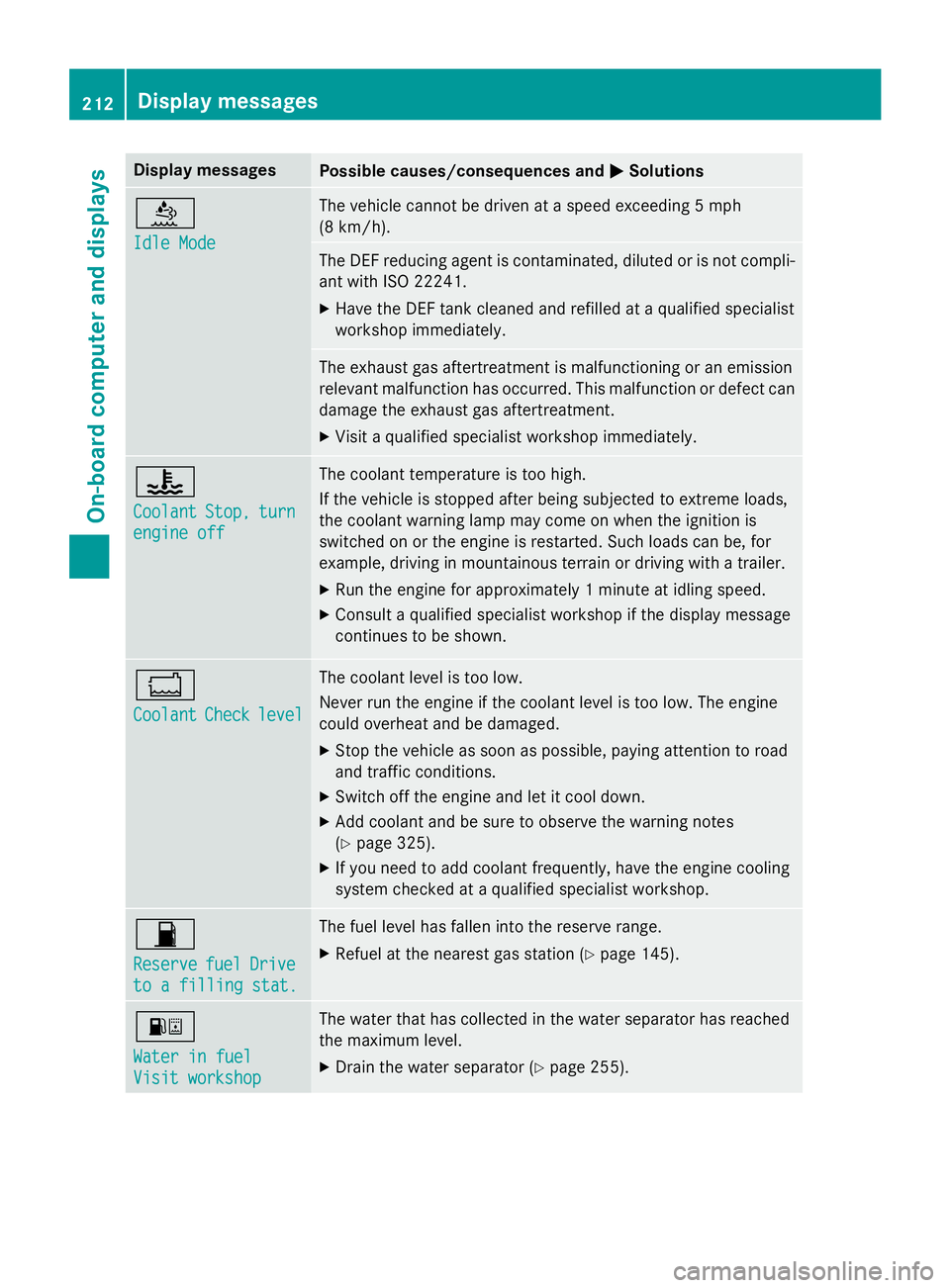

Page 214 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions 00E2
Idle Mode Idle Mode The vehicle cannot be driven at a speed exceeding 5 mph
(8 km/h).
The DEF reducing agent is contaminated, diluted or is not compli-
ant with ISO 2224 1.
X Have the DEF tank cleaned and refilled at a qualified specialist
workshop immediately. The exhaust gas aftertreatment is malfunctioning or an emission
relevant malfunction has occurred. This malfunction or defect can
damage the exhaust gas aftertreatment.
X Visit a qualified specialist workshop immediately. 00AC
Coolant Coolant
Stop,
Stop,turn
turn
engine off
engine off The coolant temperature is too high.
If the vehicle is stopped after being subjected to extreme loads,
the coolant warning lamp may come on when the ignition is
switched on or the engine is restarted. Such loads can be, for
example, driving in mountainous terrain or driving with a trailer.
X Run the engine for approximately 1 minute at idling speed.
X Consult a qualified specialist workshop if the display message
continues to be shown. 00BC
Coolant Coolant
Check
Checklevel
level The coolant level is too low.
Never run the engine if the coolant level is too low. The engine
could overheat and be damaged.
X Stop the vehicle as soon as possible, paying attention to road
and traffic conditions.
X Switch off the engine and let it cool down.
X Add coolant and be sure to observe the warning notes
(Y page 325).
X If you need to add coolant frequently, have the engine cooling
system checked at a qualified specialist workshop. 00B5
Reserve Reserve
fuel
fuelDrive
Drive
to a filling stat.
to a filling stat. The fuel level has fallen into the reserve range.
X Refuel at the nearest gas station (Y page 145).00B8
Water in fuel Water in fuel
Visit workshop Visit workshop The water that has collected in the water separator has reached
the maximum level.
X Drain the water separator (Y page 255).212
Display messagesOn-board computer and displays

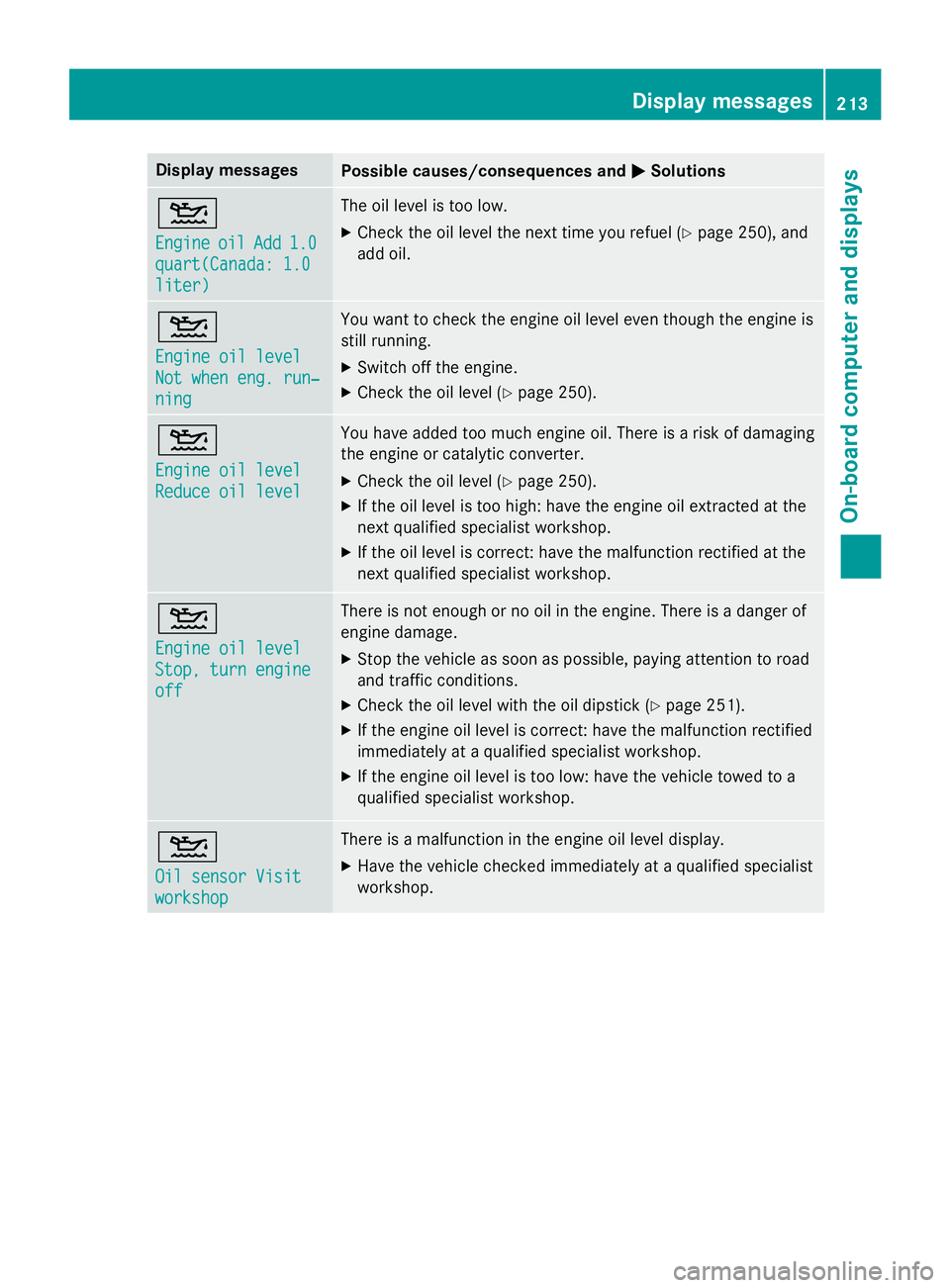

Page 215 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions 00B2
Engine Engine
oil
oilAdd
Add 1.0
1.0
quart(Canada: 1.0
quart(Canada: 1.0
liter) liter) The oil level is too low.
X Check the oil level the next time you refuel (Y page 250), and
add oil. 00B2
Engine oil level Engine oil level
Not when eng. run‐ Not when eng. run‐
ning ning You want to check the engine oil level even though the engine is
still running.
X Switch off the engine.
X Check the oil level (Y page 250).00B2
Engine oil level Engine oil level
Reduce oil level Reduce oil level You have added too much engine oil. There is a risk of damaging
the engine or catalytic converter.
X Check the oil level (Y page 250).
X If the oil level is too high: have the engine oil extracted at the
next qualified specialist workshop.
X If the oil level is correct: have the malfunction rectified at the
next qualified specialist workshop. 00B2
Engine oil level Engine oil level
Stop, turn engine Stop, turn engine
off off There is not enough or no oil in the engine. There is a danger of
engine damage.
X Stop the vehicle as soon as possible, paying attention to road
and traffic conditions.
X Check the oil level with the oil dipstick (Y page 251).
X If the engine oil level is correct: have the malfunction rectified
immediately at a qualified specialist workshop.
X If the engine oil level is too low: have the vehicle towed to a
qualified specialist workshop. 00B2
Oil sensor Visit Oil sensor Visit
workshop workshop There is a malfunction in the engine oil level display.
X Have the vehicle checked immediately at a qualified specialist
workshop. Display
messages
213On-board computer and displays Z

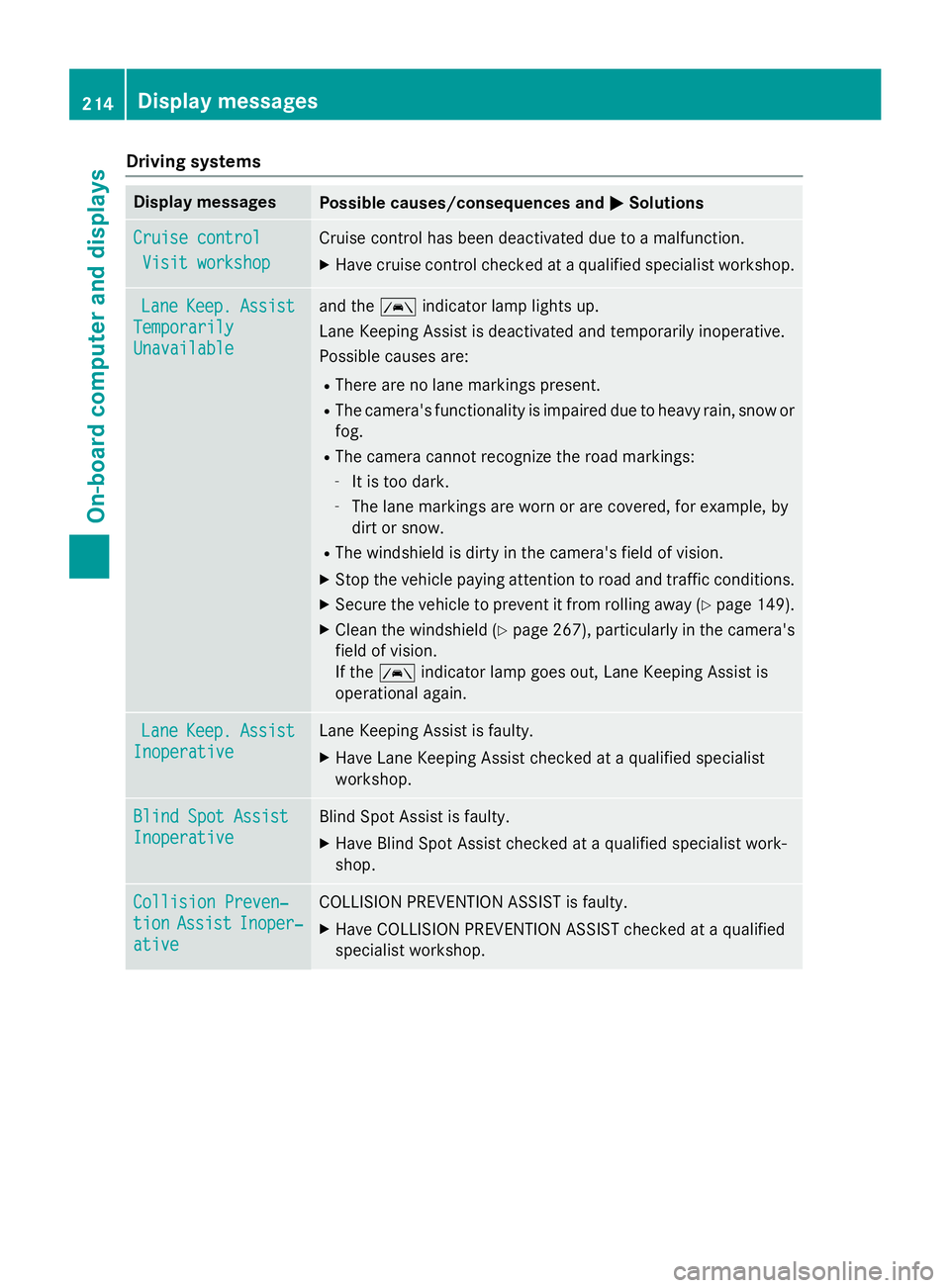

Page 216 of 334
Driving systems
Display messages
Possible causes/consequences and
0050
0050Solutions Cruise control
Cruise control
Visit workshop
Visit workshop Cruise control has been deactivated due to a malfunction.
X Have cruise control checked at a qualified specialist workshop. Lane
Lane
Keep.
Keep. Assist
Assist
Temporarily
Temporarily
Unavailable Unavailable and the
00B0indicator lamp lights up.
Lane Keeping Assist is deactivated and temporarily inoperative.
Possible causes are:
R There are no lane markings present.
R The camera's functionality is impaired due to heavy rain, snow or
fog.
R The camera cannot recognize the road markings:
- It is too dark.
- The lane markings are worn or are covered, for example, by
dirt or snow.
R The windshield is dirty in the camera's field of vision.
X Stop the vehicle paying attention to road and traffic conditions.
X Secure the vehicle to prevent it from rolling away (Y page 149).
X Clean the windshield (Y page 267), particularly in the camera's
field of vision.
If the 00B0 indicator lamp goes out, Lane Keeping Assist is
operational again. Lane Lane
Keep.
Keep. Assist
Assist
Inoperative
Inoperative Lane Keeping Assist is faulty.
X Have Lane Keeping Assist checked at a qualified specialist
workshop. Blind Spot Assist Blind Spot Assist
Inoperative Inoperative Blind Spot Assist is faulty.
X Have Blind Spot Assist checked at a qualified specialist work-
shop. Collision Preven‐
Collision Preven‐
tion tion
Assist
Assist Inoper‐
Inoper‐
ative
ative COLLISION PREVENTION ASSIST is faulty.
X Have COLLISION PREVENTION ASSIST checked at a qualified
specialist workshop. 214
Display
messagesOn-board computer and displays
Page 217 of 334
Display messages
Possible causes/consequences and
0050

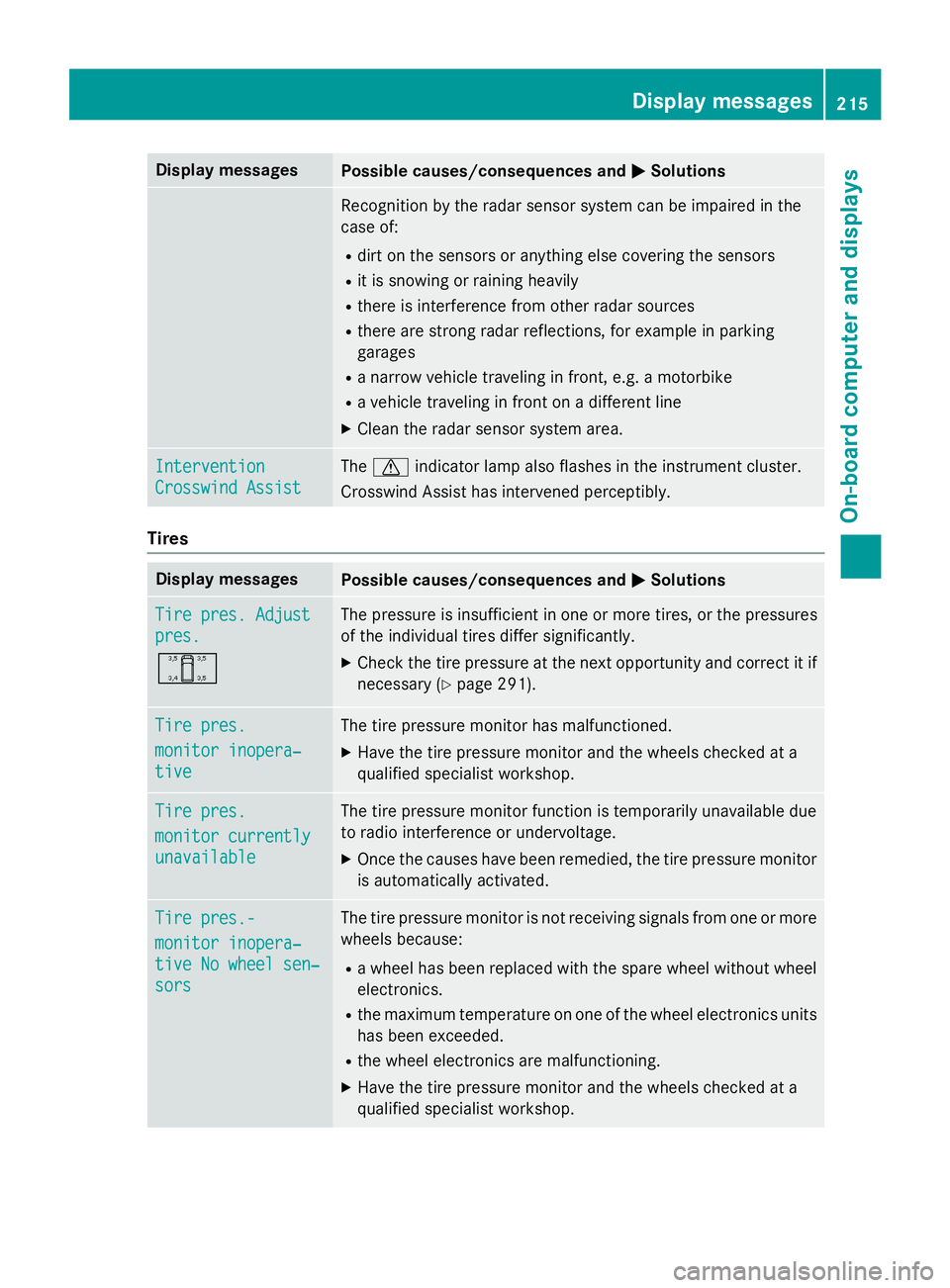

0050Solutions Recognition by the radar sensor system can be impaired in the
case of:
R dirt on the sensors or anything else covering the sensors
R it is snowing or raining heavily
R there is interference from other radar sources
R there are strong radar reflections, for example in parking
garages
R a narrow vehicle traveling in front, e.g. a motorbike
R a vehicle traveling in front on a different line
X Clean the radar sensor system area. Intervention Intervention
Crosswind Assist Crosswind Assist The
0072 indicator lamp also flashes in the instrument cluster.
Crosswind Assist has intervened perceptibly. Tires
Display messages
Possible causes/consequences and
0050
0050Solutions Tire pres. Adjust
Tire pres. Adjust
pres. pres.
0054 The pressure is insufficient in one or more tires, or the pressures
of the individual tires differ significantly.
X Check the tire pressure at the next opportunity and correct it if
necessary (Y page 291). Tire pres. Tire pres.
monitor inopera‐ monitor inopera‐
tive tive The tire pressure monitor has malfunctioned.
X Have the tire pressure monitor and the wheels checked at a
qualified specialist workshop. Tire pres.
Tire pres.
monitor currently monitor currently
unavailable unavailable The tire pressure monitor function is temporarily unavailable due
to radio interference or undervoltage.
X Once the causes have been remedied, the tire pressure monitor
is automatically activated. Tire pres.- Tire pres.-
monitor inopera‐ monitor inopera‐
tive No wheel sen‐ tive No wheel sen‐
sors sors The tire pressure monitor is not receiving signals from one or more
wheels because:
R a wheel has been replaced with the spare wheel without wheel
electronics.
R the maximum temperature on one of the wheel electronics units
has been exceeded.
R the wheel electronics are malfunctioning.
X Have the tire pressure monitor and the wheels checked at a
qualified specialist workshop. Display
messages
215On-board computer and displays Z
Page 218 of 334
Display messages
Possible causes/consequences and
0050

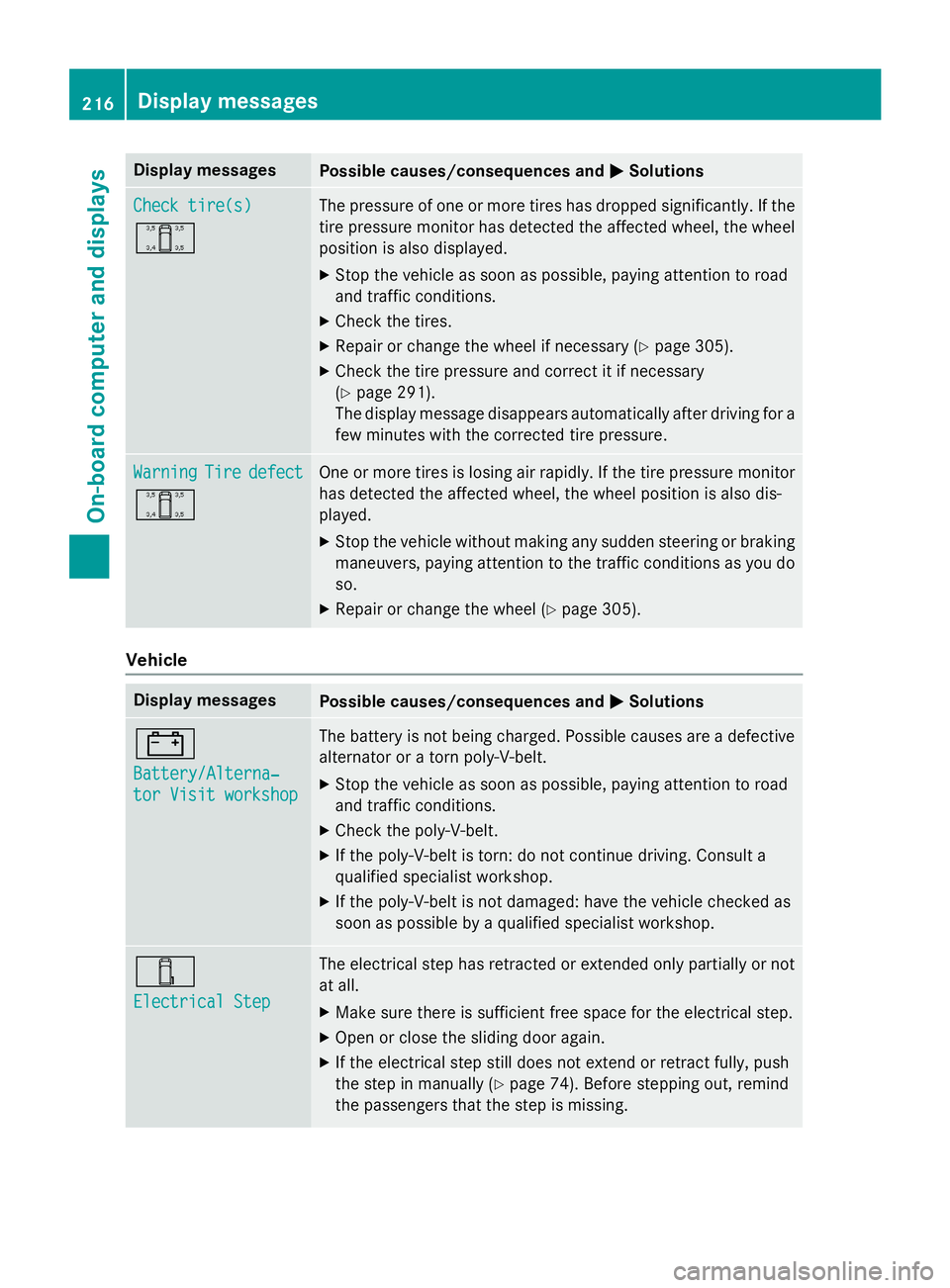

0050Solutions Check tire(s)
Check tire(s)
0054 The pressure of one or more tires has dropped significantly. If the
tire pressure monitor has detected the affected wheel, the wheel
position is also displayed.
X Stop the vehicle as soon as possible, paying attention to road
and traffic conditions.
X Check the tires.
X Repair or change the wheel if necessary (Y page 305).
X Check the tire pressure and correct it if necessary
(Y page 291).
The display message disappears automatically after driving for a
few minutes with the corrected tire pressure. Warning Warning
Tire
Tiredefect
defect
0054 One or more tires is losing air rapidly. If the tire pressure monitor
has detected the affected wheel, the wheel position is also dis-
played.
X Stop the vehicle without making any sudden steering or braking
maneuvers, paying attention to the traffic conditions as you do so.
X Repair or change the wheel (Y page 305).Vehicle
Display messages
Possible causes/consequences and
0050 0050Solutions 003D
Battery/Alterna‐ Battery/Alterna‐
tor Visit workshop tor Visit workshop The battery is not being charged. Possible causes are a defective
alternator or a torn poly-V-belt.
X Stop the vehicle as soon as possible, paying attention to road
and traffic conditions.
X Check the poly-V-belt.
X If the poly-V-belt is torn: do not continue driving. Consult a
qualified specialist workshop.
X If the poly-V-belt is not damaged: have the vehicle checked as
soon as possible by a qualified specialist workshop. 00E6
Electrical Step Electrical Step The electrical step has retracted or extended only partially or not
at all.
X Make sure there is sufficient free space for the electrical step.
X Open or close the sliding door again.
X If the electrical step still does not extend or retract fully, push
the step in manually (Y page 74). Before stepping out, remind
the passengers that the step is missing. 216
Display
messagesOn-board computer and displays
Page 219 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions 003E

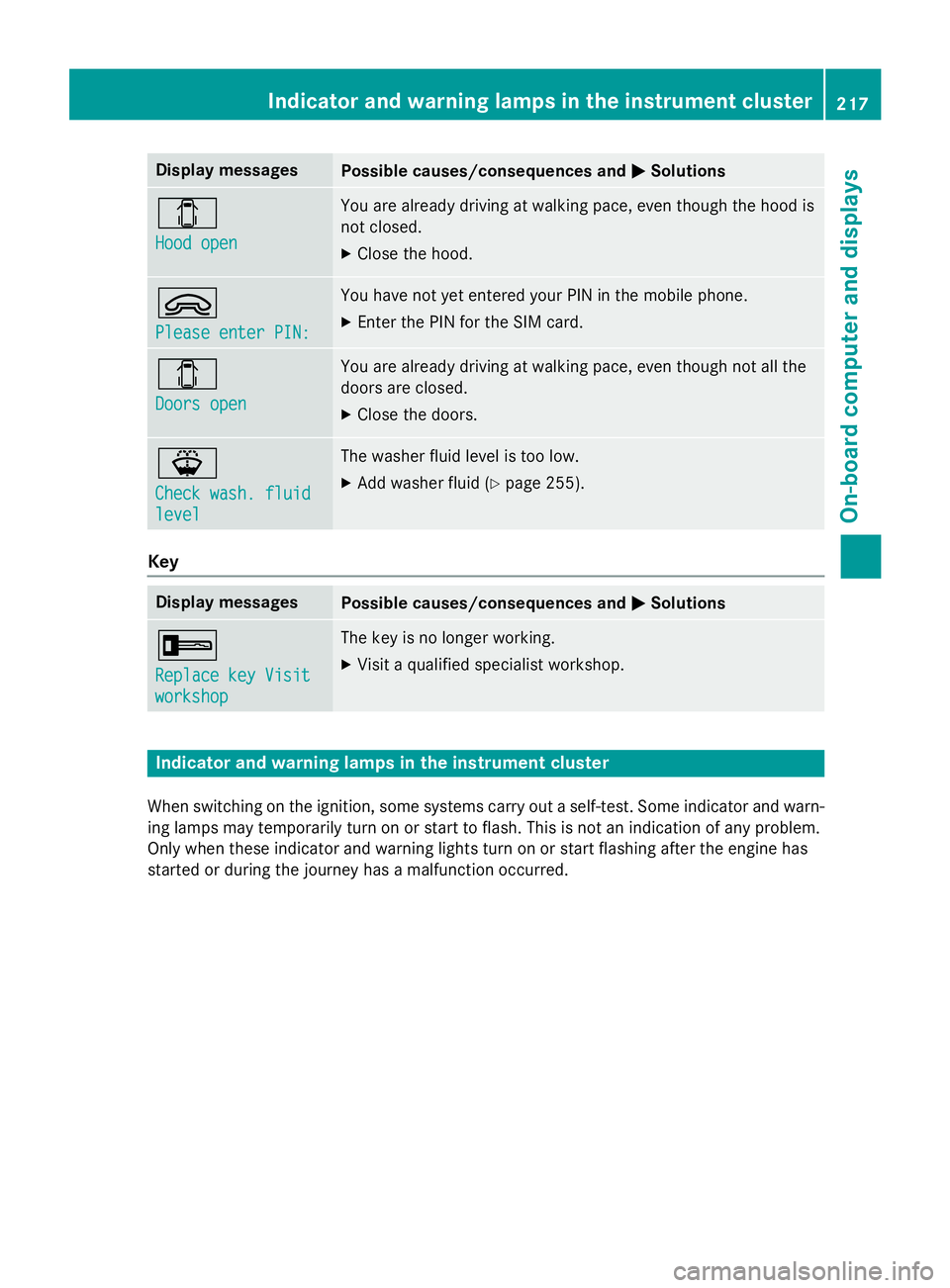

Hood open Hood open You are already driving at walking pace, even though the hood is
not closed.
X Close the hood. 0064
Please enter PIN: Please enter PIN: You have not yet entered your PIN in the mobile phone.
X Enter the PIN for the SIM card. 003E
Doors open Doors open You are already driving at walking pace, even though not all the
doors are closed.
X Close the doors. 00B1
Check wash. fluid Check wash. fluid
level level The washer fluid level is too low.
X Add washer fluid (Y page 255).Key
Display messages
Possible causes/consequences and
0050
0050Solutions 0039
Replace key Visit Replace key Visit
workshop workshop The key is no longer working.
X Visit a qualified specialist workshop. Indicator and warning lamps in the instrument cluster
When switching on the ignition, some systems carry out a self-test. Some indicator and warn- ing lamps may temporarily turn on or start to flash. This is not an indication of any problem.
Only when these indicator and warning lights turn on or start flashing after the engine has
started or during the journey has a malfunction occurred. Indicator and warning lamps in the inst
rumentcluster
217On-board computer and displays Z
Page 220 of 334
Problem
Possible causes/consequences and
0050
0050Solutions 0072
The yellow ASR/
ESP ®
warning
lamp flashes
while the vehicle
is in motion. G
WARNING
ESP ®
or ASR is intervening because at least one of the wheels has
reached its tire grip limit.
Cruise control is deactivated for the duration of the intervention.
X Adapt your driving style to suit the road and traffic conditions.
Do not use too much throttle.
X Drive slowly. 0072
The yellow ASR/
ESP ®
warning
lamp is lit while
the engine is
running. ASR is deactivated.
G WARNING
The driven wheels can spin when accelerating.
There is an increased risk of skidding and accidents.
X Activate ASR again. Exceptions (Y page 58).0089
0025003D0065
The yellow ESP ®
, ABS
and ASR/BAS indicator lamps and the red
brake system indicator
lamp are lit while the
engine is running. EBD is malfunctioning or deactivated due to undervoltage or mal-
function.
The battery may not be being charged.
G WARNING
The rear wheels could lock sooner than expected when you apply the brakes. The braking distance can increase in emergency brak-
ing situations.
There is an increased risk of skidding and accidents.
X Vehicles with steering wheel buttons: also observe the mes-
sages in the display (Y page 197).
X Stop the vehicle as soon as possible, paying attention to road
and traffic conditions.
X Do not drive on.
X Consult a qualified specialist workshop. 218
Indicator and warning lamps in the instrument clusterOn-board computer and displays
