MERCEDES-BENZ SPRINTER 2015 MY15 Operator’s Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2015, Model line: SPRINTER, Model: MERCEDES-BENZ SPRINTER 2015Pages: 334, PDF Size: 5.94 MB

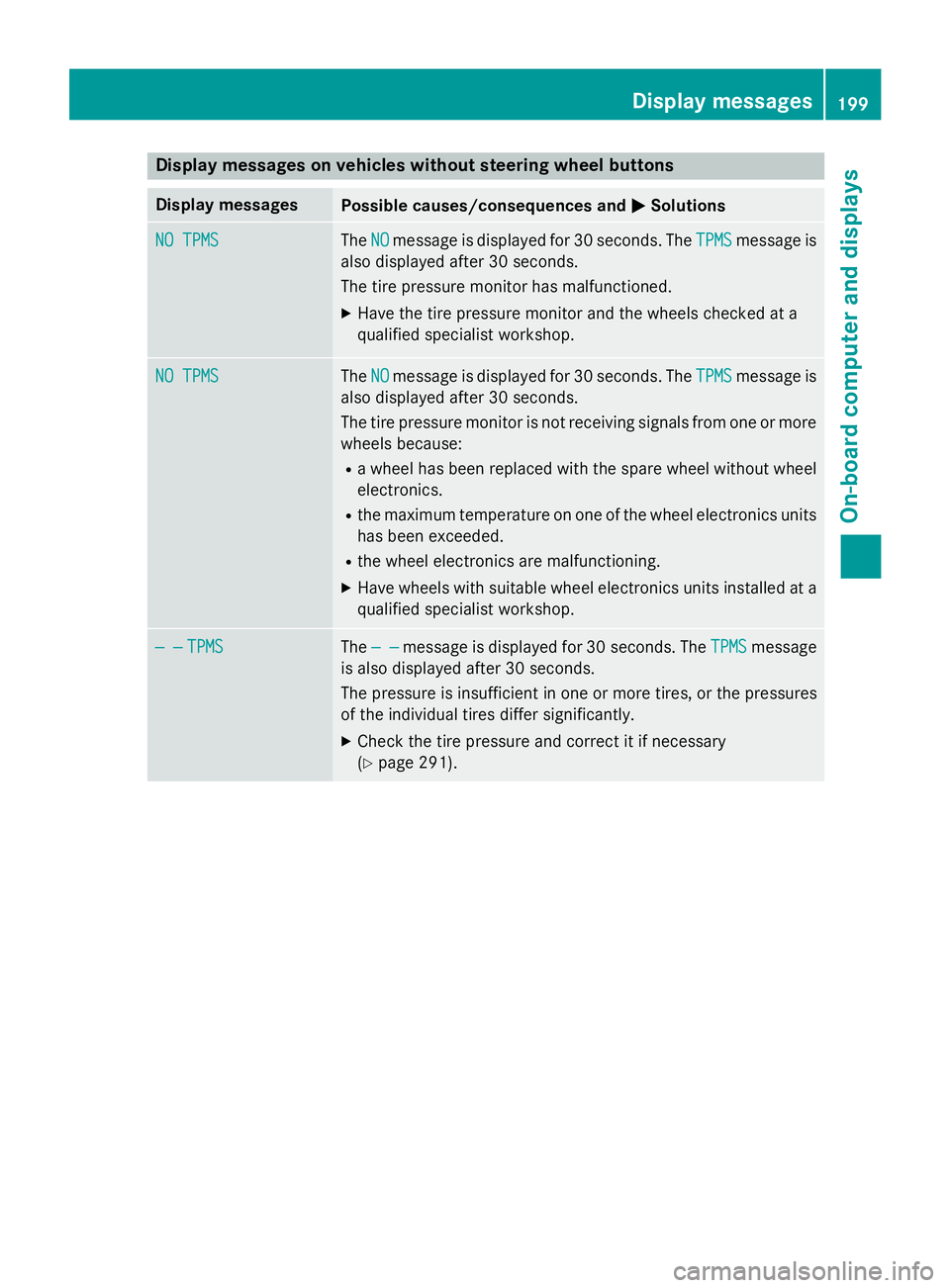

Page 201 of 334
Display messages on vehicles without steering wheel buttons
Display messages
Possible causes/consequences and
0050
0050Solutions NO TPMS
NO TPMS The
NO
NOmessage is displayed for 30 seconds. The TPMS
TPMSmessage is
also displayed after 30 seconds.
The tire pressure monitor has malfunctioned.
X Have the tire pressure monitor and the wheels checked at a
qualified specialist workshop. NO TPMS NO TPMS The
NO
NOmessage is displayed for 30 seconds. The TPMS
TPMSmessage is
also displayed after 30 seconds.
The tire pressure monitor is not receiving signals from one or more wheels because:
R a wheel has been replaced with the spare wheel without wheel
electronics.
R the maximum temperature on one of the wheel electronics units
has been exceeded.
R the wheel electronics are malfunctioning.
X Have wheels with suitable wheel electronics units installed at a
qualified specialist workshop. — — — —
TPMS
TPMS The
— —
— — message is displayed for 30 seconds. The TPMS
TPMSmessage
is also displayed after 30 seconds.
The pressure is insufficient in one or more tires, or the pressures
of the individual tires differ significantly.
X Check the tire pressure and correct it if necessary
(Y page 291). Display
messages
199On-board computer and displays Z

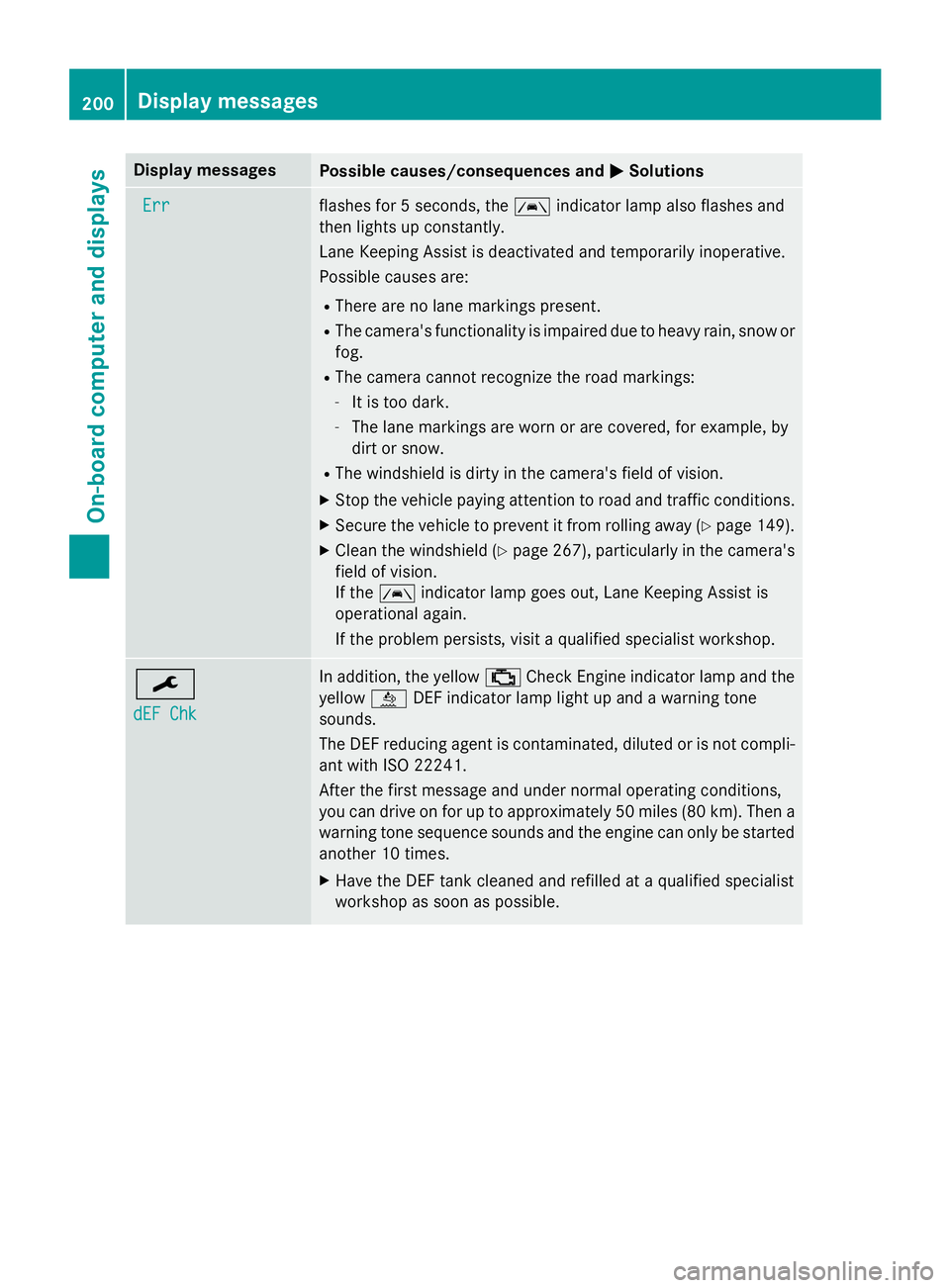

Page 202 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions Err
Err flashes for 5 seconds, the
00B0indicator lamp also flashes and
then lights up constantly.
Lane Keeping Assist is deactivated and temporarily inoperative.
Possible causes are:
R There are no lane markings present.
R The camera's functionality is impaired due to heavy rain, snow or
fog.
R The camera cannot recognize the road markings:
- It is too dark.
- The lane markings are worn or are covered, for example, by
dirt or snow.
R The windshield is dirty in the camera's field of vision.
X Stop the vehicle paying attention to road and traffic conditions.
X Secure the vehicle to prevent it from rolling away (Y page 149).
X Clean the windshield (Y page 267), particularly in the camera's
field of vision.
If the 00B0 indicator lamp goes out, Lane Keeping Assist is
operational again.
If the problem persists, visit a qualified specialist workshop. 0099
dEF Chk dEF Chk In addition, the yellow
00B9Check Engine indicator lamp and the
yellow 00E2DEF indicator lamp light up and a warning tone
sounds.
The DEF reducing agent is contaminated, diluted or is not compli-
ant with ISO 2224 1.
After the first message and under normal operating conditions,
you can drive on for up to approximately 50 miles (80 km). Then a warning tone sequence sounds and the engine can only be started
another 10 times.
X Have the DEF tank cleaned and refilled at a qualified specialist
workshop as soon as possible. 200
Display messagesOn-board computer and displays

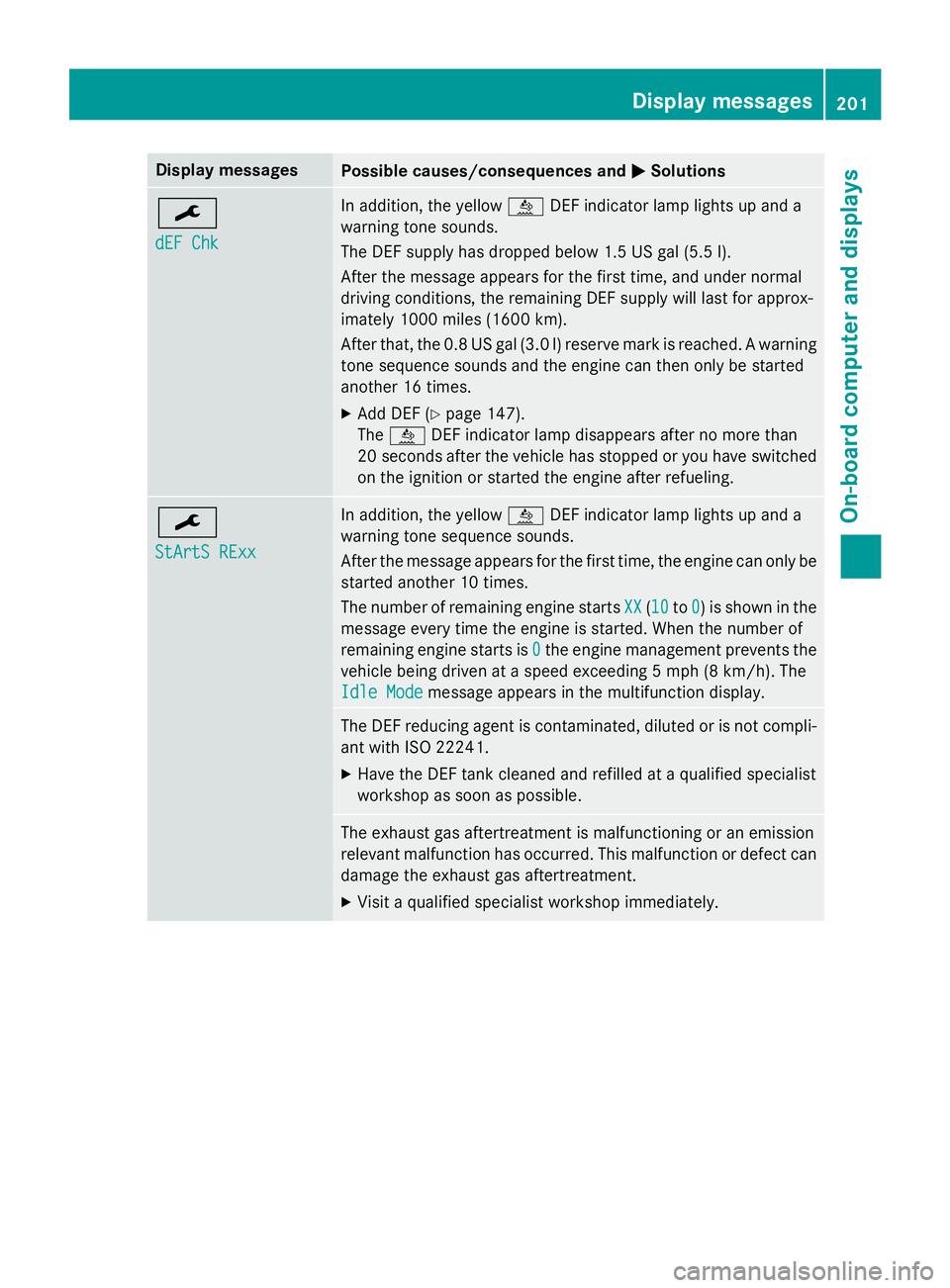

Page 203 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions 0099
dEF Chk dEF Chk In addition, the yellow
00E2DEF indicator lamp lights up and a
warning tone sounds.
The DEF supply has dropped below 1.5 US gal (5.5 l).
After the message appears for the first time, and under normal
driving conditions, the remaining DEF supply will last for approx-
imately 1000 miles (1600 km).
After that, the 0.8 US gal (3.0 l) reserve mark is reached. A warning tone sequence sounds and the engine can then only be started
another 16 times.
X Add DEF (Y page 147).
The 00E2 DEF indicator lamp disappears after no more than
20 seconds after the vehicle has stopped or you have switched
on the ignition or started the engine after refueling. 0099
StArtS RExx StArtS RExx In addition, the yellow
00E2DEF indicator lamp lights up and a
warning tone sequence sounds.
After the message appears for the first time, the engine can only be started another 10 times.
The number of remaining engine starts XX
XX (1010 to0 0) is shown in the
message every time the engine is started. When the number of
remaining engine starts is 0 0the engine management prevents the
vehicle being driven at a speed exceeding 5 mph (8 km/h). The
Idle Mode
Idle Mode message appears in the multifunction display. The DEF reducing agent is contaminated, diluted or is not compli-
ant with ISO 22241.
X Have the DEF tank cleaned and refilled at a qualified specialist
workshop as soon as possible. The exhaust gas aftertreatment is malfunctioning or an emission
relevant malfunction has occurred. This malfunction or defect can
damage the exhaust gas aftertreatment.
X Visit a qualified specialist workshop immediately. Display messages
201On-board computer and displays Z

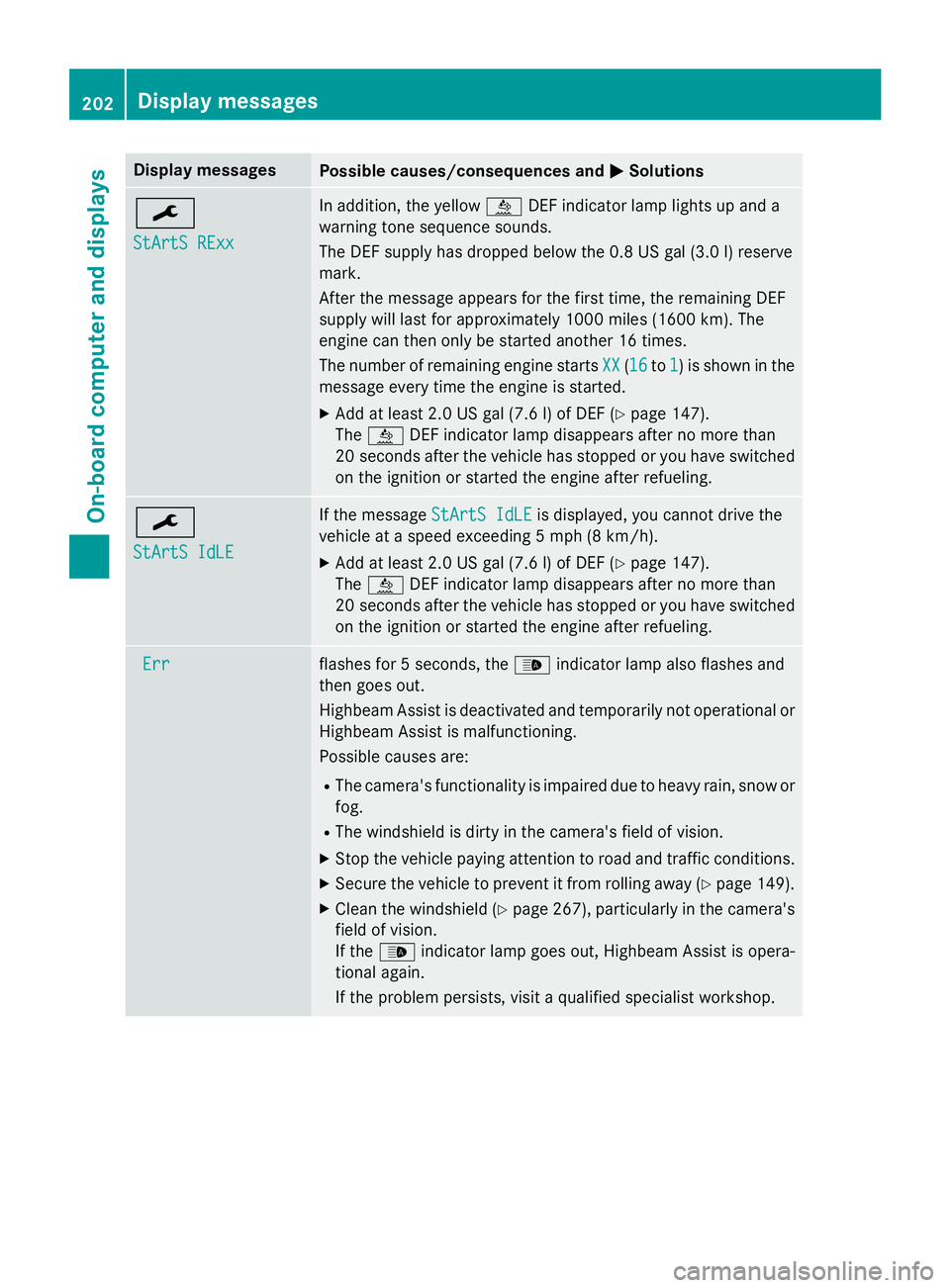

Page 204 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions 0099
StArtS RExx StArtS RExx In addition, the yellow
00E2DEF indicator lamp lights up and a
warning tone sequence sounds.
The DEF supply has dropped below the 0.8 US gal (3.0 l) reserve
mark.
After the message appears for the first time, the remaining DEF
supply will last for approximately 1000 miles (1600 km). The
engine can then only be started another 16 times.
The number of remaining engine starts XX XX(1616 to1
1) is shown in the
message every time the engine is started.
X Add at least 2.0 US gal (7.6 l) of DEF (Y page 147).
The 00E2 DEF indicator lamp disappears after no more than
20 seconds after the vehicle has stopped or you have switched
on the ignition or started the engine after refueling. 0099
StArtS IdLE StArtS IdLE If the message
StArtS IdLE
StArtS IdLEis displayed, you cannot drive the
vehicle at a speed exceeding 5 mph (8 km/h).
X Add at least 2.0 US gal (7.6 l) of DEF (Y page 147).
The 00E2 DEF indicator lamp disappears after no more than
20 second safter the vehicle has stopped or you have switched
on the ignition or started the engine after refueling. Err
Err flashes for 5 seconds, the
00CEindicator lamp also flashes and
then goes out.
Highbeam Assist is deactivated and temporarily not operational or
Highbeam Assist is malfunctioning.
Possible causes are:
R The camera's functionality is impaired due to heavy rain, snow or
fog.
R The windshield is dirty in the camera's field of vision.
X Stop the vehicle paying attention to road and traffic conditions.
X Secure the vehicle to prevent it from rolling away (Y page 149).
X Clean the windshield (Y page 267), particularly in the camera's
field of vision.
If the 00CE indicator lamp goes out, Highbeam Assist is opera-
tional again.
If the problem persists, visit a qualified specialist workshop. 202
Display messagesOn-board computer and displays

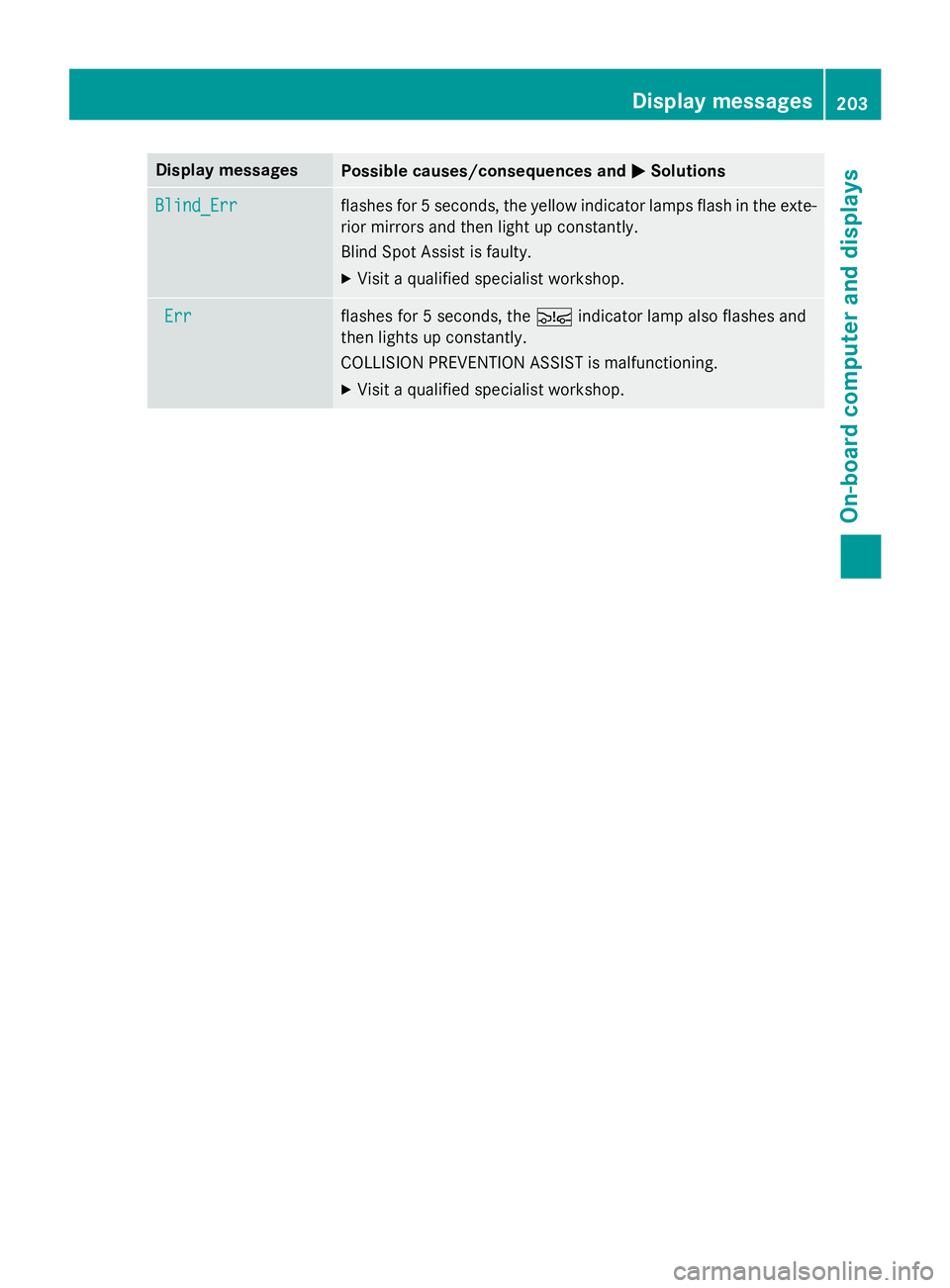

Page 205 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions Blind_Err
Blind_Err flashes for 5 seconds, the yellow indicator lamps flash in the exte-
rior mirrors and then light up constantly.
Blind Spot Assist is faulty.
X Visit a qualified specialist workshop. Err Err flashes for 5 seconds, the
00C7indicator lamp also flashes and
then lights up constantly.
COLLISION PREVENTION ASSIST is malfunctioning.
X Visit a qualified specialist workshop. Display
messages
203On-board computer and displays Z

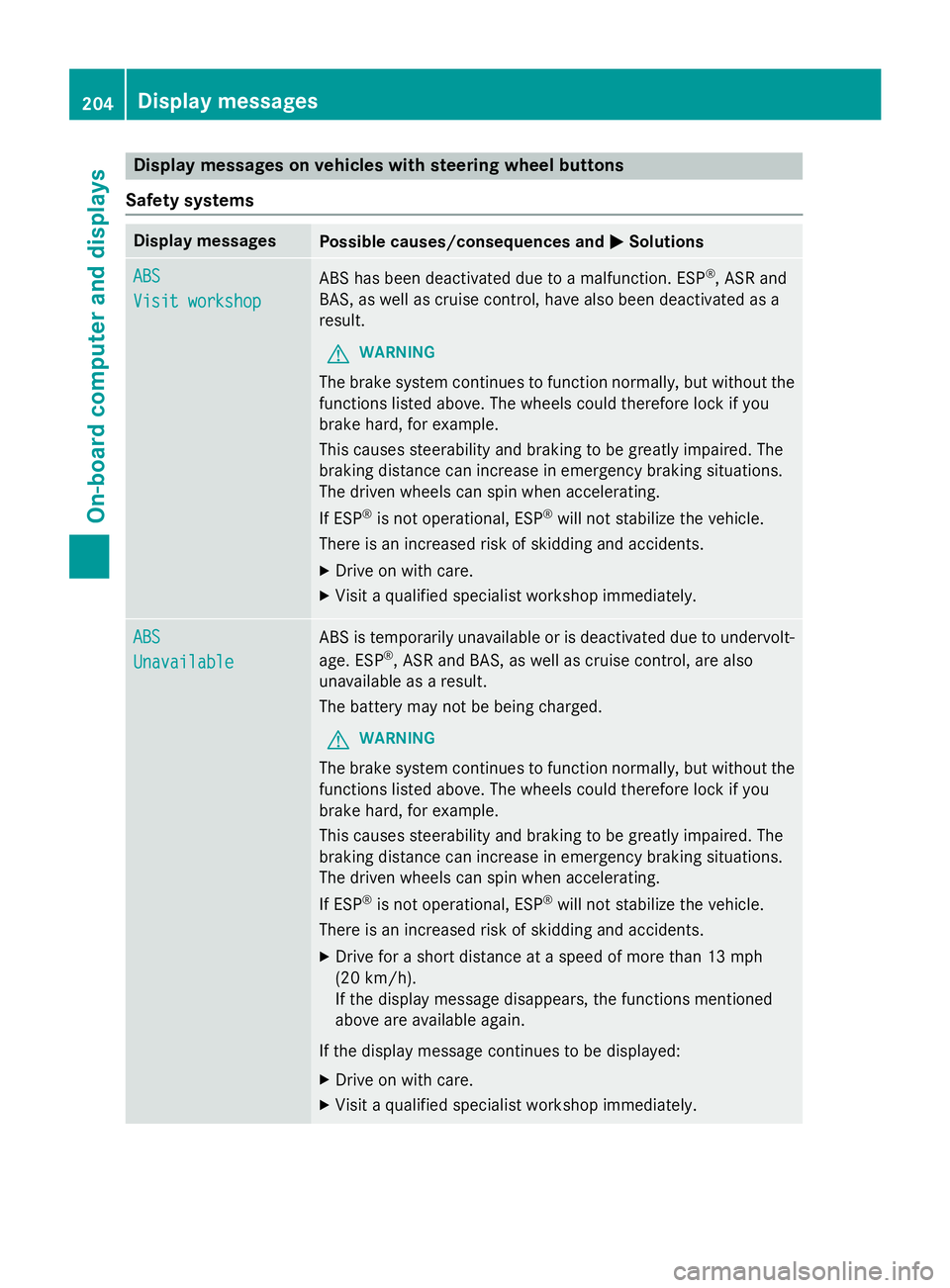

Page 206 of 334
Display messages on vehicles with steering wheel buttons
Safety systems Display messages
Possible causes/consequences and
0050
0050Solutions ABS
ABS
Visit workshop Visit workshop
ABS has been deactivated due to a malfunction. ESP
®
, ASR and
BAS, as well as cruise control, have also been deactivated as a
result.
G WARNING
The brake system continues to function normally, but without the functions listed above. The wheels could therefore lock if you
brake hard, for example.
This causes steerability and braking to be greatly impaired. The
braking distance can increase in emergency braking situations.
The driven wheels can spin when accelerating.
If ESP ®
is not operational, ESP ®
will not stabilize the vehicle.
There is an increased risk of skidding and accidents.
X Drive on with care.
X Visit a qualified specialist workshop immediately. ABS ABS
Unavailable Unavailable ABS is temporarily unavailable or is deactivated due to undervolt-
age. ESP ®
, ASR and BAS, as well as cruise control, are also
unavailable as a result.
The battery may not be being charged.
G WARNING
The brake system continues to function normally, but without the functions listed above. The wheels could therefore lock if you
brake hard, for example.
This causes steerability and braking to be greatly impaired. The
braking distance can increase in emergency braking situations.
The driven wheels can spin when accelerating.
If ESP ®
is not operational, ESP ®
will not stabilize the vehicle.
There is an increased risk of skidding and accidents.
X Drive for a short distance at a speed of more than 13 mph
(20 km/ h).
If the display message disappears, the functions mentioned
above are available again.
If the display message continues to be displayed:
X Drive on with care.
X Visit a qualified specialist workshop immediately. 204
Display messagesOn-board computer and displays

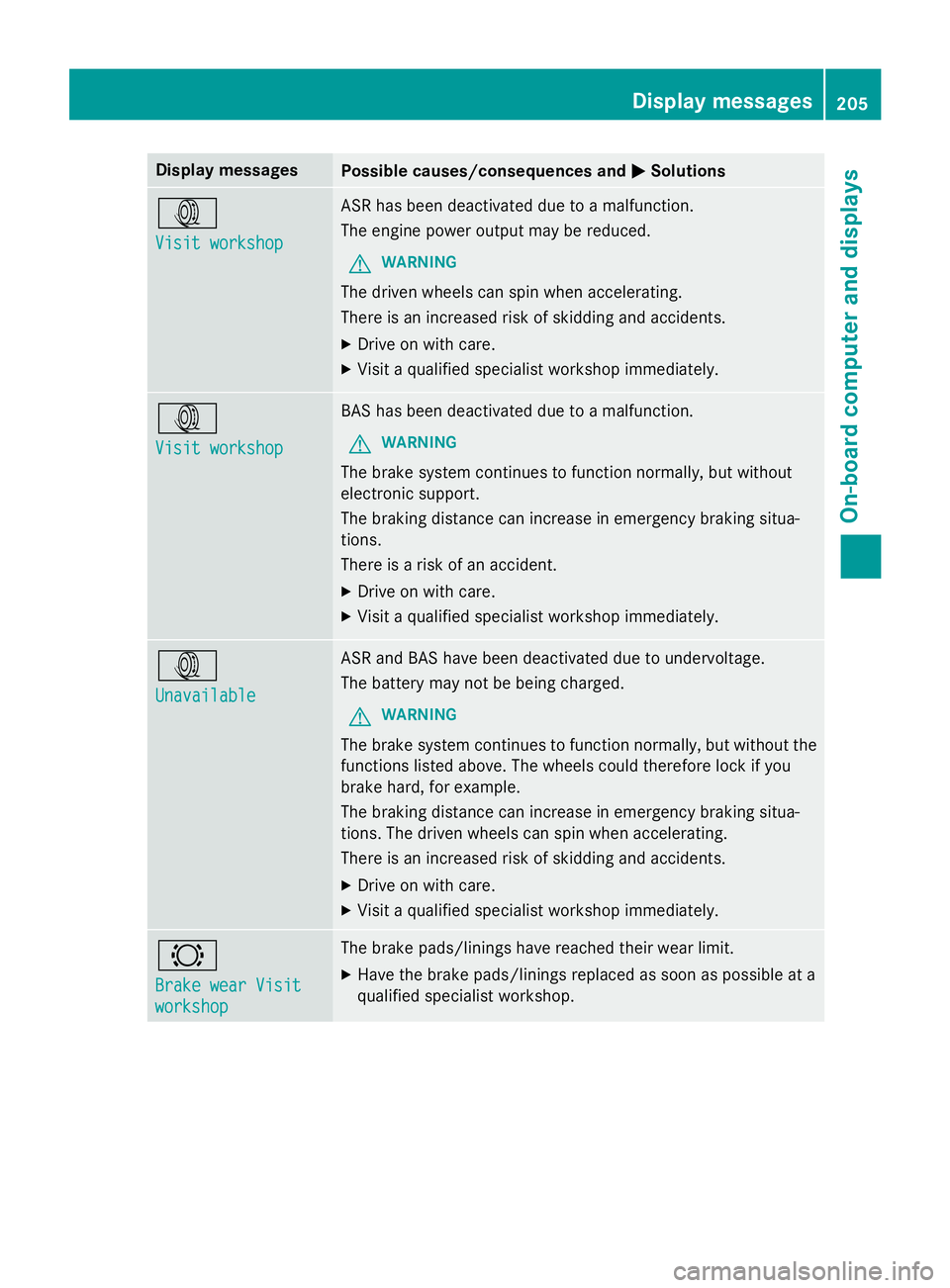

Page 207 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions 003D
Visit workshop Visit workshop ASR has been deactivated due to a malfunction.
The engine power output may be reduced.
G WARNING
The driven wheels can spin when accelerating.
There is an increased risk of skidding and accidents.
X Drive on with care.
X Visit a qualified specialist workshop immediately. 003D
Visit workshop Visit workshop BAS has been deactivated due to a malfunction.
G WARNING
The brake system continues to function normally, but without
electronic support.
The braking distance can increase in emergency braking situa-
tions.
There is a risk of an accident. X Drive on with care.
X Visit a qualified specialist workshop immediately. 003D
Unavailable Unavailable ASR and BAS have been deactivated due to undervoltage.
The battery may not be being charged.
G WARNING
The brake system continues to function normally, but without the functions listed above. The wheels could therefore lock if you
brake hard, for example.
The braking distance can increase in emergency braking situa-
tions. The driven wheels can spin when accelerating.
There is an increased risk of skidding and accidents.
X Drive on with care.
X Visit a qualified specialist workshop immediately. 0026
Brake wear Visit Brake wear Visit
workshop workshop The brake pads/linings have reached their wear limit.
X Have the brake pads/linings replaced as soon as possible at a
qualified specialist workshop. Display
messages
205On-board computer and displays Z

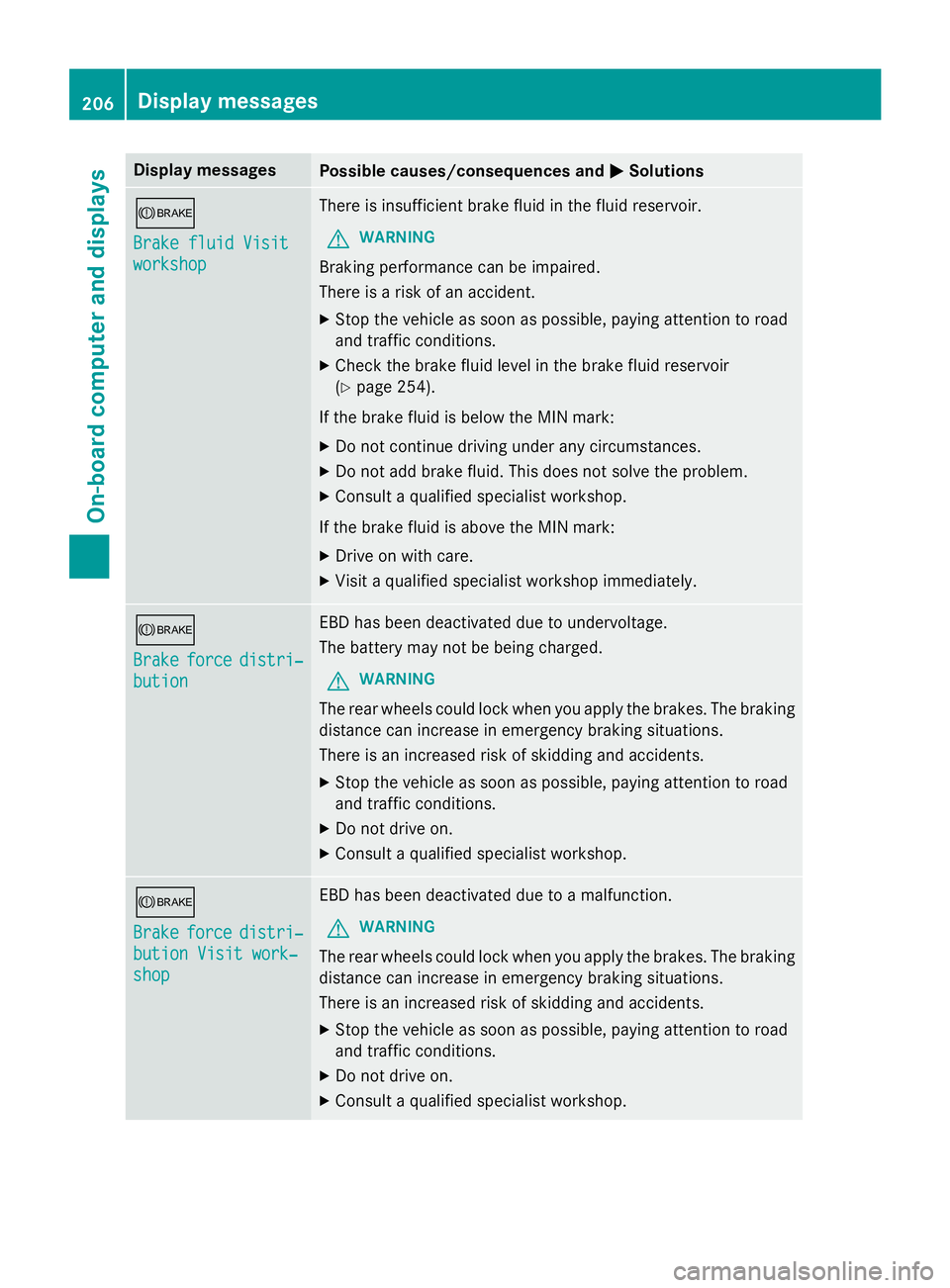

Page 208 of 334
Display messages
Possible causes/consequences and
0050
0050Solutions 0065
Brake fluid Visit Brake fluid Visit
workshop workshop There is insufficient brake fluid in the fluid reservoir.
G WARNING
Braking performance can be impaired.
There is a risk of an accident. X Stop the vehicle as soon as possible, paying attention to road
and traffic conditions.
X Check the brake fluid level in the brake fluid reservoir
(Y page 254).
If the brake fluid is below the MIN mark:
X Do not continue driving under any circumstances.
X Do not add brake fluid. This does not solve the problem.
X Consult a qualified specialist workshop.
If the brake fluid is above the MIN mark: X Drive on with care.
X Visit a qualified specialist workshop immediately. 0065
Brake Brake
force
forcedistri‐
distri‐
bution
bution EBD has been deactivated due to undervoltage.
The battery may not be being charged.
G WARNING
The rear wheels could lock when you apply the brakes. The braking
distance can increase in emergency braking situations.
There is an increased risk of skidding and accidents.
X Stop the vehicle as soon as possible, paying attention to road
and traffic conditions.
X Do not drive on.
X Consult a qualified specialist workshop. 0065
Brake Brake
force
forcedistri‐
distri‐
bution Visit work‐
bution Visit work‐
shop shop EBD has been deactivated due to a malfunction.
G WARNING
The rear wheels could lock when you apply the brakes. The braking
distance can increase in emergency braking situations.
There is an increased risk of skidding and accidents.
X Stop the vehicle as soon as possible, paying attention to road
and traffic conditions.
X Do not drive on.
X Consult a qualified specialist workshop. 206
Display
messagesOn-board computer and displays
Page 209 of 334

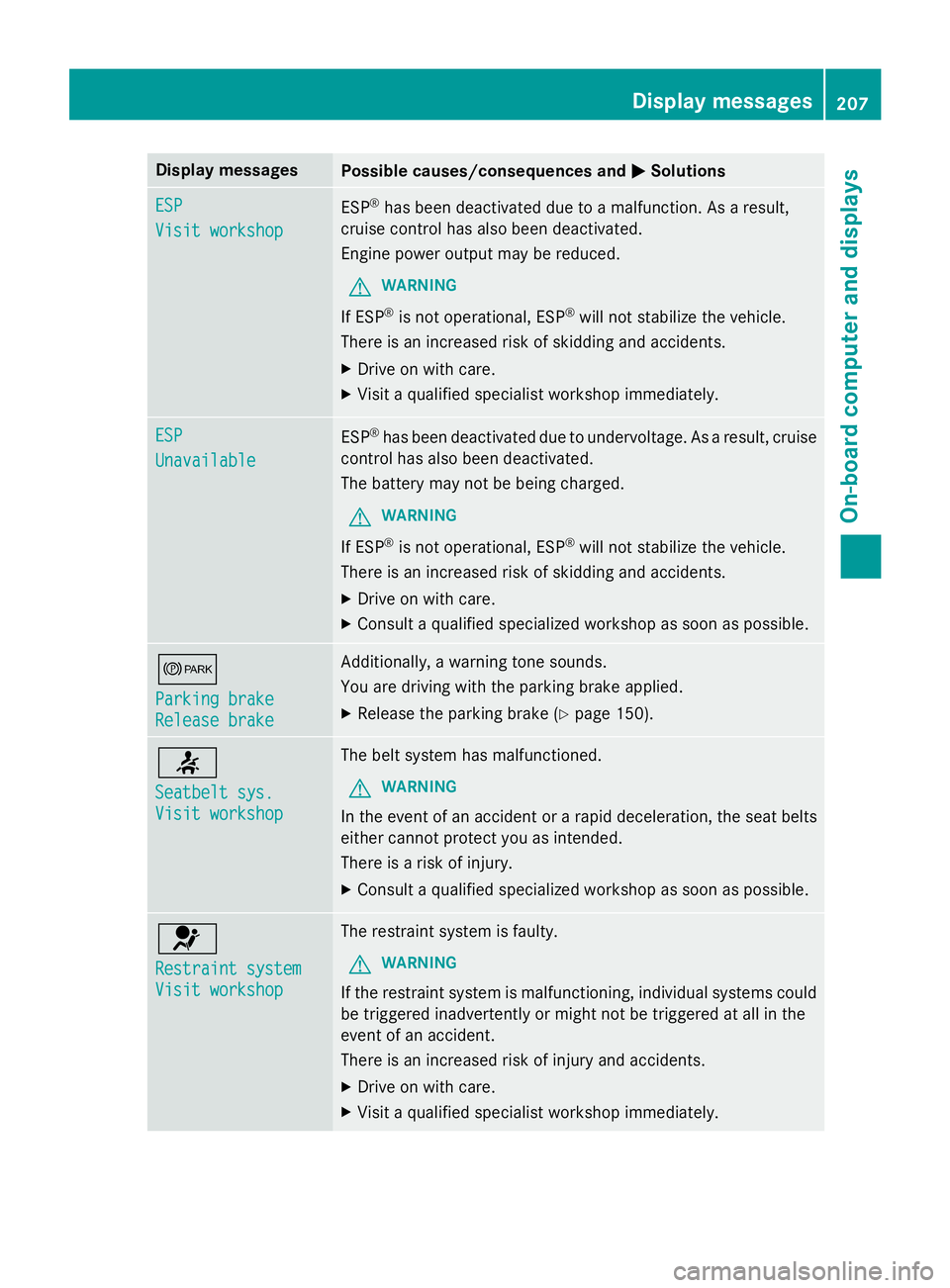

Display messages
Possible causes/consequences and
0050
0050Solutions ESP
ESP
Visit workshop Visit workshop
ESP
®
has been deactivated due to a malfunction. As a result,
cruise control has also been deactivated.
Engine power output may be reduced.
G WARNING
If ESP ®
is not operational, ESP ®
will not stabilize the vehicle.
There is an increased risk of skidding and accidents.
X Drive on with care.
X Visit a qualified specialist workshop immediately. ESP ESP
Unavailable Unavailable
ESP
®
has been deactivated due to undervoltage. As a result, cruise
control has also been deactivated.
The battery may not be being charged.
G WARNING
If ESP ®
is not operational, ESP ®
will not stabilize the vehicle.
There is an increased risk of skidding and accidents.
X Drive on with care.
X Consult a qualified specialized workshop as soon as possible. 0066
Parking brake Parking brake
Release brake Release brake Additionally, a warning tone sounds.
You are driving with the parking brake applied.
X Release the parking brake (Y page 150).0076
Seatbelt sys. Seatbelt sys.
Visit workshop Visit workshop The belt system has malfunctioned.
G WARNING
In the event of an accident or a rapid deceleration, the seat belts
either cannot protect you as intended.
There is a risk of injury.
X Consult a qualified specialized workshop as soon as possible. 0075
Restraint system Restraint system
Visit workshop Visit workshop The restraint system is faulty.
G WARNING
If the restraint system is malfunctioning, individual systems could
be triggered inadvertently or might not be triggered at all in the
event of an accident.
There is an increased risk of injury and accidents.
X Drive on with care.
X Visit a qualified specialist workshop immediately. Display
messages
207On-board computer and displays Z
Page 210 of 334

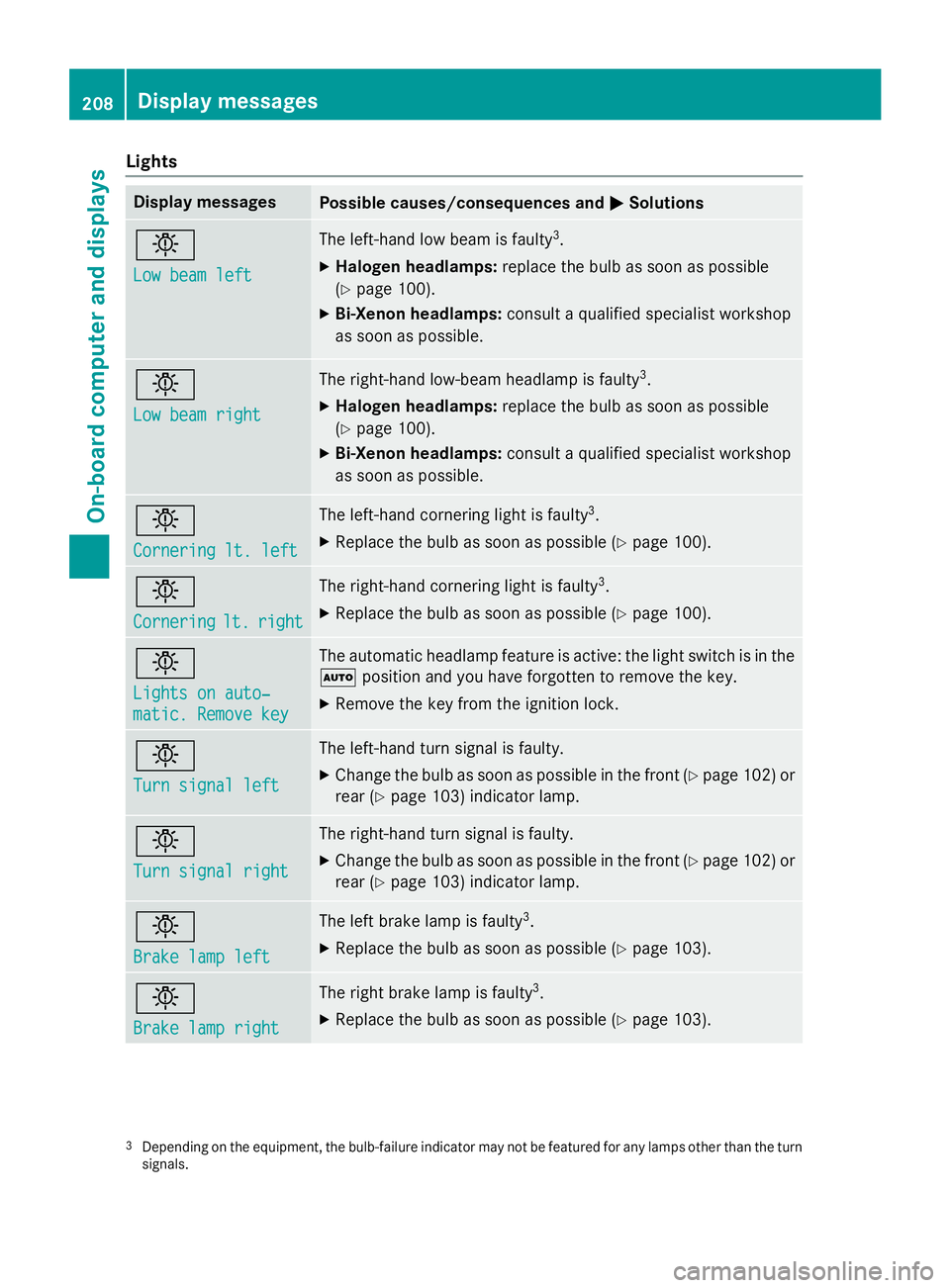

Lights
Display messages
Possible causes/consequences and
0050
0050Solutions 0049
Low beam left Low beam left The left-hand low beam is faulty
3
.
X Halogen headlamps: replace the bulb as soon as possible
(Y page 100).
X Bi-Xenon headlamps: consult a qualified specialist workshop
as soon as possible. 0049
Low beam right Low beam right The right-hand low-beam headlamp is faulty
3
.
X Halogen headlamps: replace the bulb as soon as possible
(Y page 100).
X Bi-Xenon headlamps: consult a qualified specialist workshop
as soon as possible. 0049
Cornering lt. left Cornering lt. left The left-hand cornering light is faulty
3
.
X Replace the bulb as soon as possible (Y page 100).0049
Cornering Cornering
lt.
lt.right
right The right-hand cornering light is faulty
3
.
X Replace the bulb as soon as possible (Y page 100).0049
Lights on auto‐ Lights on auto‐
matic. Remove key matic. Remove key The automatic headlamp feature is active: the light switch is in the
0058 position and you have forgotten to remove the key.
X Remove the key from the ignition lock. 0049
Turn signal left Turn signal left The left-hand turn signal is faulty.
X Change the bulb as soon as possible in the front (Y page 102) or
rear (Y page 103) indicator lamp. 0049
Turn signal right Turn signal right The right-hand turn signal is faulty.
X Change the bulb as soon as possible in the front (Y page 102) or
rear (Y page 103) indicator lamp. 0049
Brake lamp left Brake lamp left The left brake lamp is faulty
3
.
X Replace the bulb as soon as possible (Y page 103).0049
Brake lamp right Brake lamp right The right brake lamp is faulty
3
.
X Replace the bulb as soon as possible (Y page 103).3
Depending on the equipment, the bulb-failure indicator may not be featured for any lamps other than the turn
signals. 208
Display messagesOn-board computer and displays
