Useful information

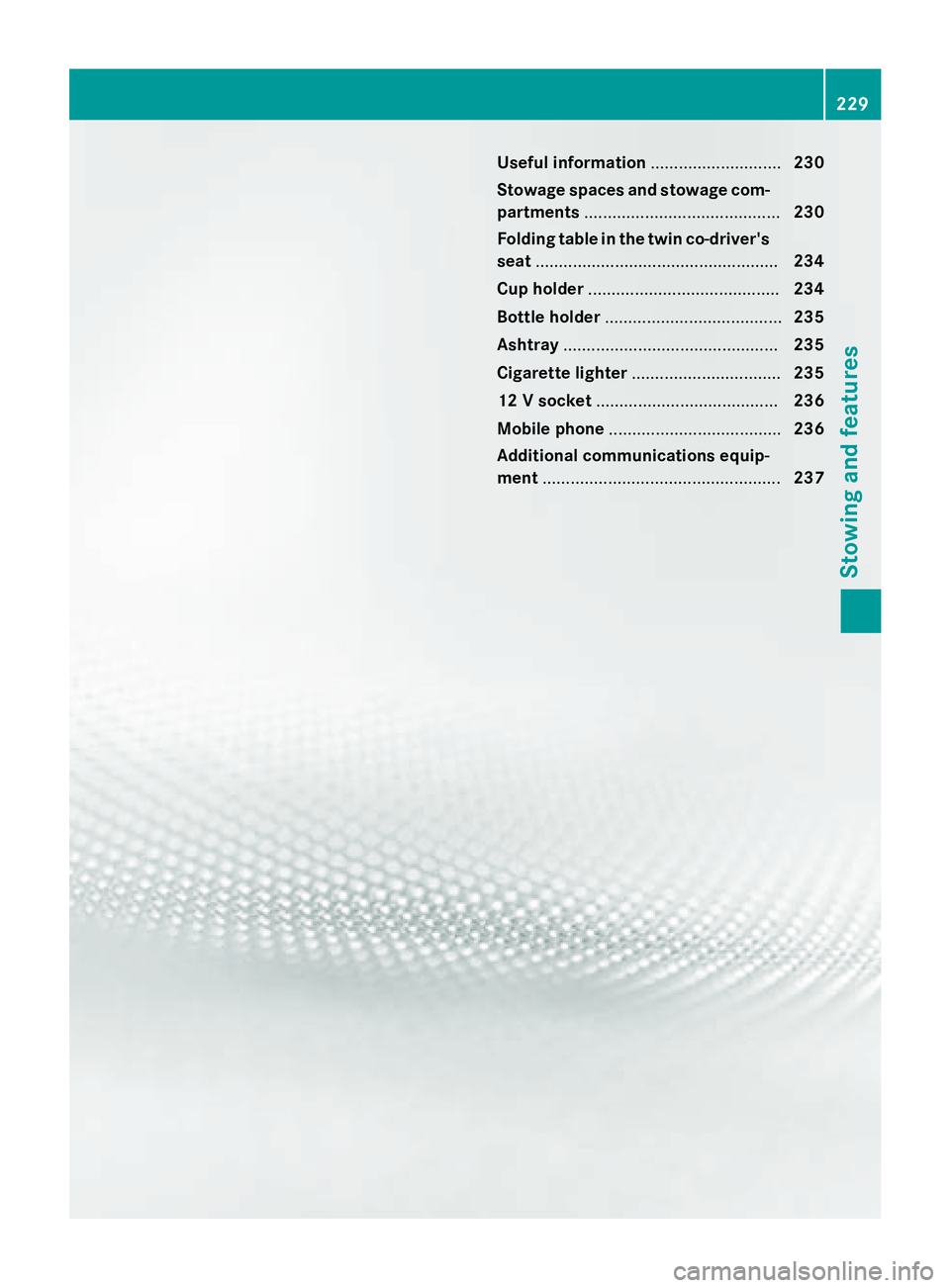

............................230
Stowage spaces and stowage com- partments .......................................... 230
Folding table in the twin co-driver's seat .................................................... 234
Cup holder ......................................... 234
Bottle holder ...................................... 235
Ashtray .............................................. 235
Cigarette lighter ................................ 235
12 V socket ....................................... 236
Mobile phone ..................................... 236
Additional communications equip-
ment ................................................... 237 229Stowing and features

Useful information
This Operator's Manual describes all models
as well as standard and optional equipment of your vehicle that were available at the time of going to print. Country-specific variations are
possible. Note that your vehicle may not be
equipped with all of the described functions.
This also applies to systems and functions
relevant to safety.
Read the information on qualified specialist
workshops (Y page 25). Stowage spaces and stowage com-
partments
Important safety notes
G
WARNING
If you do not correctly store objects in the
vehicle interior, they can slip or be flung
around, thus striking vehicle occupants.
There is a risk of injury, especially when brak- ing or abruptly changing directions.
R Always store objects so that they cannot be
flung around in these or in similar situa-
tions.
R Always make sure that objects do not pro-
trude from stowage compartments, parcel
nets or stowage nets.
R Close lockable stowage compartments
while driving.
R Stow and secure objects that are heavy,
hard, pointy, sharp-edged, fragile or too
large in the trunk.
In addition, observe the information in the

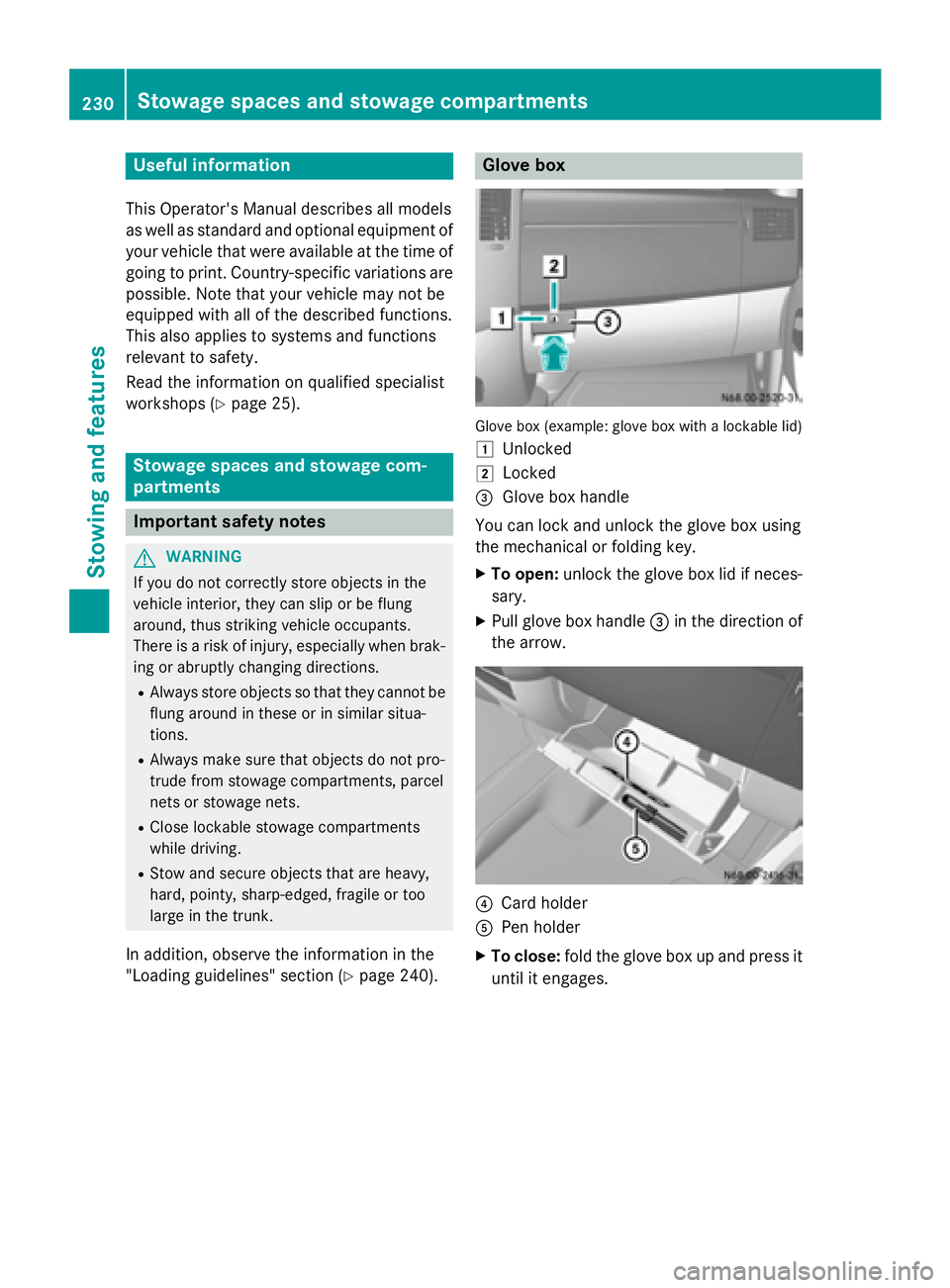

"Loading guidelines" section (Y page 240). Glove box
Glove box (example: glove box with a lockable lid)
0047 Unlocked
0048 Locked
0087 Glove box handle
You can lock and unlock the glove box using
the mechanical or folding key.
X To open: unlock the glove box lid if neces-
sary.
X Pull glove box handle 0087in the direction of
the arrow. 0085
Card holder
0083 Pen holder
X To close: fold the glove box up and press it
until it engages. 230
Stowage spaces and stowage compartmentsStowing and features

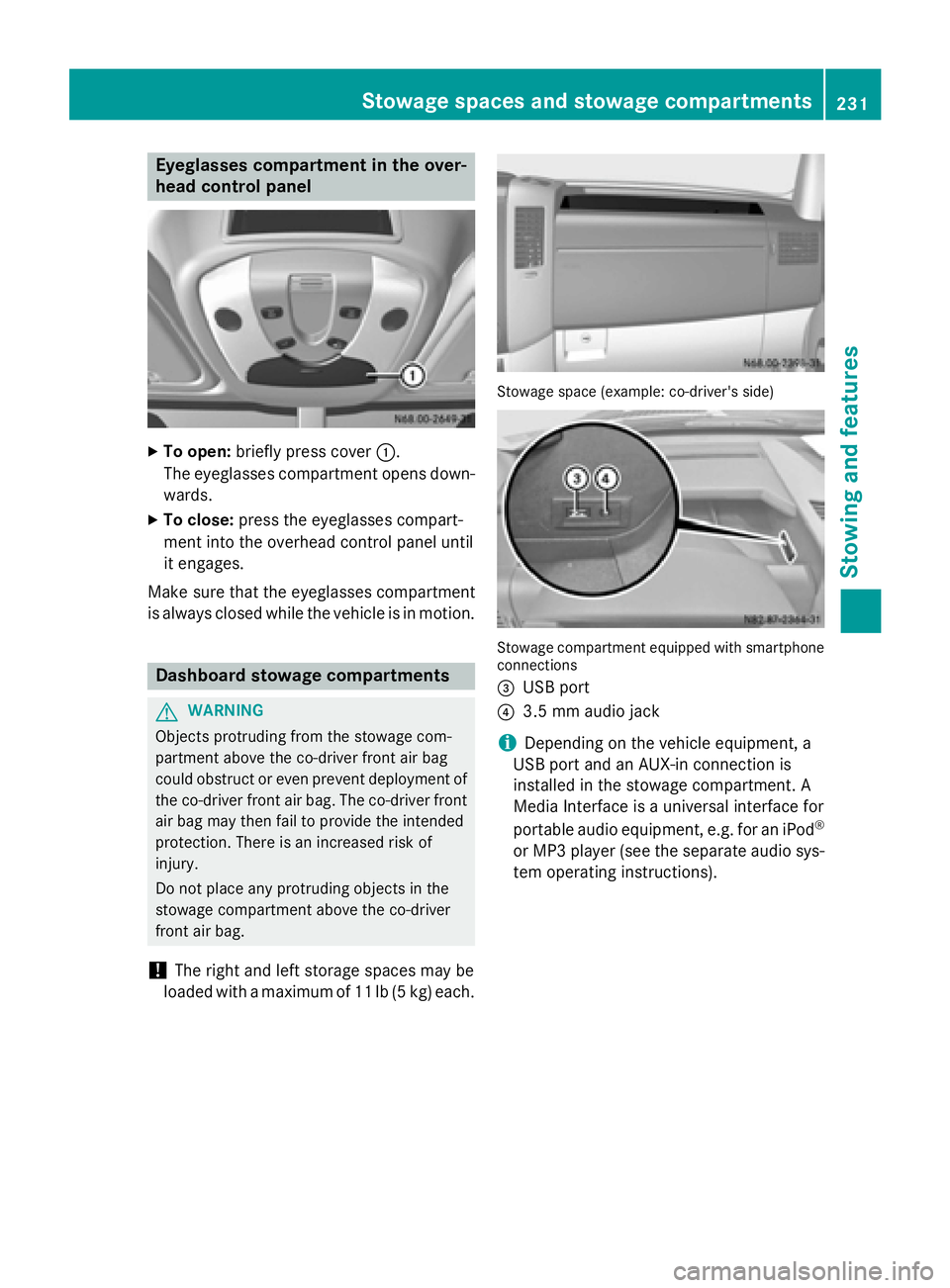

Eyeglasses compartment in the over-
head control panel X
To open: briefly press cover 0043.
The eyeglasses compartment opens down- wards.
X To close: press the eyeglasses compart-
ment into the overhead control panel until
it engages.
Make sure that the eyeglasses compartment
is always closed while the vehicle is in motion. Dashboard stowage compartments
G
WARNING
Objects protruding from the stowage com-
partment above the co-driver front air bag
could obstruct or even prevent deployment of the co-driver front air bag. The co-driver front air bag may then fail to provide the intended
protection. There is an increased risk of
injury.
Do not place any protruding objects in the
stowage compartment above the co-driver
front air bag.
! The right and left storage spaces may be
loaded with a maximum of 11 lb (5 kg) each. Stowage space (example: co-driver's side)
Stowage compartment equipped with smartphone
connections
0087 USB port
0085 3.5 mm audio jack
i Depending on the vehicle equipment, a
USB port and an AUX-in connection is
installed in the stowage compartment. A
Media Interface is a universal interface for
portable audio equipment, e.g. for an iPod ®
or MP3 player (see the separate audio sys-
tem operating instructions). Stowage spaces and stowage compartments
231Stowing and features Z

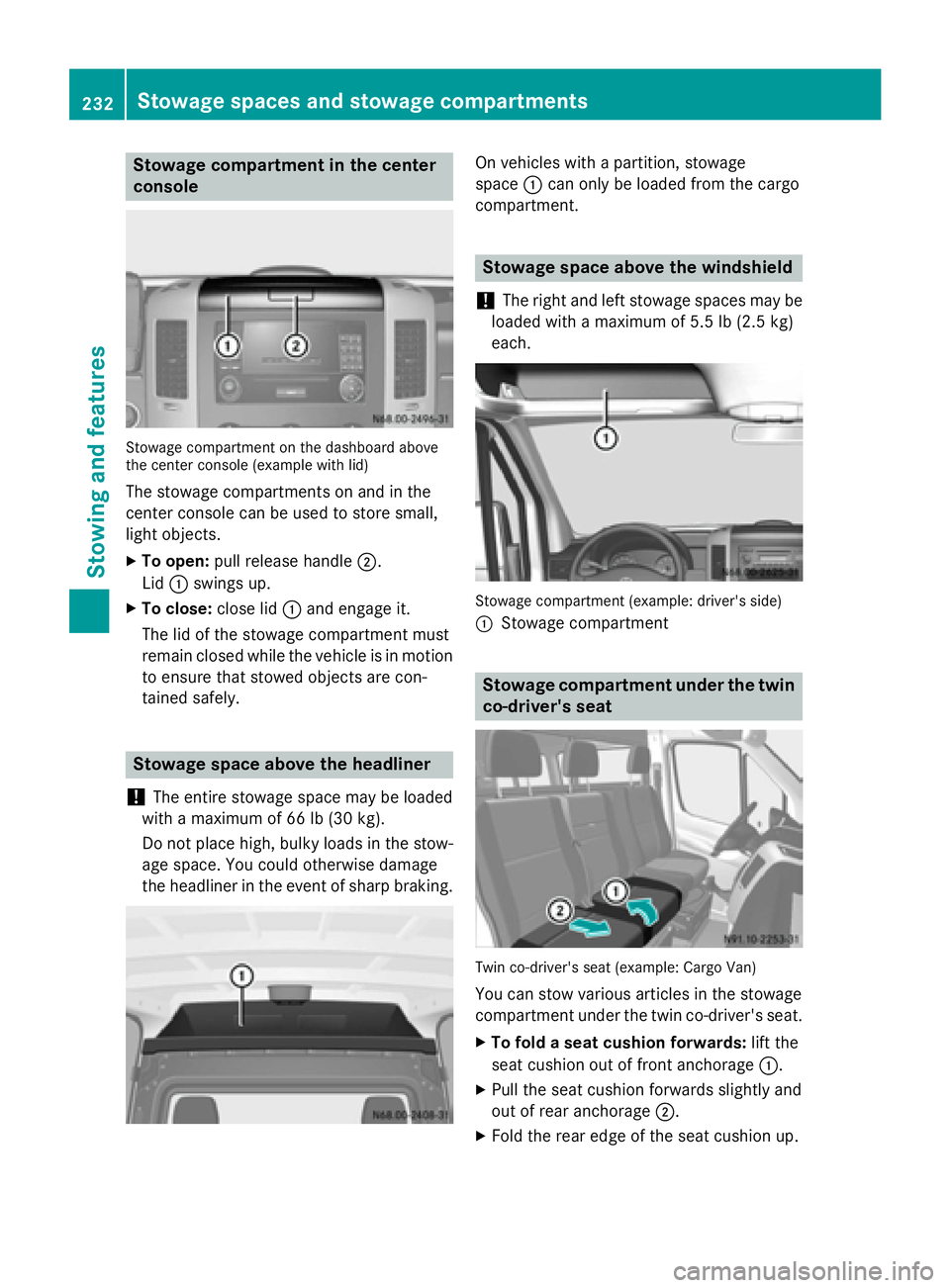

Stowage compartment in the center
console Stowage compartment on the dashboard above
the center console (example with lid)
The stowage compartments on and in the
center console can be used to store small,
light objects.
X To open: pull release handle 0044.
Lid 0043swings up.
X To close: close lid0043and engage it.
The lid of the stowage compartment must
remain closed while the vehicle is in motion
to ensure that stowed objects are con-
tained safely. Stowage space above the headliner
! The entire stowage space may be loaded
with a maximum of 66 lb (30 kg).
Do not place high, bulky loads in the stow- age space. You could otherwise damage
the headliner in the event of sharp braking. On vehicles with a partition, stowage
space
0043can only be loaded from the cargo
compartment. Stowage space above the windshield
! The right and left stowage spaces may be
loaded with a maximum of 5.5 lb (2.5 kg)
each. Stowage compartment (example: driver's side)
0043
Stowage compartment Stowage compartment under the twin
co-driver's seat Twin co-driver's seat (example: Cargo Van)
You can stow various articles in the stowage
compartment under the twin co-driver's seat.
X To fold a seat cushion forwards: lift the
seat cushion out of front anchorage 0043.
X Pull the seat cushion forwards slightly and
out of rear anchorage 0044.
X Fold the rear edge of the seat cushion up. 232
Stowage spaces and stowage compartmentsStowing and features

X
To fold the seat cushion back: fold down
the seat cushion by the rear edge.
X Slide the seat cushion under the seat back-
rest into rear anchorage 0044.
X Push down on the seat cushion at the front
until it engages in front anchorage 0043.Stowage compartment under the rear
bench seat G
WARNING
Always secure the folded-up seat cushion
with the retainer loop. The seat cushion could otherwise drop down unexpectedly and
thereby cause injury to yourself or others. G
WARNING
When folding down the seat cushion, make
sure that nobody can become trapped.
! The retainer loop is neither a grab handle
for people to use nor a securing point for
loads. It may tear if used incorrectly. For vehicles with a crewcab, you can use the
stowage compartment under the rear bench
seat to safely store tools and other small

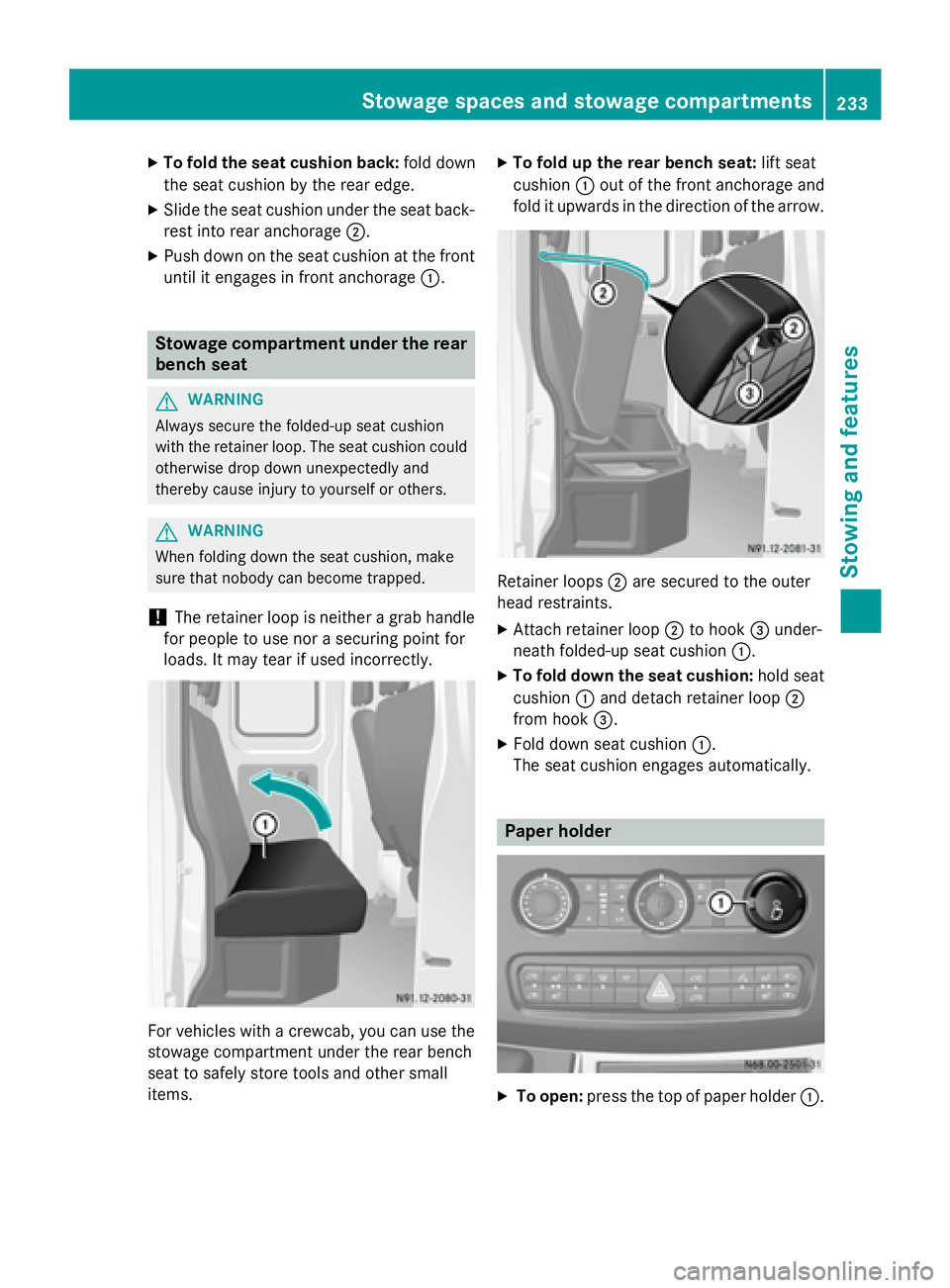

items. X
To fold up the rear bench seat: lift seat
cushion 0043out of the front anchorage and
fold it upwards in the direction of the arrow. Retainer loops
0044are secured to the outer
head restraints.
X Attach retainer loop 0044to hook 0087under-
neath folded-up seat cushion 0043.
X To fold down the seat cushion: hold seat
cushion 0043and detach retainer loop 0044
from hook 0087.
X Fold down seat cushion 0043.
The seat cushion engages automatically. Paper holder
X
To open: press the top of paper holder 0043. Stowage spaces and stowage compartments
233Stowing an d features Z

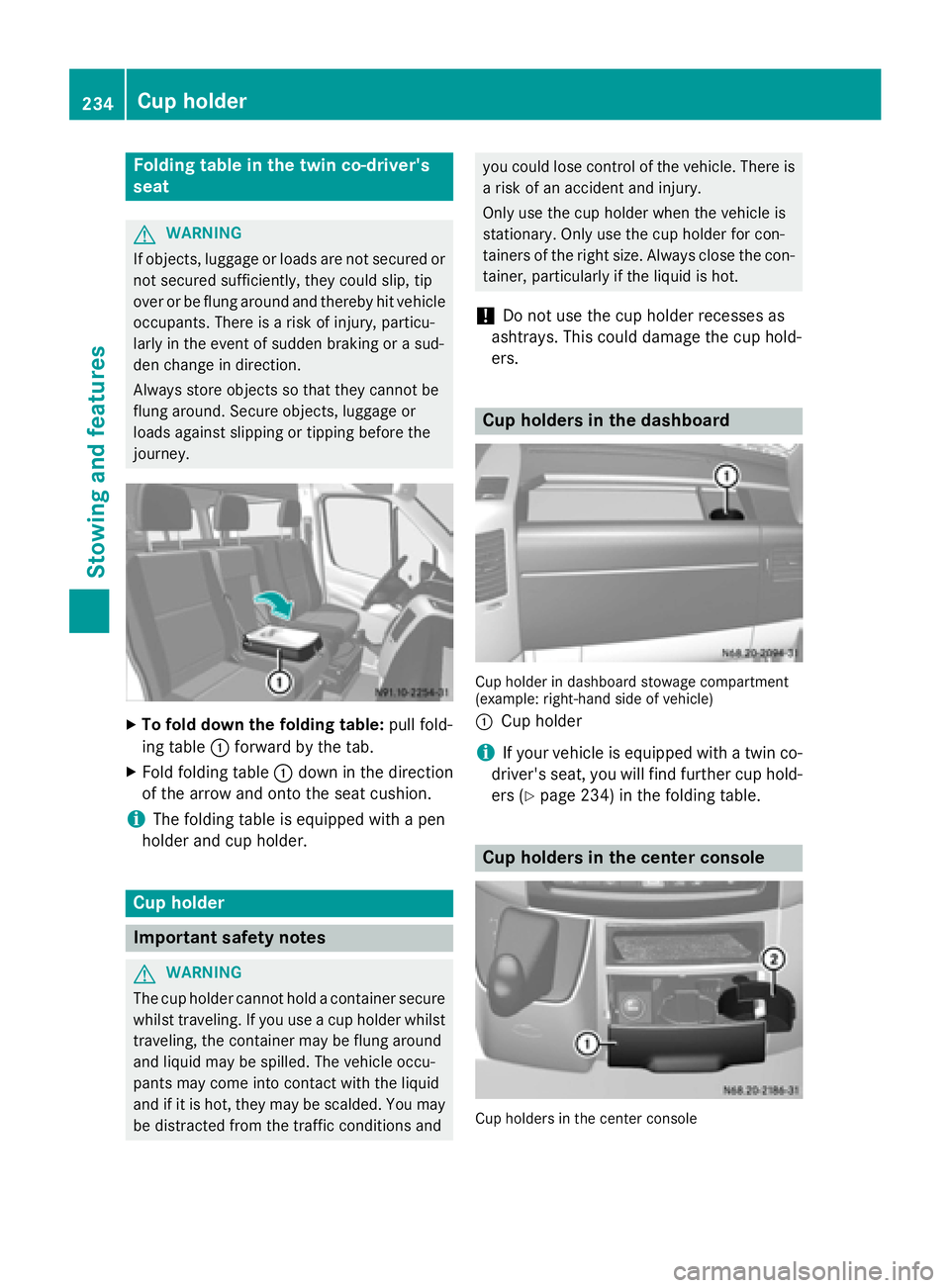

Folding table in the twin co-driver's
seat G
WARNING
If objects, luggage or loads are not secured or not secured sufficiently, they could slip, tip
over or be flung around and thereby hit vehicle
occupants. There is a risk of injury, particu-
larly in the event of sudden braking or a sud-
den change in direction.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping before the
journey. X
To fold down the folding table: pull fold-
ing table 0043forward by the tab.
X Fold folding table 0043down in the direction
of the arrow and onto the seat cushion.
i The folding table is equipped with a pen
holder and cup holder. Cup holder
Important safety notes
G
WARNING
The cup holder cannot hold a container secure whilst traveling. If you use a cup holder whilsttraveling, the container may be flung around
and liquid may be spilled. The vehicle occu-
pants may come into contact with the liquid
and if it is hot, they may be scalded. You may
be distracted from the traffic conditions and you could lose control of the vehicle. There is
a risk of an accident and injury.
Only use the cup holder when the vehicle is
stationary. Only use the cup holder for con-
tainers of the right size. Always close the con-
tainer, particularly if the liquid is hot.
! Do not use the cup holder recesses as
ashtrays. This could damage the cup hold-
ers. Cup holders in the dashboard
Cup holder in dashboard stowage compartment
(example: right-hand side of vehicle)
0043 Cup holder
i If your vehicle is equipped with a twin co-
driver's seat, you will find further cup hold-
ers (Y page 234) in the folding table. Cup holders in the center console
Cup holders in the center console234
Cup holderStowing and featu
res

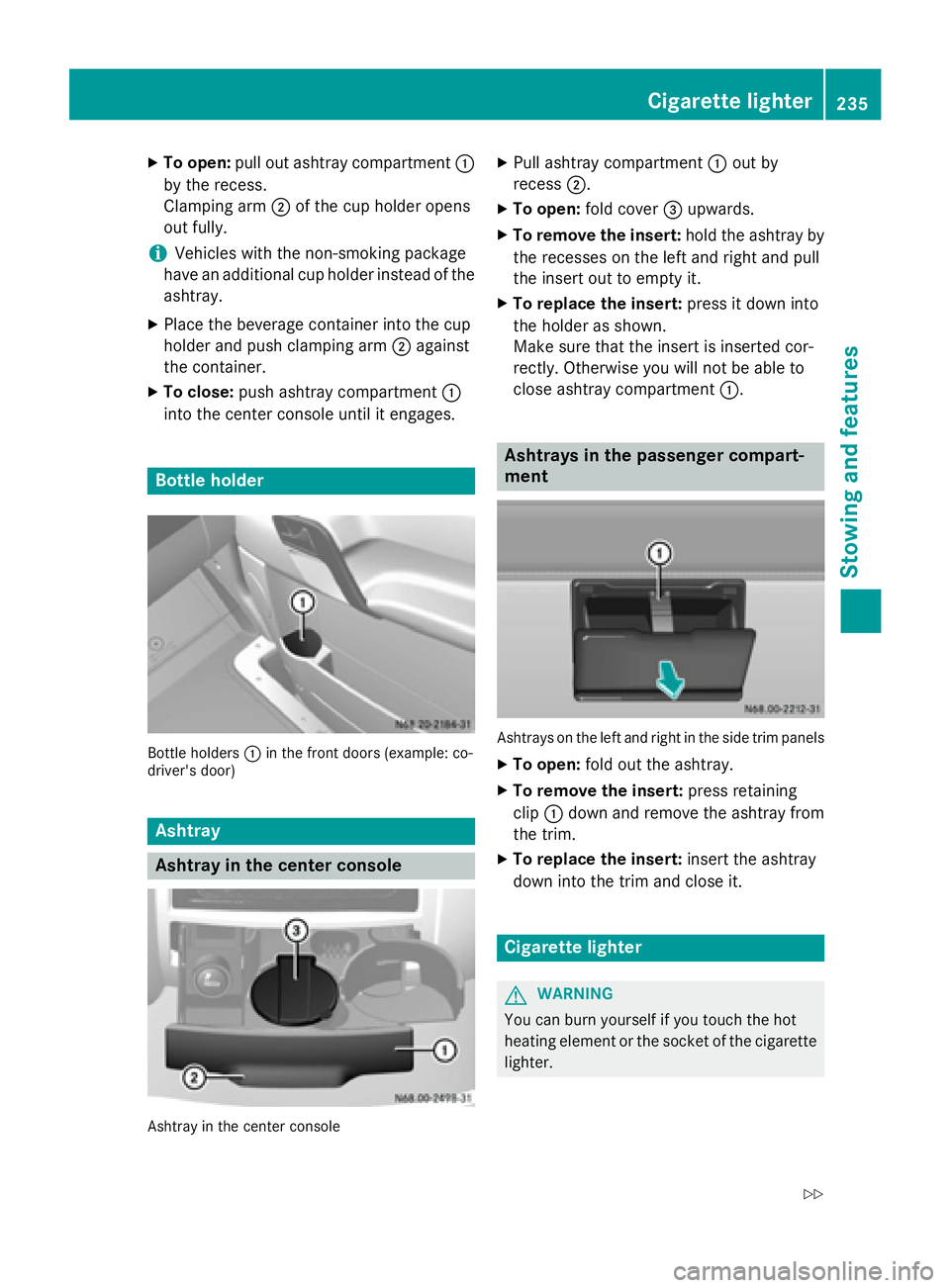

X
To open: pull out ashtray compartment 0043
by the recess.
Clamping arm 0044of the cup holder opens
out fully.
i Vehicles with the non-smoking package
have an additional cup holder instead of the ashtray.
X Place the beverage container into the cup
holder and push clamping arm 0044against
the container.
X To close: push ashtray compartment 0043
into the center console until it engages. Bottle holder
Bottle holders
0043in the front doors (example: co-
driver's door) Ashtray
Ashtray in the center console
Ashtray in the center console X
Pull ashtray compartment 0043out by
recess 0044.
X To open: fold cover 0087upwards.
X To remove the insert: hold the ashtray by
the recesses on the left and right and pull
the insert out to empty it.
X To replace the insert: press it down into
the holder as shown.
Make sure that the insert is inserted cor-
rectly. Otherwise you will not be able to
close ashtray compartment 0043. Ashtrays in the passenger compart-
ment
Ashtrays on the left and right in the side trim panels
X To open: fold out the ashtray.
X To remove the insert: press retaining
clip 0043down and remove the ashtray from
the trim.
X To replace the insert: insert the ashtray
down into the trim and close it. Cigarette lighter
G
WARNING
You can burn yourself if you touch the hot
heating element or the socket of the cigarette lighter. Cigarette lighter
235Stowing an d features
Z

In addition, flammable materials can ignite if:
R the hot cigarette lighter falls
R a child holds the hot cigarette lighter to
objects, for example
There is a risk of fire and injury.
Always hold the cigarette lighter by the knob.
Always make sure that the cigarette lighter is
out of reach of children. Never leave children unsupervised in the vehicle. X
To use the cigarette lighter: turn the key
to position 1in the ignition lock.
X Press in cigarette lighter 0043.
The cigarette lighter will pop out automati- cally when the heating element is red-hot.
X Pull the cigarette lighter out of the socket

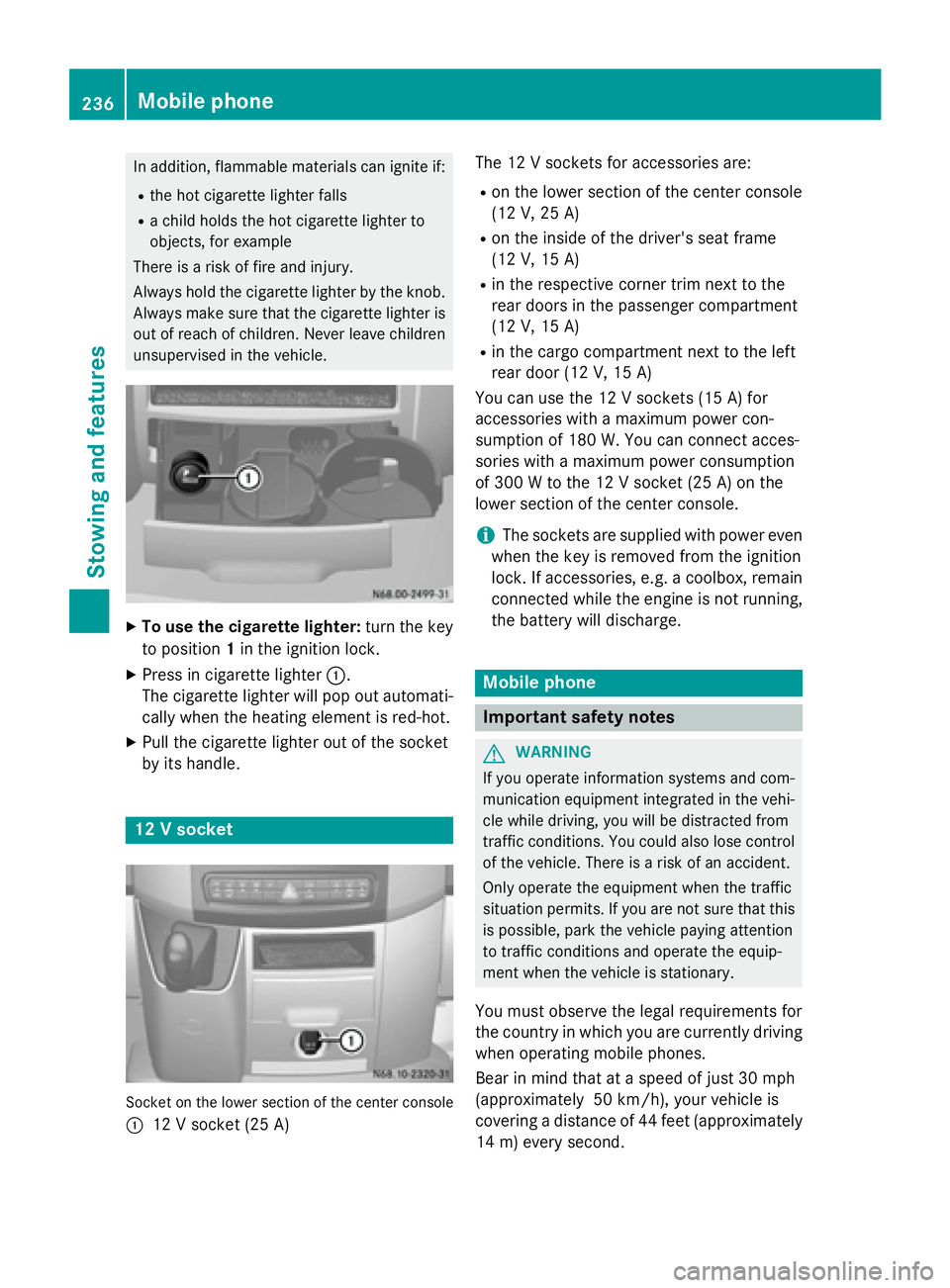

by its handle. 12 V socket
Socket on the lower section of the center console
0043 12 V socket (25 A) The 12 V sockets for accessories are:
R
on the lower section of the center console
(12 V, 25 A)
R on the inside of the driver's seat frame
(12 V, 15 A)
R in the respective corner trim next to the
rear doors in the passenger compartment
(12 V, 15 A)
R in the cargo compartment next to the left
rear door (12 V, 15 A)
You can use the 12 V sockets (15 A) for
accessories with a maximum power con-
sumption of 180 W. Youcan connect acces-
sories with a maximum power consumption
of 300 Wto the 12 V socket (25 A) on the
lower section of the center console.
i The sockets are supplied with power even
when the key is removed from the ignition
lock. If accessories, e.g. a coolbox, remain
connected while the engine is not running, the battery will discharge. Mobile phone
Important safety notes
G
WARNING
If you operate information systems and com-
munication equipment integrated in the vehi- cle while driving, you will be distracted from
traffic conditions. You could also lose control of the vehicle. There is a risk of an accident.
Only operate the equipment when the traffic
situation permits. If you are not sure that this
is possible, park the vehicle paying attention
to traffic conditions and operate the equip-
ment when the vehicle is stationary.
You must observe the legal requirements for
the country in which you are currently driving when operating mobile phones.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 fee t(approximately
14 m) every second. 236
Mobile phoneStowing and features

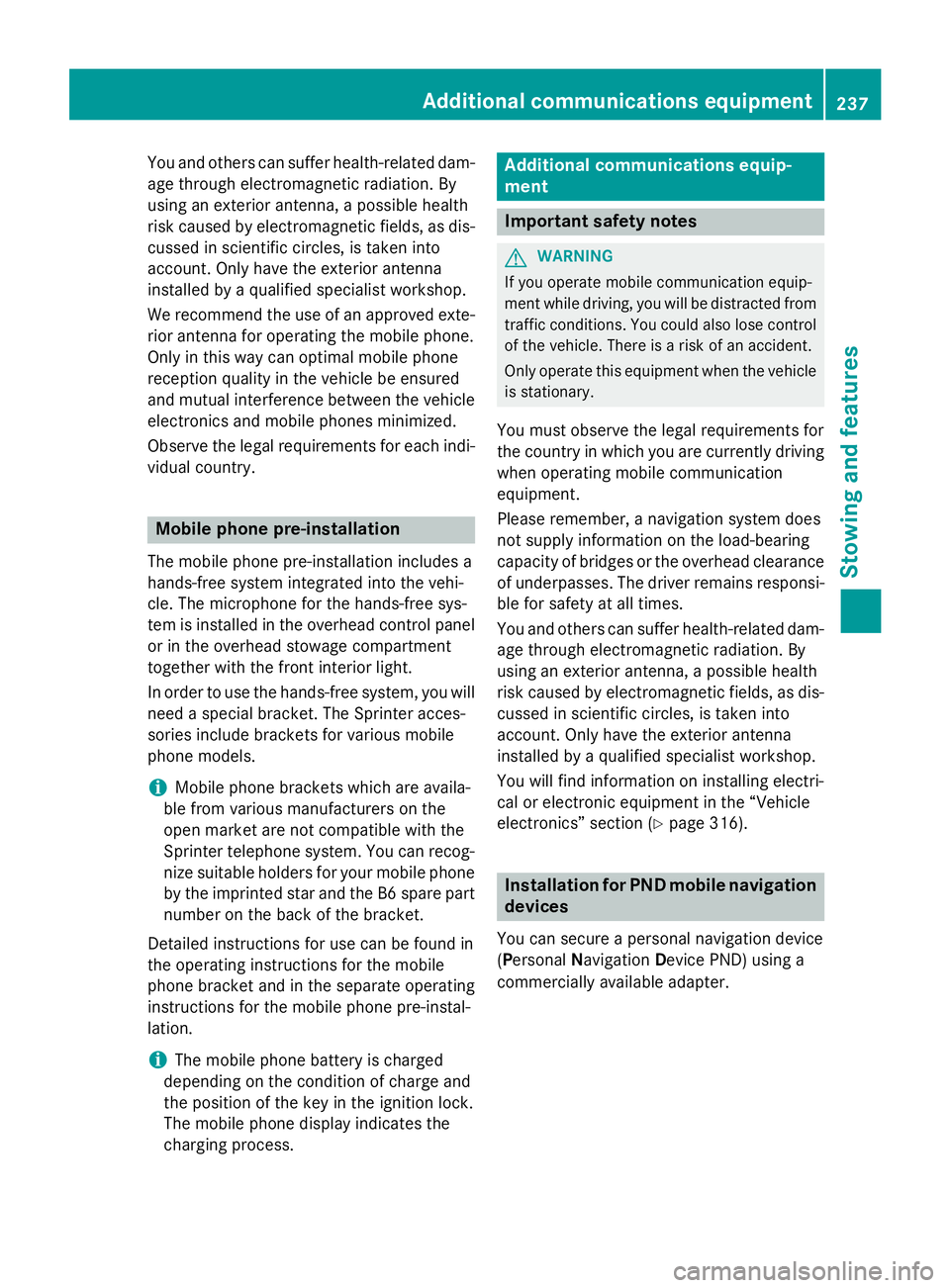

You and others can suffer health-related dam-
age through electromagnetic radiation. By
using an exterior antenna, a possible health
risk caused by electromagnetic fields, as dis-cussed in scientific circles, is taken into
account. Only have the exterior antenna
installed by a qualified specialist workshop.
We recommend the use of an approved exte-
rior antenna for operating the mobile phone.
Only in this way can optimal mobile phone
reception quality in the vehicle be ensured
and mutual interference between the vehicle
electronics and mobile phones minimized.
Observe the legal requirements for each indi- vidual country. Mobile phone pre-installation
The mobile phone pre-installation includes a
hands-free system integrated into the vehi-
cle. The microphone for the hands-free sys-
tem is installed in the overhead control panel or in the overhead stowage compartment
together with the front interior light.
In order to use the hands-free system, you will
need a special bracket. The Sprinter acces-
sories include brackets for various mobile
phone models.
i Mobile phone brackets which are availa-
ble from various manufacturers on the
open market are not compatible with the
Sprinter telephone system. You can recog- nize suitable holders for your mobile phoneby the imprinted star and the B6 spare part
number on the back of the bracket.
Detailed instructions for use can be found in
the operating instructions for the mobile
phone bracket and in the separate operating
instructions for the mobile phone pre-instal-
lation.
i The mobile phone battery is charged
depending on the condition of charge and
the position of the key in the ignition lock.
The mobile phone display indicates the
charging process. Additional communications equip-
ment
Important safety notes
G
WARNING
If you operate mobile communication equip-
ment while driving, you will be distracted from traffic conditions. You could also lose controlof the vehicle. There is a risk of an accident.
Only operate this equipment when the vehicleis stationary.
You must observe the legal requirements for
the country in which you are currently driving when operating mobile communication
equipment.
Please remember, a navigation system does
not supply information on the load-bearing
capacity of bridges or the overhead clearance
of underpasses. The driver remains responsi- ble for safety at all times.
You and others can suffer health-related dam-
age through electromagnetic radiation. By
using an exterior antenna, a possible health
risk caused by electromagnetic fields, as dis- cussed in scientific circles, is taken into
account. Only have the exterior antenna
installed by a qualified specialist workshop.
You will find information on installing electri-
cal or electronic equipment in the “Vehicle
electronics” section (Y page 316). Installation for PND mobile navigation
devices
You can secure a personal navigation device
(Personal Navigation Device PND) using a
commercially available adapter. Additional communications equipment
237Stowing and features Z

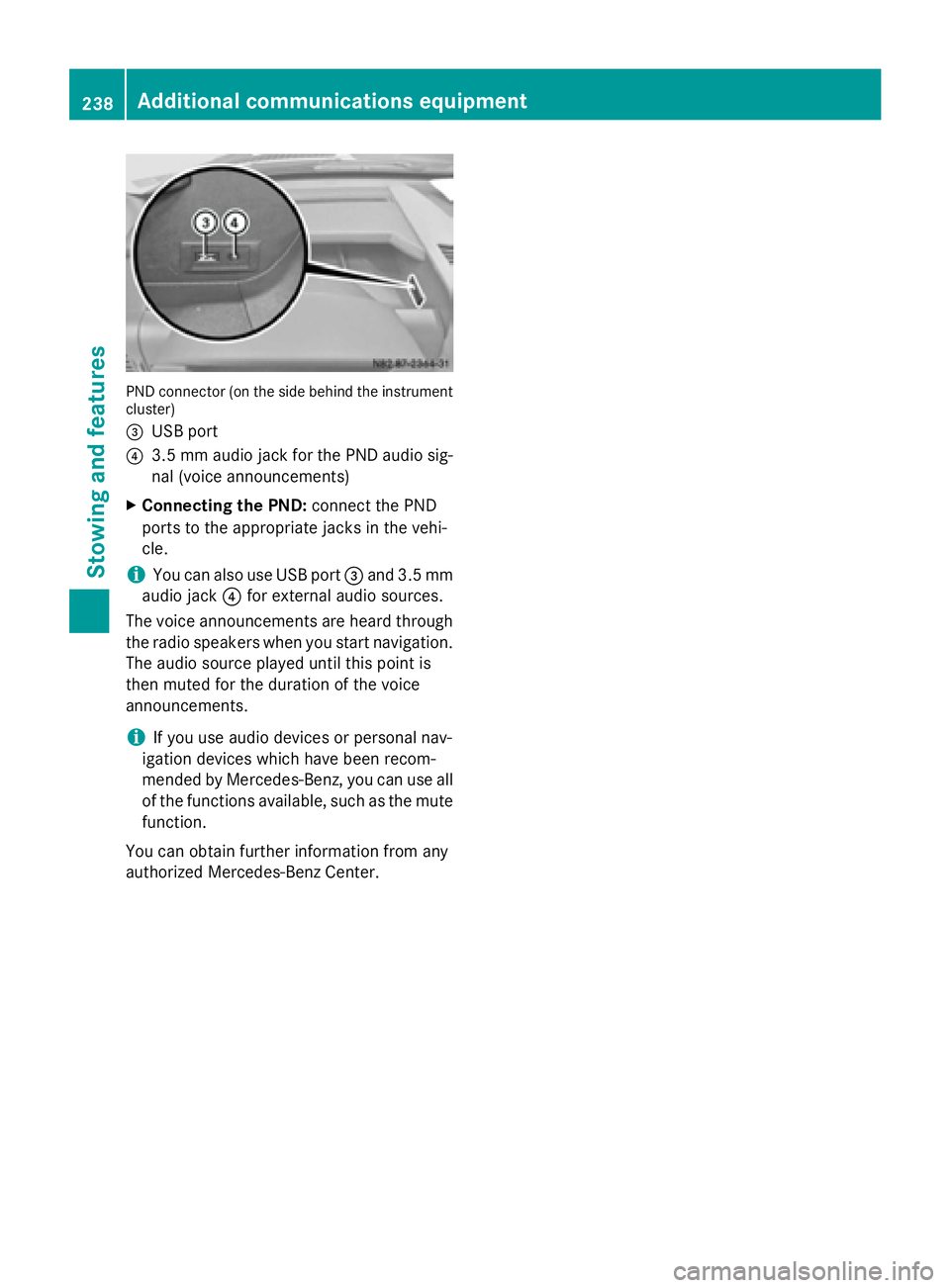

PND connector (on the side behind the instrument
cluster)
0087 USB port
0085 3.5 mm audio jack for the PND audio sig-
nal (voice announcements)
X Connecting the PND: connect the PND
ports to the appropriate jacks in the vehi-
cle.
i You can also use USB port
0087and 3.5 mm
audio jack 0085for external audio sources.
The voice announcements are heard through the radio speakers when you start navigation.The audio source played until this point is
then muted for the duration of the voice
announcements.
i If you use audio devices or personal nav-
igation devices which have been recom-
mended by Mercedes-Benz, you can use all of the functions available, such as the mute
function.
You can obtain further information from any
authorized Mercedes-Benz Center. 238
Additional communications equipmentStowing and features
